Description
Description

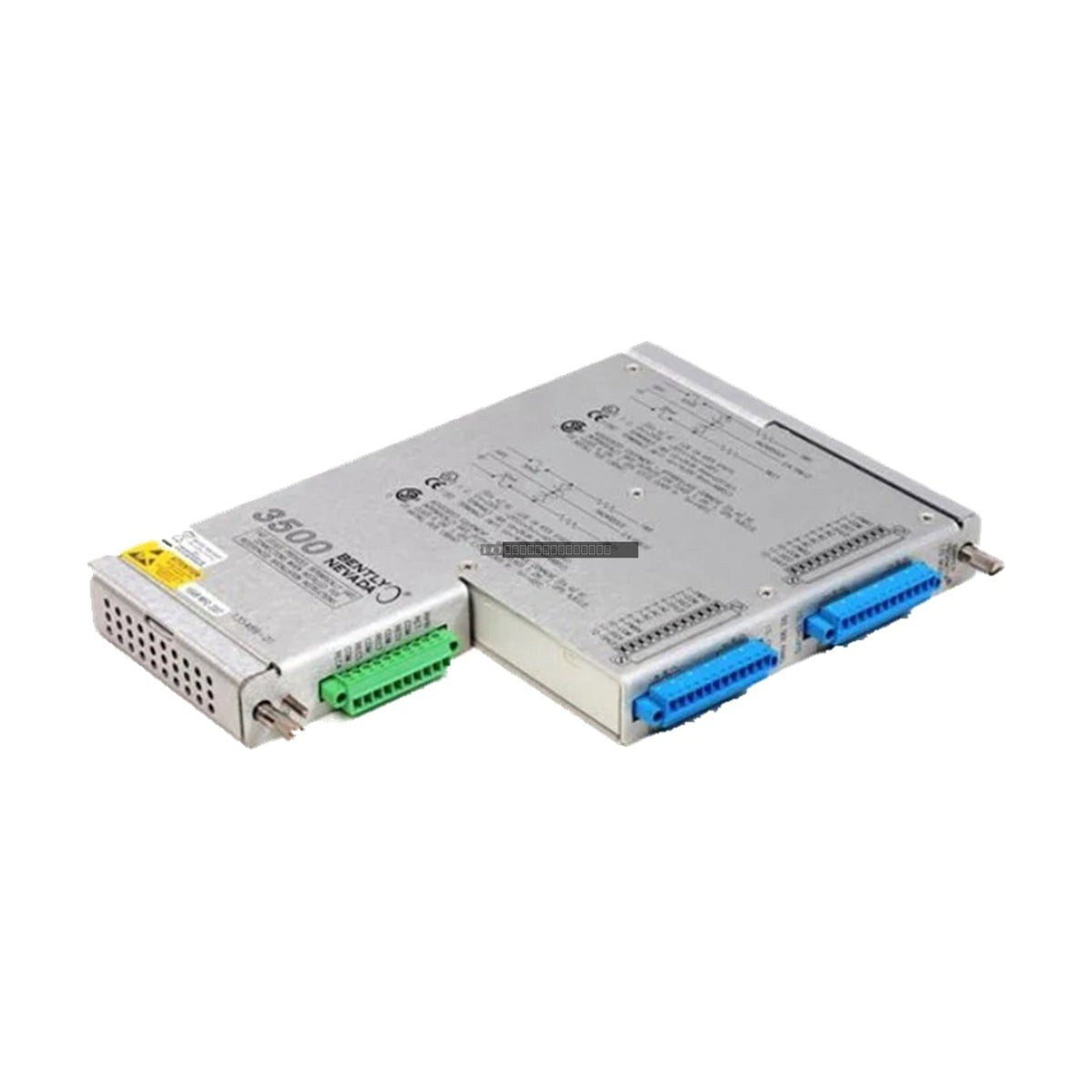

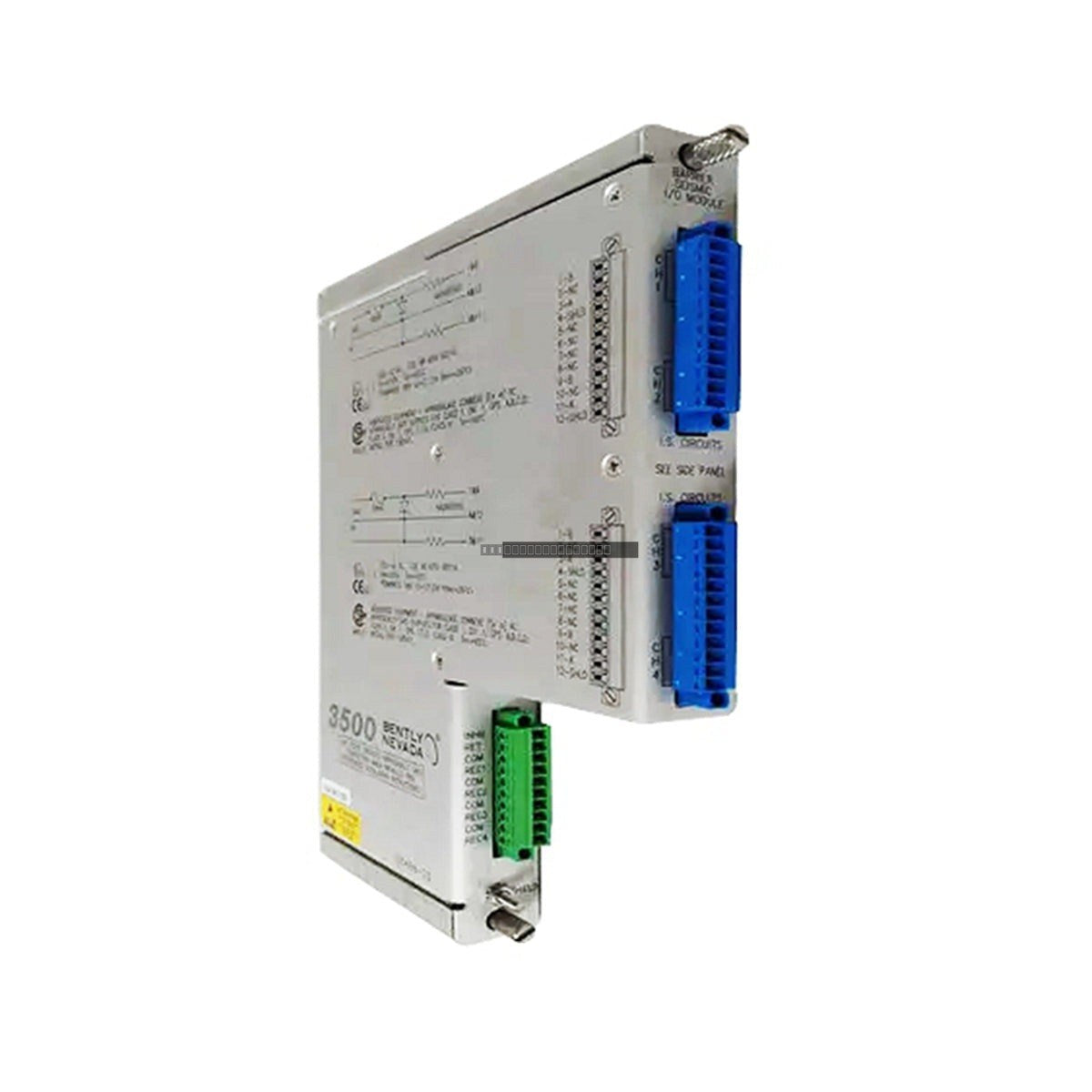

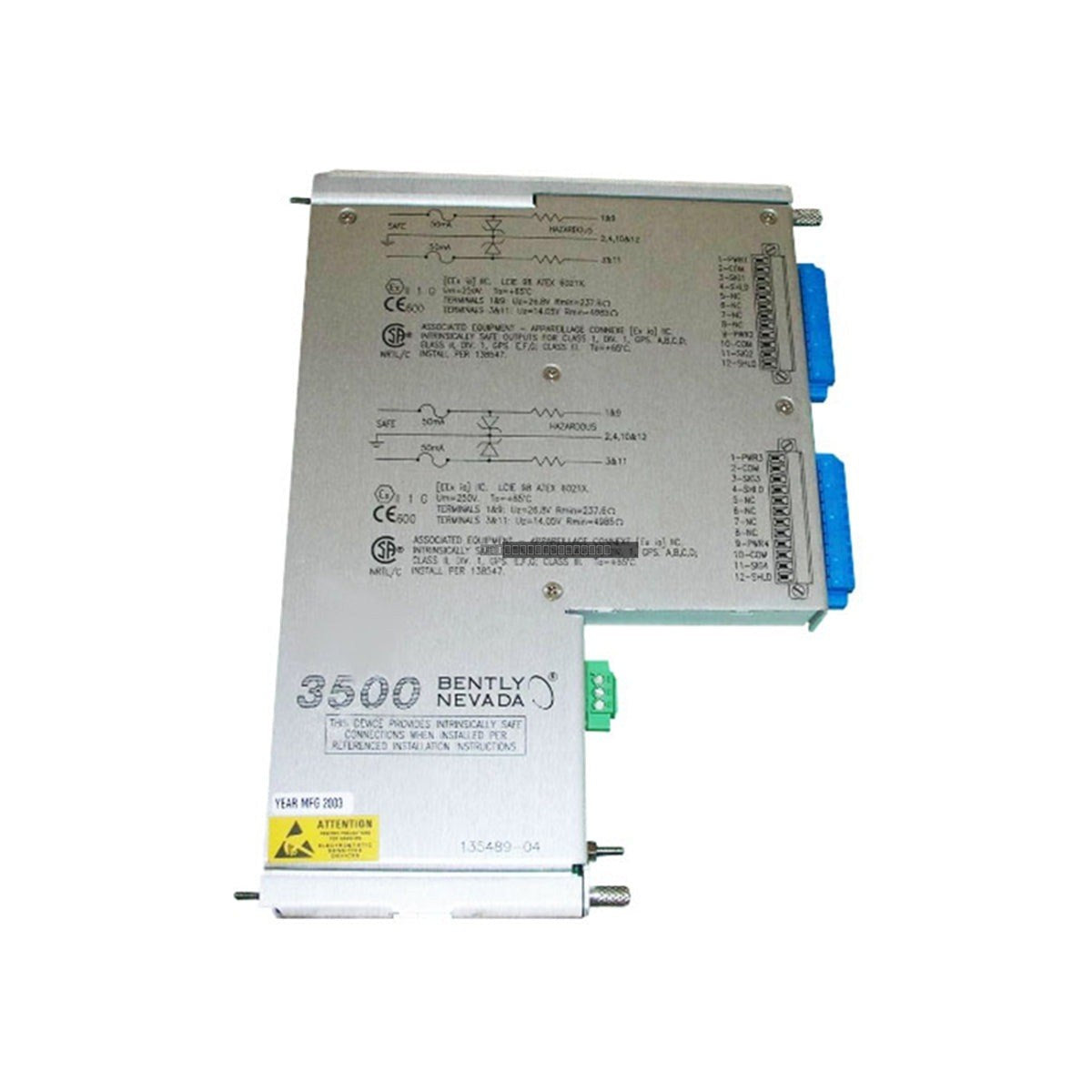

The Bently Nevada 149716-01 is a specialized I/O module engineered for the 3500/40 Proximitor Monitor system. This module is specifically configured for Triple Modular Redundant (TMR) applications, providing a robust interface for proximity transducer signals. It is an essential component for machinery protection systems where high availability and fault tolerance are required to monitor rotating assets such as large turbines, pumps, and compressors.
Features
- Designed for integration with the Bently Nevada 3500 Series machinery protection rack.
- Supports TMR (Triple Modular Redundant) architecture to ensure continuous monitoring and system integrity.
- Facilitates precise signal conditioning for proximity probe inputs to track vibration and shaft position.
- Enhanced diagnostic capabilities to minimize false trips and improve operational uptime.
- Engineered for deployment in harsh industrial settings including power generation and petrochemical facilities.
Applications
This I/O module is deployed in critical infrastructure environments where monitoring of shaft vibration, axial position, and speed is mandatory. It is typically utilized in:
- Steam and gas turbine protection systems.
- Large-scale centrifugal compressor monitoring.
- Hydraulic and industrial pump vibration analysis.
- Critical rotating equipment in power plants and refineries.
Technical Specifications
| Model |
149716-01 |
| Series |
3500/40 |
| Module Type |
TMR Proximitor I/O |
| Operating Temperature |
-40 to +85 deg C |
| Power Requirements |
24 VDC (via 3500 rack backplane) |
| Compatibility |
Bently Nevada 3500 Rack System |
Installation Guidelines
- Ensure the 3500 rack is powered down before inserting or removing any I/O module to prevent electrical damage or system faults.
- The module should be seated firmly into the designated rack slot to ensure proper backplane connection.
- Verify that all field wiring is properly shielded and routed away from high-voltage cables to mitigate electromagnetic interference (EMI).
- Maintain proper ventilation within the cabinet to stay within the specified operating temperature range.
- Always follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.
FAQ
Is this module compatible with non-TMR 3500 systems?
The 149716-01 is specifically designed for TMR configurations. Please consult your 3500 system documentation to ensure your monitor and backplane configuration support TMR operation.
What is the primary function of this I/O module?
This module acts as the interface between the field-mounted proximity probes and the 3500/40 monitor, providing the necessary signal conditioning and routing for vibration and position data.
