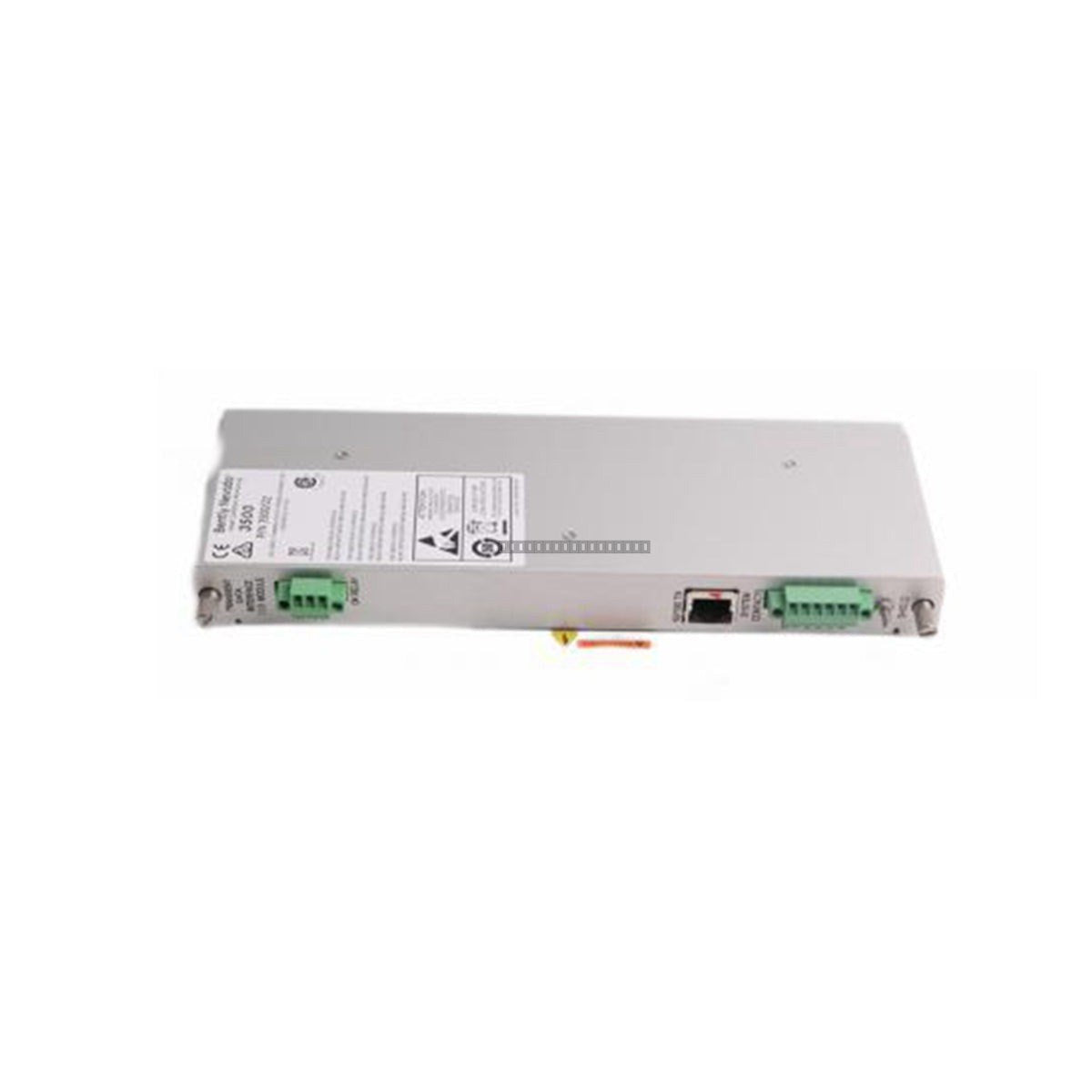

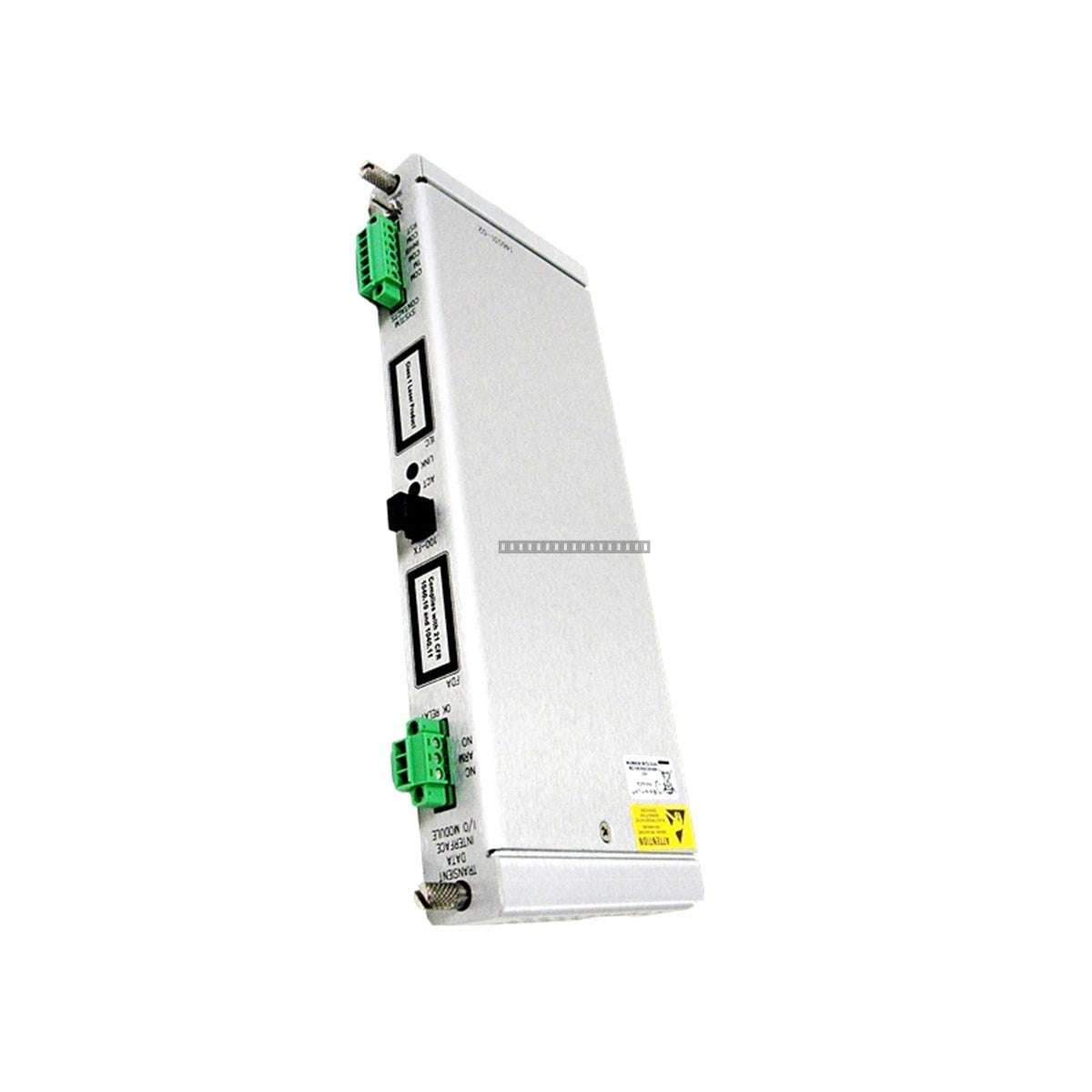

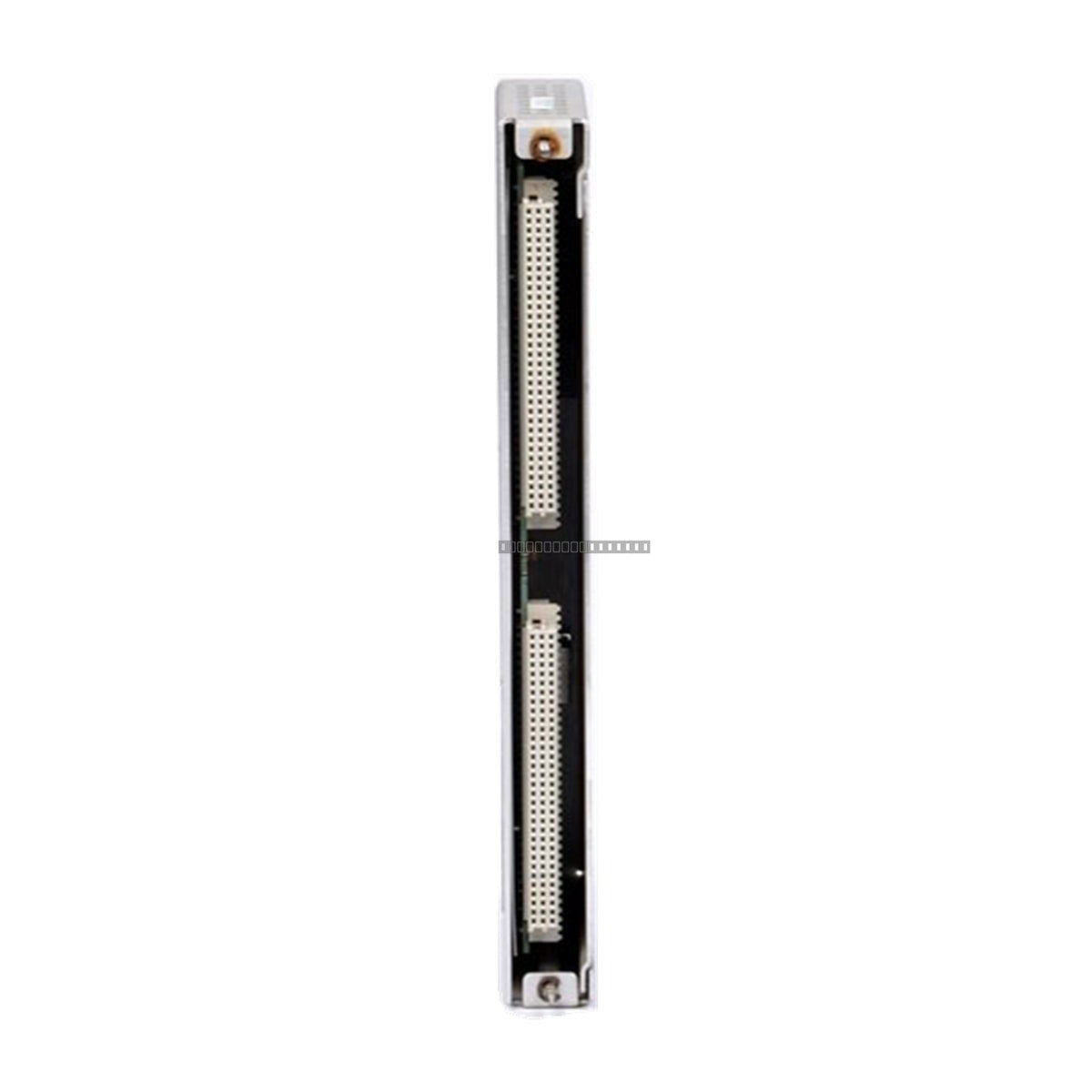

The Bently Nevada 3500/42M 138700-01 Shaft Absolute I/O Module is a critical component of the 3500 Machinery Protection System. This module is specifically engineered to interface with shaft absolute transducers, providing precise measurement of shaft position and vibration relative to the machine casing. By integrating seamlessly into the 3500 rack architecture, it delivers high-reliability signal processing essential for the continuous monitoring of rotating machinery, such as steam turbines, gas turbines, and large centrifugal compressors.
Features
- Dual-channel input processing for shaft absolute measurements.
- Seamless integration with the Bently Nevada 3500 rack-based monitoring system.
- Supports both static and dynamic signal analysis for comprehensive machinery health assessment.
- Internal self-diagnostics to ensure system integrity and fault detection.
- Robust design for operation in demanding industrial environments.
Applications
This I/O module is primarily deployed in critical rotating equipment protection applications. It is used to monitor shaft displacement and vibration in turbines, generators, and compressors, enabling predictive maintenance and preventing catastrophic mechanical failure by providing real-time data to the protection system.
Technical Specifications
| Model |
138700-01 |
| Series |
3500/42M |
| Channels |
Dual-channel |
| Operating Temperature |
-40 to +85 deg C |
| Power Supply |
24 VDC nominal (via rack) |
| Mounting |
3500 Rack-mounted |
Installation Guidelines
- Ensure the 3500 rack is powered down before inserting or removing the I/O module to prevent electrical damage.
- Verify the module is fully seated and the front panel screws are tightened to ensure proper grounding and mechanical stability.
- Use appropriate shielded cabling for transducer inputs to minimize electromagnetic interference (EMI) and signal noise.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.
- Ensure the module is installed in an environment within the specified temperature range of -40 to +85 deg C.
FAQ
What is the primary function of the 138700-01 module?
The 138700-01 is an I/O module for the 3500/42M monitor, designed to process signals from shaft absolute transducers to measure shaft position and vibration in critical rotating machinery.
Is this module compatible with other 3500 series components?
Yes, this module is designed specifically for the Bently Nevada 3500 rack system and integrates with the corresponding 3500/42M monitor module.
What power source does the module require?
The module operates on 24 VDC, which is provided directly through the 3500 rack backplane power supply.
