Description

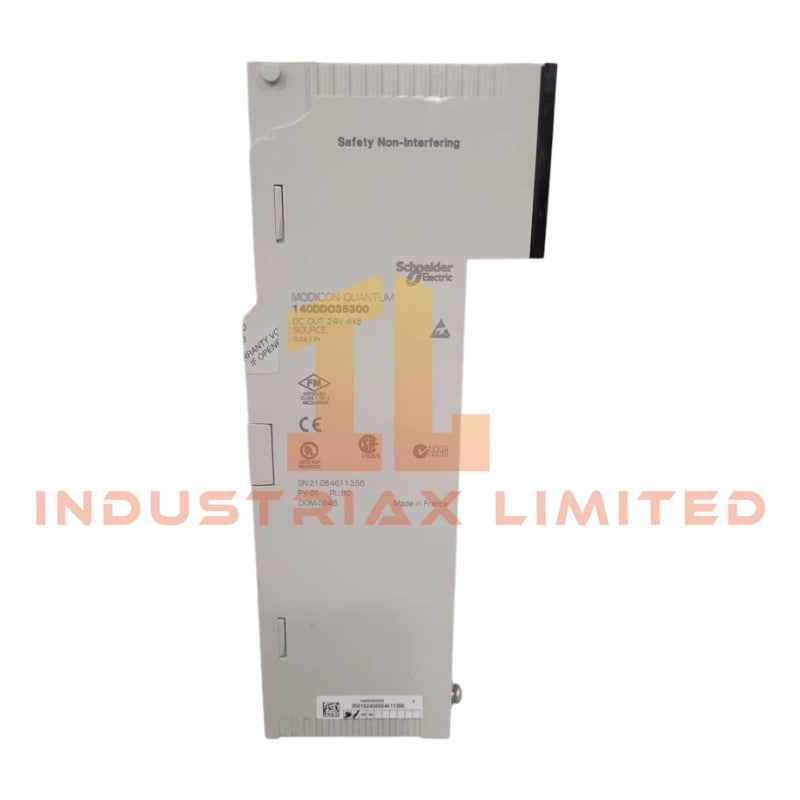

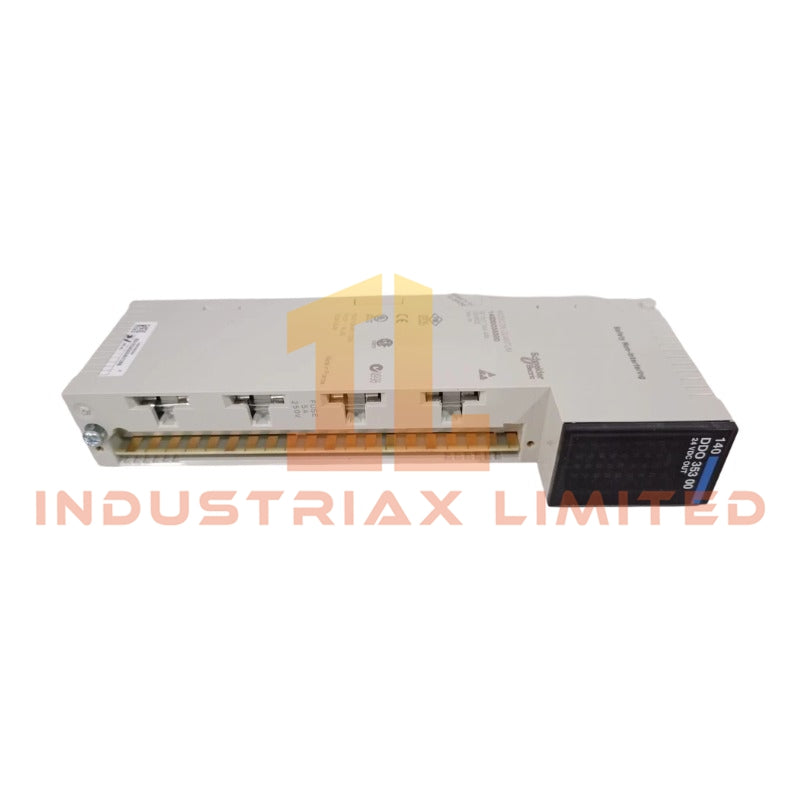

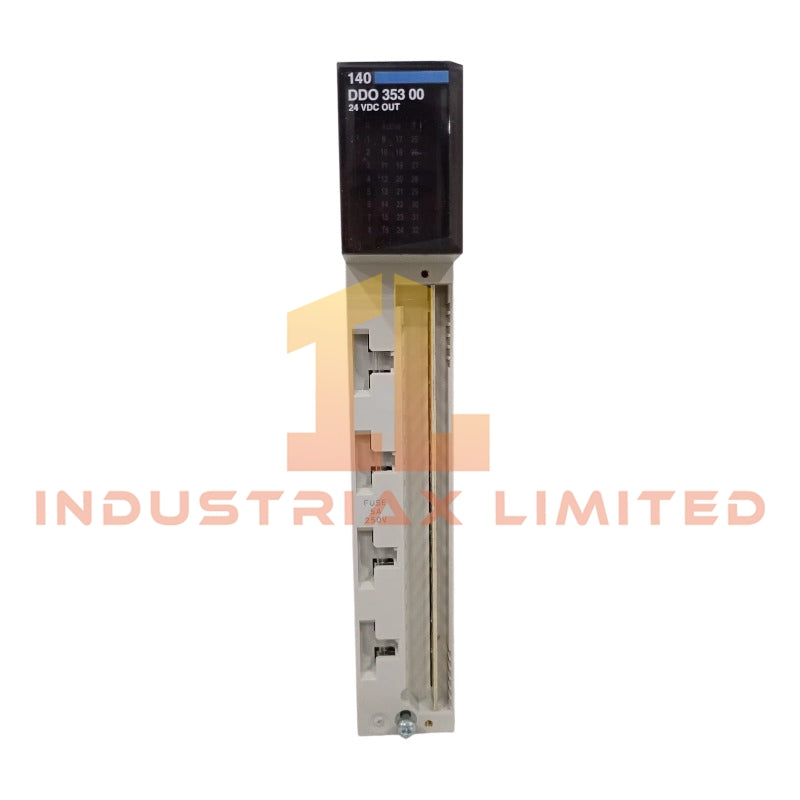

Schneider Electric 140DDO35300 Modicon Quantum DC Discrete Output Module

Configured for deterministic digital output actuation in Modicon Quantum backplane architecture, the Schneider Electric 140DDO35300 (140DDO35300 DC discrete output module) provides direct physical/electrical execution of 32-channel 24 VDC source-type switching operations across distributed PLC output groups.

SuffixBreakdown & Model Matrix

No validated suffix segmentation or option-code decomposition is defined for 140DDO35300 within the provided technical dataset. Any functional interpretation must be derived strictly from documented hardware specifications.

Hardware Specifications

Parameter	Specification
ModelBrand	Schneider Electric 140DDO35300
PowerConsumption	1.75 W + (0.4 V x total module load current)
Product Type	DC Discrete Output Module
Output Channels	32 outputs
Channel Grouping	4 groups of 8 channels
Output Logic	Positive logic (source)
Rated Output Voltage	24 VDC
Output Voltage Range	19.2 to 30 V
Max Module Load	16 A per module
Max Group Load	4 A per group
Response Time	<= 1 ms ON/OFF
Isolation	1780 Vrms (channels to bus), 500 Vrms (group to group)

Industrial Control Backplane Communication Characteristics

Within Schneider Electric Modicon Quantum architectures, output modules such as 140DDO35300 interface through high-speed backplane bus signaling with deterministic scan synchronization. Backplane transaction cycles are aligned with PLC task execution, enabling predictable update latency across distributed I/O racks. Firmware compatibility is maintained at rack-level integration, where module identity mapping and output word allocation (2 output words addressing requirement) are resolved during system initialization. Electrical separation between logic bus and field output stages ensures signal integrity under inductive load switching conditions typical of high-density discrete output racks.

Frequently Asked Questions

Q: Can the module be hot-swapped under energized backplane conditions?
A: Hot-swap capability depends on rack configuration and system controller support. Electrically, field power removal is required before replacing output modules to avoid transient backfeed through output stages.

Q: What is the behavior under inductive load switching?
A: Inductive loads must be suppressed using external flyback components. The module includes internal protection and fuse architecture per group, but does not eliminate external transient requirements.

Q: How is output grouping implemented electrically?
A: Outputs are segmented into 4 isolated groups of 8 channels, each protected with group-level fuse elements rated at 5 A.

Field Installation Guidelines

Field wiring shall follow standard 24 VDC discrete output practices with emphasis on separation between signal return and power commons. Shielded cabling is recommended for long field runs to reduce electromagnetic coupling in high-density racks. Group fusing must be verified prior to commissioning, ensuring each 8-channel cluster is protected according to rated current limits. Backplane connectors must be fully seated to maintain isolation integrity between logic and field domains. Inductive loads require external suppression devices installed directly at the load terminals to minimize switching transients.

Specifications

• Brand: Schneider Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
