Description

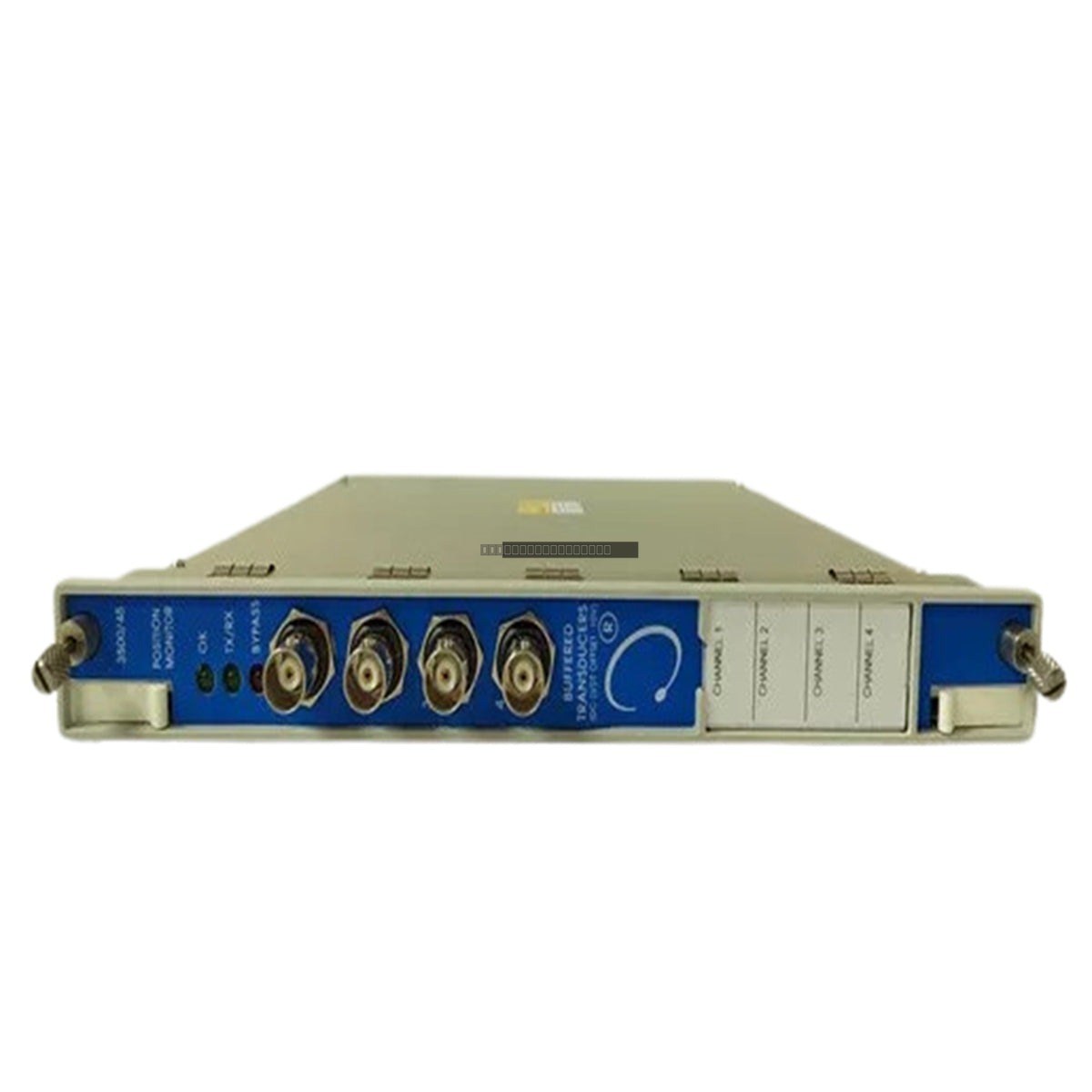

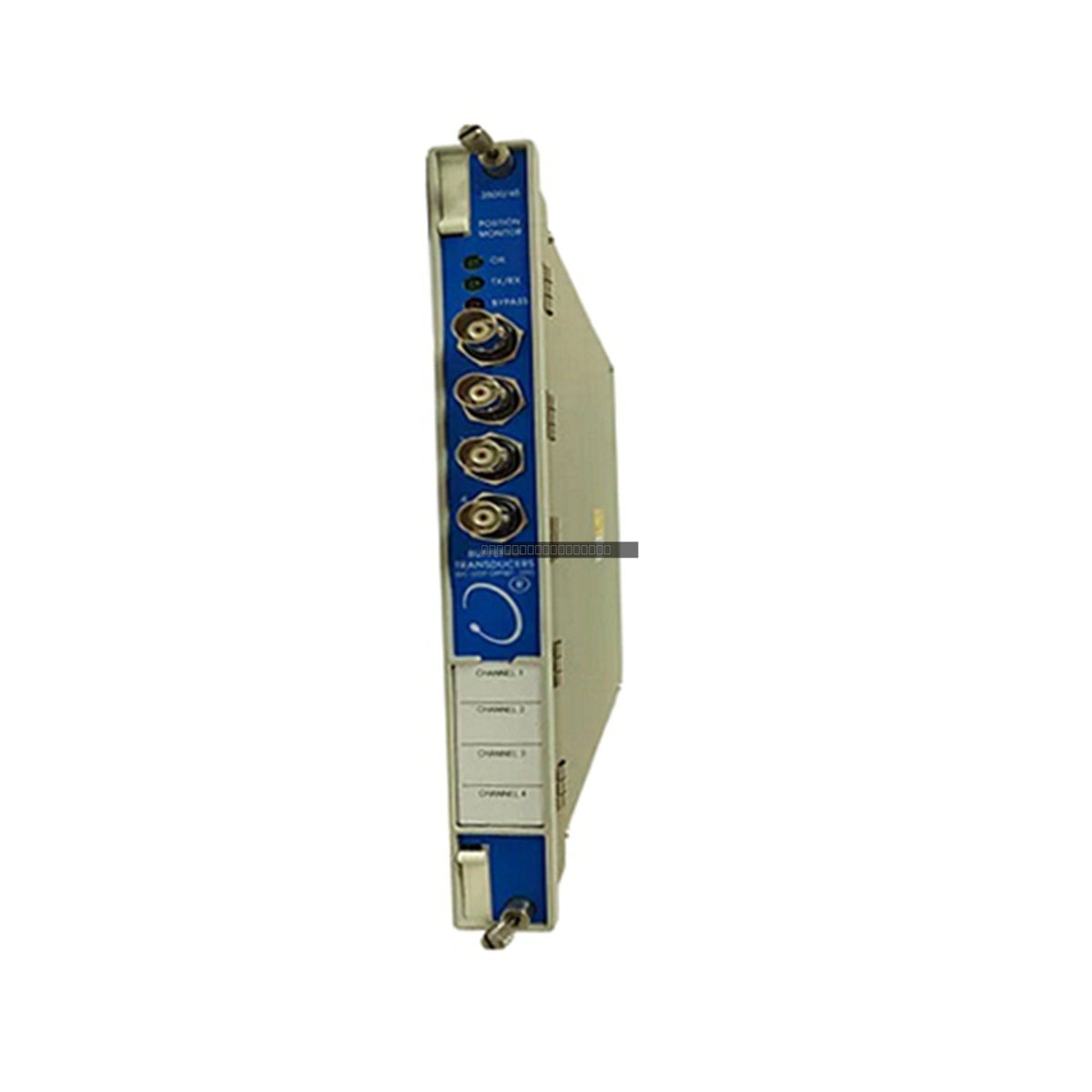

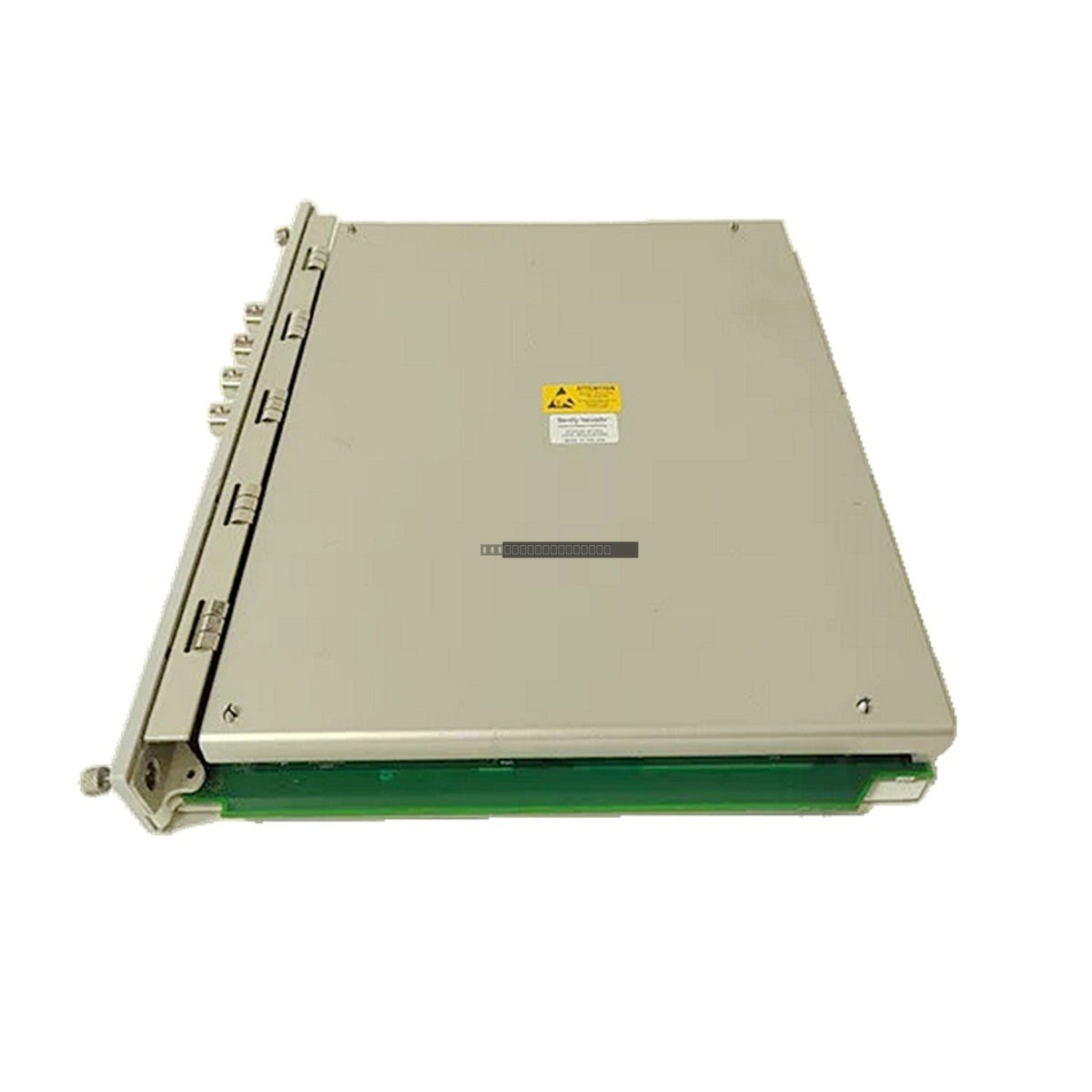

The Bently Nevada 3500/45 Position Monitor (176449-04) is a high-performance, 4-channel monitoring module designed for the 3500 Machinery Protection System. This module is engineered to provide continuous, reliable position measurement for critical rotating machinery, ensuring operational safety through real-time parameter comparison and alarm management.
Features
- Four independent channels for versatile monitoring configurations.
- Broad sensor compatibility, including proximity transducers, Rotary Position Transducers (RPTs), AC/DC Linear Variable Differential Transformers (LVDTs), and rotary potentiometers.
- Programmable alarm setpoints for proactive machinery protection.
- Essential data acquisition for both predictive maintenance and operational diagnostics.
Applications
This module is frequently utilized in large-scale industrial environments to monitor critical assets, including:
-
Power Generation: Steam turbine generator sets and high-pressure feedwater pumps.
-
Oil & Gas: Gas turbines and natural gas pipeline compression units.
-
Petrochemical: Ethylene cracking gas compressors and hydrogenation plant high-pressure units.
-
Metallurgy: Blast furnace blowers and high-temperature blast furnace gas recovery (TRT) systems.
Technical Specifications
| Product Model |
3500/45 176449-04 |
| Module Type |
Position Monitor |
| Channels |
4 |
| Operating Temperature |
-30 degC to +65 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Relative Humidity |
95% (Non-condensing) |
Installation Guidelines
- Ensure the 3500 rack is powered down before inserting or removing the 176449-04 module to prevent electrical damage.
- Handle the module using proper ESD (Electrostatic Discharge) mitigation practices.
- Verify that the module is fully seated in the rack slot and that the front panel screws are tightened to ensure proper grounding and mechanical stability.
- Route signal cables away from high-power conduits or high-EMI sources to maintain measurement integrity.
- Confirm proper configuration of alarm setpoints via the 3500 Rack Configuration Software before placing the machine into service.
FAQ
What is the primary function of the 3500/45 module?
The 3500/45 is designed to monitor machine position by conditioning input signals from various transducers and comparing them against user-defined alarm setpoints to trigger alerts or machine shutdowns.
Which sensor types are supported by this monitor?
The module supports proximity transducers, RPTs, AC and DC LVDTs, and rotary potentiometers.
Can this module be used in legacy 3500 systems?
Yes, the 3500/45 is a standard component of the Bently Nevada 3500 series and is compatible with existing 3500 rack architectures.
