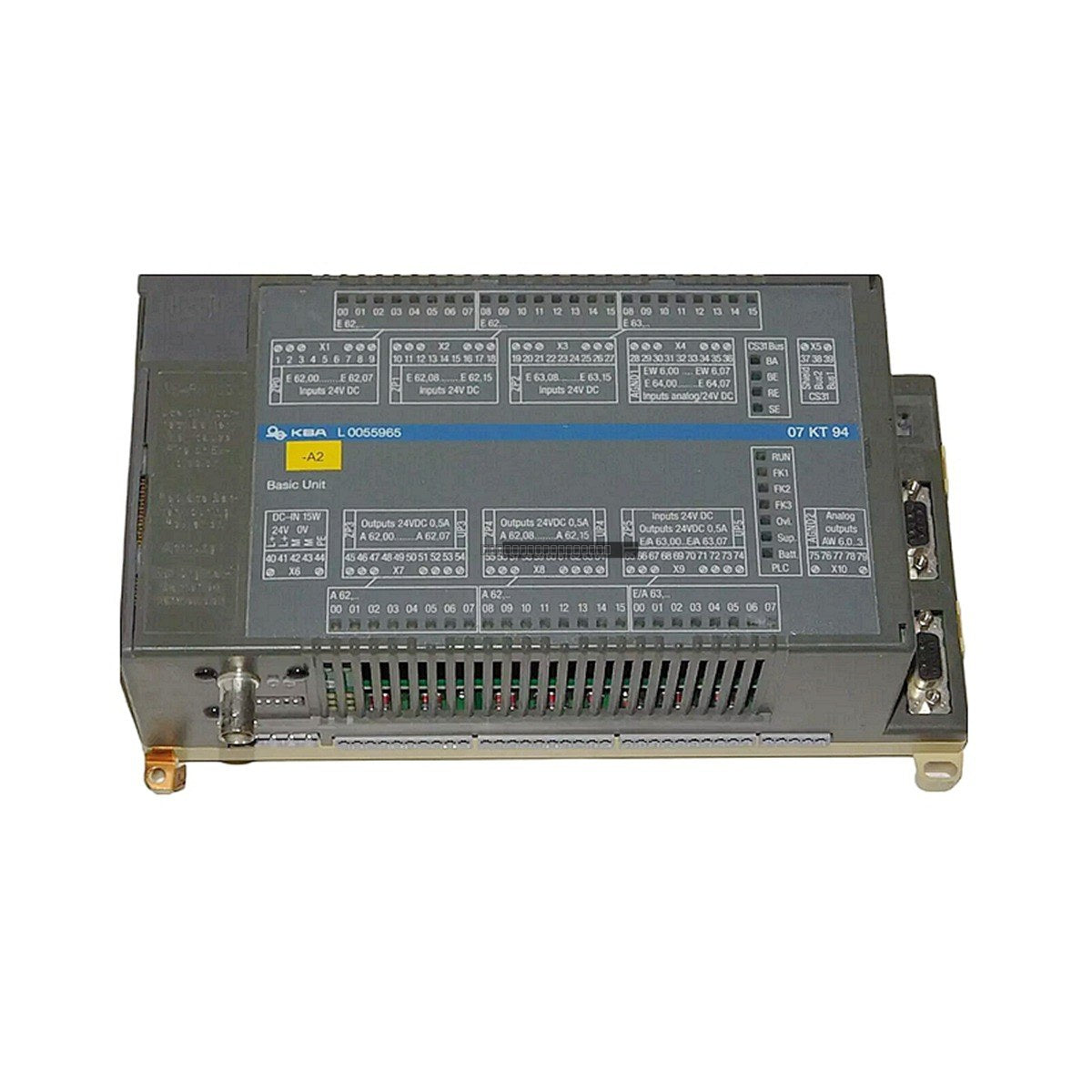

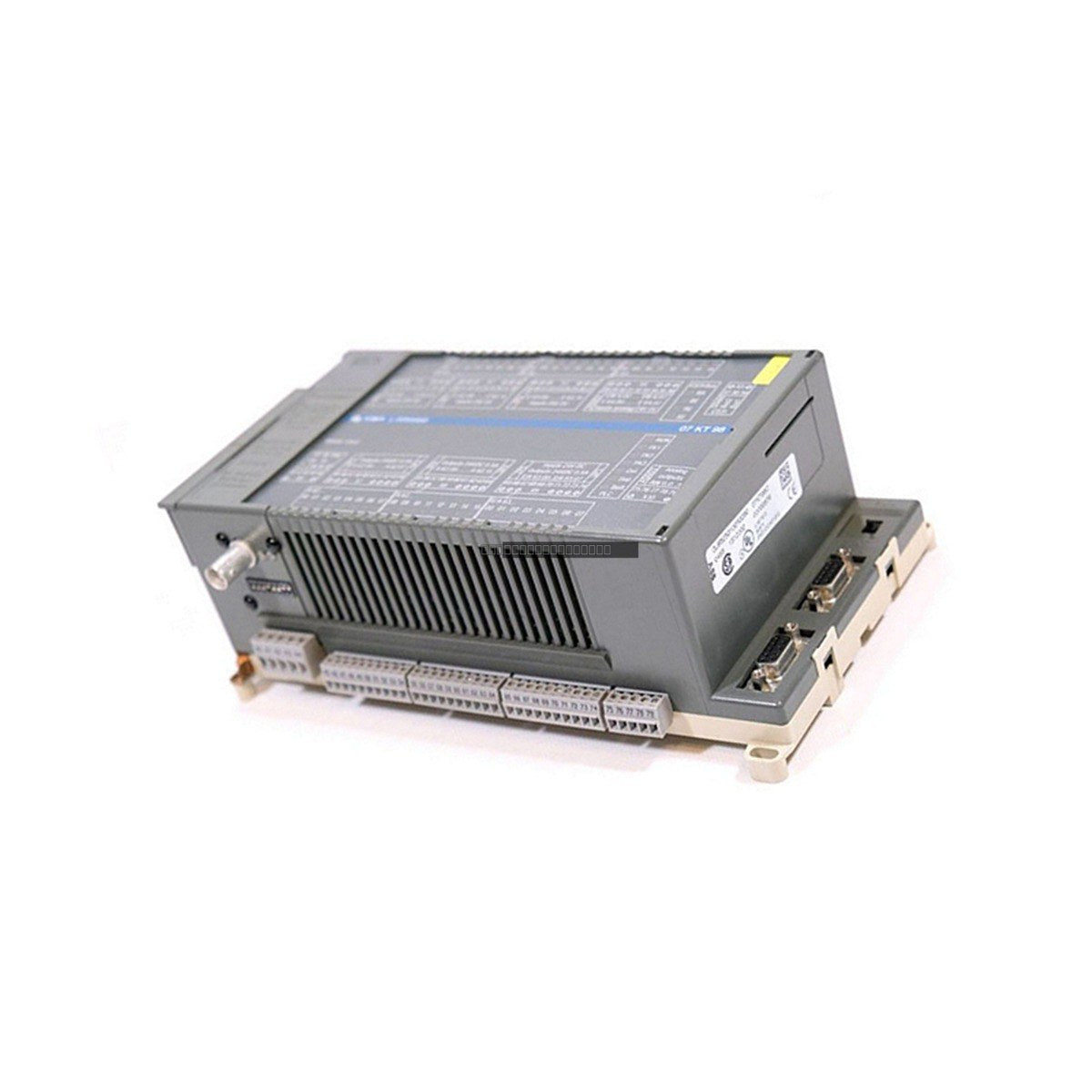

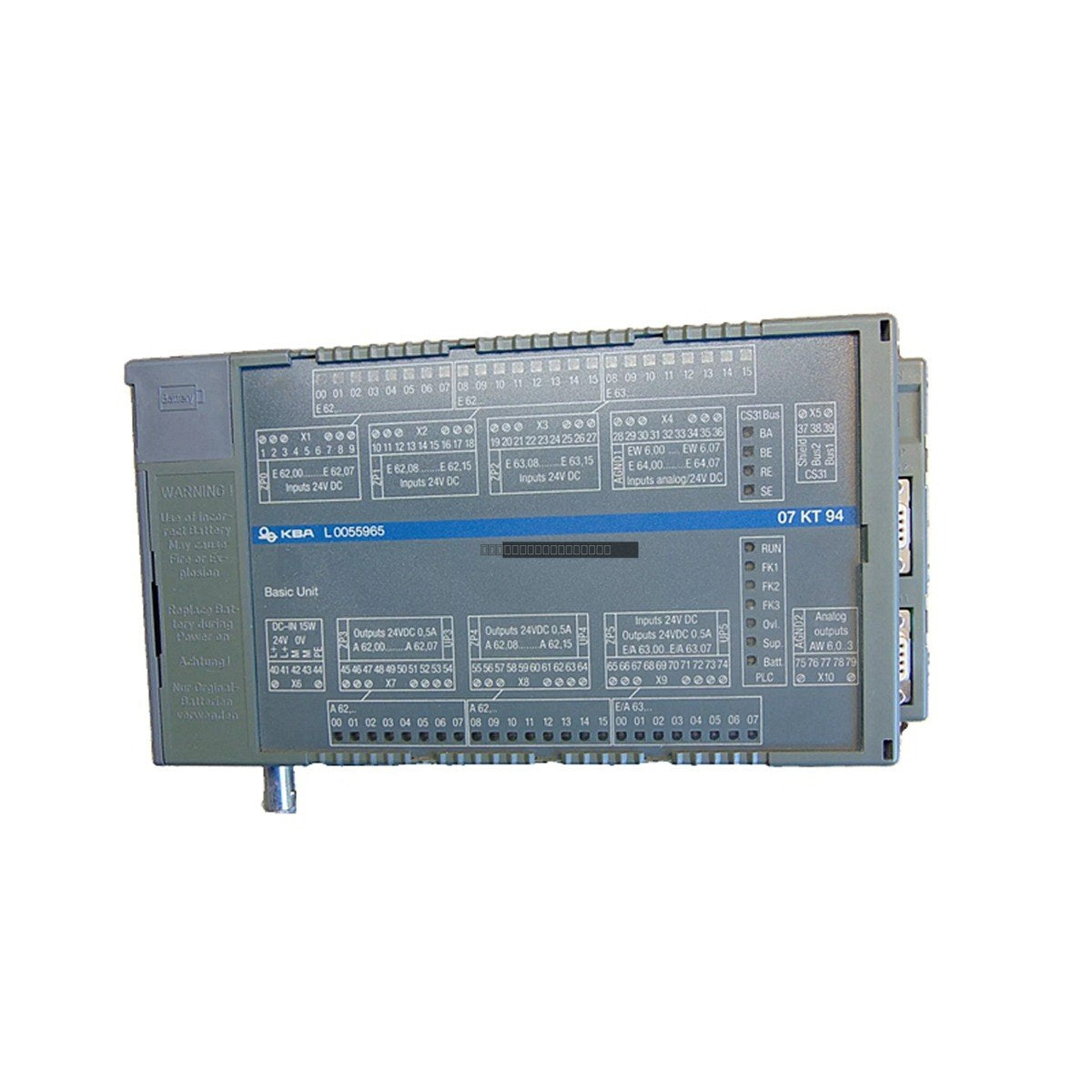

The ABB 07KT94 (GJR5252100R3261) is a high-performance Basic Unit for the Advant Controller 31 (AC31) series. This compact controller is designed for industrial automation tasks requiring integrated logic control, analog signal processing, and robust communication capabilities. It serves as a central processing component in distributed control systems, offering a balance of digital and analog I/O to handle diverse field signals directly.
Features
- Integrated I/O configuration: 24 digital inputs, 16 digital outputs, and 8 configurable digital I/O channels.
- Advanced analog processing: Includes 8 analog inputs specifically for PT100 temperature sensors and 4 analog outputs (20 mA).
- Memory capacity: Equipped with 240 kB of flash program memory and 120 kB of RAM for data storage.
- Communication: Features built-in ARCNET connectivity for reliable fieldbus communication.
- Power efficiency: Operates on a 24 VDC supply with low power consumption.
Technical Specifications
| Product Model |
07KT94 (GJR5252100R3261) |
| Supply Voltage |
24 VDC |
| Digital Inputs |
24 x 24 VDC |
| Digital Outputs |
16 x 24 VDC |
| Analog Inputs |
8 x PT100 |
| Analog Outputs |
4 x 20 mA |
| Program Memory |
240 kB Flash |
| Data Memory |
120 kB RAM |
| Isolation |
500 V |
| Operating Temperature |
0 to +55 degC |
| Storage Temperature |
-40 to +85 degC |
| Humidity |
5 to 95% RH (non-condensing) |
Installation Guidelines
- Ensure the controller is mounted in a clean, dry environment protected from excessive vibration and dust.
- Maintain proper ventilation to ensure the ambient temperature remains within the specified 0 to +55 degC range.
- Use shielded cables for analog signals to minimize electromagnetic interference (EMI).
- Ensure all power is disconnected before installing or removing the module from the rack or DIN rail.
- Verify that the 24 VDC power supply is stable and correctly polarized before energizing the unit.
- Follow standard ESD precautions when handling the module to prevent damage to internal circuitry.
FAQ
What is the primary function of the 07KT94?
The 07KT94 is a basic controller unit for the ABB Advant Controller 31 system, used to manage digital and analog I/O signals and execute control logic in industrial applications.
Can this unit handle temperature sensors directly?
Yes, the unit features 8 dedicated analog inputs designed for PT100 resistance temperature detectors, allowing for direct temperature monitoring without external signal converters.
What communication protocol does this controller support?
This model supports ARCNET communication, which is standard for the AC31 series to facilitate data exchange within the control network.
