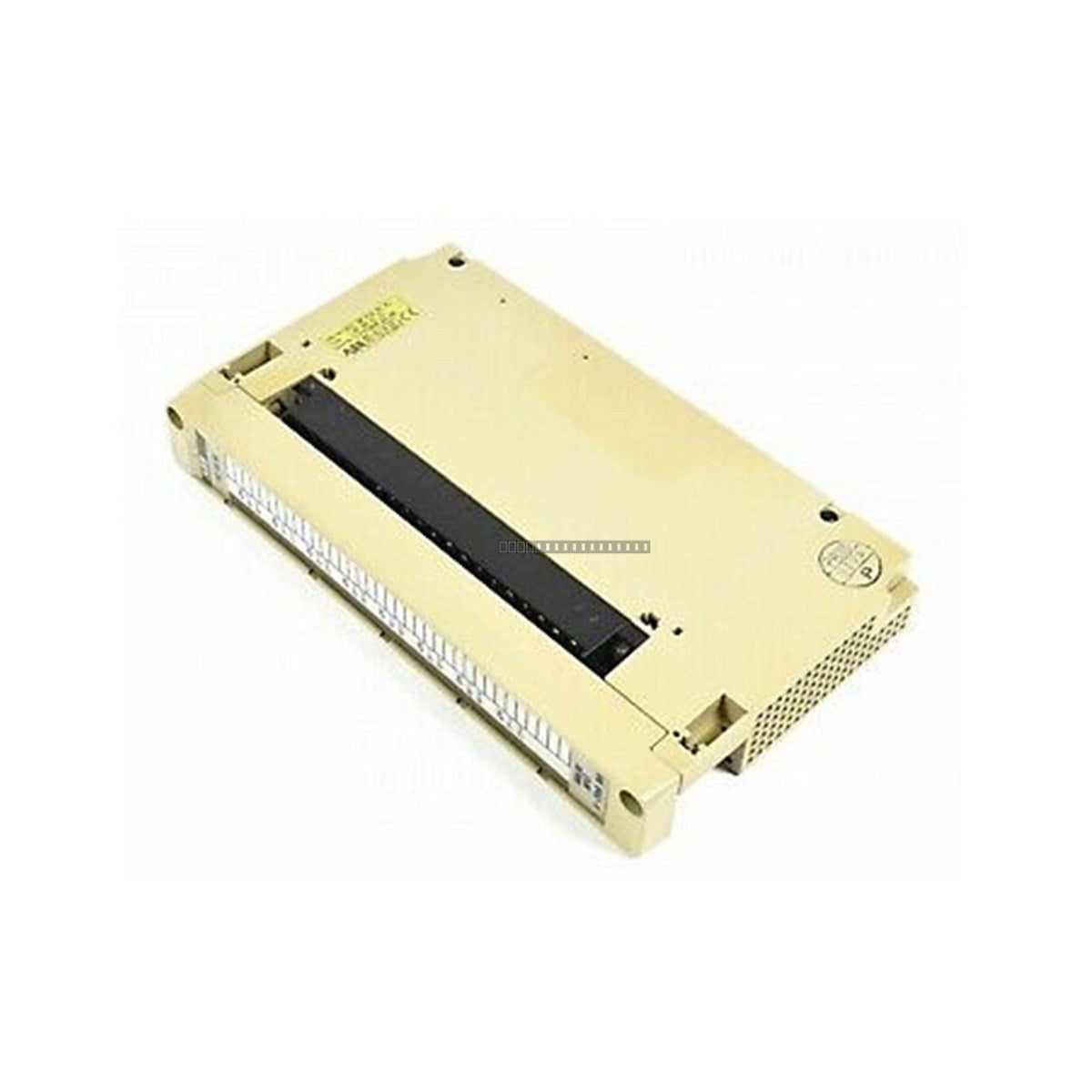

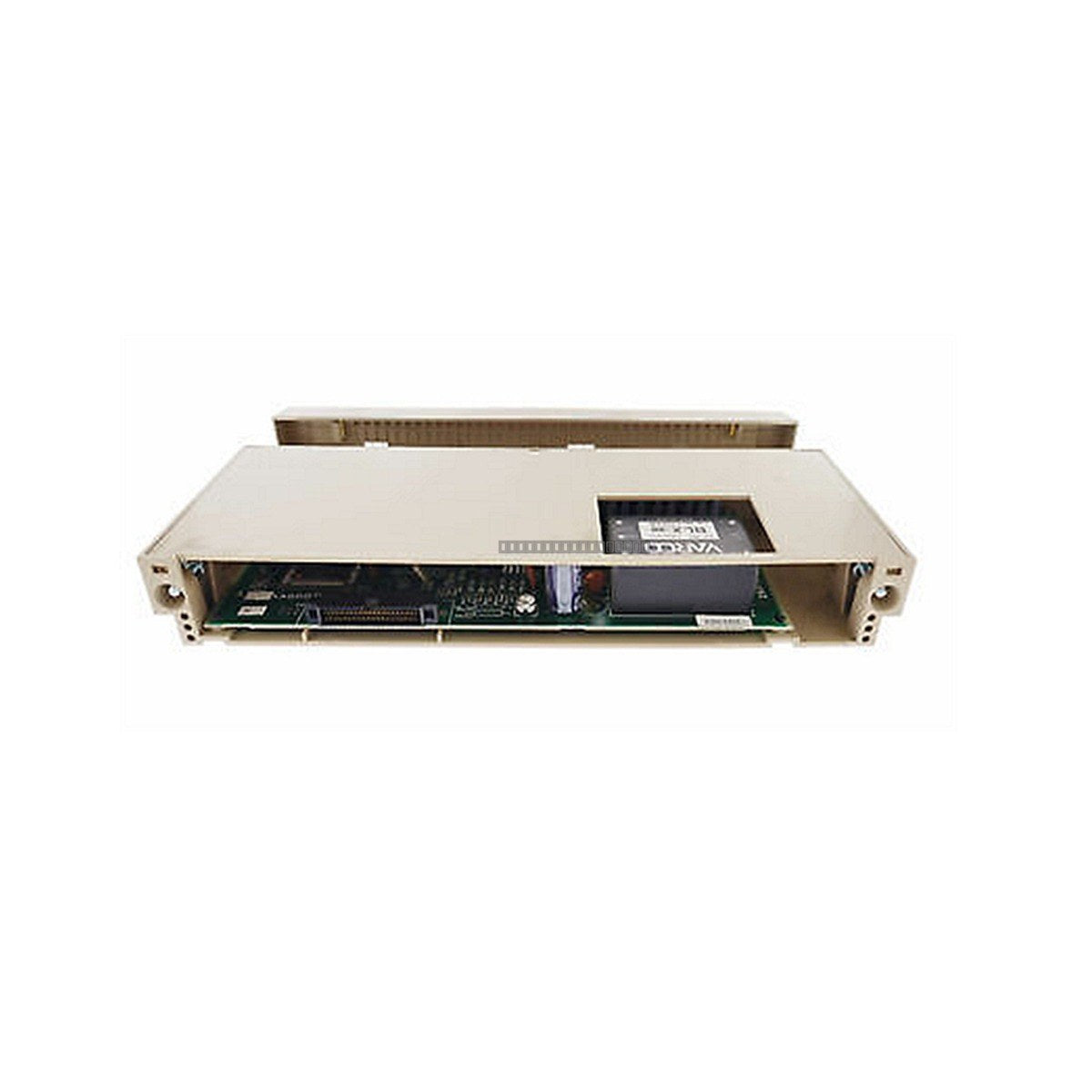

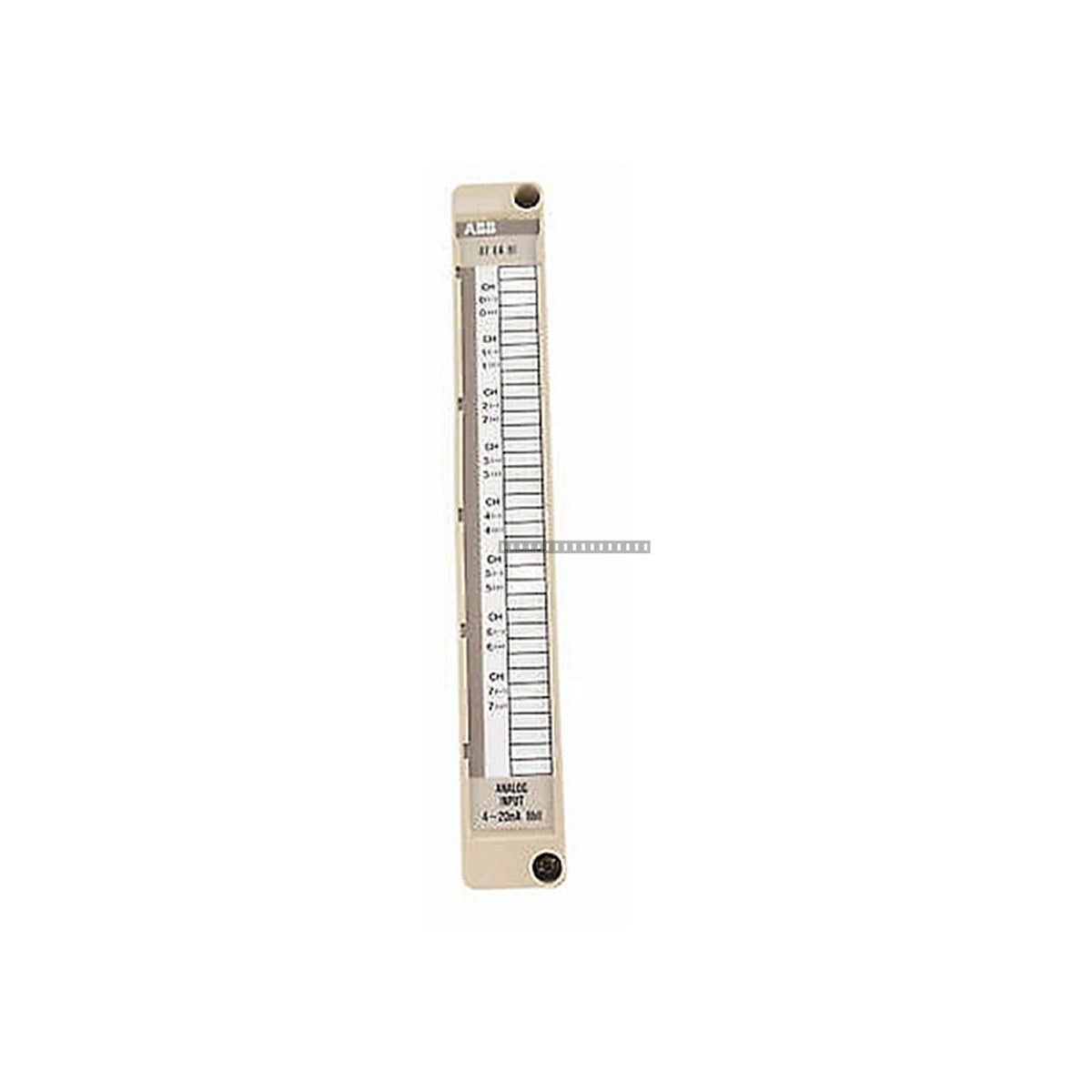

The ABB 07 EA 61 R1 (Order Code: GJV3074351R1) is a high-performance analog input module designed for industrial control systems. This module provides 8 channels of signal acquisition, supporting a wide range of standard industrial voltage and current signals. It is engineered for reliable data processing in demanding automation environments, ensuring high accuracy and integration flexibility within ABB control architectures.
Features
- 8-channel analog input capability for versatile signal monitoring.
- Supports multiple signal ranges: 0 to 20 mA, 4 to 20 mA, 0 to 10 V, and +/- 10 V.
- 12-bit resolution for precise analog-to-digital conversion.
- Robust input impedance: >= 100 kOhm for voltage inputs and <= 250 Ohm for current inputs.
- Standard 24 V DC power supply operation with +/- 20% tolerance.
Applications
This module is typically utilized in process automation, manufacturing, and infrastructure control systems where precise monitoring of analog sensors, transmitters, and transducers is required. It is suitable for integration into PLC and DCS racks for real-time process data acquisition.
Technical Specifications
| Model |
07 EA 61 R1 |
| Order Code |
GJV3074351R1 |
| Number of Channels |
8 |
| Input Signal Types |
0 to 20 mA, 4 to 20 mA, 0 to 10 V, +/- 10 V |
| Resolution |
12-bit |
| Input Impedance |
>= 100 kOhm (Voltage); <= 250 Ohm (Current) |
| Power Supply |
24 V DC +/- 20% |
| Operating Temperature |
0 degC to +60 degC |
| Storage Temperature |
-40 degC to +70 degC |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module to prevent electrical damage.
- Mount the module securely on a standard DIN rail or within the designated rack space.
- Maintain proper ventilation around the module to ensure operation within the specified temperature range (0 to 60 degC).
- Use shielded twisted-pair cabling for analog signal connections to minimize electromagnetic interference (EMI).
- Ensure proper grounding of the module chassis to the system common ground to maintain signal integrity.
- Verify correct polarity of the 24 V DC power supply before energizing the unit.
Compliance and Certifications
This module is designed to meet international industrial standards, including CE, UL, CSA, and RoHS compliance.
FAQ
Is the 07 EA 61 R1 compatible with standard 4-20 mA sensors?
Yes, the module supports 4-20 mA current loops as well as 0-20 mA, 0-10 V, and +/- 10 V signals.
What is the resolution of the analog inputs?
The module features 12-bit resolution for all supported analog input channels.
