Yokogawa spare parts and accessories help maintain, upgrade, and extend the life of automation systems. From controllers to modules and connectors, these components reduce downtime and ensure continuous operation.
Yokogawa Other Parts
-

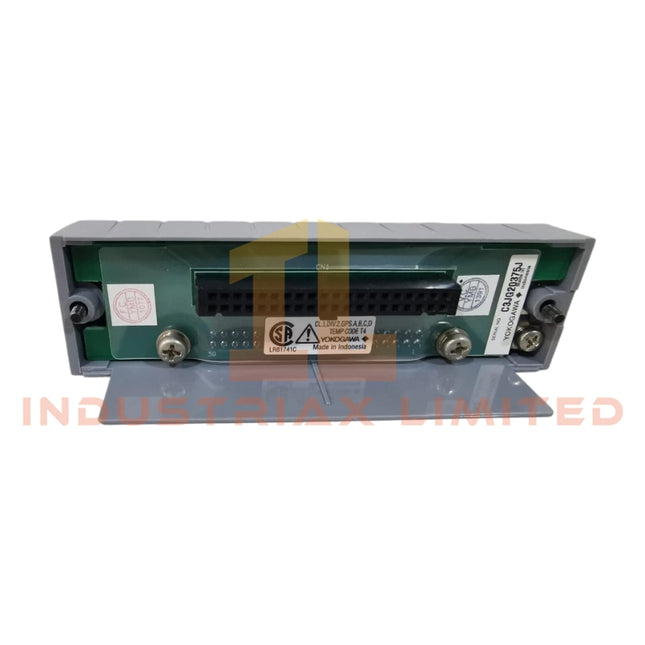

Yokogawa AAI135-S50 | Analog Input Module 8-Channel 4-20 mA | Yokogawa
Product Description Overview The Yokogawa AAI135-S50 is a high-precision 8-channel analog input module supporting 4 to 20 mA current signals. Each channel is independently isolated, ensuring accurate and reliable data acquisition. Compact and easy to install, it is compatible with pressure clamp terminals, MIL connector cables, and dedicated KS1 cables. Technical Specifications Model: AAI135-S50 Input Channels: 8-channel analog input Signal Range: 4 to 20 mA Channel Isolation: Fully isolated per channel Maximum Current Consumption: 5 V DC: 360 mA, 24 V DC: 450 mA External Connection: Pressure clamp terminal, MIL connector, or dedicated KS1 cable Dimensions (L x W x H): 107 mm x 130 mm x 33 mm Weight: 0.3 kg Product Type: Standard type, non-explosion-proof, basic version Applications The Yokogawa AAI135-S50 is widely used in factory automation, process control, and instrumentation monitoring systems. It provides precise multi-channel signal acquisition, suitable for water treatment, power plants, chemical processing, and energy management applications. FAQ Q: What signal interfaces does the AAI135-S50 support?A: The module supports 4-20 mA current input and is compatible with pressure clamp terminals, MIL connectors, and dedicated KS1 cables. Q: Does this module offer explosion protection?A: This is a standard basic model and does not have explosion-proof features. Q: Are the channels independently isolated?A: Yes, each channel is fully isolated to ensure signal accuracy and system stability.
$200.00 $100.00
-

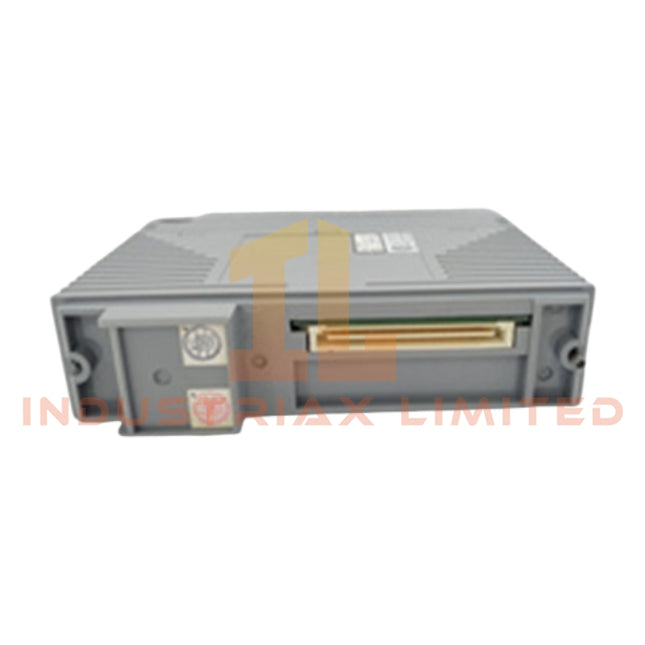

Yokogawa 16-Channel Analog Input Module | Yokogawa AAI141-H50/K4A00
Product Description OverviewThe AAI141-H50/K4A00 from Yokogawa is a 16-channel analog input module designed for precise monitoring of 4 to 20 mA signals. This non-isolated module supports HART digital communication and is equipped with a KS Cable Interface Adapter for flexible connectivity. Its compact design and reliable performance make it suitable for a variety of process measurement applications. Key Features Input Type: 4 to 20 mA DC Number of Channels: 16 non-isolated input channels Digital Communication: Supports HART protocol for enhanced monitoring and diagnostics Redundancy: Not applicable (standard single-channel operation) Module Weight: 0.2 kg Connector: Includes KS Cable Interface Adapter for easy integration Explosion Protection: Standard model without certification Basic Type: Suitable for standard industrial environments Model and Suffix Codes Model: AAI141 – Analog input module Suffix Codes: H: HART digital communication enabled 5: Standard, no explosion protection 0: Basic type Option Codes: K4A00 – Equipped with KS Cable Interface Adapter ApplicationsThe AAI141-H50/K4A00 is ideal for process monitoring, signal acquisition, and systems that require integration with HART-enabled field devices. It is widely used in chemical, water treatment, and energy management systems. Technical Specifications Table Parameter Specification Input Signal 4 to 20 mA DC Number of Channels 16 non-isolated channels Communication HART Protocol Isolation None Redundancy Not supported Weight 0.2 Kg Connector Interface KS Cable Interface Adapter Explosion Protection None Operating Temperature -10 to 60 C Mounting DIN Rail or Panel Mount FAQQ: Does this module support voltage inputs?A: No, the AAI141-H50/K4A00 only supports 4 to 20 mA current input signals. Q: Can this module be used in hazardous areas?A: The standard version does not have explosion-proof certification. Q: How is HART communication integrated?A: The module includes HART support, allowing remote device monitoring and parameter configuration over the same 4 to 20 mA signal. Similar Models Comparison AAI141-H51/K4A00: Faster data update with HART support AAI141-H50/K4B00: Optional cable interface for extended connectivity
$200.00 $100.00
-

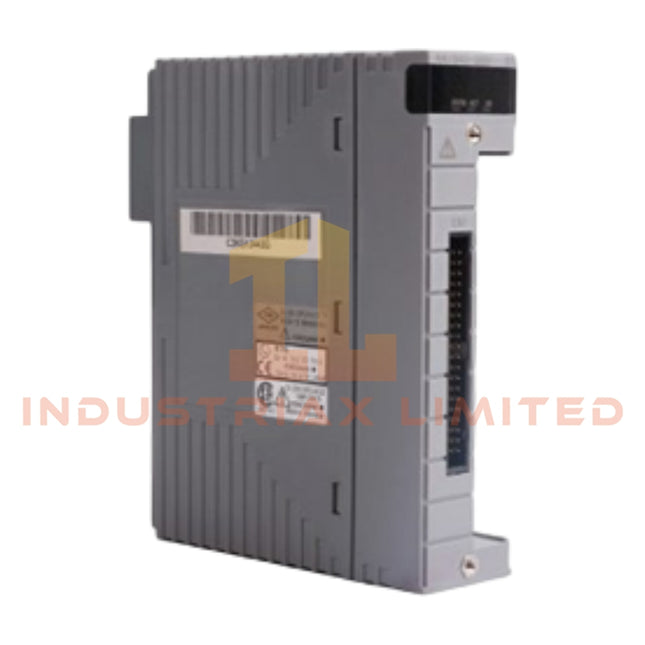

Yokogawa AAI543-S50/A4S10 | 16-Channel Analog Input Module | Yokogawa
Product Description OverviewThe AAI543-S50/A4S10 from Yokogawa is a high-performance 16-channel analog input module designed for demanding industrial environments. It provides precise measurement for DC signals ranging from 4 to 20 mA or 1 to 5 V and supports dual-redundant configurations to maintain continuous operation even in case of module failure. The module combines high accuracy, fast response, and robust surge protection for reliable process control. Key Features Input Signal Range: 4 to 20 mA DC or 1 to 5 V DC Number of Channels: 16 fully isolated input channels Redundancy: Dual-redundant configuration ensures uninterrupted operation Accuracy: ±48 HA for high-precision measurement Data Update Speed: 10 ms update period for real-time processing Temperature Compensation: Low drift of ±16 HA per 10 degrees Celsius Surge Protection: Safeguards module and connected devices from electrical surges Isolation: Channel-to-channel isolation reduces interference and enhances signal integrity Model and Suffix Codes Model: AAI543 – 16-channel analog input module (4 to 20 mA, isolated) Suffix Codes: S: Standard type 5: Standard switch-over response in redundant configuration without explosion protection 0: Basic type ApplicationsIdeal for continuous process monitoring, industrial control systems, and redundant measurement setups where signal integrity and uptime are critical. Technical Specifications Table Parameter Specification Input Signal 4 to 20 mA DC or 1 to 5 V DC Number of Channels 16 isolated channels Redundancy Dual-redundant configuration Accuracy ±48 HA Update Period 10 ms Temperature Drift ±16 HA / 10 C Isolation Channel-to-channel isolation Surge Protection Included Operating Temperature -10 to 60 C Power Supply 24 V DC nominal FAQQ: Can this module handle both voltage and current signals simultaneously?A: Each channel can be configured individually for either 4 to 20 mA or 1 to 5 V DC input. Q: How does redundancy improve reliability?A: The dual-redundant design allows seamless operation if one module fails, ensuring uninterrupted data acquisition. Q: Is this module suitable for explosion-proof environments?A: The AAI543-S50/A4S10 standard version does not have explosion-proof certification. Similar Models Comparison AAI543-S51: Enhanced switch-over speed for redundant configurations AAI543-S60: With extended temperature compensation range
$200.00 $100.00
-
Yokogawa Analog Input Module 16-Channel | Yokogawa AAI143-S50/A4S00
Product Description OverviewThe AAI143-S50/A4S00 from Yokogawa is a high-precision analog input module designed for industrial process monitoring and control. Supporting 16 channels with isolated inputs, this module converts 4 to 20 mA signals into reliable digital data for advanced automation systems. Its standard type design ensures compatibility with a wide range of control architectures. Key Technical Specifications Model: AAI143-S50/A4S00 Input Channels: 16 Input Signal Range: 4 to 20 mA Isolation: Fully isolated channels for accurate signal conversion Module Type: Standard (S = Standard type) Explosion Protection: 5 = No explosion protection Basic Function Type: 0 = Basic type Optional Accessories: /A4S00 = Includes Pressure Clamp Terminal Block (Model ATA4S-00) Mounting: DIN rail compatible Operating Temperature: -10 to 55 degrees Celsius Power Supply: 24 VDC typical Response Time: <100 ms per channel Communication: Compatible with Yokogawa DCS systems ApplicationsIdeal for process monitoring in chemical, petrochemical, water treatment, and general manufacturing industries. This module is suited for both new installations and upgrades of existing analog input systems requiring high reliability and precision. FAQ Q: Can this module operate in hazardous environments?A: No, this standard type model (S50) does not provide explosion protection. Q: What signals can it read?A: It accepts standard 4 to 20 mA analog signals from sensors and transmitters. Q: Is this module compatible with older Yokogawa DCS systems?A: Yes, it is designed for full backward compatibility with AAI143 series controllers. Similar Models Comparison AAI143-H50: High-speed version for faster sampling AAI143-S51: Standard type with enhanced noise filtering
$200.00 $100.00
-

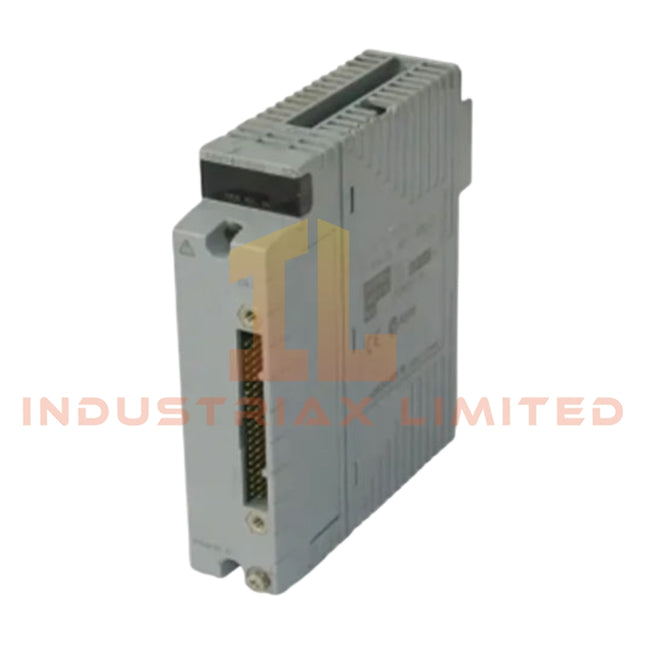

Yokogawa Yokogawa AAI835-H53/K4A00 4CH Analog Input Module E12921
Product Description OverviewThe Yokogawa AAI835-H53/K4A00 (E12921) is a 4-channel analog input module designed for high-precision data acquisition in control and automation systems. It delivers reliable signal processing for various industrial applications, including distributed control systems (DCS) and programmable logic controllers (PLC). Key Specifications Model: AAI835-H53/K4A00 Part/Order Number: E12921 Channels: 4 Analog Inputs Input Type: Voltage or Current (configurable) Input Range: 0-10V, 0-20mA (typical, check manual for full range options) Resolution: 16-bit Accuracy: ±0.1% of full scale Isolation Voltage: 2500 VDC between channels Response Time: <10 ms Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 70°C Humidity: 5% to 95% RH, non-condensing Communication Protocol: Standard Yokogawa bus compatible with CENTUM VP systems Mounting: DIN rail or panel mount compatible Delivery Lead Time: 10-12 weeks Applications Process monitoring and control in chemical, power, and manufacturing industries Integration with DCS for real-time analog signal acquisition Suitable for both retrofit and new installations in automation systems Similar Models Comparison AAI835-H52: 2-channel input, lower throughput, cost-effective for small-scale applications AAI835-H54: 8-channel input, higher capacity for large-scale systems FAQQ: Can this module handle both voltage and current inputs?A: Yes, it supports configurable voltage and current ranges, typically 0-10V and 0-20mA. Q: What is the typical delivery time?A: Standard lead time is 10-12 weeks. Q: Is it compatible with CENTUM VP DCS?A: Yes, fully compatible with Yokogawa CENTUM VP control systems.
$200.00 $100.00
-

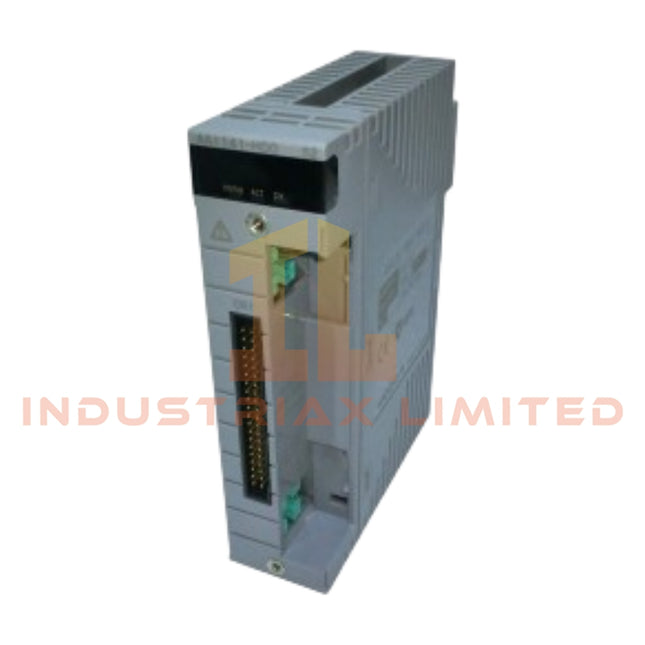

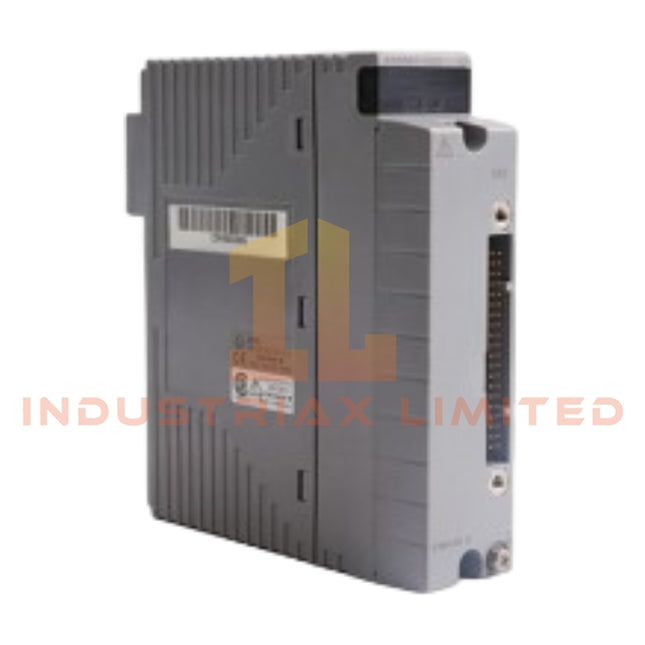

Yokogawa Yokogawa AAI835-H50/13S00 Analog I/O Module | 16-Channel Precision
Product Description OverviewThe Yokogawa AAI835-H50/13S00 is a versatile analog input/output module designed to deliver precise and reliable signal processing for industrial automation and process control systems. Its robust design and configurable channels make it suitable for a wide range of applications requiring high accuracy and stable operation. Technical Specifications Parameter Specification Manufacturer Yokogawa Model AAI835-H50/13S00 Module Type Analog Input/Output Module Channels 16 Configurable Analog Input/Output Input/Output Signal 4-20 mA DC Resolution 12 Bit Accuracy ±0.1 Percent of Span Power Supply 24 V DC Nominal Dimensions Standard PLC Rack Module Size Weight Approximately 0.6 kg Isolation 500 V DC Channel-to-Channel (typical) Response Time Less than 10 ms per channel Operating Temperature 0 to 55 Degree Celsius Storage Temperature -20 to 70 Degree Celsius Mounting DIN Rail or Rack Installation Applications Process control in chemical, oil & gas, and water treatment plants High-precision signal acquisition in factory automation Integration with PLC and DCS systems for real-time monitoring Multi-channel analog control for research or production facilities FAQ Q: Can this module handle both input and output signals simultaneously?A: Yes, the AAI835-H50/13S00 supports 16 channels configurable for either analog input or output. Q: What is the typical installation environment?A: Designed for industrial control racks, it operates reliably in temperatures from 0 to 55 degree Celsius and can withstand standard industrial electrical noise. Q: How does it compare to similar Yokogawa modules?A: Compared to the AAI835-H50 series variants, this model offers 12-bit resolution with enhanced channel-to-channel isolation, providing higher precision and safety in dense signal environments.
$200.00 $100.00
-
Yokogawa Yokogawa AAI135-H50/13S00 Analog Input Module High Precision
Product Description OverviewThe AAI135-H50/13S00 from Yokogawa is a high-performance analog input module designed for precise process control systems. This unit supports HART communication for integration with modern digital control environments and features isolated input channels for reliable data acquisition. Key Specifications Model: AAI135-H50/13S00 Manufacturer: Yokogawa Module Type: Analog Input Communication: Digital HART protocol Explosion Protection: None Base Type: Standard configuration Terminal Block: Pressure clamp type for isolated analog inputs Input Channels: Configurable single or multi-channel Accuracy: High precision suitable for industrial process monitoring Power Supply: Compatible with Yokogawa control systems (24V DC typical) Isolation: Full channel-to-channel isolation Mounting: DIN rail or panel mount compatible ApplicationsIdeal for monitoring pressure, temperature, or flow sensors in industrial automation setups. Can be integrated into DCS (Distributed Control System) networks for centralized data collection and control. Suitable for chemical, petrochemical, and energy production facilities. Similar Models Comparison AAI135-H50/13S01 – Same module with enhanced explosion protection AAI135-H51/13S00 – Additional input channels for expanded monitoring needs FAQQ: Does this module support analog and digital signals simultaneously?A: Yes, the module provides analog input functionality with HART digital communication overlay. Q: Can this module be used in hazardous environments?A: The H50 variant has no explosion protection. For hazardous zones, consider models with specific safety certification.
$200.00 $100.00
-

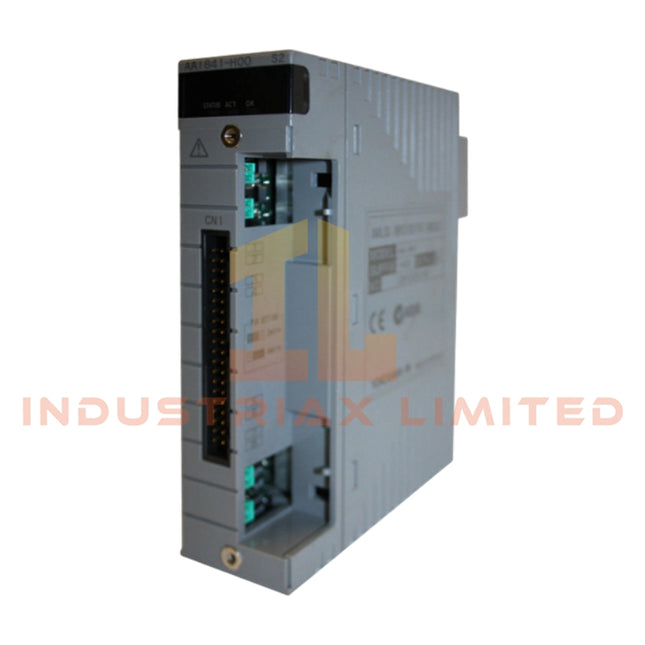

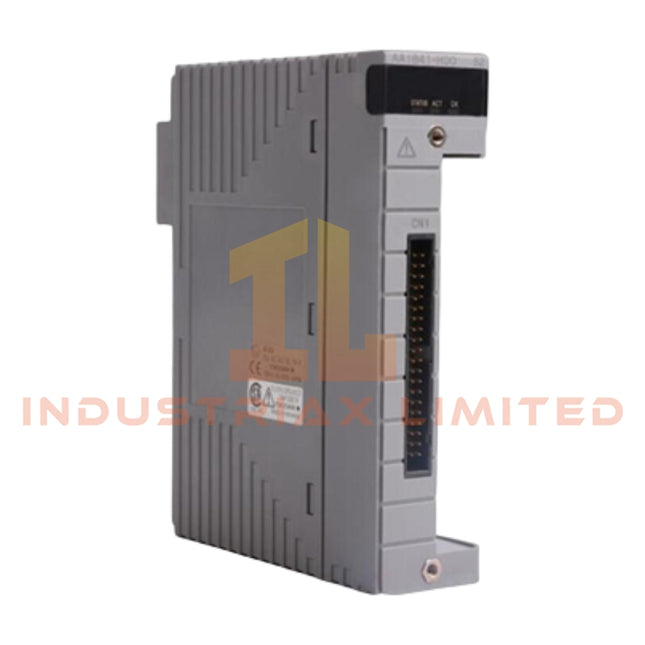

Yokogawa Yokogawa AAI841-H00/K4A00 Analog I/O Module 8-Channel HART
Product Description Overview The AAI841-H00/K4A00 from Yokogawa is an 8-channel analog input/output module designed for precise process control applications. This module supports both 4 to 20 mA input and output signals, providing reliable signal acquisition and transmission. Equipped with a KS Cable Interface Adapter, it ensures seamless connectivity in distributed control systems. The AAI841-H00/K4A00 is part of the AAI841 series and supports digital communication via HART protocol, enabling integration with advanced monitoring and control platforms. This module is ideal for systems requiring non-isolated, high-accuracy analog signal management. Technical Specifications Model: AAI841 Part Number: AAI841-H00/K4A00 Product Type: Analog I/O Module Input Signal: 4 to 20 mA Output Signal: 4 to 20 mA Channels: 8 Analog Inputs / 8 Analog Outputs Isolation: Non-Isolated Digital Communication: HART protocol supported Interface Adapter: KS Cable Interface (Model ATK4A-00) Operating Temperature: 0 to 55 degrees Celsius (typical) Mounting: DIN Rail / Rack Mountable Power Supply: 24 VDC nominal Accuracy: ±0.1% of span typical Response Time: <100 ms for analog signals Replacement: For discontinued AAI841-H00/K4A00, new model AAI841-H50/K4A00 is available Applications The AAI841-H00/K4A00 is suitable for process automation tasks in industries such as chemical processing, oil and gas, power generation, and water treatment. It supports precise analog signal monitoring and control in distributed control systems (DCS). FAQ Q: What is the main difference between AAI841-H00 and AAI841-H50?A: The H50 version is the current replacement and may offer updated firmware, improved stability, and enhanced HART communication features, while maintaining backward compatibility. Q: Can this module handle isolated signals?A: No, the AAI841-H00/K4A00 is non-isolated. For isolated applications, consider other AAI841 variants. Q: What types of systems is this module compatible with?A: It integrates seamlessly with Yokogawa DCS systems and supports standard HART-enabled devices.
$200.00 $100.00
-
Yokogawa Yokogawa AAI543-S50/A4S00 Analog Output Module 16-Channel
Product Description Overview The AAI543-S50/A4S00 from Yokogawa is a high-performance analog output module designed for precise signal control in industrial applications. It provides reliable 4-20 mA output across 16 isolated channels, making it ideal for distributed control systems requiring robust signal integrity. This module is part of the AAI543 series, offering enhanced flexibility with a pressure clamp terminal block for secure connections. Technical Specifications Parameter Specification Model AAI543-S50/A4S00 Channel Count 16 Channels Output Signal 4-20 mA Analog Output Isolation Full Channel-to-Channel Isolation Supply Voltage 24 VDC Nominal Accuracy ±0.1% Full Scale Response Time 10 ms Typical Input Type Standard Digital Input Compatible Mounting DIN Rail or Panel Mount Terminal Type Pressure Clamp Terminal Block (ATA4S-00) Operating Temperature 0 to 55°C Humidity 5 to 95% Non-Condensing Explosion Rating None Series AAI543 Analog Output Module Suffix Meaning S = Standard Type, 5 = Non-Explosion, 0 = Basic Type Applications This module is commonly used in process automation, hydraulic and pneumatic systems, and industrial control setups where multiple analog outputs are required with high isolation and accuracy. It is compatible with Yokogawa DCS and other PLC systems. FAQ Q: Can the module operate in high-temperature environments?A: The module is rated for 0 to 55°C. For higher temperature applications, additional cooling or alternate models are recommended. Q: Are there alternative models for fewer channels?A: Yes, Yokogawa offers AAI543 variants with 8 and 4 output channels for smaller installations. Q: What type of connections does it support?A: The module features a pressure clamp terminal block (ATA4S-00) for secure and vibration-resistant wiring.
$200.00 $100.00
-

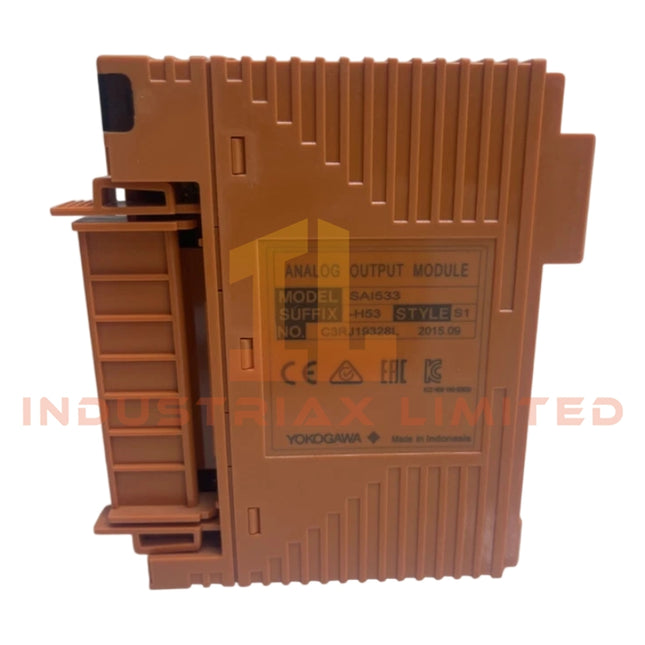

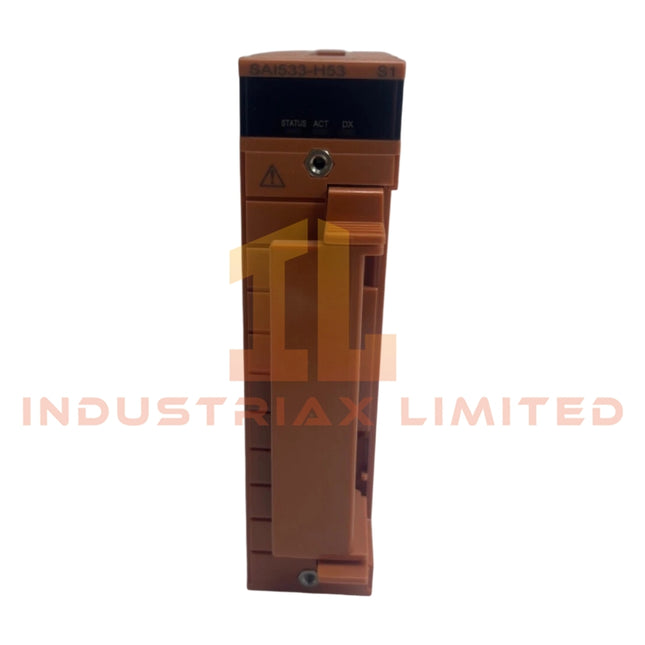

Yokogawa Analog Output Module 8-Channel Current | Yokogawa SAI533-H53
Product Description OverviewThe SAI533-H53/A4D00 from Yokogawa is an 8-channel analog output module designed for reliable 4 to 20 mA current signal generation. With full channel isolation and HART communication support, this module provides precise control and monitoring for industrial process applications. It is engineered for operation in standard industrial temperature ranges and adheres to ISA G3 standards. Technical Specifications Model: SAI533-H53/A4D00 Module Type: Analog Output Module (Current Output) Output Channels: 8 isolated analog output channels Output Signal: 4 to 20 mA current Communication: HART compatible Terminal Interface: Pressure clamp or MIL cable connection Standards: ISA G3 compliance Operating Temperature: -20 to 70 degrees Celsius Channel Isolation: Fully isolated for stable operation Mounting: DIN rail compatible Material: Industrial-grade enclosure Suffix Code Explanation H: HART communication interface 5: Designed for pressure clamp terminal block or MIL cable; no explosion protection 3: Conforms to ISA G3 standards and -20 to 70 degrees Celsius operating range Key Features High-precision 4 to 20 mA output for control loops Fully isolated channels for signal integrity Supports HART communication for diagnostics and configuration Robust design suitable for standard industrial temperature ranges Easy installation with pressure clamp or MIL cable terminals Applications Distributed Control Systems (DCS) Process automation and monitoring Actuator and valve control Remote signal transmission FAQQ: Can the module operate outside the -20 to 70 degree Celsius range?A: Standard operation is guaranteed within -20 to 70 degrees Celsius. Extended temperature ranges may require protective enclosures. Q: Is HART configuration required for normal operation?A: HART is optional. The module functions with standard 4 to 20 mA current output without HART, but HART enables advanced diagnostics and configuration. Similar Models Comparison SAI533-H52: 4-channel analog output module with HART support SAI533-H54: 8-channel module with extended EMI protection SAI534-H53: Analog output module with high-speed response
$200.00 $100.00
-

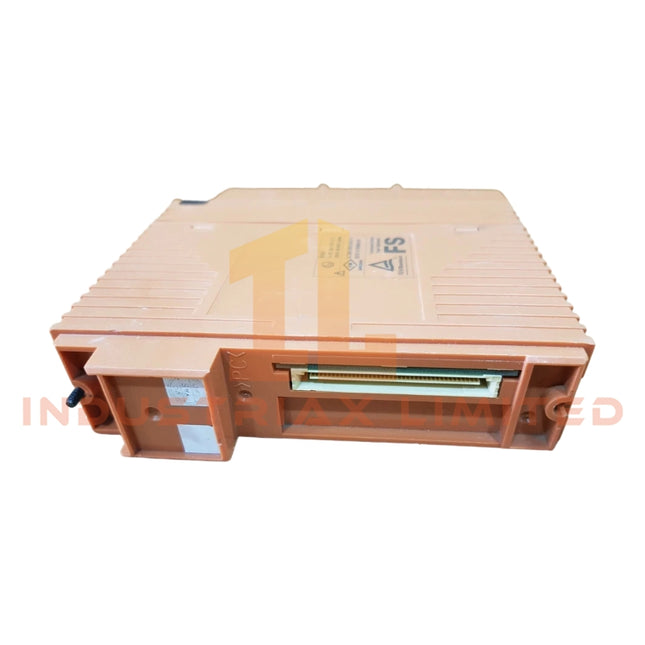

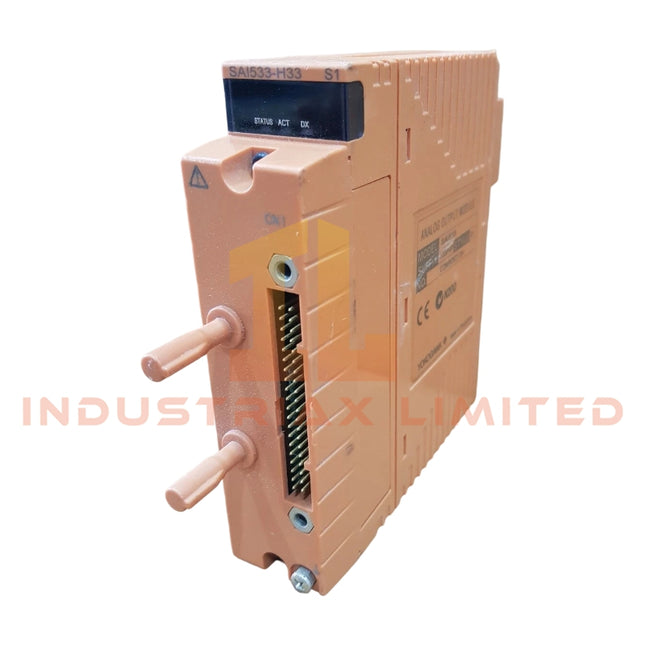

Yokogawa Yokogawa SAI533-H33/PRP S1 Analog Output Module Current 4-20mA
Product Description OverviewThe SAI533-H33/PRP S1 from Yokogawa is a compact analog output module designed for precise current signal generation in industrial control systems. Its robust design ensures stable performance in complex environments while maintaining high accuracy and reliability. Ideal for distributed control systems requiring precise analog current outputs. Technical Specifications Model: SAI533-H33/PRP S1 Module Type: Analog Output Module (Current Output) Output Channels: Configurable current output channels Output Signal: Standard 4 to 20 mA current signals Accuracy: ±0.1% of full scale Resolution: 16 bits Power Supply: 24 VDC ±10% Operating Temperature: -25 to 70 degrees Celsius Weight: 0.3 kg Dimensions: 32 mm x 107 mm x 130 mm (3.2 x 10.7 x 13 cm) Manufacturing Year: 2021 Place of Origin: Japan Certification: CO, CQ Mounting: DIN rail compatible Key Features High-precision current output for accurate control loops Compact form factor for easy integration in existing cabinets Robust design for stable operation under temperature variation Certified for compliance with CO and CQ standards Quick installation and configuration Applications Distributed Control Systems (DCS) Process control and automation Signal transmission to actuators or other field devices Remote monitoring systems FAQQ: Can the SAI533-H33/PRP S1 module support multiple output ranges?A: The module is optimized for 4 to 20 mA outputs. Other ranges may require additional configuration. Q: Is this module suitable for outdoor installations?A: With an operating range of -25 to 70 degrees Celsius, it can operate in many environments. For extreme conditions, protective housing is recommended. Similar Models Comparison SAI533-H32: Standard analog output module with lower channel count SAI534-H33: Enhanced EMI protection module SAI535-H34: Extended channel module for larger systems
$200.00 $100.00
-
Yokogawa Yokogawa SAl143-S53 Analog Input Module 16-Channel High Precision
Product Description OverviewThe SAl143-S53 from Yokogawa is a high-precision analog input module designed for industrial applications requiring reliable, isolated signal acquisition. Featuring 16 channels, the module supports standard 4 to 20 mA signals and ensures stable operation in harsh environments. Its compact form factor and user-friendly design allow seamless integration into existing control systems. Technical Specifications Model: SAl143-S53 Module Type: Analog Input Module Channels: 16 isolated analog input channels Signal Type: 4 to 20 mA Accuracy: ±0.1% of full scale Resolution: 16 bits Input Impedance: 100 kOhm Temperature Range: -25 to 70 degrees Celsius Electromagnetic Immunity: Compliant with IEC 61000-4-3, IEC 61000-4-4 Withstanding Voltage: 1.5 kVAC between input and system for 1 minute Power Supply: 24 VDC ±10% Dimensions: 25 mm x 123 mm x 98 mm (0.98 x 4.84 x 3.86 inches) Weight: 0.5 kg Key Features High Accuracy and Resolution: Delivers precise analog measurements across all channels Wide Operating Temperature: Suitable for a variety of industrial environments Dual-Redundant Configuration: Enhances system reliability EMI and RFI Resistant: Stable performance even in electrically noisy environments Easy Installation: Compact design for straightforward integration Applications Process control and monitoring Factory automation systems Remote signal acquisition Environmental monitoring FAQQ: Can this module handle signals outside the 4–20 mA range?A: The SAl143-S53 is optimized for 4–20 mA signals. Using signals outside this range may compromise accuracy and safety. Q: Is the module suitable for outdoor use?A: The operating temperature range is -25 to 70 degrees Celsius. Additional protective housing is recommended for outdoor environments with extreme weather. Similar Models Comparison SAl143: Standard 16-channel AI module SAl144: High-speed sampling version, lower input impedance SAl145: Expanded channel version with enhanced EMI immunity
$200.00 $100.00
-
Yokogawa Yokogawa SAI143-S33 Analog Input Module High Precision Converter
Product Description OverviewThe Yokogawa SAI143-S33 is a high-precision analog input module designed for reliable DC millivolt signal conversion and isolation. It is widely applied in chemical process weighing, battery voltage monitoring, and tension detection in rolling mills. The module converts low-level mV/VDC input signals into standard 4-20mA or 1-5V DC output with excellent stability. Key Features Supports DC input signals ranging from ±20mV to ±10V across 10 selectable ranges Switchable output: 4-20mA or 1-5V DC High accuracy with minimal temperature drift ensures precise measurement in industrial environments Isolation between input, output, and power up to 1500V AC Superior common mode rejection of 140dB at 50/60Hz Fast response time: 0 to 90% in less than 300ms Flexible power supply: 20-130V AC/DC or 15-30V DC Wide operating temperature: -20°C to 65°C Technical Specifications Parameter Specification Input Signal DC ±20mV to ±10V, 10 ranges Output Signal 4-20mA or 1-5V DC (selectable) Accuracy ±0.05% Full Scale at 23C ±2C Temperature Drift ±0.0075% Full Scale per °C Isolation 1500V AC (Input/Output/Power) Common Mode Rejection 140dB at 50/60Hz Response Time ≤300ms (0 to 90% step) Power Supply 20-130V AC/DC or 15-30V DC Ambient Temperature -20C to 65C Applications Precision weighing and batching in chemical processing Battery voltage monitoring in production lines Tension measurement and control in steel rolling mills FAQ Q: Can this module handle multiple input ranges?A: Yes, the SAI143-S33 supports 10 different DC input ranges from ±20mV up to ±10V, configurable for various sensors. Q: Is the output configurable?A: Yes, users can select either 4-20mA or 1-5V DC output depending on system requirements. Q: What environments can it operate in?A: It is suitable for industrial conditions with temperatures from -20°C to 65°C and provides robust isolation against electrical noise. Similar Models Comparison SAI142 Series: Lower accuracy, faster response, limited input range SAI144 Series: Extended temperature range, higher input voltage tolerance
$200.00 $100.00
-
Yokogawa 16-Channel AI ProSafe-RS | Yokogawa SAl143-S03 Analog Input Module
Product Description OverviewThe Yokogawa SAl143-S03 is a high-precision analog input module engineered for integration with the ProSafe-RS safety instrumented system. Designed to acquire and digitize analog signals from field devices such as transmitters, this module ensures reliable data acquisition in safety-critical environments where accuracy and system integrity are essential. Technical Specifications Feature Specification Model SAl143-S03 Module Type Analog Input Module Input Channels 16 isolated channels Input Current Range 4 to 20 mA (permissible 0 to 25 mA) Rated Accuracy ±16 microamperes (for 1 to 23 mA range) Data Update Rate 40 ms Input Impedance (Power ON) 250 ohms Input Impedance (Power OFF) ≥500 kOhms Withstand Voltage 1.5 kV AC between input signals and system for 1 minute Maximum Current Consumption 320 mA (5V system), 550 mA (24V system) Transmitter Power Supply Minimum 16.15 V at 20 mA, Maximum 26.4 V at 0 mA Output Current Limit 25 mA Temperature Drift ±16 microamperes per 10 degrees Celsius External Connections Pressure clamp terminal, MIL cable, dedicated signal cable Dimensions 127 mm x 229 mm x 178 mm Weight 0.3 kg ApplicationsThis module is ideal for use in safety-instrumented systems requiring high reliability, including chemical plants, power generation facilities, and process automation systems. Its isolated inputs and precision monitoring capabilities make it suitable for environments where accurate measurement and fault tolerance are critical. FAQ Q: Can this module handle signals beyond 20 mA?A: Yes, the module can safely process signals up to 25 mA without damage, although optimal accuracy is achieved within 1–23 mA. Q: What is the update speed of the input data?A: The module updates analog input data every 40 milliseconds, ensuring near real-time monitoring. Q: How does this module compare to SAl143-S02?A: Compared to SAl143-S02, the S03 offers improved isolation between channels and higher precision, making it more suitable for critical safety applications.
$200.00 $100.00
-
Yokogawa Yokogawa SAI143-H63 Analog Input Module 16 Channels 4-20 mA
Product Description Overview The SAI143-H63 from Yokogawa is a high-precision analog input module designed for reliable signal acquisition in industrial control systems. It provides isolated 16-channel input support and is suitable for various measurement and monitoring applications requiring stable and accurate current signal handling. Technical Specifications Number of Input Channels: 16 isolated channels Input Signal Range: 4 to 20 mA Data Update Rate: 40 milliseconds per channel Transmitter Power Supply Control: ON/OFF available for all 16 channels simultaneously in 2-wire configuration Withstanding Voltage: 1500 V AC between input signals and system for 1 minute Module Type: Analog Input Installation: DIN rail mount compatible Isolation: Full channel-to-channel isolation Response Accuracy: High precision within industry-standard tolerance for 4-20 mA signals Applications Ideal for process automation, instrumentation, and plant monitoring where multiple 4-20 mA sensors need to be connected reliably. Compatible with Yokogawa control systems for seamless integration. FAQ Q: Can this module provide power to 2-wire transmitters?A: Yes, the SAI143-H63 allows simultaneous ON/OFF control of transmitter power supply for all 16 channels. Q: Is the module fully isolated between channels?A: Yes, each of the 16 input channels is isolated, ensuring minimal interference and high signal integrity. Q: What is the update speed for input signals?A: The module updates data every 40 milliseconds, providing near real-time monitoring of analog inputs. Related Models Comparison SAI143-H61: Lower channel count, similar 4-20 mA input range. SAI143-H64: Higher data update frequency suitable for fast process control.
$200.00 $100.00
-
Yokogawa Yokogawa SAI143-H53 16-Channel Analog Input Module HART Enabled
Product Description Overview The SAI143-H53 is a high-precision 16-channel analog input module designed for reliable signal acquisition and monitoring in industrial applications. With full module isolation, the unit supports standard 4 to 20 mA input signals and provides flexible transmitter power supply management for two-wire devices. Its compact design and robust specifications make it suitable for critical monitoring and control systems. Technical Specifications Parameter Specification Model SAI143-H53 Manufacturer Yokogawa Product Type Analog Input Module Number of Input Channels 16 channels with module isolation Input Signal Range 4 to 20 mA Data Update Interval 40 ms Transmitter Power Supply ON/OFF function available for all 16 channels in two-wire configuration Communication Protocol HART enabled (Suffix H) Operating Temperature -20 to 70 Celsius (Suffix 3) Mounting / Wiring Pressure clamp terminal block or MIL cable (Suffix 5) Isolation Voltage 1.5 kV AC between input and system for 1 minute Release Version R1.02.00 Applications Ideal for industrial monitoring, process control, and system integration where multiple analog signals must be accurately captured and transmitted. Supports HART-enabled instruments and can be integrated with Yokogawa control systems or compatible PLC/SCADA platforms. FAQ Q: Can this module power 2-wire transmitters?A: Yes, the SAI143-H53 provides ON/OFF power control for all channels simultaneously in two-wire configuration. Q: Is HART communication supported?A: Yes, the module supports HART protocol when using suffix H configuration. Q: What is the operating temperature range?A: The module operates reliably between -20 and 70 Celsius. Q: Can I use this module in explosive environments?A: This specific variant (Suffix 5) is designed for non-explosive applications. Explosion-proof versions are available separately.
$200.00 $100.00
-
Yokogawa SAI143-H33 | Yokogawa | Analog Input Module
Product Description Overview The SAI143-H33 (Yokogawa) is a high-performance analog input module designed for industrial control systems. It provides 16 fully isolated input channels. The original SAI143-H33 has been discontinued, and the recommended replacement is SAI143-H63. This module is ideal for process automation, real-time monitoring, and data acquisition, delivering reliable and stable signal input for engineers. Technical Specifications Model: SAI143-H33 Product Type: Analog Input Module Number of Input Channels: 16, fully isolated Rated Input Range: 4 to 20 mA Data Update Frequency: 40 ms Transmitter Power Supply Control: Available for 2-wire configuration, simultaneous ON/OFF for all 16 channels Withstanding Voltage: 1.5 kV AC between input signal and system for 1 minute Channel Isolation: Each channel isolated from others and the system Operating Temperature: 0 to 55°C (recommended) Storage Temperature: -20 to 70°C System Compatibility: Yokogawa DCS systems Applications Industrial process monitoring and control Real-time signal acquisition and processing Multi-channel sensor data input Replacement for older modules to upgrade system performance FAQ Q: Can the SAI143-H33 control the transmitter power for individual channels?A: No. The power supply control operates simultaneously for all 16 channels. Q: Can this module directly replace the SAI143-H63?A: Yes, the functions are highly compatible, but check system connections and wiring before replacement. Q: Is the data update frequency fixed?A: Yes, it is fixed at 40 ms.
$200.00 $100.00
-
Yokogawa Yokogawa SAl143-H03 Analog Input Module | Precision Industrial Signal Interface
Product Description OverviewThe SAl143-H03 from Yokogawa is a high-performance analog input module engineered for integration with Yokogawa DCS and PLC systems. It delivers accurate, stable, and reliable signal acquisition, making it ideal for industrial process monitoring, control, and automation applications. Its versatile specifications allow compatibility with a broad range of sensors and real-time measurement needs. Key Features High AccuracyThe SAl143-H03 ensures precise measurement with an accuracy of ±0.1 percent of full scale, making it suitable for applications where signal fidelity is critical. Wide Input RangeSupports input voltages from 0 to 10 volts, accommodating most standard industrial transducers and sensors without additional signal conditioning. Fast Sampling RateCapable of sampling at up to 10 kilo-samples per second, the SAl143-H03 is optimized for real-time monitoring and high-speed process control. Low Noise PerformanceThe module maintains a low noise floor of minus 90 decibels, ensuring minimal interference and maintaining signal integrity for sensitive measurements. Energy-Efficient DesignPower consumption is kept below 5 watts, allowing deployment in energy-conscious systems without compromising performance. Technical Specifications Parameter Specification Model SAl143-H03 Input Signal Range 0 to 10 V Accuracy ±0.1% of Full Scale Sampling Rate Up to 10 kHz Noise Floor -90 dB Power Consumption <5 W Output Type Digital Interface Compatible with DCS/PLC Operating Temperature 0 to 55 degrees Celsius Storage Temperature -20 to 70 degrees Celsius Humidity 5 to 95 percent non-condensing ApplicationsThe SAl143-H03 is suitable for precision industrial measurements in chemical, petrochemical, power generation, and manufacturing industries. It is ideal for analog signal acquisition from temperature sensors, pressure transducers, flow meters, and other process instruments. FAQ Q: Is the SAl143-H03 compatible with all Yokogawa DCS systems?A: Yes, it is fully compatible with Yokogawa CENTUM VP and related DCS systems, as well as supported PLC units. Q: Can it handle differential inputs?A: The module is designed primarily for single-ended 0–10 V signals. Differential input options may require a compatible interface module. Q: What is the maximum sampling speed for reliable measurements?A: Up to 10 kHz, suitable for real-time process monitoring. Similar Models ComparisonCompared to the SAl143-H02, the SAl143-H03 offers improved sampling speed and lower noise performance, making it better suited for high-speed, high-accuracy applications.
$200.00 $100.00
-
Yokogawa Yokogawa ALF111-S51/F9S00 Foundation Fieldbus Communication Module
Product Description OverviewThe ALF111-S51/F9S00 from Yokogawa is a Foundation Fieldbus Communication Module designed for reliable digital communication in process control systems. This module ensures robust integration between field devices and host systems, supporting high-speed, deterministic communication across industrial networks. Technical Specifications Model: ALF111-S51/F9S00 Manufacturer: Yokogawa Product Type: Foundation Fieldbus Communication Module Explosion Protection: None (Standard type) Compliance Option: ISA Standard G3 Terminal Block Type: Pressure clamp terminal block (Model ATF9S-00) Weight: 0.4 Kg Communication Protocol: Foundation Fieldbus H1 Power Supply: Fieldbus powered Operating Temperature Range: -20 to 70 degrees Celsius (typical for FCS modules) Mounting: DIN rail or panel mount compatible Indicators: Status LED for communication and fault detection ApplicationsThe ALF111-S51/F9S00 module is suitable for process automation applications requiring high reliability and precision, including chemical, pharmaceutical, and oil & gas industries. It enables seamless integration of field instruments into centralized control systems. FAQ Q: Is the module compatible with other Foundation Fieldbus devices?A: Yes, it is compliant with standard Foundation Fieldbus H1 devices and can be integrated into mixed-vendor networks. Q: Does this module require additional power supply units?A: No, it is fieldbus-powered and does not need separate power. Q: Are there alternative models with explosion protection?A: Yes, Yokogawa offers variants of ALF111 with explosion-proof certifications if required. Similar Models Comparison ALF111-S51/F9S01: Includes intrinsic safety protection for hazardous zones. ALF111-S51/F9S02: Supports extended temperature range for extreme environments.
$200.00 $100.00
-
Yokogawa Yokogawa ATI3S-So0 Terminal Block | Pressure Clamp Module Interface
Product Description Overview The ATI3S-So0 terminal block from Yokogawa is engineered to provide reliable field connections for isolated analog and pulse modules, including AAl135, AAP135, and AAl835. Its robust construction ensures stable and efficient operation in industrial control systems while safeguarding connected modules against electrical disturbances. Technical Specifications Type: Pressure clamp terminal block Channels: 8 channels total (4 input channels, 4 output channels specifically for AAl835) Connection: Screw terminals for secure and vibration-resistant wiring Module Compatibility: Supports isolated analog and pulse modules Surge Protection: Integrated absorbers to protect modules from voltage spikes and electrical transients Electromagnetic Compliance: Meets EN61000-6-2 EMC standard Dimensions: Compact design suitable for dense control panels (approx. 100 mm x 70 mm x 45 mm, estimated for standard panel integration) Operating Temperature Range: -20°C to +60°C Mounting: DIN rail or panel mount compatible Features Secure Connections: Pressure clamps provide firm wiring terminations and reduce maintenance needs. Electrical Protection: Integrated surge protection enhances system reliability. Space Efficiency: Compact layout allows easy integration into control cabinets. Industrial Compliance: Fully compliant with electromagnetic and safety standards for industrial applications. Applications Process control systems requiring reliable analog signal transmission Pulse monitoring and acquisition setups Industrial panels integrating AAl series modules Situations where vibration-resistant connections are critical FAQ Q: Which modules are compatible with ATI3S-So0?A: It supports Yokogawa isolated analog modules AAl135, AAP135, and pulse modules AAl835. Q: Does it provide surge protection?A: Yes, built-in surge absorbers protect connected modules from electrical transients. Q: Can it be used in compact panels?A: Its compact design allows installation in space-constrained control panels. Q: How many channels does it have?A: The terminal block has 8 channels: 4 input and 4 output channels.
$200.00 $100.00
-
Yokogawa ATI3S-00 Terminal Block | CENTUM VP DCS Module | Yokogawa
Product Description Overview The Yokogawa ATI3S-00 is a precision-engineered pressure clamp terminal block designed for use within the CENTUM VP distributed control system (DCS). As a passive connectivity component, it ensures reliable signal transmission between isolated analog modules and pulse modules, facilitating secure interfacing between I/O modules and field instruments. This terminal block supports high-density wiring while maintaining electrical isolation and robust mechanical stability. Technical Specifications Model: ATI3S-00 Type: Terminal Block, Pressure Clamp Number of Channels: 16 channels for diverse field device integration Wire Size Compatibility: Supports wire sizes from 14 AWG to 22 AWG Torque Range: 0.5 to 0.75 Nm for secure terminal connections Operating Temperature: -40 to +70 degrees Celsius Ingress Protection: IP20 (protection against solid objects; limited moisture resistance) Mounting Type: DIN rail compatible Material: High-quality thermoplastic housing with corrosion-resistant metal terminals Insulation Voltage: 600 V AC/DC Dielectric Strength: 2 kV for one minute between terminals Applications The ATI3S-00 terminal block is suitable for: Interfacing analog and pulse modules within the CENTUM VP DCS Connecting a wide range of field sensors and actuators Industrial environments requiring robust mechanical and electrical reliability FAQ Q: Can this terminal block handle larger wires than 14 AWG?A: The recommended wire range is 14 to 22 AWG. Using larger wires may compromise terminal integrity. Q: Is the terminal block suitable for outdoor installation?A: The IP20 rating provides protection against dust but not against water. Outdoor use requires additional protective housing. Q: Are similar models available for higher channel density?A: Yes, Yokogawa offers variants such as ATI3S-16 and ATI3S-32 for higher channel requirements.
$200.00 $100.00
-
Yokogawa Yokogawa ATB5S-00 Terminal Block ADV151 Module Accessory
Product Description OverviewThe Yokogawa ATB5S-00 is a pressure clamp terminal block engineered for robust and reliable digital input connections. Specifically designed for use with Yokogawa’s ADV151 Digital Input Module (32-channel, 24 VDC, isolated), this terminal block ensures secure wiring and streamlined installation in demanding industrial environments. Key Features Compatible with 32-channel digital input modules Incorporates ISA Standard G3 option for enhanced interoperability Utilizes pressure clamp technology to guarantee secure and maintenance-free connections Industrial-grade design suitable for high-reliability applications Supports efficient wiring and modular installation Technical Specifications Model: ATB5S-00 Compatible Module: ADV151 Digital Input Module Number of Channels: 32 Input Voltage: 24 VDC Isolation: Isolated channels for safety and noise immunity Terminal Type: Pressure clamp for quick and secure wiring Mounting: Standard DIN rail compatible Operating Temperature: -20°C to 60°C Compliance: ISA G3 standard Material: Industrial-grade flame-retardant plastic housing Applications Distributed control systems requiring high channel-density digital input Process monitoring and control in manufacturing, chemical, and power generation Replacement or expansion of Yokogawa CENTUM VP I/O systems FAQQ: Can ATB5S-00 be used with modules other than ADV151?A: ATB5S-00 is optimized for the ADV151 32-channel digital input module. Compatibility with other modules requires checking pinout and voltage specifications. Q: What wiring tools are required?A: Standard flathead screwdrivers are sufficient for pressure clamp terminals; no specialized tools are needed. Similar Models ATB5S-01: For analog input modules ATB5S-02: For digital output modules
$200.00 $100.00
-
Yokogawa Dual Pressure Clamp Terminal Block | Yokogawa ATT4D-00
Product Description Overview The Yokogawa ATT4D-00 is a dual-channel terminal block designed for industrial pressure measurement applications. It provides secure and reliable connections for two independent pressure transmitters or other pressure measuring instruments. The dual-input capability allows simultaneous handling of two pressure signals, making it ideal for monitoring multiple pressure points in a centralized system. Technical Specifications Model: ATT4D-00 Function: Dual-channel pressure input terminal Input Type: Pressure signals Maximum Rated Voltage: 250V AC/DC Terminal Type: Pressure clamp terminal Compatible Devices: Industrial pressure transmitters Operating Temperature Range: -20°C to 70°C Mounting Method: DIN rail Material: High-strength insulating plastic Dimensions: Approx. 90mm x 50mm x 25mm Weight: Approx. 120g Applications Suitable for process control systems, factory automation monitoring, and energy equipment where multiple pressure points need simultaneous monitoring. The dual-channel design simplifies wiring and enhances system reliability. FAQ Q: How many pressure transmitters can ATT4D-00 connect at once?A: It can connect two independent pressure transmitters simultaneously. Q: What installation environments are suitable?A: Suitable for industrial environments. Can be mounted on standard DIN rails, with an operating temperature range of -20°C to 70°C. Q: What are the advantages compared to a single-channel terminal?A: The dual-channel design reduces wiring complexity, saves space, and allows simultaneous monitoring of two pressure points for centralized management.
$200.00 $100.00
-
Yokogawa Yokogawa ATR8S-OO Pressure Clamp Terminal Block | 12-Channel Interface
Product Description Overview The Yokogawa ATR8S-OO Pressure Clamp Terminal Block is engineered for reliable field device integration in control cabinets. Its robust 12-channel design allows for efficient use of cabinet space while providing multiple connection options for diverse installation scenarios. Ideal for high-precision measurement systems, this terminal block ensures secure signal transfer and surge protection across connected devices. Key Technical Features Channel Capacity: Supports up to 12 individual field devices per module. Connection Options: Pressure Clamp Terminal: Provides secure mechanical and electrical connections to field devices. Includes an integrated surge absorber for enhanced transient immunity. KS Cable Interface Adapter: Enables flexible interfacing between I/O modules and field devices via a terminal board. MIL Connector Cable: Permits direct connection to I/O modules when a MIL connector cable is supplied by the customer. Material: High-quality insulating base with corrosion-resistant metallic clamps. Mounting: DIN-rail compatible for rapid installation in standard control cabinets. Operating Conditions: Suitable for ambient temperatures from -20C to +70C and humidity up to 95 percent non-condensing. Electrical Ratings: Maximum continuous current 5A per channel, voltage rating up to 250V DC/AC. Dimensions: 150 mm (length) x 90 mm (width) x 50 mm (height). Applications Industrial control cabinets Process measurement and monitoring systems Distributed I/O systems requiring surge protection Signal consolidation for field devices FAQ Q: Can this terminal block interface with any I/O module?A: Yes, using either the KS Cable Adapter or a compatible MIL connector cable supplied by the customer. Q: What protection does it offer against voltage spikes?A: Integrated surge absorbers protect all 12 channels against transient voltages. Q: Are additional mounting accessories required?A: No, the terminal block is DIN-rail compatible and ready for direct installation. Similar Models Comparison ATR8S-OO: 12-channel standard pressure clamp terminal block ATR8S-XX: 8-channel variant with similar connection options ATR12S-OO: 12-channel version with enhanced current rating for heavy-duty applications
$200.00 $100.00
You have seen 24 out of 168 products
