Yokogawa spare parts and accessories help maintain, upgrade, and extend the life of automation systems. From controllers to modules and connectors, these components reduce downtime and ensure continuous operation.
Yokogawa Other Parts
-

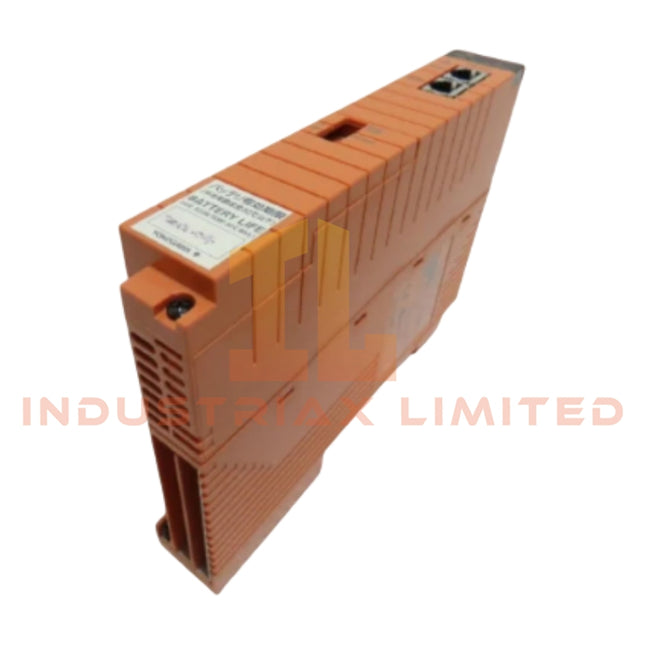

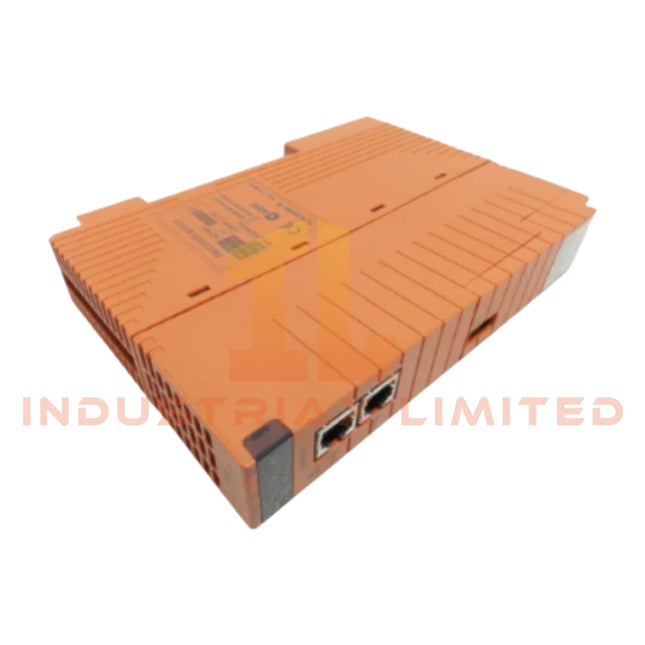

Yokogawa Yokogawa SAl143-S53 Analog Input Module 16-Channel High Precision
Product Description OverviewThe SAl143-S53 from Yokogawa is a high-precision analog input module designed for industrial applications requiring reliable, isolated signal acquisition. Featuring 16 channels, the module supports standard 4 to 20 mA signals and ensures stable operation in harsh environments. Its compact form factor and user-friendly design allow seamless integration into existing control systems. Technical Specifications Model: SAl143-S53 Module Type: Analog Input Module Channels: 16 isolated analog input channels Signal Type: 4 to 20 mA Accuracy: ±0.1% of full scale Resolution: 16 bits Input Impedance: 100 kOhm Temperature Range: -25 to 70 degrees Celsius Electromagnetic Immunity: Compliant with IEC 61000-4-3, IEC 61000-4-4 Withstanding Voltage: 1.5 kVAC between input and system for 1 minute Power Supply: 24 VDC ±10% Dimensions: 25 mm x 123 mm x 98 mm (0.98 x 4.84 x 3.86 inches) Weight: 0.5 kg Key Features High Accuracy and Resolution: Delivers precise analog measurements across all channels Wide Operating Temperature: Suitable for a variety of industrial environments Dual-Redundant Configuration: Enhances system reliability EMI and RFI Resistant: Stable performance even in electrically noisy environments Easy Installation: Compact design for straightforward integration Applications Process control and monitoring Factory automation systems Remote signal acquisition Environmental monitoring FAQQ: Can this module handle signals outside the 4–20 mA range?A: The SAl143-S53 is optimized for 4–20 mA signals. Using signals outside this range may compromise accuracy and safety. Q: Is the module suitable for outdoor use?A: The operating temperature range is -25 to 70 degrees Celsius. Additional protective housing is recommended for outdoor environments with extreme weather. Similar Models Comparison SAl143: Standard 16-channel AI module SAl144: High-speed sampling version, lower input impedance SAl145: Expanded channel version with enhanced EMI immunity
$200.00 $100.00
-

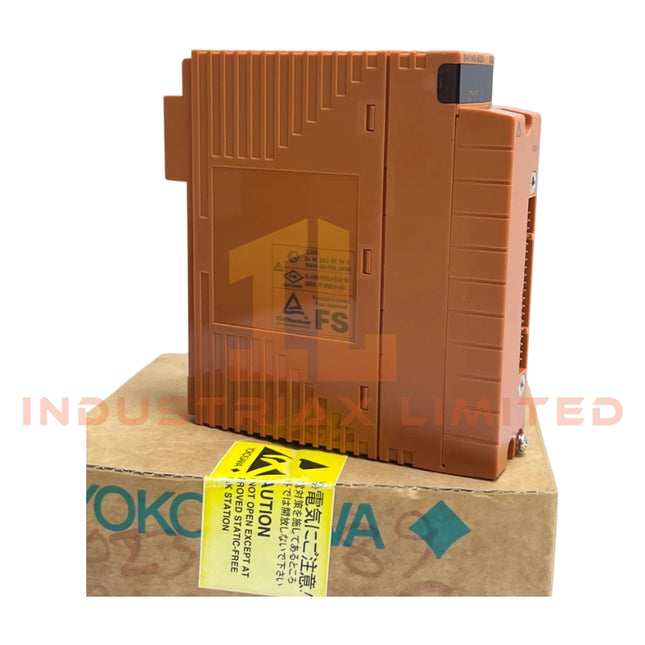

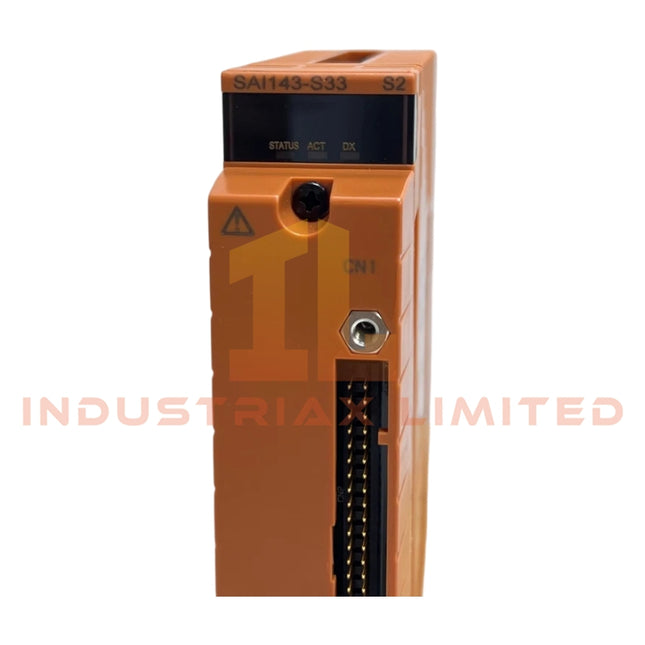

Yokogawa Yokogawa SAI143-S33 Analog Input Module High Precision Converter
Product Description OverviewThe Yokogawa SAI143-S33 is a high-precision analog input module designed for reliable DC millivolt signal conversion and isolation. It is widely applied in chemical process weighing, battery voltage monitoring, and tension detection in rolling mills. The module converts low-level mV/VDC input signals into standard 4-20mA or 1-5V DC output with excellent stability. Key Features Supports DC input signals ranging from ±20mV to ±10V across 10 selectable ranges Switchable output: 4-20mA or 1-5V DC High accuracy with minimal temperature drift ensures precise measurement in industrial environments Isolation between input, output, and power up to 1500V AC Superior common mode rejection of 140dB at 50/60Hz Fast response time: 0 to 90% in less than 300ms Flexible power supply: 20-130V AC/DC or 15-30V DC Wide operating temperature: -20°C to 65°C Technical Specifications Parameter Specification Input Signal DC ±20mV to ±10V, 10 ranges Output Signal 4-20mA or 1-5V DC (selectable) Accuracy ±0.05% Full Scale at 23C ±2C Temperature Drift ±0.0075% Full Scale per °C Isolation 1500V AC (Input/Output/Power) Common Mode Rejection 140dB at 50/60Hz Response Time ≤300ms (0 to 90% step) Power Supply 20-130V AC/DC or 15-30V DC Ambient Temperature -20C to 65C Applications Precision weighing and batching in chemical processing Battery voltage monitoring in production lines Tension measurement and control in steel rolling mills FAQ Q: Can this module handle multiple input ranges?A: Yes, the SAI143-S33 supports 10 different DC input ranges from ±20mV up to ±10V, configurable for various sensors. Q: Is the output configurable?A: Yes, users can select either 4-20mA or 1-5V DC output depending on system requirements. Q: What environments can it operate in?A: It is suitable for industrial conditions with temperatures from -20°C to 65°C and provides robust isolation against electrical noise. Similar Models Comparison SAI142 Series: Lower accuracy, faster response, limited input range SAI144 Series: Extended temperature range, higher input voltage tolerance
$200.00 $100.00
-

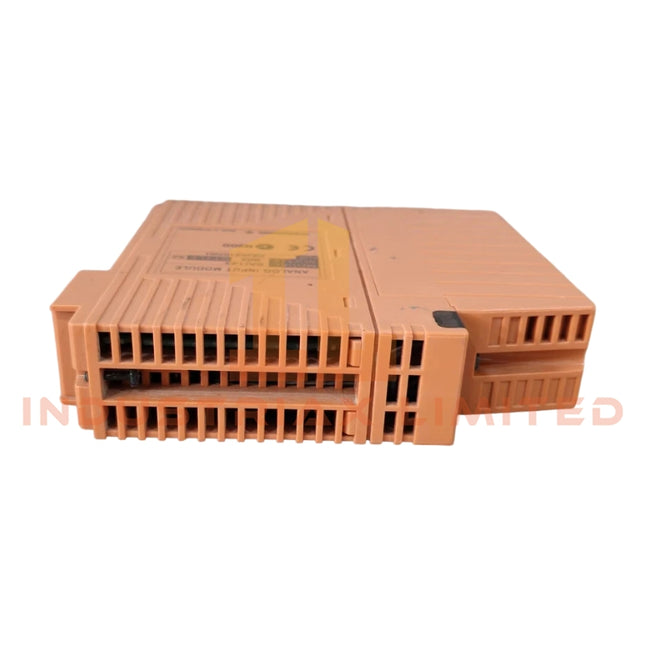

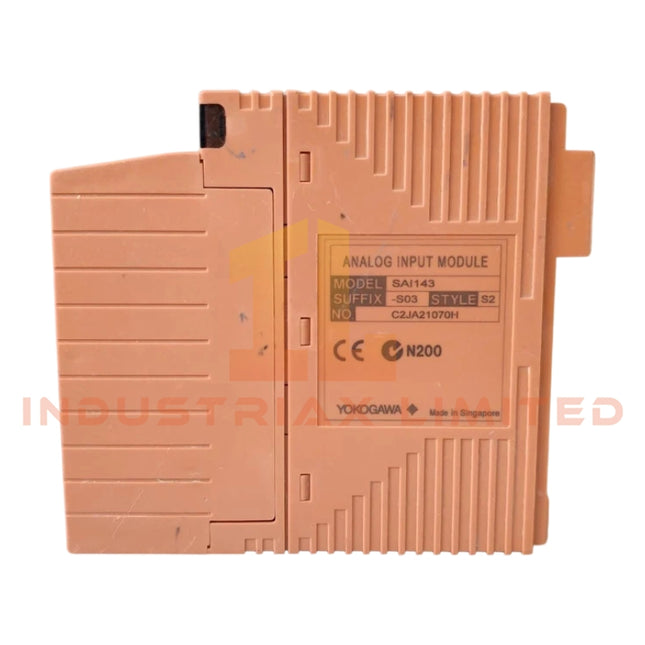

Yokogawa 16-Channel AI ProSafe-RS | Yokogawa SAl143-S03 Analog Input Module
Product Description OverviewThe Yokogawa SAl143-S03 is a high-precision analog input module engineered for integration with the ProSafe-RS safety instrumented system. Designed to acquire and digitize analog signals from field devices such as transmitters, this module ensures reliable data acquisition in safety-critical environments where accuracy and system integrity are essential. Technical Specifications Feature Specification Model SAl143-S03 Module Type Analog Input Module Input Channels 16 isolated channels Input Current Range 4 to 20 mA (permissible 0 to 25 mA) Rated Accuracy ±16 microamperes (for 1 to 23 mA range) Data Update Rate 40 ms Input Impedance (Power ON) 250 ohms Input Impedance (Power OFF) ≥500 kOhms Withstand Voltage 1.5 kV AC between input signals and system for 1 minute Maximum Current Consumption 320 mA (5V system), 550 mA (24V system) Transmitter Power Supply Minimum 16.15 V at 20 mA, Maximum 26.4 V at 0 mA Output Current Limit 25 mA Temperature Drift ±16 microamperes per 10 degrees Celsius External Connections Pressure clamp terminal, MIL cable, dedicated signal cable Dimensions 127 mm x 229 mm x 178 mm Weight 0.3 kg ApplicationsThis module is ideal for use in safety-instrumented systems requiring high reliability, including chemical plants, power generation facilities, and process automation systems. Its isolated inputs and precision monitoring capabilities make it suitable for environments where accurate measurement and fault tolerance are critical. FAQ Q: Can this module handle signals beyond 20 mA?A: Yes, the module can safely process signals up to 25 mA without damage, although optimal accuracy is achieved within 1–23 mA. Q: What is the update speed of the input data?A: The module updates analog input data every 40 milliseconds, ensuring near real-time monitoring. Q: How does this module compare to SAl143-S02?A: Compared to SAl143-S02, the S03 offers improved isolation between channels and higher precision, making it more suitable for critical safety applications.
$200.00 $100.00
-

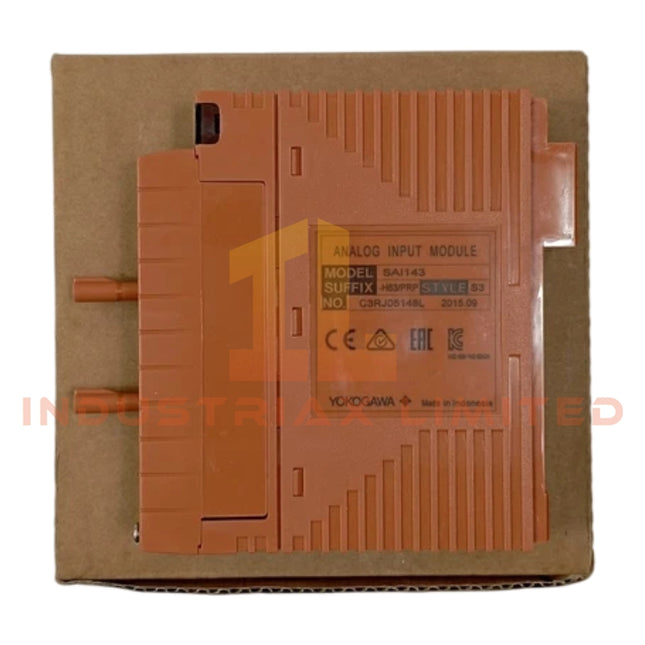

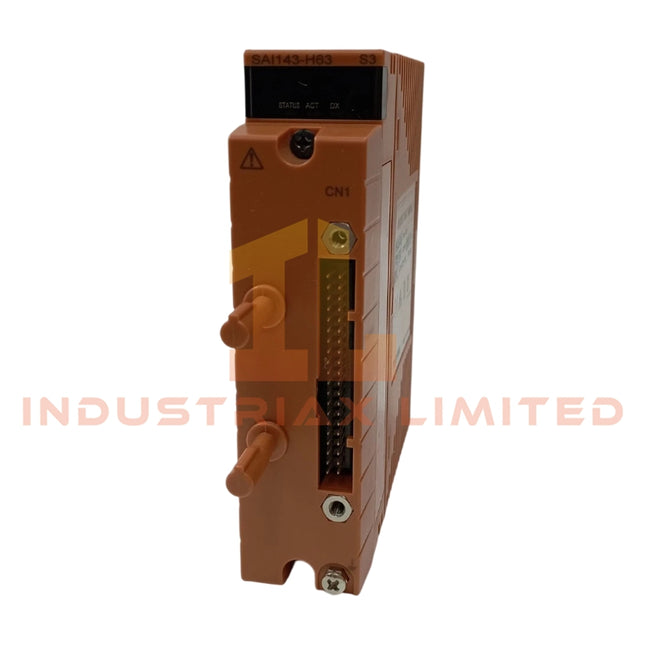

Yokogawa Yokogawa SAI143-H63 Analog Input Module 16 Channels 4-20 mA
Product Description Overview The SAI143-H63 from Yokogawa is a high-precision analog input module designed for reliable signal acquisition in industrial control systems. It provides isolated 16-channel input support and is suitable for various measurement and monitoring applications requiring stable and accurate current signal handling. Technical Specifications Number of Input Channels: 16 isolated channels Input Signal Range: 4 to 20 mA Data Update Rate: 40 milliseconds per channel Transmitter Power Supply Control: ON/OFF available for all 16 channels simultaneously in 2-wire configuration Withstanding Voltage: 1500 V AC between input signals and system for 1 minute Module Type: Analog Input Installation: DIN rail mount compatible Isolation: Full channel-to-channel isolation Response Accuracy: High precision within industry-standard tolerance for 4-20 mA signals Applications Ideal for process automation, instrumentation, and plant monitoring where multiple 4-20 mA sensors need to be connected reliably. Compatible with Yokogawa control systems for seamless integration. FAQ Q: Can this module provide power to 2-wire transmitters?A: Yes, the SAI143-H63 allows simultaneous ON/OFF control of transmitter power supply for all 16 channels. Q: Is the module fully isolated between channels?A: Yes, each of the 16 input channels is isolated, ensuring minimal interference and high signal integrity. Q: What is the update speed for input signals?A: The module updates data every 40 milliseconds, providing near real-time monitoring of analog inputs. Related Models Comparison SAI143-H61: Lower channel count, similar 4-20 mA input range. SAI143-H64: Higher data update frequency suitable for fast process control.
$200.00 $100.00
-

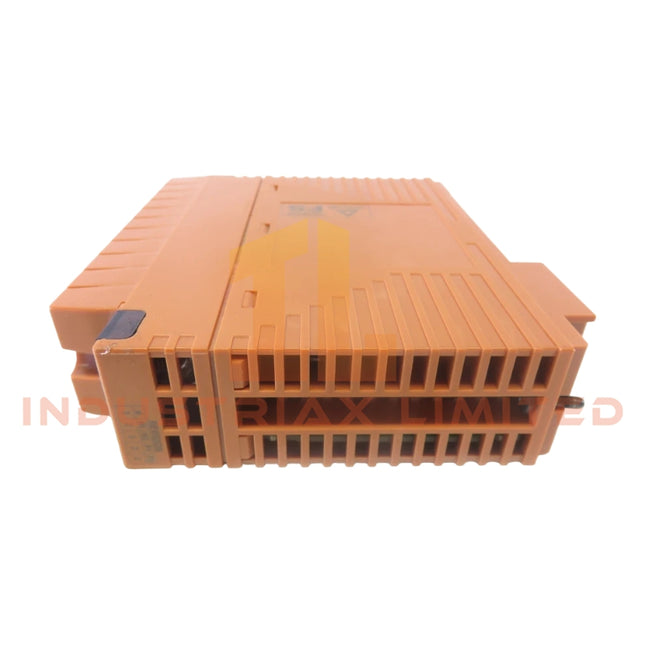

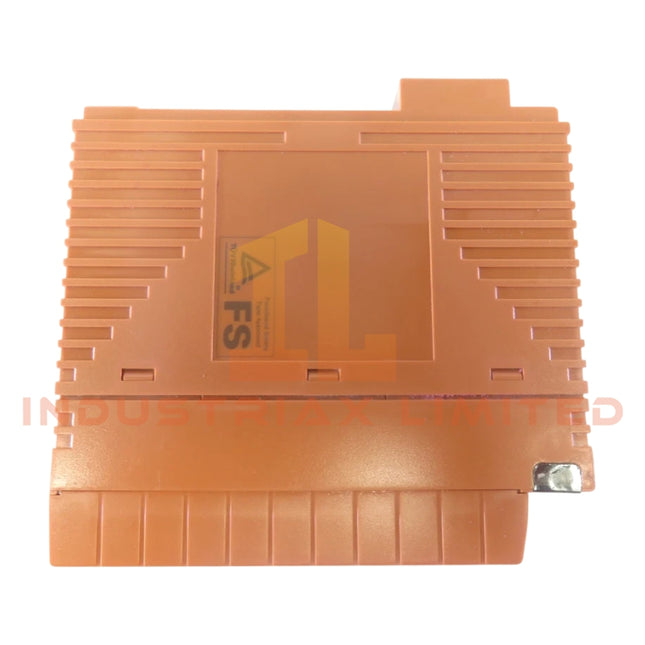

Yokogawa Yokogawa SAI143-H53 16-Channel Analog Input Module HART Enabled
Product Description Overview The SAI143-H53 is a high-precision 16-channel analog input module designed for reliable signal acquisition and monitoring in industrial applications. With full module isolation, the unit supports standard 4 to 20 mA input signals and provides flexible transmitter power supply management for two-wire devices. Its compact design and robust specifications make it suitable for critical monitoring and control systems. Technical Specifications Parameter Specification Model SAI143-H53 Manufacturer Yokogawa Product Type Analog Input Module Number of Input Channels 16 channels with module isolation Input Signal Range 4 to 20 mA Data Update Interval 40 ms Transmitter Power Supply ON/OFF function available for all 16 channels in two-wire configuration Communication Protocol HART enabled (Suffix H) Operating Temperature -20 to 70 Celsius (Suffix 3) Mounting / Wiring Pressure clamp terminal block or MIL cable (Suffix 5) Isolation Voltage 1.5 kV AC between input and system for 1 minute Release Version R1.02.00 Applications Ideal for industrial monitoring, process control, and system integration where multiple analog signals must be accurately captured and transmitted. Supports HART-enabled instruments and can be integrated with Yokogawa control systems or compatible PLC/SCADA platforms. FAQ Q: Can this module power 2-wire transmitters?A: Yes, the SAI143-H53 provides ON/OFF power control for all channels simultaneously in two-wire configuration. Q: Is HART communication supported?A: Yes, the module supports HART protocol when using suffix H configuration. Q: What is the operating temperature range?A: The module operates reliably between -20 and 70 Celsius. Q: Can I use this module in explosive environments?A: This specific variant (Suffix 5) is designed for non-explosive applications. Explosion-proof versions are available separately.
$200.00 $100.00
-

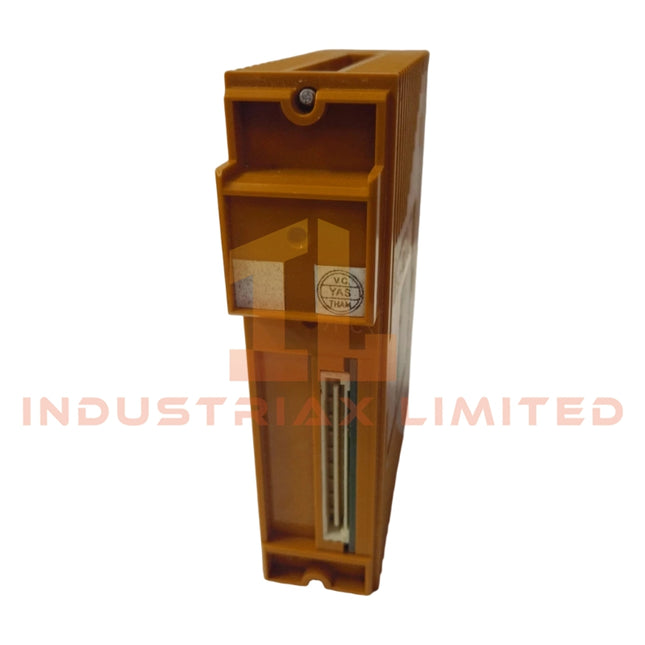

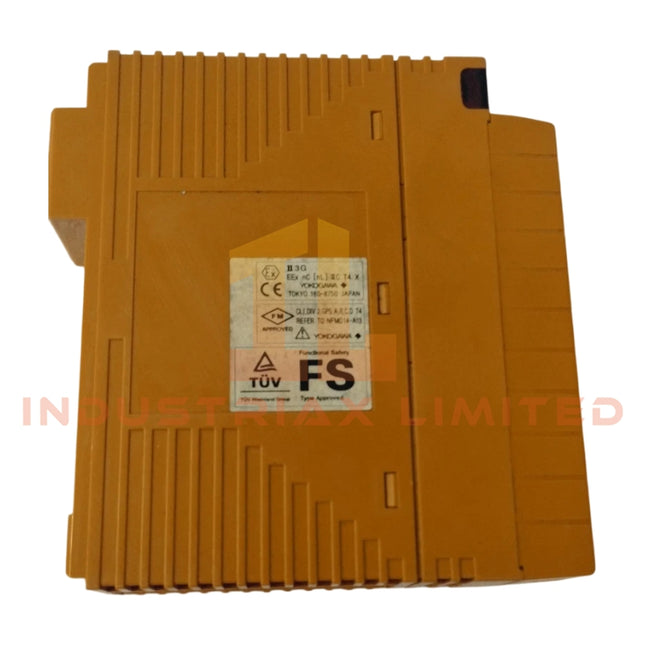

Yokogawa SAI143-H33 | Yokogawa | Analog Input Module
Product Description Overview The SAI143-H33 (Yokogawa) is a high-performance analog input module designed for industrial control systems. It provides 16 fully isolated input channels. The original SAI143-H33 has been discontinued, and the recommended replacement is SAI143-H63. This module is ideal for process automation, real-time monitoring, and data acquisition, delivering reliable and stable signal input for engineers. Technical Specifications Model: SAI143-H33 Product Type: Analog Input Module Number of Input Channels: 16, fully isolated Rated Input Range: 4 to 20 mA Data Update Frequency: 40 ms Transmitter Power Supply Control: Available for 2-wire configuration, simultaneous ON/OFF for all 16 channels Withstanding Voltage: 1.5 kV AC between input signal and system for 1 minute Channel Isolation: Each channel isolated from others and the system Operating Temperature: 0 to 55°C (recommended) Storage Temperature: -20 to 70°C System Compatibility: Yokogawa DCS systems Applications Industrial process monitoring and control Real-time signal acquisition and processing Multi-channel sensor data input Replacement for older modules to upgrade system performance FAQ Q: Can the SAI143-H33 control the transmitter power for individual channels?A: No. The power supply control operates simultaneously for all 16 channels. Q: Can this module directly replace the SAI143-H63?A: Yes, the functions are highly compatible, but check system connections and wiring before replacement. Q: Is the data update frequency fixed?A: Yes, it is fixed at 40 ms.
$200.00 $100.00
-

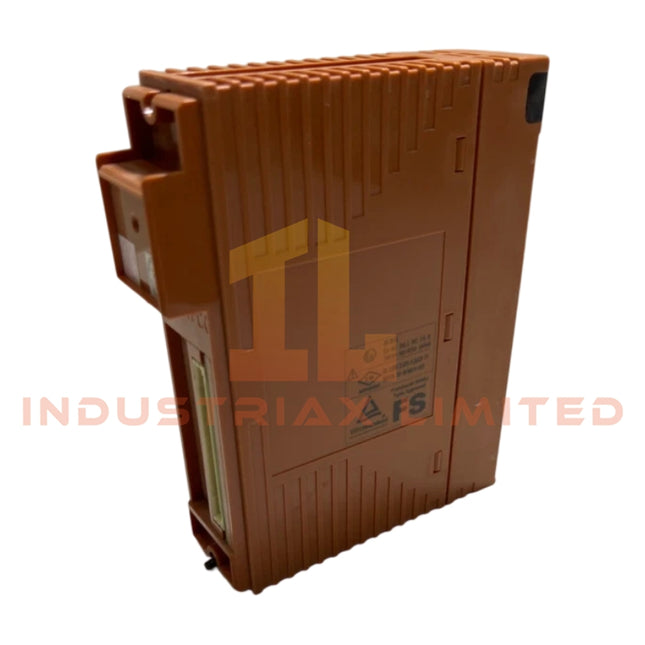

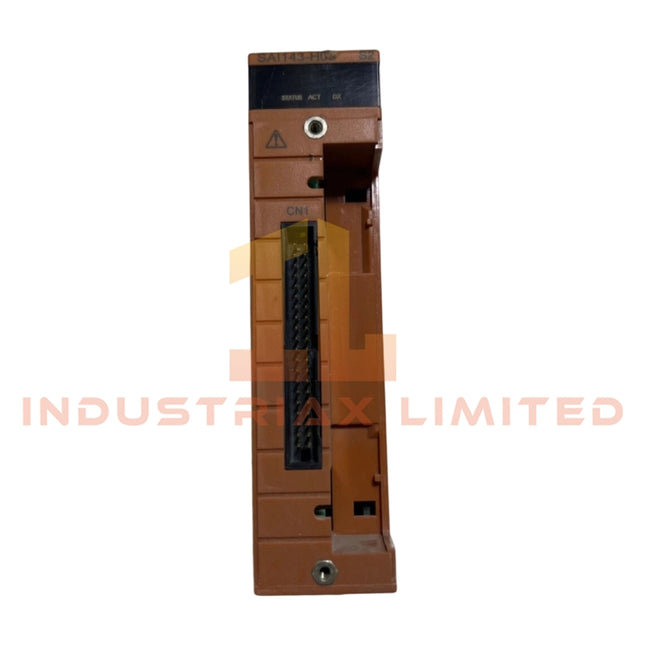

Yokogawa Yokogawa SAl143-H03 Analog Input Module | Precision Industrial Signal Interface
Product Description OverviewThe SAl143-H03 from Yokogawa is a high-performance analog input module engineered for integration with Yokogawa DCS and PLC systems. It delivers accurate, stable, and reliable signal acquisition, making it ideal for industrial process monitoring, control, and automation applications. Its versatile specifications allow compatibility with a broad range of sensors and real-time measurement needs. Key Features High AccuracyThe SAl143-H03 ensures precise measurement with an accuracy of ±0.1 percent of full scale, making it suitable for applications where signal fidelity is critical. Wide Input RangeSupports input voltages from 0 to 10 volts, accommodating most standard industrial transducers and sensors without additional signal conditioning. Fast Sampling RateCapable of sampling at up to 10 kilo-samples per second, the SAl143-H03 is optimized for real-time monitoring and high-speed process control. Low Noise PerformanceThe module maintains a low noise floor of minus 90 decibels, ensuring minimal interference and maintaining signal integrity for sensitive measurements. Energy-Efficient DesignPower consumption is kept below 5 watts, allowing deployment in energy-conscious systems without compromising performance. Technical Specifications Parameter Specification Model SAl143-H03 Input Signal Range 0 to 10 V Accuracy ±0.1% of Full Scale Sampling Rate Up to 10 kHz Noise Floor -90 dB Power Consumption <5 W Output Type Digital Interface Compatible with DCS/PLC Operating Temperature 0 to 55 degrees Celsius Storage Temperature -20 to 70 degrees Celsius Humidity 5 to 95 percent non-condensing ApplicationsThe SAl143-H03 is suitable for precision industrial measurements in chemical, petrochemical, power generation, and manufacturing industries. It is ideal for analog signal acquisition from temperature sensors, pressure transducers, flow meters, and other process instruments. FAQ Q: Is the SAl143-H03 compatible with all Yokogawa DCS systems?A: Yes, it is fully compatible with Yokogawa CENTUM VP and related DCS systems, as well as supported PLC units. Q: Can it handle differential inputs?A: The module is designed primarily for single-ended 0–10 V signals. Differential input options may require a compatible interface module. Q: What is the maximum sampling speed for reliable measurements?A: Up to 10 kHz, suitable for real-time process monitoring. Similar Models ComparisonCompared to the SAl143-H02, the SAl143-H03 offers improved sampling speed and lower noise performance, making it better suited for high-speed, high-accuracy applications.
$200.00 $100.00
-

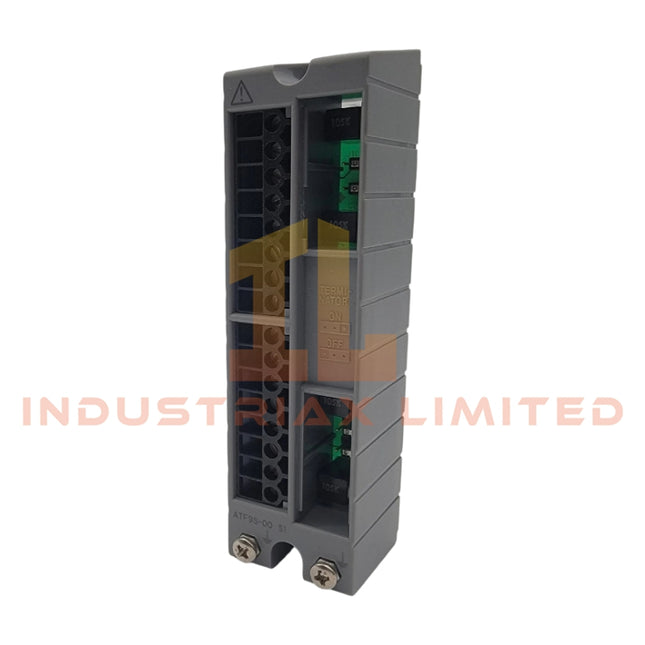

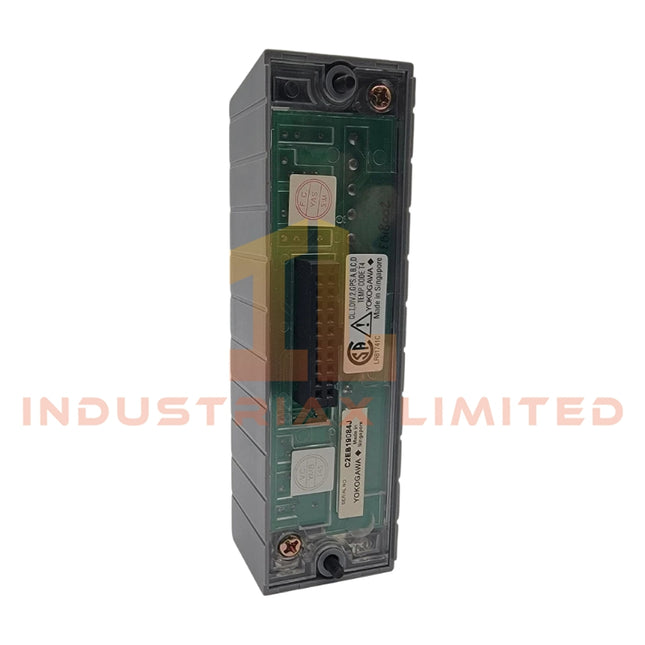

Yokogawa Yokogawa ALF111-S51/F9S00 Foundation Fieldbus Communication Module
Product Description OverviewThe ALF111-S51/F9S00 from Yokogawa is a Foundation Fieldbus Communication Module designed for reliable digital communication in process control systems. This module ensures robust integration between field devices and host systems, supporting high-speed, deterministic communication across industrial networks. Technical Specifications Model: ALF111-S51/F9S00 Manufacturer: Yokogawa Product Type: Foundation Fieldbus Communication Module Explosion Protection: None (Standard type) Compliance Option: ISA Standard G3 Terminal Block Type: Pressure clamp terminal block (Model ATF9S-00) Weight: 0.4 Kg Communication Protocol: Foundation Fieldbus H1 Power Supply: Fieldbus powered Operating Temperature Range: -20 to 70 degrees Celsius (typical for FCS modules) Mounting: DIN rail or panel mount compatible Indicators: Status LED for communication and fault detection ApplicationsThe ALF111-S51/F9S00 module is suitable for process automation applications requiring high reliability and precision, including chemical, pharmaceutical, and oil & gas industries. It enables seamless integration of field instruments into centralized control systems. FAQ Q: Is the module compatible with other Foundation Fieldbus devices?A: Yes, it is compliant with standard Foundation Fieldbus H1 devices and can be integrated into mixed-vendor networks. Q: Does this module require additional power supply units?A: No, it is fieldbus-powered and does not need separate power. Q: Are there alternative models with explosion protection?A: Yes, Yokogawa offers variants of ALF111 with explosion-proof certifications if required. Similar Models Comparison ALF111-S51/F9S01: Includes intrinsic safety protection for hazardous zones. ALF111-S51/F9S02: Supports extended temperature range for extreme environments.
$200.00 $100.00
-
Yokogawa Yokogawa ATI3S-So0 Terminal Block | Pressure Clamp Module Interface
Product Description Overview The ATI3S-So0 terminal block from Yokogawa is engineered to provide reliable field connections for isolated analog and pulse modules, including AAl135, AAP135, and AAl835. Its robust construction ensures stable and efficient operation in industrial control systems while safeguarding connected modules against electrical disturbances. Technical Specifications Type: Pressure clamp terminal block Channels: 8 channels total (4 input channels, 4 output channels specifically for AAl835) Connection: Screw terminals for secure and vibration-resistant wiring Module Compatibility: Supports isolated analog and pulse modules Surge Protection: Integrated absorbers to protect modules from voltage spikes and electrical transients Electromagnetic Compliance: Meets EN61000-6-2 EMC standard Dimensions: Compact design suitable for dense control panels (approx. 100 mm x 70 mm x 45 mm, estimated for standard panel integration) Operating Temperature Range: -20°C to +60°C Mounting: DIN rail or panel mount compatible Features Secure Connections: Pressure clamps provide firm wiring terminations and reduce maintenance needs. Electrical Protection: Integrated surge protection enhances system reliability. Space Efficiency: Compact layout allows easy integration into control cabinets. Industrial Compliance: Fully compliant with electromagnetic and safety standards for industrial applications. Applications Process control systems requiring reliable analog signal transmission Pulse monitoring and acquisition setups Industrial panels integrating AAl series modules Situations where vibration-resistant connections are critical FAQ Q: Which modules are compatible with ATI3S-So0?A: It supports Yokogawa isolated analog modules AAl135, AAP135, and pulse modules AAl835. Q: Does it provide surge protection?A: Yes, built-in surge absorbers protect connected modules from electrical transients. Q: Can it be used in compact panels?A: Its compact design allows installation in space-constrained control panels. Q: How many channels does it have?A: The terminal block has 8 channels: 4 input and 4 output channels.
$200.00 $100.00
-
Yokogawa ATI3S-00 Terminal Block | CENTUM VP DCS Module | Yokogawa
Product Description Overview The Yokogawa ATI3S-00 is a precision-engineered pressure clamp terminal block designed for use within the CENTUM VP distributed control system (DCS). As a passive connectivity component, it ensures reliable signal transmission between isolated analog modules and pulse modules, facilitating secure interfacing between I/O modules and field instruments. This terminal block supports high-density wiring while maintaining electrical isolation and robust mechanical stability. Technical Specifications Model: ATI3S-00 Type: Terminal Block, Pressure Clamp Number of Channels: 16 channels for diverse field device integration Wire Size Compatibility: Supports wire sizes from 14 AWG to 22 AWG Torque Range: 0.5 to 0.75 Nm for secure terminal connections Operating Temperature: -40 to +70 degrees Celsius Ingress Protection: IP20 (protection against solid objects; limited moisture resistance) Mounting Type: DIN rail compatible Material: High-quality thermoplastic housing with corrosion-resistant metal terminals Insulation Voltage: 600 V AC/DC Dielectric Strength: 2 kV for one minute between terminals Applications The ATI3S-00 terminal block is suitable for: Interfacing analog and pulse modules within the CENTUM VP DCS Connecting a wide range of field sensors and actuators Industrial environments requiring robust mechanical and electrical reliability FAQ Q: Can this terminal block handle larger wires than 14 AWG?A: The recommended wire range is 14 to 22 AWG. Using larger wires may compromise terminal integrity. Q: Is the terminal block suitable for outdoor installation?A: The IP20 rating provides protection against dust but not against water. Outdoor use requires additional protective housing. Q: Are similar models available for higher channel density?A: Yes, Yokogawa offers variants such as ATI3S-16 and ATI3S-32 for higher channel requirements.
$200.00 $100.00
-
Yokogawa Yokogawa ATB5S-00 Terminal Block ADV151 Module Accessory
Product Description OverviewThe Yokogawa ATB5S-00 is a pressure clamp terminal block engineered for robust and reliable digital input connections. Specifically designed for use with Yokogawa’s ADV151 Digital Input Module (32-channel, 24 VDC, isolated), this terminal block ensures secure wiring and streamlined installation in demanding industrial environments. Key Features Compatible with 32-channel digital input modules Incorporates ISA Standard G3 option for enhanced interoperability Utilizes pressure clamp technology to guarantee secure and maintenance-free connections Industrial-grade design suitable for high-reliability applications Supports efficient wiring and modular installation Technical Specifications Model: ATB5S-00 Compatible Module: ADV151 Digital Input Module Number of Channels: 32 Input Voltage: 24 VDC Isolation: Isolated channels for safety and noise immunity Terminal Type: Pressure clamp for quick and secure wiring Mounting: Standard DIN rail compatible Operating Temperature: -20°C to 60°C Compliance: ISA G3 standard Material: Industrial-grade flame-retardant plastic housing Applications Distributed control systems requiring high channel-density digital input Process monitoring and control in manufacturing, chemical, and power generation Replacement or expansion of Yokogawa CENTUM VP I/O systems FAQQ: Can ATB5S-00 be used with modules other than ADV151?A: ATB5S-00 is optimized for the ADV151 32-channel digital input module. Compatibility with other modules requires checking pinout and voltage specifications. Q: What wiring tools are required?A: Standard flathead screwdrivers are sufficient for pressure clamp terminals; no specialized tools are needed. Similar Models ATB5S-01: For analog input modules ATB5S-02: For digital output modules
$200.00 $100.00
-
Yokogawa Dual Pressure Clamp Terminal Block | Yokogawa ATT4D-00
Product Description Overview The Yokogawa ATT4D-00 is a dual-channel terminal block designed for industrial pressure measurement applications. It provides secure and reliable connections for two independent pressure transmitters or other pressure measuring instruments. The dual-input capability allows simultaneous handling of two pressure signals, making it ideal for monitoring multiple pressure points in a centralized system. Technical Specifications Model: ATT4D-00 Function: Dual-channel pressure input terminal Input Type: Pressure signals Maximum Rated Voltage: 250V AC/DC Terminal Type: Pressure clamp terminal Compatible Devices: Industrial pressure transmitters Operating Temperature Range: -20°C to 70°C Mounting Method: DIN rail Material: High-strength insulating plastic Dimensions: Approx. 90mm x 50mm x 25mm Weight: Approx. 120g Applications Suitable for process control systems, factory automation monitoring, and energy equipment where multiple pressure points need simultaneous monitoring. The dual-channel design simplifies wiring and enhances system reliability. FAQ Q: How many pressure transmitters can ATT4D-00 connect at once?A: It can connect two independent pressure transmitters simultaneously. Q: What installation environments are suitable?A: Suitable for industrial environments. Can be mounted on standard DIN rails, with an operating temperature range of -20°C to 70°C. Q: What are the advantages compared to a single-channel terminal?A: The dual-channel design reduces wiring complexity, saves space, and allows simultaneous monitoring of two pressure points for centralized management.
$200.00 $100.00
-
Yokogawa Yokogawa ATR8S-OO Pressure Clamp Terminal Block | 12-Channel Interface
Product Description Overview The Yokogawa ATR8S-OO Pressure Clamp Terminal Block is engineered for reliable field device integration in control cabinets. Its robust 12-channel design allows for efficient use of cabinet space while providing multiple connection options for diverse installation scenarios. Ideal for high-precision measurement systems, this terminal block ensures secure signal transfer and surge protection across connected devices. Key Technical Features Channel Capacity: Supports up to 12 individual field devices per module. Connection Options: Pressure Clamp Terminal: Provides secure mechanical and electrical connections to field devices. Includes an integrated surge absorber for enhanced transient immunity. KS Cable Interface Adapter: Enables flexible interfacing between I/O modules and field devices via a terminal board. MIL Connector Cable: Permits direct connection to I/O modules when a MIL connector cable is supplied by the customer. Material: High-quality insulating base with corrosion-resistant metallic clamps. Mounting: DIN-rail compatible for rapid installation in standard control cabinets. Operating Conditions: Suitable for ambient temperatures from -20C to +70C and humidity up to 95 percent non-condensing. Electrical Ratings: Maximum continuous current 5A per channel, voltage rating up to 250V DC/AC. Dimensions: 150 mm (length) x 90 mm (width) x 50 mm (height). Applications Industrial control cabinets Process measurement and monitoring systems Distributed I/O systems requiring surge protection Signal consolidation for field devices FAQ Q: Can this terminal block interface with any I/O module?A: Yes, using either the KS Cable Adapter or a compatible MIL connector cable supplied by the customer. Q: What protection does it offer against voltage spikes?A: Integrated surge absorbers protect all 12 channels against transient voltages. Q: Are additional mounting accessories required?A: No, the terminal block is DIN-rail compatible and ready for direct installation. Similar Models Comparison ATR8S-OO: 12-channel standard pressure clamp terminal block ATR8S-XX: 8-channel variant with similar connection options ATR12S-OO: 12-channel version with enhanced current rating for heavy-duty applications
$200.00 $100.00
-
Yokogawa Yokogawa ATR8D-00 Terminal Block 12 Channels Pressure Clamp
Product Description OverviewThe ATR8D-00 by Yokogawa is a precision-engineered pressure clamp terminal block designed for dependable signal transmission. It is optimized for integration with Yokogawa Field Input/Output (FIO) modules and supports pressure sensors and RTD inputs within CENTUM VP systems. Its compact design and versatile connection options make it ideal for industrial automation and process control applications. Technical Specifications Specification Details Model Number ATR8D-00 Manufacturer Yokogawa Product Type Pressure Clamp Terminal Block Connection Points 12 Isolated Channels Channels 2 Cable Interface KS Cable Interface Connection Type Pressure Clamp for Easy Wiring Dimensions 144 mm x 144 mm x 185 mm Weight 0.3 kg Mounting DIN Rail or Suitable Flat Surfaces Operating Temperature Range -20 C to +70 C Humidity 5 to 95 Percent RH Non-Condensing Material (Housing) High-Grade Insulating Polymer Compatible Systems CENTUM VP FIO Modules ApplicationsThe ATR8D-00 is suitable for installation in process control panels, distributed control systems, and sensor integration setups. It ensures reliable signal acquisition from pressure transducers and RTD devices and can be applied in both new system builds and retrofits. FAQ Q: How many sensors can be connected simultaneously?A: The terminal block provides 12 isolated channels and supports 2 primary input channels. Q: Is it compatible with other Yokogawa FIO modules?A: Yes, it is fully compatible with CENTUM VP FIO modules and supports pressure sensor and RTD signal types. Similar Models Comparison ATR8D-01: Expanded channels up to 16 with higher current capacity. ATR8D-02: Designed for extended temperature and humidity ranges for harsh environments.
$200.00 $100.00
-
Yokogawa Yokogawa ATA4S-00 Pressure Clamp Terminal Block
Product Description OverviewThe ATA4S-00 by Yokogawa is a robust pressure clamp terminal block designed for precise signal management in complex industrial control systems. It accommodates both analog and digital signals, providing a reliable connection for up to 16 channels. Technical Specifications Specification Details Model ATA4S-00 Manufacturer Yokogawa Product Type Pressure Clamp Terminal Block Number of Channels 16 channels Supported Signals Analog and Digital Current Rating 10 A Voltage Rating 24 VDC Connection Type Pressure Clamp Dimensions 100 mm x 50 mm x 30 mm Weight 0.5 kg Operating Temperature Range -20 C to +70 C Storage Temperature Range -25 C to +85 C Material (Housing) High-grade insulating polymer Mounting Type DIN rail compatible ApplicationsIdeal for industrial control panels, process automation systems, and signal integration where reliable terminal connections are critical. It is suitable for both new installations and retrofitting existing control systems. FAQ Q: Can this terminal block handle both AC and DC signals?A: The ATA4S-00 is optimized for DC signals up to 24 V but can safely handle compatible low-voltage AC signals within the rated current. Q: What maintenance is required?A: Minimal maintenance is needed. Regular inspection of clamp tension and connection integrity is recommended to ensure consistent performance. Similar Models Comparison ATA4S-01: Same size, supports 24 channels, slightly higher voltage rating. ATA4S-02: Enhanced thermal resistance for high-temperature applications.
$200.00 $100.00
-
Yokogawa Yokogawa ATT4S-00 S2 Pressure Clamp Terminals Reliable Sensor Interface
Product Description Overview The ATT4S-00 S2 Pressure Clamp Terminals from Yokogawa provide secure electrical connections for industrial pressure sensors. Engineered for durability and stable signal transmission, this unit is suitable for applications requiring reliable pressure measurement. Key Features High-integrity clamp terminals for stable connections Supports single or dual sensor interfaces for redundancy Designed for seamless integration with Yokogawa control systems Compact design with robust mechanical stability Suitable for continuous operation in industrial environments Technical Specifications Model: ATT4S-00 S2 Product Type: Pressure Clamp Terminals Manufacturer: Yokogawa Origin: Japan Dimensions: 114 x 32.6 x 60.5 mm Weight: 0.2 kg Terminal Type: Clamp Sensor Channels: Single/Dual (depending on configuration) Environmental Rating: Industrial grade (temperature and humidity tolerant) Mounting: DIN rail or panel compatible Signal Isolation: Yes, for redundant paths Logistics and Warranty Condition: New and in stock Lead Time: 1-3 working days Shipping Ports: Xiamen, China Couriers: DHL, UPS, TNT, FedEx, EMS Payment Methods: T/T, PayPal, Western Union Warranty: 1 year Certificate: COO Business Support: 24-hour service Applications Used for precise pressure measurement and monitoring in process control, safety instrumented systems, and redundant sensor installations where reliability is critical. FAQ Q: Is the ATT4S-00 S2 compatible with other sensor brands?A: It is primarily designed for Yokogawa pressure sensors; compatibility with other brands requires verification. Q: What mounting options are supported?A: Supports DIN rail and panel mounting to accommodate various industrial installations. Q: Can it operate in high-temperature environments?A: Yes, it is industrial-grade, but exact temperature limits should be confirmed with Yokogawa datasheets. Similar Models Comparison ATT4S-01 S2: Includes extended environmental tolerance ATT4S-02 S2: Offers dual-redundancy with surge protection
$200.00 $100.00
-
Yokogawa Yokogawa ATT4D-00S2 Dual-Redundant Pressure Clamp Terminal Block
Product Description Overview The ATT4D-00S2 Dual-Redundant Pressure Clamp Terminal Block from Yokogawa provides secure and reliable connections for dual pressure sensors in industrial automation systems. It is engineered for applications where continuous pressure measurement reliability is critical. Key Features Dual Pressure Sensor Connectivity: Supports two independent pressure sensors for redundancy and enhanced reliability. Clamp Terminal Design: High-integrity clamp system ensures secure electrical and mechanical connections for both sensors. Redundant Signal Paths: Separate terminal paths allow dual-channel signal output to prevent single-point failures. High Pressure Rating: Designed to operate safely within defined pressure limits (consult official Yokogawa datasheet for exact specifications). System Integration: Optimized for seamless integration with Yokogawa automation systems requiring high accuracy and reliability. Technical Specifications Model: ATT4D-00S2 Terminal Type: Clamp Sensor Channels: 2 (Redundant) Signal Paths: Dual, isolated Compatible System: Yokogawa automation platforms Environmental Rating: Industrial-grade (consult Yokogawa datasheet for specific temperature and humidity ranges) Mounting: DIN rail or panel-mount compatible (verify model installation instructions) Applications Ideal for critical process monitoring, safety instrumented systems, and any application requiring continuous pressure measurement redundancy. FAQ Q: Can this terminal block handle high-pressure industrial sensors?A: Yes, it is rated for standard industrial pressure ranges; always verify with Yokogawa documentation for specific limits. Q: Is it compatible with other brands of sensors?A: Designed primarily for Yokogawa sensors. Integration with other sensors may require compatibility testing. Q: What is the mounting method?A: Supports DIN rail or panel mounting according to standard industrial installation practices. Similar Models Comparison ATT4D-01S2: Offers additional surge protection for pressure inputs. ATT4D-02S2: Includes extended temperature tolerance for harsh environments.
$200.00 $100.00
-
Yokogawa Pressure Clamp Terminal Block Industrial I/O | Yokogawa ATA4S-00S2
Product Description OverviewThe ATA4S-00S2 from Yokogawa is a robust pressure clamp terminal block designed for seamless signal connection in automation systems. It provides reliable interfacing for both analog and digital inputs, ensuring stable communication between field devices and control units. Technical Specifications Model Number: ATA4S-00S2 Manufacturer: Yokogawa Product Type: Pressure Clamp Terminal Block Number of Channels: 16 Supported Signals: Analog and digital Current Rating: 10 A Voltage Rating: 24 VDC Connection Type: Pressure clamp Operating Temperature: -20 to 70 C Dimensions (LxWxH): 100 mm x 50 mm x 30 mm Weight: 0.5 kg Mounting: DIN rail compatible ApplicationsThe ATA4S-00S2 is ideal for industrial control panels, automation cabinets, and distributed I/O systems. It is suitable for signal aggregation, secure wiring, and simplifying field-to-control system connectivity. FAQQ: Can this terminal block handle both analog and digital signals simultaneously?A: Yes, the ATA4S-00S2 is engineered to support mixed signal types on separate channels. Q: What is the recommended wiring method?A: Use standard copper conductors with insulation stripping according to the 10 A current rating. Pressure clamp terminals provide secure and vibration-resistant connections. Q: Are there similar models for comparison?A: Yokogawa offers ATA4S-00S1 for lower channel counts and ATA4S-00S3 for higher voltage applications, with similar pressure clamp functionality.
$200.00 $100.00
-
Yokogawa Yokogawa ATR8S-00 S2 Pressure Clamp Terminal Block
Product Description OverviewThe ATR8S-00 S2 from Yokogawa is a precision-engineered pressure clamp terminal block designed for industrial automation systems. It ensures secure and reliable connections for pressure sensors and transmitters, delivering stable and accurate pressure measurement data. The device is built to integrate seamlessly with systems utilizing HART communication protocol, providing robust performance even in challenging industrial environments. Technical Specifications Model Number: ATR8S-00 S2 Manufacturer: Yokogawa Type: Pressure Clamp Terminal Block Dimensions: 5 cm x 13 cm x 15 cm Weight: 0.6 kg Communication Mode: Serial half-duplex, start-stop synchronization, 8-bit data, odd parity, standard termination protocol Supported Protocol: HART Protocol Revision 5.7 Operating Temperature Range: -20 to 70 degrees Celsius Storage Temperature Range: -25 to 85 degrees Celsius Mounting: DIN rail compatible Material: High-strength insulating polymer with corrosion-resistant terminals Application: Suitable for integration with industrial process control systems requiring high-reliability pressure measurements ApplicationsIdeal for process monitoring in chemical plants, water treatment facilities, and manufacturing systems requiring precision pressure control. Designed to maintain accurate readings in redundant sensor setups. FAQ Q: Can this terminal block work with non-Yokogawa pressure transmitters?A: Yes, as long as the transmitters comply with HART Protocol Revision 5.7 and meet voltage and signal specifications. Q: What kind of communication interface does ATR8S-00 S2 support?A: It supports serial half-duplex communication with start-stop synchronization, 8-bit data length, and odd parity. Q: Is it suitable for harsh environmental conditions?A: Yes, the device operates reliably between -20 and 70 degrees Celsius and can be stored safely between -25 and 85 degrees Celsius. Similar Models Comparison ATR8S-01: Includes integrated surge protection for transient voltage events ATR8S-02: Expanded channel count for high-density sensor networks
$200.00 $100.00
-
Yokogawa ATA4D-00 Dual Pressure Clamp Terminal Block | Yokogawa
Product Description OverviewThe ATA4D-00 is a dual-redundant pressure clamp terminal block engineered by Yokogawa for industrial process control applications. It provides secure and reliable connections for multiple pressure transmitters and measurement devices, ensuring system stability and accurate data transmission. This terminal block is designed for integration with Yokogawa’s CENTUM VP system and supports high-density signal routing. Technical Specifications Type: Dual-Redundant Pressure Clamp Terminal Block Model: ATA4D-00 Channels: 16 independent channels Connection Method: Pressure clamp for reliable electrical contact Surge Absorber: Optional installation for transient protection Compatible Systems: Yokogawa CENTUM VP control systems Weight: Approximately 0.30 kilograms Mounting: DIN rail compatible for industrial panel installation Operating Temperature Range: -20 to 70 degrees Celsius Material: High-durability insulating polymer, corrosion-resistant terminals Electrical Rating: Supports standard industrial signal voltage and current ranges ApplicationsIdeal for process control environments where precise pressure monitoring is critical. Common use cases include chemical plants, power generation facilities, and manufacturing lines requiring dual-redundant pressure inputs. FAQ Q: Can the ATA4D-00 be used with non-Yokogawa transmitters?A: It is optimized for Yokogawa transmitters, but compatible pressure signals from standard industry transmitters can be supported if wiring and signal levels match. Q: How is redundancy achieved?A: The dual-redundant design allows two independent signal paths per channel, improving reliability in critical systems. Q: Is surge protection included?A: Surge absorbers are optional and can be added to each channel depending on field requirements. Similar Models Comparison ATA4D-01: Similar dual pressure block with integrated surge absorbers ATA4D-02: Higher channel count for larger systems
$200.00 $100.00
-
Yokogawa Yokogawa ATK4A-00 KS Cable Interface Adapter 16-Channel
Product Description OverviewThe Yokogawa ATK4A-00 is a 16-channel KS Cable Interface Adapter engineered for seamless connection between field instruments and Yokogawa automation systems. This adapter supports both analog voltage and current signals, delivering precise and stable data transmission. Its robust design and fast response make it ideal for high-performance control environments. Technical Specifications Model Number: ATK4A-00 Product Type: KS Cable Interface Adapter Input Signal: 4 to 20 mA DC or 1 to 5 V DC Allowable Common Mode Voltage: ±1 V or less Maximum Input Current: 27 mA Data Update Period: 10 milliseconds Operating Temperature: -20 to +70 degrees Celsius Dimensions: 5.1 cm x 20.3 cm x 15.2 cm (2.0" x 8.0" x 6.0") Weight: 0.9 kg (1 lbs 16 oz) Key Features Supports both DC current and voltage signals for flexible integration High-speed 10 ms data update period for responsive control Compact and durable design suitable for modular system installation Ensures reliable communication between field devices and Yokogawa controllers Applications Signal interface for CENTUM VP and CS3000 systems Connecting analog field devices in process control environments High-accuracy measurement and monitoring of plant signals Integration into distributed control system networks FAQ Q: What types of signals does this adapter support?A: It supports 4 to 20 mA DC current signals and 1 to 5 V DC voltage signals. Q: Can it operate in high-temperature environments?A: Yes, it is rated to operate reliably between -20 and +70 degrees Celsius. Q: How fast is the data update?A: The module updates data every 10 milliseconds, ensuring rapid signal transmission. Similar Model Comparison ATK4A-01: 8-channel version with similar voltage and current support ATK4A-02: 32-channel high-density interface for larger installations
$200.00 $100.00
-
Yokogawa Yokogawa ATRBS-00S2 Terminal Module CENTUM VP CS3000 Compatible
Product Description OverviewThe Yokogawa ATRBS-00S2 Terminal Module provides secure and reliable connection between field devices and Yokogawa control systems, including CENTUM VP and CENTUM CS3000. Designed for precision signal transmission and system integration, this module ensures stable operation in challenging industrial environments. Technical Specifications Model Number: ATRBS-00S2 Product Type: Terminal Module System Compatibility: CENTUM VP and CENTUM CS3000 Sampling Rate: 1 Hz to 100 kHz Accuracy: ±0.01 percent of full scale Reliability: Mean Time To Failure (MTTF) greater than 100,000 hours Operating Temperature: -40 to +70 degrees Celsius (-40 to +158 degrees Fahrenheit) Dimensions: 12.7 cm x 22.9 cm x 17.8 cm Weight: 0.3 kg Key Features High-precision analog and digital signal handling Wide operating temperature range suitable for harsh conditions Compact design for modular system integration Long service life with exceptional reliability Applications Connecting sensors and field devices to Yokogawa DCS systems Process monitoring and control in chemical, oil, and gas industries Signal acquisition and distribution for automation systems Use in both CENTUM VP and CS3000 environments for flexible deployment FAQ Q: Is this module compatible with all CENTUM CS systems?A: The module is fully compatible with CENTUM VP and CS3000 systems. Other legacy CENTUM versions may require verification. Q: What is the maximum sampling rate?A: The module supports up to 100 kHz sampling rate, suitable for high-speed process monitoring. Q: Can this module operate in extreme environments?A: Yes, it functions reliably from -40 to +70 degrees Celsius. Similar Model Comparison ATRBS-00S1: Similar module with lower sampling rate and reduced operating temperature range ATRBS-01S2: Advanced module with extended channel capacity and higher accuracy
$200.00 $100.00
-
Yokogawa AAI143-H03 Analog Input Module 16-Channel 4-20mA | Yokogawa
Product Description OverviewThe AAI143-H03 (AAI143H03) is a high-performance analog input module designed for industrial control systems. This 16-channel, fully isolated module supports 4 to 20 mA input signals and features HART digital communication for enhanced monitoring and configuration. Built to meet ISA G3 standards, it operates reliably within a wide temperature range, making it ideal for demanding automation environments. Technical Specifications Number of input channels: 16, fully isolated Input signal range: 4 to 20 mA Maximum allowable input current: 24 mA Withstand voltage: Input to system 1500 V AC for 1 minute Input resistance: Power ON: 270 Ohms at 20 mA, 350 Ohms at 4 mA Power OFF: Greater than 500 kOhms Measurement accuracy: ±16 microamps Data update rate: 10 milliseconds Operating temperature: -20 to 70 degrees Celsius Interface: KS Cable Adapter compatible with AEA4D terminal board (Model ATK4A-00) Module weight: 0.3 Kg Key Features HART protocol support for advanced digital communication Full isolation across channels ensures signal integrity Compliance with ISA G3 standards Compact, lightweight design suitable for modular integration Applications Process control monitoring in chemical, oil, and gas industries Temperature and pressure data acquisition Integration with distributed control systems (DCS) HART-enabled device diagnostics and calibration FAQ Q: Can this module handle currents above 20 mA?A: The module supports up to 24 mA for short-term overloads, but normal operation should remain within 4 to 20 mA. Q: What type of terminal board is compatible?A: It is compatible with AEA4D terminal boards via the KS Cable Adapter (ATK4A-00). Q: Is this module suitable for outdoor installation?A: It operates reliably between -20 to 70 degrees Celsius but should be housed in an appropriate enclosure for extreme weather exposure. Similar Models Comparison AAI143-H02: Supports 8 channels, lower accuracy AAI143-H04: Supports 32 channels, extended temperature range
$200.00 $100.00
-
Yokogawa YOKOGAWA AAI543-H00 S1 16-Channel Analog Input Module
Product Description Overview The AAI543-H00 S1 from YOKOGAWA is a high-precision, 16-channel analog input module designed for use with the CENTUM VP distributed control system (DCS). It converts analog signals from field devices into reliable digital signals for real-time process monitoring and control. This module combines fast response, wide input range, and HART communication support, making it ideal for critical process automation applications. Technical Specifications Number of Channels: 16 Input Signal: 4 to 20 mA DC or 1 to 5 V DC Input Voltage Range: -10 to 130 V DC Conversion Accuracy: 0.1 percent of full scale Conversion Time: 2 milliseconds HART Communication: Supported Hot-Swappable: Yes Dimensions (W x H x D): 100 mm x 80 mm x 35 mm Operating Temperature: -10 to 55 degrees Celsius Mounting: DIN rail or panel compatible Key Features High-precision analog signal conversion Rapid update rate for real-time control Wide input voltage range for flexible installation Supports HART communication for device diagnostics Hot-swappable design minimizes downtime Compact form factor for space-constrained installations Applications Monitoring sensors and actuators in process control Integration into distributed control systems (DCS) Real-time measurement and control of valves and actuators High-speed analog data acquisition in industrial plants FAQ Q: Can this module operate while other modules are replaced?A: Yes, it supports hot-swapping, allowing system maintenance without shutting down the DCS. Q: Is HART protocol fully supported?A: Yes, HART communication is integrated for diagnostics and advanced device configuration. Q: What are comparable modules for higher channel counts?A: The AAI544 series offers modules with higher channel capacity and enhanced output features.
$200.00 $100.00
You have seen 24 out of 157 products
