TSI (Turbomachinery Supervisory Instrumentation) systems monitor and protect rotating equipment. We supply modules, sensors, and spares to support both new and discontinued models. Our solutions help reduce downtime and protect critical assets.
TSI Monitoring Systems
-
Bently Nevada Bently Nevada 176449-03 3500/44M Aeroderivative GT Vibration Monitor Module
Bently Nevada 176449-03 3500/44M Aeroderivative GT Vibration Monitor Module The Bently Nevada 176449-03, also cataloged as the 3500/44M Aeroderivative GT Vibration Monitor Module, serves as the primary vibration monitor module utilized to execute multi-channel vibration signal acquisition and processing across 3500 Machinery Protection System platforms. The module processes proximity probe and seismic transducer inputs for real-time protection logic and diagnostic output generation in turbine monitoring channels. Hardware Specifications Parameter Specification Model 176449-03 Brand Bently Nevada Origin USA Weight 0.9 kg Dimensions 241.3 x 24.4 x 242 mm Operating Temp -30 deg C to +65 deg C Storage Temperature -40 deg C to +85 deg C Power Consumption ~7.7 W Channels 4-channel vibration monitoring (programmable in pairs) Sensor Inputs Proximity probes (eddy-current), seismic transducers Measurements Radial vibration, shaft absolute, casing vibration, acceleration Recorder Outputs 4-20 mA DC proportional outputs Relay Outputs Alarm and trip relay contacts Installation Rack-mounted, hot-swappable Bently Nevada Aeroderivative Rotor Dynamics Signal Processing Behavior The 176449-03 module is optimized for aeroderivative gas turbine vibration signatures, where high rotational speed and transient load variation require tightly controlled signal separation. Channel-pair configuration supports independent mapping of radial and casing vibration vectors for synchronous and asynchronous rotor dynamic analysis. Cross-talk suppression circuitry is implemented at the analog front-end stage to reduce inter-channel coupling during high-frequency vibration events. Eddy-current probe inputs are scaled to maintain stable displacement reference behavior, while seismic channels process velocity and acceleration signals for broadband mechanical response interpretation. Signal conditioning ensures stable 4-20 mA output representation under transient mechanical excitation. Frequently Asked Questions (FAQ) Q: Can the 176449-03 be hot-swapped during system operation?A: Yes. The module supports hot-swapping in a live 3500 rack. Trip inhibit must be enabled to prevent unintended protective relay activation during insertion or removal. Q: How are vibration channels configured in the 176449-03?A: Channels are programmable in pairs, allowing independent assignment for radial vibration, casing vibration, or acceleration measurement depending on sensor type. Q: Does cross-talk suppression affect measurement latency?A: No additional processing latency is introduced at the output stage. Cross-talk suppression is implemented in the analog conditioning path to maintain real-time signal integrity. Field Installation Guidelines The module must be installed into a compatible Bently Nevada 3500 rack slot with full backplane engagement confirmed prior to energization. Improper seating can result in loss of channel synchronization or diagnostic reporting. Sensor wiring for proximity probes and seismic transducers must use shielded twisted-pair cables. Shield termination shall be implemented at a single-point ground reference within the cabinet to prevent ground loop formation across high-sensitivity vibration inputs. During hot-swap operations, trip inhibit must remain active until the module is fully seated and recognized by the rack backplane. Routing of sensor wiring must be physically separated from high-current conductors to reduce induced noise on measurement channels.
$200.00 $100.00
-
Bently Nevada Bently Nevada 79512-03 3300 Series Six-Channel Temperature Monitor PWA
Bently Nevada 79512-03 3300 Series Six-Channel Temperature Monitor PWA The Bently Nevada 79512-03, also cataloged as the 79512-03 Printed Wire Assembly, serves as the primary temperature input processing module utilized to execute multi-channel RTD and thermocouple signal acquisition across Bently Nevada 3300 Series platforms. The assembly performs direct analog conditioning, channel multiplexing, and alarm threshold evaluation for six independent temperature inputs within a 3300 rack architecture. Hardware Specifications Parameter Specification Model 79512-03 Brand Bently Nevada Origin USA Weight 0.3kg Dimensions Eurocard form factor (rack-compatible, exact dimensions not specified) Operating Temp -30 deg C to +65 deg C Power Consumption Not specified Channels 6 independent temperature input channels Input Types RTD (Pt100, Cu10, Ni120), Thermocouples (Type J, K, T, E configurable) Sampling Sub-second multi-channel scan cycle Alarm Outputs Alert and Danger per channel Isolation Galvanic isolation between input channels Bently Nevada TSI Signal Conditioning and Cross-Talk Suppression Characteristics The 79512-03 module integrates temperature signal conditioning logic within a machinery protection environment where electrical noise rejection and channel integrity are critical. Internal signal routing applies cross-talk suppression techniques to maintain channel-to-channel separation under high EMI conditions commonly present in proximity to rotating machinery and high-frequency drive systems. In systems incorporating eddy-current probe scaling within adjacent vibration monitoring modules, shared rack environments may introduce induced interference paths. The module architecture supports isolation boundaries designed to stabilize RTD excitation currents and maintain stable reference measurements under fluctuating grounding potentials. Gap voltage validation routines used in companion TSI modules (typically targeting negative DC bias ranges such as -10 VDC in probe systems) are structurally decoupled from temperature measurement circuits, preventing cross-domain signal distortion between displacement and thermal measurement layers. Rotor dynamics-induced vibration fields are electrically isolated from the temperature acquisition domain through dedicated analog front-end shielding and filtered input stages. Frequently Asked Questions (FAQ) Q: Does the 79512-03 support hot-swap replacement within an active 3300 rack system?A: The module is designed for rack insertion compatibility; however, hot-swap behavior depends on system configuration and backplane implementation. Power-down insertion is typically required in legacy 3300 configurations. Q: What is the backplane load requirement for this module?A: Backplane current consumption is not explicitly specified. Load is managed through standard 3300 Series rack power distribution architecture with slot-based allocation. Q: Can firmware or configuration be updated without physical removal?A: Configuration parameters are generally managed via rack-level configuration tools or jumper settings. Firmware updates are not field-flashable at module level in most 3300 implementations. Field Installation Guidelines Installation must be performed with system power removed from the 3300 rack. The module shall be inserted into a compatible Eurocard slot ensuring full backplane connector engagement. RTD and thermocouple wiring must be routed using shielded twisted-pair conductors with single-point grounding at the rack termination end. Ground loops across multiple sensor points must be avoided to maintain measurement stability. Jumper configuration must match sensor type selection prior to energization. Improper configuration may result in incorrect scaling or alarm threshold misinterpretation. Cable separation from high-voltage or high-frequency conductors is required to minimize electromagnetic coupling into low-level temperature input circuits.
$200.00 $100.00
-
Bently Nevada Bently Nevada 176499-02 Proximitor/Seismic Monitor Module
Bently Nevada 176499-02 Proximitor/Seismic Monitor Module The Bently Nevada 176499-02, also cataloged as the 176499-02 3500/42M Proximitor/Seismic Monitor, operates as a dedicated hardware component for multi-channel vibration and position signal acquisition within the 3500 rack system. The Bently Nevada 176499-02 provides direct physical and electrical execution of 4-channel measurement processing for proximity probe and seismic transducer inputs, supporting configurable signal pairing for rotor dynamic parameter tracking. Hardware Specifications Parameter Specification Model 176499-02 Brand Bently Nevada Origin USA Weight 0.5 kg Dimensions 255 x 28 x 242 mm Operating Temp -30 deg C to +65 deg C Storage Temperature -40 deg C to +85 deg C Power Consumption 7.7 W typical Channels 4 (programmable in pairs) Installation Rack-mounted, hot-swappable Supported Measurements Radial vibration, acceleration, eccentricity, REBAM, differential expansion, thrust position, shaft absolute, velocity Certifications CE, RoHS Bently Nevada Rotor Dynamics Signal Processing Behavior The 176499-02 module implements multi-channel synchronous acquisition logic for vibration and position measurement within the 3500 architecture. Channel pairing configuration allows mapping of eddy-current proximity probe inputs to displacement-based vibration vectors, enabling phase-coherent tracking of rotor dynamics. Cross-talk suppression is implemented at the analog front-end stage to minimize inter-channel coupling during high-energy transient events. This preserves waveform separation for eccentricity and shaft absolute measurement paths, particularly when multiple probes operate within close spatial proximity on rotating assemblies. Frequently Asked Questions (FAQ) Q: Can the 176499-02 be hot-swapped while the 3500 rack is energized?A: Yes. The module supports hot-swap operation. Trip inhibit must be enabled to prevent unintended alarm or trip state transitions during insertion or removal. Q: How are channel pairs configured in the 176499-02?A: Channels are software-configurable in pairs, allowing selection between vibration, position, or acceleration input modes depending on connected transducer type. Q: Does the module support simultaneous measurement of vibration and thrust position?A: Yes. Different channel pairs can be assigned to separate measurement functions such as radial vibration and thrust position within the same module. Field Installation Guidelines The module must be installed into a compatible Bently Nevada 3500 rack slot with full backplane engagement verified before system energization. Hot-swap operations require active trip inhibit state to prevent protection logic activation. Proximity probe and seismic sensor wiring must be routed using shielded twisted pairs. Shield termination shall be implemented at a single-point ground reference within the cabinet to prevent ground loop formation. Cable separation between low-level sensor inputs and high-current or switching conductors is required to maintain measurement integrity during transient electrical events.
$200.00 $100.00
-
Bently Nevada 60M500-05-00 | Bently Nevada | Condition Monitoring Modules
Bently Nevada 60M500-05-00 vbOnline Pro Condition Monitoring Module Configured for continuous vibration signal acquisition and machine state computation in vbOnline Pro Condition Monitoring System platforms, the Bently Nevada 60M500-05-00 (60M500 Condition Monitoring Module) provides direct analog-to-digital conversion, tachometer synchronization, and Ethernet-based data export for multichannel dynamic monitoring architectures. The module processes up to 12 dynamic vibration inputs with integrated 24-bit sigma-delta conversion and dual independent Ethernet interfaces for parallel control network segmentation and data transmission. Suffix Breakdown & Model Matrix 60M500: vbOnline Pro base condition monitoring module hardware platform -05: Multi-approvals configuration (CSA, IECEx, ATEX certified for hazardous area deployment) -00: Hardware-only configuration, no System 1 software license included Hardware Specifications Parameter Specification Model 60M500-05-00 Brand Bently Nevada Origin Not specified Weight 1.4 kg Dimensions 225 mm x 150 mm x 55 mm Operating Temp -40 deg C to +70 deg C Power Consumption Max approx 61 W (36 VDC x 1.7 A) Dynamic Inputs Up to 12 channels Tachometer Inputs 2 Keyphasor inputs A/D Conversion 24-bit sigma-delta Bandwidth 0 to 40 kHz Ethernet Interfaces 2 x 10/100 BaseT Rotor Dynamics and Signal Integrity Control Characteristics The Bently Nevada vbOnline Pro architecture implements rotor dynamics tracking through synchronized Keyphasor phase reference alignment, enabling angular domain transformation of vibration signals for shaft-relative analysis. Eddy-current probe scaling is supported through calibrated gap voltage validation referenced against -10 VDC nominal operating targets, ensuring displacement linearity in proximity transducer chains. Cross-talk suppression is implemented at the channel acquisition stage through isolated ADC sampling domains and time-interleaved digital filtering, reducing inter-channel spectral contamination during high-density multichannel vibration acquisition. Frequently Asked Questions (FAQ) Q: Does the module support hot-swap replacement under energized backplane conditions?A: Hot-swap is not defined at field module level; system replacement requires power isolation of the DIN rail segment to prevent Ethernet link and analog front-end instability. Q: What is the internal data handling behavior during network loss?A: The module buffers operational vibration and tachometer data internally for up to 8 hours, maintaining local acquisition continuity until network synchronization is restored. Q: Is firmware compatibility dependent on System 1 license presence?A: Firmware execution is independent of System 1 licensing, but extended analytics and historical trending functions require licensed software integration. Field Installation Guidelines The module shall be mounted on standard DIN rail with verified mechanical locking engagement along the full rail length. Shield termination for vibration sensor cabling shall be grounded at single-point earth reference to prevent ground loop formation in high-density signal environments. Ethernet A and Ethernet B networks shall be physically segregated to avoid broadcast domain collision between DHCP-based configuration traffic and static IP control networks. Tachometer input wiring shall maintain twisted shielded pair routing with controlled impedance matching to minimize phase jitter on Keyphasor acquisition channels. Analog input cable routing shall be separated from power conductors by minimum industrial separation standards to reduce electromagnetic coupling into high-bandwidth vibration channels.
$200.00 $100.00
-
Bently Nevada Velomitor Piezo-velocity Sensor | 330500-00-00 | Bently Nevada
Bently Nevada 330500-00-00 Velomitor Piezo-velocity Sensor Configured for vibration velocity measurement in Bently Nevada machinery monitoring systems, the Bently Nevada 330500-00-00 (330500 Velomitor Piezo-velocity Sensor) provides direct electrical conversion of mechanical vibration into a proportional velocity signal for condition monitoring and rotating equipment diagnostics. Suffix Breakdown & Model Matrix The provided documentation identifies 330500-00-00 as a single catalog number. No official suffix allocation or option matrix is specified in the available technical data. Hardware Specifications Parameter Specification Model 330500-00-00 Brand Bently Nevada Product Type Velomitor Piezo-velocity Sensor Origin USA Place of Shipment Xiamen, China Manufacturer Bently Nevada Weight 0.16 kg Dimensions 2.5 x 2.5 x 7.2 cm Operating Temp -55 deg C to 121 deg C Relative Humidity Up to 100 %, non-submerged, hermetically sealed case Shock Survivability 5,000 g peak maximum Sensitivity 3.94 mV/mm/s (100 mV/in/s), +/- 5 % Velocity Range 1270 mm/s (50 in/s) peak Amplitude Linearity +/- 2 % to 152 mm/s (6 in/s) peak Transverse Sensitivity Less than 5 % of sensitivity Base Strain Sensitivity 0.005 in/s/mstrain Output Bias Voltage -12 +/- 3.0 VDC referenced to Pin A Dynamic Output Impedance Less than 2400 ohm Grounding Case isolated Power Consumption Not specified Rotor Dynamics Signal Integrity Within Bently Nevada machinery monitoring systems, vibration channels are evaluated together with shaft displacement and phase reference measurements to support rotor dynamic analysis. The piezo-velocity sensor is intended to provide vibration velocity information while maintaining electrical isolation through its case construction. Signal cable routing should minimize parallel runs with high-energy conductors to reduce induced noise and channel cross-talk during dynamic measurement. Frequently Asked Questions Q: Does the sensor housing require electrical grounding?A: The case is specified as electrically isolated. Shield termination and grounding should follow the monitoring system installation requirements rather than using the sensor housing as the signal ground. Q: Is the sensor designed for operation in high-humidity environments?A: Yes. The enclosure is specified as hermetically sealed and suitable for relative humidity up to 100 % under non-submerged conditions. Q: Can the sensor be replaced while the monitoring channel is energized?A: The supplied specifications do not state hot-swap capability. Follow plant lockout procedures and the monitoring system maintenance instructions before disconnecting or reconnecting field wiring. Field Installation Guidelines Mount the sensor on a clean, rigid machine surface to maintain consistent mechanical coupling. Route signal cables separately from motor power and variable frequency drive cables to reduce electromagnetic interference. Use shielded instrumentation cable and terminate the cable shield according to the monitoring system grounding practice. Verify connector integrity and cable strain relief before commissioning. Confirm output bias voltage and vibration signal quality using the associated monitoring hardware after installation. Inspect mounting hardware periodically to ensure that vibration transmission characteristics remain unchanged during operation.
$200.00 $100.00
-
Bently Nevada Bently Nevada 125769-01 Proximitor/Seismic Monitor Module
Bently Nevada 125769-01 Proximitor/Seismic Monitor Module The Bently Nevada 125769-01, also cataloged as the 125769-01 Proximitor/Seismic Monitor Module, operates as a dedicated hardware component for continuous vibration signal acquisition and processing within the 3500 Machinery Protection System. The 125769-01 Proximitor/Seismic Monitor Module provides direct electrical execution of 4-channel measurement aggregation for proximity probe and seismic transducer inputs, delivering conditioned outputs for downstream monitoring logic. Suffix Breakdown & Model Matrix No formal suffix segmentation is defined for model 125769-01. The identifier functions as a fixed catalog number within the 3500/42M module family. Hardware Specifications Parameter Specification Model 125769-01 Brand Bently Nevada Origin USA Weight 0.85 kg Dimensions 241.3 x 24.4 x 163.1 mm Operating Temp -30 deg C to +65 deg C Power Consumption 7.7 W max Channels 4-channel vibration monitoring Signal Inputs Proximity probes / seismic transducers Signal Outputs 4-20 mA DC proportional outputs Installation 3500 chassis rack-mounted Hot-Swap Capability Supported (trip inhibit required) Sensor Bias Monitoring -1 VDC to -19 VDC window detection Cross-talk Suppression Integrated channel isolation circuitry Bently Nevada Cross-talk Suppression Behavior in 3500 Architecture The 125769-01 module implements channel-level signal separation to reduce interference between adjacent vibration measurement paths. In multi-probe rotor systems, cross-talk suppression maintains waveform independence during high-amplitude shaft vibration conditions, preventing phase distortion in synchronous demodulation processes. Within eddy-current proximity probe interfaces, isolation behavior preserves gap voltage stability referenced around the -10 VDC operating region. This ensures that adjacent channel excitation does not influence bias tracking or displacement scaling accuracy during transient mechanical events. The suppression network operates at the analog conditioning stage prior to 4-20 mA conversion. Frequently Asked Questions (FAQ) Q: Can the 125769-01 be hot-swapped while the 3500 rack is energized?A: Yes, hot-swap is supported. However, trip inhibit must be applied to the corresponding protection channels to prevent unintended alarm or shutdown signals during module replacement. Q: What happens if sensor bias voltage moves outside the -1 VDC to -19 VDC window?A: The module interprets this as a sensor fault condition, triggering diagnostic indication for probe failure, open circuit, or incorrect gap setting. Q: Does each channel share signal conditioning circuitry?A: No. Each channel is independently processed with isolation paths to reduce inter-channel interference and maintain measurement separation. Field Installation Guidelines The module must be installed into a compatible 3500 chassis slot with secure backplane engagement. Mechanical seating should be verified before energizing the rack. Proximity probe and seismic transducer cables must be routed separately from high-voltage conductors. Shield termination should be implemented at a single grounding point to prevent ground loop formation across measurement channels. During hot-swap operations, ensure trip inhibit is active on affected channels before removal. Post-installation verification should include confirmation of sensor bias voltage stability and channel readiness status.
$200.00 $100.00
-
Bently Nevada Bently Nevada 141380-01 FieldMonitor Isolated Input Terminal Base
Bently Nevada 141380-01 FieldMonitor Isolated Input Terminal Base The Bently Nevada 141380-01, also cataloged as the 141380-01 FieldMonitor Isolated Input Terminal Base (ITB), operates as a dedicated hardware component for electrical isolation and sensor termination within FieldMonitor 1701 series vibration monitoring architectures. The module implements channel-separated input routing for vibration transducers, maintaining galvanic separation between field wiring and downstream monitoring electronics. It provides direct physical termination and isolation for multi-channel sensor acquisition without active signal conditioning circuitry. Hardware Specifications Parameter Specification Model 141380-01 Brand Bently Nevada Weight 1.6 kg Dimensions 127 x 203 x 508 mm Operating Temp -40 deg C to +70 deg C Power Consumption Passive (no active draw) Isolation Voltage 250 VAC continuous, 1500 VAC test Channels 6 isolated input channels Connections Screw terminals, 12–22 AWG Mounting DIN rail Storage Temperature -40 deg C to +85 deg C Humidity 5%–95% RH non-condensing Housing Material Thermoplastic Bently Nevada Mechanical Monitoring Interface Behavior The 141380-01 ITB is positioned within Bently Nevada FieldMonitor systems to support signal segregation for vibration and proximity transducers. In typical TSI signal chains, eddy-current probe scaling is preserved by maintaining low leakage paths across isolated channels, ensuring stable gap voltage reference integrity (commonly validated around negative DC bias regions such as -10 VDC measurement envelopes in compatible proximitor architectures). Within rotor dynamics monitoring loops, channel-to-channel isolation reduces cross-talk propagation between adjacent sensor lines during high vibration amplitude conditions. This preserves phase-referenced waveform fidelity used in shaft orbit analysis and synchronous extraction. The terminal base does not perform signal conditioning; therefore, waveform integrity is fully dependent on upstream probe calibration and correct termination practices. Suffix Breakdown & Model Matrix No structured suffix segmentation is defined for model 141380-01. The designation is treated as a fixed-order identifier within the FieldMonitor ITB hardware family. Frequently Asked Questions (FAQ) Q: Does the 141380-01 support hot-swap replacement under energized FieldMonitor systems?A: The ITB is a passive termination base; replacement under energized conditions is dependent on system-level FieldMonitor 1701 series configuration and wiring isolation procedures rather than internal electronics behavior. Q: What is the impact of channel isolation on back-to-back vibration signal acquisition?A: Each of the 6 channels is galvanically isolated, reducing inter-channel leakage paths and minimizing measurement interference during simultaneous multi-probe vibration sampling. Q: Is any backplane current required for operation?A: No. The module operates passively and does not draw backplane or external supply current. Field Installation Guidelines DIN rail mounting must ensure continuous mechanical fixation across the full 508 mm housing length to prevent micro-movement under vibration environments. Signal wiring should follow separated routing paths for low-level transducer signals, avoiding parallel alignment with high-voltage conductors. Screw terminal connections should be torqued according to standard industrial control cabinet practices for 12–22 AWG conductors, ensuring stable contact resistance. Shielded cable drains should be terminated at a single-point ground reference to avoid ground loop formation across isolated channels. Isolation integrity should be verified after installation using dielectric test procedures consistent with the specified 1500 VAC test rating.
$200.00 $100.00
-
Bently Nevada Bently Nevada 141378-01 FieldMonitor Power Supply Module
Bently Nevada 141378-01 FieldMonitor Power Supply Module Configured for regulated 24 VDC power distribution in FieldMonitor vibration monitoring systems, the Bently Nevada 141378-01 (141378-01 FieldMonitor Power Supply Module) provides direct physical/electrical execution of AC/DC conversion and stabilized DC rail generation within 1701/05 and 1701/06 terminal base architectures. Suffix Breakdown & Model Matrix No validated functional suffix segmentation is defined for this order number. 141378-01: FieldMonitor power supply module identifier within 1700-series system structure No additional configuration decoding provided in the source dataset Hardware Specifications Parameter Specification Model 141378-01 Brand Bently Nevada Weight 0.4 kg Dimensions 45 x 100 x 117 mm Operating Temp -10 deg C to +60 deg C Power Consumption Input dependent (AC/DC conversion module) Input Voltage 100–240 VAC or 18–36 VDC Output Voltage 24 VDC Output Current Up to 2.5 A Efficiency ~88% Ripple & Noise <100 mVpp Mounting DIN rail Storage Temperature -40 deg C to +85 deg C Humidity 5–95% RH non-condensing Protections Overvoltage, thermal overload, short-circuit Indicators LED power status Power Rail Regulation and Voltage Conditioning Behavior in FieldMonitor Systems The module operates as a regulated DC power conversion stage within FieldMonitor system backplane architecture. It converts wide-range AC or DC inputs into a stabilized 24 VDC distribution rail used by vibration monitoring and terminal base modules. Within multi-module rack configurations, output ripple suppression (<100 mVpp) maintains stable supply conditions for downstream signal conditioning electronics. This reduces susceptibility to voltage modulation effects on transducer excitation circuits and analog front-end stages. From a system-level perspective, the module includes internal protection coordination logic for overvoltage and thermal shutdown conditions. These mechanisms isolate fault propagation from the 24 VDC rail, limiting disturbance coupling into adjacent FieldMonitor modules during transient load events. Frequently Asked Questions (FAQ) Q: Can the 141378-01 be hot-swapped during operation?A: It is not intended for live insertion or removal under load. Input power isolation is required to avoid transient voltage spikes on the 24 VDC rail. Q: What happens if input polarity is reversed on the DC supply input?A: Reverse polarity can trigger internal protection or cause functional failure of the conversion stage depending on severity and duration. Q: Does output current derate at elevated ambient temperature?A: Thermal protection circuitry may reduce output capability or trigger shutdown when internal temperature exceeds defined limits. Field Installation Guidelines Install on grounded DIN rail with mechanical locking engaged across full module length Verify correct AC or DC input polarity before energizing the module Maintain separation between input power wiring and low-level sensor signal cabling Ensure enclosure ventilation to prevent thermal accumulation under continuous 2.5 A load Check LED status indicator after power-up to confirm stable 24 VDC output rail formation
$200.00 $100.00
-
Bently Nevada Bently Nevada 3500/22M Transient Data Interface Module
Bently Nevada 3500/22M Transient Data Interface Module Configured for real-time and transient data acquisition in the 3500 Machinery Protection System, the Bently Nevada 3500/22M (288055-02) (3500/22M Transient Data Interface Module) provides direct physical/electrical execution between rack-level monitoring hardware and host diagnostic software interfaces. It operates as a communication and data buffering node within the 3500 rack architecture, supporting waveform capture and event data transfer via Ethernet and serial channels. Hardware Specifications Parameter Specification Model 3500/22M Brand Bently Nevada Origin USA Weight 0.91 kg Dimensions 241.3 x 24.4 x 241.8 mm Operating Temp 0 deg C to +65 deg C Power Consumption 10.5 W System Compatibility Bently Nevada 3500 Machinery Protection System Communication Interfaces 10Base-T/100Base-TX Ethernet, 100Base-FX Fiber Optic, USB-B Data Handling Real-time monitoring, transient waveform capture, event logging Buffer Memory Integrated transient data storage Relay Output OK Relay, 5 A @ 24 VDC / 120 VAC Rack Position Slot 1 (adjacent to power supply modules) TSI Data Interface Architecture and Signal Buffering Behavior The module functions as a non-critical path interface element within the TSI monitoring chain of the 3500 system. It does not participate in protective trip logic execution but maintains continuous data acquisition from rack monitors. From a rotor dynamics perspective, the module supports indirect analysis workflows involving eddy-current probe scaling and gap voltage validation (typically referenced against -10 VDC sensor range calibration structures). It performs waveform buffering prior to transmission to host software, reducing communication jitter during high-frequency vibration sampling events. Cross-channel synchronization is maintained through rack-level addressing logic (up to 127 node addresses), with internal buffering isolating transient bursts from Ethernet throughput constraints. This architecture minimizes cross-talk propagation effects between parallel monitoring channels in high-density rack configurations. Suffix Breakdown & Model Matrix No validated suffix decomposition beyond order number differentiation is defined in the provided dataset. 3500/22M: Transient Data Interface Module designation within 3500 system family 288055-02: Order-specific configuration identifier Frequently Asked Questions (FAQ) Q: Does the 3500/22M participate in machinery protection trip logic execution?A: No. The module operates outside the protective loop and functions as a communication and data interface layer only. Q: Can the module buffer transient waveform data during Ethernet link interruption?A: Yes. Integrated buffer memory stores transient and event data temporarily until communication link restoration. Q: What happens if the TDI module is removed from the 3500 rack?A: Rack-based protection monitoring continues through M-series modules; only host communication and data acquisition functions are affected. Field Installation Guidelines Install in Slot 1 of the 3500 rack adjacent to power supply modules Ensure backplane connectors are fully seated to maintain communication integrity Maintain shielded Ethernet/fiber routing to reduce EMI coupling in turbine environments Use keyed configuration switch to define RUN or PROGRAM mode prior to system integration Verify rack address assignment (1–127 range) before host software initialization
$200.00 $100.00
-
Bently Nevada Bently Nevada | 330500-03-04 | Velomitor Piezo-Velocity Sensor
Bently Nevada 330500-03-04 Velomitor Piezo-Velocity Sensor Configured for absolute vibration measurement in machinery condition monitoring systems, the Bently Nevada 330500-03-04 (330500 Velomitor Piezo-Velocity Sensor) provides direct electrical conversion of housing vibration into a proportional velocity output. The sensor integrates a piezoelectric sensing element with internal signal conditioning and is intended for continuous monitoring of bearing housings, machine casings, and structural vibration points. Suffix Breakdown & Model Matrix The supplied documentation identifies 330500-03-04 as a complete ordering model. No official suffix definition or ordering matrix is provided; therefore, no suffix interpretation is included. Hardware Specifications Parameter Specification Model 330500-03-04 Brand Bently Nevada Product Type Velomitor Piezo-Velocity Sensor Origin USA Shipping Location Xiamen, China Weight 0.1 kg Dimensions 7.8 x 2.5 x 2.5 cm Case Material 316L stainless steel Operating Temp -55 deg C to +121 deg C Relative Humidity Up to 100%, non-submerged, hermetically sealed Shock Survivability 5000 g peak maximum Output Signal 3.94 mV/mm/s (100 mV/in/s) Sensitivity 100 mV/in/s +/-5% Velocity Range Up to 1270 mm/s (50 in/s) peak Frequency Response 4.5 Hz to 5 kHz (270 to 300000 cpm) Power Consumption Internal electronics; external power consumption not specified Rotor Dynamics Measurement Characteristics The sensor measures absolute casing vibration by generating a velocity-proportional output directly from its internal piezoelectric sensing element. Within machinery protection systems, this signal can be evaluated together with displacement and phase measurements to support rotor dynamics analysis, including identification of imbalance, shaft misalignment, mechanical looseness, and rolling-element bearing defects. Signal generation is performed internally without the moving-coil mechanism associated with conventional velocity transducers. Frequently Asked Questions Q: Does this sensor require periodic gap voltage adjustment similar to an eddy-current proximity probe?A: No. The 330500-03-04 is a piezo-velocity sensor and does not require proximity probe gap voltage adjustment. Gap voltage verification applies to eddy-current displacement probe systems rather than velocity sensors. Q: Is the housing suitable for moisture and oil exposure?A: Yes. The sensor uses a hermetically sealed 316L stainless steel housing designed for industrial environments with exposure to moisture, oil, dust, and temperature variation. It is specified for up to 100% relative humidity under non-submerged conditions. Q: Can the sensor be installed while machinery is operating?A: Installation should follow the plant maintenance procedure. Mounting surfaces must be clean and mechanically secure before the sensor is tightened to the specified installation torque to maintain consistent vibration transmission. Field Installation Guidelines Verify that the mounting surface is flat, clean, and free from paint, corrosion, or debris before installation. Apply one drop of medium-strength threadlocker, such as Loctite 242 or an equivalent product, to both ends of the adapter stud. Apply a thin layer of ultrasonic couplant or light machine oil between the mounting pad and sensor contact surface to improve mechanical coupling. Hand-tighten the 1/4-28 UNF mounting stud into the sensor body before final tightening. Tighten the sensor using a calibrated torque wrench to 2.7 to 4.5 N m (24 to 40 in lbf). Route the sensor cable separately from high-power conductors where practical and follow the site's shielding and grounding practices to reduce electrical interference. Inspect the mounting interface periodically to confirm that the threaded connection remains secure and free of mechanical damage.
$200.00 $100.00
-
Bently Nevada Bently Nevada | 330500-02-05 | Velomitor Piezo-velocity Sensor
Bently Nevada 330500-02-05 Velomitor Piezo-velocity Sensor Configured for vibration velocity measurement in Bently Nevada machinery monitoring systems, the Bently Nevada 330500-02-05 (330500 Velomitor Piezo-velocity Sensor) provides direct electrical conversion of mechanical vibration into a conditioned velocity output for continuous monitoring and diagnostic functions. Suffix Breakdown & Model Matrix The supplied documentation identifies 330500-02-05 as a fixed catalog model. No official suffix definition or option matrix is provided in the available data; therefore, no suffix interpretation is included. Hardware Specifications Parameter Specification Model 330500-02-05 Brand Bently Nevada Product Type Velomitor Piezo-velocity Sensor Manufacturer Bently Nevada Origin USA Shipment Location Xiamen, China Weight 0.14 kg Dimensions 2.5 x 2.5 x 7.3 cm (estimated shipping size) Operating Temp Not specified Power Consumption Not specified Thread M8 x 1 Sensitivity 3.94 mV/mm/s (100 mV/in/s) +/-5% Velocity Range 1270 mm/s (50 in/s) peak Amplitude Linearity +/-2% to 152 mm/s (6 in/s) peak Mounted Resonant Frequency Greater than 12 kHz Output Bias Voltage -12 +/-3.0 VDC, overtemperature referenced to Pin A Dynamic Output Impedance Less than 2400 Ohm Transverse Sensitivity Less than 5% of rated sensitivity Tariff Code 8537101190 Gap Voltage Validation and Mechanical Signal Integrity Within Bently Nevada machinery monitoring architectures, vibration measurements are commonly evaluated together with eddy-current probe signals. During commissioning, proximity probe gap voltage is typically verified against the specified system target, commonly near -10 VDC where applicable to the associated probe system. The Velomitor sensor provides an independent piezoelectric velocity measurement and should be correlated with shaft displacement and rotor dynamic data during machine condition assessment. Proper cable routing and shielding help reduce electrical cross-talk between adjacent vibration channels. Frequently Asked Questions Q: Does the sensor support hot replacement while the monitoring system is energized?A: The available documentation does not specify hot-swap capability. Follow the maintenance procedure defined for the connected monitoring system before disconnecting or replacing the sensor. Q: Is a specific output load required for accurate measurements?A: The sensor provides a dynamic output impedance of less than 2400 Ohm. The connected monitoring equipment should present an input impedance compatible with the manufacturer's interface requirements. Q: Can this sensor be mounted in any orientation?A: Mechanical mounting orientation should follow the machine vibration measurement point defined by the monitoring design. The mounting surface should be rigid and free from looseness to maintain measurement accuracy. Field Installation Guidelines Verify that the M8 x 1 mounting interface is clean and mechanically secure before installation. Route sensor cables separately from high-voltage power conductors to reduce electromagnetic interference. Ground the cable shield according to the monitoring system grounding practice to minimize ground loop currents. Avoid excessive cable bending, crushing, or tensile loading near the sensor body and connector. Confirm sensor output and bias voltage after installation before placing the monitoring channel into service. When used with shaft displacement measurements, validate sensor polarity and channel identification to ensure correct vibration analysis.
$200.00 $100.00
-
Bently Nevada Velomitor Piezo-velocity Sensor | 330500-01-00 | Bently Nevada
Bently Nevada 330500-01-00 Velomitor Piezo-velocity Sensor The Bently Nevada 330500-01-00, also cataloged as the 330500 Velomitor Piezo-velocity Sensor, operates as a dedicated hardware component for measuring absolute vibration velocity of bearing housings, machine casings, and structural members within Bently Nevada machinery condition monitoring systems. The sensor converts mechanical vibration into a conditioned voltage output through an embedded piezoelectric sensing element and integrated electronics. Suffix Breakdown & Model Matrix The available ordering information defines the following suffix options for this model: Option Description 01 1/2 - 20 UNF mounting thread 00 No additional option required No further model matrix information is provided in the available technical data. Hardware Specifications Parameter Specification Model 330500-01-00 Brand Bently Nevada Product Type Velomitor Piezo-velocity Sensor Origin USA Manufacturer Bently Nevada Dimensions 7.2 x 2.4 x 2.4 cm Weight 0.16 kg Operating Temp Not specified Power Consumption Not specified Mounting Thread 1/2 - 20 UNF Sensitivity 3.94 mV/mm/s (100 mV/in/s) +/- 5% Velocity Range 1270 mm/s (50 in/s) peak Amplitude Linearity +/- 2% to 152 mm/s (6 in/s) peak Transverse Sensitivity Less than 5% of sensitivity Mounted Resonant Frequency Greater than 12 kHz Dynamic Output Impedance Less than 2400 Ohm Output Bias Voltage -12 +/- 3.0 VDC referenced to Pin A Orientation May be mounted at any angle Sensor Construction Piezoelectric element with embedded electronics Mechanical Design Solid-state, no moving parts Rotor Dynamics Signal Measurement The 330500 Series is intended for machinery vibration monitoring using a solid-state piezoelectric sensing element rather than a moving-coil mechanism. Because the sensing assembly contains no moving mechanical components, installation orientation does not affect normal operation. The sensor measures absolute vibration velocity relative to free space for machine casing and bearing housing monitoring. Within Bently Nevada monitoring systems, vibration measurements from Velomitor sensors can be evaluated together with proximity probe channels that monitor shaft displacement. During commissioning, proximity probe channels are commonly validated against gap voltage targets near -10 VDC to confirm proper probe positioning before rotor dynamic measurements are placed into service. The vibration and displacement channels operate as complementary measurements within the overall machinery protection system. Frequently Asked Questions Q: Does the sensor contain moving mechanical components?A: No. The sensor uses a piezoelectric sensing element with embedded electronics and a solid-state construction without moving parts. Q: Can the sensor be installed in any mounting orientation?A: Yes. The available technical documentation states that the sensor may be mounted vertically, horizontally, or at any other orientation. Q: Is hot-swapping supported while the monitoring channel is energized?A: The available documentation does not specify hot-swap capability. Sensor replacement should follow the shutdown and isolation procedures defined for the connected monitoring system. Field Installation Guidelines Verify that the mounting surface is clean, flat, and mechanically rigid before installing the sensor. Use the specified 1/2 - 20 UNF mounting thread and apply the manufacturer's recommended installation torque if available in the service manual. Route signal cables separately from high-voltage and variable-frequency drive power cables to reduce electromagnetic interference. Maintain cable shielding continuity and terminate the shield according to the monitoring system grounding practice. Confirm connector pin assignments before energizing the monitoring channel. After installation, verify sensor output and monitoring channel response through the associated Bently Nevada monitoring system before returning equipment to operation.
$200.00 $100.00
-
Bently Nevada Velomitor Piezo-velocity Sensor | 330500-01-05 | Bently Nevada
Bently Nevada 330500-01-05 Velomitor Piezo-velocity Sensor Configured for vibration velocity measurement in Bently Nevada machinery monitoring systems, the Bently Nevada 330500-01-05 (330500 Velomitor Piezo-velocity Sensor) provides direct electrical execution. The sensor converts mechanical vibration into a proportional voltage output for condition monitoring, vibration analysis, and machine protection functions. Suffix Breakdown & Model Matrix The supplied documentation identifies 330500-01-05 as a complete ordering model. No official suffix decoding or ordering matrix is provided in the available technical data; therefore, no suffix interpretation is included. Hardware Specifications Parameter Specification Model 330500-01-05 Brand Bently Nevada Product Type Velomitor Piezo-velocity Sensor Manufacturer Bently Nevada Origin USA Shipment Location Xiamen, China Weight 0.15 kg Dimensions 7.6 x 2.4 x 2.4 cm Case Material 316L stainless steel Mounting Thread 1/2-20 UNF Mounting Torque 32 - 46 kg cm (24 - 40 in-lb) maximum Sensitivity 3.94 mV/mm/s (100 mV/in/s) +/- 5% Velocity Range 1270 mm/s (50 in/s) peak Transverse Sensitivity Less than 5% of sensitivity Output Bias Voltage -12 +/- 3.0 VDC referenced to Pin A over temperature Dynamic Output Impedance Less than 2400 Ohm Operating Temp Not specified Power Consumption Not specified Tariff Code 8537101190 Gap Voltage Validation and Mechanical Monitoring Within Bently Nevada machinery protection systems, sensor verification commonly includes electrical validation before vibration analysis is performed. Although the 330500-01-05 is a piezo-velocity sensor rather than an eddy-current proximity probe, commissioning procedures are typically coordinated with shaft displacement channels where gap voltage measurements are checked against nominal targets, commonly near -10 VDC for proximity probe circuits. Independent verification of each measurement channel helps reduce commissioning errors and simplifies diagnostic comparison across the monitoring system. Frequently Asked Questions Q: Does the 330500-01-05 support hot-swapping during machine operation?A: The available documentation does not specify hot-swap capability. Sensor replacement should follow the shutdown and maintenance procedures defined for the connected monitoring system. Q: Is shielded cable recommended for signal wiring?A: Yes. Shielded instrumentation cable is standard practice for vibration sensor installation to reduce electromagnetic interference. Shield grounding should follow the requirements of the connected monitoring equipment. Q: Can the sensor be mounted directly to machine housings?A: Yes, provided the mounting thread, mounting surface, and installation torque conform to the specified mechanical requirements. Proper mounting stiffness is necessary to obtain representative vibration measurements. Field Installation Guidelines Verify that the mounting point matches the 1/2-20 UNF threaded connection before installation. Apply the specified mounting torque of 32 - 46 kg cm without exceeding the maximum value. Ensure the mounting surface is clean, flat, and free of paint or debris to maintain mechanical coupling. Route sensor cables separately from high-voltage or variable-frequency drive power cables to minimize electrical noise. Maintain cable shielding continuity and terminate the shield according to the monitoring system grounding practice. Confirm connector pin assignments before energizing the monitoring channel. After installation, verify sensor output and channel status using the associated vibration monitoring equipment before returning the machine to service.
$200.00 $100.00
-

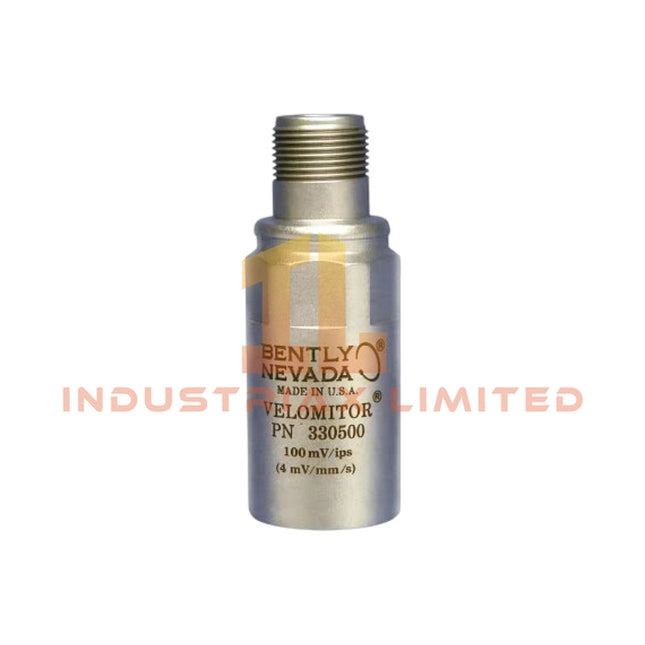

Bently Nevada 330500-06-00 | Velomitor Piezo-velocity Sensor | Bently Nevada
Bently Nevada 330500-06-00 Velomitor Piezo-velocity Sensor Configured for casing vibration velocity measurement in Bently Nevada machinery monitoring systems, the Bently Nevada 330500-06-00 (330500 Velomitor Piezo-velocity Sensor) provides direct electrical conversion of mechanical vibration into a conditioned velocity output through integrated piezoelectric electronics. The sensor eliminates moving-coil elements while maintaining a velocity-based output for machinery vibration monitoring. Suffix Breakdown & Model Matrix Suffix Description 330500 Velomitor Piezo-velocity Sensor base model -06 M8 x 1.25 mounting thread -00 Standard version without additional agency approval option Hardware Specifications Parameter Specification Model 330500-06-00 Brand Bently Nevada Weight Approx. 142 g Dimensions Not specified Operating Temp -54 deg C to +121 deg C Power Consumption Current-regulated supply, 15 VDC to 30 VDC Sensor Type Piezo-velocity sensor Output Sensitivity 3.94 mV/mm/s (100 mV/in/s) +/- 5 % at 100 Hz Frequency Response 4.5 Hz to 5000 Hz (+/- 3 dB); 6 Hz to 2500 Hz (+/- 0.9 dB) Velocity Range Up to 1270 mm/s peak (50 in/s peak) Resonant Frequency Greater than 12 kHz Excitation Voltage 15 VDC to 30 VDC Bias Voltage 10 VDC to 12 VDC, typically 11 VDC Output Impedance Less than 100 Ohm Shock Survivability 49050 m/s2 (5000 g) peak Relative Humidity 100 % condensing, non-submerged, hermetically sealed Magnetic Sensitivity Less than 43.3 um/s/gauss at 60 Hz Case Material 316L stainless steel Connector 2-pin MIL-C-5015 top connector with gold-plated pins Mounting Torque Maximum 4.5 N.m Rotor Dynamics Signal Integrity The 330500 Velomitor sensor is intended for machinery casing vibration measurement rather than shaft relative displacement. Its integrated piezoelectric electronics generate a conditioned velocity output while suppressing the mechanical wear associated with moving-coil transducers. Within Bently Nevada vibration monitoring systems, velocity data may be evaluated alongside eddy-current proximity probe measurements to support rotor dynamics analysis. Gap voltage validation for proximity probes, commonly referenced near -10 VDC during probe setup, remains a separate commissioning procedure and does not apply to the electrical output of the Velomitor sensor. Frequently Asked Questions Q: Does the sensor require an external signal conditioner?A: No. The sensor contains integrated piezoelectric electronics and produces a conditioned velocity output when supplied with a regulated 15 VDC to 30 VDC excitation source. Q: Can the sensor be hot-swapped while the monitoring channel is energized?A: The supplied documentation does not specify hot-swap capability. Follow the monitoring system maintenance procedure before disconnecting or replacing the sensor. Q: Is the sensor intended for shaft displacement measurement?A: No. The device measures machine casing vibration velocity. Shaft displacement measurements require compatible eddy-current proximity probe systems. Field Installation Guidelines Install the sensor on a flat, clean mounting surface to maintain mechanical coupling. Apply the specified maximum mounting torque of 4.5 N.m to the M8 x 1.25 mounting stud. Route sensor cables separately from high-power motor and switching cables to minimize electromagnetic interference. Maintain connector cleanliness and ensure the hermetically sealed connector is fully engaged before energizing the monitoring circuit. Verify the available excitation supply is within the specified 15 VDC to 30 VDC operating range before commissioning. Inspect cable shielding and grounding practices according to the monitoring system installation standard to reduce electrical noise.
$200.00 $100.00
-

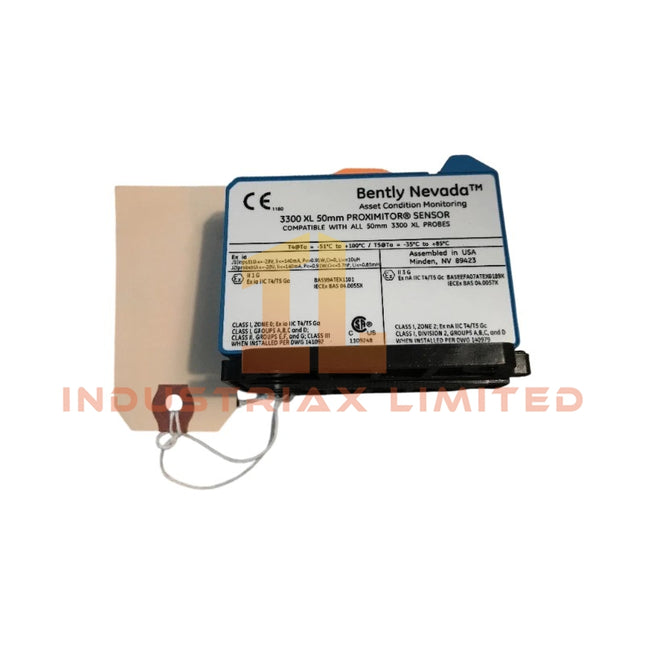

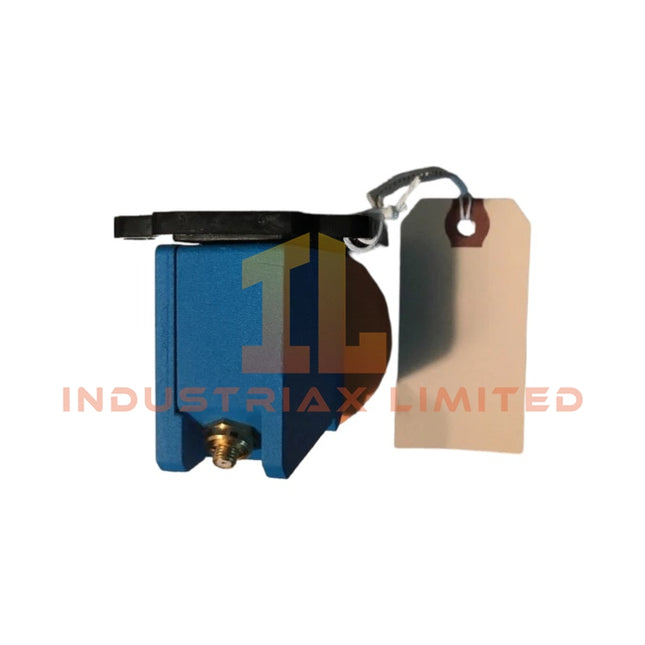

Bently Nevada 330878-90-05 | 3300 XL 50 mm Proximitor Sensor | Bently Nevada
Bently Nevada 330878-90-05 3300 XL 50 mm Proximitor Sensor Configured for eddy-current proximity signal conditioning in the Bently Nevada 3300 XL machinery protection system, the Bently Nevada 330878-90-05 (330878 Proximitor Sensor) provides direct electrical execution. The assembly converts the probe signal for transmission to the associated monitoring system while maintaining the specified 9.0 m system length and panel-mount configuration. Suffix Breakdown & Model Matrix The available documentation identifies 330878-90-05 as a complete ordering code. No official suffix-by-suffix decoding is provided in the supplied data; therefore, no additional breakdown is inferred. Hardware Specifications Parameter Specification Model 330878-90-05 Brand Bently Nevada Origin USA Weight 0.2 kg Dimensions 8.8 x 3.5 x 7 cm (estimated shipping size) Product Series 3300 XL Product Type 50 mm Proximitor Sensor System Length 9.0 m (29.5 ft) Mounting Panel mount Agency Approval Multiple Approvals Probe Tip Material Polyphenylene Sulfide Proximitor Housing Material A380 aluminum Place of Shipment Xiamen, China Tariff Code 8537101190 Gap Voltage Validation The 3300 XL measurement chain is intended to operate with a matched eddy-current probe, extension cable, and Proximitor Sensor using the specified system length. During commissioning, gap voltage should be verified after mechanical installation. For Bently Nevada eddy-current systems, technicians commonly validate the static probe position against the expected gap voltage target, typically near -10 VDC when the mechanical installation permits. Final acceptance should always follow the applicable system documentation for the installed probe configuration. Frequently Asked Questions Q: Can this Proximitor Sensor be installed with a different system cable length?A: The sensor should be used with the specified matched probe and extension cable assembly corresponding to the defined 9.0 m system length. Mixing unmatched cable lengths can affect calibration and measurement accuracy. Q: Does the supplied information indicate hot-swap capability?A: No. The provided documentation does not specify hot-swap support. Installation or replacement should follow the maintenance procedure defined for the associated monitoring system. Q: Why is shield grounding important for this sensor?A: Proper cable shielding and grounding reduce electrical noise and help minimize signal interference between adjacent proximity measurement channels. Field Installation Guidelines Verify that the installed probe, extension cable, and Proximitor Sensor belong to the same calibrated system length. Mount the Proximitor Sensor securely on the designated panel to prevent vibration-induced cable movement. Route proximity cables separately from high-voltage and motor power conductors whenever practical. Maintain cable shielding in accordance with the installation manual and avoid multiple unintended shield grounding points. Confirm probe gap voltage after mechanical alignment before placing the monitoring channel into service.
$200.00 $100.00
-

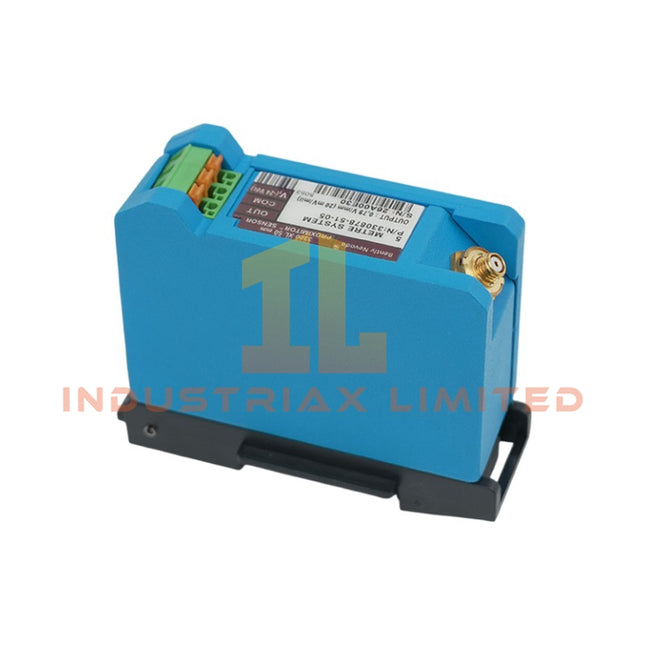

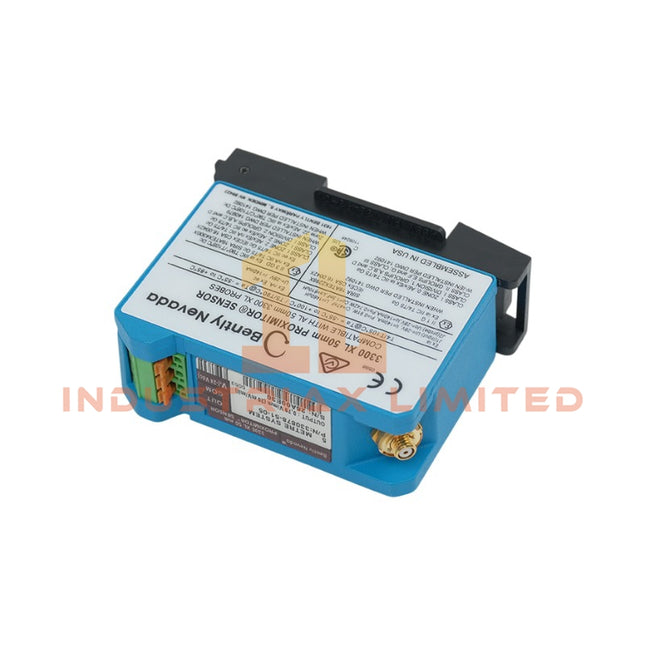

Bently Nevada 330878-51-05 | 3300 XL 50 mm Proximitor Sensor | Bently Nevada
Bently Nevada 330878-51-05 3300 XL 50 mm Proximitor Sensor Configured for eddy-current proximity signal conditioning in the Bently Nevada 3300 XL monitoring system, the Bently Nevada 330878-51-05 (330878 Proximitor Sensor) provides direct electrical signal conversion between the proximity probe assembly and the connected monitoring channel. The module is configured for a 5.0 m system length with DIN rail mounting and multiple agency approvals. Suffix Breakdown & Model Matrix The supplied documentation identifies 330878-51-05 as a fixed ordering model. No official suffix decoding beyond the documented configuration is provided. Therefore, no additional suffix interpretation is included. Hardware Specifications Parameter Specification Model 330878-51-05 Brand Bently Nevada Product Type 3300 XL 50 mm Proximitor Sensor Origin USA Shipment Location Xiamen, China Weight 0.2 kg Dimensions 8.8 x 3.5 x 7 cm (estimated shipping size) Mounting DIN mount System Length 5 m including extension cable Total System Length Option 5.0 m (16.4 ft) Output Resistance 50 Ohm Housing Material A380 aluminum Agency Approval Multiple Approvals Tariff Code 8537101190 Operating Temp Not specified Power Consumption Not specified Gap Voltage Validation and Probe Scaling The 3300 XL Proximitor Sensor is designed for operation with the corresponding eddy-current probe system using the specified system cable length. During commissioning, gap voltage should be verified against the installation target specified by the applicable Bently Nevada calibration procedure. For shaft vibration measurements, probe scaling accuracy depends on matching the Proximitor Sensor, extension cable, and proximity probe as a calibrated system. Mixing components with different calibrated system lengths can introduce measurement error. Frequently Asked Questions Q: Can this Proximitor Sensor be exchanged without recalibrating the monitoring channel?A: Replacement should use the identical model and configured system length. After installation, gap voltage and probe response should be verified according to the equipment commissioning procedure. Q: Can extension cables with different system lengths be connected to this unit?A: No. The Proximitor Sensor is calibrated for a defined total system length. Using an unmatched extension cable changes the probe system characteristics and measurement scaling. Q: Is hot swapping recommended during machine operation?A: The available documentation does not specify hot-swap capability. Replacement should follow the shutdown and maintenance procedure established for the connected monitoring system. Field Installation Guidelines Mount the sensor securely on a DIN rail with adequate mechanical support. Install only with the specified compatible proximity probe and extension cable to maintain calibrated system performance. Route probe cables separately from high-power conductors to minimize electromagnetic coupling. Ground cable shields according to the system grounding practice to reduce electrical noise and prevent ground loops. Verify probe gap voltage after installation before returning the monitored machine to service. Inspect cable connectors and locking hardware to ensure proper mechanical engagement before energizing the monitoring channel.
$200.00 $100.00
-
Bently Nevada Bently Nevada 285691-01 3300 XL Proximitor Sensor Module
Bently Nevada 285691-01 3300 XL Proximitor Sensor Module Configured for conversion of eddy-current proximity probe signals into calibrated displacement and vibration data within 3300 XL monitoring systems, the Bently Nevada 285691-01 (285691-01 Proximitor Sensor Module) provides direct electrical signal conditioning for shaft position measurement across standardized TSI input channels. Suffix Breakdown & Model Matrix The 285691-01 is a single defined orderable configuration within the 3300 XL Proximitor Sensor family. No validated sub-variant segmentation or hardware option matrix is defined in the provided dataset. Functional behavior is determined by external probe selection and system-level configuration parameters. Hardware Specifications Parameter Specification Model 285691-01 Brand Bently Nevada Weight ~0.2 kg Dimensions 76 x 25 x 25 mm Operating Temp -35 deg C to +100 deg C Power Consumption Not specified Measurement Range 2 mm to 80 mm (probe dependent) Linear Range 0.25 mm to 2.0 mm typical Accuracy ±0.25 percent of full scale Frequency Response DC to 10 kHz Input 3300 XL proximity probe compatible Output Sensitivity -200 mV/mil (7.87 mV/um) Power Supply -24 VDC nominal Humidity Up to 95 percent non-condensing Compliance API 670, CE, UL, CSA, RoHS Bently Nevada Eddy-Current Signal Conditioning and Cross-Talk Suppression The module performs eddy-current probe impedance conversion into linearized displacement voltage output using calibrated scaling constants defined for the 3300 XL architecture. Gap-based voltage reference tracking is maintained for shaft centerline measurement consistency. Cross-talk suppression is implemented through internal shielding geometry and grounded reference design, minimizing electrical coupling between adjacent measurement channels under multi-probe configurations. The signal path supports DC to 10 kHz bandwidth for both static position and dynamic vibration extraction. Frequently Asked Questions (FAQ) Q: Is the 285691-01 compatible with non-3300 XL probe systems?A: No. Input conditioning is calibrated for 3300 XL probe electrical characteristics. Mismatched impedance will result in non-linear scaling. Q: Does the module require external signal conditioning before monitoring input?A: No external conditioning is required. The module outputs a direct proportional voltage signal suitable for monitoring system acquisition. Q: What is the behavior under unstable -24 VDC supply conditions?A: Output accuracy is maintained only within nominal supply tolerance. Deviation outside specified limits may introduce scaling drift or reduced measurement stability. Field Installation Guidelines Install the module inside a grounded metallic enclosure to maintain shielding integrity for eddy-current signal paths. Maintain separation between probe wiring and high-voltage switching conductors to reduce electromagnetic interference. Use twisted shielded cables with single-point grounding at the monitoring system end only. Ensure correct routing without tight bends to avoid impedance variation in probe extension lines. Verify stable -24 VDC supply polarity and continuity prior to system energization.
$200.00 $100.00
-

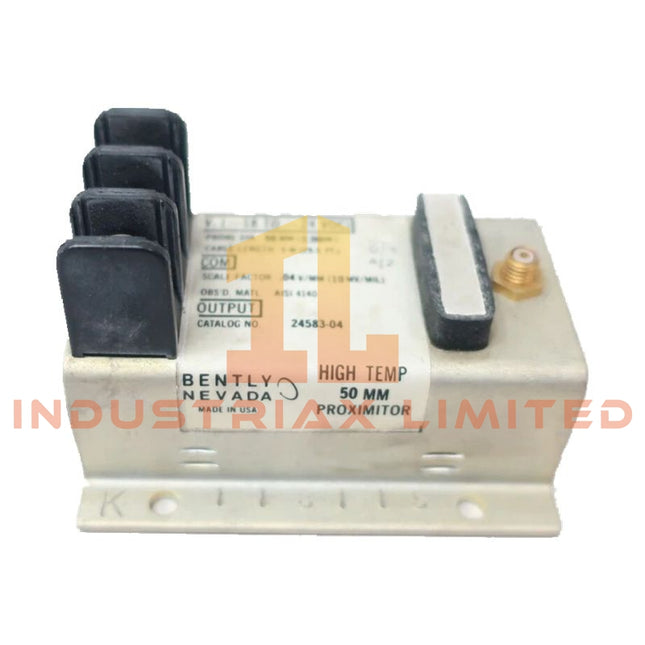

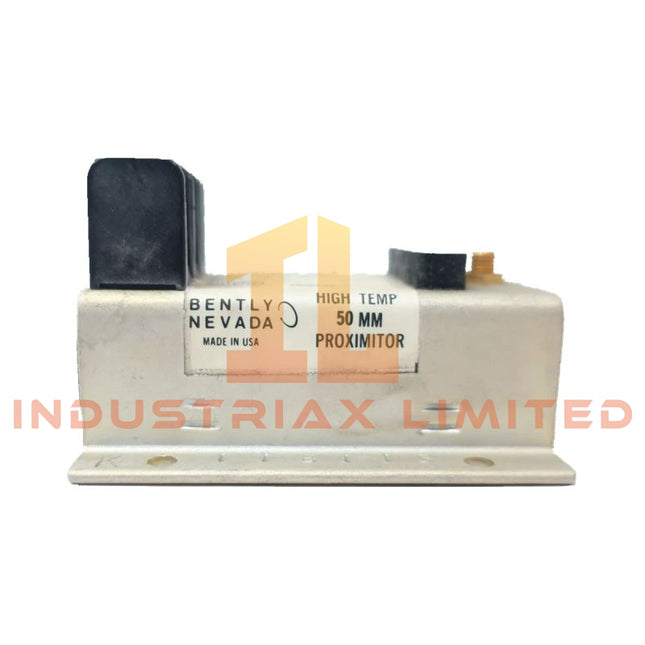

Bently Nevada Bently Nevada 24583-04 3300 XL Proximitor Sensor
Bently Nevada 24583-04 3300 XL Proximitor Sensor Configured for conversion of eddy-current proximity probe signals into calibrated displacement and vibration outputs in 3300 XL monitoring architectures, the Bently Nevada 24583-04 (24583-04 Proximitor Sensor) provides direct electrical signal conditioning and scaling for shaft position measurement within the 3300 XL instrumentation chain. Suffix Breakdown & Model Matrix The 24583-04 is a single defined orderable sensor identifier within the 3300 XL Proximitor Sensor family. No validated functional segmentation or suffix-based hardware partition is specified in the provided dataset. System behavior is determined by probe type selection and external monitoring configuration parameters. Hardware Specifications Parameter Specification Model 24583-04 Brand Bently Nevada Weight 0.2 kg Dimensions Approx. 76 x 25 x 25 mm Operating Temp -35 deg C to +100 deg C Measurement Range 2 mm to 80 mm (probe dependent) Linear Range 0.25 mm to 2.0 mm typical Accuracy ±0.25 percent of full scale Frequency Response DC to 10 kHz Input 3300 XL proximity probe compatible Output Sensitivity -200 mV/mil (7.87 mV/um) Power Supply -24 VDC nominal Humidity Up to 95 percent non-condensing Compliance API 670, CE, UL, CSA, RoHS Bently Nevada Eddy-Current Probe Scaling and Cross-Talk Suppression The 24583-04 implements eddy-current signal linearization for shaft displacement conversion based on calibrated probe gap-voltage response characteristics. Output scaling is referenced to standardized -200 mV/mil conversion factors used in the 3300 XL system architecture. Cross-talk suppression is implemented through internal shielding geometry and differential reference handling to reduce channel interaction in multi-probe installations. Signal integrity is maintained across DC to 10 kHz bandwidth for both static position and dynamic vibration extraction. Frequently Asked Questions (FAQ) Q: Can the 24583-04 operate with non-3300 XL proximity probes?A: No. The input conditioning network is calibrated for 3300 XL probe electrical characteristics. Non-matching probe impedance results in non-linear displacement scaling. Q: Does the sensor require external signal conditioning modules?A: No external conditioning is required. The device provides direct proportional voltage output suitable for monitoring system input channels. Q: What happens if the -24 VDC supply deviates from nominal range?A: Output scaling integrity is maintained only within specified supply tolerance. Deviation outside design range may introduce linearity drift or reduced measurement stability. Field Installation Guidelines Install the sensor in a grounded metallic enclosure to maintain shielding integrity of eddy-current measurement circuits. Keep probe signal wiring separated from high-voltage or switching conductors to reduce electromagnetic coupling. Use twisted shielded cable with single-point grounding at the monitoring system end. Avoid sharp bends in probe extension cables to maintain impedance stability. Verify correct polarity and stability of the -24 VDC supply prior to energization of the measurement loop.
$200.00 $100.00
-

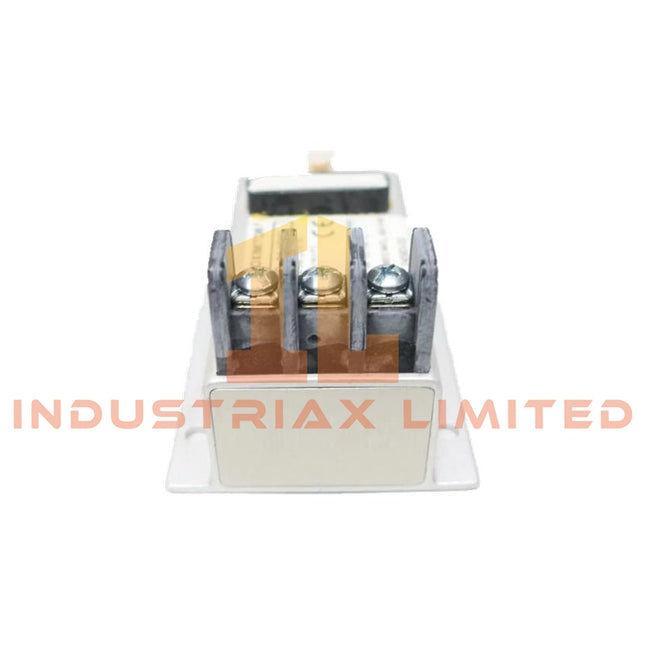

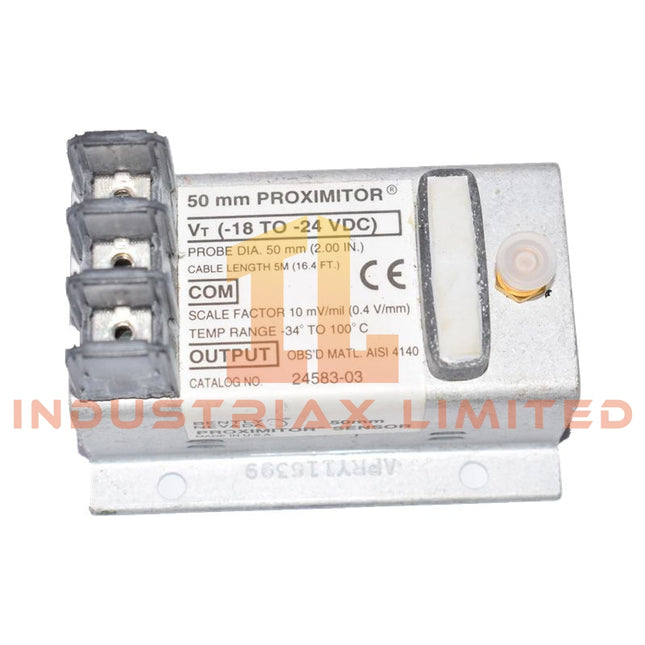

Bently Nevada Bently Nevada 24583-03 3300 XL Proximitor Sensor
Bently Nevada 24583-03 3300 XL Proximitor Sensor The Bently Nevada 24583-03, also cataloged as the 3300 XL Proximitor Sensor displacement monitoring module, operates as a dedicated hardware component for conversion of eddy-current probe signals into calibrated vibration and shaft position data within 3300 XL monitoring systems. Hardware Specifications Parameter Specification Model 24583-03 Brand Bently Nevada Weight 0.2 kg Dimensions 76 x 25 x 25 mm Operating Temp -35 deg C to +100 deg C Power Consumption Not specified Measurement Range 2 mm to 80 mm (probe dependent) Linear Range 0.25 mm to 2.0 mm typical Accuracy ±0.25 percent of full scale Frequency Response DC to 10 kHz Input Type 3300 XL proximity probe compatible Output -200 mV/mil (7.87 mV/um) Power Supply -24 VDC nominal Humidity Up to 95 percent non-condensing Compliance API 670, CE, UL, CSA, RoHS Bently Nevada Eddy-Current Transduction and Rotor Dynamics Interface The 24583-03 processes eddy-current probe impedance variation into linear displacement voltage conversion using calibrated scaling coefficients defined for the 3300 XL probe family. Probe gap voltage reference behavior is tied to baseline air-gap conditions for shaft centerline tracking, with sensitivity mapping maintained across the defined linear operating window. Rotor dynamics evaluation is derived from DC-coupled displacement signals supporting low-frequency orbit analysis and synchronous vibration extraction. Cross-channel electrical interference is mitigated through internal shielding and grounded reference topology within the sensor interface stage. Frequently Asked Questions (FAQ) Q: Is the 24583-03 compatible with non-3300 XL proximity probes?A: No. The input conditioning network is calibrated for 3300 XL probe electrical characteristics. Non-matching probe impedance may result in non-linear output scaling. Q: Does the sensor output require external signal conditioning before monitoring systems?A: No additional conditioning is required. The device provides direct proportional voltage output (-200 mV/mil) suitable for monitoring system input channels. Q: How is signal stability affected during power supply fluctuation on -24 VDC input?A: Internal regulation maintains signal scaling integrity within nominal -24 VDC operation. Deviations outside tolerance may affect output linearity. Field Installation Guidelines Install the module in a grounded metallic enclosure to maintain signal shielding integrity for eddy-current measurement circuits. Maintain separation between probe signal wiring and high-voltage or switching conductors to reduce electromagnetic coupling. Use twisted, shielded cable for probe connections, with single-point shield termination at the monitoring system end. Ensure probe extension cables are routed without sharp bends to avoid impedance discontinuities. Verify correct polarity of the -24 VDC supply prior to system energization.
$200.00 $100.00
-

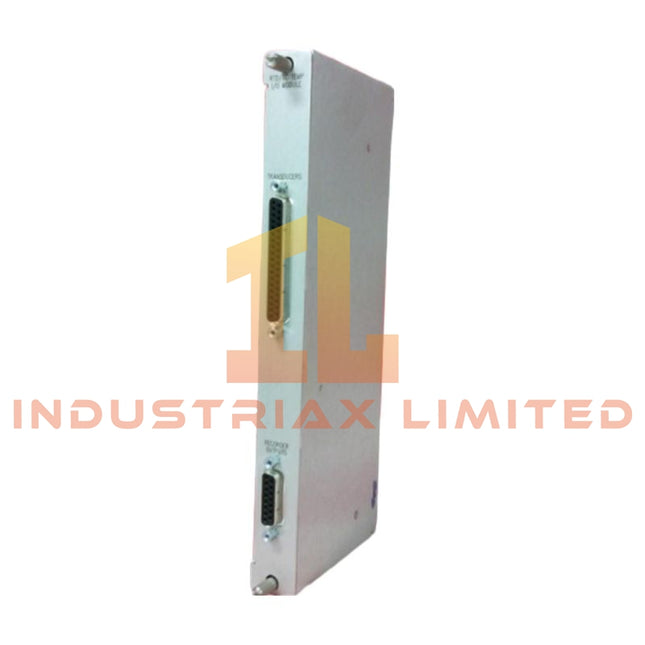

Bently Nevada Bently Nevada 176499-03 Steam Turbine Safety & Monitoring Module
Bently Nevada 176499-03 Steam Turbine Safety & Monitoring Module Configured for vibration monitoring and safety signal processing in turbine protection architectures, the Bently Nevada 176499-03 (176499-03 Steam Turbine Safety & Monitoring Module) provides direct electrical execution of sensor acquisition, alarm logic distribution, and Profibus DP communication within turbine monitoring systems. The module processes multiple transducer inputs and converts them into standardized monitoring and control signals for downstream control integration. Suffix Breakdown & Model Matrix The 176499-03 is treated as a single-order module identifier. No validated sub-variant segmentation or functional suffix decomposition is defined in the provided technical dataset. Functional behavior is determined at system configuration level via Profibus DP parameterization and channel assignment. Hardware Specifications Parameter Specification Model 176499-03 Brand Bently Nevada Weight 800 g Dimensions 136 x 106 x 54 mm Power Consumption ~7.7 W typical Power Supply 12–36 VDC dual redundant, reverse polarity protected Communication Interface Profibus DP, 9-pin Sub-D, 9.6 kbps to 12 Mbps Inputs 1–4 channels (Velomitor, accelerometer, Proximitor compatible) Transducer Supply -23 VDC nominal, 43 mA max Recorder Output 4–20 mA per channel Relay Output Alarm relay, 48 VDC / 1 A Protection 4000 V lightning, 600 W surge, 1.5 A overcurrent Housing Aluminum, IP30, DIN rail mount Bently Nevada TSI Signal Conditioning and Rotor Dynamics Handling The module is integrated into a TSI (Turbine Supervisory Instrumentation) signal chain where eddy-current proximity probe scaling is applied for shaft displacement interpretation. Gap voltage validation is referenced against negative bias levels (typical -10 VDC regime in probe systems) to ensure linear response within the calibrated operating window. Signal conditioning logic is aligned with rotor dynamics monitoring requirements, including synchronous vibration tracking and broadband amplitude evaluation. Cross-talk suppression is implemented at input conditioning stage to reduce interference between adjacent measurement channels in multi-probe turbine assemblies. Frequently Asked Questions (FAQ) Q: Does the module support hot-swap replacement on active Profibus DP networks?A: Hot-swap behavior depends on system configuration. Electrical insertion is possible, but Profibus DP node re-enumeration may interrupt cyclic communication until bus re-initialization completes. Q: What is the behavior of redundant power inputs under partial supply failure?A: The dual DC inputs operate with diode OR-ing logic. Loss of one supply does not interrupt internal processing if the remaining supply remains within 12–36 VDC range. Q: Can the 4–20 mA outputs operate independently of Profibus DP communication state?A: Yes. Analog outputs are generated from local channel processing and may remain active even during Profibus DP communication loss, depending on configuration logic. Field Installation Guidelines The module shall be mounted on a standard DIN rail within an IP-rated enclosure suitable for the environmental classification of the turbine control cabinet. Maintain separation between low-level sensor wiring (proximity probes, accelerometers) and power or communication cabling to reduce electromagnetic coupling. Shield termination shall be implemented at a single grounding point to prevent ground loop formation. Profibus DP cabling must follow line topology rules with controlled termination at both network ends. Ensure minimum bend radius compliance for sensor cables to avoid impedance variation in eddy-current probe circuits.
$200.00 $100.00
-

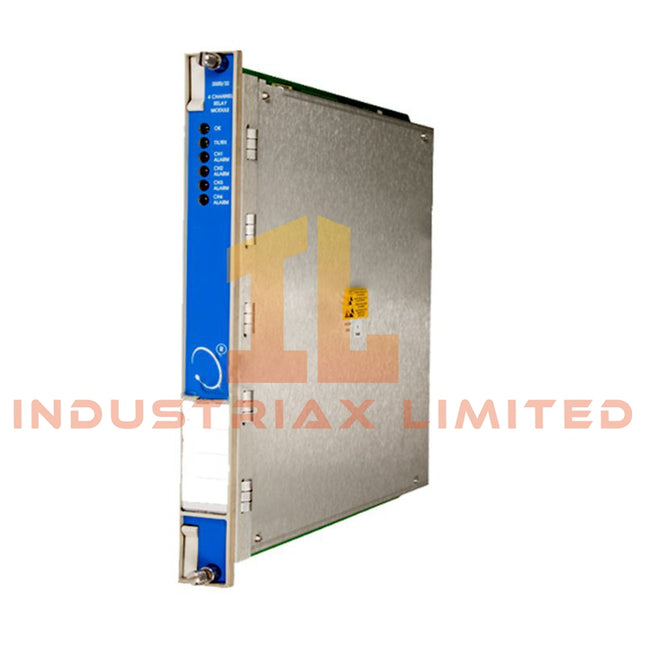

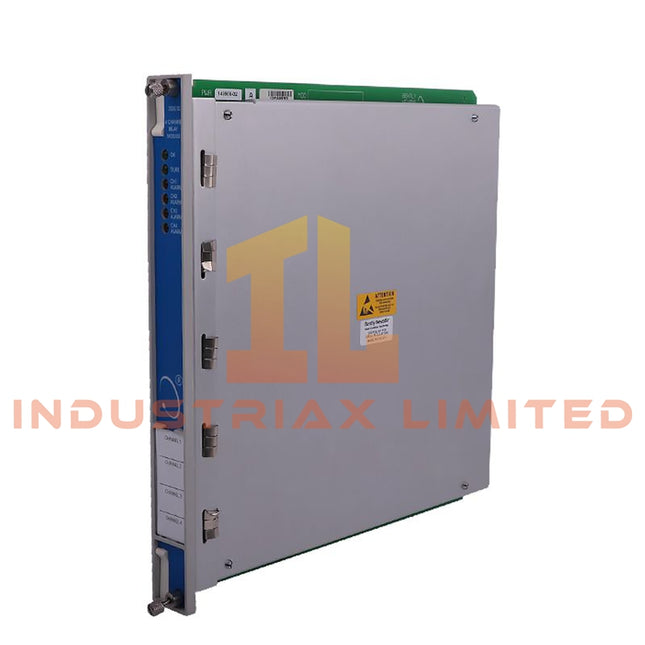

Bently Nevada Bently Nevada 169253-01 Monitor Module
Bently Nevada 169253-01 Monitor Module Configured for real-time machinery parameter acquisition in the 3500 Series Machinery Protection System, the Bently Nevada 169253-01 (169253-01 Monitor Module) provides direct physical/electrical execution of multi-variable signal acquisition including vibration, temperature, position, and rotational speed across rack-based monitoring architectures. Suffix Breakdown & Model Matrix The 169253-01 is defined as a single-order monitor module identifier within the Bently Nevada 3500 module family. No published suffix segmentation or functional sub-variant matrix is defined for this order code. Functional behavior is determined by system-level configuration and paired I/O module selection within the rack. Hardware Specifications Parameter Specification Model 169253-01 Brand Bently Nevada Origin USA Weight 0.3 kg Dimensions 120.7 x 50.8 x 251.5 mm Operating Temp -30 deg C to +65 deg C Power Consumption ~100 mA at 24 VDC Measurement Types Vibration, temperature, position, speed, process variables Input Voltage 24 VDC Communication Protocols Modbus RTU, Ethernet/IP Mounting 3500 rack backplane module slot Humidity Range 0–95 percent non-condensing Rotor Dynamics & Eddy-Current Signal Processing Behavior Within the Bently Nevada 3500 architecture, the 169253-01 module executes conditioned acquisition paths for rotor-related parameters using backplane-synchronized sampling. Eddy-current probe inputs are normalized through internal scaling logic aligned with gap voltage validation referencing negative bias regions (targeting -10 VDC operational envelope for proximity transducer linearization). Rotor dynamic computation is handled through phase-stable sampling alignment, enabling derived vibration vectors under multi-channel correlation. Cross-talk suppression is implemented at channel multiplex boundaries to maintain signal separation integrity during high-density I/O operation in turbine and compressor monitoring configurations. Frequently Asked Questions (FAQ) Q: Can the 169253-01 module be hot-swapped within a live 3500 rack system?A: Yes. The module supports hot-swap operation through backplane isolation; however, channel data will momentarily suspend acquisition during insertion/removal until resynchronization completes. Q: What is the backplane communication dependency of this module?A: All primary measurement acquisition is synchronized through the 3500 rack backplane; loss of backplane timing results in degraded or halted channel update cycles. Q: Does firmware incompatibility affect signal scaling accuracy?A: Yes. Mismatch between module firmware and rack system version can alter scaling coefficients for vibration and proximity inputs, impacting derived process variable calculations. Field Installation Guidelines The module shall be installed only in a powered-off rack slot unless hot-swap procedures are explicitly enabled by system configuration. Backplane connectors must be inspected for pin alignment prior to insertion. Shielded sensor cabling shall be grounded at the designated rack earth point only; multi-point grounding on proximity probe return lines shall be avoided to prevent measurement loop distortion. Maintain minimum separation between signal cabling and high-power switching conductors to reduce induced noise in low-level vibration input circuits. All terminal retention screws shall be torqued to manufacturer-defined mechanical limits to ensure stable backplane contact integrity.
$200.00 $100.00
-
Bently Nevada Bently Nevada 167669-02 1900/65A Universal Device Monitor
Bently Nevada 167669-02 1900/65A Universal Device Monitor The Bently Nevada 167669-02, also cataloged as the 1900/65A Universal Device Monitor, serves as the primary standalone condition monitoring unit utilized to execute multi-channel vibration, position, speed, and temperature acquisition across compact machinery protection architectures within the 1900/65A monitoring platform. Suffix Breakdown & Model Matrix No manufacturer-defined functional suffix decomposition is published for 167669-02. The identifier represents a fixed configuration hardware variant within the 1900/65A Universal Device Monitor family. Hardware Specifications Parameter Specification Model 167669-02 Brand Bently Nevada Origin USA Weight 7.7 kg Dimensions 19.6 × 16 × 10.8 cm Transducer Inputs 4 channels (vibration / position / speed) Temperature Inputs 4 channels (RTD or thermocouples Type E, J, K, T) Relay Outputs 6 programmable SPDT relays Analog Outputs 4 × 4-20 mA Buffered Output 1 × BNC diagnostic output A/D Resolution 24-bit Communication Interfaces Modbus RTU/TCP via RS232 / RS485 / Ethernet 10/100BASE-T Power Input 18–36 VDC or 110–220 VAC (external supply dependent) Mounting DIN rail or bulkhead Bently Nevada Multi-Channel Signal Processing & Relay Logic Execution Behavior Within the 1900/65A architecture, the 167669-02 performs simultaneous acquisition of vibration and temperature signals using independent analog front-end paths. The 24-bit A/D conversion pipeline supports high-resolution waveform reconstruction for vibration, velocity, and speed-related transducer inputs. The module executes onboard alarm logic independent of external PLC/DCS systems. Relay outputs are directly driven by configurable threshold comparisons across vibration and temperature channels, enabling local trip or alert signaling without supervisory dependency. Modbus communication channels operate asynchronously relative to local protection logic, ensuring that data streaming to SCADA systems does not interfere with real-time relay execution paths. Buffered BNC output provides direct analog signal access for external diagnostic instrumentation without interrupting internal processing loops. Frequently Asked Questions (FAQ) Q: Can the 167669-02 operate without a PLC or DCS connection?A: Yes. The device executes local monitoring and relay-based protection logic independently. Communication is only required for data acquisition or supervisory integration. Q: Are vibration and temperature channels sampled using the same A/D path?A: No. Vibration/position channels and temperature channels are processed through separate input conditioning paths prior to 24-bit digitization. Q: What is the behavior of relay outputs during power interruption?A: Relay states default to their fail-safe configuration during loss of supply, depending on programmed logic and internal watchdog status. Field Installation Guidelines Install the unit using DIN rail or approved bulkhead mounting to ensure mechanical stability under vibration conditions. Maintain separation between low-level sensor wiring and power conductors to reduce electromagnetic coupling. Shielded cable termination must be grounded at a single-point reference to prevent ground loop formation across vibration sensor circuits. For Modbus and Ethernet communication, use properly terminated twisted-pair cabling and avoid routing parallel to high-current switching lines. Ensure enclosure protection rating matches environmental exposure conditions when deployed in dust or moisture-prone areas. Verify channel configuration and relay mapping prior to system commissioning.
$200.00 $100.00
-
Bently Nevada Bently Nevada 161216-01 3500/91 Ethernet I/O Module
Bently Nevada 161216-01 3500/91 Ethernet I/O Module The Bently Nevada 161216-01, also cataloged as the 3500/91 Ethernet 10BASE-T/100BASE-TX I/O Module, operates as a dedicated hardware communication interface for transferring 3500 rack diagnostic and machinery protection data into supervisory control networks within the 3500/91 communication architecture. Suffix Breakdown & Model Matrix No manufacturer-published functional suffix decomposition is defined for 161216-01. The part number represents a fixed Ethernet I/O module assembly within the 3500/91 gateway family. Hardware Specifications Parameter Specification Model 161216-01 Brand Bently Nevada Origin USA Weight 0.39 kg Dimensions 241.3 × 24.4 × 99.1 mm Operating Temp -30 deg C to +65 deg C Power Consumption ~7.4 W typical Communication Interface Ethernet 10BASE-T / 100BASE-TX (RJ-45) Protocol Support Industrial Ethernet, Modbus, EGD producer/consumer Operating Voltage 220 V AC variant Storage Temperature -40 deg C to +85 deg C Humidity Up to 95 percent non-condensing Indicators OK, TX/RX LED status indicators Bently Nevada 3500 Rack Ethernet Data Exchange Behavior Within the 3500 system architecture, the 161216-01 module operates as a deterministic Ethernet I/O endpoint interfacing directly with backplane-acquired condition monitoring variables. It supports cyclic publication of processed data originating from vibration, position, and machinery protection channels into external supervisory networks using EGD and Modbus communication frames. The module does not perform signal conditioning or scaling transformation. Instead, it preserves calibrated engineering units generated by upstream 3500 monitors and encapsulates them into structured Ethernet payloads. Timing synchronization is maintained at rack level to ensure consistent update cycles between internal measurement blocks and external PLC/DCS consumers. From a network integration perspective, the module functions as a protocol translation boundary between deterministic backplane acquisition and non-deterministic Ethernet transport layers, maintaining data integrity under industrial communication load variation conditions. Frequently Asked Questions (FAQ) Q: Does the 161216-01 process raw sensor signals directly?A: No. All signal conditioning is executed by upstream 3500 monitor modules. The I/O module only transmits processed rack data. Q: Can this module operate during hot-swap replacement?A: Yes. The module supports hot-swappable insertion and removal. Communication is temporarily interrupted during reseating and reinitialization. Q: Does Ethernet interface selection affect protocol behavior?A: No. 10BASE-T and 100BASE-TX interfaces share the same logical protocol stack; only physical layer characteristics differ. Field Installation Guidelines Install the module into the designated 3500 rack slot ensuring full engagement with both backplane connectors. Verify mechanical alignment before applying Ethernet cabling to avoid link initialization faults. Use shielded twisted-pair cabling for RJ-45 connections and maintain a single-point grounding strategy at the rack chassis. Route Ethernet wiring away from high-power conductors to minimize electromagnetic coupling. Avoid excessive bending or mechanical stress on connectors. Confirm network addressing consistency and protocol configuration (EGD or Modbus mapping) before system commissioning to ensure correct data exchange behavior.
$200.00 $100.00
-

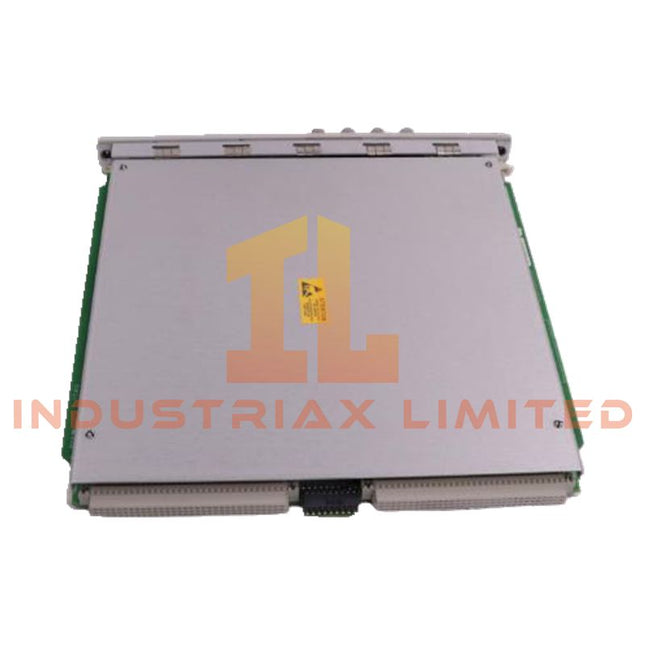

Bently Nevada Bently Nevada 161204-01 3500/91 EGD Gateway Module
Bently Nevada 161204-01 3500/91 EGD Gateway Module Configured for Ethernet Global Data communication in 3500 rack data exchange networks, the Bently Nevada 161204-01 (3500/91 EGD Gateway Module) provides direct physical/electrical execution of monitored value and status transmission between 3500 machinery protection modules and external control systems via IEEE 802.3 Ethernet infrastructure. Suffix Breakdown & Model Matrix No validated manufacturer-defined suffix segmentation is provided for 161204-01 beyond its identification within the 3500/91 EGD Gateway Module class. The module should be treated as a fixed-order hardware assembly without functional suffix partitioning. Hardware Specifications Parameter Specification Model 161204-01 Brand Bently Nevada (Baker Hughes) Origin USA (manufacturer system origin) Weight 0.79 kg Dimensions 241.3 × 24.4 × 241.8 mm Operating Temp -30 deg C to +65 deg C Power Consumption 7.4 W typical Series 3500/91 Protocols Supported EGD v2.01, Ethernet UDP/IP Ethernet Standards IEEE 802.3 10BASE-T / 100BASE-TX, IEEE 802.3u 100BASE-FX Connectors RJ-45, MT-RJ fiber interface Rack Configuration 1 full-height front slot + 1 rear slot Input Voltage 85–264 VAC or 110–300 VDC (variant dependent) Humidity Up to 95% non-condensing Bently Nevada EGD Communication & Rotor Data Transport Behavior Within Bently Nevada 3500 architecture, the 161204-01 module operates as an Ethernet Global Data (EGD) transport interface, mapping internal rack variables into UDP/IP cyclic frames. In TSI-linked monitoring chains, the gateway maintains deterministic data propagation timing to external PLC/DCS hosts while preserving internal 3500 signal integrity boundaries. From a machinery dynamics perspective, the EGD stream typically carries derived vibration metrics originating from eddy-current proximity probe channels and keyphasor inputs. The gateway does not perform signal conditioning; instead, it preserves calibrated scaling data (including gap voltage representations used in rotor dynamic analysis chains) and forwards them without modification. Cross-rack timing alignment ensures consistent phase-referenced data distribution under rotating equipment transient conditions. Frequently Asked Questions (FAQ) Q: Does the 161204-01 perform any signal conditioning on vibration inputs?A: No. The module functions strictly as an Ethernet gateway. Signal conditioning is executed by upstream 3500 monitoring modules before data encapsulation into EGD frames. Q: Can the module operate with both copper and fiber Ethernet links simultaneously?A: The hardware supports either 10/100BASE-TX (RJ-45) or 100BASE-FX (MT-RJ) interfaces depending on installation configuration, not simultaneous dual active media operation. Q: What happens to data transmission during module hot swap?A: During hot swap, EGD frame transmission from the affected rack segment is temporarily suspended until module reinitialization completes and network synchronization is restored. Field Installation Guidelines Install the module only in designated 3500 rack slots with correct front and rear alignment. Ensure the backplane connector is fully seated before applying Ethernet cabling. Maintain separation between fiber and power conductors to prevent EMI coupling. Shielded twisted-pair grounding must be terminated at a single-point earth reference within the rack chassis. Ethernet cabling should follow IEEE 802.3 routing practices with minimum bend radius compliance for fiber MT-RJ interfaces. Avoid mechanical stress on RJ-45 connectors during enclosure servicing. Verify EGD network addressing consistency prior to system commissioning to prevent broadcast domain conflicts.
$200.00 $100.00
You have seen 72 out of 788 products
