Honeywell Experion Process Knowledge System (PKS) is an advanced DCS and SCADA platform used for process automation. This project focuses on integrating Experion into Murdoch University’s Industrial Computer Systems facility, enabling students to learn regulatory control blocks, PID simulations, and industrial process operations through hands-on experience.
Honeywell Experion PKS
-
Honeywell MC-TDOY23 80366189-175 | Digital Output Modules | Honeywell
Honeywell MC-TDOY23 Digital Output Relay Field Termination Assembly Configured for relay output field termination in Honeywell TDC 3000 and Experion PKS systems, the Honeywell MC-TDOY23 (80366189-175) (MC-TDOY23 Digital Output Relay Field Termination Assembly) provides direct physical and electrical execution between digital output modules and field relay circuits. Hardware Specifications Parameter Specification Model MC-TDOY23 Brand Honeywell Origin United States Power Consumption Determined by connected relay circuits and system interface requirements Part Number 80366189-175 Component Type Digital Output Relay Field Termination Assembly (FTA) System Compatibility Honeywell TDC 3000 / Experion PKS Distributed Control Systems Output Channels 16 channels Output Type Relay dry contact outputs Isolation Method Galvanic isolation between control logic and field circuits Field Connection Screw terminal field wiring interface Mounting Method Standard FTA mounting channel / cabinet installation Application Digital switching of solenoid valves, actuators, indicators, and interlock devices DCS Signal Isolation and Relay Output Interface The Honeywell MC-TDOY23 provides relay-based field termination for digital output signals from Honeywell control processors. Moreover, the assembly separates low-voltage control electronics from field-side electrical loads through galvanic isolation. The 16 relay output channels support independent switching paths for connected field devices. Therefore, the module reduces direct electrical stress on the controller output circuits during field load operation. For Honeywell process control applications, the termination assembly supports discrete signal handling associated with DCS field interfaces. In addition, the design allows organized cabinet wiring through dedicated field terminals and channel identification. The module operates with discrete output architectures rather than analog measurement loops. Consequently, it does not perform signal conversion, analog scaling, or HART communication functions. Frequently Asked Questions Q: Does the MC-TDOY23 provide analog signal processing functions?A: No. The MC-TDOY23 is a digital output relay termination assembly designed for discrete relay switching interfaces. Q: Does the module provide electrical isolation between the controller side and field side?A: Yes. The relay output structure provides galvanic isolation between the control system interface and connected field circuits. Q: How should field wiring be connected to the MC-TDOY23?A: Field wiring should follow Honeywell cabinet wiring practices, including correct terminal assignment, signal separation, and grounding procedures. Field Installation Guidelines Install the MC-TDOY23 inside an approved Honeywell control cabinet using the specified FTA mounting arrangement. Maintain separation between digital output wiring and high-energy power conductors to reduce electrical interference. Furthermore, connect cable shields according to the site grounding standard and avoid creating unintended ground loops. Verify each relay output channel before commissioning by checking terminal identification, field device polarity requirements, and external load compatibility. Use proper cable routing practices for relay circuits connected to inductive loads. Install external suppression components where required by the connected field equipment design.
$200.00 $100.00
-

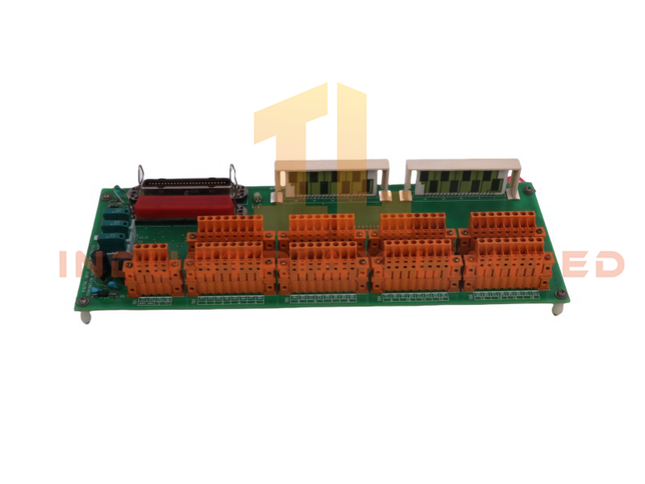

Honeywell MC-TDIY22 80366180-175 Digital Input Field Termination Assembly Honeywell
Honeywell MC-TDIY22 Digital Input Field Termination Assembly Configured for 24 VDC digital signal termination in Honeywell process control platforms, the Honeywell MC-TDIY22 80366180-175, also cataloged as the MC-TDIY22 Digital Input Field Termination Assembly, provides direct physical signal routing between field devices and control I/O interfaces. Hardware Specifications Parameter Specification Model MC-TDIY22 Brand Honeywell Origin USA Spare Model 51204160-175 Part Number 80366180-175 Product Type Digital Input Field Termination Assembly Input Type Digital Input Signal Voltage 24 VDC Function PC Board Digital Input Field Termination System Compatibility Honeywell process control I/O systems Configuration Field termination interface board Redundancy Not specified in available data Weight 0.55 kg Dimensions 30.8 x 12.1 x 5.5 cm (shipping size) Status Discontinued by manufacturer Process Control Signal Interface Characteristics The Honeywell MC-TDIY22 terminates 24 VDC digital input signals through a dedicated printed circuit board assembly. Moreover, the module provides the electrical interface required for connecting field contact devices, switches, and discrete sensors to Honeywell control system I/O hardware. The unit operates within a DCS signal architecture where digital input conditioning and field wiring termination are handled at the termination level. Furthermore, Honeywell process modules typically apply channel-to-channel isolation concepts to separate field circuits and reduce signal interference within distributed control installations. The MC-TDIY22 design supports discrete signal handling rather than analog measurement functions. Therefore, the module does not perform analog conversion, loop compensation, or transmitter calibration functions. Frequently Asked Questions (FAQ) Q: What type of field signals does the Honeywell MC-TDIY22 terminate?A: The MC-TDIY22 terminates 24 VDC digital input signals from field devices connected to Honeywell control system I/O interfaces. Q: Does the MC-TDIY22 perform analog signal conversion or HART communication?A: No. The module functions as a digital input termination assembly and does not provide analog conversion or HART protocol processing. Q: Can the MC-TDIY22 replace other Honeywell termination assemblies directly?A: Replacement requires verification of the exact I/O module compatibility, terminal assignment, wiring configuration, and system documentation. Field Installation Guidelines Install the MC-TDIY22 according to the Honeywell system cabinet layout and approved I/O termination drawings. Verify field wiring polarity and terminal assignments before connecting 24 VDC digital input circuits. Separate digital signal wiring from high-voltage power cables to reduce electrical interference. Connect cable shields according to the control system grounding specification when shielded field cables are used. Confirm connector seating and mechanical fixation before system commissioning. Check field loop continuity and input status indication after installation.
$200.00 $100.00
-
Honeywell Honeywell MC-TAOY22 Analog Output Termination Assembly
Honeywell MC-TAOY22 Analog Output Termination Assembly Configured for analog current loop termination in Honeywell Experion PKS and TDC 3000 system platforms, the Honeywell 80366481-175 (MC-TAOY22 Analog Output Termination Assembly) provides direct physical signal routing between field devices and analog output modules. Hardware Specifications Parameter Specification Model MC-TAOY22 Full Part Number 80366481-175 Brand Honeywell Product Type Analog Output Termination Assembly (IOTA) System Compatibility Honeywell Experion PKS / TDC 3000 Systems Operating Temp 0 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95% RH, non-condensing Power Consumption Not specified in available data Signal Type 4-20 mA analog current loop Channel Capacity Up to 16 analog output channels (configuration dependent) Field Connection Screw terminal blocks Isolation Type Galvanic or optical isolation between control and field circuits Mounting Method Dedicated carrier chassis or system mounting assembly Protective Treatment Conformal coating for environmental protection Process Control Analog Loop Interface Characteristics The MC-TAOY22 supports Honeywell process control output circuits by terminating analog signals from controller output channels and transferring them to field actuators. Moreover, the assembly maintains electrical separation between controller-side electronics and field wiring through isolation design. The termination assembly is designed for 4-20 mA HART loop protocol compatible environments when paired with supported Honeywell analog output modules. In addition, channel-to-channel isolation and field circuit protection help reduce interference effects during industrial signal transmission. The module provides connection points for control devices such as valve positioners, actuators, and other analog command receivers. Therefore, proper shield termination and cable routing practices are required to maintain signal quality. Frequently Asked Questions Q: Does the MC-TAOY22 operate as an independent analog output controller?A: No. The MC-TAOY22 functions as a termination interface assembly and requires compatible Honeywell analog output modules for signal generation and control execution. Q: What field signals are connected through the MC-TAOY22?A: The assembly connects analog output field circuits, typically using 4-20 mA current loops for actuator and final control element interfaces. Q: Does the MC-TAOY22 support redundant system configurations?A: Configuration depends on the installed Honeywell control architecture and associated I/O modules. The termination assembly itself does not define controller redundancy behavior. Field Installation Guidelines Install the MC-TAOY22 on the designated Honeywell termination carrier or chassis according to the system hardware configuration. Use appropriate shielded instrumentation cables for analog output wiring. Connect cable shields according to the site grounding standard to reduce electromagnetic interference. Separate analog signal cables from high-voltage power cables and switching circuits. Maintain proper wire identification and terminal labeling during installation to simplify commissioning and maintenance. Verify terminal assignments before applying field power. Confirm loop polarity, signal continuity, and isolation conditions between the controller interface and field devices.
$200.00 $100.00
-
Honeywell MC-PSRX04 51404174-275 | Honeywell | Power System Assembly
Honeywell MC-PSRX04 Redundant PM Power System Assembly Configured for redundant DC power distribution in Honeywell TDC 3000 and High-Performance Process Manager (HPM) platforms, the Honeywell MC-PSRX04 (51404174-275) (MC-PSRX04 Redundant PM Power System Assembly) provides direct electrical power conditioning and load-sharing execution for Process Manager I/O (PMIO) and Universal Control Network (UCN) systems. Hardware Specifications Parameter Specification Model MC-PSRX04 Part Number 51404174-275 Brand Honeywell Product Type Redundant PM Power System Assembly System Compatibility Honeywell TDC 3000 / TPS / HPM Systems Origin United States Weight Approximately 0.5 kg to 1.0 kg depending on configuration components Operating Temp -40 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95% non-condensing Input Voltage Range 85 to 264 VAC Output Voltage 24 VDC Output Current 16 A / 20 A per output in redundant load-sharing configuration Power Consumption Dependent on connected load and installed power supply modules Efficiency Typically 90% Coating Type Conformal Coated (CC) Power Supply Configuration Dual hot-swappable silver-faced power supplies Assembly Components Power supply housing 51404170-175 with compatible power modules DCS Power Distribution and Isolation Characteristics The MC-PSRX04 assembly provides redundant AC-to-DC power conversion for Honeywell process control hardware. Moreover, the dual power supply arrangement supports load-sharing operation and maintains DC output availability when one supply module requires removal or replacement. Honeywell PMIO power architectures require stable DC distribution for I/O subsystem operation. Therefore, the MC-PSRX04 uses independent power supply modules to reduce interruption risk during power module maintenance activities. The conformal coating protects circuit assemblies against moisture, dust, and industrial contaminants. In addition, the assembly design supports installation in control environments where electrical continuity and environmental protection requirements apply. For Honeywell process instrumentation interfaces, the power subsystem supports isolated channel architectures used with analog and digital I/O modules. The assembly operates as a supporting hardware element rather than a signal processing module, while maintaining the required supply conditions for connected PMIO equipment. Frequently Asked Questions Q: Does the MC-PSRX04 support redundant power module replacement during system operation?A: The assembly is designed with dual power supply modules for redundant operation. Hot-swapping capability depends on the installed power supply model and system maintenance procedures. Q: What type of environmental protection does the MC-PSRX04 provide?A: The assembly uses conformal coating to protect internal electronic circuits from humidity, moisture, and industrial contaminants. Q: Can the MC-PSRX04 operate with Honeywell TDC 3000 and HPM systems?A: Yes. The module is specified for Honeywell TDC 3000, TPS, and High-Performance Process Manager system environments. Field Installation Guidelines Verify the installed power supply modules match the MC-PSRX04 assembly configuration before mounting. Install the assembly in a controlled cabinet environment with proper ventilation and mechanical support. Confirm AC input wiring follows site electrical standards before energizing the power system. Maintain separation between AC power wiring and low-level instrumentation signal cables to reduce electrical interference. Connect protective grounding according to cabinet grounding requirements and Honeywell installation documentation. Inspect connector conditions before installation and ensure all power module interfaces are fully seated. Apply maintenance procedures defined for redundant power systems before removing or replacing supply modules.
$200.00 $100.00
-
Honeywell MC-GAIH13 | Honeywell | 51304718-175 Analog Input Modules
Honeywell MC-GAIH13 HLAI/STI FTA The Honeywell 51304718-175, also cataloged as the MC-GAIH13 HLAI/STI FTA, operates as a dedicated hardware component for galvanically isolated 16-channel analog signal termination within Honeywell TDC 3000 and Experion PKS control platforms. Hardware Specifications Parameter Specification Model MC-GAIH13 Brand Honeywell Origin USA Dimensions Size B: 12 inches (307 mm) Part Number 51304718-175 Module Type HLAI/STI Field Termination Assembly (FTA) Input Channels 16 channels Isolation Type Galvanic Isolation Terminal Type Compression Terminals Redundancy Supported Coating Conformally Coated Compliance CE Compliant Signal Interface High-Level Analog Input Interface System Compatibility Honeywell TDC 3000 / Experion PKS DCS 4-20 mA HART Loop and Channel Isolation Features The MC-GAIH13 provides galvanically isolated termination for high-level analog input circuits. Moreover, the assembly separates field wiring from control electronics to reduce ground loop effects and electrical interference during analog signal acquisition. The module supports analog instrument connections through isolated input channels, maintaining channel-to-channel electrical separation within the field termination architecture. Therefore, it can be applied in redundant input configurations where signal continuity and isolation requirements must be maintained. For Honeywell process control systems, the HLAI architecture interfaces with transmitter-based measurement loops, including typical 4-20 mA instrumentation circuits. The galvanic isolation design prevents unwanted current paths between field devices and controller-side input electronics. Frequently Asked Questions Q: Does the MC-GAIH13 provide electrical isolation between field signals and the control system?A: Yes. The MC-GAIH13 uses galvanic isolation to separate field analog input circuits from the connected control system electronics. Q: How many analog input channels are available on the MC-GAIH13?A: The assembly provides 16 galvanically isolated analog input channels. Q: Can the MC-GAIH13 be installed in redundant control configurations?A: Yes. The module supports redundant configurations according to the compatible Honeywell control system architecture. Field Installation Guidelines Install the MC-GAIH13 according to the applicable Honeywell cabinet and termination assembly documentation. Verify terminal assignments before connecting field instruments. Use proper cable routing practices to separate analog signal wiring from high-voltage power conductors and sources of electromagnetic interference. Connect cable shields according to the site grounding standard to minimize signal noise. Confirm that the conformal-coated board remains protected from mechanical damage during handling and installation. Check compression terminal tightness after field wiring completion and verify loop polarity before system commissioning.
$200.00 $100.00
-
Honeywell Honeywell MC-TD0D14 51309153-175 Digital Output Field Termination Assembly
Honeywell MC-TDOD14 Digital Output Field Termination Assembly Configured for digital signal termination and field device switching in Honeywell control platforms, the Honeywell MC-TDOD14-51309153-175 (MC-TDOD14 Digital Output Field Termination Assembly) provides direct physical and electrical execution between controller output channels and connected field devices. Hardware Specifications Parameter Specification Model MC-TDOD14 Full Part Number 51309153-175 Brand Honeywell Product Type Digital Output Field Termination Assembly (FTA) Origin USA Operating Temp -20 deg C to +70 deg C Channel Quantity 16 Digital Output Channels Operating Voltage Range 3 to 30 VDC Termination Type Compression Terminals Redundancy Support Non-redundant Coating Conformal Coated Assembly Compliance CE Compliant Process Control Signal Interface Characteristics The Honeywell MC-TDOD14 provides digital output termination functions for Honeywell distributed control system architectures. The assembly transfers controller output signals to external field devices, including solenoid valves, relays, actuators, and status indicators. Moreover, the module supports digital output circuits with a 3 to 30 VDC operating range and uses compression terminals for field wiring connection. The conformal coating protects the circuit assembly against moisture, dust, and airborne industrial contaminants. For Honeywell process control applications, field termination assemblies typically require controlled signal routing and electrical separation between system-side electronics and field wiring. Therefore, installation practices should maintain proper cable separation and grounding according to the associated control system installation documentation. Frequently Asked Questions Q: Does the Honeywell MC-TDOD14 support redundant digital output operation?A: No. The MC-TDOD14 is specified as a non-redundant digital output field termination assembly. Q: What type of field wiring connection does the MC-TDOD14 use?A: The module uses compression terminals for direct field wiring termination. Q: Can the MC-TDOD14 operate with standard DC field devices?A: Yes. The module supports digital output circuits within the specified 3 to 30 VDC operating voltage range. Field Installation Guidelines Install the MC-TDOD14 in the designated Honeywell control system termination environment according to system engineering documentation. Verify that field wiring voltage levels match the specified 3 to 30 VDC output range before connection. Use proper cable routing practices to separate signal wiring from high-voltage power conductors. Maintain correct terminal identification during field wiring to prevent output channel misconnection. Connect cable shields and grounding points according to the control system grounding design. Inspect terminal tightness and mechanical fixing after installation to reduce vibration-related connection issues.
$200.00 $100.00
-
Honeywell Honeywell MC-MU / MC-TAOX12 Analog Output Redundancy Board
Honeywell MC-MU / MC-TAOX12 Analog Output Redundancy Board Configured for redundant analog output signal execution in Honeywell TDC 3000 and Experion PKS systems, the Honeywell MC-MU / MC-TAOX12 (51304335-125) (MC-TAOX12 Analog Output Redundancy Board) provides direct physical and electrical control path management for 4-20 mA field loops. Hardware Specifications Parameter Specification Model MC-MU / MC-TAOX12 (51304335-125) Brand Honeywell Origin United States Product Type Analog Output Redundancy Board / Field Termination Assembly (FTA) System Compatibility Honeywell TDC 3000 / Experion PKS control systems Signal Type Analog Output, 4-20 mA and 1-5 VDC signal interfaces Number of Channels 12 analog output channels Redundancy Configuration Dual-path analog output redundancy support Mounting Type Honeywell FTA mounting rack installation Interface Function Field signal termination and redundant output routing Conformal Coating Applied for protection against industrial environmental contamination Power Consumption Supplied through associated Honeywell system interface 4-20 mA Loop Interface and Channel Isolation The MC-TAOX12 manages analog output transmission between Honeywell control processors and field actuators. Moreover, the board supports signal routing for standard process control loops, including current-based 4-20 mA outputs used by control valves and positioning devices. Honeywell DCS output assemblies typically maintain channel-to-channel isolation practices to reduce electrical interference between independent field circuits. Therefore, installation requires correct field wiring separation and shield termination according to the control system engineering specification. The module supports redundant output architectures where two control paths monitor and maintain analog output availability. The redundancy mechanism allows the active path to transfer control authority when the primary output path becomes unavailable. Frequently Asked Questions (FAQ) Q: Does the MC-TAOX12 support redundant analog output operation?A: Yes. The MC-TAOX12 is designed as an analog output redundancy board that manages dual-path output configurations within compatible Honeywell control systems. Q: What field signals can connect to this module?A: The module interfaces with analog output signals, including standard 4-20 mA and 1-5 VDC process control loops. Q: Does the module require special field grounding practices?A: Field installation should follow Honeywell grounding procedures. Shield layers should terminate according to the system cabinet wiring design, and signal cables should avoid parallel routing with high-voltage power conductors. Field Installation Guidelines Install the MC-TAOX12 on the specified Honeywell FTA mounting structure and verify mechanical seating before wiring. Confirm terminal assignments with the applicable Honeywell system documentation before connecting field devices. Use shielded instrumentation cables for analog output circuits and maintain proper shield grounding practices. Separate analog signal wiring from AC power cables, motor circuits, and high-current switching conductors. Verify redundant channel wiring before system commissioning to prevent incorrect output path selection. Inspect terminal connections for secure mechanical fastening and correct polarity before applying system power.
$200.00 $100.00
-
Honeywell Honeywell MU-TAOX02 Analog Output Termination Assembly
Honeywell MU-TAOX02 Analog Output Termination Assembly Configured for analog current loop termination in Honeywell TDC 3000 and Experion PKS systems, the Honeywell MU-TAOX02-100 (MU-TAOX02 Analog Output Termination Assembly) provides direct physical signal routing between AO modules and field devices. Hardware Specifications Parameter Specification Model MU-TAOX02 Brand Honeywell Part Number 51304476-100 Product Type Analog Output Termination Assembly (FTA / TA) System Compatibility Honeywell TDC 3000 / Experion PKS Signal Type Analog Output, typically 4-20 mA DC Channel Capacity Supports analog output channels according to configured FTA architecture Field Connection Screw terminal field wiring interface Controller Connection Multi-pin connector / ribbon cable interface Mounting Type Honeywell FTA mounting assembly Origin USA Operating Temp 0 deg C to 60 deg C Power Consumption Passive termination assembly, no independent power consumption specified 4-20 mA Process Control Signal Interface The MU-TAOX02 provides the termination point between Honeywell analog output electronics and external field actuators. Moreover, it maintains the physical wiring structure required for current loop transmission, including control valves, positioners, and other analog-controlled devices. The assembly supports standard 4-20 mA loop signal handling used in Honeywell process control environments. In addition, the termination design supports organized field wiring, signal identification, and maintenance access within the I/O cabinet. For Honeywell DCS installations, the interface can support channel-to-channel isolation practices through proper cabinet wiring design. Therefore, technicians can separate field-side electrical disturbances from sensitive controller-side electronics by following approved grounding and shielding procedures. Frequently Asked Questions Q: Does the MU-TAOX02 provide analog signal conversion?A: No. The MU-TAOX02 functions as a termination interface assembly. The analog signal processing and conversion functions remain within the associated Honeywell I/O module. Q: Can the MU-TAOX02 operate as a standalone powered module?A: No. The assembly operates as a passive field termination component and requires connection to the corresponding Honeywell control system hardware. Q: What wiring practices are required for 4-20 mA field connections?A: Field wiring should use appropriate shielded cable practices, correct terminal identification, and proper grounding methods according to the Honeywell system installation documentation. Field Installation Guidelines Install the MU-TAOX02 on the designated Honeywell termination mounting structure inside the control cabinet. Verify terminal assignments before connecting field analog output wiring. Use shielded signal cables where required by the process environment and connect cable shields according to site grounding standards. Separate analog signal wiring from high-voltage power cables to reduce electromagnetic interference. Confirm connector engagement between the termination assembly and associated I/O hardware before system commissioning. Inspect terminal tightening, cable routing, and labeling during maintenance activities.
$200.00 $100.00
-
Honeywell MU-TDOR12 Digital Output Relay Module Honeywell
Honeywell MU-TDOR12 Digital Output Relay Module Configured for relay contact signal execution in Honeywell TDC 3000 and Experion PKS HPM/APM platforms, the Honeywell MU-TDOR12 51309148-125 (MU-TDOR12 Digital Output Relay Module) provides direct physical switching between control logic outputs and field devices. Hardware Specifications Parameter Specification Model MU-TDOR12 Brand Honeywell Part Number 51309148-125 Origin USA Module Type Digital Output Relay Module / Field Termination Assembly System Compatibility Honeywell TDC 3000, HPM, APM, Experion PKS Signal Type Digital relay output Output Interface Dry contact relay switching Channel Configuration Depends on installed FTA configuration Contact Type Form A or Form C relay contact configuration depending on application Isolation Method Electrical isolation between control side and field side Mounting Type Honeywell I/O rack or compatible field termination installation Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 5% to 95% RH, non-condensing Power Consumption Depends on relay load configuration and system supply allocation DCS Signal Isolation and Relay Interface Characteristics The Honeywell MU-TDOR12 operates as a digital output interface between Honeywell process controllers and external field equipment. It uses relay contacts to execute discrete switching commands from the control system. Moreover, the module provides channel-to-channel isolation characteristics required for separating field circuits from controller electronics. This arrangement reduces the influence of external electrical disturbances on the DCS output interface. The MU-TDOR12 supports relay-based control functions where field devices require isolated contact outputs. Typical connections include solenoid valves, motor control circuits, annunciators, and status indication devices. In addition, Honeywell DCS architectures commonly use isolated I/O termination assemblies to maintain signal integrity between controller modules and field wiring. The module design follows the electrical separation requirements of TDC 3000 and Experion PKS installation practices. Frequently Asked Questions Q: Does the MU-TDOR12 provide direct voltage output to field devices?A: No. The MU-TDOR12 provides relay contact switching outputs. External field power supplies are normally used to energize connected field circuits. Q: Can the MU-TDOR12 be installed in a non-Honeywell control system?A: The module is designed for Honeywell TDC 3000 and Experion PKS architectures. Integration into other systems requires verification of electrical interfaces and termination compatibility. Q: Does the module require separate field isolation components?A: The module provides relay-based electrical separation between control signals and field circuits. Additional protection depends on the field device wiring design and site electrical standards. Field Installation Guidelines Install the MU-TDOR12 according to Honeywell rack and field termination assembly installation procedures. Verify terminal assignments before connecting external relay circuits. Use appropriate shield grounding methods for adjacent signal wiring where required by the installation environment. Separate low-level control wiring from high-current power cables to reduce electrical interference. Confirm relay contact ratings and external circuit requirements before connecting field loads. Inspect wiring continuity and insulation resistance before applying system power. Follow Honeywell engineering documentation for TDC 3000 and Experion PKS I/O configuration.
$200.00 $100.00
-
Honeywell MU-KGPR02 Control Signal Interconnection Cable Honeywell
Honeywell MU-KGPR02 Control Signal Interconnection Cable The Honeywell MU-KGPR02-080, also cataloged as the MU-KGPR02 Control Signal Interconnection Cable, operates as a dedicated hardware component for signal transmission between process controllers and I/O termination assemblies within Honeywell TDC 3000 and Experion PKS systems. Hardware Specifications Parameter Specification Model MU-KGPR02-080 Brand Honeywell Part Number 51109620-080 Product Type Control Signal Interconnection Cable Origin USA System Compatibility Honeywell TDC 3000 and Experion PKS control platforms Application Controller, HPM, APM, I/O module, and termination assembly interconnection Cable Function Digital and analog signal interface between control system hardware assemblies Shielding Industrial shielded construction for EMI and RFI noise reduction Connector Type High-density industrial multi-pin connector assembly Conductor Material Industrial copper conductor design Outer Jacket Material Industrial PVC or LSZH insulation material Operating Temp Standard industrial cable operating range, typically 0 deg C to +70 deg C Dimensions Length defined by -080 suffix configuration; exact mechanical dimensions not specified Power Consumption Passive cable assembly; no external power consumption 4-20 mA HART and DCS Signal Interface Characteristics The Honeywell MU-KGPR02 cable assembly supports physical signal routing between DCS hardware modules and field termination structures. Therefore, the cable maintains controlled electrical paths required for process I/O communication inside Honeywell control cabinets. For Honeywell process control architectures, cable assemblies must preserve signal integrity for analog and digital I/O channels. Moreover, proper shielding and grounding practices help reduce electromagnetic interference that can affect 4-20 mA HART loop protocol signals, FOUNDATION Fieldbus / Profibus PA connectivity, and other process instrumentation interfaces. The cable design supports cabinet-level separation requirements and maintains channel-to-channel isolation practices through correct wiring configuration. In addition, installation quality directly affects signal stability, grounding performance, and maintenance accessibility. Frequently Asked Questions Q: Does the MU-KGPR02-080 cable require an external power supply?A: No. The MU-KGPR02-080 is a passive interconnection cable and does not consume external electrical power. Q: Can the MU-KGPR02-080 be installed without shield grounding?A: The cable shield should follow the control cabinet grounding specification. Incorrect shield termination can increase susceptibility to electrical noise. Q: Is the -080 suffix a replaceable cable length identifier?A: The -080 suffix identifies the specific cable configuration. The exact mechanical length should be verified against the original system documentation before installation. Field Installation Guidelines Verify the MU-KGPR02-080 part number before connecting the cable to controller, I/O, or termination assemblies. Route the cable according to cabinet wiring separation rules and avoid parallel installation with high-voltage power conductors. Connect cable shields according to Honeywell cabinet grounding practices to maintain electromagnetic compatibility. Check connector locking mechanisms before system startup to prevent intermittent signal interruption. Maintain proper cable bending radius and avoid mechanical stress at connector interfaces. Confirm I/O channel assignment and termination mapping before applying system power.
$200.00 $100.00
-
Honeywell MU-TDOY62 Honeywell Digital Output Field Termination Assembly
Honeywell MU-TDOY62 Digital Output Field Termination Assembly The Honeywell MU-TDOY62 51204156-125, also cataloged as the MU-TDOY62 Digital Output Field Termination Assembly, operates as a dedicated hardware component for relay-isolated digital output signal termination within Honeywell Experion PKS / TPS and TDC 3000 control system platforms. Hardware Specifications Parameter Specification Model MU-TDOY62 Brand Honeywell Origin USA Part Number 51204156-125 Module Type Digital Output Field Termination Assembly (DO FTA) Signal Type Digital Output Channel Capacity 16-channel / 32-channel depending on system configuration Isolation Type Relay Isolation / Galvanic Isolation Nominal Logic Voltage 24 VDC Field Interface Digital actuator and discrete field device connection Mounting Type FTA mounting channel / DIN rail installation Environmental Protection Conformal coating for protection against moisture and contaminants Process Control Signal Isolation and Interface Characteristics The MU-TDOY62 provides relay-isolated termination between Honeywell I/O processing modules and external digital field devices. Moreover, the assembly separates control-side electronics from field-side circuits through galvanic isolation to reduce electrical interference transfer. The module supports discrete output applications where field devices require switching interfaces, including solenoids, actuators, indicators, and motor starter control circuits. In addition, the FTA design provides channel-level signal routing and termination through dedicated connection interfaces. For Honeywell process control architectures, the module aligns with DCS signal handling requirements associated with discrete control loops. Furthermore, Honeywell I/O termination assemblies commonly support channel-to-channel isolation concepts used for maintaining separation between individual field circuits and control electronics. Frequently Asked Questions Q: Does the MU-TDOY62 provide electrical isolation between the control system and field wiring?A: Yes. The MU-TDOY62 uses relay isolation to separate the digital output control interface from field-side electrical circuits. Q: Can the MU-TDOY62 directly replace an I/O processor module?A: No. The MU-TDOY62 functions as a Field Termination Assembly and requires connection to compatible Honeywell digital output processing hardware. Q: Does the module support hot-swap operation?A: Hot-swap capability depends on the connected Honeywell control system architecture and I/O hardware configuration. Installation and replacement procedures must follow the applicable system maintenance manual. Field Installation Guidelines Install the MU-TDOY62 on the specified Honeywell FTA mounting structure according to system engineering documentation. Verify terminal assignments before connecting field wiring to prevent incorrect digital output channel mapping. Route field signal cables separately from high-voltage power cables to reduce electromagnetic interference. Apply appropriate cable shielding and grounding practices based on plant electrical standards. Confirm relay contact ratings and field voltage requirements before connecting external devices. Inspect connectors, terminal blocks, and cable assemblies for mechanical damage before system commissioning.
$200.00 $100.00
-
Honeywell Honeywell MU-TDOR12 Digital Output Field Termination Assembly
Honeywell MU-TDOR12 Digital Output Field Termination Assembly Configured for relay-based digital output switching in Honeywell TDC 3000 / Experion PKS systems, the Honeywell MU-TDOR12 51304443-100 (MU-TDOR12 Digital Output Field Termination Assembly) provides direct electrical interface execution between control processors and field loads. Hardware Specifications Parameter Specification Model MU-TDOR12 Brand Honeywell Origin USA Power Consumption Determined by connected field circuits and relay operation conditions Product Type Digital Output Field Termination Assembly Part Number 51304443-100 System Compatibility Honeywell TDC 3000 / Experion PKS Channel Count 16 channels Output Type Isolated relay outputs Output Rating 120 Vac / 125 Vdc Field Connection Screw terminal field wiring Mounting Type Standard FTA mounting channel / rack interface Process Control Signal Isolation and Relay Switching Characteristics The Honeywell MU-TDOR12 provides 16 isolated relay output channels for connecting digital control signals to external electrical devices. Moreover, the module separates field voltage circuits from the low-level control electronics through relay-based isolation. The assembly supports switching applications involving 120 Vac and 125 Vdc field circuits. Therefore, it allows Honeywell control processors to operate external devices such as solenoids, motor starters, alarms, and status indicators without direct exposure to field-side electrical conditions. In addition, Honeywell DCS termination assemblies typically maintain channel-to-channel isolation practices to reduce interference between independent field circuits. The MU-TDOR12 follows this hardware architecture by providing separated relay output paths for industrial control wiring. Frequently Asked Questions Q: Does the MU-TDOR12 provide direct connection between processor logic and field voltage circuits?A: No. The MU-TDOR12 uses relay output channels to provide electrical isolation between Honeywell control logic signals and connected field voltage circuits. Q: How many digital output channels are available on the MU-TDOR12?A: The module provides 16 isolated relay output channels for digital field device control. Q: What type of field wiring connection does the MU-TDOR12 use?A: The assembly uses screw terminal connections for field wiring termination and electrical interface. Field Installation Guidelines Install the MU-TDOR12 on the specified Honeywell FTA mounting structure and verify mechanical engagement before connecting field wiring. Use separate routing paths for control cables and higher voltage field wiring to reduce electrical noise coupling. Furthermore, maintain proper cable shielding and grounding practices according to the installation requirements of the connected control system. Before energizing the module, verify relay output wiring polarity, field voltage level compatibility, and external load requirements. Do not exceed the rated voltage specifications of connected field devices. Confirm terminal identification against system drawings before commissioning. Additionally, inspect all screw terminal connections for correct tightening and secure conductor placement.
$200.00 $100.00
-
Honeywell Honeywell SC-UMIX01 51307547-275 Mixed I/O Module
Honeywell SC-UMIX01 Mixed I/O Module The Honeywell SC-UMIX01 51307547-275, also cataloged as the SC-UMIX01 Mixed I/O Module, operates as a configurable signal interface component for mixed analog and digital channel processing within Honeywell ControlEdge RTU 2020 systems. Hardware Specifications Parameter Specification Model SC-UMIX01 Part Number 51307547-275 Brand Honeywell Origin USA Module Type Mixed Input/Output Module System Compatibility Honeywell ControlEdge RTU 2020 / Experion ControlEdge systems Channel Capacity 28 configurable I/O channels Signal Type Analog and digital field signals Analog Input Range 0-10 VDC or 4-20 mA Digital Input Voltage 24 VDC Digital Input Configuration Software-selectable pull-up or pull-down resistors Operating Voltage 12 VDC to 24 VDC Communication Interface Controller backplane integration Supported Protocols Modbus RTU, DNP3, EtherNet/IP via controller module Operating Temp -25 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95% RH, non-condensing Mounting Method DIN-rail or baseplate modular mounting Cooling Method Natural convection Process Signal Interface and DCS Connectivity The SC-UMIX01 integrates mixed signal acquisition and output functions through configurable channels. Moreover, the module accepts analog field inputs using 0-10 VDC and 4-20 mA signal formats while supporting 24 VDC digital input processing. The channel configuration allows the controller software to define signal behavior according to the connected field devices. For Honeywell process control architectures, the module supports instrument loop integration based on standard industrial signal methods. Therefore, applications using 4-20 mA HART loop protocol interfaces, FOUNDATION Fieldbus / Profibus PA networks through compatible controller gateways, and channel-to-channel isolation requirements can use the module as part of a distributed I/O configuration. The module provides surge protection and ESD shielding at I/O ports. In addition, the hardware design maintains electrical separation between field wiring and controller communication paths to reduce signal interference during industrial operation. Frequently Asked Questions Q: Does the SC-UMIX01 support both analog and digital signals in the same hardware unit?A: Yes. The module provides 28 configurable channels that can process combined analog and digital I/O configurations according to software settings. Q: What field signal types can the SC-UMIX01 accept?A: The module supports analog signals of 0-10 VDC and 4-20 mA, along with 24 VDC digital input signals. Q: Can the SC-UMIX01 operate as a standalone communication device?A: No. The module communicates through the ControlEdge RTU 2020 controller architecture and depends on the main processor module for network protocol handling. Field Installation Guidelines Install the SC-UMIX01 on the designated ControlEdge RTU mounting structure according to the controller hardware configuration manual. Verify that the supply voltage range matches the 12 VDC to 24 VDC operating requirement before connecting field wiring. Use shielded cables for analog signal connections when the installation environment contains high electromagnetic interference sources. Connect cable shields according to the site grounding standard and avoid routing low-level analog wiring together with high-current power conductors. Separate digital and analog field wiring where possible to reduce coupling noise. Confirm terminal assignments, channel configuration parameters, and controller database settings before commissioning the module.
$200.00 $100.00
-
Honeywell Honeywell MU-NKT020 Network Connection Kit
Honeywell MU-NKT020 Network Connection Kit Configured for network termination and signal connection tasks in Honeywell TDC 3000 and Experion PKS systems, the Honeywell MU-NKT020 51195199-020 (MU-NKT020 Network Connection Kit) provides direct physical interface execution between termination assemblies and control system communication paths. Hardware Specifications Parameter Specification Model MU-NKT020 Brand Honeywell Operating Temp 0 deg C to 60 deg C Part Number 51195199-020 Product Type Network Connection Kit / Termination Module Compatible Systems Honeywell TDC 3000 / Experion PKS Mounting Type DIN rail or panel mount depending on carrier assembly Storage Temperature -40 deg C to 85 deg C Relative Humidity 5% to 95% non-condensing Protection Type Conformal coating options available for harsh environments Process Control Interface and Signal Connectivity Honeywell MU-NKT020 is designed for process control hardware interfaces requiring structured signal routing and network termination functions. Moreover, the module supports physical connection management between field termination assemblies and controller-side communication structures. For Honeywell process control platforms, hardware interface components commonly support industrial communication methods such as 4-20 mA HART loop protocol, FOUNDATION Fieldbus, and Profibus PA connectivity depending on the connected I/O architecture. In addition, channel-to-channel isolation design principles help maintain signal separation and reduce interference within distributed control environments. The MU-NKT020 performs termination and connection functions within the installed hardware configuration. Therefore, correct carrier compatibility, cable routing, and grounding practices are required for proper system operation. Frequently Asked Questions Q: Can the MU-NKT020 operate as a standalone controller module?A: No. The MU-NKT020 functions as a connection and termination hardware component and requires integration with compatible Honeywell system assemblies. Q: Does the MU-NKT020 require firmware configuration before installation?A: The available technical data does not specify firmware requirements. Configuration depends on the connected Honeywell control system hardware and network architecture. Q: What installation factors affect signal performance?A: Proper cable routing, shielding layer grounding, and separation from high-voltage wiring affect signal integrity and communication performance. Field Installation Guidelines Verify the MU-NKT020 part number before installation to ensure compatibility with the target Honeywell TDC 3000 or Experion PKS assembly. Install the module according to the carrier or termination assembly mechanical requirements. Maintain proper cable separation between signal wiring and high-voltage power conductors. Connect cable shields according to the system grounding specification to reduce electromagnetic interference. Inspect terminal connections for correct seating and mechanical stability before system commissioning. Follow Honeywell system documentation for network termination placement and communication loop verification.
$200.00 $100.00
-
Honeywell MU-KFTA05 51201420-005 FTA I/O Cable | Honeywell
Honeywell MU-KFTA05 51201420-005 FTA I/O Cable Configured for FTA signal interconnection in Honeywell process control I/O architectures, the Honeywell MU-KFTA05 51201420-005 (MU-KFTA05 FTA I/O Cable) provides direct physical connection between field termination assemblies and I/O interface equipment. Hardware Specifications Parameter Specification Model MU-KFTA05 51201420-005 Brand Honeywell Product Type FTA I/O Cable Origin USA Weight 0.74 kg Dimensions 32.2 x 26.3 x 4.3 cm Operating Temp -20 deg C to +85 deg C Power Consumption Passive cable assembly, no external power consumption Cable Length 5 meter Conductor Gauge 16 AWG Insulation Resistance 100 MOhm @ 500 V DC Capacitance (Core-to-Shield) < 150 pF/m typical Dielectric Withstand 1000 V AC Characteristic Impedance 100 Ohm +/-15% Jacket Material PUR jacket Process Control Signal Interface and Cable Performance The Honeywell MU-KFTA05 51201420-005 FTA I/O Cable supports physical signal routing between field termination components and Honeywell I/O hardware. Moreover, the cable construction uses a 16 AWG conductor design with defined electrical insulation characteristics for industrial control cabinet installation. The cable provides a controlled characteristic impedance of 100 Ohm +/-15% and maintains core-to-shield capacitance below 150 pF/m typical. Therefore, the cable structure supports signal integrity requirements for process control wiring environments. Honeywell I/O assemblies commonly integrate with process instrumentation interfaces using analog and digital signal standards. In addition, proper shielding and grounding practices help maintain separation from external electromagnetic interference sources. Frequently Asked Questions Q: Does the MU-KFTA05 51201420-005 cable require external power supply connection?A: No. The MU-KFTA05 is a passive FTA I/O cable assembly and does not consume electrical power during operation. Q: What installation factors affect the electrical performance of this FTA I/O Cable?A: Cable routing, shield termination, grounding method, and separation from high-voltage power wiring affect signal transmission performance. Q: Can the cable withstand industrial cabinet temperature conditions?A: Yes. The cable specifies an operating temperature range from -20 deg C to +85 deg C with a PUR jacket construction. Field Installation Guidelines Install the MU-KFTA05 51201420-005 cable according to Honeywell system cabinet wiring requirements. Maintain physical separation between signal cables and high-current power conductors to reduce electrical interference. Connect cable shielding using approved grounding practices defined by the control system installation standard. Avoid sharp bending, excessive pulling force, or mechanical stress during cable routing. Verify connector seating and cable identification before system commissioning. Confirm insulation condition before applying operating voltage to connected I/O circuits.
$200.00 $100.00
-
Honeywell MC-TDID12 51304441-175 Digital Input Module | Honeywell
Honeywell MC-TDID12 51304441-175 Digital Input Module Configured for 24 VDC discrete signal acquisition in Honeywell control system platforms, the Honeywell MC-TDID12 51304441-175 (MC-TDID12 Digital Input Module) provides direct electrical interface execution for 32-channel field input monitoring. Hardware Specifications Parameter Specification Model MC-TDID12 51304441-175 Brand Honeywell Product Type Digital Input Module Origin USA Weight 1.15 kg Dimensions 46.3 x 12.1 x 5.5 cm Operating Temp -20 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Power Consumption Input supply range: 20-30 VDC Input Channels 32 channels Input Type Digital Input 24 VDC Accumulated Input Frequency 15 Hz Galvanic Isolation 1500 VAC rms or +/-1500 VDC Sense Current 4.5 mA minimum Pick Up Voltage 20 VDC minimum Drop Out Voltage 10 VDC maximum Relative Humidity 5-95% non-condensing Tariff Code 8537101190 Place of Shipment Xiamen, China Channel Isolation and Process Signal Interface The Honeywell MC-TDID12 51304441-175 uses a 24 VDC digital input architecture for discrete field signal collection. Moreover, the module supports 32 input channels with galvanic isolation rated at 1500 VAC rms or +/-1500 VDC, which separates field wiring conditions from internal control electronics. The module accepts industrial switching signals with a minimum 20 VDC pickup threshold and a maximum 10 VDC dropout threshold. Therefore, the input circuitry maintains defined state recognition for connected field devices operating within the specified voltage range. Honeywell process I/O modules commonly support DCS-oriented signal conditioning methods. In addition, system integration designs can apply channel-to-channel isolation principles to reduce electrical interference between individual field input points. Frequently Asked Questions Q: What type of field signals does the MC-TDID12 51304441-175 accept?A: The module accepts 24 VDC digital input signals through 32 independent input channels. Q: Does the MC-TDID12 51304441-175 provide electrical isolation?A: Yes. The module provides galvanic isolation rated at 1500 VAC rms or +/-1500 VDC between field-side circuits and internal electronics. Q: What environmental conditions are specified for module operation?A: The module operates from -20 deg C to +60 deg C with 5-95% relative humidity, non-condensing. Field Installation Guidelines Install the MC-TDID12 51304441-175 according to the designated Honeywell control system rack and I/O carrier requirements. Verify that the module seating mechanism is fully engaged before applying field power. Use properly rated field wiring for 24 VDC digital input connections. Furthermore, separate signal wiring from high-voltage power conductors to minimize electromagnetic interference. Connect cable shields according to the system grounding design. Avoid creating multiple grounding paths that may introduce unwanted circulating currents. Before commissioning, confirm input polarity, field voltage levels, and channel addressing within the control configuration database. Check each digital input state transition at the field device and controller level.
$200.00 $100.00
-

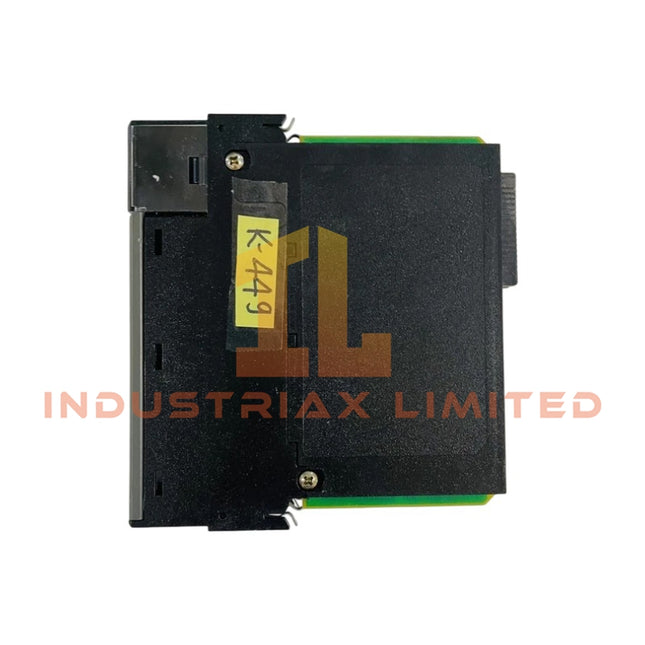

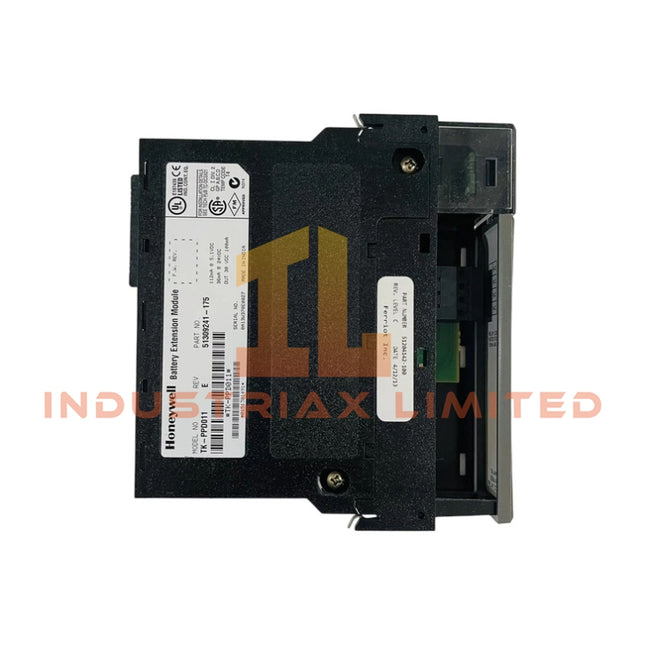

Honeywell TK-PPD011 51309241-175 Battery Extension Module | Honeywell
Honeywell TK-PPD011 51309241-175 Battery Extension Module The Honeywell TK-PPD011 51309241-175, also cataloged as the 51309241-175 Battery Extension Module, operates as a dedicated hardware component for extending backup power capacity within Honeywell Experion PKS controller power architectures. Hardware Specifications Parameter Specification Model TK-PPD011 51309241-175 Brand Honeywell Product Type Battery Extension Module Origin USA Weight 0.36 kg Dimensions 3.5 x 14 x 14.5 cm Operating Temp Industrial operating range Power Consumption Low current draw, 0.036 A at 24 VDC Nominal Voltage 24 VDC Battery Capacity 7.0 Ah / 175 Wh Backup Duration Up to 4-8 hours Max Output Current 5 A continuous Tariff Code 8537101190 Compatible Systems Honeywell Experion PKS, C200 Series, compatible controller assemblies Additional Voltage Support 5 VDC operation, 0.112 A current draw Process Control Backup Power Integration The Honeywell TK-PPD011 51309241-175 integrates into Honeywell controller backup power structures to maintain controller memory retention and support controlled system recovery after power interruptions. Moreover, the module provides auxiliary battery capacity for automation assemblies that require extended backup operation. The module uses a 24 VDC nominal supply interface and supports internal controller power requirements through a compact battery extension design. In addition, the TK-PPD011 supports Honeywell control architectures including C200, C300, ControlEdge PLC, and compatible safety control platforms. For process control applications, the module operates as a dedicated backup power component rather than a signal acquisition device. Therefore, installation requires correct integration with the existing controller power distribution and battery management configuration. Frequently Asked Questions Q: What is the primary electrical function of the Honeywell TK-PPD011 51309241-175?A: The module extends battery backup capacity for Honeywell controller assemblies and supports memory retention functions during primary power loss. Q: Does the TK-PPD011 provide industrial communication functions?A: No. The TK-PPD011 is a battery extension component and does not operate as a communication interface or I/O signal module. Q: What voltage interfaces are supported by the module?A: The module supports 24 VDC nominal operation and also supports 5 VDC system compatibility according to controller architecture requirements. Field Installation Guidelines Install the TK-PPD011 within the designated Honeywell controller power and battery backup assembly location. Verify polarity and voltage compatibility before connecting the module to the power distribution circuit. Keep battery power wiring separated from high-voltage AC cables and high-current switching conductors. Maintain proper cabinet grounding practices according to the control system installation requirements. Inspect terminal connections and cable routing to prevent mechanical stress on power interfaces. Confirm controller backup operation after installation through the applicable Honeywell system
$200.00 $100.00
-

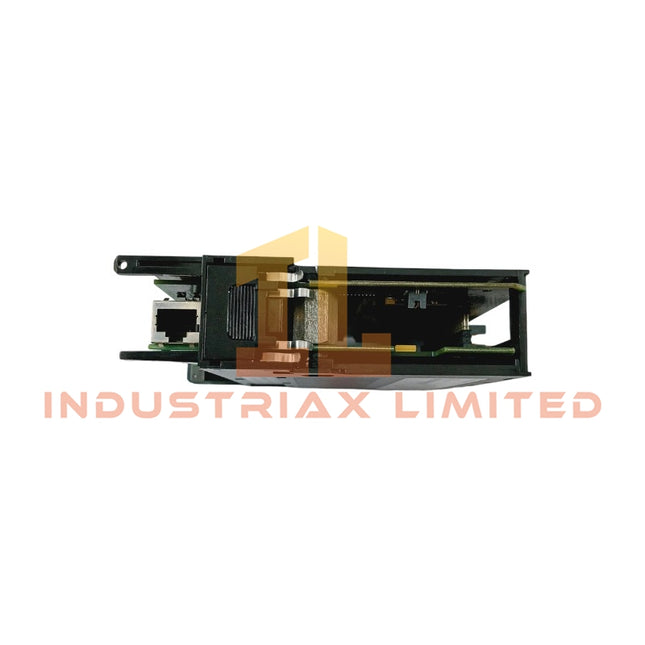

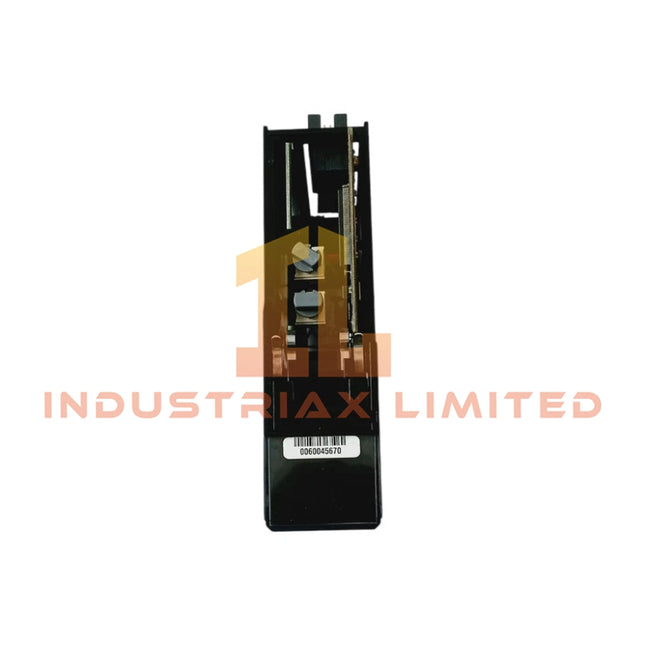

Honeywell TK-FTEB01 51309512-175 Ethernet Modules | Honeywell
Honeywell TK-FTEB01 51309512-175 Fault Tolerant Ethernet Bridge Module The Honeywell TK-FTEB01 51309512-175, also cataloged as the TK-FTEB01 Fault Tolerant Ethernet Bridge Module, operates as a dedicated hardware component for redundant Ethernet communication within Honeywell Experion PKS FTE network platforms. Hardware Specifications Parameter Specification Model TK-FTEB01 51309512-175 Brand Honeywell Product Type Fault Tolerant Ethernet Bridge Module Spare Model 51309512-175 System Compatibility Honeywell Experion PKS / Experion LS Series-A chassis Communication Interface Fault Tolerant Ethernet (FTE) Ethernet Standard IEEE 802.3 Ethernet Communication Speed 100 Mbps full duplex Network Ports Dual RJ45 Ethernet ports Input Voltage 24 VDC Operating Voltage Range 18-30 VDC Max Output Current 5 A continuous Battery Capacity 7.0 Ah / 175 Wh typical Backup Duration Up to 4-8 hours Power Consumption Low power consumption design Chassis Installation Series-A chassis, occupies two chassis slots Country of Origin USA Weight 0.28 kg Dimensions 3.5 x 14 x 14.5 cm Tariff Code 8537101190 Shipment Location Xiamen, China DCS Network Communication and Process Interface Characteristics The TK-FTEB01 provides Ethernet communication between Experion PKS control components, including Experion servers, C200 controllers, and Fieldbus Interface Module (FIM) chassis. Moreover, the module uses dual RJ45 network connections to maintain redundant communication paths between the chassis backplane and external FTE network devices. The module supports Honeywell Fault Tolerant Ethernet architecture, where redundant physical Ethernet paths operate as a coordinated logical network connection. Therefore, the module simplifies network topology management while maintaining continuous data exchange between control-level and supervisory-level devices. In addition, the TK-FTEB01 supports industrial Ethernet communication at 100 Mbps full duplex speed through IEEE 802.3 compliant interfaces. The module receives 24 VDC power input and integrates with Series-A chassis hardware through dedicated backplane connections. Channel Isolation and Industrial Network Integration For Honeywell process control architectures, the TK-FTEB01 functions as an Ethernet communication interface rather than an analog measurement device. Therefore, it does not provide 4-20 mA HART signal processing, FOUNDATION Fieldbus, or Profibus PA field instrument connectivity. Instead, the module handles digital network data transmission between Experion PKS nodes. Furthermore, the dual-path Ethernet design supports network redundancy by separating communication routes through independent FTE links. Frequently Asked Questions Q: How many chassis slots does the Honeywell TK-FTEB01 occupy?A: The TK-FTEB01 occupies two slots in a Honeywell Series-A chassis installation. Q: Does the TK-FTEB01 provide dual Ethernet communication interfaces?A: Yes. The module includes dual RJ45 Ethernet ports for redundant FTE network connections. Q: What type of communication does the TK-FTEB01 support?A: The module supports 100 Mbps IEEE 802.3 Ethernet communication for Honeywell Experion PKS network architectures. Field Installation Guidelines Install the TK-FTEB01 in the designated Series-A chassis slot positions according to the Honeywell Experion PKS hardware configuration manual. Verify that the chassis backplane connectors are clean and correctly aligned before installation. Use shielded Ethernet cabling suitable for industrial environments and maintain proper separation between communication cables and high-voltage power wiring. Connect the dual RJ45 Ethernet ports according to the planned FTE network topology. Confirm that redundant network paths use independent physical routes where required. Before applying power, verify the 24 VDC supply polarity and grounding arrangement. After installation, check Ethernet link indicators and system diagnostics through the Experion engineering interface.
$200.00 $100.00
-

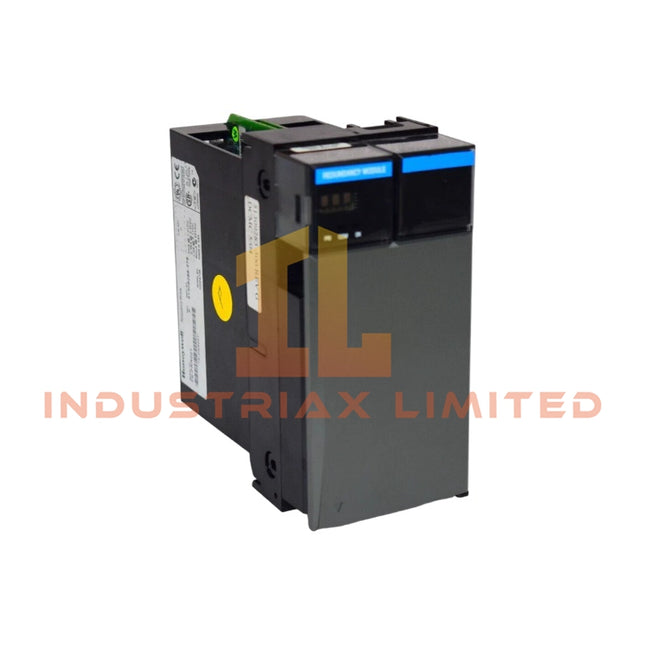

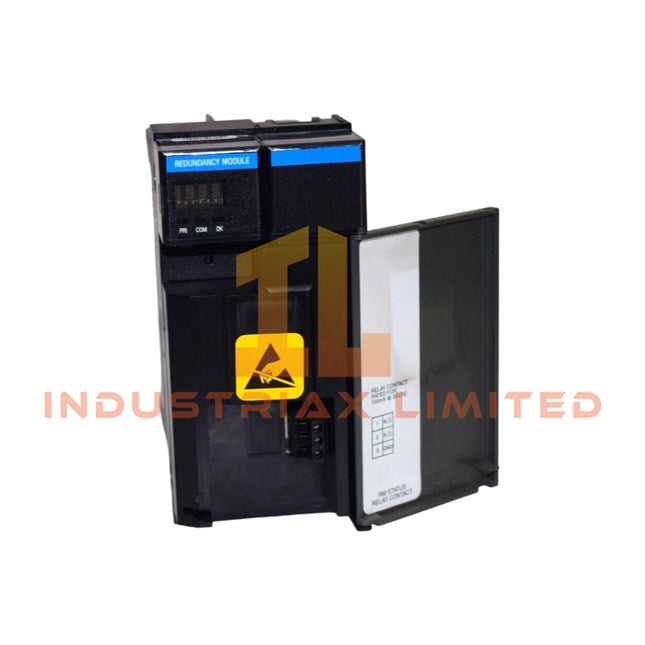

Honeywell TK-PRR021 51309288-275 Redundancy Module | Honeywell
Honeywell TK-PRR021 51309288-275 Redundancy Module Configured for redundant power and signal path coordination in Honeywell control system network architectures, the Honeywell TK-PRR021 51309288-275 (TK-PRR021 Redundancy Module) provides direct physical/electrical execution for redundancy management and module synchronization functions. Hardware Specifications Parameter Specification Model TK-PRR021 51309288-275 Brand Honeywell Product Type Redundancy Module Origin USA Weight 0.46 kg Dimensions 6.9 x 14.1 x 14.5 cm Operating Temp -20 deg C to +70 deg C Storage Temperature -40 deg C to +85 deg C Relative Humidity 5-95% non-condensing Power Supply 24 VDC +/-10% Power Consumption 5 W typical, 8 W maximum Synchronization Speed 100 Mbps full duplex Isolation Voltage 1500 V AC Current Range 0.75-1 A / 7-90 mA Voltage Range 3.3-24 VDC Tariff Code 8537101190 Manufacturer Honeywell Shipment Location Xiamen, China Process Control Redundancy and Signal Isolation Characteristics The TK-PRR021 51309288-275 supports redundant module operation by maintaining synchronized communication paths and power distribution conditions. Moreover, the module uses full duplex 100 Mbps communication to exchange redundancy status data between connected control components. For Honeywell process control hardware environments, the module architecture aligns with DCS electrical design requirements, including channel-to-channel isolation concepts and controlled signal separation. Therefore, the 1500 V AC isolation rating helps reduce electrical interference between connected circuits. In addition, the module supports 24 VDC power input operation with defined consumption limits. The 5 W typical and 8 W maximum power values allow system engineers to calculate cabinet power loading and thermal conditions during panel design. Frequently Asked Questions Q: What power input does the Honeywell TK-PRR021 51309288-275 require?A: The module requires a 24 VDC power supply with an allowable range of +/-10%. Q: Does the TK-PRR021 support high-speed synchronization communication?A: Yes. The module provides 100 Mbps full duplex synchronization communication for redundancy coordination. Q: What isolation capability is specified for this redundancy module?A: The module specifies 1500 V AC isolation between applicable electrical sections. Field Installation Guidelines Install the TK-PRR021 51309288-275 in a compatible Honeywell control cabinet position according to the system hardware configuration requirements. Verify the 24 VDC supply polarity and voltage range before connecting field wiring. Keep power wiring separated from high-current switching circuits to reduce electrical interference. Use appropriate grounding methods for cabinet installation and maintain clean signal reference paths. Confirm communication cable routing before system commissioning to prevent unnecessary electromagnetic coupling. Check module status indicators and redundancy communication conditions after installation.
$200.00 $100.00
-

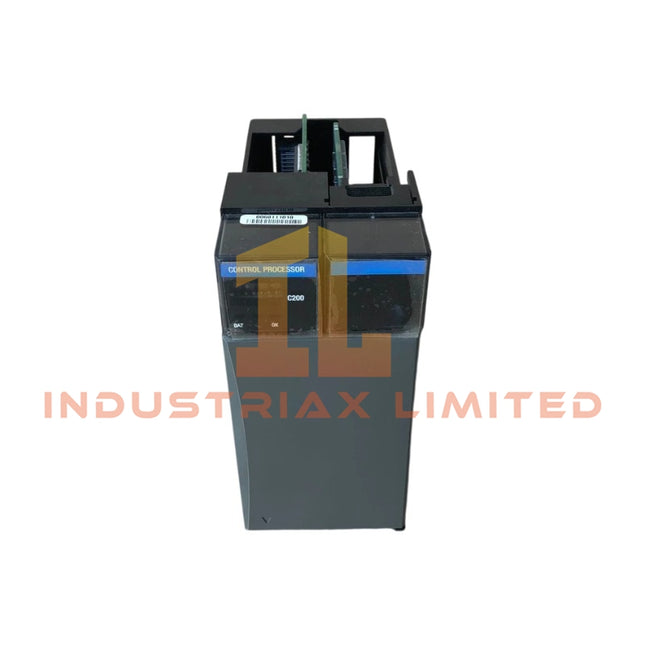

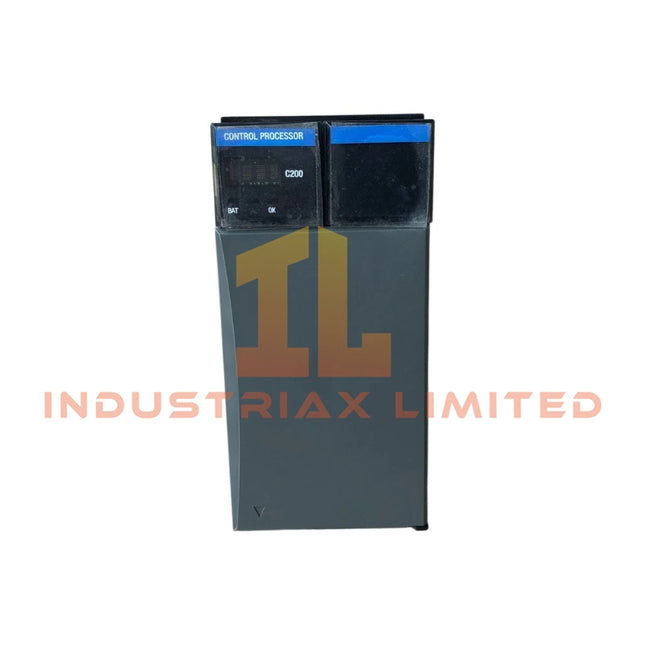

Honeywell TK-PRS021 51404305-275 Control Processor Module | Honeywell
Honeywell TK-PRS021 51404305-275 Control Processor Module Configured for control processing execution in the Honeywell Experion PKS C200 system, the Honeywell TK-PRS021 51404305-275 (TK-PRS021 Control Processor Module) provides direct physical and electrical execution for controller operations. The module operates with 24 VDC power input and includes conformal coating for environmental protection. Hardware Specifications Parameter Specification Model TK-PRS021 51404305-275 Brand Honeywell Product Type Control Processor Module System Platform Experion PKS C200 Spare Model 51404305-275 Origin USA Weight 0.4 kg Dimensions 7 x 14 x 14.5 cm Operating Temp Not specified Power Consumption 24 VDC supply input Coating Type Conformal coating Tariff Code 8537101190 Process Control Communication and Signal Execution The Honeywell TK-PRS021 51404305-275 functions as a processor module within the Experion PKS C200 control architecture. Therefore, it manages controller-level execution tasks, including application processing, control logic handling, and communication between system components. Moreover, the module uses a 24 VDC electrical supply configuration and integrates conformal coating to protect internal electronic assemblies against industrial environmental factors. The physical design supports installation inside compatible Honeywell control hardware assemblies. In addition, Honeywell process control modules within this platform commonly interface with distributed control system networks where field signals, controller calculations, and operator-level information exchange occur through defined system communication paths. Frequently Asked Questions Q: What is the primary function of the Honeywell TK-PRS021 51404305-275 module?A: The TK-PRS021 is a control processor module designed to execute controller processing tasks within the Experion PKS C200 system. Q: What power supply does the TK-PRS021 51404305-275 require?A: The module requires a 24 VDC power supply input according to the provided technical specification. Q: Does the TK-PRS021 include environmental protection features?A: Yes. The module includes conformal coating on electronic components to provide additional protection for the circuit assembly. Field Installation Guidelines Install the Honeywell TK-PRS021 51404305-275 module only in compatible Experion PKS C200 hardware assemblies. Verify rack compatibility, module seating position, and connector alignment before installation. Maintain proper grounding practices for the control cabinet and ensure that signal wiring follows industrial separation requirements. Keep communication cables separated from high-voltage power conductors to reduce electrical interference. Before energizing the system, confirm the 24 VDC supply polarity and inspect all backplane connections. Follow Honeywell installation documentation for module replacement procedures, configuration loading, and controller synchronization checks.
$200.00 $100.00
-
Honeywell Honeywell TC-TCBH Thermocouple Input Module
Honeywell TC-TCBH Thermocouple Input Module The Honeywell TC-TCBH, also cataloged as the TC-TCBH Thermocouple Input Module, operates as a dedicated hardware component for thermocouple signal acquisition and temperature data conversion within Honeywell Experion PKS and PlantCruise control system platforms. Hardware Specifications Parameter Specification Model TC-TCBH Brand Honeywell Product Type Thermocouple Input Modules Origin USA Weight 0.6kg Dimensions Standard Honeywell I/O module form factor; exact dimensions depend on chassis configuration Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Power Consumption Max 250 mA @ 5 VDC from backplane Input Channels Multiple thermocouple input channels; channel density depends on rack configuration Input Types Thermocouple Types J, K, T, E, R, S, B, N; linear millivolt input Millivolt Input Range -20 mV to +100 mV A/D Resolution 16-bit or higher Sampling Rate 50 Hz / 60 Hz configurable Measurement Accuracy Typically +/- 0.1% of full scale, input type dependent Cold Junction Compensation Integrated CJC function Isolation Voltage 1500 VAC or 2500 VDC field-to-logic isolation Input Impedance >10 Mohm Humidity Range 5% to 95% RH, non-condensing Diagnostics Open circuit detection and input status monitoring Cold Junction Compensation and DCS Temperature Signal Processing The TC-TCBH module processes thermocouple millivolt signals through signal conditioning, linearization, and analog-to-digital conversion functions. The integrated cold junction compensation (CJC) circuit corrects terminal temperature variations to maintain measurement accuracy. For Honeywell DCS integration, the module supports isolated field signal acquisition with channel-to-channel protection. The input architecture reduces grounding interference and supports stable temperature monitoring loops connected to Experion PKS or PlantCruise I/O networks. The module architecture is compatible with process instrumentation requirements including thermocouple scaling, sensor fault detection, and continuous temperature value transmission to controller execution tasks. Frequently Asked Questions Q: Does the TC-TCBH support multiple thermocouple types in the same module?A: Yes. The module supports standard thermocouple types including J, K, T, E, R, S, B, and N. Channel configuration depends on the installed control system setup. Q: How does the module detect thermocouple wiring faults?A: The TC-TCBH provides open circuit detection functions to identify disconnected or broken thermocouple wiring and reports input status conditions to the control system. Q: Is the TC-TCBH isolated from field thermocouple wiring?A: Yes. The module provides field-side to logic-side galvanic isolation to reduce ground loop effects and protect controller electronics. Field Installation Guidelines Install the TC-TCBH module according to the Honeywell chassis installation procedure and verify backplane compatibility before insertion. Use shielded thermocouple extension cables where required by the process environment. Connect cable shields according to site grounding practices to minimize electromagnetic interference. Maintain separation between thermocouple signal wiring and high-voltage power conductors. Avoid routing low-level millivolt signals near motor cables, inverter outputs, or switching power circuits. Verify thermocouple polarity, sensor type configuration, and terminal wiring before commissioning. Confirm cold junction compensation operation and input diagnostics through the engineering workstation.
$200.00 $100.00
-

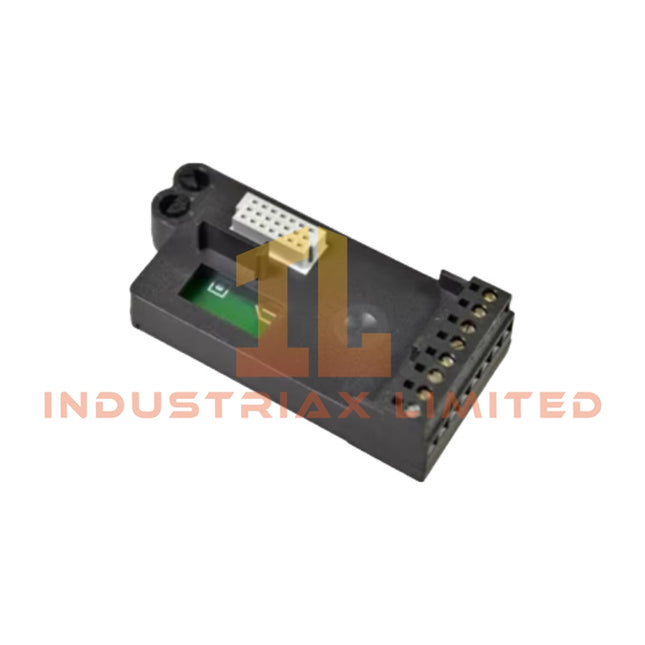

Honeywell Honeywell TC-TCNH ControlNet Interface Module
Honeywell TC-TCNH ControlNet Interface Module The Honeywell TC-TCNH, also cataloged as the TC-TCNH ControlNet Interface Module, operates as a dedicated hardware component for deterministic ControlNet communication between Experion PKS controller chassis and distributed I/O network devices. Hardware Specifications Parameter Specification Model TC-TCNH Brand Honeywell Origin USA Module Type ControlNet Interface Module / Network Bridge Compatible System Honeywell Experion PKS C200/C300 Controller Chassis Communication Protocol ControlNet Network Data Rate 5 Mbps Network Topology Trunk line / Drop line with redundant media support Connector Type BNC connectors, Channel A and Channel B Current Consumption Approx. 850 mA at 5.1 VDC Power Consumption Max. 4.4 W Dimensions Single chassis slot module format Weight Not specified Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 5% to 95%, non-condensing HART and Process Network Communication Characteristics The Honeywell TC-TCNH performs ControlNet network interface functions within the Experion PKS control architecture. The module transfers controller data and I/O communication packets through deterministic scheduling mechanisms defined by the ControlNet protocol. The module supports redundant ControlNet media through dual communication channels. Channel separation allows network availability configurations where two physical communication paths are installed between connected nodes. For Honeywell process control environments, network modules within the Experion PKS platform maintain communication consistency with field-level devices and controller resources. Process signal interfaces such as 4-20 mA HART loop protocol, FOUNDATION Fieldbus, or Profibus PA connectivity are handled through dedicated field interface modules rather than the TC-TCNH itself. Channel-to-channel isolation and controlled network communication timing depend on the complete chassis configuration and connected I/O architecture. Frequently Asked Questions Q: Does the TC-TCNH support redundant ControlNet communication paths?A: Yes. The module provides dual ControlNet channels for redundant media configurations. Network redundancy depends on the installed cable infrastructure and connected ControlNet devices. Q: Can the TC-TCNH be installed in any Experion PKS chassis slot?A: The module uses a standard single-slot chassis position. Slot compatibility depends on the specific Experion PKS controller chassis configuration. Q: What power load does the TC-TCNH place on the chassis backplane?A: The module requires approximately 850 mA at 5.1 VDC with a maximum power dissipation of 4.4 W. Field Installation Guidelines Install the TC-TCNH module in the designated Experion PKS controller chassis slot according to the system hardware configuration manual. Verify chassis power removal before module insertion or removal unless the installed system configuration specifically supports hot-swap operation. Use approved ControlNet coaxial cabling with correct BNC termination practices. Maintain proper cable routing separation between communication wiring and high-voltage power conductors. Connect redundant ControlNet channels according to the network redundancy design requirements. Verify grounding and shield termination practices to minimize communication interference. Confirm module status indicators and network diagnostics after installation.
$200.00 $100.00
-

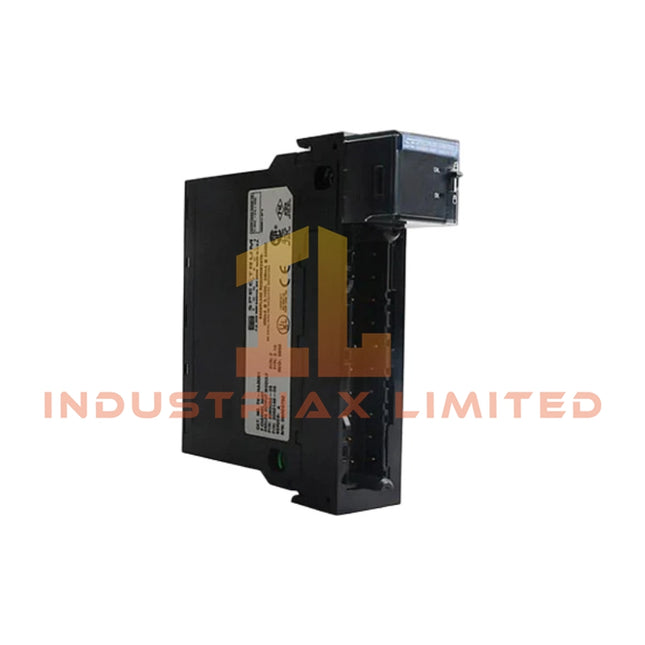

Honeywell TC-HAI081 | High-Level Analog Input Module | Honeywell
Honeywell TC-HAI081 High-Level Analog Input Module The Honeywell TC-HAI081 (9060029-04), also cataloged as the TC-HAI081 High-Level Analog Input Module, operates as a dedicated hardware component for converting field analog signals into digital process values within Honeywell Series C I/O systems. Hardware Specifications Parameter Specification Model TC-HAI081 Brand Honeywell Part Number 9060029-04 Origin United States Module Type High-Level Analog Input Module with HART System Platform Honeywell Experion PKS / PlantCruise Series C I/O Number of Channels 8 analog input channels Input Signal Range 4-20 mA / 1-5 VDC Analog Conversion 16-bit ADC HART Support HART pass-through communication Channel Isolation Channel-to-system galvanic isolation Module Power Input 24 VDC nominal Power Consumption Approx. 3.5 W Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 5% to 95% RH, non-condensing Mounting Type Series C I/O rack installation Hot Swap Capability Supported for removal and insertion under power (RIUP) 4-20 mA HART Loop and Isolation Characteristics The TC-HAI081 processes standard 4-20 mA analog transmitter signals and supports HART loop communication for smart field device access. The module separates analog measurement processing from digital HART data transmission, allowing configuration and diagnostic information to pass through the I/O architecture. The input circuit provides channel-to-system isolation to reduce signal interference between field wiring and controller electronics. The 16-bit analog-to-digital converter converts measured process variables into digital values for execution by the Honeywell controller environment. Frequently Asked Questions Q: Does the TC-HAI081 support direct HART communication with field transmitters?A: Yes. The module provides HART pass-through capability, allowing digital communication with compatible smart transmitters while maintaining the 4-20 mA measurement loop. Q: Can the TC-HAI081 be replaced while the I/O rack remains powered?A: Yes. The module supports removal and insertion under power (RIUP) when installed in a compatible Series C I/O system configuration. Q: What type of field signals can be connected to the TC-HAI081?A: The module accepts standard high-level analog inputs including 4-20 mA current signals and 1-5 VDC voltage signals from field instrumentation. Field Installation Guidelines Install the module in the designated Honeywell Series C I/O rack position according to the system hardware configuration. Separate analog field wiring from high-voltage power cables to minimize electrical noise coupling. Use shielded instrumentation cable for analog signal connections where required by the installation design. Connect cable shields according to the plant grounding specification and avoid multiple grounding points on signal shields. Verify transmitter loop polarity and signal range before applying field power. Confirm controller configuration matches the installed module type and channel assignments before process operation.
$200.00 $100.00
-

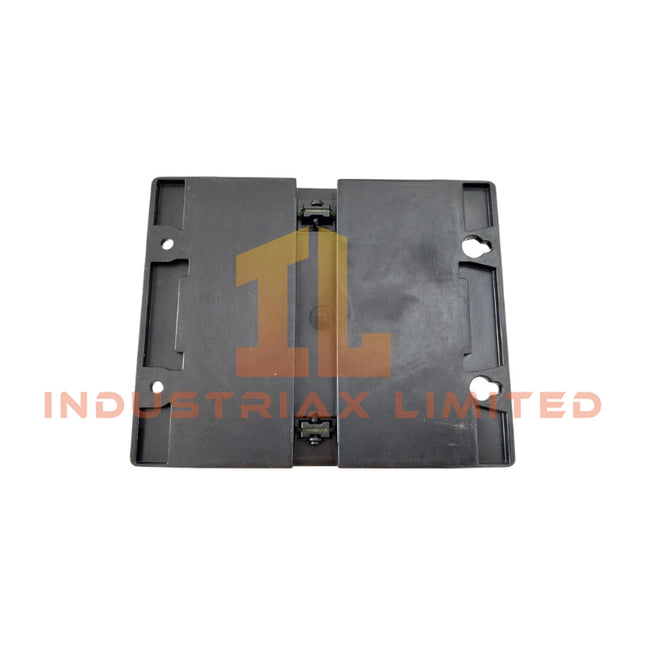

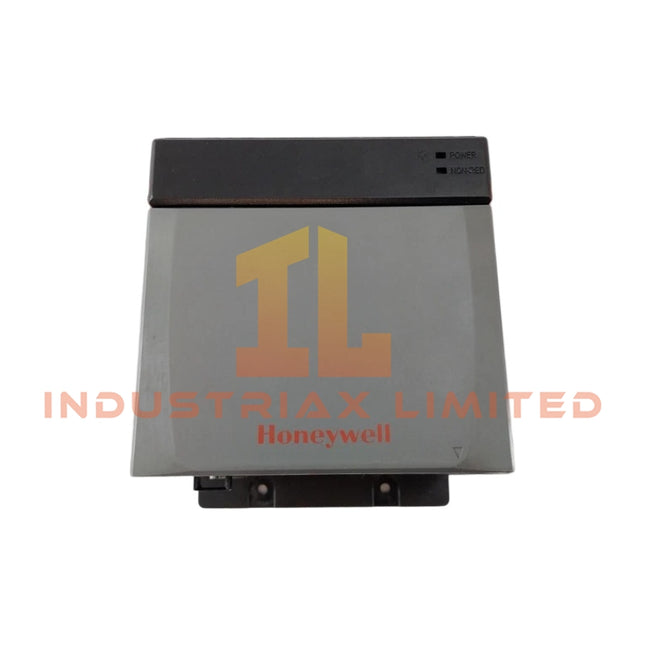

Honeywell TC-RPCXX01 | AC Input Power Supply Module | Honeywell
Honeywell TC-RPCXX01 AC Input Power Supply Module Configured for regulated DC power conversion in Honeywell control chassis platforms, the Honeywell TC-RPCXX01 (TC-RPCXX1 AC Input Power Supply Module) provides direct electrical power conversion for controller, I/O, and backplane assemblies within PlantScape and Experion PKS systems. Hardware Specifications Parameter Specification Model TC-RPCXX01 / TC-RPCXX1 Brand Honeywell Product Type AC Input Power Supply Module Part Number 45346 System Platform Honeywell PlantScape / Experion PKS Input Voltage 120 / 240 VAC Input Frequency 50 / 60 Hz Output Voltage Rails 5.1 VDC, 24 VDC, 3.3 VDC, 1.2 VDC Maximum Output Power 75 W 5.1 VDC Output Current 13.0 A Max 24 VDC Output Current 2.8 A Max 3.3 VDC Output Current 4.0 A Max 1.2 VDC Output Current 1.5 A Max Power Consumption 75 W Max output load Operating Temp 60 deg C Max ambient temperature Weight 1.490 kg Dimensions Not specified in available technical data Origin Mexico Process Control Power Architecture and Electrical Isolation The TC-RPCXX01 provides multiple regulated DC output rails for Honeywell control system hardware. The module converts AC input power into separated DC supplies used by processor assemblies, I/O modules, and chassis backplane circuits. For Honeywell DCS environments, power modules operate alongside process I/O architectures that support field instrument interfaces such as 4-20 mA HART loop protocol and FOUNDATION Fieldbus / Profibus PA connectivity. The TC-RPCXX01 itself functions as a power conversion unit and does not provide direct field signal conditioning. The module design includes electrical protection functions for overcurrent and overvoltage conditions. Channel-to-channel isolation requirements within the connected control hardware depend on the specific I/O and controller architecture installed in the chassis. Frequently Asked Questions Q: What AC input range does the TC-RPCXX01 support?A: The module accepts 120 VAC or 240 VAC input power with a 50 / 60 Hz operating frequency range. Q: Which DC voltage outputs are generated by this power supply module?A: The TC-RPCXX01 provides 5.1 VDC, 24 VDC, 3.3 VDC, and 1.2 VDC regulated output rails for Honeywell system assemblies. Q: Can the module be installed without considering chassis power loading?A: No. Installation requires verification of total chassis current demand, backplane power requirements, and compatibility with the selected Honeywell hardware configuration. Field Installation Guidelines Verify AC input wiring configuration before installation and confirm compatibility with the selected supply voltage range. Install the module in the designated Honeywell chassis slot according to system hardware documentation. Maintain separation between AC power wiring and low-level signal wiring to reduce electrical interference. Connect protective earth grounding according to the control cabinet grounding design. Check DC output distribution and chassis loading before energizing connected controller and I/O modules. Inspect terminal connections and cable routing to prevent mechanical stress on power conductors.
$200.00 $100.00
You have seen 72 out of 575 products
