Honeywell Experion PKS
-
Honeywell Honeywell TK-FFSU01 FOUNDATION Fieldbus H1 Power Supply Board
Honeywell TK-FFSU01 FOUNDATION Fieldbus H1 Power Supply Board Configured for FOUNDATION Fieldbus H1 segment power conditioning in Honeywell Experion PKS and C300 Controller platforms, the Honeywell TK-FFSU01 51309582-275 (TK-FFSU01 FOUNDATION Fieldbus H1 Power Supply Board) provides direct physical power isolation and signal conditioning execution. Hardware Specifications Parameter Specification Model TK-FFSU01 Brand Honeywell Origin USA Product Type FOUNDATION Fieldbus H1 Power Supply / Signal Conditioning Board Part Number 51309582-275 Rev D Compatible Systems Honeywell Experion PKS, C300 Controller, Series 8 I/O Communication Protocol FOUNDATION Fieldbus H1, 31.25 kbps Network Function Fieldbus segment power supply, signal conditioning, LAS support Maximum Voltage Rating 35 VDC Max Maximum Current Rating 270 mA Max Weight Approx. 215 g Dimensions Compact plug-in board format; exact dimensions not specified Operating Temp Up to 60 deg C Humidity Range 5% to 95% RH, non-condensing Power Consumption Derived from fieldbus segment supply load; maximum output rating 270 mA Protection Functions Short-circuit protection, surge suppression, galvanic isolation, noise filtering Mounting Type Chassis plug-in installation / redundant termination panel mounting Flammability Rating D1 94V-0 Hazardous Location Rating Class I, Division 2, Groups A, B, C, D; Temperature Code T4A FOUNDATION Fieldbus H1 Segment Power Conditioning The TK-FFSU01 performs FOUNDATION Fieldbus H1 power conditioning by supplying regulated DC power to fieldbus segments while maintaining signal integrity. The module provides galvanic isolation between field wiring and system interfaces to reduce ground interference effects. For process instrumentation networks, the module supports FOUNDATION Fieldbus H1 communication at 31.25 kbps and provides compatibility with Link Active Scheduler (LAS) functions. Moreover, the integrated filtering circuit reduces electrical noise coupling between field devices and the control system. Honeywell process I/O architectures use this type of interface for instrument loops requiring stable DC supply characteristics, channel isolation, and controlled fieldbus segment loading. The module design supports redundant fieldbus power configurations where system architecture requires continuous segment availability. Frequently Asked Questions Q: What communication protocol is supported by the TK-FFSU01?A: The TK-FFSU01 supports FOUNDATION Fieldbus H1 communication with a data rate of 31.25 kbps and provides fieldbus segment power conditioning. Q: Does the TK-FFSU01 provide electrical isolation between field wiring and system electronics?A: Yes. The module incorporates galvanic isolation, surge suppression, and filtering functions to control electrical interference between field devices and the automation system. Q: Can the TK-FFSU01 be installed in redundant fieldbus power configurations?A: The module supports redundant configuration architectures when installed within compatible Honeywell Experion PKS and Series 8 I/O system arrangements. Field Installation Guidelines Install the module only in compatible Honeywell chassis or termination panel positions specified by the system hardware documentation. Verify fieldbus wiring polarity and segment power requirements before applying DC supply voltage. Maintain proper cable shielding and connect shield termination according to site grounding practices. Separate fieldbus communication wiring from high-current power cables to reduce electromagnetic interference. Confirm that hazardous area installation requirements match the applicable Class I, Division 2 certification conditions. Inspect connector seating and mechanical locking features before system startup. Verify fieldbus segment voltage levels and device current loading after installation.
$200.00 $100.00
-
Honeywell Honeywell TK-CRR014 Redundant Network Interface Module
Honeywell TK-CRR014 Redundant Network Interface Module The Honeywell TK-CRR014, also cataloged as the TK-CRR014 Redundant Network Interface Module, operates as a dedicated hardware component for redundant communication interface processing within Honeywell Experion PKS control network platforms. Hardware Specifications Parameter Specification Model TK-CRR014 Brand Honeywell Product Type Redundant Network Interface Module Origin USA Weight Approx. 1.5 kg Dimensions 100 mm x 180 mm x 80 mm Operating Temp Not specified Power Consumption Not specified Communication Interfaces Industrial network communication interfaces Channel Capacity Up to 16 process channels Data Acquisition Rate Up to 100 kHz Resolution 16-bit Accuracy +/- 0.02% Input Types Analog, Digital, Thermocouple, RTD Programming Standard IEC 61131-3 Shock Resistance 30 g Vibration Resistance 10 g Protection Rating IP67 housing Process Control Interface and Signal Isolation Features The Honeywell TK-CRR014 module is configured for process control communication and field signal acquisition functions within Experion PKS architectures. The module supports multi-channel signal handling for analog and discrete process inputs. The hardware design supports channel-to-channel isolation principles required for industrial measurement systems. Moreover, the module architecture allows integration with process instruments using standard signal conditioning methods, including 4-20 mA HART loop protocol applications where system configuration supports compatible interfaces. The module can process temperature-related inputs including thermocouple and RTD signals. Therefore, installation configurations requiring cold junction compensation (CJC) functions must verify compatibility with the connected I/O subsystem and field termination hardware. Frequently Asked Questions Q: Does the TK-CRR014 support redundant network operation?A: The module is designed as a redundant network interface component. Redundant configuration behavior depends on the installed Honeywell control platform and system architecture. Q: What field signal types can be connected through the TK-CRR014?A: The module specification supports analog, digital, thermocouple, and RTD input signal categories. Signal wiring must follow the applicable Honeywell system installation requirements. Q: Can the module operate independently without a Honeywell control chassis?A: The TK-CRR014 requires integration with the compatible Honeywell control system hardware and communication infrastructure for operation. Field Installation Guidelines Install the TK-CRR014 module inside the designated Honeywell control chassis or approved enclosure. Verify mechanical mounting alignment before applying power. Use shielded field wiring for analog and temperature signal connections where required by the process instrumentation design. Connect cable shields according to site grounding standards to reduce electrical interference. Separate low-level analog signal cables from high-voltage power wiring and switching circuits. Confirm connector seating, network cable routing, and module identification before system commissioning. Check firmware compatibility and controller configuration parameters before replacing or adding the module into an operating control system.
$200.00 $100.00
-

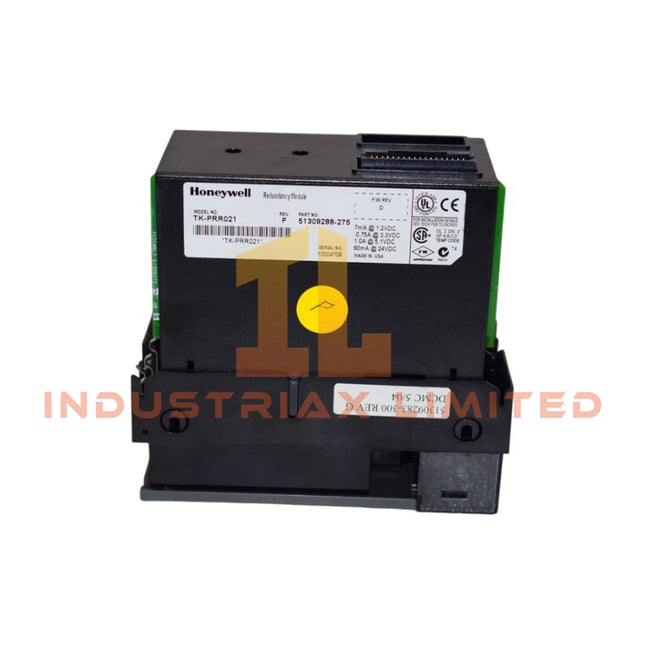

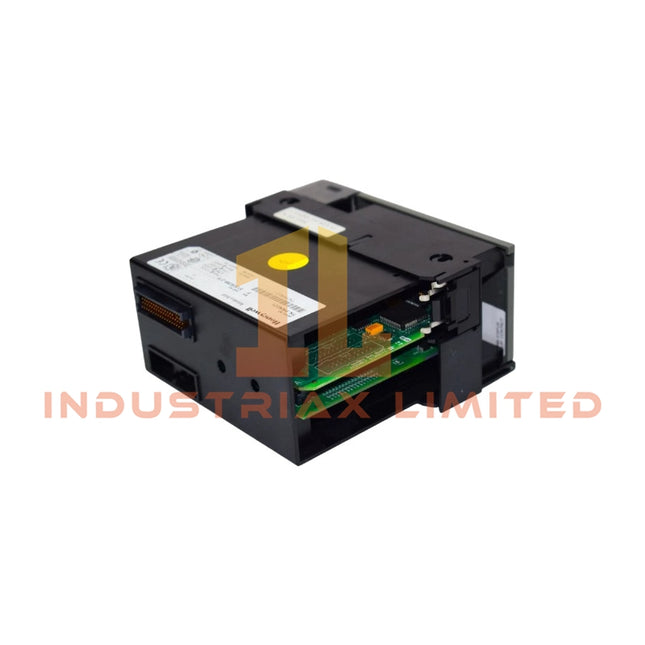

Honeywell Honeywell TK-PRR021 51309288-275 Redundancy Module
Honeywell TK-PRR021 51309288-275 Redundancy Module Configured for controller redundancy synchronization in Honeywell Experion PKS control network architectures, the Honeywell TK-PRR021 51309288-275 (TK-PRR021 Redundancy Module) provides direct physical and electrical execution for redundant module communication and power distribution functions. Hardware Specifications Parameter Specification Model TK-PRR021 51309288-275 Brand Honeywell Product Type Redundancy Module Origin USA Weight 0.46 kg Dimensions 6.9 x 14.1 x 14.5 cm Operating Temp -20 deg C to +70 deg C Storage Temperature -40 deg C to +85 deg C Relative Humidity 5-95% non-condensing Power Supply 24 VDC +/-10% Power Consumption 5 W typical, 8 W maximum Sync Speed 100 Mbps full duplex Isolation 1500 V AC Electrical Range 0.75-1 A / 7-90 mA / 3.3-24 VDC Process Control Communication and Isolation Characteristics The Honeywell TK-PRR021 provides redundancy communication between compatible control modules through a full duplex 100 Mbps synchronization interface. The module supports controlled data exchange between redundant hardware paths while maintaining electrical separation through 1500 V AC isolation. The module design follows Honeywell process control hardware requirements for distributed control environments. Furthermore, the isolation structure supports channel-to-channel separation principles used in industrial I/O and controller interconnection systems. For process instrumentation integration, Honeywell control platforms typically use standardized signal interfaces such as 4-20 mA HART loop protocol and FOUNDATION Fieldbus / Profibus PA connectivity. The TK-PRR021 itself functions as a redundancy communication component rather than an analog signal acquisition module. Frequently Asked Questions Q: What is the primary function of the Honeywell TK-PRR021 module?A: The TK-PRR021 is a redundancy module designed to manage synchronization and electrical connection functions between redundant control hardware components. Q: What power input does the TK-PRR021 require?A: The module requires a 24 VDC power supply with an operating tolerance of +/-10%. Power consumption is 5 W typical and 8 W maximum. Q: Does the TK-PRR021 provide electrical isolation?A: Yes. The module provides 1500 V AC isolation between relevant electrical sections to support separation requirements in industrial control installations. Field Installation Guidelines Install the TK-PRR021 in the designated Honeywell control hardware chassis according to the system configuration documentation. Verify that the 24 VDC power source meets the specified voltage range before connection. Use appropriate grounding practices and maintain separation between power wiring and communication wiring to reduce electrical interference. Ensure communication cables follow industrial installation requirements for routing, shielding, and termination. Avoid installing the module in locations exceeding the specified operating temperature or humidity limits. Before system startup, confirm redundancy configuration parameters, module status indicators, and synchronization communication conditions within the controller engineering environment.
$200.00 $100.00
-

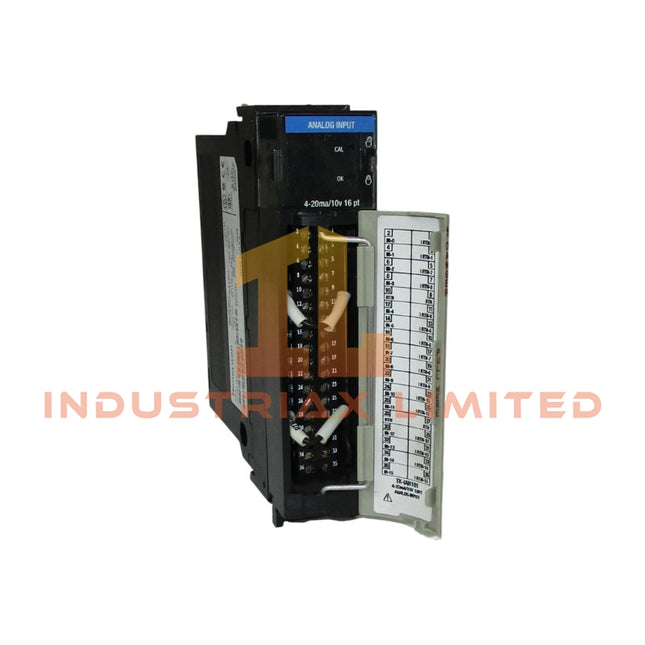

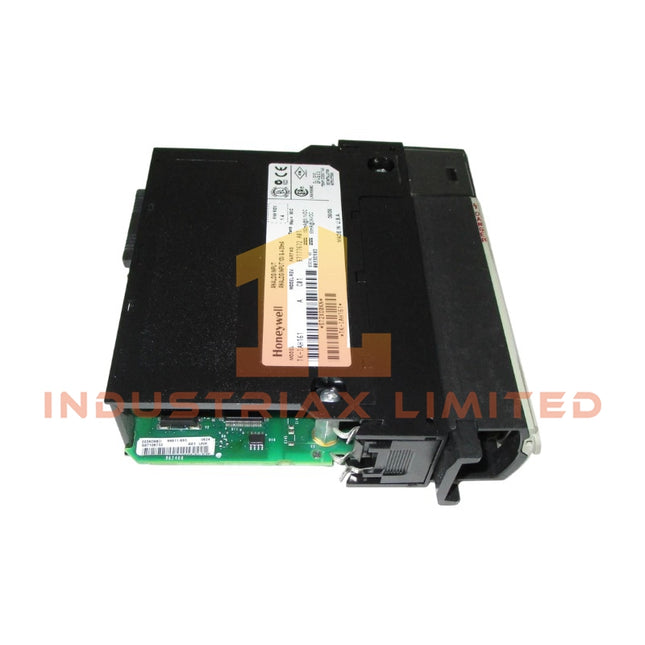

Honeywell TK-IAH161 | Honeywell | Analog Input Module
Honeywell TK-IAH161 Analog Input Module Configured for 4-20 mA signal acquisition in Honeywell Experion PKS C300 systems, the Honeywell TK-IAH161 (TK-IAH161 Analog Input Module) provides direct physical and electrical execution for 16 channel process measurement interfaces. Hardware Specifications Parameter Specification Model TK-IAH161 Brand Honeywell Product Type High Level Analog Input Module Origin USA Weight 0.2 kg Dimensions 3.5 x 14.2 x 14.5 cm Operating Temp 0 deg C to +60 deg C Power Consumption Max 5 W Number of Channels 16 channels Input Signal 4-20 mA Input Type High level analog input Communication Protocol HART ADC Resolution 16-bit Input Impedance 250 ohm nominal System Compatibility Honeywell Experion PKS / C300 Controller Isolation Channel-to-system electrical isolation Mounting Interface Honeywell I/O chassis with compatible FTA 4-20 mA HART Process Signal Interface The Honeywell TK-IAH161 processes standard 4-20 mA field signals from smart transmitters and provides HART communication capability for digital device information exchange. The module supports simultaneous analog measurement and HART data access, allowing configuration parameters, diagnostics, and secondary variables to be transferred through the same field loop. Moreover, the module applies channel-to-channel isolation techniques to reduce electrical interference between independent measurement circuits. The input architecture supports connection with process transmitters including pressure, temperature, flow, and level instruments within Experion PKS control environments. Frequently Asked Questions Q: Does the TK-IAH161 support HART communication through the analog input channel?A: Yes. The module supports HART communication over the 4-20 mA input loop, allowing access to transmitter diagnostics and digital parameters. Q: How many analog input points are provided by the TK-IAH161 module?A: The module provides 16 analog input channels for high level current signal measurement. Q: What system platform is required for TK-IAH161 operation?A: The module is designed for integration with Honeywell Experion PKS systems using C300 controller hardware and compatible I/O assemblies. Field Installation Guidelines Install the module in the designated Honeywell I/O chassis position and verify correct mechanical engagement before applying power. Use shielded field wiring for analog signal connections where electrical noise may affect measurement accuracy. Connect cable shields according to the site grounding standard to minimize electromagnetic interference. Separate analog signal wiring from high voltage and high current power cables during cabinet installation. Verify transmitter loop polarity and signal range before commissioning the input channels. Confirm FTA and terminal assembly compatibility before replacing or installing the module.
$200.00 $100.00
-

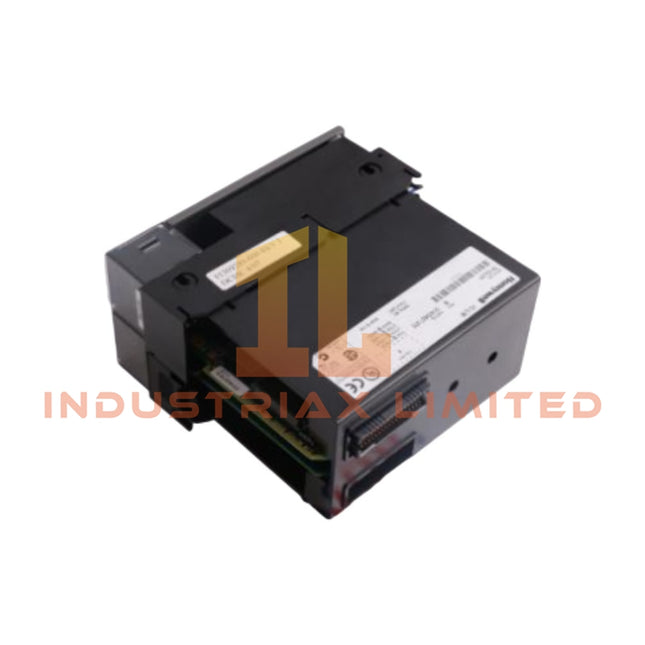

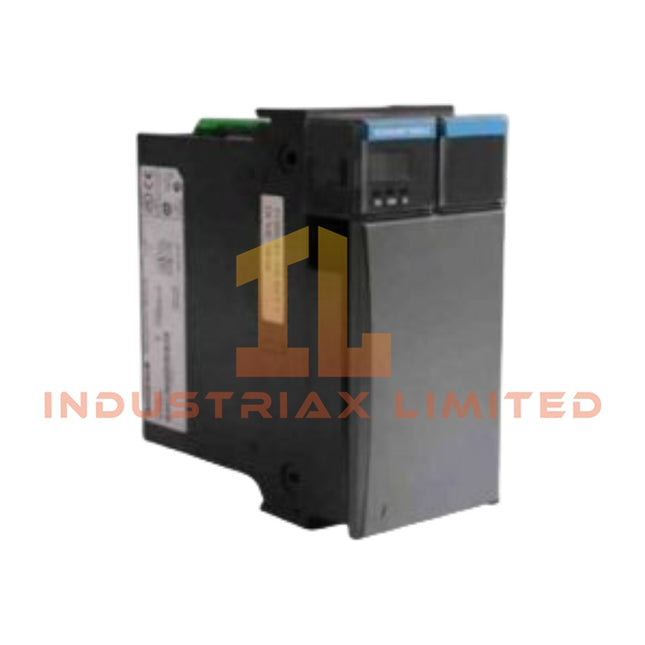

Honeywell Honeywell TK-PRS021 Control Processor Module
Honeywell TK-PRS021 Control Processor Module Configured for control execution and processing tasks in the Honeywell Experion PKS C200 system, the Honeywell TK-PRS021 51404305-275 (TK-PRS021 Control Processor Module) provides direct processor-level control functions for C200 controller architectures. Hardware Specifications Parameter Specification Model TK-PRS021 51404305-275 Brand Honeywell Product Type Control Processor Module System Platform Experion PKS C200 Function Control processor execution module Power Supply 24 VDC Conformal Coating Yes Origin USA Weight 0.4 kg Dimensions 7 x 14 x 14.5 cm (shipping size) Operating Temp Not specified Power Consumption Not specified Tariff Code 8537101190 Spare Model 51404305-275 Process Control Interface and DCS Module Characteristics The TK-PRS021 is designed for Honeywell Experion PKS C200 controller assemblies and performs processor-level execution of configured control strategies. The module interfaces with the C200 controller backplane for internal communication and coordinated processing of controller functions. For Honeywell process control architectures, module-level design considerations include channel-to-channel isolation practices, analog signal integrity management, and compatibility with field communication standards such as 4-20 mA HART loop protocol and FOUNDATION Fieldbus / Profibus PA connectivity when implemented through associated I/O interfaces. The conformal coating specification provides additional protection for electronic assemblies against environmental contaminants encountered in industrial control cabinets. Installation should maintain proper cabinet grounding, shielding, and airflow conditions according to the Experion PKS hardware configuration requirements. Frequently Asked Questions Q: Is the TK-PRS021 configured as an independent standalone controller?A: No. The TK-PRS021 is a Control Processor Module intended for installation within the Honeywell Experion PKS C200 controller architecture and operates as part of the controller assembly. Q: Does the TK-PRS021 support direct field wiring connections?A: No. The module performs processor functions and communicates through the controller backplane. Field signal connections are handled through compatible I/O modules. Q: What installation considerations apply to the conformal coated version?A: The module should be installed in a compatible chassis with correct backplane engagement, proper grounding, and controlled cabinet environmental conditions. Specific operating limits should follow Honeywell Experion PKS installation documentation. Field Installation Guidelines Install the TK-PRS021 only in the designated Honeywell C200 controller chassis position. Verify backplane connector alignment before insertion to prevent mechanical damage. Confirm cabinet grounding continuity before connecting the controller assembly. Maintain separation between signal wiring, power wiring, and high-noise electrical sources. Use appropriate cable shielding and grounding methods for connected process control networks. Follow Honeywell Experion PKS engineering documentation for firmware compatibility and controller configuration procedures.
$200.00 $100.00
-

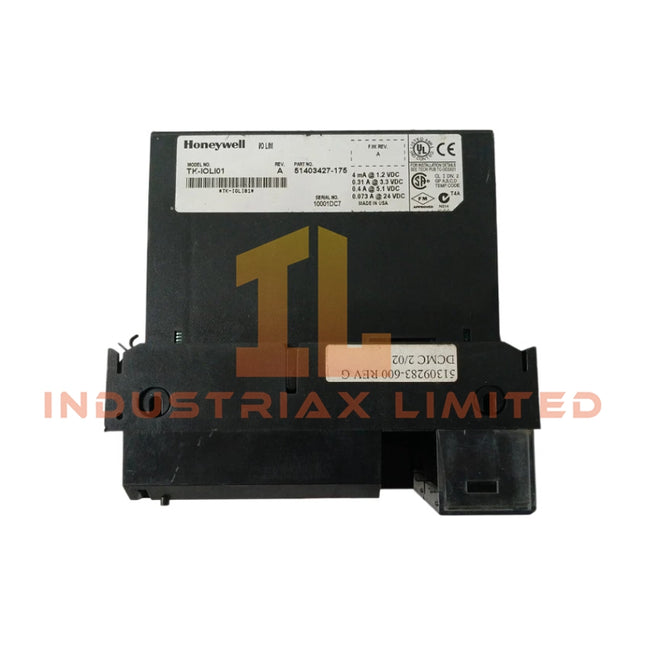

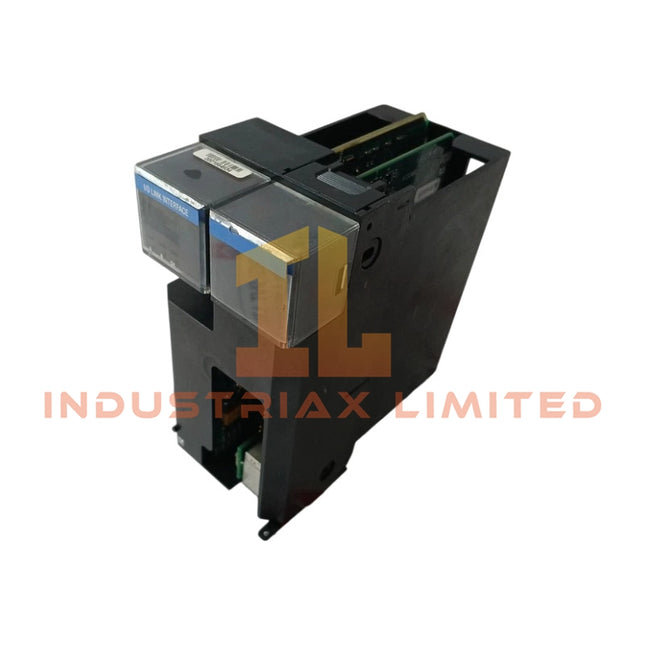

Honeywell Honeywell TK-IOLI01 I/O Module
Honeywell TK-IOLI01 I/O Module Configured for direct I/O signal interface execution in Honeywell PMIO systems, the Honeywell TK-IOLI01 51403427-175 (TK-IOLI01 I/O Module) provides direct physical/electrical execution between process I/O interfaces and the control system architecture. Hardware Specifications Parameter Specification Model TK-IOLI01 51403427-175 / 51309283-600 Brand Honeywell Product Type I/O Module / IOLIM (I/O Link Module) System Compatibility Honeywell PMIO Interface Origin USA Weight 0.4 kg Dimensions 7 x 14 x 14.5 cm (estimated shipping size) Operating Temp Not specified Power Supply 24 VDC +/-10% Power Consumption 250 mA @ 24 VDC Isolation Voltage 1500 V AC Surge Protection +/-4 kV line to ground Spare Model 51403427-275 Tariff Code 8537101190 Process Control Signal Interface Characteristics The TK-IOLI01 functions as an I/O Link Module (IOLIM) interface for PMIO architectures, providing the electrical connection between field-level I/O hardware and Honeywell control processing equipment. For Honeywell process control environments, module-level signal integrity considerations include channel-to-channel isolation practices, field wiring separation, and compatibility with analog and digital process interface standards. The module design supports controlled signal transfer while maintaining specified electrical isolation between system interfaces. Frequently Asked Questions Q: What is the primary function of the Honeywell TK-IOLI01 module?A: The TK-IOLI01 is an I/O Link Module (IOLIM) used as an interface component for PMIO systems, providing physical electrical connection between I/O hardware and the control system. Q: What power supply is required for the TK-IOLI01?A: The module requires a 24 VDC supply with an operating tolerance of +/-10% and has a specified input current of 250 mA at 24 VDC. Q: Does the TK-IOLI01 provide electrical protection features?A: The module includes surge protection rated at +/-4 kV line to ground and an isolation voltage rating of 1500 V AC. Field Installation Guidelines Install the module in accordance with the Honeywell PMIO system hardware configuration requirements. Verify that the 24 VDC power supply polarity and voltage level match the module specifications before energizing the circuit. Route field signal wiring separately from high-voltage power conductors to reduce electrical interference. Maintain proper cable shielding and grounding practices according to the plant electrical installation standard. Confirm connector seating and mechanical mounting integrity before system commissioning. Inspect surge protection and isolation requirements when integrating the module into existing control cabinets. Follow Honeywell hardware documentation for module replacement, wiring termination, and system verification procedures.
$200.00 $100.00
-

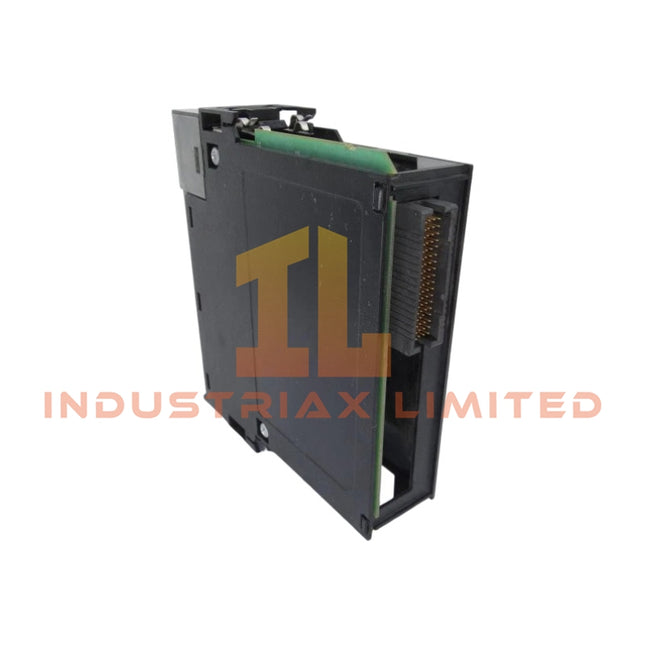

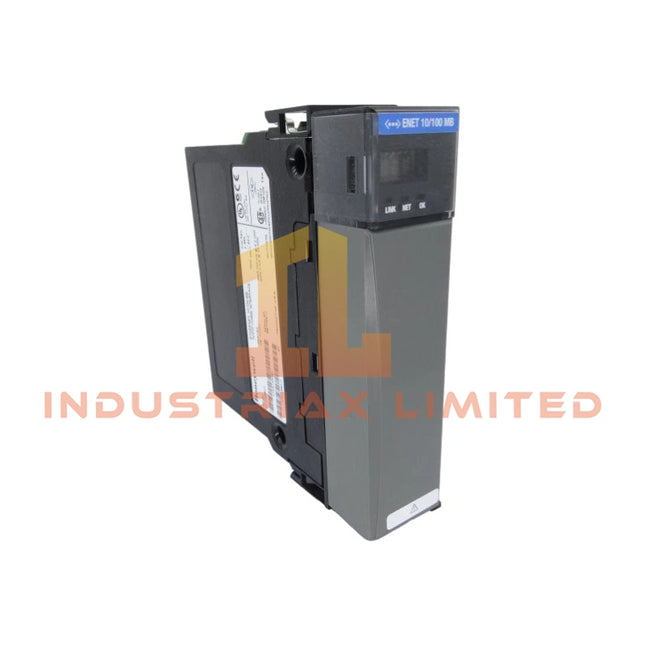

Honeywell Honeywell TC-CEN021 Control Network Ethernet Module
Honeywell TC-CEN021 Control Network Ethernet Module The Honeywell TC-CEN021, also cataloged as the TC-CEN021 Control Network Ethernet Module, operates as a dedicated hardware component for Ethernet communication execution within Honeywell Experion PKS C300 controller network systems. Hardware Specifications Parameter Specification Model TC-CEN021 Brand Honeywell Origin USA Product Type Control Network Ethernet Module System Compatibility Honeywell Experion PKS C300 Controller Platform Communication Interface Ethernet / Fault Tolerant Ethernet (FTE) Data Transfer Rate 10/100 Mbps auto-negotiating Ethernet Network Function FTE communication interface for C300 controllers Mounting Type C300 controller chassis / rack mounting Dimensions Standard Honeywell C300 single-slot module format Weight Approx. 0.45 kg Operating Temp 0 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95% RH, non-condensing Power Consumption Approx. 5 W to 8 W Communication Protocol Honeywell Fault Tolerant Ethernet (FTE) Process Control Network Interface Characteristics The TC-CEN021 provides Ethernet network connectivity between Experion PKS C300 controllers and the FTE communication infrastructure. The module handles controller-side network access, Ethernet frame transmission, and redundant communication path management within the Honeywell control architecture. The module is designed for integration with Honeywell process control hardware where deterministic network communication and controller data exchange are required. Installation is performed through the C300 controller chassis arrangement, providing direct access to the controller communication backplane and external Ethernet network interface. Channel Isolation and Field Communication Considerations Honeywell control modules require proper signal segregation and grounding practices when connected to industrial communication networks. The TC-CEN021 installation should maintain separation between Ethernet communication wiring and high-voltage power conductors to reduce electromagnetic interference. For systems containing field instrumentation connected through Honeywell I/O modules, channel-to-channel isolation requirements must be verified at the connected I/O hardware level. The TC-CEN021 itself functions as a network communication component and does not provide analog measurement functions, HART loop processing, or field signal conversion. Frequently Asked Questions Q: Is the TC-CEN021 a standalone Ethernet switch module?A: No. The TC-CEN021 is a Control Network Ethernet Module designed for Experion PKS C300 controller communication and FTE network connectivity. Q: Does the TC-CEN021 support direct field instrument connections?A: No. The module provides controller network communication only. Field devices require compatible Honeywell I/O modules or communication interfaces. Q: Can the TC-CEN021 operate outside an Experion PKS C300 architecture?A: The module is designed specifically for Honeywell C300 controller systems. Compatibility should be verified against the installed Experion PKS hardware configuration and firmware environment. Field Installation Guidelines Install the TC-CEN021 in the designated Honeywell C300 controller chassis position according to the system hardware configuration. Verify chassis power availability and backplane connection integrity before module insertion. Use shielded Ethernet cabling where required by the plant network design and maintain proper cable routing practices. Separate communication cables from high-current power lines and sources of electromagnetic interference. Confirm FTE network addressing, redundancy configuration, and controller communication parameters during system commissioning. Follow Honeywell Experion PKS hardware installation manuals for grounding, module handling, and firmware compatibility procedures.
$200.00 $100.00
-

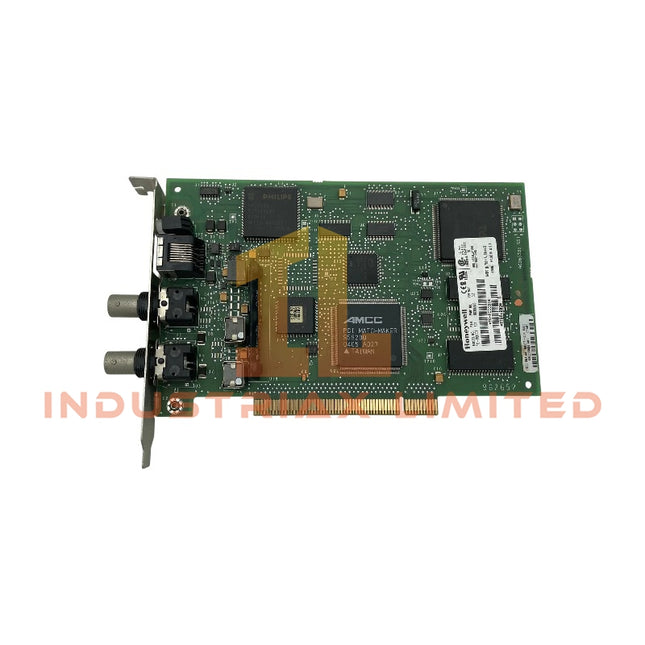

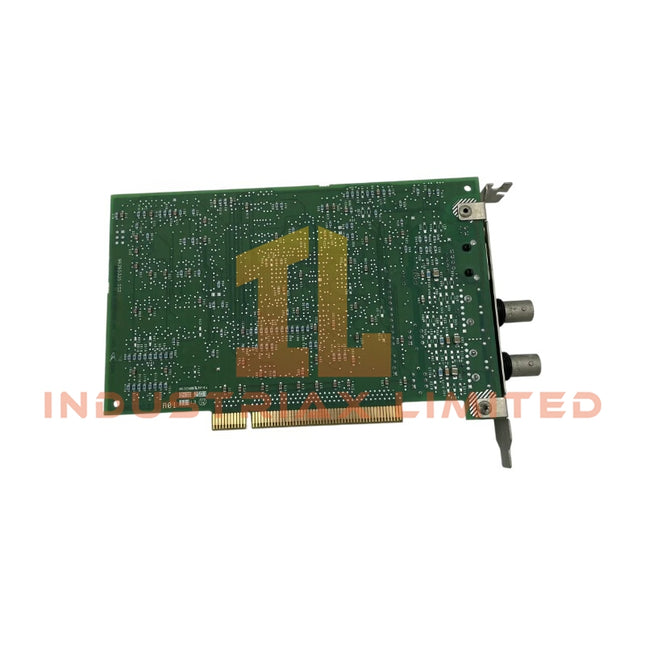

Honeywell TC-PCIC01K | ControlNet PCI Communication Interface Card | Honeywell
Honeywell TC-PCIC01K ControlNet PCI Communication Interface Card The Honeywell TC-PCIC01K, also cataloged as the TC-PCIC01K ControlNet PCI Communication Interface Card, operates as a dedicated hardware component for PCI-based host communication with ControlNet networks within Honeywell Experion PKS and PlantScape system platforms. Hardware Specifications Parameter Specification Model TC-PCIC01K Brand Honeywell Product Type ControlNet PCI Communication Interface Card Network Interface ControlNet coaxial network interface Bus Interface 32-bit PCI bus Connectors Dual BNC connectors for redundant ControlNet channels Communication Rate 5 Mbps Protocol ControlNet scheduled and unscheduled messaging Topology Support Trunkline/dropline, star, and ring configurations through network accessories Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 5% to 95% non-condensing Weight 0.28 kg Dimensions 3.5 x 14 x 17.2 cm (estimated shipping size) Power Consumption PCI bus supplied power; exact consumption not specified Slot Compatibility Standard 32-bit PCI slot, typically 5 V signaling Process Control Network Communication Characteristics The TC-PCIC01K provides PCI-bus communication between an industrial host computer and ControlNet field networks. The interface card transfers scheduled and unscheduled ControlNet messages through coaxial media connections and maintains communication synchronization with connected ControlNet nodes. For Honeywell process control applications, network integration may include interfaces with DCS I/O systems, controller nodes, and supervisory computer platforms. The card supports deterministic ControlNet communication behavior required for cyclic process data exchange. The module architecture is compatible with process instrumentation communication environments where channel-to-channel isolation, controlled signal transmission, and stable network timing are required. The ControlNet physical layer operates independently from analog instrumentation loops such as 4-20 mA HART protocol channels and FOUNDATION Fieldbus segments. Frequently Asked Questions Q: Does the TC-PCIC01K support redundant ControlNet communication media?A: Yes. The interface card provides dual BNC connectors for ControlNet channel A and channel B connections, allowing connection to redundant coaxial ControlNet network segments. Q: Can the TC-PCIC01K be installed in a modern PCI Express slot?A: No. The module is designed for standard PCI bus architecture. A compatible PCI interface is required unless a validated industrial adapter solution is used. Q: Does the TC-PCIC01K require external field power wiring?A: No. The interface card receives operating power through the host PCI bus. External ControlNet coaxial connections provide network communication only. Field Installation Guidelines Install the TC-PCIC01K in a compatible PCI expansion slot within the host industrial computer. Verify PCI slot mechanical compatibility and system hardware requirements before installation. Connect ControlNet coaxial cables to the designated BNC channel connectors according to the network design. Maintain proper cable routing separation between ControlNet coaxial wiring and high-voltage power conductors to reduce electrical interference. Ensure coaxial cable shielding continuity and proper grounding practices throughout the ControlNet installation. Confirm network termination, media connections, and node addressing before placing the communication network into service. Follow Honeywell Experion PKS or PlantScape system configuration procedures for software recognition and network parameter setup.
$200.00 $100.00
-

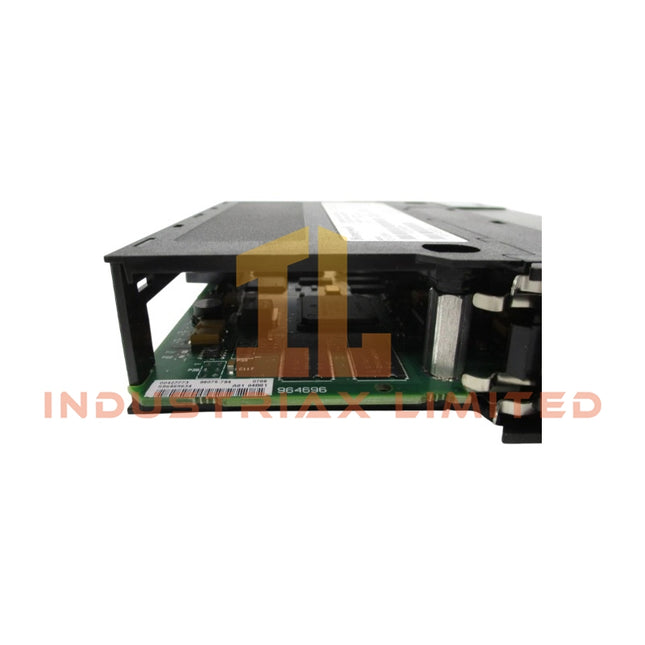

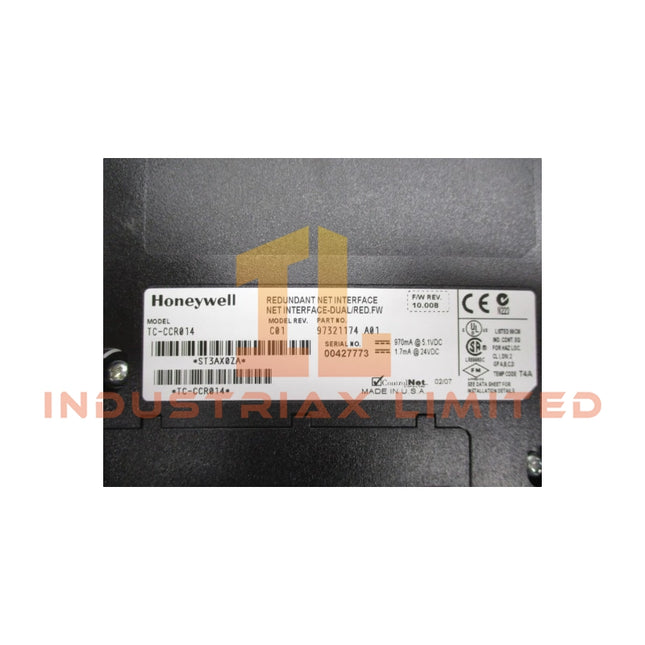

Honeywell Honeywell TC-CCR014 Redundant ControlNet Interface Module
Honeywell TC-CCR014 Redundant ControlNet Interface Module Configured for redundant ControlNet communication in Honeywell Experion PKS systems, the Honeywell TC-CCR014 (TC-CCR014 Redundant ControlNet Interface Module) provides direct physical network interface execution for dual-port industrial communication paths. Hardware Specifications Parameter Specification Model TC-CCR014 Brand Honeywell Product Type Redundant ControlNet Interface Module System Platform Honeywell Experion PKS Communication Network ControlNet Network Interface Dual-port redundant media interface Data Transfer Rate 5 Mbps Redundancy Function Automatic media failover between redundant communication paths Origin Not specified Weight 0.28 kg Dimensions 3.5 x 14 x 17.2 cm (estimated shipping size) Operating Temp Not specified Power Consumption Not specified Input Voltage 24 VDC Mounting Type Industrial control chassis module Channel-to-Channel Isolation and Process Network Interface The TC-CCR014 provides redundant ControlNet communication connectivity between control processors and distributed I/O components. The module operates as a network interface assembly supporting dual communication paths for applications requiring continuous data exchange between Experion PKS control components. The hardware design supports isolated communication channels to minimize electrical interference between network segments. Proper cable shielding, grounding, and separation from high-voltage conductors are required to maintain signal integrity in industrial installations. Frequently Asked Questions Q: What communication protocol is supported by the TC-CCR014?A: The TC-CCR014 is designed for ControlNet communication networks with a nominal data transfer rate of 5 Mbps. Q: Does the TC-CCR014 support redundant network operation?A: Yes. The module provides dual-port redundant network interface capability for redundant ControlNet media configurations. Q: Can the module be installed without considering grounding and cable routing requirements?A: No. Installation requires proper chassis mounting, shield termination, and separation of communication wiring from sources of electrical noise. Field Installation Guidelines Install the TC-CCR014 in the designated Honeywell control chassis position according to the system hardware configuration. Verify that the chassis backplane connection is fully seated before applying system power. Route ControlNet communication cables separately from high-current power wiring and electromagnetic noise sources. Terminate cable shields according to the site grounding standard to reduce communication interference. Confirm redundant network connections are correctly assigned to the intended communication ports before commissioning. Follow Honeywell Experion PKS hardware documentation for configuration, diagnostics, and module replacement procedures.
$200.00 $100.00
-

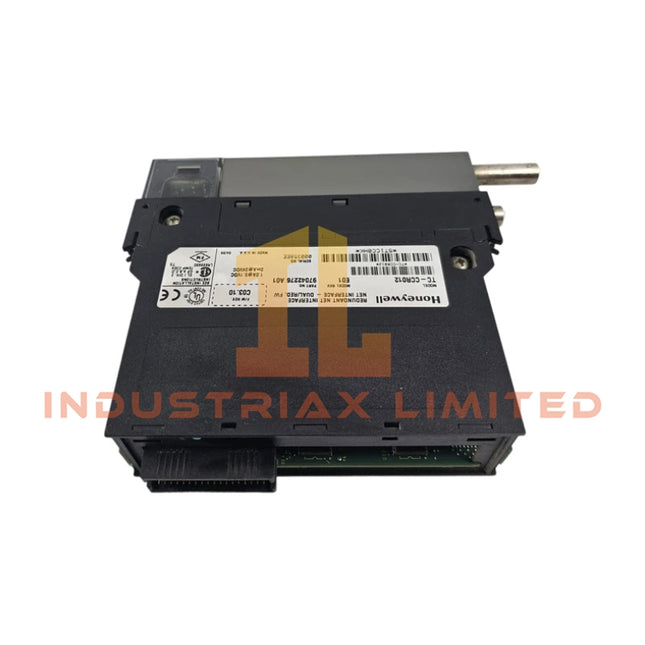

Honeywell TC-CCR012 | Honeywell | Redundant Net Interface Module

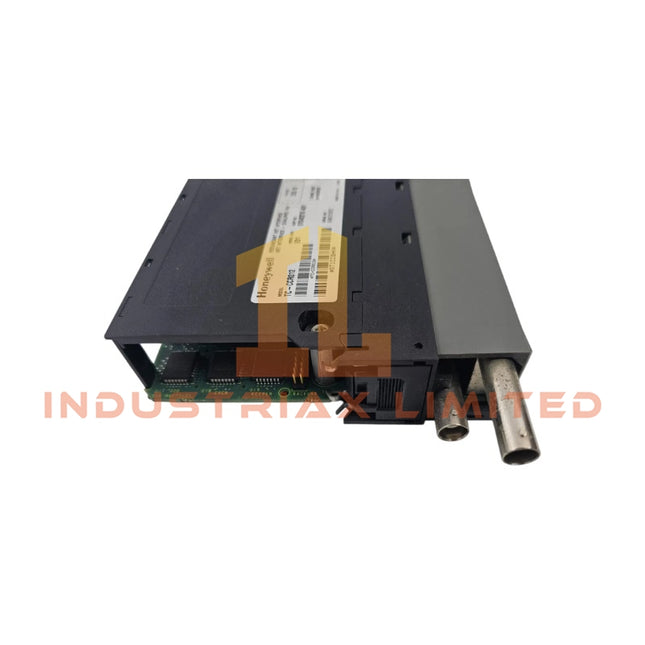

Honeywell TC-CCR012 Redundant Net Interface Module The Honeywell TC-CCR012, also cataloged as the TC-CCR012 Redundant Net Interface Module, operates as a dedicated hardware component for redundant network communication handling within Honeywell control system network platforms. The module provides the physical interface and electrical connection functions required for redundant communication paths. Hardware Specifications Parameter Specification Model TC-CCR012 Brand Honeywell Product Type Redundant Net Interface Module Origin United States Weight 0.3 kg (0 lbs 10.4 oz) Dimensions 1.3 in x 7.0 in x 5.5 in (3.3 cm x 17.8 cm x 14.0 cm) Operating Temp Not specified Power Consumption 24 VDC current draw: 0.002 A; 5 VDC current draw: 1.000 A Tariff Code 8517620050 Network Function Redundant network interface communication Electrical Supply 24 VDC and 5 VDC power inputs DCS Network Communication and Isolation Features The Honeywell TC-CCR012 is designed for redundant network interface operation within Honeywell control architectures. The module provides network path coordination between redundant communication channels and maintains electrical interface functions between system components. For Honeywell process control hardware environments, interface modules are typically integrated with distributed control system communication structures where signal integrity, channel separation, and controlled data exchange are required. The module architecture supports organized network connectivity and system-level redundancy management. The TC-CCR012 is associated with Honeywell process control platforms where communication modules may interface with field control networks, controller backplanes, and I/O subsystems. Channel-to-channel isolation practices and proper grounding methods are required during installation to maintain communication stability. Frequently Asked Questions Q: What is the primary function of the Honeywell TC-CCR012 module?A: The TC-CCR012 functions as a redundant network interface module, providing hardware-level communication interface capability for redundant network connections within Honeywell control systems. Q: What are the specified power requirements of the TC-CCR012?A: The module has a specified current draw of 1.000 A at 5 VDC and 0.002 A at 24 VDC. Q: Does the available documentation specify operating temperature limits or hot-swap capability?A: No operating temperature range or hot-swap limitation data is provided in the available technical information. Installation should follow the applicable Honeywell chassis and system hardware guidelines. Field Installation Guidelines Install the TC-CCR012 in the designated Honeywell control system chassis position according to the system hardware configuration manual. Verify that the chassis power supply ratings support the module current requirements before energizing the system. Use appropriate industrial wiring practices for network connections, including separation from high-voltage power conductors and sources of electrical interference. Connect cable shields according to the system grounding design to reduce electromagnetic interference. Confirm connector seating and mechanical locking mechanisms before applying power. Verify redundant communication paths after installation through system diagnostic functions.
$200.00 $100.00
-

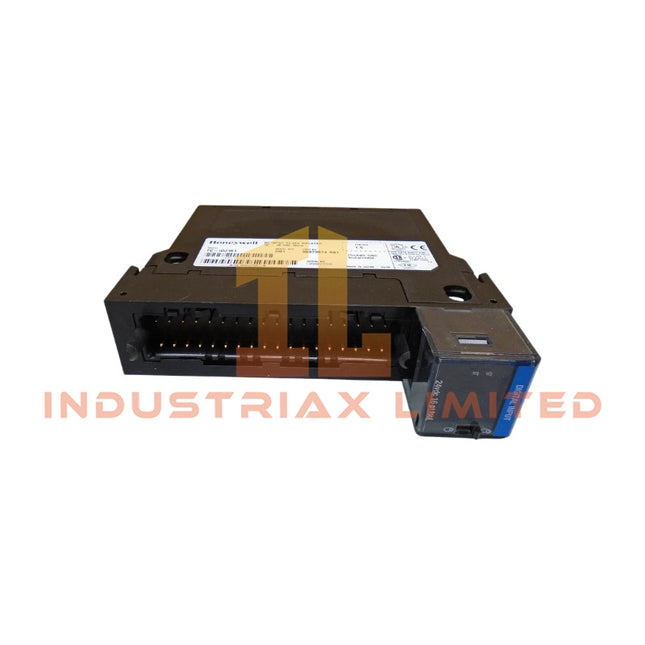

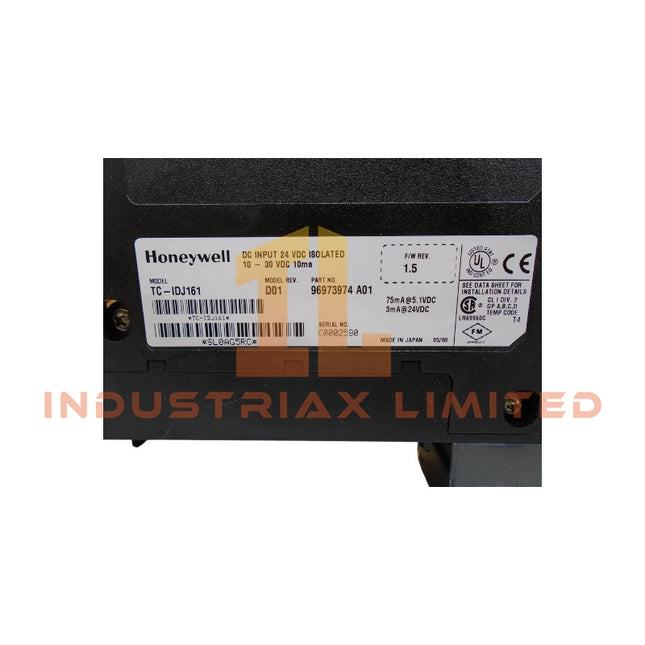

Honeywell Honeywell TC-IDJ161 Digital Input Module
Honeywell TC-IDJ161 Digital Input Module Configured for 24 VDC digital signal acquisition in Honeywell Experion PKS I/O systems, the Honeywell TC-IDJ161 (TC-IDJ161 Digital Input Module) provides direct physical/electrical execution between field switching devices and the control system. Hardware Specifications Parameter Specification Model TC-IDJ161 Brand Honeywell Module Type Digital Input Module Number of Channels 16 channels Input Type Digital input, isolated Nominal Input Voltage 24 VDC Origin Japan Weight 0.2 kg Dimensions 5.8 in x 5.5 in (14.7 cm x 14.0 cm) Operating Temp Not specified Power Consumption Not specified Isolation Type Channel input isolation for field signal separation Mounting Type Honeywell I/O chassis installation Tariff Code 8538907080 Channel-to-Channel Isolation and Process I/O Characteristics The TC-IDJ161 provides isolated digital signal acquisition for discrete field devices connected to Honeywell control platforms. The module accepts 24 VDC switching signals from devices such as limit switches, contact outputs, and field status contacts, converting external electrical states into controller-readable input data. Channel isolation separates field wiring conditions from internal control electronics, reducing the influence of external electrical disturbances between input points. Each input channel supports independent status monitoring through module diagnostic indicators. The module architecture follows Honeywell process control I/O design practices, including structured channel addressing, rack-based communication, and integration with Experion PKS configuration tools. Frequently Asked Questions Q: What type of field signals can the TC-IDJ161 process?A: The TC-IDJ161 processes 24 VDC discrete input signals from field switching devices, including dry contacts and digital status outputs. Q: Does the TC-IDJ161 provide electrical isolation between field inputs and system electronics?A: Yes. The module provides isolated digital input channels designed to separate field-side electrical conditions from internal control circuitry. Q: Can the TC-IDJ161 be installed outside the Honeywell I/O chassis environment?A: No. The module is designed as a rack-mounted Honeywell I/O component and requires installation within the compatible Honeywell chassis system. Field Installation Guidelines Install the TC-IDJ161 in the designated Honeywell I/O chassis slot according to the system hardware configuration. Verify field wiring polarity and 24 VDC signal levels before connecting input terminals. Separate digital input wiring from high-voltage power cables and high-noise switching circuits to reduce electromagnetic interference. Use appropriate shield termination practices where shielded field cables are applied. Confirm channel addressing and module configuration parameters in the Honeywell control system engineering environment before commissioning. Inspect terminal connections for correct mechanical tightening and secure field termination.
$200.00 $100.00
-

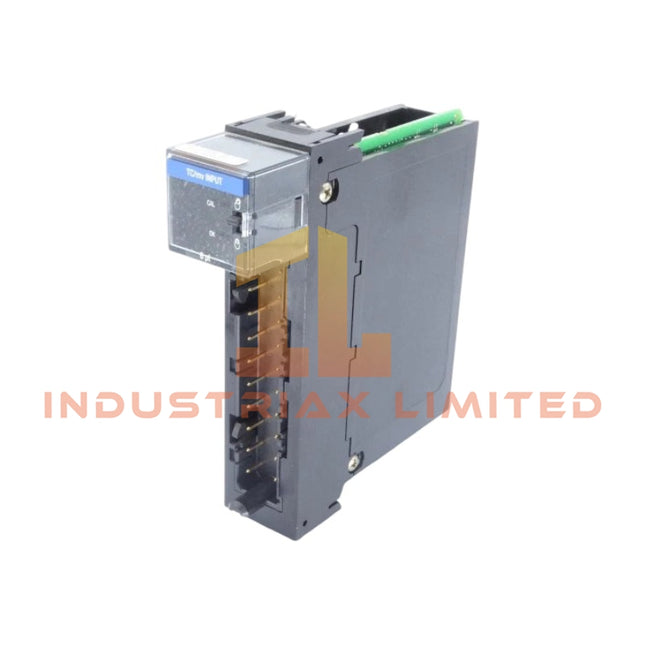

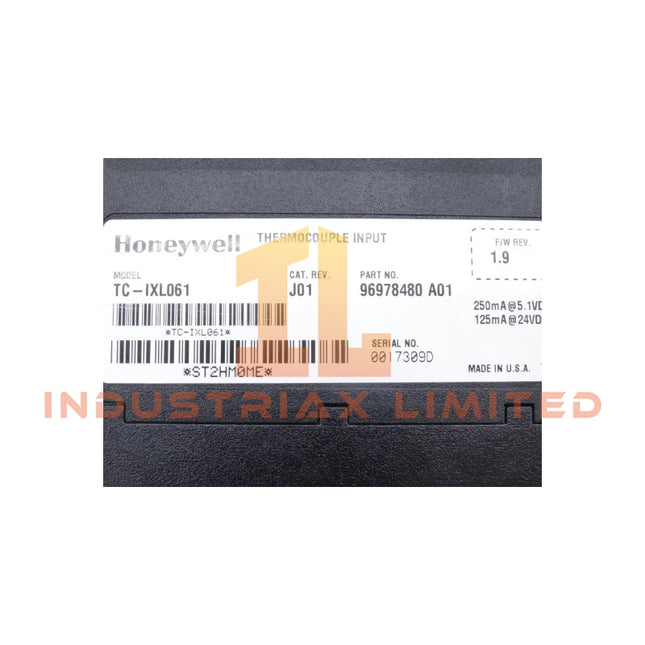

Honeywell Honeywell TC-IXL061 Thermocouple / mV Input Module
Honeywell TC-IXL061 Thermocouple / mV Input Module The Honeywell TC-IXL061, also cataloged as the TC-IXL061 Thermocouple / mV Input Module, operates as a dedicated hardware component for temperature signal acquisition within the Honeywell Experion PKS Chassis I/O system. The module processes thermocouple and millivolt field inputs through isolated analog channels for controller data acquisition. Hardware Specifications Parameter Specification Model TC-IXL061 Brand Honeywell Product Type Thermocouple / mV Input Module System Compatibility Honeywell Experion PKS Chassis I/O Input Channels 6 isolated channels Supported Inputs Thermocouple Types J, K, T, E, R, S, B, N; +/- 100 mV linear inputs A/D Resolution 16-bit Input Impedance > 10 MOhm Accuracy +/- 0.1% of full scale (dependent on input range) Cold Junction Compensation Internal CJC function, typical accuracy +/- 0.5 deg C Isolation Voltage 500 VDC or 1500 VAC channel-to-system Update Rate 100 ms to 500 ms configurable Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 5% to 95% RH non-condensing Power Consumption Approx. 3.5 W to 5 W Weight 0.2 kg (typical module weight) Dimensions Approx. 3.5 x 14.2 x 14.5 cm Origin USA Cold Junction Compensation and Channel Isolation The TC-IXL061 integrates cold junction compensation (CJC) for thermocouple measurement accuracy and supports isolated analog signal processing between field wiring and the Experion PKS controller interface. Channel-to-channel isolation reduces measurement interference caused by ground potential differences and field signal coupling. The module accepts low-level millivolt signals and thermocouple inputs through high impedance analog circuits. Proper shield termination and field cable routing are required to maintain signal integrity in electrically noisy environments. Frequently Asked Questions (FAQ) Q: What input signals can the TC-IXL061 process?A: The module supports thermocouple inputs including Types J, K, T, E, R, S, B, and N, as well as +/- 100 mV linear voltage inputs. Q: Does the TC-IXL061 provide electrical isolation for field signals?A: Yes. The module provides isolated analog input channels to separate field measurement circuits from the controller system interface. Q: Is the TC-IXL061 compatible with Honeywell Experion PKS systems?A: Yes. The module is designed for Honeywell Experion PKS Chassis I/O configurations and is configured through the corresponding control engineering tools. Field Installation Guidelines Install the module in the designated Honeywell Chassis I/O slot according to the system hardware configuration. Verify thermocouple polarity before connecting field wiring to prevent incorrect temperature measurement. Use shielded instrumentation cable for low-level mV and thermocouple signals where required by the installation environment. Connect cable shields according to the site grounding practice to minimize electrical noise coupling. Separate thermocouple and mV signal wiring from high-current power cables and switching circuits. Confirm field sensor type configuration matches the connected thermocouple specification before commissioning. Inspect terminal connections for proper mechanical tightening and secure module seating in the chassis.
$200.00 $100.00
-
Honeywell Honeywell TC-IAH161 High Level Analog Input Module

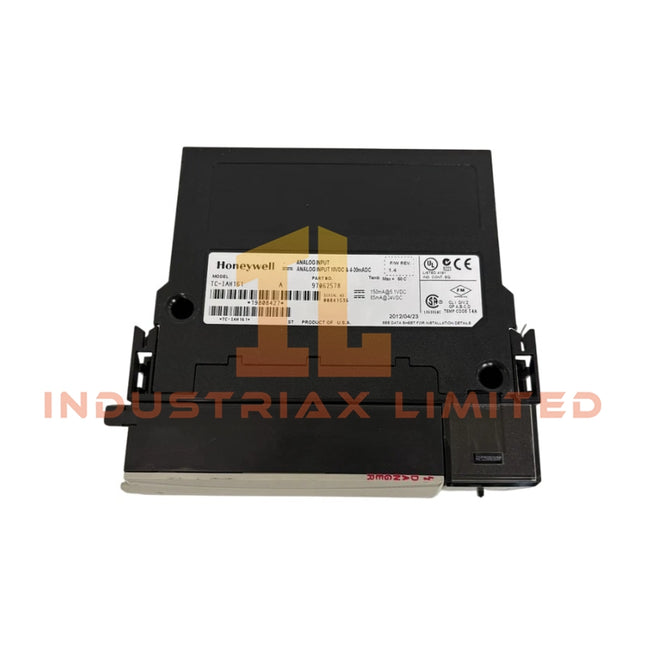

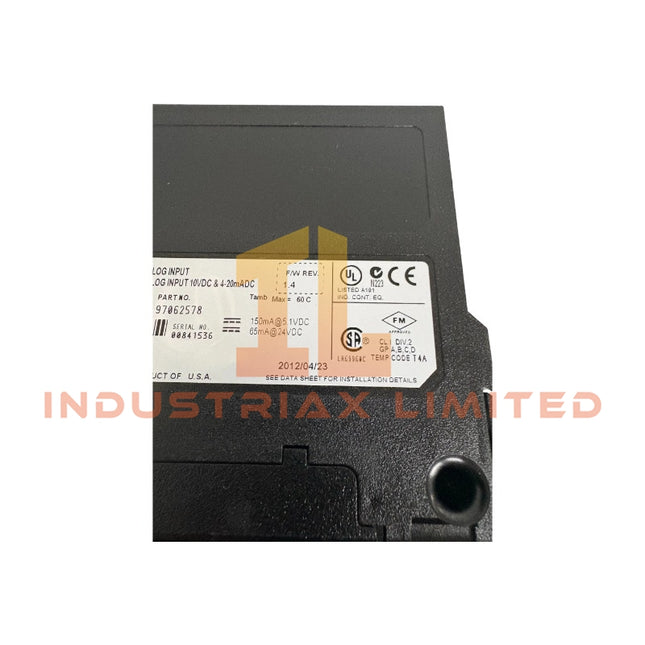

Honeywell TC-IAH161 High Level Analog Input Module The Honeywell TC-IAH161, also cataloged as the TC-IAH161 High Level Analog Input Module, operates as a dedicated hardware component for analog signal acquisition within Honeywell Experion PKS control system platforms. Hardware Specifications Parameter Specification Model TC-IAH161 Brand Honeywell Product Type High Level Analog Input Module Origin USA Weight 0.2 kg Dimensions 3.5 x 14.2 x 14.5 cm (estimated shipping size) Operating Temp Not specified Power Consumption Not specified Input Channels 16 single-ended Input Voltage Range 0-5 V, 0-10 V, +/-5 V, +/-10 V Input Current Range 0-20 mA, 4-20 mA Resolution 16-bit ADC Power Supply 24 VDC +/-10% typical Signal Type Analog voltage and current input Module Publish Rate 250 ms 4-20 mA Loop and Channel Isolation Characteristics The Honeywell TC-IAH161 is designed for high-level analog signal processing in process control applications. The module accepts standard voltage and current input signals, including 4-20 mA transmitter loops and 0-10 V analog outputs. The module architecture supports direct interfacing with field instruments through analog input channels. Channel-to-channel isolation practices should be considered during field wiring to reduce signal interference between independent measurement circuits. For current loop applications, the module can process 4-20 mA signals commonly used with industrial transmitters and control instrumentation. Proper shield termination and separation from high-voltage conductors are required to maintain analog signal integrity. Frequently Asked Questions Q: What type of analog signals can the TC-IAH161 process?A: The TC-IAH161 processes voltage inputs of 0-5 V, 0-10 V, +/-5 V, and +/-10 V, as well as current inputs of 0-20 mA and 4-20 mA. Q: How many input channels are available on the TC-IAH161?A: The module provides 16 single-ended analog input channels. Q: What power supply is required for the module?A: The module operates from a 24 VDC power supply with a typical tolerance of +/-10%. Field Installation Guidelines Install the module in the designated Honeywell control system I/O rack position according to the applicable system hardware configuration. Verify that field wiring polarity matches the configured analog input type before applying power. Use shielded instrumentation cable for low-level analog signals where required by the installation environment. Connect cable shields according to the site grounding practice to minimize electrical noise coupling. Separate analog signal wiring from high-current power conductors and switching circuits. Confirm terminal connections, module addressing, and controller configuration before commissioning. Do not exceed the specified input voltage or current ranges during field operation.
$200.00 $100.00
-

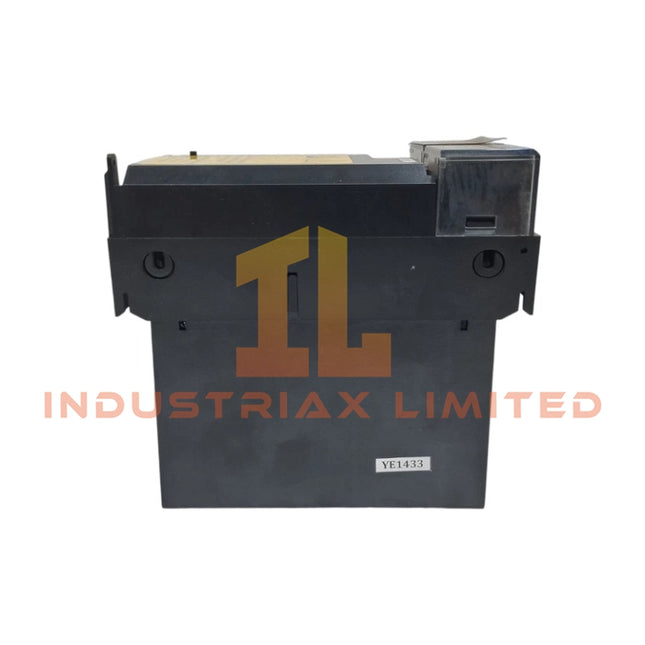

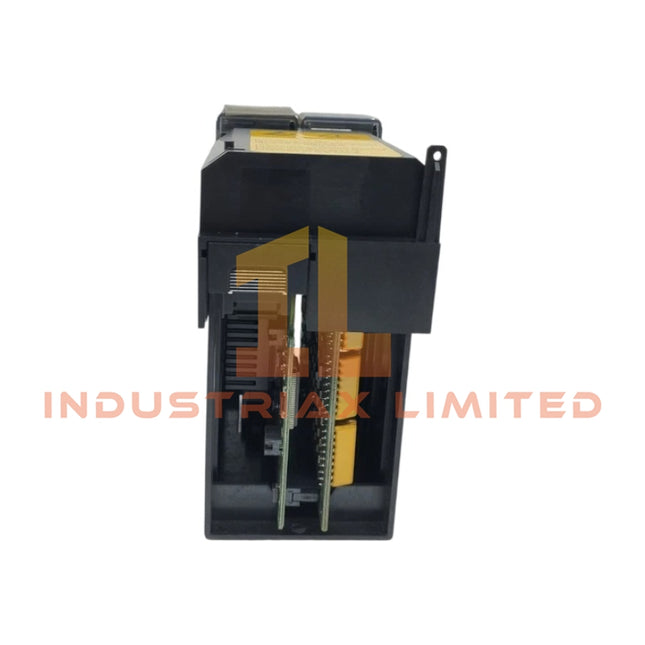

Honeywell TC-PRS021 | Honeywell | Control Processor Module
Honeywell TC-PRS021 Control Processor Module The Honeywell TC-PRS021, also cataloged as the TC-PRS021 Control Processor Module, operates as a dedicated hardware component for control execution and data processing within the Honeywell Experion PKS C200 controller system. Hardware Specifications Parameter Specification Model TC-PRS021 Brand Honeywell Product Type Control Processor Module System Platform Experion PKS C200 Part Numbers 51404305-225, 51404305-325 Controller Type C200 Control Processor Power Supply 24 VDC Origin USA Weight 0.544 kg Processor Function Control logic execution, application processing, and controller communication Installation Type Experion PKS C200 controller chassis DCS Process Control Communication and Signal Handling The Honeywell TC-PRS021 is designed for Experion PKS C200 controller operation, providing the processing resources required for executing configured control strategies and managing controller-level communication tasks. Within the Honeywell DCS architecture, the processor module performs cyclic execution of control applications, handles internal controller data exchange, and coordinates communication between the controller processing layer and connected I/O modules. Honeywell process control systems commonly support field device integration through industrial communication interfaces including 4-20 mA HART loop protocol and FOUNDATION Fieldbus / Profibus PA connectivity at the system level. The TC-PRS021 functions as the controller processing unit responsible for handling application execution data associated with these process interfaces. Frequently Asked Questions (FAQ) Q: What controller platform is the TC-PRS021 designed for?A: The TC-PRS021 is a Control Processor Module designed for the Honeywell Experion PKS C200 controller platform. Q: What power supply voltage is required for the TC-PRS021?A: The module operates with a 24 VDC power supply according to the available product specifications. Q: Can the TC-PRS021 be directly used as an independent I/O module?A: No. The TC-PRS021 is a controller processor module and requires installation within the compatible Experion PKS C200 control system architecture. Field Installation Guidelines Install the TC-PRS021 only in the designated Honeywell Experion PKS C200 controller chassis position. Verify that the controller rack, backplane connection, and power distribution system are compatible before installation. Ensure the 24 VDC supply wiring follows industrial control panel grounding and protection practices. Maintain separation between power wiring and communication wiring to reduce electrical interference. Confirm proper seating of the module connector before applying system power. Use appropriate shielding and grounding practices for connected communication networks. Verify firmware and controller configuration compatibility before commissioning or replacement operations.
$200.00 $100.00
-

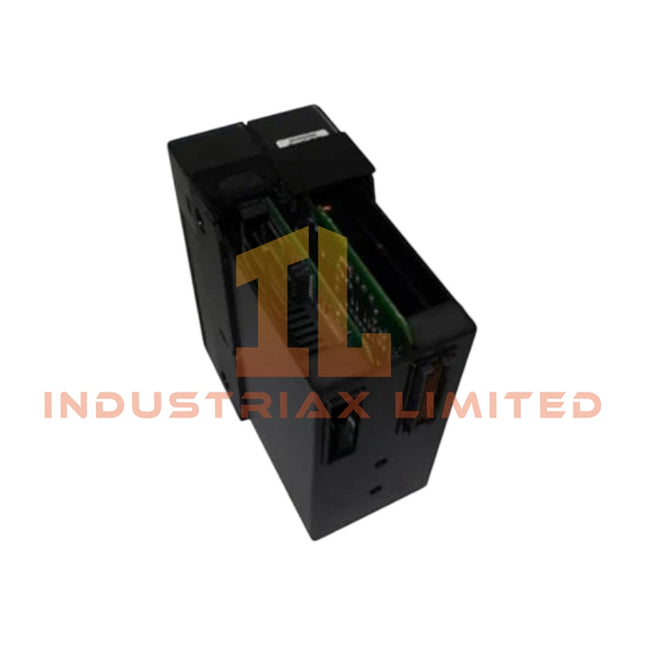

Honeywell TC-IAH161 | Honeywell | High Level Analog

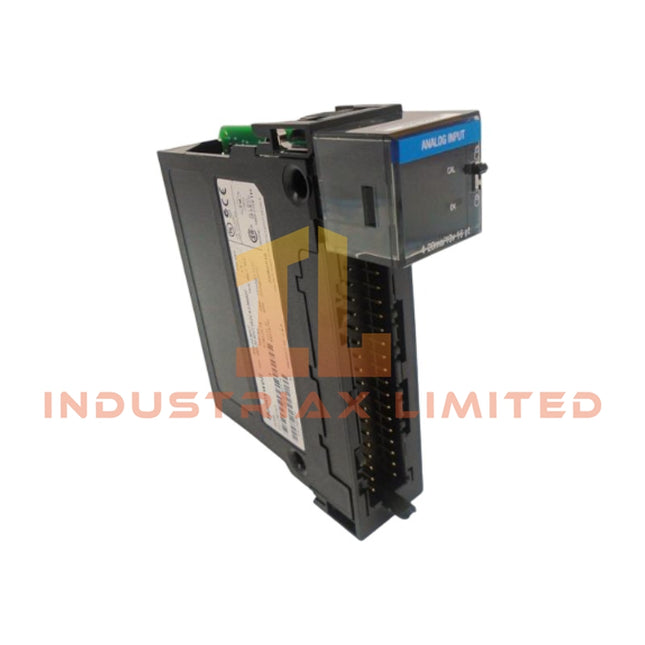

Honeywell TC-IAH161 High Level Analog Module Configured for high level analog signal acquisition in Honeywell control system I/O platforms, the Honeywell TC-IAH161 (TC-IAH161 High Level Analog Module) provides direct physical/electrical execution for voltage and current input measurement across 16 analog channels. Hardware Specifications Parameter Specification Model TC-IAH161 Brand Honeywell Product Type High Level Analog Module Number of Channels 16 input channels Input Voltage Range +/- 10.25 V, 0 to 10.25 V, 0 to 5.125 V Input Current Range 0 to 20.5 mA with internal 250 ohm resistor Voltage Resolution 16 bits across configured input ranges Module Publish Rate 250 msec Input Impedance (Voltage) Greater than 1.0 Mohm Input Impedance (Current) 249 ohm nominal Channel Bandwidth 20 Hz (-3 dB) RFI Immunity Error less than 2.0% of range at 10 V/m, 27 to 1000 MHz Power Consumption 4.1 W maximum Isolation Voltage User to system: tested at 2550 VDC for 1 s Connection Terminal Block TC-TBCH, 36-position terminal block Origin USA Operating Temp Not specified Process Control Analog Signal Interface The TC-IAH161 is designed for analog measurement within Honeywell process control I/O architectures. The module accepts high level voltage and current signals through 16 independent input channels. The 0 to 20.5 mA current input range uses an internal 250 ohm conversion resistor for analog signal conditioning. The module provides channel measurement resolution through a 16-bit analog-to-digital conversion process. Voltage input impedance above 1.0 Mohm minimizes loading effects on connected field devices, while the nominal 249 ohm current input impedance maintains standard industrial analog loop characteristics. For process instrumentation applications, channel-to-channel isolation and signal conditioning functions support separation between field wiring and system electronics. Analog loop integration can be combined with standard 4-20 mA HART field device interfaces when external HART communication components are provided within the control architecture. Frequently Asked Questions Q: Does the TC-IAH161 support direct 4-20 mA signal measurement?A: The module supports a 0 to 20.5 mA input range through an internal 250 ohm resistor, allowing measurement of standard current loop signals including 4-20 mA ranges. Q: What type of terminal connection is required for the TC-IAH161?A: The module connects through a Honeywell TC-TBCH 36-position terminal block for field signal termination. Q: What is the module publish rate for analog input data?A: The TC-IAH161 publishes input data at a rate of 250 msec. Field Installation Guidelines Install the TC-IAH161 in the designated Honeywell I/O rack or termination assembly according to the applicable system hardware configuration. Use shielded instrumentation cable for analog signal wiring where required by the installation environment. Connect cable shields according to the site grounding standard to reduce electromagnetic interference and maintain signal integrity. Separate analog signal wiring from high-voltage power cables and switching circuits to minimize induced noise. Verify field device signal polarity, voltage range selection, and current loop wiring before applying system power. Ensure the TC-TBCH terminal block connections are fully seated and that all field wiring terminals are mechanically secured before commissioning.
$200.00 $100.00
-

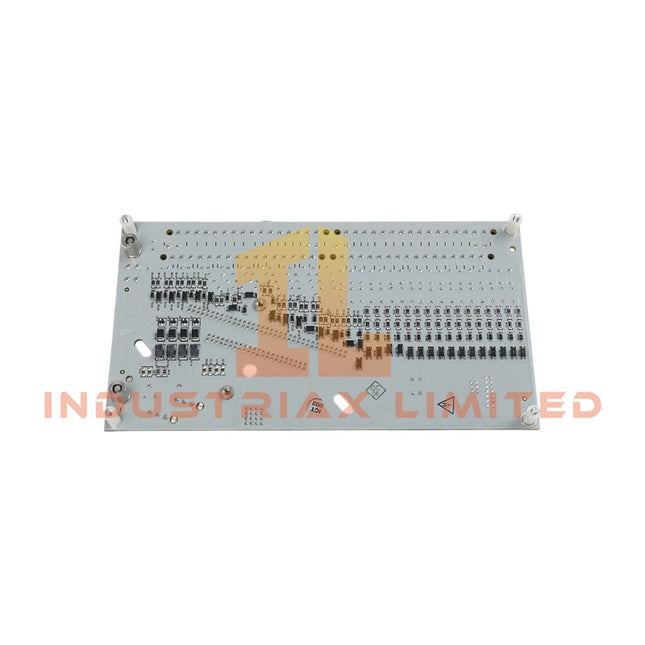

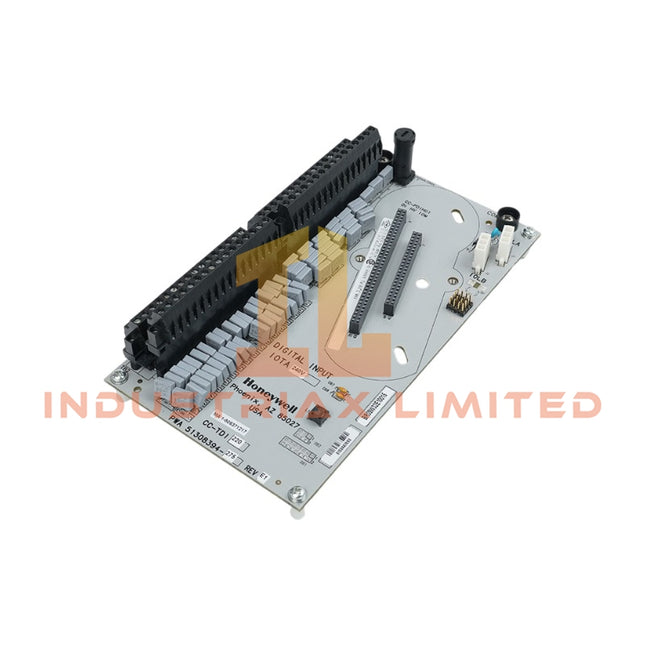

Honeywell Honeywell CC-TDI220 51308394-275 Digital Input Module
Honeywell CC-TDI220 51308394-275 Digital Input Module The Honeywell CC-TDI220 51308394-275, also cataloged as the CC-TDI220 Digital Input Module, operates as a dedicated hardware component for processing 220 VAC discrete field input signals within Honeywell control system I/O architectures. Hardware Specifications Parameter Specification Model CC-TDI220 51308394-275 Brand Honeywell Product Type Digital Input Module Origin USA Weight 0.35 kg Dimensions 22 x 12 x 6.5 cm Operating Temp Not specified Power Consumption Sense current: 1.11 mA RMS Input Type 220 VAC Digital Input Module Configuration NonRedundant Nominal Voltage 240 VAC Digital Input Power Range 180-264 V AC RMS Pick Up Voltage 180 VAC RMS Drop Out Voltage 50 VAC RMS Frequency Range 47-63 Hz Absolute Delay Across Input Filter and Isolation 25 ms maximum Isolation Rating 1500 VAC RMS or +/-1500 VDC Internal Diagnostics Internal diagnostics for data integrity monitoring Tariff Code 8537101190 Shipment Location Xiamen, China Honeywell DCS Signal Integrity and Channel Isolation The CC-TDI220 incorporates electrical input conditioning for high-voltage discrete field signals. The module supports 220 VAC level sensing with defined pickup and dropout thresholds to distinguish field device states. Channel isolation circuitry provides separation between field wiring and internal control electronics. For Honeywell process control environments, I/O modules are typically integrated with DCS signal handling methods including channel-to-channel isolation, loop signal validation, and controlled field interface termination. These characteristics support stable acquisition of binary process states from connected electrical devices. Frequently Asked Questions Q: What type of field signals can the CC-TDI220 process?A: The CC-TDI220 is designed for 220 VAC digital input signals with an operating input range of 180-264 V AC RMS. Q: Does the CC-TDI220 provide electrical isolation between field input and control electronics?A: Yes. The module provides isolation rated at 1500 VAC RMS or +/-1500 VDC between input circuits and internal electronics. Q: Is the CC-TDI220 configured as a redundant input module?A: No. The provided specification identifies the module configuration as NonRedundant. Field Installation Guidelines Install the module within the designated Honeywell I/O termination and control hardware assembly according to the applicable system installation manual. Verify field wiring polarity and voltage level before connecting 220 VAC discrete input circuits. Maintain separation between high-voltage field wiring and low-level instrumentation signal cables to reduce electrical interference. Connect cable shields according to the site grounding standard and avoid creating unintended ground loops. Confirm terminal connections are mechanically secured before system commissioning. Verify input state transitions after installation by applying known field conditions and checking corresponding controller status feedback.
$200.00 $100.00
-

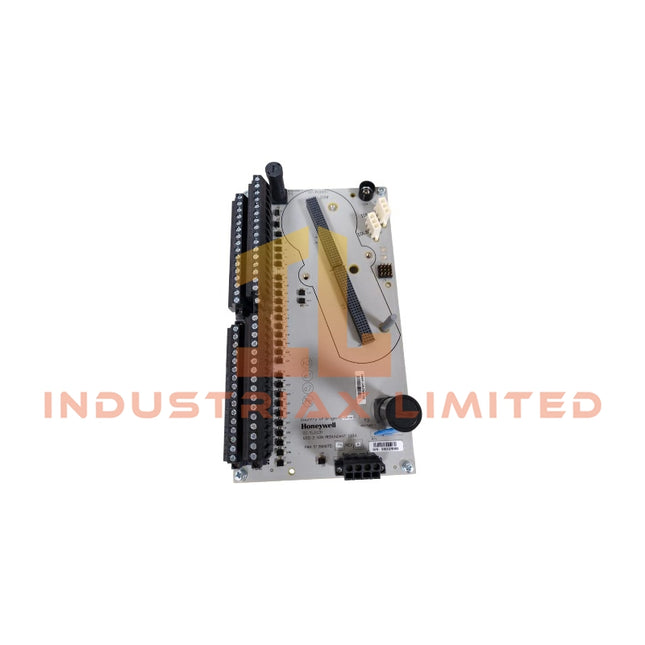

Honeywell Honeywell CC-TUIO31 Universal Input Output IOTA

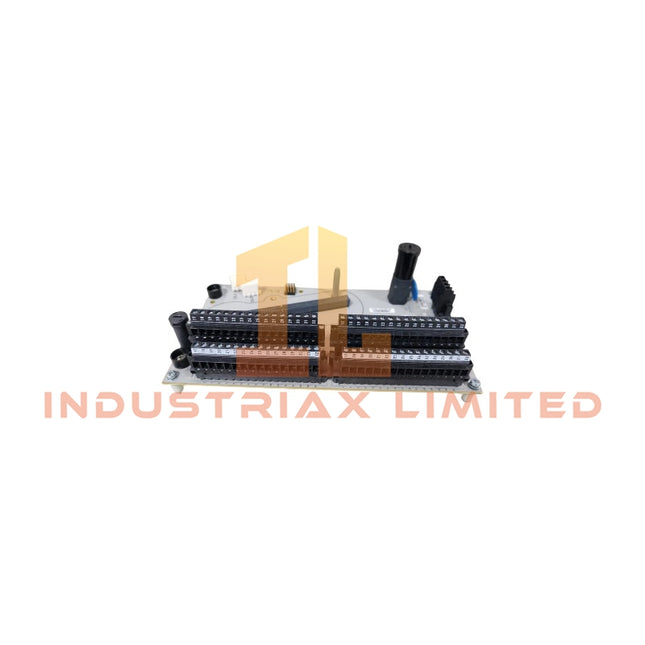

Honeywell CC-TUIO31 Universal Input Output IOTA Configured for universal field signal termination and analog I/O execution in Honeywell Experion PKS control platforms, the Honeywell CC-TUIO31 (CC-TUIO31 Universal Input Output IOTA) provides direct physical and electrical interface functions for current input devices and configurable analog/digital output channels. Hardware Specifications Parameter Specification Model CC-TUIO31 Brand Honeywell Product Type Universal Input Output IOTA Origin USA Weight 0.36 kg Dimensions 5.5 x 16 x 14.5 cm Operating Temp -40 to +70 deg C module ambient Power Consumption Not specified Input Type Current input for 2, 3, or 4 wire devices Input Range 0-20 mA or 4-20 mA A/D Converter Resolution 16 bit Input Scan Rate 10 ms Channel Configuration Any 4 channels Frequency Input Range 0-15 kHz Normal Mode Rejection Ratio 18 dB at 50 Hz, 20 dB at 60 Hz Crosstalk (DC to 60 Hz, channel-to-channel) 60 dB Output Protection Electronic short circuit protection Analog Communication Support HART 7 HART Interface HART modem per channel for fast performance Scan Function Fast Scan (Priority I/O Module Scan) Safe State Function Configurable FAILOPT behavior for Digital / Analog Output channels Tariff Code 8537101190 4-20 mA HART Loop Protocol and Channel Isolation Features The CC-TUIO31 is designed for process instrumentation signal handling within Honeywell control architectures. The module supports 4-20 mA current loops with HART 7 communication capability, allowing analog measurement signals and device diagnostic communication to be processed through the same field wiring interface. Channel-to-channel crosstalk performance is specified at 60 dB from DC to 60 Hz. The module provides configurable channel behavior for analog and digital output safe-state handling, with electronic short circuit protection applied to output circuits. The input subsystem uses a 16 bit A/D converter with a 10 ms input scan rate, supporting configurable field device connections including 2 wire, 3 wire, and 4 wire current devices. Frequently Asked Questions Q: What type of field signals can the CC-TUIO31 process?A: The CC-TUIO31 processes current-based field signals using 0-20 mA or 4-20 mA input ranges and supports 2 wire, 3 wire, and 4 wire device configurations. Q: Does the CC-TUIO31 support HART communication?A: Yes. The module supports HART 7 communication through a dedicated HART modem per channel for analog I/O device communication. Q: How are output fault conditions handled by the module?A: Digital and analog output channels support configurable FAILOPT safe-state behavior, and output circuits include electronic short circuit protection. Field Installation Guidelines Install the CC-TUIO31 according to Honeywell Experion PKS I/O assembly installation procedures and approved cabinet layouts. Verify field wiring polarity and terminal assignments before applying power to the I/O assembly. Use shielded instrumentation cable for analog current loops where required by site electrical standards. Connect cable shields according to the plant grounding specification to minimize electromagnetic interference. Separate analog signal wiring from high-current power conductors and switching circuits. Confirm that connected field devices match the configured 2 wire, 3 wire, or 4 wire current input arrangement. Validate HART communication wiring integrity when using smart field transmitters.
$200.00 $100.00
-

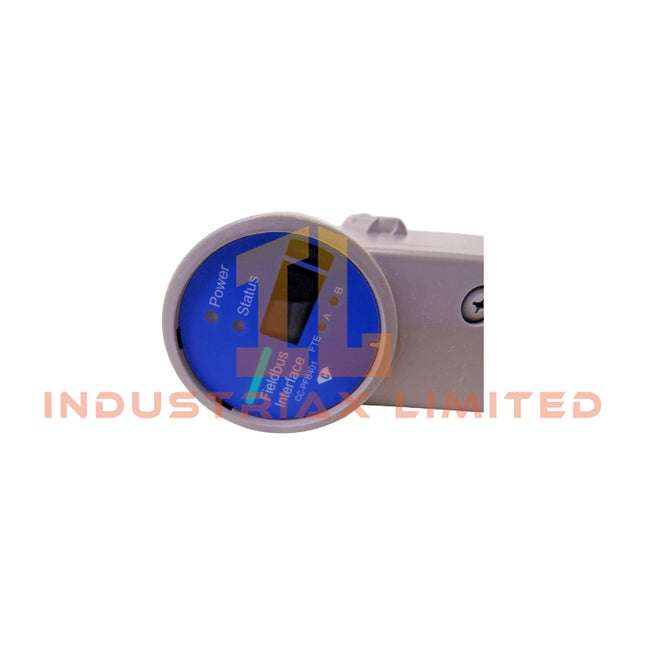

Honeywell Fieldbus Interface Module | CC-PFB401 51405044-176 | Honeywell

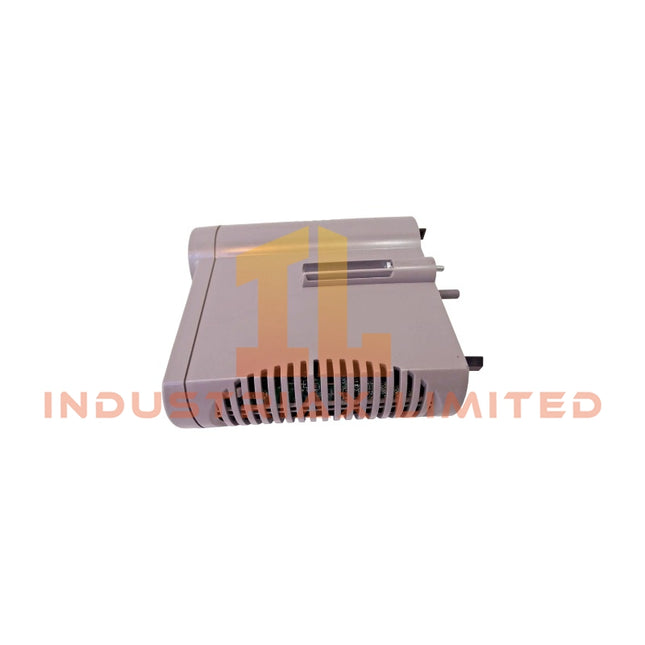

Honeywell CC-PFB401 Fieldbus Interface Module The Honeywell CC-PFB401 51405044-176, also cataloged as the CC-PFB401 Fieldbus Interface Module, operates as a dedicated hardware component for FOUNDATION Fieldbus H1 communication within the Honeywell Experion PKS C300 controller system. Hardware Specifications Parameter Specification Model CC-PFB401 Brand Honeywell Part Number 51405044-176 Product Type Fieldbus Interface Module (FIM) System Platform Honeywell Experion PKS C300 Communication Protocol FOUNDATION Fieldbus H1 Communication Rate 31.25 kbps H1 Interface Supports FOUNDATION Fieldbus H1 links according to system configuration Mounting Type Experion C300 I/O Input Output Termination Assembly (IOTA) Hot Swap Support Supported within compatible Experion PKS configurations Redundancy Support Supported in configured redundant architectures Conformal Coating Yes Weight 0.44 kg Dimensions 6.1x16.2x14.6cm Operating Temp Not specified in provided data FOUNDATION Fieldbus and DCS Communication Characteristics The CC-PFB401 provides FOUNDATION Fieldbus H1 connectivity between the Experion PKS C300 controller and connected field instruments. The module manages fieldbus communication traffic for smart transmitters, valves, and other H1-compatible devices. For Honeywell process control applications, the module supports digital field communication functions including device status exchange, parameter access, and diagnostic data transfer through FOUNDATION Fieldbus networks. The design supports process instrumentation architectures requiring channel-to-channel isolation and controlled signal handling between field wiring and controller-level communication. Frequently Asked Questions Q: Does the CC-PFB401 support hot replacement during system operation?A: The module supports hot-swapping when installed in an Experion PKS configuration that provides compatible IOTA and system-level hot replacement functionality. The replacement procedure must follow Honeywell approved maintenance practices. Q: What field communication protocol is supported by the CC-PFB401?A: The CC-PFB401 is designed for FOUNDATION Fieldbus H1 communication with a standard communication rate of 31.25 kbps. Q: Can the CC-PFB401 operate in a redundant controller architecture?A: The module can be configured for redundant operation when used with compatible Experion PKS C300 system hardware and supported redundancy configurations. Field Installation Guidelines Install the CC-PFB401 on the designated Experion PKS C300 IOTA assembly according to the system hardware installation documentation. Verify correct module orientation and secure mechanical engagement with the termination assembly before applying system power. Use shielded fieldbus cabling suitable for FOUNDATION Fieldbus H1 networks. Connect cable shields according to the site grounding design to reduce electromagnetic interference. Separate fieldbus wiring from high-voltage power cables and sources of electrical noise. Confirm field device addressing, bus segment configuration, and communication status after installation. Perform controller diagnostics and fieldbus health checks before placing the module into operational service.
$200.00 $100.00
-

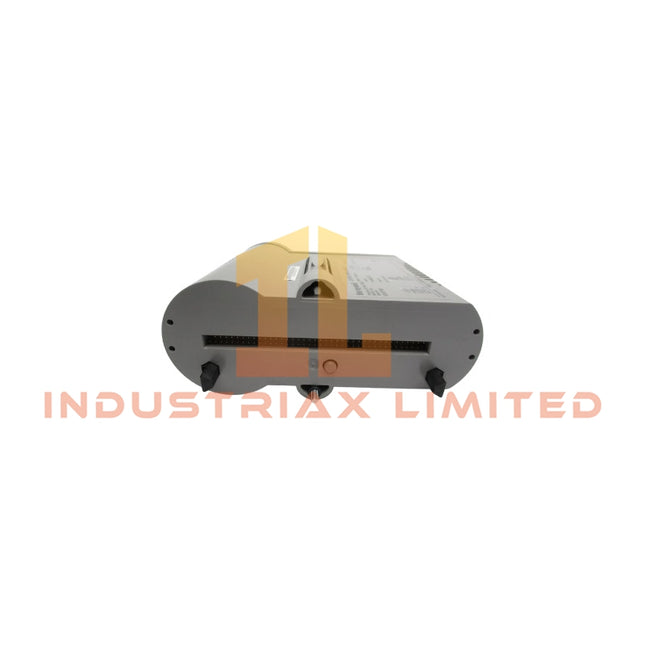

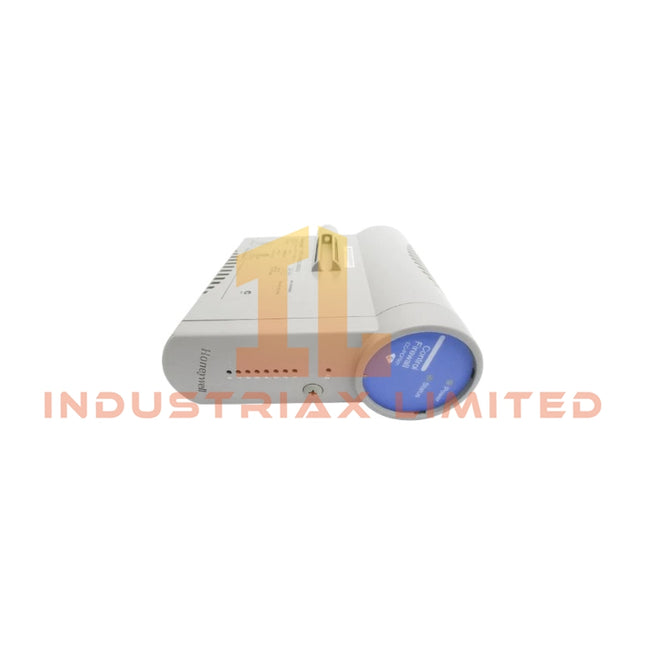

Honeywell FTE Control Firewall Module | CC-PCF901 51405047-175 | Honeywell
Honeywell CC-PCF901 51405047-175 FTE Control Firewall Module The Honeywell CC-PCF901 51405047-175, also cataloged as the CC-PCF901 FTE Control Firewall Module, operates as a dedicated hardware component for Ethernet communication protection and network interface management within Honeywell Experion PKS control system platforms. Hardware Specifications Parameter Specification Model CC-PCF901 51405047-175 Brand Honeywell Product Type FTE Control Firewall Module Origin USA Weight 0.3 kg Dimensions 6 x 15.5 x 14.5 cm Operating Temp 0 deg C to 50 deg C Storage Temp -20 deg C to 70 deg C Humidity 5-95% RH, non-condensing Power Supply Typically 24 VDC Power Consumption Not specified Number of Ports 9 Port Type RS-485 / RS-232 compatible Tariff Code 8537101190 DCS Communication Interface and Signal Isolation Characteristics The CC-PCF901 FTE Control Firewall Module is designed for network interface control within Honeywell process automation architectures. The module provides nine communication ports for controlled data exchange between field control equipment and the FTE network environment. For Honeywell DCS installations, signal integrity considerations include channel-to-channel isolation, controlled communication paths, and proper grounding of communication shields. The module operates as a physical interface component where network segmentation and controlled access are implemented at the hardware level. The device is associated with Honeywell Experion PKS communication structures and supports industrial field network applications requiring defined electrical interfaces and stable serial communication connections. Frequently Asked Questions Q: What is the primary function of the Honeywell CC-PCF901 module?A: The CC-PCF901 is an FTE Control Firewall Module used to manage communication interfaces and provide controlled network connectivity within Honeywell control system installations. Q: What power supply is required for the CC-PCF901?A: The module typically operates from a 24 VDC power supply. Specific cabinet power distribution requirements depend on the installed Honeywell system configuration. Q: Can the CC-PCF901 be installed in any industrial communication network?A: The module is designed for Honeywell control system architectures. Installation should follow the specified Experion PKS hardware configuration and approved network design practices. Field Installation Guidelines Install the CC-PCF901 module inside the designated Honeywell control cabinet or approved equipment enclosure. Verify the 24 VDC supply polarity and grounding before applying power. Route communication cables separately from high-voltage power wiring to reduce electrical interference. Connect communication cable shields according to the cabinet grounding design and industrial EMC practices. Confirm port assignments and network addressing before commissioning. Avoid exceeding the specified environmental operating conditions during installation and operation.
$200.00 $100.00
-

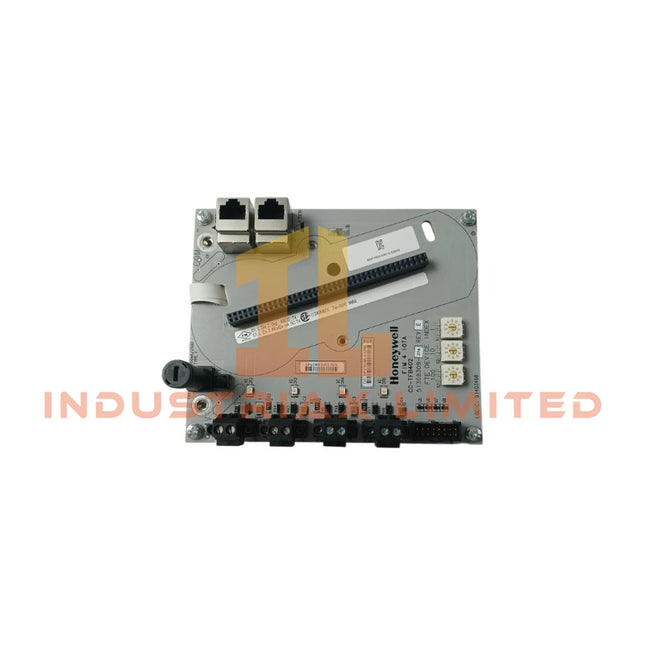

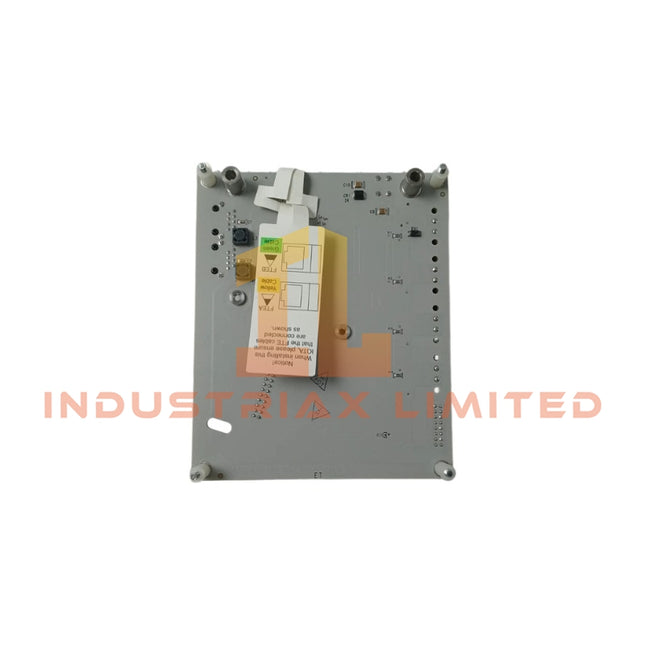

Honeywell Honeywell CC-TFB402 Field Termination Assembly Module
Honeywell CC-TFB402 Field Termination Assembly Module Configured for field signal termination and electrical interface functions in Honeywell Experion PKS C300 control systems, the Honeywell CC-TFB402 (CC-TFB402 Field Termination Assembly Module) provides direct physical signal connection between field wiring and control I/O hardware. Hardware Specifications Parameter Specification Model CC-TFB402 Brand Honeywell Product Type Field Termination Assembly (FTA) / Control Circuit Board System Compatibility Honeywell Experion PKS C300 control system Module Function Field signal termination and I/O interface Application Category PLCs / Machine Control / PC Board PLC Add-On Board I/O Interface Field wiring termination interface for compatible FIM I/O modules Channel Configuration Dependent on associated Field Interface Module configuration Communication Interface I/O connection interface with compatible Honeywell control hardware Mounting Method Honeywell control cabinet termination assembly mounting Wiring Connection Field terminal connections with dedicated module interface connectors Brand New Status Discontinued by manufacturer Origin USA Weight 0.40 lbs 4-20 mA HART and Field Signal Interface Characteristics The CC-TFB402 is designed as a termination-level hardware component within the Honeywell Experion PKS I/O architecture. The assembly provides the physical termination point for field conductors and routes electrical signals to the associated I/O processing hardware. For process instrumentation applications, compatible Honeywell I/O configurations may support analog communication schemes such as 4-20 mA HART loop protocol or digital field interfaces depending on the connected I/O module. Channel-to-channel isolation characteristics are determined by the paired I/O hardware and system architecture. The termination assembly maintains signal integrity through controlled wiring paths, proper shielding practices, and defined field cable routing. It does not perform independent signal processing or control algorithm execution. Frequently Asked Questions (FAQ) Q: Does the CC-TFB402 operate as an independent controller module?A: No. The CC-TFB402 is a Field Termination Assembly and provides field wiring termination and interface functions. Control execution is performed by the associated Honeywell controller and I/O modules. Q: Can the CC-TFB402 be installed without a compatible Honeywell I/O module?A: No. The assembly requires connection with the designated Honeywell field interface and control hardware configuration. Q: Does the CC-TFB402 support direct firmware upgrades?A: No. The CC-TFB402 is a passive termination/interface hardware assembly and does not contain user-upgradable firmware. Field Installation Guidelines Install the CC-TFB402 inside the designated Honeywell control cabinet or termination area according to the system hardware layout. Verify terminal assignments before connecting field conductors to prevent incorrect signal routing. Use shielded instrumentation cable where required by the connected field device specification. Terminate cable shields according to the plant grounding standard to reduce electrical noise interference. Separate low-level analog signal wiring from high-voltage power conductors and high-current switching circuits. Confirm connector engagement and mechanical fixing before system power application. Perform continuity checks on field wiring before placing connected I/O channels into service.
$200.00 $100.00
-

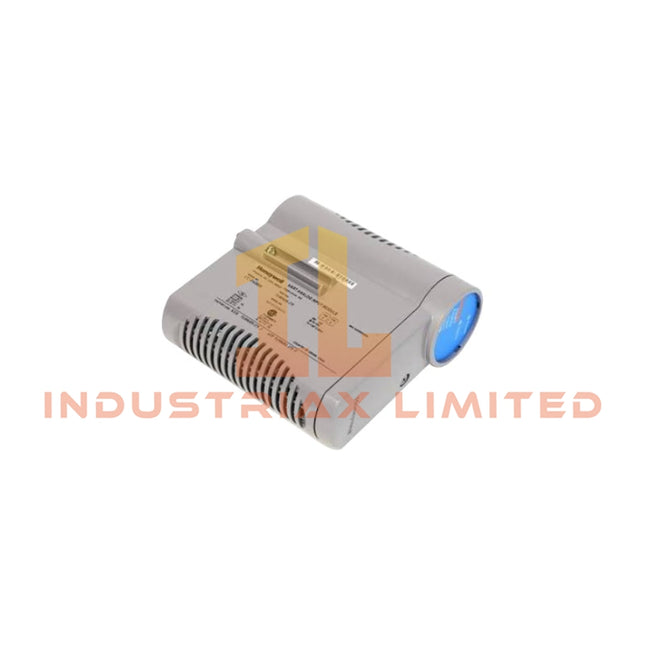

Honeywell Honeywell CC-PFB402 Fieldbus Interface Module
Honeywell CC-PFB402 Fieldbus Interface Module The Honeywell CC-PFB402, also cataloged as the CC-PFB402 Fieldbus Interface Module, operates as a dedicated hardware component for field device communication execution within the Honeywell Experion PKS C300 controller system. Hardware Specifications Parameter Specification Model CC-PFB402 Brand Honeywell Product Type Fieldbus Interface Module (FIM) System Compatibility Honeywell Experion PKS C300 Controller Platform Communication Interface Fieldbus communication interface for industrial field device networks Supported Protocols FOUNDATION Fieldbus / Profibus PA connectivity depending on system configuration Redundancy Supports redundant module configurations Mounting Honeywell I/O Termination Assembly (IOTA) installation Coating Conformal coated PCB construction Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 5% to 95% RH, non-condensing Power Supply 24 VDC nominal system supply FOUNDATION Fieldbus and Process Network Interface Characteristics The CC-PFB402 provides fieldbus communication capability between the Experion PKS C300 controller environment and connected field instrumentation. The module manages digital process data exchange through FOUNDATION Fieldbus or Profibus PA communication structures according to the configured network architecture. The module supports process control applications requiring deterministic field communication, device status monitoring, and engineering access through the Experion PKS configuration environment. For Honeywell process control platforms, field communication modules are typically integrated with channel-to-channel isolation practices to reduce signal interference between independent field circuits. Proper grounding, shielding, and cable segregation are required to maintain fieldbus signal integrity. Frequently Asked Questions Q: Does the CC-PFB402 support hot-swap replacement?A: The module supports online replacement when installed in a redundant configuration. Replacement procedures must follow the applicable Experion PKS hardware maintenance requirements. Q: What type of field communication networks can be connected through the CC-PFB402?A: The module provides fieldbus communication interfaces for integration with supported field device networks, including FOUNDATION Fieldbus or Profibus PA depending on the system configuration. Q: Is the CC-PFB402 compatible with non-Honeywell controller platforms?A: The module is designed for integration within the Honeywell Experion PKS C300 controller architecture and requires the corresponding Honeywell I/O hardware environment. Field Installation Guidelines Install the CC-PFB402 only on the specified Honeywell I/O Termination Assembly (IOTA) hardware. Verify that the module seating mechanism is fully engaged before applying system power. Maintain proper separation between fieldbus communication wiring and high-voltage power cables to reduce electromagnetic interference. Connect cable shields according to the site grounding standard and Honeywell installation documentation. Confirm fieldbus polarity, termination components, and network topology before commissioning. Check module diagnostics through the Experion PKS engineering tools after installation.
$200.00 $100.00
-

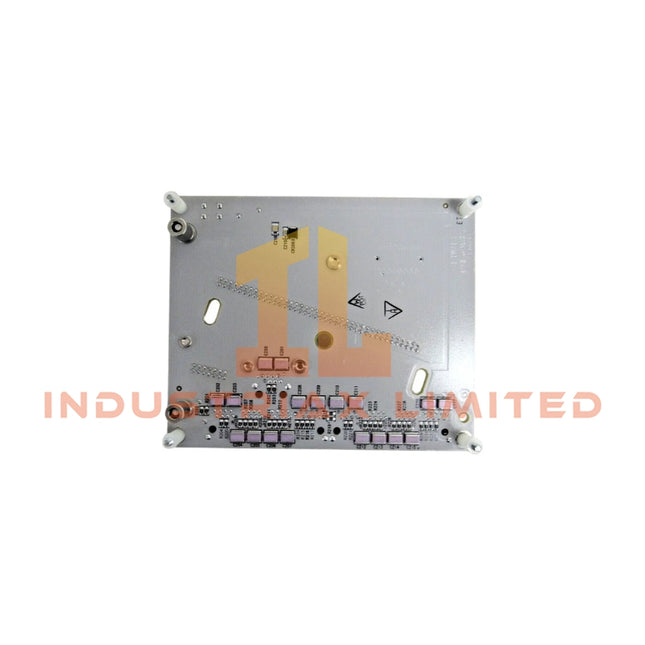

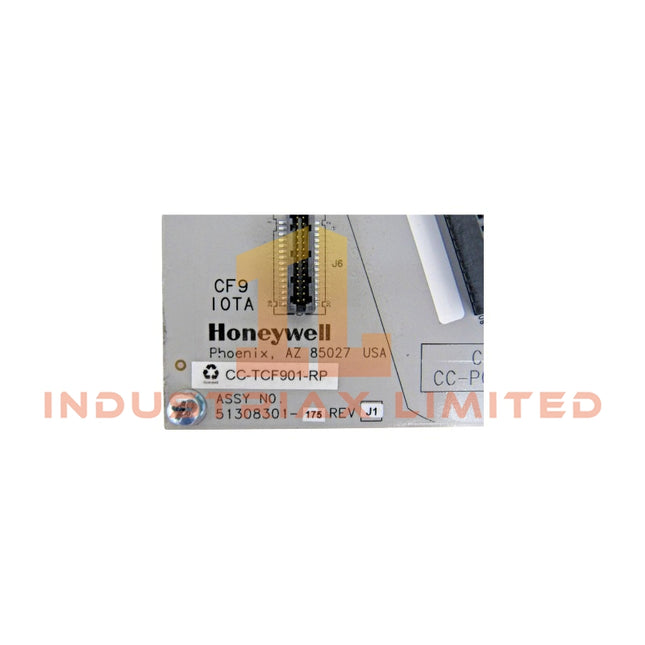

Honeywell CC-TCF901 | Honeywell | 9 Port Control Firewall IOTA
Honeywell CC-TCF901 9 Port Control Firewall IOTA Configured for FTE network control firewall connectivity in Honeywell Experion PKS platforms, the Honeywell CC-TCF901 (CC-TCF901 9 Port Control Firewall IOTA) provides direct physical/electrical execution for Ethernet communication interfaces and 24 VDC power distribution between control equipment and the FTE supervisory network. Hardware Specifications Parameter Specification Model CC-TCF901 Brand Honeywell Product Type 9 Port Control Firewall IOTA Origin USA Weight Not specified Dimensions Approx. 12.1 cm x 14.5 cm (mounting dimensions L x W) Operating Temp Not specified Power Consumption 0.30 mA @ 24 VDC Ethernet Interface 9 x RJ-45 connections Network Function Provides connection for eight FTE cables from in-cabinet controllers and Series CFIMs Uplink Port 1 port for connection to FTE supervisory network Power Distribution 24 VDC power distribution to control components Fiber-Optic Compatibility Supports CA-FSMx01 FTE Single Mode Fiber Module and CA-FMMx01 FTE Multi-Mode Fiber Module Fiber Module Supply Rating 0.30 mA @ 24 VDC Channel-to-Channel Isolation and FTE Network Interface The CC-TCF901 is designed as an FTE (Fault Tolerant Ethernet) interface assembly within the Honeywell control system architecture. The module provides nine Ethernet RJ-45 connections, with eight ports allocated for in-cabinet controllers and Series CFIM connections and one uplink connection to the supervisory FTE network. The unit supports fiber-optic interface expansion through compatible CA-FSMx01 single mode and CA-FMMx01 multi-mode fiber modules. The 24 VDC distribution interface supplies connected control network components while maintaining defined electrical separation between communication paths. For process control installations, Honeywell network interface assemblies are commonly integrated with distributed control system components requiring structured Ethernet communication. Signal segregation and channel-to-channel isolation practices should be maintained during system design to minimize communication interference. Frequently Asked Questions (FAQ) Q: How many Ethernet connections are available on the CC-TCF901?A: The CC-TCF901 provides nine RJ-45 Ethernet connections. Eight ports connect to in-cabinet controllers and Series CFIMs, while the ninth port provides the FTE supervisory network uplink. Q: Does the CC-TCF901 directly support fiber-optic communication?A: The CC-TCF901 supports fiber-optic connectivity through compatible CA-FSMx01 FTE Single Mode Fiber Modules and CA-FMMx01 FTE Multi-Mode Fiber Modules. Q: What power supply is required for the CC-TCF901?A: The module requires a 24 VDC supply and provides 24 VDC power distribution for connected control components. The specified supply rating is 0.30 mA @ 24 VDC. Field Installation Guidelines Install the CC-TCF901 on the designated control cabinet mounting surface according to Honeywell system installation requirements. Verify that the 24 VDC supply polarity and grounding connections comply with the cabinet power distribution design. Maintain separation between Ethernet communication cables and high-voltage power conductors to reduce electrical interference. Use appropriate shield grounding practices for Ethernet and fiber conversion assemblies where applicable. Confirm RJ-45 cable routing and port assignments before commissioning the FTE network connection. Inspect fiber module installation points and ensure optical interfaces remain protected from contamination during field installation.
$200.00 $100.00
-
Honeywell CC-TSV211 | Servo Valve Positioner Module | Honeywell
Honeywell CC-TSV211 Servo Valve Positioner Module Configured for servo valve position control in Honeywell Experion PKS Series C I/O systems, the Honeywell CC-TSV211 (51306665-175) (CC-TSV211 Servo Valve Positioner Module) provides direct physical/electrical execution for hydraulic actuator positioning through servo coil drive and position feedback processing. Hardware Specifications Parameter Specification Model CC-TSV211 (51306665-175) Brand Honeywell Product Type Servo Valve Positioner Module Series Experion PKS Series C I/O Origin USA Weight 0.7 kg Dimensions 44.3 x 12 x 7.5 cm Operating Temp Not specified Power Consumption Not specified Output Channels 2 DAC Resolution 16-bit Maximum Open Circuit Voltage +/-14 V Galvanic Isolation +/-500 VDC Input/Output Range 8 V RMS max., 2.5-3.2 kHz Input Impedance > 25 kOhm Input Scan Rate 2.5 ms Common Mode Voltage -6 to +5 V peak, DC to 60 Hz Feedback Interface LVDT/RVDT/4-20 mA position feedback support Control Function Onboard PID servo positioning loop Output Function Direct servo valve coil current drive DCS Signal Conditioning and Channel Isolation Features The CC-TSV211 operates as a Series C I/O servo control interface with onboard signal processing for valve position regulation. The module accepts position feedback signals from LVDT, RVDT, or 4-20 mA devices and executes an internal PID positioning algorithm before generating servo coil output commands. The Honeywell Experion PKS architecture uses channel-level signal conditioning methods similar to other process control I/O modules, including channel-to-channel isolation concepts for minimizing electrical interference between independent signal paths. The CC-TSV211 provides +/-500 VDC galvanic isolation for field-side signal protection and supports controlled analog feedback acquisition with a 2.5 ms input scan rate. The module receives remote valve demand signals from a C300 controller and converts digital control commands into analog servo output behavior. The design supports dual-channel operation, LVDT feedback monitoring, diagnostic processing, and redundant control configurations within compatible Series C I/O installations. Frequently Asked Questions (FAQ) Q: What type of feedback signals can the CC-TSV211 process?A: The module supports LVDT, RVDT, and 4-20 mA valve position feedback inputs for servo valve positioning applications. Q: Does the CC-TSV211 contain an onboard positioning control loop?A: Yes. The module includes an onboard PID positioning loop that processes valve demand commands and feedback signals to control servo valve coil output. Q: What electrical isolation capability is provided by the module?A: The CC-TSV211 provides galvanic isolation rated at +/-500 VDC between applicable electrical sections. Field Installation Guidelines Install the CC-TSV211 in a compatible Honeywell Experion PKS Series C I/O rack according to the system hardware configuration requirements. Verify field wiring polarity and signal termination before connecting servo coil outputs and position feedback inputs. Use shielded instrumentation wiring for LVDT/RVDT and analog feedback connections where required by the site electrical installation standard. Terminate cable shields according to the plant grounding practice to reduce electromagnetic interference. Separate low-level feedback wiring from high-current actuator wiring to reduce induced electrical noise. Confirm controller communication configuration and I/O channel assignment before commissioning the servo positioning loop. Inspect terminal connections and mechanical mounting before applying operating power.
$200.00 $100.00
-
Honeywell CC-TSP411 | Speed Protection Module IOTA | Honeywell
Honeywell CC-TSP411 Speed Protection Module IOTA Configured for speed signal termination and protection functions in Honeywell Experion PKS Series C Turbomachinery I/O systems, the Honeywell CC-TSP411 (CC-TSP411 Speed Protection Module IOTA) provides direct physical/electrical execution between field speed inputs and the associated Speed Protection Module hardware. Hardware Specifications Parameter Specification Model CC-TSP411 Brand Honeywell Product Type Speed Protection Module IOTA Part Number 51306669-175 (Typical) Origin USA Weight Not specified Dimensions 18-inch IOTA block form factor System Compatibility Honeywell Experion PKS Series C DCS Turbomachinery I/O Module Configuration 4-channel speed protection termination assembly Redundancy Supported Speed Input Frequency Range 0 to 10 kHz Speed Setpoint Range 0 to 10,000 RPM Input Power Supply 24 VDC system power Power Consumption Not specified Operating Temp -40 deg C to +85 deg C Storage Temp -55 deg C to +85 deg C Terminal Type Heavy-duty screw terminals Environmental Protection Conformal coated assembly Channel-to-Channel Isolation and DCS Signal Interface The CC-TSP411 is designed for use with Honeywell process control hardware requiring separated speed input termination paths. The assembly provides channel organization for four independent speed monitoring circuits and supports redundant installation arrangements within Experion PKS Series C Turbomachinery I/O cabinets. The termination design maintains electrical separation between field wiring paths and controller-side interfaces. Screw terminal connections provide mechanical retention for rotating equipment applications where continuous vibration exposure may affect signal wiring integrity. Frequently Asked Questions Q: Is the CC-TSP411 a standalone speed protection controller?A: No. The CC-TSP411 is an Input Output Termination Assembly (IOTA) used with the Speed Protection Module hardware. It provides field signal termination and interface functions. Q: Does the CC-TSP411 support redundant configurations?A: Yes. The assembly supports redundant system configurations when installed with compatible Honeywell Experion PKS Series C Turbomachinery I/O components. Q: What type of field signals are connected to the CC-TSP411?A: The module is designed for speed-related input signals from rotating machinery monitoring circuits, with frequency measurement capability up to 10 kHz. Field Installation Guidelines Install the CC-TSP411 in the designated Honeywell Experion PKS Series C Turbomachinery I/O cabinet location according to system hardware documentation. Verify terminal assignments before connecting field speed probe wiring to prevent channel mapping errors. Route speed signal cables separately from high-current power conductors and sources of electromagnetic interference. Apply appropriate cable shielding and grounding practices according to plant instrumentation standards. Confirm redundant wiring paths are separated and correctly terminated before commissioning. Inspect screw terminal torque and mechanical fixing points during installation maintenance activities. Verify field signal polarity, shielding continuity, and input channel identification before system startup.
$200.00 $100.00
