GE Mark VIe
-
GE GE IS200EDEXG1B Exciter De-Excitation Control Board
Overview The IS200EDEXG1B Exciter De-Excitation Control Board from GE plays a vital role in the EX2100 Excitation Control System. It removes residual energy from the generator field during emergency shutdowns by controlling SCR firing and monitoring conduction feedback. Technical Specifications Specification Detail Manufacturer GE Part Number IS200EDEXG1B Product Series EX2100 Excitation Control System Functional Acronym EDEX Voltage 24 Vdc Current 1A Dimensions 18 cm × 12 cm × 5 cm Weight 0.3 kg Control Functions SCR firing, conduction feedback, voltage retention Signal Source EXTB via EMIO Key Features Controls SCR firing to discharge generator field energy during shutdown. Monitors conduction status and retains voltage during power failure. Interfaces with EXTB and EMIO for signal coordination. Compact 0.3 kg board fits easily into excitation modules. Designed for high-reliability emergency response in industrial systems.
$200.00 $100.00
-
GE GE IS200EDEXG1ADA Exciter De-Excitation Control Board
Overview The IS200EDEXG1ADA Exciter De-Excitation Control Board from GE is a critical component in the EX2100 Excitation Control System. It manages energy discharge from the generator field during emergency shutdowns by controlling SCR firing and monitoring conduction feedback. Technical Specifications Specification Detail Manufacturer GE Part Number IS200EDEXG1ADA Product Series EX2100 Excitation Control System Functional Acronym EDEX Voltage 24 Vdc Dimensions 18 cm × 12 cm × 6 cm Weight 0.4 kg De-Excitation Type SCR (Group 1) / Diode (Group 2) Signal Source EXTB via EMIO Control Functions SCR firing, conduction feedback, voltage retention Key Features Controls SCR firing to discharge generator field energy during shutdown. Monitors conduction status and retains voltage during power failure. Interfaces with EXTB and EMIO for signal coordination. Compact 0.4 kg board fits easily into excitation modules. Supports both SCR and diode de-excitation configurations.
$200.00 $100.00
-
GE GE IS200EPBPG1A Exciter Power Backplane
Overview The IS200EPBPG1A Exciter Power Backplane from GE is a key component in the EX2100 Excitation Control System. It distributes logic-level power from three independent EPSM modules to the M1, M2, and C controllers. Each power supply connects through DIN-style interfaces and operates via individual ON-OFF switches located on the adjacent EPDM module. Technical Specifications Specification Detail Manufacturer GE Part Number IS200EPBPG1A Product Series EX2100 Excitation Control System Voltage Output 24 Vdc Current Output 1A Input Voltage 125 Vdc (from EPDM) Dimensions 330 mm × 178 mm × 30 mm Weight 0.3 kg Power Modules Supported 3 × EPSM Ground Modules 3 × EGDM Connector Type DIN and locking terminal Key Features Distributes power to three controllers using independent EPSM modules. Interfaces with EPDM for 125 Vdc input and ON-OFF control. Supports ground fault detection via three EGDM modules. Uses DIN connectors for secure module integration. Compact and lightweight design simplifies rack installation.
$200.00 $100.00
-
GE GE IS415UCVGH1A Controller Board
Overview The IS415UCVGH1A Controller Board from GE integrates processing, memory, and communication into a single-slot module designed for Mark VI Control Systems. It uses an Intel® Ultra Low Voltage Celeron™ 650MHz processor, paired with 128 MB of flash memory and 128 MB of SDRAM, to deliver reliable control performance. Technical Specifications Specification Detail Manufacturer GE Part Number IS415UCVGH1A Product Series Mark VI Control System Processor Intel® Celeron™ 650MHz Flash Memory 128 MB SDRAM 128 MB Voltage 24 Vdc Current 1A Dimensions 30 cm × 30 cm × 5 cm Weight 1 kg Ethernet Ports 2 × RJ-45 (10/100BaseTX) Slot Type Single-slot VME Key Features Delivers stable control using a 650MHz Intel® Celeron™ processor. Stores configuration data with 128 MB flash and 128 MB SDRAM. Supports dual Ethernet ports for UDH and Modbus/EGD communication. Validates toolbox configuration against hardware at power-up. Compact 1 kg board fits easily into standard VME racks.
$200.00 $100.00
-

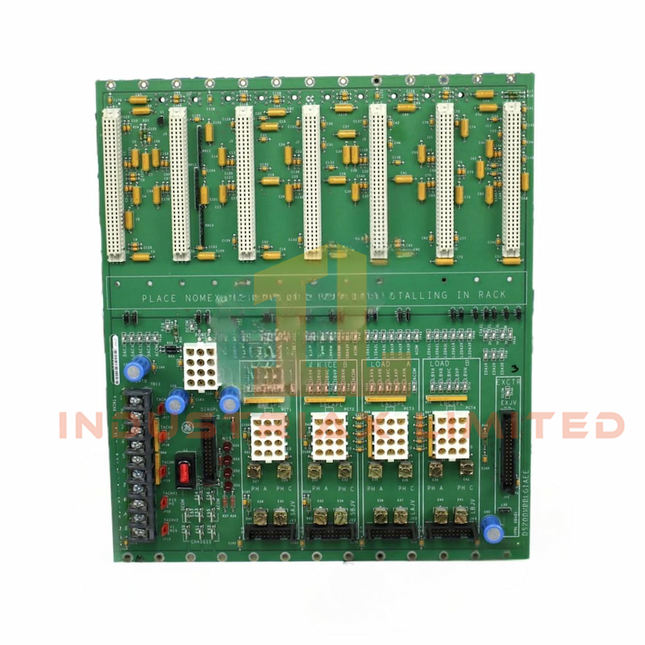

GE GE DS200VPBLG1A VME Backplane Board
The GE DS200VPBLG1A VME Backplane Board is a foundational component in the Load Commutator Inverter (LCI) Control System, providing structured signal and power distribution across the J2 and J3 sections of the equipment’s card cage. It supports multiple control and feedback boards, including DSPC, FCGD, and exciter modules, while enabling external connections for current transformers (CTs) and voltage scaling feedback. The board also facilitates grounding schemes and power delivery via stab connectors in the J3 area. Technical Specifications Parameter Specification Manufacturer GE Series Load Commutator Inverter Control System Part Number DS200VPBLG1A Description VME Backplane Board Input Voltage 24 Vdc Current 1 A Dimensions 330 mm × 178 mm × 30 mm Weight 0.3 kg Slot Support (J2) DSPC, I/O extender, FCGD, exciter board Slot Support (J3) CTs, burden resistors, DS200NATO board Grounding Stab connectors for grounding schemes Signal Routing 16 MHz clock, digital bus, P5/DCOM pins Key Features Supports up to three Gate Distribution and Status Boards (FCGD) Interfaces with DSPC, I/O extender, and exciter boards in J2 section J3 section enables external CT and voltage feedback connections Hardwired slot IDs ensure consistent board identification Provides digital bus routing and clock signal termination Stab connectors allow flexible grounding configurations Compact 330 × 178 × 30 mm footprint for efficient rack integration Lightweight 0.3 kg design simplifies installation and maintenance
$200.00 $100.00
-

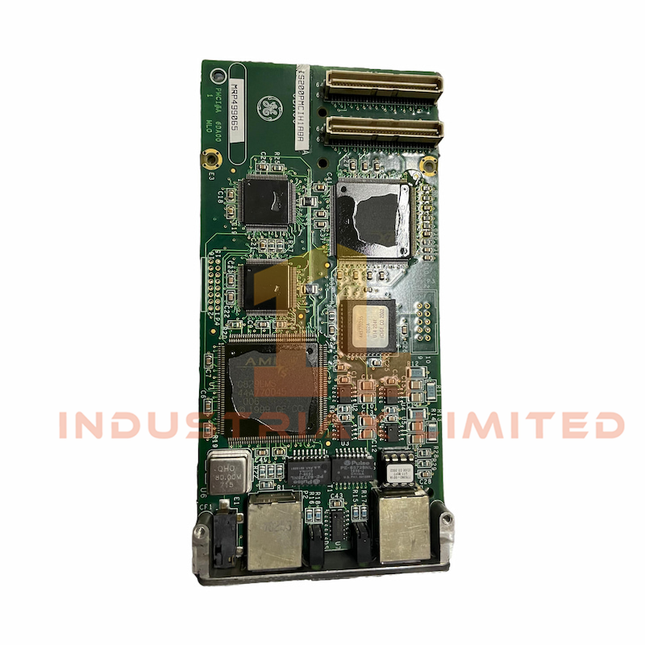

GE GE IS200PMCIH1A PCI Mezzanine Card
The GE IS200PMCIH1A PCI Mezzanine Card is a compact, high-functionality module designed for Mark VI control systems. It provides essential controller hardware capabilities including power supply monitoring, flash-backed SRAM, and IONet Ethernet communication. The board also supports Ethernet physical layer packet snooping, enabling precision time synchronization across distributed control networks. It plugs into a PMC site and communicates with the processor board via a PCI Rev 2.2 compliant interface, supporting both 3.3 V and 5 V signal levels. Technical Specifications Parameter Specification Manufacturer GE Series Mark VI Control System Part Number IS200PMCIH1A Description PCI Mezzanine Card Input Voltage 24 Vdc Current 1 A Dimensions 240 mm × 160 mm × 30 mm Weight 0.3 kg PCI Compliance PCI Rev 2.2 (3.3 V and 5 V signals) Key Functions Power monitoring, SRAM, IONet, time sync Key Features Monitors power supply status for enhanced system reliability Includes flash-backed SRAM for secure data retention Supports IONet Ethernet communication for controller networking Enables Ethernet packet snooping for precision time synchronization PCI interface supports both 3.3 V and 5 V signaling standards Compact 240 × 160 × 30 mm footprint for easy integration Lightweight 0.3 kg design simplifies installation and handling
$200.00 $100.00
-

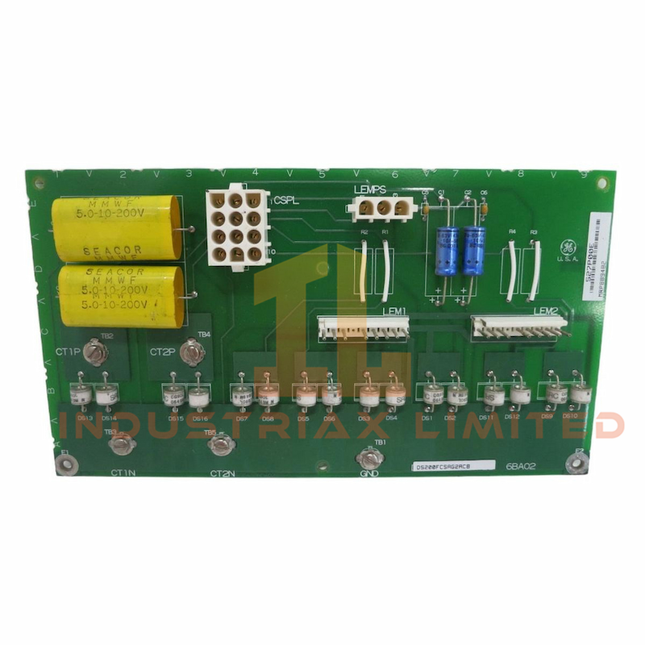

GE GE DS200FCSAG2A Current Sensing Feedback Board
The GE DS200FCSAG2A Current Sensing Feedback Board is a specialized module designed for use in Load Commutator Inverter (LCI) control systems, particularly within Static Starter Power Conversion Cabinets. Operating in tandem with the Control Power Supply (CPS), it receives multiple voltage levels—5 V, 12 V, 15 V, and 24 V—to power its internal circuits and the associated VME card rack. The board measures electrical current using components such as shunt resistors or current transformers, conditions the signal, and provides feedback to the control system for real-time monitoring and protection. Technical Specifications Parameter Specification Manufacturer GE Series Load Commutator Inverter Control System Part Number DS200FCSAG2A Description Current Sensing Feedback Board Input Voltage 24 Vdc CPS Voltages 5 V, 12 V, 15 V, 24 V Current 1 A Dimensions 240 mm × 160 mm × 30 mm Weight 0.3 kg Installation Power Conversion Cabinet (Static Starter) Signal Components Shunt resistors, current transformers Output Interface VME rack feedback path Key Features Accepts multiple CPS voltage levels for flexible power distribution Measures and conditions current signals for feedback and diagnostics Interfaces with VME card rack for control system integration Compact 240 × 160 × 30 mm footprint for cabinet installation Lightweight 0.3 kg board simplifies handling and mounting Ideal for Static Starter systems requiring precise current feedback
$200.00 $100.00
-

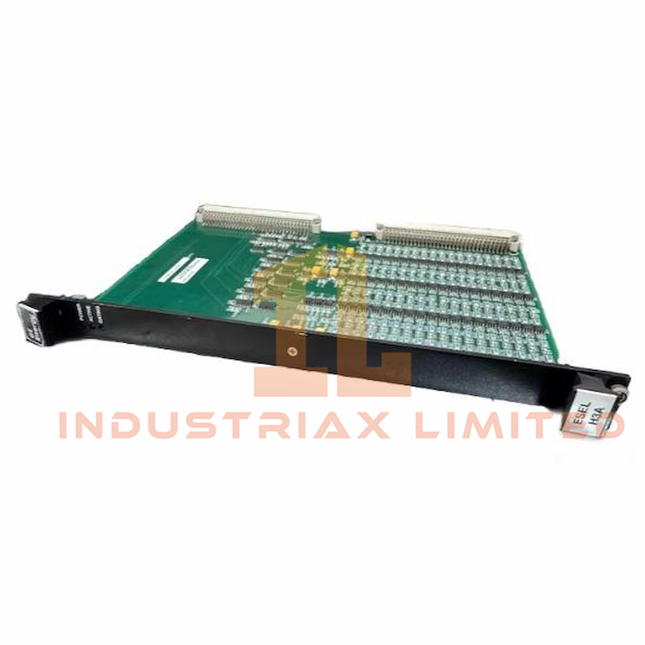

GE GE IS200ESELH3A Exciter Selector Board
The GE IS200ESELH3A Exciter Selector Board is a critical signal distribution module within the EX2100 excitation system. Mounted in the control rack, it receives six logic-level gate pulse signals from the EMIO master I/O board and routes them to six EGPA gate pulse amplifier boards located in the Power Conversion Cabinet. This board ensures precise gating control for exciter operation, with no jumpers or testpoints required for configuration. Technical Specifications Parameter Specification Manufacturer GE Series EX2100 excitation system Part Number IS200ESELH3A Description Exciter Selector Board Input Voltage 24 Vdc Current 1 A Dimensions 240 mm × 160 mm × 30 mm Weight 0.5 kg Signal Inputs 6 logic-level gate pulses from EMIO Signal Outputs 6 cable sets to EGPA boards Backplane Interface VME via P1 and P2 connectors Status Conditions Power on, board enabled, gating active Key Features Routes six gate pulse signals from EMIO to EGPA amplifier boards Interfaces with VME backplane via P1 and P2 connectors No jumpers or testpoints required for setup or diagnostics Operates under control signal from Control C for gating enablement Compact 240 × 160 × 30 mm footprint for efficient rack integration Lightweight 0.5 kg design simplifies handling and installation Integral to exciter gating logic in EX2100 excitation systems
$200.00 $100.00
-
GE GE IS215UCCCH4A CPCI Controller Board
The GE IS215UCCCH4A CPCI Controller Board is a high-performance, single-slot processor module designed for Mark VIe gas turbine control systems. Powered by a 1.6 GHz Pentium® M processor, it delivers fast and reliable control execution. Dual 10/100/1000Base-TX Ethernet ports support connectivity to both the UDH and an optional Control Data Highway (CDH), enabling flexible network integration and peer-to-peer communication. Technical Specifications Parameter Specification Manufacturer GE Series Mark VIe gas turbine control system Part Number IS215UCCCH4A Description CPCI Controller Board Processor Pentium® M 1.6 GHz Memory (Assembly) 128 MB Flash, 256 MB DRAM Input Voltage 24 Vdc Current 1 A Dimensions 389 mm × 234 mm × 23 mm Weight 0.8 kg Ethernet Ports 2 × 10/100/1000Base-TX (RJ-45) Network Support UDH, CDH Module Assembly Compatible with IS215UCCCM04A Key Features High-speed 1.6 GHz processor for real-time turbine control Dual Ethernet ports support UDH and optional CDH connectivity CPCI form factor enables compact rack integration Compatible with IS215UCCCM04A for expanded memory and I/O Ideal for mission-critical control in Mark VIe systems Lightweight 0.8 kg design simplifies installation and handling
$200.00 $100.00
-
GE GE IS415UCVHH1A VME Controller Board
The GE IS415UCVHH1A VME Controller Board is a compact, single-slot processing unit designed for Mark VIe gas turbine control systems. Powered by an Intel® Ultra Low Voltage Celeron 1067 MHz processor, it features 128 MB flash memory and 1 GB SDRAM, delivering reliable performance for configuration, data exchange, and real-time control. Dual Ethernet ports support both UDH communication and Modbus or EGD networking, enabling flexible integration across control architectures. Technical Specifications Parameter Specification Manufacturer GE Series Mark VIe gas turbine control system Part Number IS415UCVHH1A Description VME Controller Board Processor Intel® Celeron ULV 1067 MHz Memory 128 MB Flash, 1 GB SDRAM Input Voltage 24 Vdc Current 1 A Dimensions 300 mm × 300 mm × 50 mm Weight 1 kg Ethernet Ports 2 × RJ-45 (10BaseT/100BaseTX) Network Support UDH, Modbus, Ethernet Global Data (EGD) Configuration Toolbox-based, validated at power-up Key Features Single-slot VME board with integrated processor and memory Dual Ethernet ports for UDH and subnet communication Supports Modbus and private EGD networks for flexible data exchange Toolbox configuration validated against hardware at startup Compact 300 × 300 × 50 mm design for efficient rack integration Ideal for real-time control and peer-to-peer communication in turbine systems
$200.00 $100.00
-

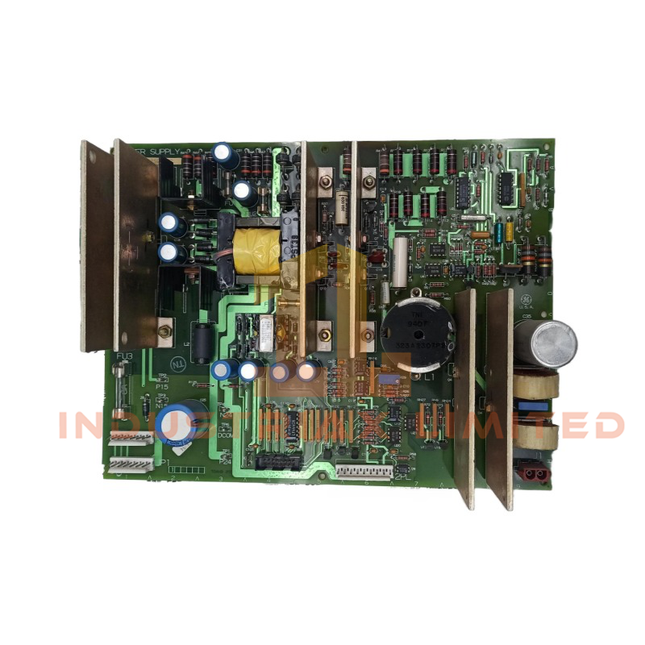

GE GE DS200TCPSG1A DC Input Power Supply Board
The GE DS200TCPSG1A DC Input Power Supply Board is a compact and efficient module designed to convert 125 Vdc input into multiple regulated voltage levels required by the Mark V gas turbine control system. Installed within the system’s core I/O racks, it supplies power for critical functions including microprocessor operation, mA output loops, RTD excitation, and servo valve control. Its integration ensures stable and isolated power delivery across diverse control components. Technical Specifications Parameter Specification Manufacturer GE Series Mark V gas turbine control system Part Number DS200TCPSG1A Description DC Input Power Supply Board Input Voltage 125 Vdc Output Voltage 24 Vdc Current 1 A Dimensions 240 mm × 180 mm × 20 mm Weight 0.4 kg Output Functions Microprocessor, RTD, mA loop, servo valve power Key Features Converts 125 Vdc input into multiple control-level voltages Powers microprocessors, RTDs, servo valves, and analog output circuits Compact 240 × 180 × 20 mm footprint fits standard I/O cores Lightweight 0.4 kg design simplifies installation and maintenance Ensures stable voltage regulation across turbine control subsystems Integral to the Mark V control architecture for gas turbine systems
$200.00 $100.00
-

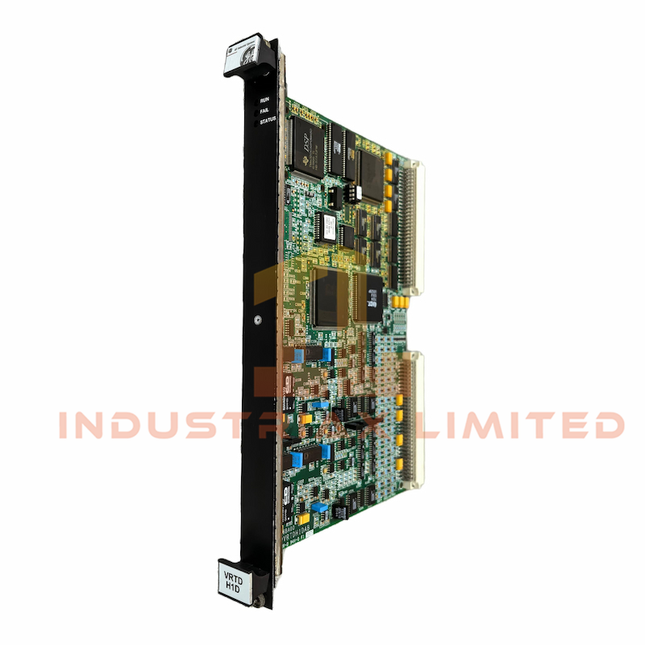

GE GE IS200VRTDH1D RTD Input Board
The GE IS200VRTDH1D Resistance Temperature Device (RTD) Input Board is designed to process temperature signals from up to 16 three-wire RTDs in Mark VI gas turbine control systems. It interfaces with TRTD or DRTD terminal boards via molded cables and performs excitation, signal conditioning, and digital conversion. The processed temperature data is transmitted through the VME backplane to the VCMI and ultimately to the system controller for real-time monitoring and control. Technical Specifications Parameter Specification Manufacturer GE Series Mark VI gas turbine control system Part Number IS200VRTDH1D Description Resistance Temperature Device Input Board Input Voltage 24 Vdc Current 1 A Dimensions 180 mm × 160 mm × 30 mm Weight 1 kg RTD Channels 16 three-wire RTD inputs Terminal Board Compatible with TRTD or DRTD Signal Conversion Digital temperature values via VME backplane Communication Path VRTD → VCMI → Controller Key Features Excites and reads 16 RTD signals for accurate temperature monitoring Converts analog RTD inputs into digital values for turbine control Interfaces with TRTD or DRTD terminal boards using molded cables Transfers data through VME backplane to VCMI and controller Compact 180 × 160 × 30 mm design fits standard VME rack configurations Ideal for high-reliability temperature sensing in gas turbine systems
$200.00 $100.00
-

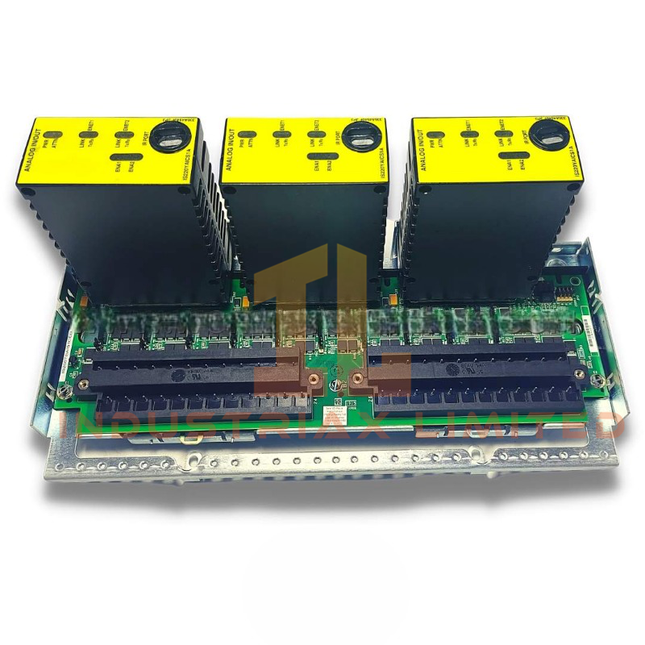

GE GE IS230TAISH2C TMR Analog I/O Module
The GE IS230TAISH2C TMR DIN Rail Analog I/O Module is engineered for high-integrity analog signal acquisition and output in Mark VIe safety control systems. It consists of the IS220YAICS1A I/O pack and a DIN-rail mounted analog terminal board, supporting Triple Modular Redundancy (TMR) and Simplex configurations. In TMR mode, the controller selects the median input value to reject outliers, while a patented output circuit ensures faulty I/O packs are excluded from signal generation. Technical Specifications Parameter Specification Manufacturer GE Series Mark VIe system Part Number IS230TAISH2C Description TMR DIN Rail Analog I/O Module Input Voltage 24 Vdc Current 1 A Dimensions 170 mm × 157 mm × 153 mm Weight 1.5 kg I/O Pack IS220YAICS1A Terminal Board DIN-rail mounted, supports TMR/Simplex Analog Inputs 10 channels (2W/3W/4W/external power) Analog Outputs 2 channels (0–20 mA configurable) Connectors 3 × DC-37 for TMR, 1 × JR1 for Simplex Signal Protection Surge and high-frequency noise suppression Output Logic Median selection and fault rejection Key Features Supports 10 analog inputs and 2 configurable outputs Compatible with two-wire, three-wire, four-wire, and externally powered transmitters TMR configuration selects median input to reject faulty signals Patented output circuitry excludes underperforming I/O packs Noise suppression circuitry ensures stable signal acquisition DIN-rail mounting simplifies integration into compact control panels Ideal for safety-critical applications requiring redundancy and precision
$200.00 $100.00
-

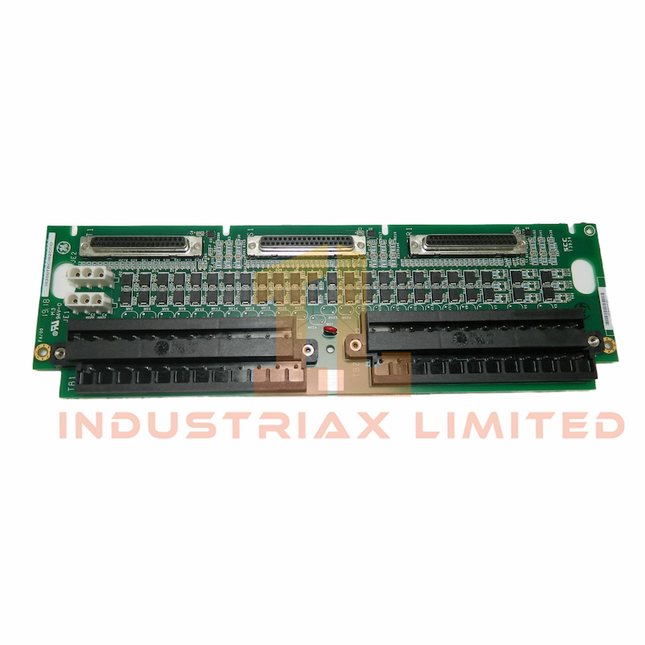

GE GE IS200TBAIS1C Analog Input/Output Terminal Board
The GE IS200TBAIS1C Analog Input/Output Terminal Board is a compact and flexible module designed for Mark VIe control systems. It supports 10 analog inputs and 2 analog outputs, accommodating various transmitter configurations including two-wire, three-wire, four-wire, and externally powered types. With integrated noise suppression circuitry, the board ensures reliable signal integrity in high-interference environments. It supports both Simplex and Triple Modular Redundant (TMR) configurations, enabling scalable redundancy for critical control applications. Technical Specifications Parameter Specification Manufacturer GE Series Mark VIe system Part Number IS200TBAIS1C Description Analog Input/Output Terminal Board Input Voltage 24 Vdc Current 1 A Dimensions 101.6 mm × 330.2 mm × 23 mm Weight 0.3 kg Analog Inputs 10 channels (2W/3W/4W/external power) Analog Outputs 2 channels (0–20 mA; 0–200 mA with PAICH2) Connectors 3 × DC-37 pin for TMR; JR1 for Simplex Signal Protection Surge and high-frequency noise suppression Output Regulation Shunt-based current measurement for TMR Key Features Supports multiple analog input configurations for flexible transmitter integration Two analog outputs configurable for 0–20 mA or 0–200 mA (with PAICH2) TMR mode fans input signals to R, S, and T I/O packs for redundancy Combines output currents via shunt for precise regulation in TMR setups Simplex mode supported via single JR1 connector Compact and lightweight design for efficient panel integration Built-in noise suppression ensures stable signal acquisition
$200.00 $100.00
-

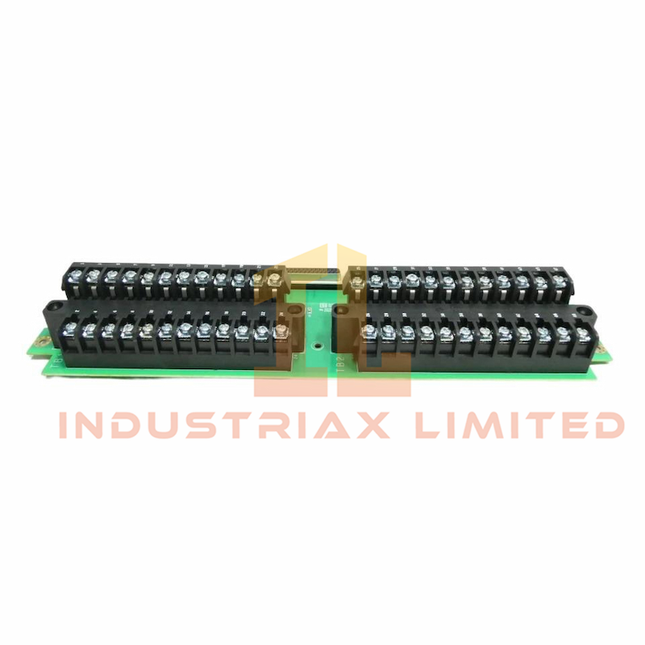

GE GE IS200TRTDH1D RTD Input Terminal Board
The GE IS200TRTDH1D RTD Input Terminal Board is designed to interface with up to 16 three-wire RTD sensors, providing accurate temperature signal acquisition for Mark VIe control systems. It supports simplex configurations and connects to two PRTD I/O packs, which convert analog RTD signals into digital values for controller processing. Integrated noise suppression circuitry ensures reliable performance in electrically noisy environments. Technical Specifications Parameter Specification Manufacturer GE Series Mark VIe system Part Number IS200TRTDH1D Description RTD Input Terminal Board Input Voltage 24 Vdc Current 1 A Dimensions 177.8 mm × 330.2 mm × 20.3 mm Weight 0.3 kg RTD Channels 16 three-wire RTD inputs Terminal Type Barrier-type blocks (2 units) Compatibility Works with PRTD I/O packs Filtering Standard scan rate compatible Isolation Galvanic isolation via PRTD Application Mode Simplex only Key Features Accepts 16 RTD inputs via two barrier-type terminal blocks Compatible with PRTD I/O packs for digital temperature conversion Provides galvanic isolation and transient protection for RTD circuits Integrated surge and high-frequency noise suppression circuitry Supports simplex applications in Mark VIe control systems Filtering optimized for standard scan rate performance Compact and lightweight design for easy panel integration
$200.00 $100.00
-

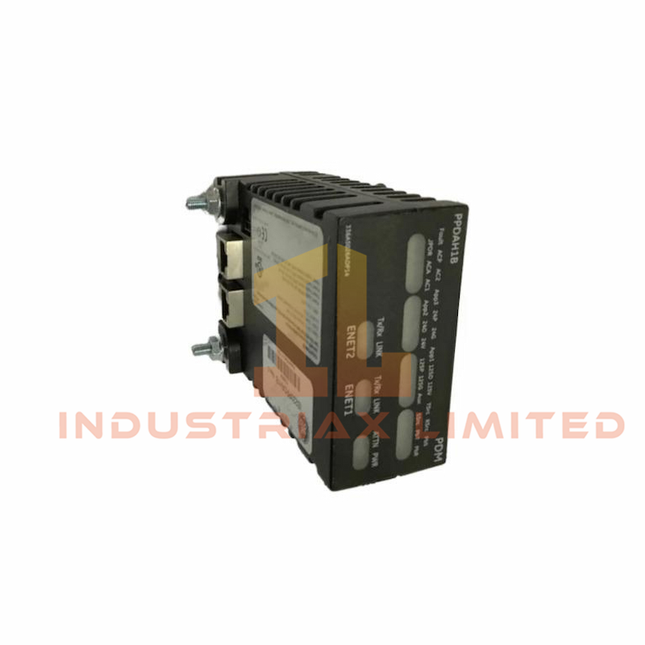

GE GE IS220PPDAH1B Power Distribution Feedback I/O Pack
The GE IS220PPDAH1B Power Distribution System Feedback I/O Pack is a compact, plug-and-play module designed to monitor and report critical power distribution parameters within the Mark VIe and Mark VIeS control systems. It collects feedback from up to six connected power distribution boards, including bus voltages, branch circuit status, ground fault detection, and bulk power supply health, and transmits this data via a dual redundant Ethernet interface to system controllers. Technical Specifications Parameter Specification Manufacturer GE Series Mark VIe system Part Number IS220PPDAH1B Description Power Distribution System Feedback I/O Pack Input Voltage 24 Vdc Current 1 A Dimensions 82.6 mm × 41.9 mm × 121 mm Weight 340 g Input Sources Up to 6 power distribution boards Communication Dual redundant Ethernet (IONet) Compatibility JPDS, JPDM, JPDG, JPDC, JPDB, JPDE, JPDF Configuration Plug-and-play with electronic ID recognition Key Features Accepts feedback from up to six power distribution boards Monitors power bus voltages, branch circuit status, and ground fault conditions Provides bulk power supply health diagnostics to controllers Dual Ethernet ports ensure redundant communication with Mark VIe/VIeS systems Plug-and-play setup using electronic ID detection and ToolboxST configuration Compact 82.6 × 41.9 × 121 mm form factor for easy integration Lightweight 340 g design supports flexible mounting options
$200.00 $100.00
-

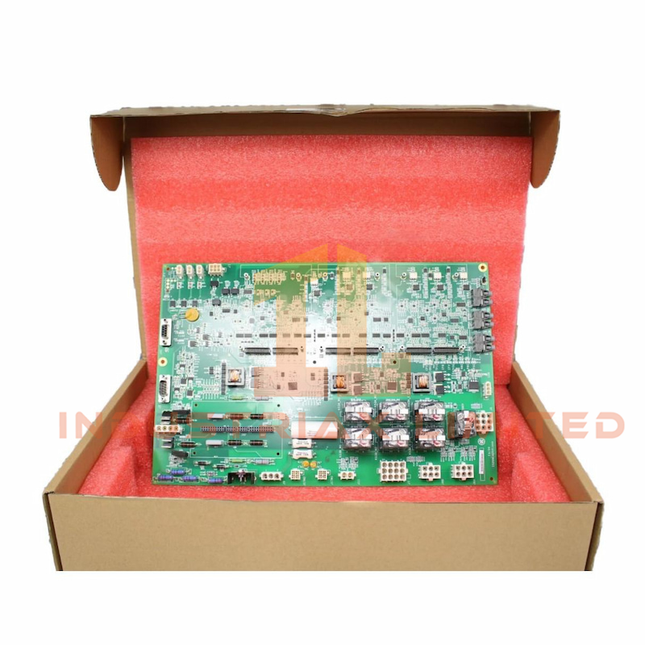

GE GE IS200EAUXH1A Exciter Auxiliary Interface Board
The GE IS200EAUXH1A Exciter Auxiliary Interface Board is a critical component of the EX2100e Excitation Control System, designed to manage auxiliary functions and signal conditioning between the UCSx controller and various excitation modules. It supports high-speed serial link (HSSL) communication and interfaces with contactors, field flashing relays, crowbar circuits, and ground detection systems, ensuring precise control and protection in generator excitation environments. Technical Specifications Parameter Specification Manufacturer GE Series EX2100e Excitation Control System Part Number IS200EAUXH1A Description Exciter Auxiliary Interface Board Input Voltage 24 Vdc Current 1 A Dimensions 330 mm × 178 mm × 35 mm Weight 0.6 kg Contact Wetting 125 Vdc (from M1/M2 power supplies) Interface Protocol HSSL Compatible Modules EXAM, EDEX, CSLA, EAUD daughterboard Signal Types Field voltage/current, AC bridge input, ground detection, crowbar status Key Features Interfaces with 41DC contactors, 53A/53B field flashing relays, and 86G contact input Supports crowbar and de-excitation signal conditioning from EDEX Enables field ground detection via EXAM module and nine-conductor cable Accepts EAUD daughterboard for high-speed contactor interface conversion Communicates with M1, M2, and CSLA control boards through HSLA modules Provides 125 Vdc wetting power for contact inputs from internal power supplies Compact 330 × 178 × 35 mm board fits standard excitation cabinets Ideal for generator excitation systems requiring robust auxiliary control
$200.00 $100.00
-
GE GE DS200DCFBG1B DC Feedback Power Supply Board
The GE DS200DCFBG1B DC Feedback Power Supply Board is a multifunctional power and signal interface module for the Mark V Control System. It receives 38 V ac and 115 V ac input from the control power transformer (CPT) and delivers regulated control-level DC outputs, including +5 V, ±15 V, and ±24 V. In addition to powering the drive and enclosure fans, it supports motor field control and monitors critical AC and DC signals for system diagnostics and protection. Technical Specifications Parameter Specification Manufacturer GE Series Mark V Control System Part Number DS200DCFBG1B Description DC Feedback Power Supply Board Input Voltage 24 Vdc Input AC 38 V ac and 115 V ac Output Voltages +5 V, ±15 V, ±24 V dc Dimensions 330 mm × 178 mm × 35 mm Weight 1 kg Motor Field Support Driver circuits for SCR gate pulses Monitoring Circuits AC line current, voltage, phase; DC motor signals Fan Power 115 V ac output for enclosure fans Key Features Converts 38 V ac and 115 V ac into multiple regulated DC outputs Powers drive control systems and enclosure cooling fans Includes motor field driver circuits (excluding SCR module) Monitors AC line voltage, current, and phase sequence Tracks armature and motor field signals for diagnostics Compact 330 × 178 × 35 mm board fits standard enclosures Supports high-reliability operation in industrial environments
$200.00 $100.00
-

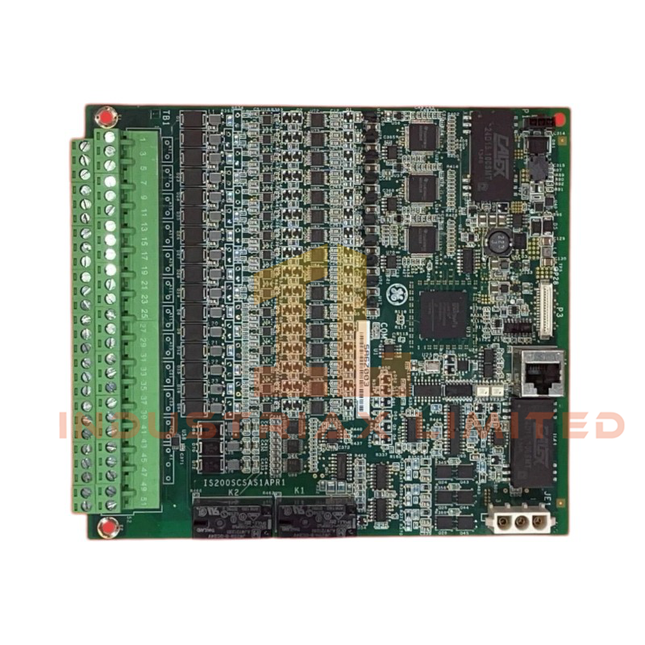

GE GE IS200SCSAS1A I/O Expansion Board
Overview The IS200SCSAS1A I/O Expansion Board from GE enhances input capacity for the Mark VIeS Control System. It connects to the TCSA terminal board via serial links and supports the YSIL module with a wide range of input and output channels. Technical Specifications Specification Detail Manufacturer GE Part Number IS200SCSAS1A Product Series Mark VIeS Control System Voltage 24 Vdc Current 1A Dimensions 18 cm × 18 cm × 2 cm Weight 0.2 kg Analog Inputs 10 × 4–20 mA Transmitter Power Outputs 10 × 24 Vdc External Analog Inputs 6 × 4–20 mA Thermocouple Inputs 3 channels Contact Inputs 3 channels Contact Outputs 3 channels Interface Type Serial link to TCSA Key Features Supports multiple input types including analog, thermocouple, and contact signals. Provides transmitter power outputs for field devices at 24 Vdc. Enables ETR logic integration using TMR input sets. Compact 0.2 kg board fits easily into control cabinets. Connects directly to TCSA terminal board via serial interface.
$200.00 $100.00
-

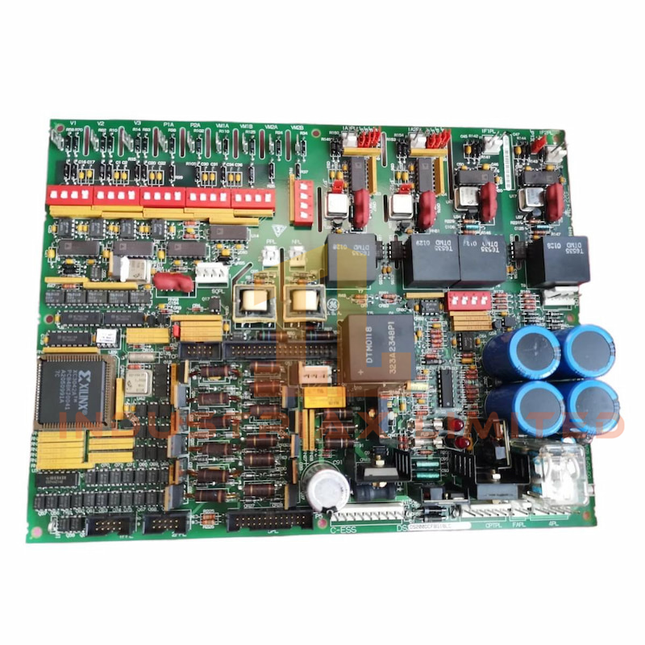

GE GE DS200DCFBG2B DC Feedback Power Supply Board
The GE DS200DCFBG2B DC Feedback Power Supply Board is a key component in the Mark V Control System, designed to deliver regulated and isolated DC voltages for drive control and armature current feedback circuits. It receives 38 V ac from the CPT and converts it into multiple DC outputs including ±24 V, ±15 V, and +5 V, each tailored for specific control and feedback functions. Integrated fuse protection and LED indicators ensure safe operation and simplified diagnostics. Technical Specifications Parameter Specification Manufacturer GE Series Mark V Control System Part Number DS200DCFBG2B Description DC Feedback Power Supply Board Input Voltage 24 Vdc Input AC 38 V ac ±10% (from CPT) Output Voltages ±24 V dc, ±15 V dc, +5 V dc Output Current +24 V @ 3 A, –24 V @ 1 A, ±15 V @ 0.8 A, +5 V @ 4 A External Load ±15 V dc @ 0.25 A available Dimensions 330 mm × 178 mm × 35 mm Weight 1 kg Protection Fuses FU1, FU2, FU3 with LED/neon indicators Regulation Monitoring /PSEN signal for +5 V regulation status Isolation Isolated +5 V and ±15 V for feedback circuits Key Features Converts 38 V ac input into multiple regulated DC outputs Provides isolated power for armature current feedback systems +5 V output includes regulation monitoring via /PSEN signal Integrated fuse protection with LED and neon indicators Compact 330 × 178 × 35 mm board fits standard control enclosures Supports SDCC/LDCC microprocessor reset via regulation signal Ideal for generator, line signal, and servo valve power conditioning
$200.00 $100.00
-

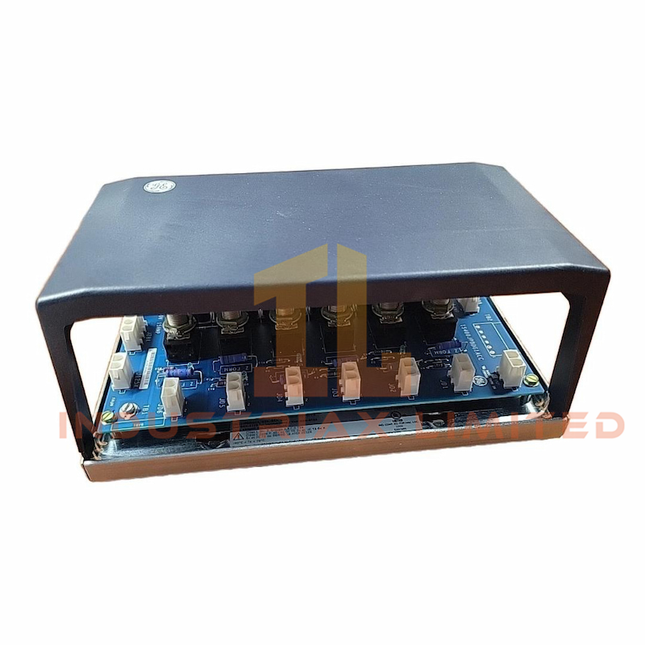

GE GE IS410JPDDG1A Pack Power DIN Rail Module
The GE IS410JPDDG1A Pack Power DIN Rail Module is a versatile dc power distribution board designed for use in Mark VIe Speedtronic control systems. It supports 125 Vdc, 48 Vdc, and 24 Vdc outputs for control and I/O functions such as dc relay activation, solenoid control, and contact wetting. Each output channel includes a fuse, manual switch, and indicator lamp to ensure safe operation and visual status monitoring. This module is not intended for powering I/O packs. Technical Specifications Parameter Specification Manufacturer GE Series Mark VIe Speedtronic Control System Part Number IS410JPDDG1A Description Pack Power DIN Rail Module Input Voltage 24 Vdc Current 1 A Output Voltages 125 Vdc, 48 Vdc, 24 Vdc Dimensions 317.5 mm × 235 mm × 108 mm Weight 1.5 kg Protection Features Fuse, switch, and lamp per output Application Scope Control power, solenoids, contact wetting Key Features Distributes multiple dc voltages for control and I/O functions Each output includes fuse protection, manual switching, and voltage indication Supports 125 Vdc, 48 Vdc, and 24 Vdc applications DIN-rail mounting simplifies integration into control panels Not intended for direct I/O pack power distribution Ideal for relay control, solenoid actuation, and wetting circuits
$200.00 $100.00
-

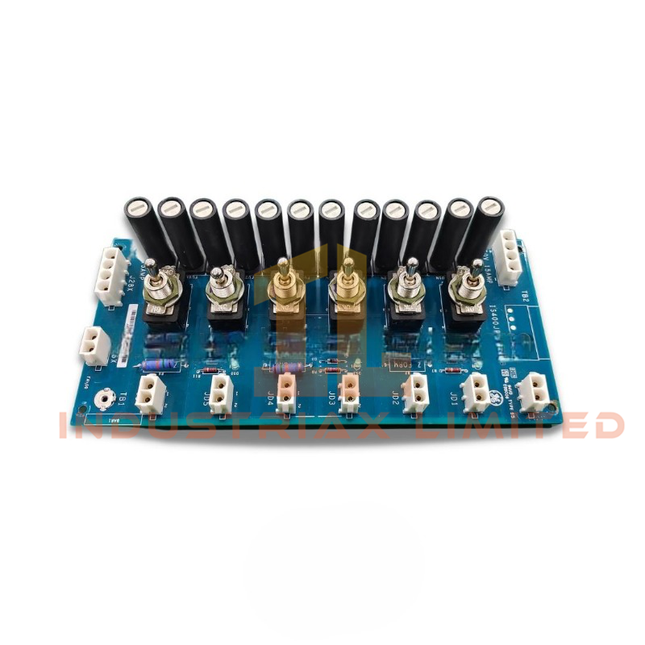

GE GE IS400JPDDG1A Power Distribution Terminal Board
Overview The IS400JPDDG1A Power Distribution Terminal Board from GE is designed for the Mark VIe Speedtronic Control System. It delivers isolated DC power and branch circuit protection for control and I/O functions requiring 24 Vdc, 48 Vdc, or 125 Vdc. Technical Specifications Specification Detail Manufacturer GE Part Number IS400JPDDG1A Product Series Mark VIe Speedtronic Control System Voltage Options 24 Vdc / 48 Vdc / 125 Vdc Current 1A Dimensions 23.4 cm × 10.8 cm × 6.5 cm Weight 0.5 kg Mounting Type Vertical DIN-rail Fuse Configuration Dual-size, system-rated Grounding Requirement TB1 to system ground Key Features Distributes DC power across control and I/O circuits with fuse protection. Supports three voltage levels but only one at a time per installation. Offers flexible fuse sizing for regional compliance and system compatibility. Mounts securely on DIN rails using a plastic holder for easy installation. Ensures safe operation with dedicated grounding via TB1 terminal.
$200.00 $100.00
-

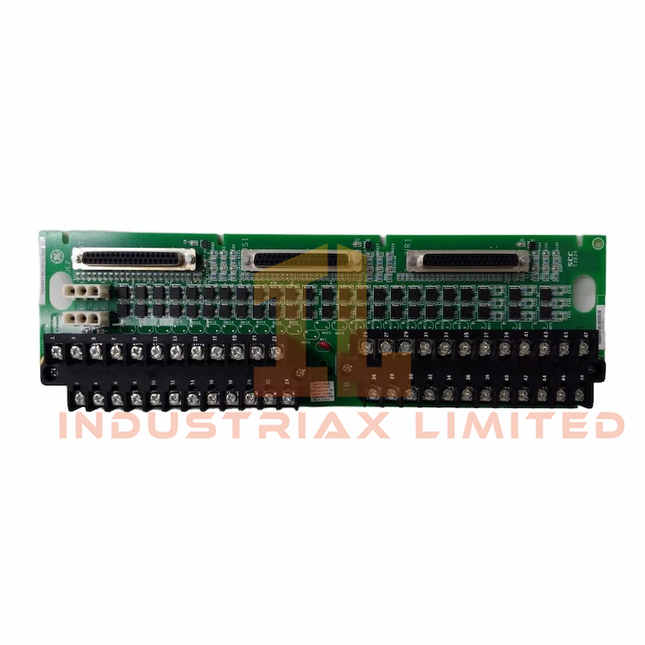

GE GE IS200TBCIS2C Contact Input Terminal Board
The GE IS200TBCIS2C Contact Input With Group Isolation Terminal Board is designed to handle 24 dry contact inputs with built-in surge and noise suppression. As part of the Mark VIe system, it supports Simplex, Dual, and Triple Modular Redundant (TMR) configurations, offering flexible integration for safety-critical applications. Its barrier-type terminal blocks and shielded grounding ensure robust field wiring and easy maintenance. Technical Specifications Parameter Specification Manufacturer GE Series Mark VIe system Part Number IS200TBCIS2C Description Contact Input With Group Isolation Board Input Voltage 24 Vdc Current 1 A Dimensions 330 mm × 102 mm × 35 mm Weight 0.5 kg Input Channels 24 dry contact inputs Terminal Type Barrier-type, unpluggable blocks Wire Size Up to #12 AWG Grounding Shield terminal strip to chassis ground Redundancy Support Simplex, Dual, TMR via JR1, JS1, JT1 Excitation Voltage Connected via JE1 and JE2 Noise Protection Surge and high-frequency suppression Key Features Accepts 24 dry contact inputs with group isolation Two barrier-type terminal blocks simplify wiring and maintenance Supports Simplex, Dual, and TMR configurations for flexible redundancy Shield terminal strips ensure proper grounding and EMI protection Noise suppression circuitry protects against surge and interference DIN-rail compatible with side-mounting brackets for I/O packs Ethernet connectivity supports one or two cables per I/O pack
$200.00 $100.00
-

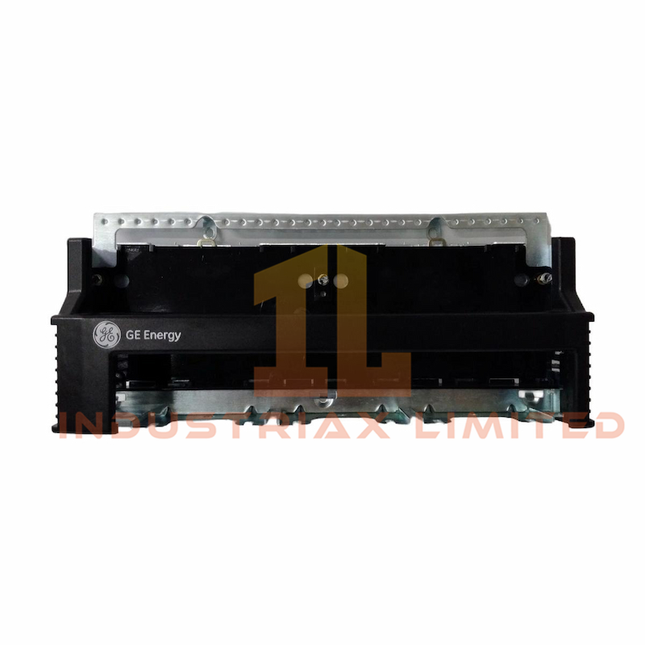

GE GE IS230TCISH6C DIN Rail I/O Module
The GE IS230TCISH6C DIN Rail I/O Module delivers configurable redundancy for discrete input processing in Mark VIe control systems. Supporting both Simplex and Triple Modular Redundant (TMR) configurations, it enables users to tailor system availability and SIL compliance. When paired with the TBCI terminal board, the module performs 2-out-of-3 voting in TMR mode, while Simplex and Dual setups rely on single or first-reporting YDIA I/O packs. Technical Specifications Parameter Specification Manufacturer GE Series Mark VIe system Part Number IS230TCISH6C Description DIN Rail I/O Module Input Voltage 24 Vdc Current 1 A Dimensions 170 mm × 157 mm × 153 mm Weight 1.5 kg Configuration Modes Simplex, Dual, TMR I/O Pack Compatible with YDIA Terminal Board Supports TBCI for TMR voting Key Features Supports Simplex, Dual, and TMR configurations for flexible redundancy TMR mode enables 2-out-of-3 voting for high-integrity input validation Simplex mode uses a single YDIA I/O pack for streamlined control Dual mode listens to the first reporting I/O pack without voting logic DIN-rail mounting simplifies integration into compact control panels Designed for safety-critical systems requiring configurable SIL levels
$200.00 $100.00
