The 1769 CompactLogix series offers compact and modular PLC solutions. Designed for reliable control and communication, these systems are ideal for mid-sized industrial automation applications, supporting I/O integration and network connectivity.
Allen-Bradley 1769 Series (CompactLogix)
-
Allen Bradley Allen-Bradley 1769-OF4VI CompactLogix Analog Voltage Output Module
Allen-Bradley 1769-OF4VI CompactLogix Analog Voltage Output Module Configured for isolated analog voltage signal execution in CompactLogix control systems, the Allen-Bradley 1769-OF4VI (1769-OF4VI Analog Output Module) provides direct physical/electrical output processing through four individually isolated channels. Hardware Specifications Parameter Specification Model 1769-OF4VI Brand Allen-Bradley Origin United States Product Line CompactLogix Product Type Analog Voltage Output Module Module Type Analog Current Output Module Output Channels 4 individually isolated outputs Output Signal Type Voltage output Series Series A and B Terminal Block Replaceable terminal block Replacement Door Part Number 1769-RD Communication Interface 4 point connection Wire Type Copper-90 C Solid Wire Size 22-14 AWG Stranded Wire Size 22-16 AWG Weight 0.44 lb (0.20 kg) UNSPSC 32151705 EtherNet/IP and CompactLogix I/O Integration Characteristics The 1769-OF4VI operates as a CompactLogix analog output component that connects through the controller backplane architecture. The module processes voltage output commands from the controller program and converts digital values into isolated analog signals. Furthermore, the module supports I/O density scaling within CompactLogix platforms by providing four independent output channels in a compact form factor. The individually isolated channels reduce signal interaction between field devices and control logic circuits. The module supports replaceable field wiring components, including the terminal block and module door. Therefore, maintenance personnel can replace these components without replacing the complete module assembly. Frequently Asked Questions Q: Does the 1769-OF4VI provide isolated output channels?A: Yes. The module provides four individually isolated analog output channels for separate field signal connections. Q: Can the terminal block be replaced if field wiring components are damaged?A: Yes. The terminal block is replaceable, and the module door can also be replaced using the specified 1769-RD part. Q: Does the module support grounding connections?A: Yes. The 1769-OF4VI supports an earth ground connection for field installation safety requirements. Field Installation Guidelines Install the 1769-OF4VI in an appropriate CompactLogix chassis position according to the controller system configuration requirements. Use copper conductors within the supported wire size range and maintain proper separation between analog signal wiring and high-voltage power conductors to reduce electrical interference. Connect the earth ground terminal according to the installation design requirements. Verify field wiring polarity before applying system power to prevent incorrect analog output operation. Inspect the removable terminal block connection points during commissioning and maintenance activities. Ensure that all field connections remain mechanically secured before returning the module to service.
$200.00 $100.00
-
Allen Bradley Allen Bradley 1769-BA CompactLogix Battery Module
Allen Bradley 1769-BA CompactLogix Battery Module Configured for memory retention power support in CompactLogix controller systems, the Allen Bradley 1769-BA (1769-BA Battery Module) provides direct electrical energy storage for controller backup functions. The module operates with CompactLogix Series A and B hardware and maintains stored energy availability through a dedicated battery interface. Hardware Specifications Parameter Specification Model 1769-BA Brand Allen Bradley Origin United States Product Type Battery Module Product Line CompactLogix Series A and B Module Type Battery Weight 0.13 lbs (0.06 kg) Isolation Voltage 30 Volts Continuous Enclosure Open Backplane Current 1.4 Amps at 24 Volts Power Consumption 33.6 Watts Power Dissipation 7.5 Watts UPC 612598312108 EtherNet/IP and CompactLogix Hardware Integration The 1769-BA battery module operates within the Allen Bradley CompactLogix hardware platform and supports controller memory retention requirements through the Compact I/O architecture. In addition, the module integrates with the controller assembly through the backplane interface and follows CompactLogix installation standards. The CompactLogix platform uses deterministic industrial communication networks, including EtherNet/IP connectivity across supported controller configurations. Furthermore, proper module installation maintains stable backplane communication and supports consistent controller operation. Frequently Asked Questions Q: What function does the 1769-BA module provide in a CompactLogix system?A: The 1769-BA provides stored energy for controller backup functions and supports memory retention requirements within compatible CompactLogix controllers. Q: Can the 1769-BA operate with all CompactLogix controllers?A: The 1769-BA is specified for CompactLogix controllers supporting Series A and B hardware configurations. Compatibility must be verified against the controller catalog number. Q: What electrical load does the 1769-BA present to the system?A: The module operates with a backplane current specification of 1.4 Amps at 24 Volts and a listed power consumption of 33.6 Watts. Field Installation Guidelines Install the 1769-BA module according to the CompactLogix system hardware layout requirements. Verify controller compatibility before mounting the battery module into the assembly. Keep the module protected from mechanical impact, excessive contamination, and unintended electrical contact. Use standard industrial wiring practices and maintain proper separation between power wiring and signal communication paths. Inspect the module connection points before commissioning. Ensure the backplane connection is fully seated and verify controller status indicators after installation.
$200.00 $100.00
-

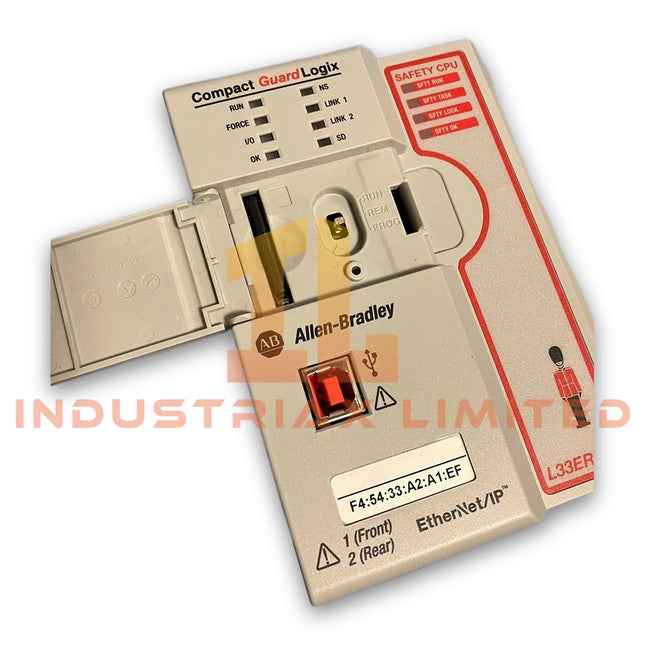

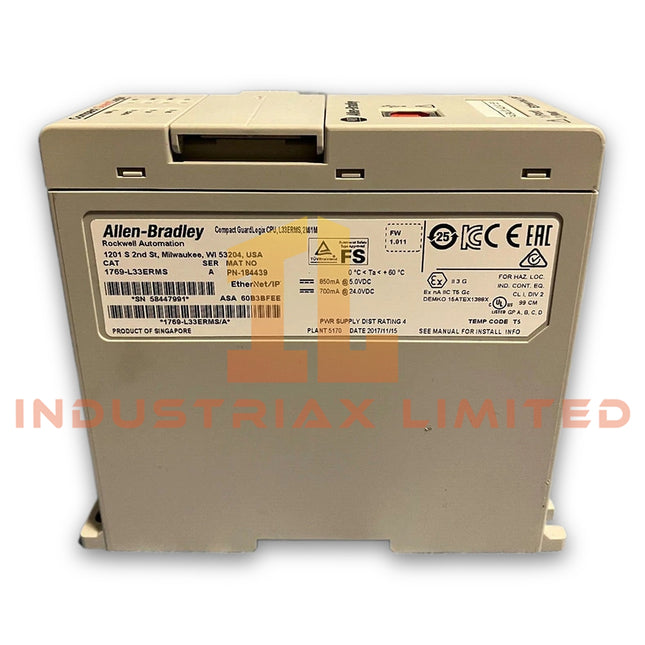

Allen Bradley Allen Bradley 1769-L33ERMS Compact GuardLogix 5370 Controller
Allen Bradley 1769-L33ERMS Compact GuardLogix 5370 Controller The Allen Bradley 1769-L33ERMS, also cataloged as the 1769-L33ERMS Compact GuardLogix Controller, operates as a dedicated hardware component for safety logic execution and motion control within EtherNet/IP industrial control networks. Hardware Specifications Parameter Specification Model 1769-L33ERMS Brand Allen Bradley Origin USA Product Type Compact GuardLogix Controller Product Line CompactLogix Weight 1.25 lbs (0.57 kg) Application Memory 2 MB Safety Memory 1 MB Non-volatile Memory 1 GB via 1784-SD1 memory card Integrated Motion Yes Maximum Motion Axes 8 axes Local I/O Capacity Up to 16 Compact I/O modules Expansion I/O Banks 3 expansion I/O banks Ethernet Communication Ports 2 EtherNet/IP ports USB Interface 1 Type B 2.0 Full-Speed USB port Ethernet Communication Rate 10 Mbps / 100 Mbps USB Communication Rate 12 Mbps Maximum Connections 256 Ethernet/IP Nodes 32 nodes Controller Tasks 32 tasks Programs per Task 1000 SIL Rating SIL 3 Programming Languages Ladder Diagram, Structured Text, Function Block Diagram, Sequential Function Chart EtherNet/IP Deterministic Network and I/O Scaling The 1769-L33ERMS uses EtherNet/IP communication interfaces to exchange controller data across industrial networks. The dual Ethernet ports support network topology configurations and provide communication access for distributed I/O devices. Additionally, the controller supports Compact I/O expansion with up to 16 local modules and 3 expansion I/O banks. This architecture allows engineers to scale digital, analog, and specialty I/O configurations according to application requirements. The controller firmware supports integrated motion execution and safety functions within the Compact GuardLogix platform. Therefore, it can manage standard control tasks, safety logic, and motion operations through a single controller environment. Frequently Asked Questions Q: What communication interfaces are available on the 1769-L33ERMS controller?A: The controller provides two EtherNet/IP ports and one Type B 2.0 Full-Speed USB interface for programming and communication functions. Q: How much memory does the 1769-L33ERMS provide for standard and safety applications?A: The controller provides 2 MB of application memory and 1 MB of safety memory for control and safety logic execution. Q: Does the 1769-L33ERMS support integrated motion control?A: Yes. The controller supports integrated motion functionality with a maximum capacity of 8 motion axes. Field Installation Guidelines Install the 1769-L33ERMS controller on a compatible CompactLogix chassis according to the system hardware configuration requirements. Maintain proper Ethernet cable routing and separate communication wiring from high-voltage power conductors to reduce electrical interference. Use appropriate grounding methods for shielded communication cables based on site electrical standards. Before commissioning, verify the controller firmware compatibility with the connected Compact I/O modules, safety configuration, and programming software environment. Confirm EtherNet/IP node addressing and network communication parameters before placing the controller into operation.
$200.00 $100.00
-

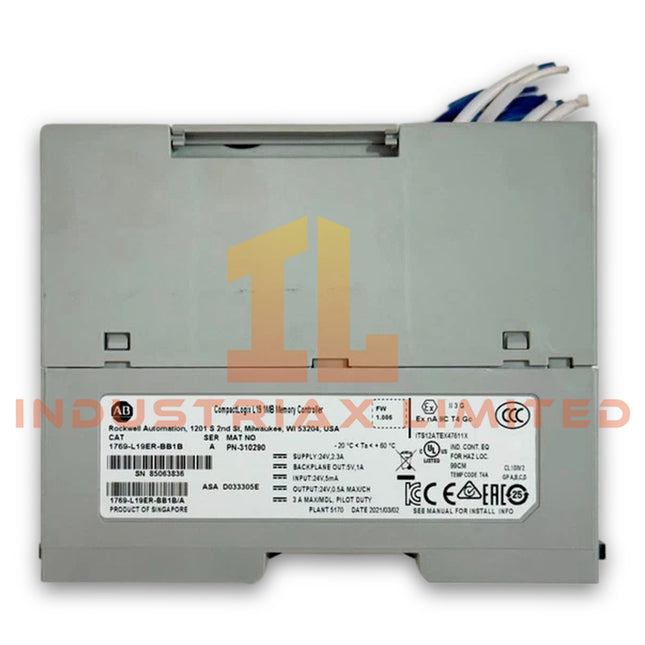

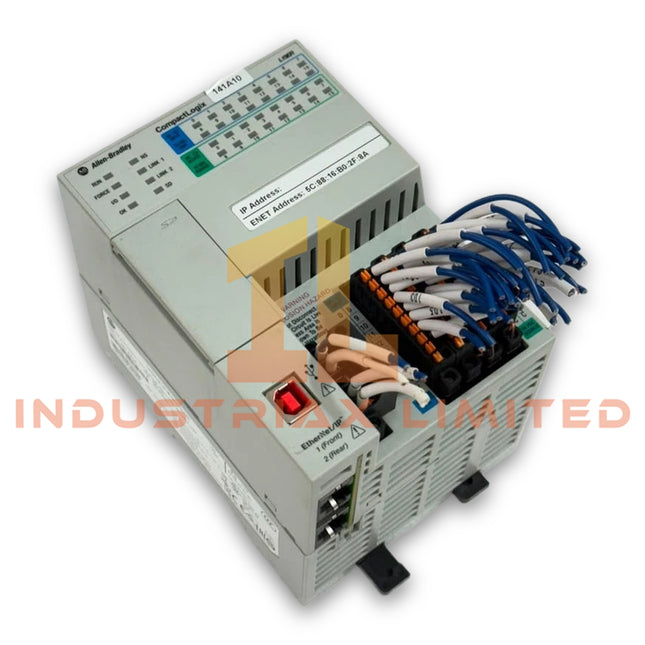

Allen Bradley Allen Bradley 1769-L19ER-BB1B CompactLogix Controller
Allen Bradley 1769-L19ER-BB1B CompactLogix Controller Configured for controller execution and EtherNet/IP communication in CompactLogix automation networks, the Allen Bradley 1769-L19ER-BB1B (1769-L19ER-BB1B Controller) provides direct physical and electrical control processing. This controller manages embedded I/O, user programs, and network connections through dual Ethernet ports and one USB interface. Hardware Specifications Parameter Specification Model 1769-L19ER-BB1B Brand Allen Bradley Origin USA Product Type CompactLogix Controller Weight 1.69 lbs (0.77 kg) Power Consumption 11.5 Watts maximum power dissipation Product Line CompactLogix User Memory 1 MB Ethernet Communication Ports 2 Ethernet ports USB Port 1 USB port Maximum Controller Connections 256 connections Maximum Sockets 32 sockets Supported Tasks 32 tasks Programs per Task 100 programs Embedded I/O 16 digital DC inputs and 16 digital DC outputs Current Draw at 5 VDC 1 Amp Mounting Method DIN rail mounting EtherNet/IP Communication and CompactLogix Architecture The 1769-L19ER-BB1B uses EtherNet/IP communication interfaces for controller networking and data exchange. The dual Ethernet ports support industrial network connection schemes, while the controller processes application tasks through the CompactLogix execution environment. Furthermore, the controller supports up to 256 communication connections and 32 sockets, allowing multiple devices, software tools, and I/O communication paths to operate within the configured network structure. The embedded I/O configuration provides 16 digital DC inputs and 16 digital DC outputs, reducing external module requirements for compact control applications. The controller also supports I/O density scaling through the CompactLogix platform architecture and backplane communication design. Frequently Asked Questions Q: Does the 1769-L19ER-BB1B support EtherNet/IP communication?A: Yes. The controller provides two Ethernet communication ports for EtherNet/IP network connectivity and supports up to 256 controller connections. Q: How much user memory is available in the 1769-L19ER-BB1B?A: The controller provides 1 MB of user memory for application programs, controller data, and project configuration. Q: What embedded I/O is included with this controller?A: The controller includes 16 digital DC inputs and 16 digital DC outputs for direct field device connection. Field Installation Guidelines Install the 1769-L19ER-BB1B on a DIN rail according to the CompactLogix hardware installation requirements. Maintain proper spacing around the controller to support heat dissipation and provide access for Ethernet, USB, and field wiring connections. Use shielded Ethernet cables where required by the industrial environment, and separate communication wiring from high-voltage power conductors to reduce electrical interference. Connect grounding and bonding points according to the applicable control panel standards. Before operation, verify the 5 VDC backplane power load, embedded I/O wiring polarity, Ethernet addressing, and controller firmware compatibility with the installed automation project.
$200.00 $100.00
-

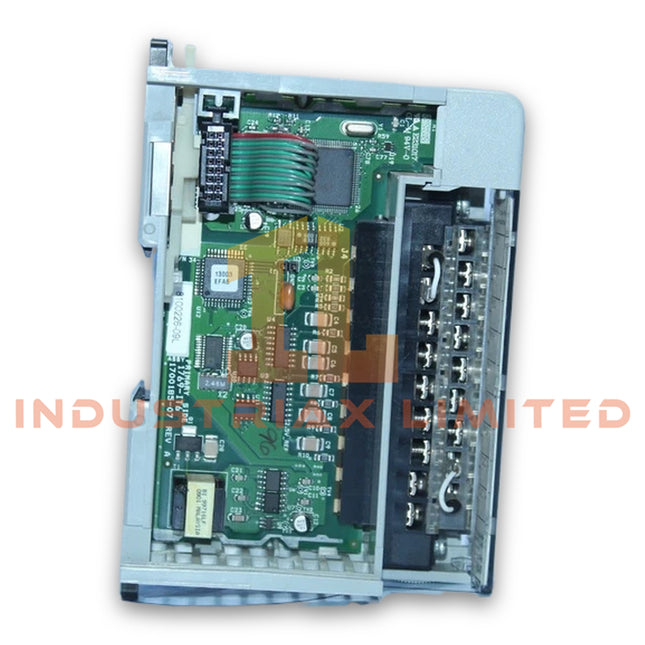

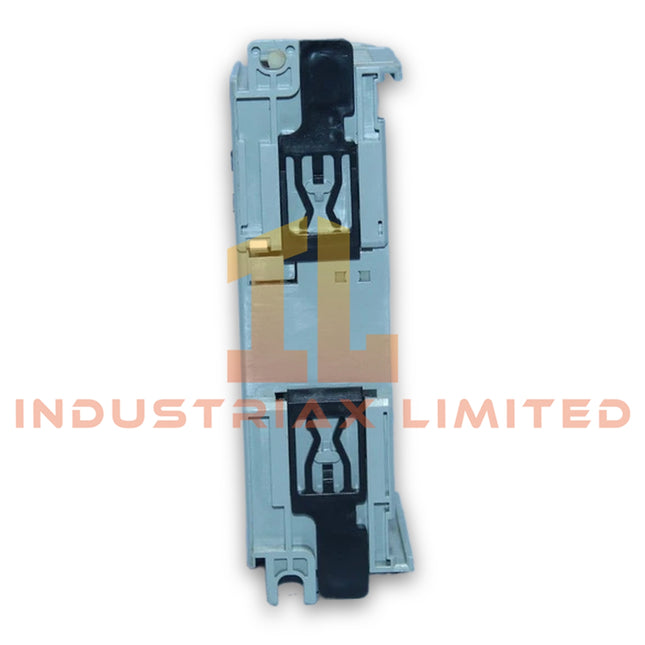

Allen Bradley Allen-Bradley 1769-IT6 Compact I/O Thermocouple Input Module
Allen-Bradley 1769-IT6 Compact I/O Thermocouple Input Module Configured for thermocouple and millivolt signal acquisition in CompactLogix and MicroLogix platforms, the Allen-Bradley 1769-IT6 (1769-IT6 Thermocouple Input Module) provides direct electrical measurement processing for temperature and low-level voltage signals. Hardware Specifications Parameter Specification Model 1769-IT6 Brand Allen-Bradley Origin USA Product Type Thermocouple / Millivolt Input Module Product Line CompactLogix Compact I/O Weight 0.50 lbs (0.23 kg) Power Consumption 1.5 W maximum heat dissipation Input Channels 6 channels Input Type Thermocouple and millivolt input Supported Thermocouple Types J, K, T, E, R, N, S, B, C, CJC Millivolt Input Range +/- 50 mV and +/- 10 mV Current Draw at 5.1 V 100 mA Current Draw at 24 V 40 mA Converter Type Delta Sigma Nonlinearity +/- 0.03% CJC Sensor Accuracy +/- 0.3 deg C (+/- 0.54 deg F) CJC Accuracy +/- 1.0 deg C (+/- 1.8 deg F) Calibration Power-up calibration; programmable Compatible Controllers CompactLogix and MicroLogix Compatible Adapters 1769-ADN DeviceNet, 1769-AENTR Ethernet Power Supply Distance Rating 8 modules Wire Type Copper, 90 deg C Wire Size 22-14 AWG solid wire Replacement Terminal Block 1769-RTBN18 Replacement Door Label 1769-RL2 Series B EtherNet/IP and Compact I/O Integration Features The Allen-Bradley 1769-IT6 operates within the Compact I/O architecture and exchanges processed input data through the controller backplane interface. The module supports I/O density scaling by providing six dedicated temperature measurement channels in a compact hardware format. Furthermore, the module supports CompactLogix and MicroLogix controller platforms through compatible communication adapters. The hardware configuration allows engineers to integrate thermocouple and millivolt devices into EtherNet/IP or DeviceNet based control networks when used with applicable adapter modules. The Delta Sigma converter processes analog signals with programmable calibration functions. In addition, the cold junction compensation (CJC) function improves thermocouple measurement accuracy by monitoring reference junction temperature conditions. Frequently Asked Questions Q: What input signals can the 1769-IT6 process?A: The 1769-IT6 processes thermocouple inputs including J, K, T, E, R, N, S, B, and C types. It also accepts +/- 50 mV and +/- 10 mV millivolt signals. Q: Does the 1769-IT6 require external cold junction compensation hardware?A: No. The module includes CJC sensor functionality and performs cold junction compensation through integrated measurement circuitry. Q: Can the 1769-IT6 connect directly to Ethernet networks?A: The module does not include an integrated Ethernet interface. It connects through compatible Compact I/O adapters such as the 1769-AENTR for Ethernet communication. Field Installation Guidelines Install the 1769-IT6 module on the CompactLogix or MicroLogix system assembly according to the controller platform installation requirements. Use copper wiring with the specified temperature rating and wire size range. Keep thermocouple wiring separated from high-voltage power conductors to reduce electrical interference. Connect thermocouple extension wiring with correct polarity and maintain consistent thermocouple material throughout the signal path. Ground cable shields according to the control panel grounding practice while avoiding unnecessary ground loops. Verify module configuration parameters before operation, including sensor type selection, input range settings, and calibration requirements. Confirm that field devices match the configured thermocouple or millivolt input type before applying operating power.
$200.00 $100.00
-

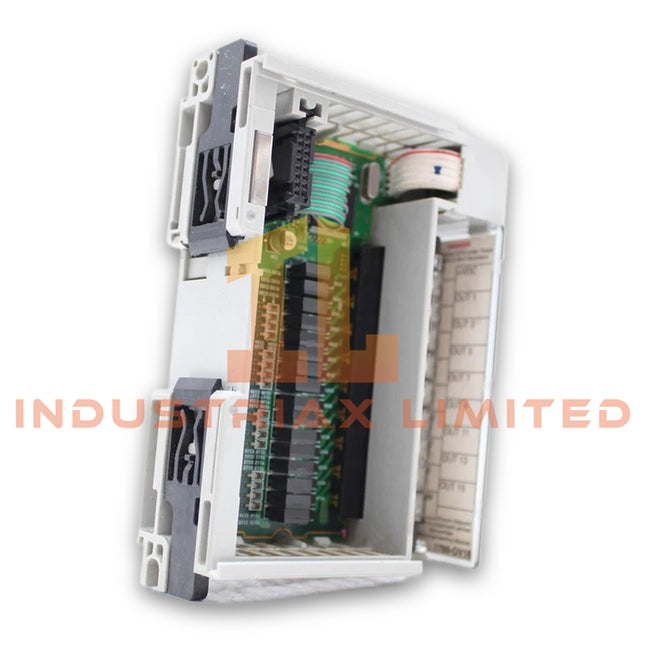

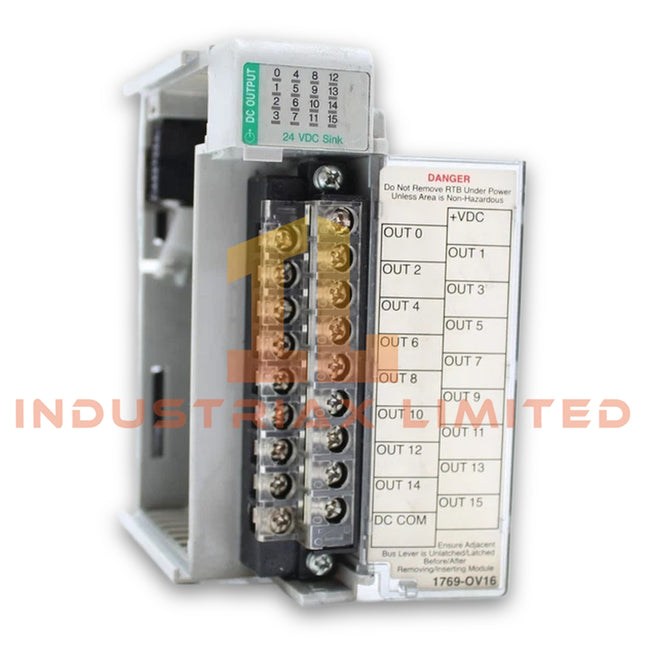

Allen Bradley Allen Bradley 1769-OV16 Compact I/O 24 VDC Discrete Output Module
Allen Bradley 1769-OV16 Compact I/O 24 VDC Discrete Output Module The Allen Bradley 1769-OV16, also cataloged as the 1769-OV16 24 VDC Discrete Output Module, provides direct electrical switching execution for sink-type output control within CompactLogix and MicroLogix 1500 controller platforms. Hardware Specifications Parameter Specification Model 1769-OV16 Brand Allen Bradley Origin USA Product Type 24 VDC Discrete Output Module Series Compact I/O Compatible Controllers CompactLogix; MicroLogix 1500 Weight 0.20 kg (0.44 lbs) Power Consumption Backplane current draw: 200 mA at 5.1 V Number of Outputs 16 outputs Number of Channels 16 channels Output Groups 1 output group Wiring Configuration Sink Output Voltage 24 VDC Output Voltage Range 20.4 - 26.4 VDC Output Current per Point 1.0 A at 30 deg C; 0.5 A at 60 deg C Maximum Module Current 8.0 A at 30 deg C; 4.0 A at 60 deg C Output Delay Time ON 0.1 ms Output Delay Time OFF 1.0 ms Surge Current 2.0 A for 10 ms, repeatable every 2 s OFF State Leakage Current 1.0 mA at 26.4 VDC Enclosure Type Open Wire Type Copper-90 Solid Wire Size 22 - 14 AWG Stranded Wire Size 22 - 16 AWG EtherNet/IP and Compact I/O Backplane Integration The 1769-OV16 operates as a Compact I/O expansion module and exchanges output command data through the controller backplane interface. Allen Bradley Compact I/O architecture supports deterministic EtherNet/IP system integration through compatible CompactLogix controllers. Additionally, I/O density scaling allows controllers to expand discrete output capacity while maintaining structured module addressing. The module uses transistor-based sinking outputs to switch 24 VDC field devices. Therefore, engineers must match field device wiring polarity and current demand with the module output specifications before installation. Frequently Asked Questions Q: What output wiring configuration does the 1769-OV16 support?A: The 1769-OV16 supports sink wiring configuration and provides sixteen 24 VDC discrete output channels. Q: What is the maximum output current capability of each channel?A: Each output channel supports 1.0 A at 30 deg C and 0.5 A at 60 deg C operating conditions. Q: What backplane current does the module require from the controller system?A: The module requires 200 mA from the 5.1 VDC backplane supply. Field Installation Guidelines Install the 1769-OV16 on a compatible Compact I/O assembly and verify controller compatibility before applying field power. Use copper conductors within the specified wire size range and maintain correct polarity for sink output connections. Separate output wiring from high-voltage power conductors to reduce electrical interference. Connect field devices according to the approved control panel wiring design, and confirm that total module current remains within the specified operating limits. Before commissioning, verify each output channel operation through controller diagnostics and confirm that connected loads do not exceed the per-point and module current ratings.
$200.00 $100.00
-

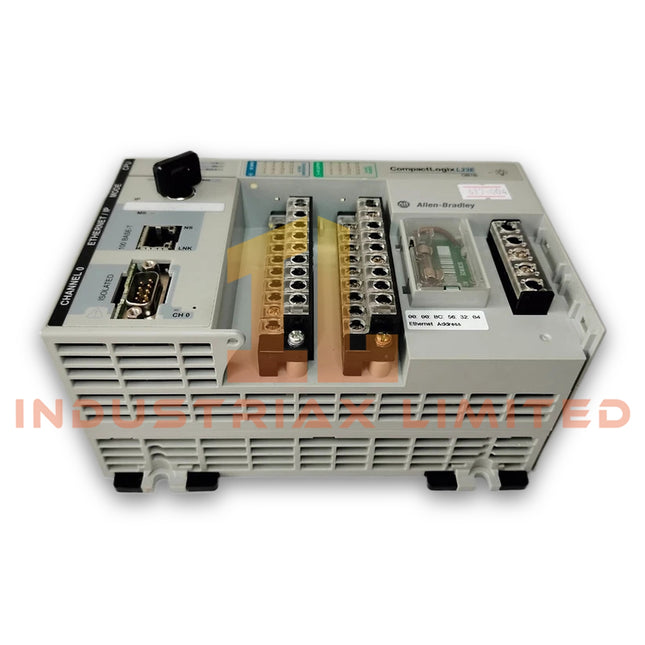

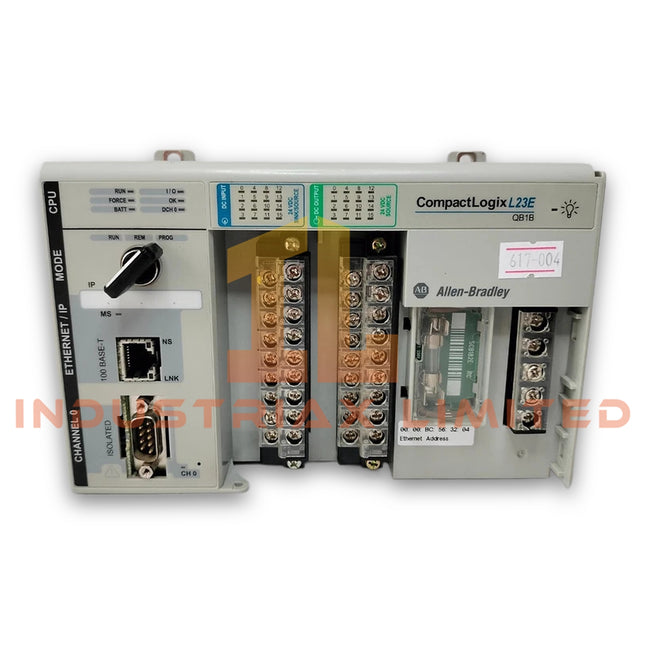

Allen Bradley Allen Bradley 1769-L23E-QB1B CompactLogix Controller
Allen Bradley 1769-L23E-QB1B CompactLogix Controller Configured for distributed I/O control and Ethernet-based data communication in CompactLogix platforms, the Allen Bradley 1769-L23E-QB1B (1769-L23E-QB1B Controller) provides direct physical and electrical execution for embedded digital signal processing and controller operations. Hardware Specifications Parameter Specification Model 1769-L23E-QB1B Brand Allen Bradley Product Type Controller Product Line CompactLogix Origin USA Weight 2.00 lbs (0.91 kg) Power Consumption Bus current: 1 A at 5 VDC; 710 mA at 24 VDC User Memory 512 KB Communication Interfaces RS-232 and Ethernet Digital Inputs 16 inputs Digital Outputs 16 outputs Status Indicators Included Expansion Capacity Supports 2 Bulletin 1769 CompactLogix I/O modules Compatible Battery 1769-BA Battery Compatible Right End Cap 1769-ECR Right End Cap Compatible Controller Door 1769-RDQB Door UPC 612598350766 EtherNet/IP and CompactLogix Backplane Integration The 1769-L23E-QB1B operates as a CompactLogix controller with integrated communication interfaces for controller-to-device data exchange. It supports Ethernet communication for network connectivity and RS-232 communication for serial device integration. Furthermore, the controller manages local I/O expansion through the 1769 CompactLogix backplane architecture. The controller supports I/O density scaling through its embedded 16-point digital input and 16-point digital output configuration. Therefore, users can connect additional 1769 expansion modules when the application requires increased signal capacity. The controller also maintains compatibility with CompactLogix firmware and hardware accessories designed for the 1769 platform. Frequently Asked Questions (FAQ) Q: Does the 1769-L23E-QB1B support Ethernet communication?A: Yes. The controller includes an Ethernet communication interface for CompactLogix network connectivity and data exchange. Q: How many local I/O points are integrated into the controller?A: The controller provides 16 digital inputs and 16 digital outputs as embedded I/O resources. Q: What is the controller backplane current requirement?A: The module requires 1 A bus current at 5 VDC and 710 mA bus current at 24 VDC according to the supplied specifications. Field Installation Guidelines Install the controller within the specified CompactLogix chassis arrangement and verify module positioning before applying power. Connect Ethernet and RS-232 communication cables according to industrial wiring practices to reduce electromagnetic interference. Separate communication cables from high-voltage power conductors and motor cables to minimize signal disturbance. Verify backplane current capacity before adding 1769 expansion modules to prevent power supply overload. Install compatible accessories, including the 1769-BA battery, 1769-ECR right end cap, and 1769-RDQB controller door, according to the controller hardware configuration requirements. Confirm grounding and shielding practices for communication wiring before commissioning the control system.
$200.00 $100.00
-

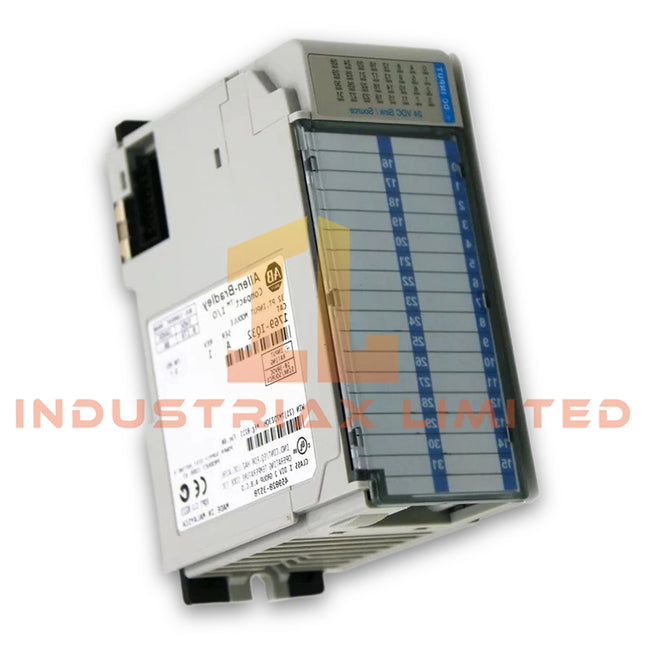

Allen Bradley Allen-Bradley 1769-IQ32 CompactLogix Digital Input Module
Allen-Bradley 1769-IQ32 CompactLogix Digital Input Module Configured for 24 VDC discrete signal acquisition in CompactLogix control systems, the Allen-Bradley 1769-IQ32 (1769-IQ32 Digital Input Module) provides direct electrical processing for field input devices through 32 DC input channels. Hardware Specifications Parameter Specification Model 1769-IQ32 Brand Allen-Bradley Origin USA Product Type Digital Input Module Product Line CompactLogix Input Channels 32 inputs Input Groups 4 groups, 8 inputs per group Voltage Category 24 VDC Input Delay 8 ms ON and OFF delay Current Draw 170 mA at 5.1 VDC Power Consumption 4.6 W maximum heat dissipation Weight 0.31 kg (0.69 lbs) Maximum Off-State Voltage 5 VDC Maximum Off-State Current 1.5 mA Minimum On-State Voltage 10 VDC Minimum On-State Current 2 mA Maximum Inrush Current 250 mA EtherNet/IP and CompactLogix I/O Architecture Compatibility The 1769-IQ32 operates as a CompactLogix expansion I/O module and processes discrete field signals through the controller backplane communication structure. The module supports I/O density scaling by providing 32 input points within a compact hardware footprint. Therefore, engineers can integrate multiple input modules while maintaining organized channel grouping and simplified panel wiring. The module receives 24 VDC field signals and transfers input status data through the CompactLogix local I/O system. Additionally, the 8 ms input delay configuration provides controlled signal recognition for ON and OFF transitions, reducing unstable input changes during normal operation. The module supports industrial control applications requiring direct digital signal acquisition. Moreover, its defined off-state and on-state voltage thresholds allow the controller to distinguish field device states according to standard DC input characteristics. Frequently Asked Questions Q: Does the 1769-IQ32 support AC input signals?A: No. The 1769-IQ32 is a 24 VDC digital input module designed for DC discrete signal processing. Q: How are the 32 input channels organized internally?A: The module organizes the 32 inputs into four groups, with each group containing eight input channels. Q: What communication method does the module use within a CompactLogix system?A: The module exchanges I/O data through the CompactLogix local I/O backplane communication interface. Field Installation Guidelines Install the 1769-IQ32 on the CompactLogix local I/O assembly according to the controller system configuration requirements. Verify that the module is correctly seated on the backplane before applying field power. Use appropriate industrial wiring practices for 24 VDC input circuits. Separate low-level signal wiring from high-voltage power conductors to reduce electrical interference. Connect cable shields according to the system grounding design and maintain proper cabinet grounding. Confirm field device polarity before connecting input terminals. Check that input voltage levels remain within the specified ON-state and OFF-state limits before commissioning the control application.
$200.00 $100.00
-

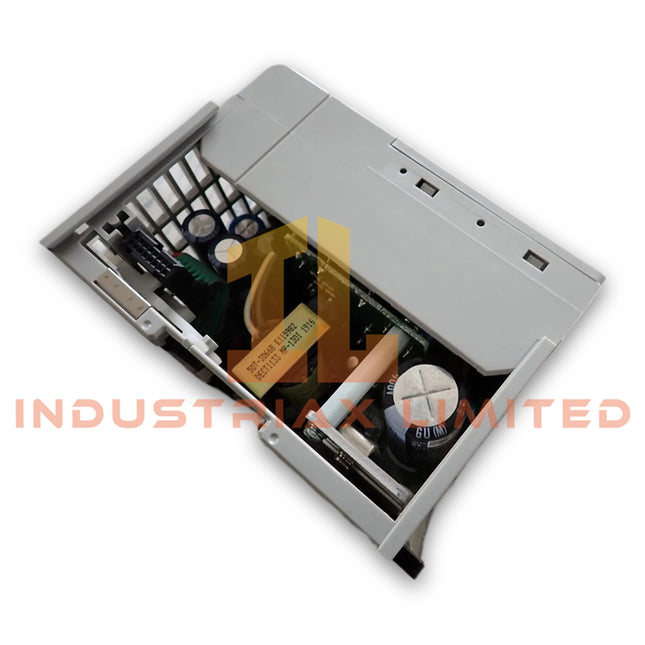

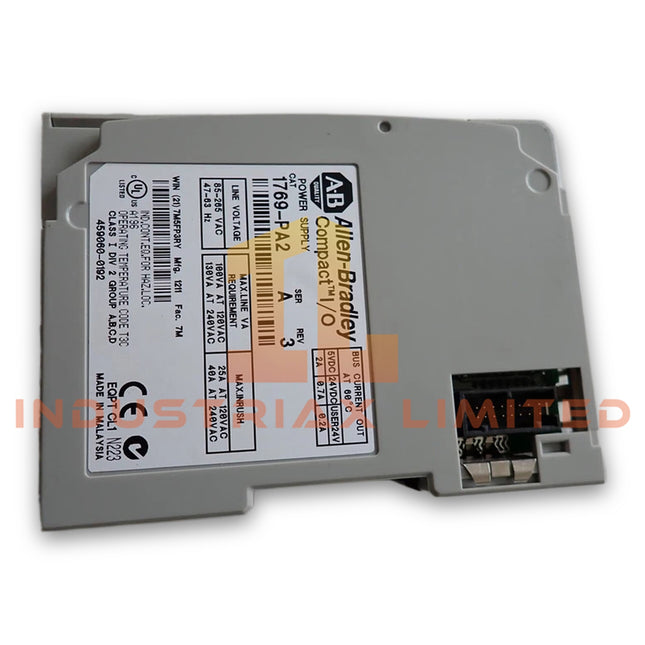

Allen Bradley Allen-Bradley 1769-PA2 CompactLogix Power Supply Module
Allen-Bradley 1769-PA2 CompactLogix Power Supply Module Configured for DC backplane power conversion in CompactLogix controller assemblies, the Allen-Bradley 1769-PA2 (1769-PA2 Power Supply Module) provides direct electrical power distribution for CompactLogix 1769 I/O systems. Hardware Specifications Parameter Specification Model 1769-PA2 Brand Allen-Bradley Origin USA Product Type Power Supply Module Product Line CompactLogix Input Voltage 120/220 VAC nominal Input Voltage Range 85-265 VAC Weight 0.40 kg (0.88 lbs) Power Consumption 100 VA at 120 VAC; 130 VA at 240 VAC Power Dissipation 8 W at 60 deg C Output Current Capacity 2 A at 5 VDC; 0.8 A at 24 VDC Maximum Inrush Current 25 A at 132 VAC Mounting Type Panel mount and DIN rail mount supported Mounting Screw Torque 1.16 Nm Power Supply Distance Rating Up to 8 modules UPC 662468992954 Industrial Control Platform Compatibility The Allen-Bradley 1769-PA2 operates within the CompactLogix 1769 platform and supplies regulated power to connected controller and I/O modules. The module supports distributed I/O density scaling through the 1769 backplane architecture. Therefore, system designers can calculate available current capacity before installing additional I/O modules. The CompactLogix platform uses backplane communication to exchange data between controller components and local I/O modules. Additionally, proper module loading calculations help maintain stable power distribution across the assembled rack configuration. Frequently Asked Questions Q: What input voltage range does the 1769-PA2 support?A: The 1769-PA2 accepts an input voltage range of 85-265 VAC and supports nominal 120 VAC or 220 VAC operation. Q: How much current can the 1769-PA2 provide to the CompactLogix system?A: The module provides a maximum output capacity of 2 A at 5 VDC and 0.8 A at 24 VDC for connected 1769 system components. Q: Can the 1769-PA2 be installed on a DIN rail?A: Yes. The 1769-PA2 supports both DIN rail mounting and panel mounting configurations. Field Installation Guidelines Install the 1769-PA2 according to the CompactLogix system power calculation requirements. Verify the total module load before connecting additional 1769 series I/O modules. Use appropriate industrial wiring practices for AC input connections. Separate power wiring from low-level signal cables to reduce electrical interference. Connect protective grounding according to the enclosure and control panel grounding scheme. Confirm that the mounting method provides sufficient mechanical support. Tighten mounting hardware according to the specified torque value. Inspect terminal connections before energizing the system.
$200.00 $100.00
-

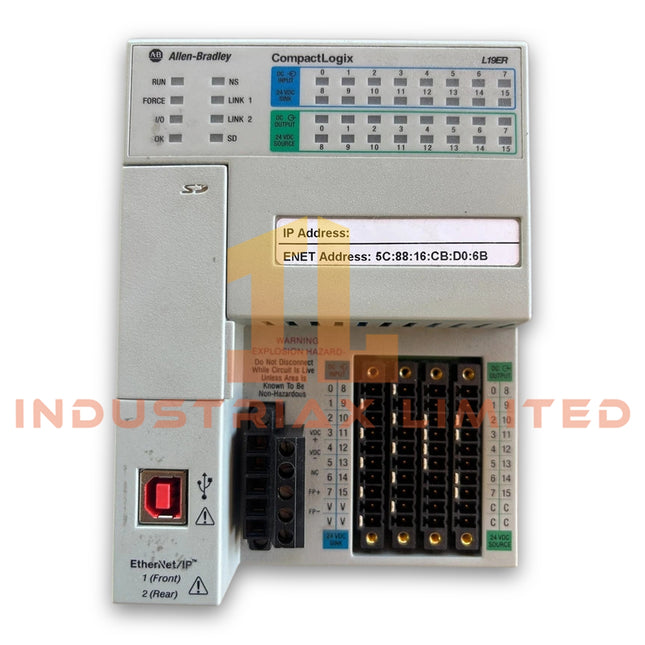

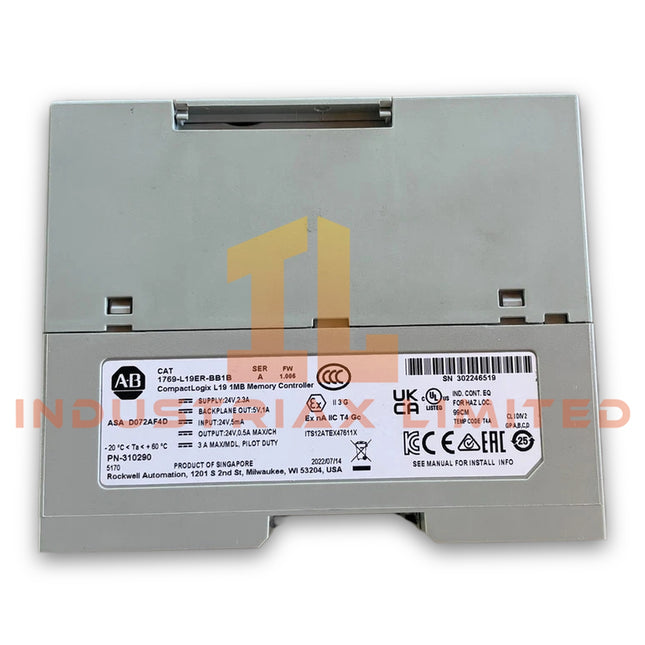

Allen Bradley Allen-Bradley 1769-L19ER-BB2B CompactLogix 5370 L1 Controller
Allen-Bradley 1769-L19ER-BB2B CompactLogix 5370 L1 Controller Configured for EtherNet/IP control execution and embedded discrete signal processing in CompactLogix 5370 L1 systems, the Allen-Bradley 1769-L19ER-BB2B (1769-L19ER CompactLogix controller) provides direct physical and electrical execution through integrated I/O and network interfaces. Hardware Specifications Parameter Specification Model 1769-L19ER-BB2B Brand Allen-Bradley Product Type CompactLogix 5370 L1 Controller Origin USA Power Consumption 24 VDC Class 2 power input User Memory 1 MB Embedded Digital Inputs 16 channels, 24 VDC sink inputs Embedded Digital Outputs 16 channels, 24 VDC source outputs Local Expansion Supports up to 8 1734 POINT I/O modules Communication Interface Dual EtherNet/IP ports and 1 USB programming port Network Topology Support Linear, star, and Device Level Ring (DLR) Ethernet/IP Nodes Up to 8 EtherNet/IP nodes Storage Media 1 GB Secure Digital (SD) card included, expandable up to 2 GB Programming Software Studio 5000 Logix Designer EtherNet/IP Deterministic Network and I/O Scaling The Allen-Bradley 1769-L19ER-BB2B integrates EtherNet/IP communication with CompactLogix control architecture. The controller uses dual Ethernet ports to support linear, star, and DLR network structures. Therefore, it can maintain deterministic industrial communication paths for distributed I/O systems. The controller supports I/O density scaling through embedded 24 VDC digital channels and additional 1734 POINT I/O expansion modules. Furthermore, Studio 5000 Logix Designer manages controller configuration, tag structures, motion-related tasks, and application programming. The CompactLogix platform uses firmware-managed compatibility to maintain communication between controller hardware and software revisions. In addition, the Ethernet/IP interface supports industrial device integration through standard network configuration methods. Frequently Asked Questions Q: Does the 1769-L19ER-BB2B support hot-swapping of connected I/O modules?A: No. The controller does not support hot-swapping of local expansion modules during normal operation. Power removal and proper shutdown procedures are required before changing connected hardware. Q: What network functions are available through the dual Ethernet ports?A: The controller supports EtherNet/IP communication with linear, star, and Device Level Ring (DLR) topologies. The ports provide network connectivity for controller communication and distributed I/O devices. Q: Which software environment configures the controller?A: The 1769-L19ER-BB2B uses Studio 5000 Logix Designer for programming, hardware configuration, and controller management. Field Installation Guidelines Install the 1769-L19ER-BB2B inside an enclosure that provides suitable mechanical protection and environmental control. Mount the controller according to CompactLogix installation requirements and maintain proper clearance for wiring access. Use shielded Ethernet cables in areas with high electrical noise. Ground cable shields according to site electrical standards to reduce electromagnetic interference. Additionally, separate Ethernet wiring from high-voltage power cables and motor circuits to minimize signal disturbance. Verify the 24 VDC power supply polarity before energizing the controller. Check grounding connections, terminal tightness, and network addressing before system startup. Confirm firmware compatibility between the controller, Studio 5000 Logix Designer project, and connected EtherNet/IP devices before commissioning.
$200.00 $100.00
-

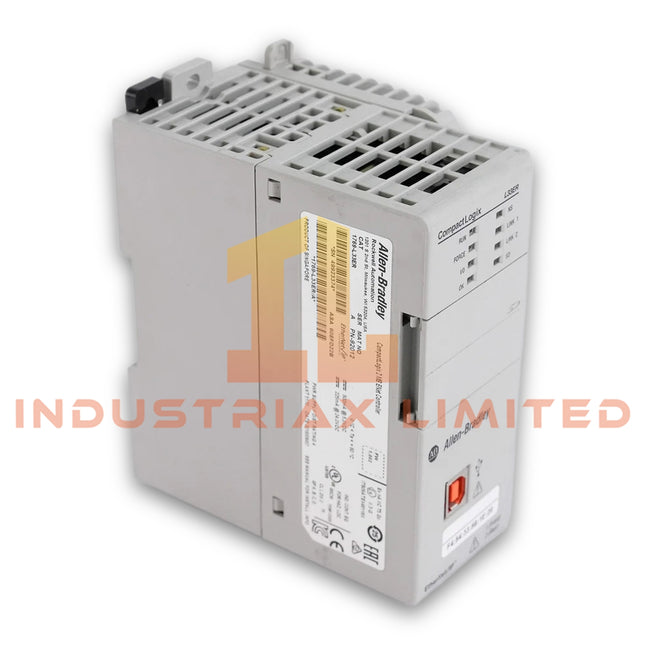

Allen Bradley Allen Bradley 1769-L33ER CompactLogix Programmable Automation Controller
Allen Bradley 1769-L33ER CompactLogix Programmable Automation Controller Configured for local control execution and EtherNet/IP communication in CompactLogix automation networks, the Allen Bradley 1769-L33ER (1769-L33ER Programmable Automation Controller) provides direct processor control and data exchange functions. Hardware Specifications Parameter Specification Model 1769-L33ER Brand Allen Bradley Origin USA Product Type Programmable Automation Controller Product Line CompactLogix Weight 1.00 lbs (0.45 kg) Operating Temp 0 to 60 deg C Local Modules Supported Up to 16 modules Supported Banks 2 banks Communication Ports 1 USB port and 1 Ethernet port Communication Protocol EtherNet/IP Memory Capacity 2 MB Tasks 32 tasks Programs per Task 100 programs Mounting Method DIN rail and panel mounting Vibration Rating Operating: 10 to 500 Hz; 0.030 in. peak-to-peak EtherNet/IP Control Network and Firmware Compatibility The 1769-L33ER operates within CompactLogix control architectures and manages local I/O expansion through the 1769 backplane communication structure. In addition, the controller supports EtherNet/IP deterministic network communication for controller-to-device data exchange. The controller design supports I/O density scaling through local module expansion. Therefore, users can configure multiple Compact I/O modules across two available banks while maintaining centralized processor control. Firmware compatibility must match the installed CompactLogix system revision to maintain communication and application execution. Frequently Asked Questions Q: How many local modules can the 1769-L33ER control?A: The controller supports up to 16 local modules distributed across two supported module banks. Q: Which communication interfaces are available on the 1769-L33ER?A: The controller provides one USB programming interface and one Ethernet interface supporting EtherNet/IP communication. Q: Can the 1769-L33ER support hot-swapping of local modules?A: The 1769-L33ER does not provide general hot-swap capability for installed I/O modules. Maintenance procedures should follow CompactLogix power removal and installation requirements. Field Installation Guidelines Install the 1769-L33ER on a properly grounded DIN rail or panel mounting surface according to CompactLogix installation requirements. Maintain adequate spacing around the controller to support heat dissipation and prevent mechanical interference with adjacent modules. Use shielded Ethernet cabling when required by the installation environment. Route communication wiring separately from high-voltage power conductors to reduce electrical noise coupling. Verify that the controller firmware, project file revision, and connected I/O module configuration match before commissioning. Connect the protective grounding system according to site electrical standards. During replacement activities, remove power before disconnecting local modules or communication wiring.
$200.00 $100.00
-

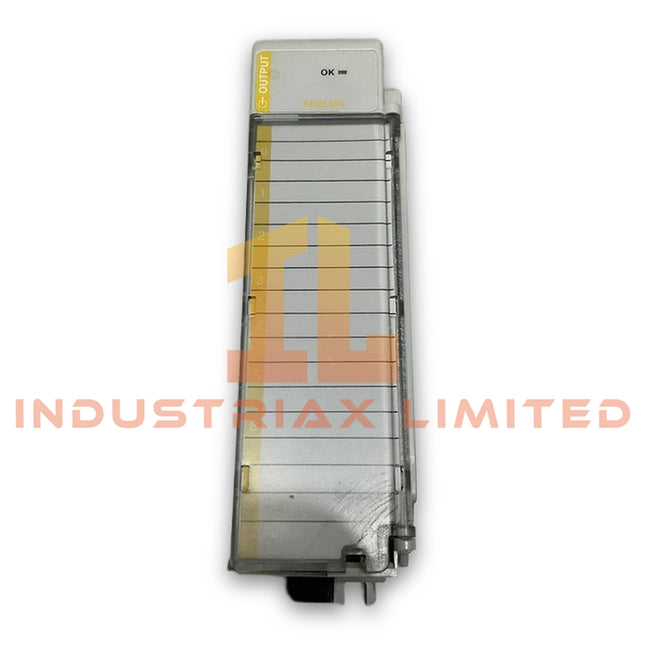

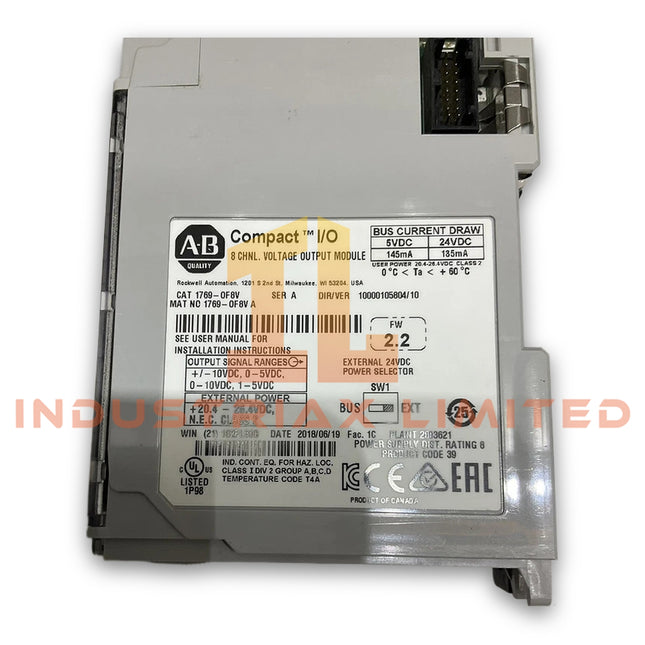

Allen Bradley Allen-Bradley 1769-OF8V Compact I/O Analog Voltage Output Module
Allen-Bradley 1769-OF8V Compact I/O Analog Voltage Output Module Configured for analog voltage signal execution in CompactLogix and MicroLogix control systems, the Allen-Bradley 1769-OF8V (1769-OF8V Analog Output Module) provides direct electrical output processing through eight configurable voltage channels. This Compact I/O module generates ± 10 VDC, 0 to 10 VDC, 0 to 5 VDC, and 1 to 5 VDC output ranges. Hardware Specifications Parameter Specification Model 1769-OF8V Brand Allen-Bradley Origin USA Weight 0.20 kg (0.44 lbs) Power Consumption 145 mA at 5 VDC; 135 mA at 24 VDC Product Type Analog Voltage Output Module Product Line Compact I/O Modules Compatible Controllers CompactLogix; MicroLogix 1500 Number of Outputs 8 single-ended voltage outputs Output Type Analog voltage output Analog Output Ranges ± 10 VDC, 0 to 10 VDC, 0 to 5 VDC, 1 to 5 VDC Full Scale Analog Ranges ± 10.5 VDC; -0.5 to 10.5 VDC; -0.5 to 5.25 VDC; 0.5 to 5.25 VDC Analog Data Format Raw/proportional data; engineering units; scaled for PID; percent full range Conversion Rate 5 ms Digital Resolution 16 bits plus sign (bipolar); ± 10 VDC: 15.89 bits; 0 to 10 VDC: 14.89 bits; 0 to 5 VDC: 13.89 bits; 1 to 5 VDC: 13.57 bits Resolution per Bit 330 uV/bit Overall Accuracy ± 0.5% full scale at 25 deg C Calibration None required; hardware design maintains calibration specification Slot Width 1 slot Power Supply Distance Rating 8 Enclosure Type Open Wire Type Copper, 90 deg C rated Solid Wire Size 22 to 14 AWG Stranded Wire Size 22 to 16 AWG Series Compatibility Series A and Series B EtherNet/IP and Compact I/O Backplane Integration The 1769-OF8V operates as a Compact I/O analog output module within Allen-Bradley PLC architectures. The module communicates through the Compact I/O backplane interface and transfers processed output data to the controller. In addition, the eight-channel design increases I/O density while maintaining individual configurable voltage output operation. The module supports CompactLogix and MicroLogix 1500 controllers. Therefore, system designers can integrate analog voltage outputs into existing PLC configurations without adding separate signal conversion hardware. Frequently Asked Questions Q: How many analog output channels does the 1769-OF8V provide?A: The 1769-OF8V provides eight single-ended analog voltage output channels. Q: Does the module require field calibration after installation?A: No. The module does not require user calibration because the hardware design maintains the specified accuracy. Q: Which voltage output ranges can the module generate?A: The module supports ± 10 VDC, 0 to 10 VDC, 0 to 5 VDC, and 1 to 5 VDC configurable output ranges. Field Installation Guidelines Install the 1769-OF8V in an approved Compact I/O chassis position according to the controller system layout. Verify that the module receives the required backplane power before connecting field wiring. Use shielded analog wiring practices when connecting voltage output devices. Connect cable shields according to the control cabinet grounding design to reduce electrical noise coupling. Separate analog signal wiring from high-current power conductors, motor cables, and switching devices. Confirm terminal assignments and output polarity before applying field power. Check controller compatibility, slot allocation, and I/O configuration parameters before placing the module into operation. Verify output scaling values in the PLC program to match the connected field device requirements.
$200.00 $100.00
-

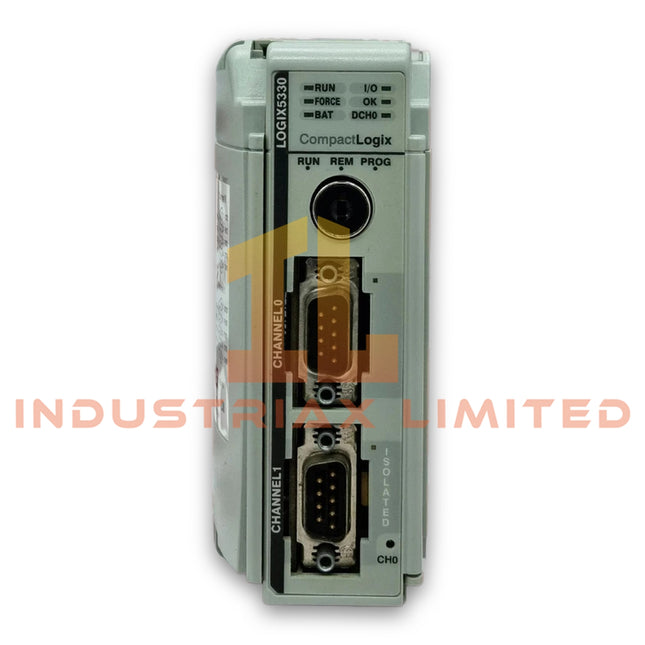

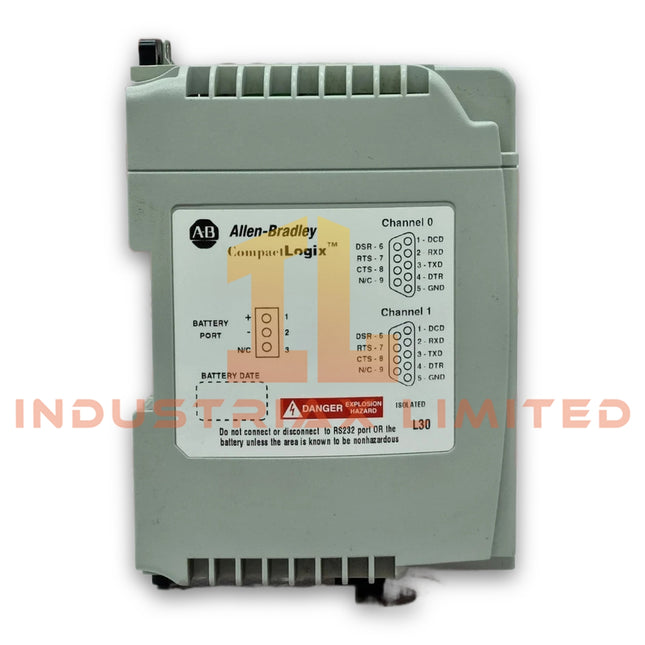

Allen Bradley Allen-Bradley 1769-L30 CompactLogix 5370 Controller
Allen-Bradley 1769-L30 CompactLogix 5370 Controller Configured for controller task execution and EtherNet/IP communication in CompactLogix 5370 systems, the Allen-Bradley 1769-L30ER (1769-L30 Controller) provides direct processor control and data exchange functions. It supports 1 MB user memory, dual Ethernet ports, USB communication, and modular I/O expansion within the CompactLogix platform. Hardware Specifications Parameter Specification Model 1769-L30 Brand Allen-Bradley Origin USA Product Type Controller Product Line CompactLogix Series CompactLogix 5370 Module Type Processor Module Weight 0.63 lb (0.28 kg) Operating Temp 0 deg C to +60 deg C (+32 deg F to +140 deg F) Power Consumption Not specified by manufacturer User Memory 256 Kbytes Non-volatile Memory 1 GB via 1784-SD1 memory card Communication Ports 1 USB port; 2 Ethernet ports Ethernet Data Rate 10/100 Mbps USB Data Rate 12 Mbps Supported Protocols EtherNet/IP, DH485, DF1, ASCII Maximum I/O Modules Supported 16 modules Compact I/O Module Capacity 8 modules Maximum I/O Banks 3 banks Controller Tasks 32 tasks Programs per Task 100 programs Supported Ethernet Topologies Linear; Device Level Ring (DLR) Integrated Motion Support Supported by 1769-L30ERM and 1769-L30ERMK variants Programming Cable 1747-CP3 / 1756-CP3 Replacement Terminal Block 1769-RTBN18 Battery 1747-BA Wire Type Copper, 90 deg C Wire Size Solid 22-14 AWG Wire Size Stranded 22-16 AWG Vibration Rating Operating: 10 to 500 Hz, 5G, 0.030 in peak-to-peak Power Supply Distance Rating 4 EtherNet/IP Deterministic Network and I/O Scaling The 1769-L30 CompactLogix controller integrates EtherNet/IP communication through dual Ethernet ports configured as an embedded switch. Therefore, the controller supports linear and Device Level Ring (DLR) network structures without requiring an external Ethernet switch. The processor manages distributed I/O communication through the CompactLogix backplane architecture. In addition, the modular design supports I/O density scaling with up to 16 local I/O modules across three expansion banks. The controller executes up to 32 tasks with 100 programs per task. Furthermore, the firmware architecture supports structured application execution, modular programming, and controller-level diagnostics. Frequently Asked Questions Q: Does the 1769-L30 support redundant Ethernet network configurations?A: Yes. The controller supports EtherNet/IP linear topology and Device Level Ring (DLR) topology through its dual Ethernet interfaces. Q: How many Compact I/O modules can the 1769-L30 controller operate with?A: The controller supports up to 16 I/O modules according to the CompactLogix 5370 platform specification, with local expansion capability across three I/O banks. Q: Does the 1769-L30 include non-volatile memory?A: Yes. The controller is supplied with a 1784-SD1 memory card providing 1 GB non-volatile storage capacity. Field Installation Guidelines Install the 1769-L30 controller on the CompactLogix chassis according to the manufacturer-defined module placement requirements. Verify that the power supply distance rating remains within the specified system limits before adding expansion modules. Use copper wiring with appropriate temperature ratings for field connections. Separate Ethernet communication cables from high-voltage power conductors to reduce electrical interference. Ground the system according to industrial control panel standards. Maintain proper cable shielding and grounding practices for communication wiring, especially in environments with motor drives or high electromagnetic noise sources. Before commissioning, verify Ethernet topology configuration, controller firmware compatibility, I/O addressing, and communication parameters through the programming environment.
$200.00 $100.00
-
Allen Bradley Allen Bradley 1769-IF4XOF2 Analog I/O Module
Overview The 1769-IF4XOF2 Analog I/O Module from Allen-Bradley offers a compact and cost-effective solution for low-criticality automation tasks. Designed for use with CompactLogix and MicroLogix 1500 systems, it supports both voltage and current signal processing with robust noise immunity and fast response times. Technical Specifications Specification Details Model Number 1769-IF4XOF2 Manufacturer Allen-Bradley Product Series Compact I/O Module Type Analog Output Module Dimensions 3.5 x 13 x 14.5 cm Weight 0.2 kg System Compatibility PLC Communication Interface Ethernet Router HS Code 8537101190 Product Origin USA Condition Brand New Lead Time In Stock MOQ 1 Discontinued Status Discontinued (June 30, 2016) Key Features The 1769-IF4XOF2 module includes 4 analog inputs and 2 analog outputs. Inputs support single-ended or differential configurations for flexible signal acquisition. Voltage range: 0–10.5V DC; Current range: 0–21mA with ±0.7% and ±0.6% accuracy respectively. Outputs require >1kΩ load for voltage and ≤300Ω for current, ensuring stable transmission. Successive approximation ADC and resistor-string DAC deliver fast conversion and output response.
$200.00 $100.00
You have seen 62 out of 62 products
