توفر أنظمة ووحدات PLC أتمتة مرنة للصناعات حول العالم. يشمل مخزوننا وحدات تحكم، ووحدات إدخال/إخراج، ووحدات اتصالات من Allen-Bradley وSiemens وGE وغيرها من العلامات التجارية الرائدة.
أنظمة ووحدات PLC
-
Bently Nevada Bently Nevada 177989-01 Prox Accel Velom (PAV) Input/Output Module
Bently Nevada 177989-01 Prox Accel Velom (PAV) Input/Output Module The Bently Nevada 177989-01, also cataloged as the 177989-01 Prox Accel Velom (PAV) Input/Output Module, operates as a dedicated hardware component for multi-sensor vibration signal acquisition within ADAPT 3701/40 and ADAPT 3701/44 monitoring platforms. The module processes proximity, acceleration, velocity, and dynamic pressure inputs through configurable measurement channels. Hardware Specifications Parameter Specification Model 177989-01 Brand Bently Nevada Product Type Prox Accel Velom (PAV) Input/Output Module System Compatibility ADAPT 3701/40 Machinery Dynamics Monitor, ADAPT 3701/44 Aeroderivative Monitor Channel Configuration 7 channels total: 6 configurable measurement channels and 1 dedicated speed/Keyphasor channel Measurement Inputs Proximity probes, accelerometers, Velomitor velocity sensors, dynamic pressure sensors Sensor Power Supply -24 VDC sensor excitation for supported transducers Speed Input Magnetic pickup (MPU) speed and Proximitor speed input support Power Supply External +24 VDC supplied through ADAPT terminal baseplate Power Consumption Powered through ADAPT baseplate; exact consumption depends on connected sensors and configuration Mounting Type Direct installation on ADAPT terminal baseplate Dimensions 263 mm x 58 mm x 28 mm Weight Approximately 0.3 kg to 0.4 kg Operating Temp -30 deg C to +65 deg C Storage Temp -40 deg C to +85 deg C Humidity 0% to 95% RH, non-condensing Environmental Protection ISA S71.04 G3 conformal coating Certifications ATEX, IECEx, CSA Class I Division 2 / Zone 2, CE Rotor Dynamics Signal Processing and TSI Measurement Features The 177989-01 module provides configurable vibration acquisition paths for machinery protection applications. It accepts shaft-relative vibration signals from proximity probes and casing vibration signals from accelerometers or Velomitor sensors. Therefore, the module supports combined measurement architectures that require both rotor displacement and casing response evaluation. The module supports TSI-related measurement functions including phase reference processing, synchronous vibration analysis, and speed event detection. In addition, Bently Nevada monitoring architectures apply eddy-current probe scaling methods and gap voltage validation practices, where -10 VDC targets are commonly used as reference points for proximity probe operating conditions. The six PAV channels can be configured for acceleration, velocity, radial vibration, thrust position, dynamic pressure, or Proximitor speed measurements. Furthermore, the dedicated speed channel supports Keyphasor input functions for phase-based rotor dynamics analysis. Frequently Asked Questions Q: What sensor types can the Bently Nevada 177989-01 accept?A: The module accepts proximity probes, 3-wire accelerometers, 2-wire Velomitor velocity sensors, and compatible dynamic pressure sensors through configurable PAV channels. Q: Does the 177989-01 provide Keyphasor speed measurement capability?A: Yes. Channel 7 operates as a dedicated speed input channel and supports magnetic pickup and Proximitor speed configurations for phase reference applications. Q: How is the module installed in an ADAPT system?A: The module installs directly into the ADAPT terminal baseplate, which provides mechanical mounting and power distribution connections. Field Installation Guidelines Install the module only on the specified ADAPT terminal baseplate and verify mechanical locking before system operation. Route vibration sensor cables separately from high-current power wiring to reduce electrical interference. Connect cable shields according to site grounding practices and avoid multiple grounding points that may create ground loops. Verify proximity probe wiring polarity and gap voltage before enabling machinery monitoring functions. Confirm sensor excitation requirements before connecting accelerometers, Velomitors, or dynamic pressure transducers. Maintain proper separation between signal cables and electromagnetic noise sources such as motors, variable frequency drives, and switching power supplies.
$200.00 $100.00
-
Bently Nevada Bently Nevada 2155/40 TDISecure Communication Processor
Bently Nevada 2155/40 TDISecure Communication Processor Configured for secure machinery data acquisition in Bently Nevada monitoring networks, the Bently Nevada 2155/40 (2155/40 TDISecure Communication Processor) provides direct physical and electrical execution for synchronized vibration, process, and discrete signal communication. Hardware Specifications Parameter Specification Model Bently Nevada 2155/40 TDISecure Communication Processor Brand Bently Nevada Origin USA Product Type TDISecure Communication Processor Weight AC Version: 4.2 kg; DC Version: 3.9 kg Dimensions 384 mm x 216 mm x 136 mm Operating Temp -30 deg C to +65 deg C Storage Temp -40 deg C to +85 deg C Humidity Maximum 95%, non-condensing Power Consumption AC Version: 100-240 VAC, 50/60 Hz, 50 W; DC Version: 20-36 VDC, 35 W Power Variants 2155/40-01 AC input; 2155/40-02 DC input Dynamic Analog Inputs 24 differential channels Dynamic Signal Range DC to 30 kHz frequency range; -25 V to +25 V input range Dynamic Input Accuracy +/-1% of full scale Process Inputs 24 configurable voltage or current channels Process Signal Range 4-20 mA, 0-10 V, 1-5 V, 2-10 V Process Input Accuracy +/-0.32% full scale voltage; +/-0.64% full scale current at 25 deg C Discrete Inputs 24 channels, configurable alarm or OK inputs Keyphasor Inputs 4 channels, phase and speed tracking up to 20 kHz Communication Interfaces Dual Ethernet RJ45 ports and Modbus RS485 Software Integration Bently Nevada System 1 software platform Rotor Dynamics Data Processing and TSI Signal Management The Bently Nevada 2155/40 TDISecure Communication Processor processes synchronized machinery protection data from vibration and Keyphasor measurement channels. It supports rotor dynamics analysis by maintaining high-speed signal acquisition without multiplexing delays. The processor maintains eddy-current probe scaling compatibility for shaft vibration and position measurements. Furthermore, it supports gap voltage validation procedures using typical -10 VDC target references for proximity probe systems. The hardware architecture reduces signal cross-talk through differential input design and controlled channel processing. Therefore, the module maintains measurement consistency when multiple dynamic channels operate simultaneously. Frequently Asked Questions Q: Does the Bently Nevada 2155/40 support direct integration with System 1 software?A: Yes. The processor communicates with Bently Nevada System 1 software for transient and steady-state machinery condition data analysis. Q: How many Keyphasor channels are available on the 2155/40?A: The processor provides four Keyphasor input channels for phase reference and speed tracking applications. Q: What communication interfaces are available for plant integration?A: The 2155/40 provides dual Ethernet RJ45 interfaces and Modbus RS485 communication for industrial network connections. Field Installation Guidelines Install the 2155/40 processor in a suitable industrial rack or panel enclosure with adequate mechanical support. Connect power wiring according to the selected AC or DC input variant. Use shielded cables for dynamic vibration and proximity probe signal connections. Connect cable shields according to the machinery monitoring system grounding practice to reduce electrical interference. Route signal cables separately from high-voltage power conductors and switching equipment. Verify probe wiring polarity, channel configuration, and signal scaling before commissioning. Confirm Ethernet and Modbus communication parameters before connecting the processor to the plant monitoring network. Perform input verification using configured vibration, process, and Keyphasor signals.
$200.00 $100.00
-
Honeywell Honeywell FC-IO-0002 I/O Extender Module
Honeywell FC-IO-0002 I/O Extender Module The Honeywell FC-IO-0002, also cataloged as the FC-IO-0002 I/O Extender Module, operates as a dedicated hardware component for extending power and watchdog signal interfaces within Honeywell safety system I/O assemblies. Hardware Specifications Parameter Specification Model FC-IO-0002 Brand Honeywell Product Type I/O Extender Module Origin USA Weight 0.12 kg Dimensions 2 x 19 x 12.8 cm estimated shipping size Power Consumption 5 VDC input, 100 mA plus connected I/O board load Approvals CE, TUV, UL, CSA Space Requirements 4 TE, 3 HE (= 4 HP, 3U) Watchdog Inputs 2 inputs Watchdog Input Current Max. 10 mA for WD1in + WD2in Watchdog Outputs 18 outputs Watchdog Output Current Max. 25 mA Power Inputs 2 inputs, diode OR-ed, 5 VDC Power Input Current 100 mA plus 5 V load of all 18 I/O boards and watchdog load of all 18 I/O boards Power Outputs 2 groups Output Voltage Drop 0.2 V < V < 0.8 V versus highest Vin Output Current Capacity > 1.25 A per group Channel Isolation and Process Interface Characteristics The Honeywell FC-IO-0002 provides electrical extension functions for Honeywell I/O assemblies by distributing 5 VDC power and watchdog-related signals. The module accepts two diode OR-ed power inputs and supplies two output groups for connected I/O boards. The module supports watchdog signal expansion with two watchdog inputs and eighteen watchdog outputs. Therefore, the FC-IO-0002 manages the additional load requirements from multiple I/O boards while maintaining defined current limitations. The design supports Honeywell process control hardware architectures where channel-to-channel isolation and controlled power distribution are required. Furthermore, the module operates as an electrical interface element rather than a signal processing unit and does not perform analog measurement or protocol conversion. Frequently Asked Questions Q: How many watchdog inputs and outputs does the FC-IO-0002 provide?A: The module provides 2 watchdog inputs and 18 watchdog outputs. The watchdog input current is limited to 10 mA maximum, while each output supports up to 25 mA. Q: What power input configuration does the FC-IO-0002 support?A: The module uses 2 diode OR-ed 5 VDC power inputs. The input current requirement is 100 mA plus the connected load from 18 I/O boards and watchdog circuits. Q: Can the FC-IO-0002 process field measurement signals?A: No. The FC-IO-0002 functions as an I/O extender and power/watchdog distribution module. It does not provide analog input, analog output, or communication processing functions. Field Installation Guidelines Install the FC-IO-0002 in the specified Honeywell rack or I/O assembly position with the required 4 TE and 3 HE mechanical space allocation. Verify the 5 VDC supply polarity before connection because the module uses diode OR-ed power inputs. Route power wiring separately from high-voltage switching circuits to reduce electrical interference. Maintain proper grounding practices for the installed control cabinet and cable shielding systems. Check the connected I/O board load before operation to ensure that the total 5 VDC current remains within the module output capability. Confirm watchdog wiring assignments before commissioning to prevent incorrect diagnostic signal routing.
$200.00 $100.00
-
Honeywell Honeywell FC-SAO-0220m Analog Output Module
Honeywell FC-SAO-0220m Analog Output Module Configured for analog current output execution in Honeywell Safety Manager systems, the Honeywell FC-SAO-0220m (SAO-0220M Analog Output Module) provides direct physical and electrical signal conversion for active and passive 0-20 mA and 4-20 mA field loops. Hardware Specifications Parameter Specification Model FC-SAO-0220m Spare Model SAO-0220M Brand Honeywell Product Type Analog Output Module Origin USA Weight 0.16 kg Dimensions 2 x 18.9 x 12.8 cm Power Consumption 5 V DC, 30 mA Space Requirements 4 TE, 3 HE (= 4 HP, 3U) Number of Output Channels 2 Output Signal Type Active or passive, 0-20 mA / 4-20 mA D/A Converter Resolution 12-bit Off Current < 0.05 mA Maximum Load Capacitance 100 nF WDG Input Current 0.5 mA Loop Powering (Active) Maximum loop resistance: 600 ohm Loop Powering (Active) Maximum output voltage: 30 V DC External Powering (Passive) Maximum voltage: 40 V DC External Powering (Passive) Minimum voltage drop: <= 7.5 V Tariff Code 8537101190 Place of Shipment Xiamen, China Process Control Current Loop Interface The FC-SAO-0220m provides two analog output channels for current loop signal generation. The module supports both active loop powering and passive external powering configurations. Therefore, it can interface with different field devices that require 0-20 mA or 4-20 mA control signals. Honeywell process control modules commonly integrate current loop communication methods such as 4-20 mA HART loop protocol. However, the FC-SAO-0220m specification defines the analog output hardware layer and does not include HART communication functionality. The module applies channel-level output processing through a 12-bit D/A converter. Additionally, the output circuit manages loop resistance, voltage limitation, and capacitance loading according to the specified electrical parameters. Frequently Asked Questions Q: How many analog output channels does the Honeywell FC-SAO-0220m provide?A: The FC-SAO-0220m provides 2 analog output channels with active or passive 0-20 mA and 4-20 mA operation. Q: What power supply does the FC-SAO-0220m require from the system?A: The module requires 5 V DC with a power consumption of 30 mA. Q: Can the FC-SAO-0220m operate with externally powered field loops?A: Yes. The module supports passive external powering with a maximum external voltage of 40 V DC and a minimum voltage drop of <= 7.5 V. Field Installation Guidelines Install the FC-SAO-0220m according to the Honeywell Safety Manager rack configuration requirements. Verify the module position, backplane connection, and terminal wiring before energizing the system. Use shielded signal cables for analog current loops when the installation environment contains electrical noise sources. Connect cable shields according to the site grounding standard and avoid parallel routing with high-power cables. Check loop polarity, external power supply limits, and field device input requirements before commissioning. Confirm that the connected load remains within the specified loop resistance and capacitance limits.
$200.00 $100.00
-
Honeywell Safe Loop-Monitored Digital Output Module | Honeywell FS-SDOL-0424
Honeywell FS-SDOL-0424 Safe Loop-Monitored Digital Output Module Configured for loop-monitored digital output execution in Honeywell Safety Manager systems, the Honeywell FS-SDOL-0424 (FS-SDOL-0424 Safe Loop-Monitored Digital Output Module) provides direct physical switching control for 24 VDC field loads through four monitored output channels. Hardware Specifications Parameter Specification Model FS-SDOL-0424 Brand Honeywell Product Type Safe Loop-Monitored Digital Output Module Origin USA Weight 0.12 kg Dimensions 2.2 x 19 x 12.7 cm Power Consumption 5 VDC system supply, 24 VDC output supply Space Requirements 4 TE, 3 HE (= 4 HP, 3U) Number of Output Channels 4 Output Specification 24 VDC Maximum Channel Current 1 A Maximum Total Module Load 3.6 A Maximum Load Inductance 0.5 H Maximum Load Capacitance 1 uF Overload Detection Threshold > 10 ohm Voltage Drop < 1.3 V at 1 A Output Monitoring Functions Lead breakage detection, output short circuit monitoring Load De-energization Supported through primary and secondary means Approvals CE, TUV, UL, CSA, FM Tariff Code 8537101190 Place of Shipment Xiamen, China Channel Isolation and Loop Monitoring Characteristics The Honeywell FS-SDOL-0424 performs safe digital output control with loop monitoring functions for field actuator circuits. Furthermore, the module detects abnormal output conditions including external wiring lead breakage and output short circuits. The module supports de-energization through secondary means, which allows the safety system to force field outputs into a defined safe state. Additionally, suppression diodes manage inductive load behavior and reduce electrical disturbances during switching operations. For Honeywell Safety Manager applications, output monitoring maintains channel status visibility while limiting cross-talk effects between output circuits. The design supports 24 VDC field devices with a maximum channel current of 1 A and a total module load capacity of 3.6 A. Frequently Asked Questions Q: What type of field devices can the FS-SDOL-0424 control?A: The FS-SDOL-0424 controls 24 VDC field loads through four digital output channels with loop monitoring functions. Q: How does the module detect field wiring faults?A: The module monitors output circuits and detects conditions such as external output wiring lead breakage and output short circuits. Q: What electrical limits apply to connected loads?A: Each channel supports up to 1 A current, while the complete module supports a maximum load of 3.6 A with specified inductive and capacitive load limits. Field Installation Guidelines Install the FS-SDOL-0424 in the designated Honeywell Safety Manager rack position according to system configuration requirements. Verify the 24 VDC field supply polarity before connecting output wiring. Separate output signal wiring from high-voltage power cables to reduce electrical interference. Connect cable shields according to site grounding practices and safety system installation standards. Confirm actuator wiring continuity before enabling output operation. Check field load characteristics to ensure inductance and capacitance values remain within module specifications. Inspect terminal connections periodically for mechanical looseness or oxidation in industrial environments.
$200.00 $100.00
-
Honeywell Digital Output Module | Honeywell FS-TDO-1624
Honeywell FS-TDO-1624 Digital Output Module Configured for 24 VDC digital signal execution in Honeywell Safety Manager systems, the Honeywell FS-TDO-1624 (FS-TDO-1624 Digital Output Module) provides direct electrical switching control through 16 non-safe output channels. Hardware Specifications Parameter Specification Model FS-TDO-1624 Brand Honeywell Product Type Non-safe Digital Output Module Origin USA Weight 0.3 kg Dimensions 5.5 x 6.5 x 11.8 cm estimated shipping size Power Consumption 5 VDC, 35 mA Number of Output Channels 16 Output Specification 24 VDC Maximum Output Current 100 mA per channel Maximum Lamp Load 50 mA (1.2 W) Maximum Load Capacitance 1 uF Voltage Drop < 1.2 VDC at 100 mA Tariff Code 8537101190 Channel-to-Channel Isolation and Process Output Interface The Honeywell FS-TDO-1624 provides 16 non-safe digital output channels for 24 VDC field device control. Therefore, the module directly drives connected actuators, indicators, and other discrete electrical loads within the Safety Manager I/O architecture. In addition, the output stage supports defined current and capacitance limits to maintain stable switching performance. The module operates with a maximum output current of 100 mA and limits voltage drop to less than 1.2 VDC at the rated current condition. Furthermore, Honeywell I/O modules within this platform require correct field wiring practices to maintain signal separation and minimize electrical interference. The FS-TDO-1624 focuses on discrete output execution rather than analog measurement, HART communication, or fieldbus signal processing. Frequently Asked Questions Q: Is the FS-TDO-1624 a safe digital output module?A: No. The FS-TDO-1624 is specified as a non-safe digital output module with 24 VDC, 16-channel switching capability. Q: What is the maximum load current supported by each output channel?A: Each output channel supports a maximum current of 100 mA according to the provided specifications. Q: What load types can the FS-TDO-1624 drive?A: The module supports 24 VDC discrete loads within the specified current, lamp load, and capacitance limits. Field Installation Guidelines Install the FS-TDO-1624 in the designated Honeywell Safety Manager I/O hardware location according to system configuration requirements. Verify that field wiring matches the 24 VDC output rating before connecting external devices. Separate digital output wiring from high-voltage power cables and high-noise signal sources to reduce electrical interference. Use appropriate grounding and shielding practices when field conditions introduce electromagnetic noise. Confirm connected loads remain within the specified 100 mA output current and 1 uF capacitance limits. Inspect terminal connections and cable routing before system power application.
$200.00 $100.00
-
Honeywell Digital Output Field Termination Assembly | Honeywell FS-TSDO-04UNI
Honeywell FS-TSDO-04UNI Safe Digital Output Field Termination Assembly Configured for safe digital output signal termination in Honeywell Safety Manager and FSC systems, the Honeywell FS-TSDO-04UNI (TSDO-04UNI Safe Digital Output Field Termination Assembly) provides direct physical connection between SDO output modules and external field wiring circuits. Hardware Specifications Parameter Specification Model FS-TSDO-04UNI Spare Model TSDO-04UNI Brand Honeywell Product Type Safe Digital Output Field Termination Assembly System Compatibility Honeywell Safety Manager and FSC safety systems Output Interface SDO-04x / SDOL-04x module connection via SICC-0001/Lx cable Number of Channels 4 Supported Field Voltage 24 VDC, 48 VDC, 110 VDC Maximum Voltage 36 VDC - IEC 1010 (1990) Maximum Continuous Current per Channel 4 A Field Wiring Connection Screw terminals Maximum Wire Diameter 2.5 mm2 (AWG 14) Wire Strip Length 7 mm (0.28 in) Mounting Method DIN EN rail snap-in mounting Approvals CE, UL, TUV, CSA Origin USA Place of Shipment Xiamen, China Weight 0.05 kg Dimensions 7 x 6 x 5.5 cm estimated shipping size Power Consumption Passive field termination assembly, no independent power supply 4-20 mA HART and Safety Signal Interface Characteristics The Honeywell FS-TSDO-04UNI operates as a passive termination interface between Safety Manager output modules and field devices. Moreover, the assembly maintains physical separation between system interconnection wiring and external field terminals through dedicated screw terminal connections. The unit supports redundant output configurations by connecting two SDO-04x or SDOL-04x modules through the SICC-0001/Lx system interconnection cable. Therefore, the FTA structure supports fault-tolerant output arrangements where redundant safety output channels require coordinated field termination. In addition, the module provides a DIN rail mounting structure and supports field devices such as shutdown solenoids, contactors, relays, valves, and annunciation equipment. The design follows Honeywell safety system wiring practices for digital output distribution and field circuit termination. Frequently Asked Questions Q: Can the FS-TSDO-04UNI connect directly to external field devices without an SDO module?A: No. The FS-TSDO-04UNI functions as a field termination assembly and requires connection to compatible Honeywell SDO-04x or SDOL-04x output modules through the SICC-0001/Lx system interconnection cable. Q: Does the FS-TSDO-04UNI require an external power supply?A: No. The assembly operates as a passive termination interface and receives output signals through the connected safety output module system. Q: What type of field wiring connection does the module provide?A: The unit uses screw terminals for field wiring connection and supports conductors up to 2.5 mm2 (AWG 14). Field Installation Guidelines Install the FS-TSDO-04UNI on a standard DIN EN rail inside the Honeywell Safety Manager cabinet enclosure. Ensure that the module remains mechanically secured before connecting field conductors. Route field wiring separately from high-voltage power cables and sources of electromagnetic interference. Use proper cable shielding and grounding practices according to the cabinet installation design. Verify terminal assignments before connecting external devices. Confirm that the connected field load characteristics match the supported output module specifications. Maintain correct cable stripping length and tighten screw terminals according to standard industrial wiring procedures. Inspect all connections before system commissioning and safety function testing.
$200.00 $100.00
-
Honeywell Safe Digital Output Modules | Honeywell FS-TSDO-0824
Honeywell FS-TSDO-0824 Safe Digital Output Field Termination Assembly Configured for fail-safe 24 VDC digital output termination in the Honeywell Safety Manager system, the Honeywell FS-TSDO-0824 (TSDO-0824 Safe Digital Output Field Termination Assembly) provides direct electrical connection between redundant output modules and external field wiring. Hardware Specifications Parameter Specification Model FS-TSDO-0824 Spare Model TSDO-0824 Brand Honeywell Product Type Safe Digital Output Field Termination Assembly System Compatibility Honeywell Safety Manager / Fail Safe Control (FSC) platforms Origin USA Weight 0.05 kg Dimensions 60 x 70 x 58 mm (L x W x H) Operating Temp Not specified Power Consumption Passive field termination interface Number of Channels 8 digital output channels Output Voltage Rating 24 VDC system architecture Maximum Voltage 36 VDC, IEC 1010 (1990), Overvoltage Category 3 Maximum Continuous Current per Channel 1.5 A Maximum Wire Diameter 2.5 mm2 (AWG 14) Wire Strip Length 7 mm (0.28 in) Terminal Tightening Torque 0.5 Nm (0.37 ft-lb) Mounting Method Universal DIN EN rail snap-in mounting Supported DIN Rails TS32 / TS35 x 7.5 Used Rail Length 61 mm (2.40 in) Terminal Type Screw terminals System Interconnection Cable SIC-C-12 / SICC-0001/Lx Approvals CE, TUV, UL, CSA, FM Tariff Code 8537101190 Honeywell Safety Manager Fail-Safe Output Interface Characteristics The FS-TSDO-0824 functions as the field termination point between the SIC-C-12 system interconnection cable and external field devices. It connects eight output channels from a redundant pair of safe digital output modules to field wiring through screw terminal connections. Moreover, the assembly supports Honeywell SIS architectures where output signals require controlled fail-safe execution. The termination interface maintains physical separation between system-side communication wiring and external field circuits, reducing wiring complexity in safety control cabinets. The FS-TSDO-0824 applies Honeywell process safety hardware design principles, including channel-to-channel isolation considerations for digital signal handling and structured connection between Safety Manager output modules and field devices. Frequently Asked Questions Q: How many digital output channels does the FS-TSDO-0824 provide?A: The FS-TSDO-0824 provides 8 independent digital output termination channels for connection between safe output modules and field wiring. Q: Which interconnection cable connects the FS-TSDO-0824 to Honeywell output modules?A: The FS-TSDO-0824 connects through the SIC-C-12 or SICC-0001/Lx system interconnection cable to compatible safe digital output modules. Q: What type of field wiring terminals are provided on the FS-TSDO-0824?A: The module uses screw terminals supporting field conductors up to 2.5 mm2 (AWG 14) with a specified tightening torque of 0.5 Nm. Field Installation Guidelines Install the FS-TSDO-0824 on compatible TS32 or TS35 x 7.5 DIN EN rails using the integrated snap-in mounting mechanism. Connect the system-side cable interface to the designated Honeywell safe digital output module connection point. Verify cable routing to maintain separation between signal wiring and high-energy circuits. Terminate field conductors according to the specified wire diameter range and tighten terminal screws using the recommended torque value. Confirm polarity, channel assignment, and field device connection before system commissioning. Maintain appropriate cabinet grounding, shielding, and wiring segregation practices according to the installation requirements of the Honeywell Safety Manager platform.
$200.00 $100.00
-
Honeywell Honeywell FS-TSAI-1620M | Analog Input Modules
Honeywell FS-TSAI-1620M Safe Analog Input Field Termination Assembly The Honeywell FS-TSAI-1620M, also cataloged as the FC-TSAI-1620M Safe Analog Input Field Termination Assembly, operates as a dedicated hardware component for converting field transmitter current signals into analog input voltage signals within Honeywell Safety Manager systems. Hardware Specifications Parameter Specification Model FS-TSAI-1620M / FC-TSAI-1620M Brand Honeywell Product Type Safe Analog Input Field Termination Assembly System Compatibility Honeywell Safety Manager SIS Origin USA Weight 0.3kg Dimensions 210 x 70 x 60 mm (L x W x H) Mounting Rail DIN EN TS32 / TS35 x 7.5 Used Rail Length 211 mm Operating Temp Not specified Power Consumption 30 V DC external, 3 mA (without input loop loads) Approvals CE, TUV, UL, CSA, FM Input Channels 16 channels, arranged as 2 groups of 8 channels with common 0 V reference Input Signal Range 0-20 mA and 4-20 mA current loop signals Maximum Input Current 0-25 mA Input Resistance 250 ohm +/- 1% Output Signal to SAI-1620M 0-4 V DC Output Accuracy 0.10% Passive Transmitter Supply Output Resistance 270 ohm +/- 5% Igniting Current Per Channel Less than 120 mA at 30 V DC Fuse Rating 315 mA Fuse Size 5 x 20 mm Fuse Voltage Rating 125 V AC Maximum Fuse Output Current 220 mA Terminal Type Screw terminals Maximum Wire Diameter 2.5 mm2 (AWG 14) Wire Strip Length 7 mm Terminal Tightening Torque 0.5 Nm Field Circuit Classification Nonincendive field circuits, Class 1 Division 2 Hydrogen Group A and B Loop Inductance Maximum 6 mH Hydrogen Group A and B Loop Capacitance Maximum 0.25 uF Non-Hydrogen Group C and D Loop Inductance Maximum 20 mH Non-Hydrogen Group C and D Loop Capacitance Maximum 5 uF 4-20 mA Process Signal Interface and Isolation Characteristics The Honeywell FS-TSAI-1620M interfaces field-mounted analog transmitters with the SAI-1620M Safe High-Density Analog Input Module. Moreover, the assembly accepts 0-20 mA and 4-20 mA current signals and converts them into a proportional 0-4 V DC signal for module processing. The unit provides sixteen analog input channels divided into two eight-channel groups with a common 0 V reference. Therefore, the signal conversion path maintains consistent analog scaling between field devices and the safety input module. In addition, the module supports transmitter loop applications through a passive transmitter supply output with a 270 ohm output resistance. The design includes channel protection through individual 315 mA fuses and supports nonincendive field circuits for Class 1 Division 2 installation environments. For Honeywell process control interfaces, the analog loop architecture follows standard 4-20 mA instrumentation practices. Furthermore, engineers must verify transmitter wiring, loop resistance, and grounding arrangements before commissioning the SIS input circuit. Frequently Asked Questions Q: How many analog input channels does the FS-TSAI-1620M provide?A: The FS-TSAI-1620M provides sixteen analog input channels arranged as two groups of eight channels with a common 0 V reference. Q: What signal conversion does the field termination assembly perform?A: The assembly converts incoming 0-20 mA or 4-20 mA current loop signals into 0-4 V DC output signals for the SAI-1620M Safe High-Density Analog Input Module. Q: What type of field wiring terminals does the module use?A: The module uses screw terminals supporting wires up to 2.5 mm2 (AWG 14) with a 7 mm strip length and 0.5 Nm tightening torque. Field Installation Guidelines Install the FS-TSAI-1620M on compatible TS32 or TS35 x 7.5 DIN EN rails and verify mechanical fixation before wiring field circuits. Use separate routing paths for analog signal cables and high-current power conductors to reduce electrical interference. Moreover, connect cable shields according to the plant grounding standard and avoid creating unintended ground loops. Verify transmitter polarity, current loop continuity, and external 30 V DC supply wiring before applying power. Ensure field circuits remain within the specified nonincendive Class 1 Division 2 electrical limits. Confirm terminal tightening conditions and inspect all field connections before integrating the module with the Honeywell Safety Manager input system.
$200.00 $100.00
-
Honeywell Honeywell FS-16DI-RL Fail-Safe Digital Input Module
Honeywell FS-16DI-RL Fail-Safe Digital Input Module Configured for line-monitored digital signal acquisition in Honeywell Safety Manager systems, the Honeywell FS-16DI-RL (FS-16DI-RL Fail-Safe Digital Input Module) provides direct physical and electrical execution for field contact monitoring. Hardware Specifications Parameter Specification Model FS-16DI-RL Brand Honeywell Origin USA Module Type Fail-Safe Digital Input Module Input Channels 16 channels Input Type Dry contact input with resistance-based line monitoring Nominal Field Voltage 24 VDC Safety Integrity Level Up to SIL 3 according to IEC 61508 Diagnostic Functions Open circuit detection, short circuit detection, field wiring diagnostics Galvanic Isolation Yes, field circuit isolation from internal logic Diagnostic Coverage > 99% Operating Temp -5 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95% non-condensing Power Consumption Approx. 1.5 W to 3.0 W depending on channel load Hot Swap Capability Supported in redundant configuration Safety Manager Fail-Safe Signal Processing and Isolation The FS-16DI-RL processes 24 VDC field contact signals through monitored input circuits. Moreover, the module evaluates wiring conditions including normal contact states, open circuits, and short circuits to provide diagnostic information to the Safety Manager controller. Honeywell safety modules apply galvanic isolation between field terminals and internal processing circuits. Therefore, the FS-16DI-RL reduces electrical interference transfer between external devices and controller electronics. The module supports safety applications requiring SIL 3 operation. In addition, redundant configurations allow system designers to maintain input availability during module replacement or fault conditions. 4-20 mA HART Loop and DCS Interface Compatibility Honeywell Safety Manager architectures commonly integrate with process instrumentation through standardized industrial signal interfaces. However, the FS-16DI-RL specifically handles discrete contact inputs rather than analog measurement loops. The module design follows Honeywell process safety hardware practices, including channel separation, diagnostic monitoring, and controlled signal transmission between field devices and safety logic execution layers. Frequently Asked Questions Q: Does the FS-16DI-RL support line monitoring for field wiring faults?A: Yes. The module monitors field circuits and detects conditions including open circuits and short circuits through resistance-based diagnostics. Q: Can the FS-16DI-RL operate in redundant safety configurations?A: Yes. The module supports redundant installation arrangements to improve system availability during module faults or maintenance activities. Q: What type of field devices can connect to the FS-16DI-RL inputs?A: The module accepts dry contact devices such as limit switches, pushbuttons, and contact-based safety devices. Field Installation Guidelines Install the FS-16DI-RL according to Honeywell Safety Manager system installation procedures and approved cabinet layouts. Use appropriate field wiring separation practices to prevent interference between safety input circuits and high-energy conductors. Moreover, connect cable shields according to the site grounding standard to maintain signal integrity. Verify input polarity, terminal assignments, and field loop continuity before system commissioning. Therefore, perform open circuit and short circuit diagnostic checks after wiring completion. Install the module in a controlled environment that complies with the specified operating temperature and humidity limits. Follow the approved redundancy configuration requirements when applying hot-swap replacement procedures.
$200.00 $100.00
-
Honeywell Honeywell FC-SDI-1624 Safe Digital Input Module
Honeywell FC-SDI-1624 Safe Digital Input Module The Honeywell FC-SDI-1624, also cataloged as the FS-SDI-1624 Safe Digital Input Module, operates as a dedicated hardware component for safe discrete signal acquisition within Honeywell Safety Manager platforms. The FC-SDI-1624 version includes conformal coating for environmental protection, while the FS-SDI-1624 version uses the same input function without conformal coating. Hardware Specifications Parameter Specification Model FC-SDI-1624 / FS-SDI-1624 Brand Honeywell Product Type Safe Digital Input Modules Origin USA Dimensions 4 TE, 3 HE (4 HP, 3U) Power Consumption 5 VDC: 8 mA; 24 VDC internal: 110 mA; 24 VDC external: 110 mA input current Input Type Safe digital input channels Conformal Coating FC-SDI-1624: Included; FS-SDI-1624: Not included Approvals CE, TUV, UL, CSA, FM Ripple Content 5 VDC supply requirements require controlled ripple content Channel Isolation and Safety Input Processing The FC-SDI-1624 and FS-SDI-1624 modules process discrete field signals through Honeywell Safety Manager safety I/O architectures. Moreover, the modules maintain controlled electrical separation between field input circuits and internal processing interfaces to support safety signal evaluation. The modules apply channel-to-channel isolation techniques for discrete input handling. Therefore, external field wiring conditions, contact states, and input transitions can be monitored through defined electrical characteristics without affecting adjacent input channels. In addition, Honeywell Safety Manager digital input modules are designed for fail-safe signal acquisition, where field device states are transferred to the safety controller for logic execution and diagnostic processing. Frequently Asked Questions Q: What is the difference between FC-SDI-1624 and FS-SDI-1624?A: FC-SDI-1624 includes conformal coating for additional protection against environmental contamination, while FS-SDI-1624 provides the same safe digital input function without conformal coating. Q: What power supplies are required for the module operation?A: The module requires 5 VDC power with an 8 mA consumption value and uses 24 VDC internal and external supplies with 110 mA input current requirements. Q: Can the module process analog field signals?A: No. The FC-SDI-1624 and FS-SDI-1624 are designed for safe digital input signal acquisition and do not provide analog input measurement functions. Field Installation Guidelines Install the module within the designated Honeywell Safety Manager rack configuration and verify the correct slot position before applying power. Connect field wiring according to the approved terminal assignment documentation. Moreover, separate digital input signal cables from high-voltage power conductors to reduce electromagnetic interference. Use appropriate shielding and grounding practices for field cables when required by the installation environment. Ensure that the conformal-coated FC-SDI-1624 version is selected for applications requiring additional protection against airborne contaminants or environmental exposure. Verify the 5 VDC and 24 VDC supply connections before commissioning. Therefore, confirm voltage levels, polarity, and grounding conditions during system startup procedures.
$200.00 $100.00
-
Honeywell FC-SDOL-0424 | Honeywell | Digital Output Module
Honeywell FC-SDOL-0424 Safe Loop-Monitored Digital Output Module Configured for safe loop-monitored digital output execution in Honeywell safety control systems, the Honeywell FC-SDOL-0424 (SDOL-0424 Safe Loop-Monitored Digital Output Module) provides direct electrical control of 24 VDC field loads through four monitored output channels. Hardware Specifications Parameter Specification Model FC-SDOL-0424 Spare Model SDOL-0424 Brand Honeywell Product Type Safe Loop-Monitored Digital Output Module Origin USA Weight 0.14 kg Dimensions 2 x 19 x 12.8 cm (estimated shipping size) Approvals CE, TUV, UL, CSA, FM Space Requirements 4 TE, 3 HE (= 4 HP, 3U) Number of Output Channels 4 Output Specification 24 VDC Maximum Channel Current 1 A Maximum Total Module Load 3.6 A Maximum Load Inductance 0.5 H Maximum Load Capacitance 1 uF Overload Detection Threshold > 10 Ohm Cold Resistance Lamp Detection > 20 Ohm Load Monitoring Functions Open circuit, short circuit, output wiring lead breakage detection De-energization Function Supports de-energization and secondary de-energization methods Process Control Loop Monitoring and Output Isolation The FC-SDOL-0424 manages four 24 VDC digital output channels with continuous loop monitoring functions. Moreover, the module detects abnormal field wiring conditions, including external output lead breakage and output short circuits. Honeywell designs this module for safety-oriented output switching where the controller must verify the physical state of connected field devices. The output channels support load supervision through resistance monitoring, including overload detection above 10 Ohm and cold resistance lamp detection above 20 Ohm. In addition, the module applies output suppression diode functions to control inductive load behavior. The design limits electrical disturbances generated by switching loads and maintains controlled output operation within specified load parameters. Frequently Asked Questions Q: How many digital output channels does the Honeywell FC-SDOL-0424 provide?A: The FC-SDOL-0424 provides four safe loop-monitored digital output channels, each supporting 24 VDC field output operation. Q: What load conditions can the FC-SDOL-0424 detect?A: The module detects external output wiring lead breakage, output short circuits, and overload conditions through integrated loop monitoring functions. Q: What are the maximum electrical load limits of each output channel?A: Each channel supports a maximum current of 1 A, while the complete module supports a maximum total load of 3.6 A. Field Installation Guidelines Install the FC-SDOL-0424 in the specified Honeywell safety system rack position while maintaining the required 4 TE, 3 HE mechanical allocation. Verify field wiring polarity before connecting 24 VDC output circuits. Furthermore, separate output wiring from high-voltage power cables and high-current switching conductors to reduce electrical interference. Use appropriate shield termination practices when the connected field equipment requires signal protection. Check external loop resistance values before commissioning to confirm that the module can correctly identify open circuits and abnormal load conditions. Confirm that connected loads remain within the specified channel current, total module load, inductive load, and capacitive load limits before system operation.
$200.00 $100.00
-
Honeywell Honeywell FC-BSDOL-04UNI Safety Digital Output Module
Honeywell FC-BSDOL-04UNI Safety Digital Output Module Configured for loop-monitored digital output execution in Honeywell Safety Manager and Fail-Safe Control (FSC) systems, the Honeywell FC-BSDOL-04UNI (BSDOL-04UNI Safety Digital Output Module) provides direct physical and electrical control for 24 VDC safety output circuits. Hardware Specifications Parameter Specification Model FC-BSDOL-04UNI / FS-BSDOL-04UNI Brand Honeywell Origin United States Product Type Safety Digital Output Modules Number of Channels 4 channels Output Type Loop-monitored digital outputs Operating Voltage 24 VDC and 48 VDC field load configurations Load Range S: 4-16 mA; L: 17-47 mA; M: 48-199 mA; H: >= 200 mA Power Consumption S: 5 mA from 24 V external supply of SDOL-0424; L/M/H: Load dependent Load Power Range 0.1-0.39 W at 24 VDC (SDOL-0424), 0.8-2.3 W at 48 VDC (SDOL-0448) depending on configuration Dimensions BSDOL-04UNI: 58.5 x 54.5 x 12.5 mm; BSDOL-04: 58.5 x 21 x 9 mm; Range Setting Sub-module: 13.5 x 5.1 x 12.5 mm Chassis Space Requirement Installed on programming connector of I/O backplane Approvals CE, TUV, UL, CSA, FM Process Control Loop Isolation and Safety Output Functions The Honeywell FC-BSDOL-04UNI applies isolated output circuitry to execute field device switching commands from Safety Manager and FSC platforms. Moreover, the module monitors output loops to detect wiring conditions such as open circuits and short circuits. The module supports four independent digital output channels with selectable load ranges. Therefore, users can configure the output characteristics according to field device current requirements. In addition, the current-limited architecture controls output energy during abnormal field conditions. Honeywell safety I/O designs typically focus on electrical separation and signal integrity. Furthermore, the module supports channel-to-channel isolation concepts used in safety instrumented systems to reduce fault propagation between output circuits. Frequently Asked Questions (FAQ) Q: How many output channels does the FC-BSDOL-04UNI provide?A: The FC-BSDOL-04UNI provides four independent loop-monitored digital output channels. Q: Does the module support different field load configurations?A: Yes. The module supports S, L, M, and H load ranges with different current and power operating limits. Q: Where is the FC-BSDOL-04UNI installed in the control system?A: The module installs on the I/O backplane programming connector and does not require additional chassis space. Field Installation Guidelines Install the FC-BSDOL-04UNI according to Honeywell Safety Manager or FSC system hardware configuration requirements. Verify field wiring polarity and output loop connections before applying 24 VDC or 48 VDC power. Separate safety output wiring from high-current switching cables to reduce electrical interference. Connect cable shields according to the plant grounding standard and avoid creating unintended ground loops. Confirm that the selected load range matches the connected field device electrical characteristics before commissioning. Inspect terminal connections and backplane engagement during installation to maintain proper mechanical alignment.
$200.00 $100.00
-
General Electric GE IS220PAICH1BG Analog Input I/O Pack
GE IS220PAICH1BG Analog Input I/O Pack Configured for analog signal acquisition and Ethernet data transmission in GE Mark VIe Speedtronic Control System networks, the GE IS220PAICH1BG (IS220PAICH1BG Analog Input I/O Pack) provides direct physical/electrical execution for field signal conversion and controller communication. Hardware Specifications Parameter Specification Model IS220PAICH1BG Brand GE (General Electric) Origin United States Weight 0.5 kg Operating Temp -40 to +70 deg C Power Consumption Not specified; 28 VDC nominal supply Series Mark VIe Speedtronic Control System Product Type Analog Input I/O Packs Analog Input Channels 32 channels, differential or single-ended Signal Types +/-5 VDC, +/-10 VDC, 4-20 mA ADC Resolution 16-bit Sampling Rate 250 Hz per channel Isolation Channel-to-channel and channel-to-ground isolation Communication Interface Ethernet IONet protocol Storage Temperature -40 to +85 deg C Humidity 5% to 95% RH, non-condensing Protection Conformal coating and surge suppression Compliance CE, UL, RoHS Industrial Ethernet and I/O Density Scaling The IS220PAICH1BG provides high-density analog acquisition within GE Mark VIe control architectures. The module converts field voltage and current signals into digital values using a 16-bit ADC and transfers processed data through the Ethernet IONet communication interface. The module supports I/O density scaling through 32 configurable analog input channels, allowing multiple process variables to be collected within a single I/O pack. Channel-to-channel and channel-to-ground isolation separate measurement circuits and reduce signal interaction between connected field devices. The Ethernet IONet interface provides deterministic communication between the analog input pack and Mark VIe controllers. The module operates with GE control system firmware structures designed for Mark VIe I/O processing and diagnostic functions. Frequently Asked Questions Q: What analog signals can the IS220PAICH1BG accept?A: The module supports voltage inputs of +/-5 VDC and +/-10 VDC, as well as 4-20 mA current signals. Q: How many analog input channels are available on this I/O pack?A: The IS220PAICH1BG provides 32 analog input channels configured for differential or single-ended signal measurement. Q: What communication interface connects the I/O pack to the controller?A: The module communicates with the Mark VIe controller through the Ethernet IONet protocol. Field Installation Guidelines Install the IS220PAICH1BG according to GE Mark VIe cabinet installation procedures. Verify connector engagement and mounting alignment before applying field power. Route analog signal cables separately from high-current switching conductors to reduce electromagnetic interference. Use shielded instrumentation cables where required by the control system design and connect cable shields according to cabinet grounding practices. Confirm field transmitter polarity, input signal type configuration, and IONet communication connections during commissioning. Inspect terminal connections and grounding paths before placing the analog input channels into service.
$200.00 $100.00
-

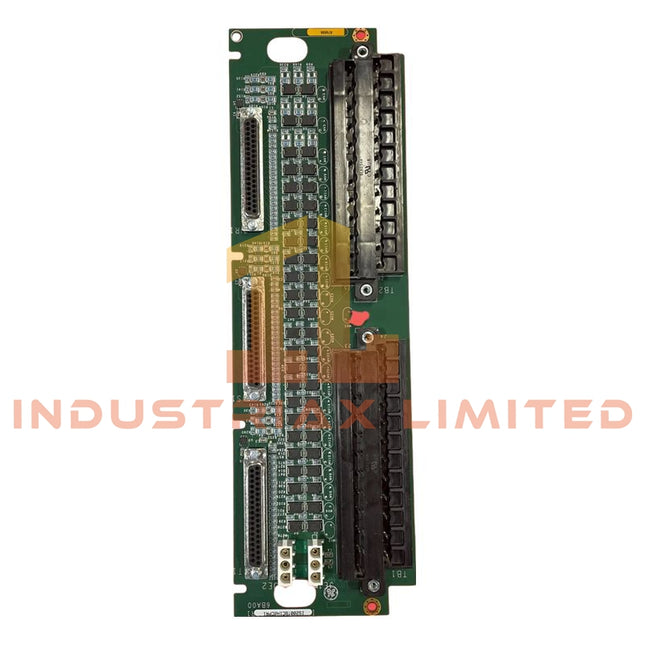

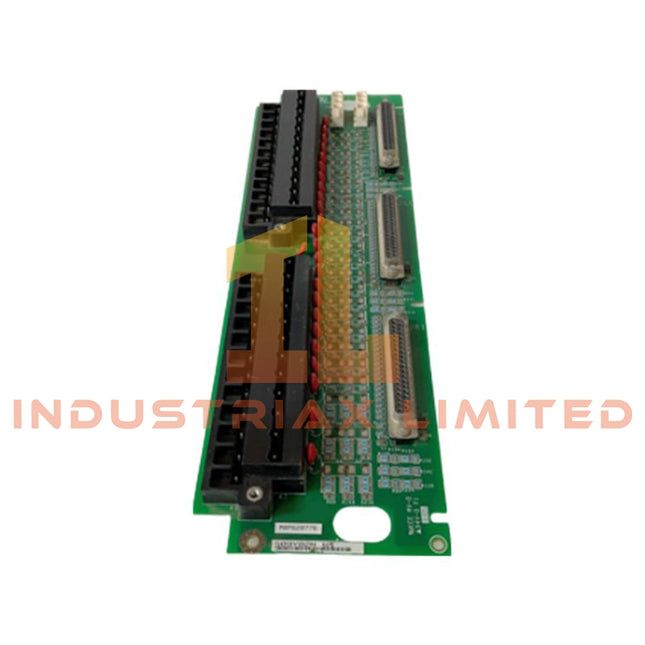

General Electric GE IS200TBCIH1BBC Mark VI Contact Input Terminal Board
GE IS200TBCIH1BBC Mark VI Contact Input Terminal Board The GE IS200TBCIH1BBC, also cataloged as the IS200TBCIH1BBC Contact Input Terminal Board, operates as a dedicated hardware component for field contact signal acquisition and electrical isolation within the GE Mark VI Speedtronic Turbine Control System. Hardware Specifications Parameter Specification Model IS200TBCIH1BBC Brand GE (General Electric) Origin United States Weight 0.5 kg Operating Temp -30 deg C to +65 deg C Power Consumption Not specified Product Type Contact Input Terminal Boards Series Mark VI Speedtronic Turbine Control System Input Channels 24 contact inputs Input Voltage Range 24 VDC nominal, 18-32 VDC range Isolation Optical isolation per channel Filtering Debounce filtering for mechanical contacts Connector Type Screw-type terminal block Communication Interface Mark VI backplane interface Protection Conformal coating, surge suppression Humidity Range 5-95% RH, non-condensing Compliance CE, UL, RoHS Profinet / Ethernet Deterministic Network Integration The IS200TBCIH1BBC provides field-level contact signal termination and conditioning for the Mark VI control architecture. The terminal board receives discrete signals from external devices such as switches, relays, and status contacts, then transfers conditioned input states through the Mark VI backplane interface. The board uses optical isolation between field contact circuits and controller-side electronics to reduce electrical interference. The input processing design includes debounce filtering for mechanical contact signals, supporting stable digital state detection within configured industrial control sequences. Frequently Asked Questions Q: How many contact inputs are available on the IS200TBCIH1BBC?A: The terminal board provides 24 contact input channels for connection of field switches, relays, and discrete status signals. Q: What type of electrical isolation is used on this terminal board?A: The IS200TBCIH1BBC uses optical isolation on individual input channels to separate field circuits from controller electronics. Q: What field wiring connection method is used?A: The board uses screw-type terminal blocks for field contact signal termination. Field Installation Guidelines Install the IS200TBCIH1BBC according to the Mark VI cabinet terminal board layout and verify correct terminal block seating before connecting field wiring. Confirm that the board grounding and cabinet bonding paths are properly maintained. Route contact input wiring separately from high-voltage power cables and high-current switching circuits. Use shielded wiring practices where required by the installation environment and connect shields according to the control cabinet grounding design. Before commissioning, verify each contact input channel assignment, field device polarity, and signal state indication. Confirm backplane connection integrity before enabling controller monitoring functions.
$200.00 $100.00
-
Honeywell FC-TSGASH-1624P Digital Input Field Termination Assembly Honeywell
Honeywell FC-TSGASH-1624P Digital Input Field Termination Assembly Configured for analog field signal conversion in Honeywell Safety Manager platforms, the Honeywell FC-TSGASH-1624P (FC-TSGASH-1624P Digital Input Field Termination Assembly) provides direct physical and electrical signal processing for 16-channel current input interfaces. Hardware Specifications Parameter Specification Model FC-TSGASH-1624P Brand Honeywell Product Type Digital Input Field Termination Assembly Origin USA Weight 0.35 kg Dimensions 22.6 x 7 x 5.8 cm Power Consumption 24 V DC external supply Input Channels 16 Input Signal Type 0-25 mA current input Input Resistance 500 ohm (plus or minus 5%) Output Signal 0-4 V DC linear conversion Output Accuracy 0.1% Maximum Output Voltage 11 V peak-to-peak Series Impedance Greater than 2 uF Fuse Rating 500 mA Fuse Dimensions 5 x 20 mm Fuse Voltage Rating AC 250 V AC Fuse Voltage Rating DC 300 V DC Terminal Type Screw terminals Compatible Interface SAI-1620M Honeywell DCS Current Signal Conversion and Isolation Characteristics The FC-TSGASH-1624P performs direct conversion of field current signals into voltage outputs for SAI-1620M interface processing. Moreover, the module accepts 0-25 mA analog input signals through 16 independent channels with a common 0 V reference arrangement. The module uses a 500 ohm input resistance structure to convert field current signals into a proportional 0-4 V DC output range. Therefore, the connected control system receives a standardized voltage representation for analog signal acquisition. In addition, Honeywell field termination assemblies typically operate with process instrumentation interfaces that support 4-20 mA signal loops. The FC-TSGASH-1624P applies channel signal conditioning through its termination circuitry, while the screw terminal design provides direct field wiring connection. Frequently Asked Questions Q: What type of field signals does the FC-TSGASH-1624P accept?A: The module accepts 0-25 mA current input signals through 16 input channels and converts them into 0-4 V DC output signals. Q: What external power supply does the FC-TSGASH-1624P require?A: The module requires a 24 V DC external power supply for field termination operation. Q: What terminal connection method does the module use?A: The FC-TSGASH-1624P uses screw terminals for field signal wiring connections. Field Installation Guidelines Install the FC-TSGASH-1624P inside the designated Honeywell system enclosure or termination assembly location according to the system hardware manual. Verify that field wiring matches the specified current input channels before energizing the module. Use shielded instrumentation cables where required by the installation environment, and connect cable shields according to the site grounding standard. Separate analog signal wiring from high-voltage power cables and high-current switching circuits to reduce electrical interference. Confirm the 24 V DC supply polarity before connection, and inspect fuse installation before system startup. Ensure that screw terminals maintain proper mechanical tightening after field wiring installation. Check signal continuity and channel conversion performance during commissioning procedures.
$200.00 $100.00
-
Honeywell Honeywell FC-QPP-0001 Quad Processor Pack
Honeywell FC-QPP-0001 Quad Processor Pack The Honeywell FC-QPP-0001, also cataloged as the FC-QPP-0001 Quad Processor Pack, operates as a dedicated hardware component for synchronous processor execution and redundant data processing within Honeywell safety control system platforms. Hardware Specifications Parameter Specification Model FC-QPP-0001 Brand Honeywell Product Type Quad Processor Pack Origin USA Weight 1.25 kg Dimensions 2.8 x 22.8 x 17.5 cm (estimated shipping size) Operating Temp -5 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 10% to 95%, non-condensing Power Consumption 24 VDC supply: max. 25 mA; 5 VDC supply: max. 1.2 A 24 V Supply Voltage 24 VDC -15% to +30% 5 V Supply Voltage 5 VDC +/- 5% Processor Configuration Two processors running synchronously System Memory Flash memory for system and application program storage RAM Protection Battery-backed RAM Redundant Communication Redundant communication link with dedicated RAM data storage Data Monitoring Processor and memory data comparators Communication Interface Data exchange with communication modules Surge Protection +/-1 kV on I/O lines Safety Control Processor Synchronization and Data Integrity The FC-QPP-0001 uses synchronous processor operation to execute identical processing tasks across paired processors. Moreover, internal data comparators monitor processor outputs and memory conditions to detect execution differences. The module integrates flash memory for storing system software and application programs. In addition, battery-backed RAM maintains operational data during power interruptions. The redundant communication link provides data exchange capability with associated communication modules while dedicated RAM stores communication redundancy information. Frequently Asked Questions Q: Does the FC-QPP-0001 support redundant processor operation?A: Yes. The module operates with two processors running synchronously and uses data comparators to monitor processor and memory consistency. Q: What memory functions are included in the FC-QPP-0001 hardware design?A: The module includes flash memory for system and application programs and battery-backed RAM for retained operating data. Q: What power requirements must be considered during installation?A: The module requires a 24 VDC supply with a maximum current of 25 mA and a 5 VDC supply with a maximum current of 1.2 A. Field Installation Guidelines Install the FC-QPP-0001 according to the designated Honeywell control rack and system hardware configuration requirements. Verify that the 24 VDC and 5 VDC power connections match the specified voltage ranges before energizing the module. Use properly routed power and communication wiring to reduce electrical interference. Maintain separation between signal cables and high-current power conductors. Connect cable shields according to the system grounding design to minimize noise coupling. Before operation, verify processor synchronization status, communication link integrity, and module diagnostic indications through the applicable Honeywell engineering tools.
$200.00 $100.00
-
Honeywell Honeywell FC-RUSIO-3224 Remote Universal Safe I/O Module
Honeywell FC-RUSIO-3224 Remote Universal Safe I/O Module Configured for universal safety signal processing in Honeywell Safety Manager SIS platforms, the Honeywell FC-RUSIO-3224 (FC-RUSIO-3224 Remote Universal Safe I/O Module) provides direct physical and electrical execution for configurable 32-channel field I/O operations. Hardware Specifications Parameter Specification Model FC-RUSIO-3224 Brand Honeywell Product Type Remote Universal Safe I/O Module System Compatibility Honeywell Safety Manager / Safety Manager SC Origin USA Weight 0.6 kg Dimensions 7.2 x 15.5 x 16.5 cm (estimated shipping size) Operating Temp -40 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 10 to 95% RH, non-condensing Power Consumption Supplied from 24 VDC field power source Channel Count 32 universal safe I/O channels Supply Voltage 24 VDC -20% to +30% Closed Contact Current 7 mA +/- 5% at 24 VDC Open Contact Current < 4 mA +/- 5% Switch Resistor 1 kOhm +/- 5%, >0.25 W Short Circuit Detection Field resistance < 500 Ohm +/- 50% Output Off Delay After ESD 10 ms +/- 30% Safety Integrity Level SIL 3 applications according to IEC 61508 / IEC 61511 Tariff Code 8537101190 Honeywell Process Signal Isolation and Safety I/O Architecture The FC-RUSIO-3224 uses a universal channel architecture where each of the 32 channels can be configured through Safety Builder software. Therefore, one hardware module can execute multiple signal functions without requiring separate digital and analog module types. The module supports digital input operation with or without line monitoring, digital output operation with loop monitoring, analog input operation in 0-20 mA or 4-20 mA active modes, and analog output operation with open circuit detection. In addition, the module supports one ESD input with line monitoring capability. For Honeywell SIS applications, the module maintains channel-to-channel isolation for field signal processing and supports monitored 4-20 mA current loop interfaces. Moreover, the configurable I/O design allows process transmitters, switches, actuators, and shutdown devices to connect through the same physical module platform. The FC-RUSIO-3224 requires two modules to create a redundant configuration. Each module receives power from the 24 VDC supply, while the Safety Manager controller supervises configured safety functions and field signal states. Frequently Asked Questions Q: Can the FC-RUSIO-3224 channels be configured as different signal types on the same module?A: Yes. Each of the 32 channels can be individually configured through Safety Builder software as digital input, digital output, analog input, or analog output. Q: Does the FC-RUSIO-3224 support redundant safety configurations?A: Yes. Two FC-RUSIO-3224 modules are required to achieve a redundant configuration for SIL 3 safety applications. Q: What field monitoring functions are available on this module?A: The module supports line monitoring for digital inputs, loop monitoring for digital outputs, and open circuit detection for analog output channels. Field Installation Guidelines Install the FC-RUSIO-3224 inside the designated Honeywell Safety Manager cabinet assembly according to system engineering drawings. Use shielded field cables for analog signal wiring and connect cable shields according to the cabinet grounding specification. Moreover, separate low-level analog wiring from high-voltage power conductors to reduce electromagnetic interference. Verify the 24 VDC supply polarity before energizing the module. Confirm that field device wiring matches the channel configuration defined in Safety Builder before performing commissioning tests. Check terminal connections, field resistance values, and loop continuity during installation. Therefore, complete channel diagnostics and safety function verification before placing the SIS application into operational service.
$200.00 $100.00
-
Honeywell FC-TSDO-1624 Honeywell | Digital Output Modules
Honeywell FC-TSDO-1624 Fail-Safe Digital Output Module The Honeywell FC-TSDO-1624, also cataloged as the FC-TSDO-1624 Fail-Safe Digital Output Module, operates as a dedicated hardware component for 24 VDC safety output execution within Honeywell Safety Manager systems. Hardware Specifications Parameter Specification Model FC-TSDO-1624 Brand Honeywell Product Type Fail-Safe Digital Output Module System Compatibility Honeywell Safety Manager / Safety Manager SC Origin USA Power Consumption Depends on field load and module configuration Number of Channels 16 independent digital output channels Nominal Voltage 24 VDC Output Type Sourcing digital output Safety Integrity Level Supports SIL 3 applications according to IEC 61508 Channel Monitoring Open circuit and short circuit detection Electrical Isolation Galvanic isolation between field circuits and system electronics Status Indication Channel-level LED status and fault indication Configuration Supports redundant safety system configurations Honeywell Safety Manager Digital Output Execution Technology The FC-TSDO-1624 provides controlled 24 VDC output switching for safety-related field devices connected to Honeywell Safety Manager platforms. Moreover, the module performs continuous diagnostics on output circuits to detect abnormal field conditions, including wiring faults and load-side failures. The module architecture incorporates galvanic isolation between the internal safety controller interface and external field wiring. Therefore, electrical disturbances from connected actuators, relays, or solenoid loads remain separated from the controller electronics. In addition, the module supports fail-safe state execution by forcing defined output conditions during detected internal or external faults. The 16-channel design allows individual monitoring and control of multiple safety output circuits within a configured safety application. Frequently Asked Questions Q: Does the FC-TSDO-1624 support hot-swapping in a Safety Manager configuration?A: The module can support replacement procedures in compatible Safety Manager redundant configurations. The exact hot-swap operation depends on the installed system architecture and configuration rules. Q: What type of field signals can the FC-TSDO-1624 control?A: The module provides 24 VDC sourcing digital outputs for safety field devices such as actuators, valves, and relay interfaces. Q: How does the module detect output circuit faults?A: The FC-TSDO-1624 uses integrated diagnostics to monitor output channel conditions and identify open circuit or short circuit faults. Field Installation Guidelines Install the FC-TSDO-1624 according to the Honeywell Safety Manager hardware installation requirements. Mount the module in the designated Safety Manager rack position with correct mechanical alignment. Verify that field wiring uses appropriate separation between safety circuits and high-energy power conductors. Connect cable shields according to the system grounding design to reduce electrical interference. Confirm polarity and terminal assignments before applying 24 VDC field power. Check output loop continuity and actuator wiring before commissioning. Maintain proper ventilation and cabinet environmental control according to the installed control system specifications.
$200.00 $100.00
-
Honeywell FC-SDO-1624 Honeywell | Safe Digital Output Module
Honeywell FC-SDO-1624 Safe Digital Output Module Configured for safe digital signal execution in Honeywell Safety Manager and Fail-Safe Controller systems, the Honeywell FC-SDO-1624 (SDO-1624 Safe Digital Output Module) provides direct electrical switching control for safety-related field devices. Hardware Specifications Parameter Specification Model FC-SDO-1624 Base Model SDO-1624 Brand Honeywell Product Type Safe Digital Output Module System Compatibility Honeywell Safety Manager / Fail-Safe Controller (FSC) Origin USA Weight Approx. 1.2 kg to 2.0 kg (depending on chassis configuration) Dimensions Approx. 200 x 170 x 60 mm Operating Temp -10 deg C to +55 deg C Power Consumption Approx. 5 W without external load Channel Quantity 16 digital output channels Nominal Voltage 24 VDC Operating Voltage Range 18 to 30 VDC Response Time 10 ms to 25 ms depending on controller configuration Output Type Safety-rated digital output interface On-state Voltage Drop Less than 2.0 VDC at rated current Channel Diagnostics Individual channel status monitoring and LED indication Mounting Configuration Honeywell Safety Manager / FSC rack installation Environmental Protection Conformal coated industrial assembly Certifications CE, UL, CSA, TÜV, ATEX depending on system configuration Process Control Signal Interface Characteristics The FC-SDO-1624 provides 16 safety digital output channels for direct actuator control within Honeywell safety systems. Moreover, each channel incorporates diagnostic monitoring functions to detect output circuit abnormalities, field wiring faults, and device status changes. The module operates with 24 VDC field circuits and supports channel-level supervision through the Safety Manager controller. In addition, the hardware design supports electrical isolation between internal control logic and external field connections to maintain signal integrity. The module does not provide analog measurement functions. Instead, it executes binary output commands generated by the safety controller logic and transfers these commands to connected field devices such as shutdown valves, relays, and protective actuators. Frequently Asked Questions Q: Does the FC-SDO-1624 support analog signal measurement?A: No. The FC-SDO-1624 is a digital output module designed for binary actuator control. Analog input and measurement functions require separate Honeywell I/O modules. Q: What field voltage level does the FC-SDO-1624 operate with?A: The module is designed for 24 VDC safety field circuits with an operating range of 18 to 30 VDC. Q: How does the module detect output channel faults?A: The module uses channel diagnostics and status monitoring functions to identify abnormal output conditions and provide diagnostic information to the safety controller. Field Installation Guidelines Install the FC-SDO-1624 only in the specified Honeywell Safety Manager or FSC rack position. Verify the module addressing and controller configuration before connecting field wiring. Route 24 VDC safety circuits separately from high-voltage power cables to reduce electrical interference. Use appropriate shield termination methods when field devices require shielded cabling. Confirm terminal wiring polarity before energizing the field circuit. Check diagnostic LED indicators after installation to verify normal module operation. Follow Honeywell system engineering manuals for grounding, cabinet layout, and maintenance procedures.
$200.00 $100.00
-
Honeywell Honeywell FC-SDO-0824 Safe Digital Output Module
Honeywell FC-SDO-0824 Safe Digital Output Module Configured for 24 VDC digital output execution in Honeywell safety control platforms, the Honeywell FC-SDO-0824 (SDO-0824 V1.3 Safe Digital Output Module) provides direct electrical switching control for safety-related field devices. Hardware Specifications Parameter Specification Model FC-SDO-0824 Spare Model SDO-0824 V1.3 Brand Honeywell Product Type Safe Digital Output Module Origin USA Weight 0.66 kg Dimensions 3.5 x 22.5 x 17.5 cm shipping size Power Consumption WDG input current: 8 mA Output Channels 8 channels Output Voltage 24 VDC Maximum Output Current 550 mA Maximum Lamp Load 120 mA (2.9 W) Maximum Load Capacitance 1 uF Voltage Drop < 2.0 VDC at 500 mA Off Current < 0.1 mA Space Requirement 4 TE, 3 HE (= 4 HP, 3U) Approvals CE, TUV, UL, CSA, FM Tariff Code 8537101190 Process Control Signal Isolation and Output Diagnostics The Honeywell FC-SDO-0824 operates as an output interface module for safety digital switching circuits. Moreover, the module provides 8 output channels with 24 VDC field voltage and supports controlled de-energization functions through secondary means. The output stages include suppression diode functionality to manage inductive load switching behavior. In addition, the module limits output interaction through defined crosstalk suppression characteristics between channels. The module architecture follows Honeywell safety I/O design practices with channel-level electrical monitoring. Therefore, field devices receive controlled output states while the controller monitors output conditions. Frequently Asked Questions Q: How many digital output channels does the FC-SDO-0824 provide?A: The FC-SDO-0824 provides 8 digital output channels with a 24 VDC output specification. Q: What is the maximum current capability of each output module?A: The module supports a maximum output current of 550 mA and a maximum lamp load of 120 mA (2.9 W). Q: Does the module support output de-energization functions?A: Yes. The module supports group de-energization through a secondary means for safety output handling. Field Installation Guidelines Install the FC-SDO-0824 in the specified Honeywell safety controller rack position with correct mechanical alignment and module locking engagement. Verify field wiring polarity before connecting 24 VDC output circuits. Use appropriate terminal blocks and maintain separation between signal wiring and high-energy conductors to reduce electrical interference. Connect protective grounding according to the system cabinet design. Ensure cable routing follows Honeywell installation requirements for safety I/O systems, including proper shielding practices where applicable. Before commissioning, verify each output channel operation through the configured safety application logic and confirm field device response under normal and de-energized conditions.
$200.00 $100.00
-
Honeywell FC-SDI-1624 Safe Digital Input Module | Honeywell
Honeywell FC-SDI-1624 Safe Digital Input Module Configured for safe digital signal acquisition in Honeywell safety control platforms, the Honeywell FC-SDI-1624 (FC-SDI-1624 Safe Digital Input Module) provides direct electrical input processing for 24 VDC field signals through 16 isolated digital channels. Hardware Specifications Parameter Specification Model FC-SDI-1624 Brand Honeywell Product Type Safe Digital Input Module Origin USA Weight 0.46 kg Dimensions 43.8 x 14.2 x 9 cm shipping size Power Consumption Maximum current consumption: 450 mA Input Channels 16 Input Voltage Range Maximum 36 VDC Nominal Input Voltage 24 VDC Input Current 7 mA at 24 VDC Input HIGH Threshold > 15 VDC Input LOW Threshold < 9 VDC (I < 2 mA) Input Delay Typically 10 ms Mounting Space 4 TE, 3 HE (= 4 HP, 3U) Supply Ripple Content < 0.5 Vp-p (0-360 Hz) Tariff Code 8537101190 Channel-to-Channel Isolation and Safety Signal Processing The Honeywell FC-SDI-1624 processes 24 VDC field switching signals through 16 digital input channels. Moreover, the module monitors input voltage levels with defined HIGH and LOW thresholds to provide deterministic state recognition. The module architecture follows Honeywell process safety and control hardware requirements, where digital field signals require controlled electrical behavior before system logic execution. In addition, the input design supports channel-to-channel isolation concepts used in industrial safety systems to reduce interference between external field circuits. For process instrumentation interfaces, Honeywell digital modules commonly operate with discrete field devices such as switches, contacts, and binary transmitters. Therefore, proper signal wiring, shielding practices, and grounding methods remain important during installation. Frequently Asked Questions Q: What field voltage does the Honeywell FC-SDI-1624 accept?A: The module accepts digital input signals up to 36 VDC and specifies 24 VDC operation with a typical input current of 7 mA. Q: How many digital input points are available on the FC-SDI-1624?A: The FC-SDI-1624 provides 16 digital input channels for safe field signal acquisition. Q: What are the input recognition thresholds of this module?A: The module recognizes HIGH input states above 15 VDC and LOW input states below 9 VDC with input current below 2 mA. Field Installation Guidelines Install the FC-SDI-1624 in the specified control cabinet slot position according to the system hardware configuration. Verify that field wiring matches the assigned digital input channels before applying operating voltage. Separate digital signal wiring from high-current power cables to reduce electrical noise coupling. Furthermore, connect cable shields according to the cabinet grounding design and site electrical standards. Confirm terminal connections, supply polarity, and field device contact conditions before commissioning. Avoid applying voltage levels beyond the specified input range to prevent hardware damage.
$200.00 $100.00
-
Honeywell MU/MC-TAIH12 51304337-100 | Analog Input Modules | Honeywell
Honeywell MC-TAIH12 High-Level Analog Input Termination Assembly Configured for high-level analog signal termination in Honeywell Experion PKS and TDC 3000 DCS platforms, the Honeywell MC-TAIH12-51304337-100 (MC-TAIH12 High-Level Analog Input Termination Assembly) provides direct physical and electrical execution between field instruments and I/O processing hardware. Hardware Specifications Parameter Specification Model MC-TAIH12 Brand Honeywell Origin United States Module Type High-Level Analog Input Termination Assembly (FTA) Part Number 51304337-100 Signal Type High-Level Analog Input, typically 4-20 mA or 1-5 VDC Number of Channels 16 Channels System Compatibility Honeywell Experion PKS and TDC 3000 DCS platforms Conformal Coating Yes, MC series protective coating Redundancy Supports redundant I/O configurations Mounting Type FTA mounting channel / DIN rail installation Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 5% to 95% RH, non-condensing Process Control Signal Interface and Isolation Characteristics The MC-TAIH12 provides field-side termination for analog measurement circuits connected to Honeywell I/O processors. Moreover, the assembly routes 4-20 mA and voltage input signals through dedicated termination points while maintaining separation between field wiring and control electronics. The FTA design supports channel-to-channel isolation functions that reduce electrical interference between individual analog loops. In addition, the conformal coated circuit assembly protects electronic components against moisture, dust, and airborne industrial contaminants. For process instrumentation applications, the module interfaces with transmitter-based measurement loops using standard analog signal practices. Therefore, correct shield termination and grounding methods are required to maintain signal accuracy. Frequently Asked Questions Q: Does the MC-TAIH12 support 16 analog input channels?A: Yes. The MC-TAIH12 provides termination capability for 16 high-level analog input channels. Q: What type of field signals can connect to the MC-TAIH12?A: The assembly supports high-level analog input signals, including typical 4-20 mA and 1-5 VDC transmitter outputs. Q: Is the MC-TAIH12 designed for installation in harsh industrial environments?A: Yes. The conformal coated construction provides additional protection for electronic circuits against environmental contaminants. Field Installation Guidelines Install the MC-TAIH12 on the designated FTA mounting channel or approved DIN rail assembly. Verify field wiring polarity before connecting analog input terminals to prevent signal inversion. Use shielded instrumentation cables for low-level analog measurement circuits where required. Connect cable shields according to the site grounding standard to reduce electromagnetic interference. Separate analog signal wiring from high-voltage power cables and switching circuits. Confirm compatibility between the FTA terminal assignment and the associated Honeywell I/O module before commissioning.
$200.00 $100.00
-
Honeywell MC-TDOY23 80366189-175 | Digital Output Modules | Honeywell
Honeywell MC-TDOY23 Digital Output Relay Field Termination Assembly Configured for relay output field termination in Honeywell TDC 3000 and Experion PKS systems, the Honeywell MC-TDOY23 (80366189-175) (MC-TDOY23 Digital Output Relay Field Termination Assembly) provides direct physical and electrical execution between digital output modules and field relay circuits. Hardware Specifications Parameter Specification Model MC-TDOY23 Brand Honeywell Origin United States Power Consumption Determined by connected relay circuits and system interface requirements Part Number 80366189-175 Component Type Digital Output Relay Field Termination Assembly (FTA) System Compatibility Honeywell TDC 3000 / Experion PKS Distributed Control Systems Output Channels 16 channels Output Type Relay dry contact outputs Isolation Method Galvanic isolation between control logic and field circuits Field Connection Screw terminal field wiring interface Mounting Method Standard FTA mounting channel / cabinet installation Application Digital switching of solenoid valves, actuators, indicators, and interlock devices DCS Signal Isolation and Relay Output Interface The Honeywell MC-TDOY23 provides relay-based field termination for digital output signals from Honeywell control processors. Moreover, the assembly separates low-voltage control electronics from field-side electrical loads through galvanic isolation. The 16 relay output channels support independent switching paths for connected field devices. Therefore, the module reduces direct electrical stress on the controller output circuits during field load operation. For Honeywell process control applications, the termination assembly supports discrete signal handling associated with DCS field interfaces. In addition, the design allows organized cabinet wiring through dedicated field terminals and channel identification. The module operates with discrete output architectures rather than analog measurement loops. Consequently, it does not perform signal conversion, analog scaling, or HART communication functions. Frequently Asked Questions Q: Does the MC-TDOY23 provide analog signal processing functions?A: No. The MC-TDOY23 is a digital output relay termination assembly designed for discrete relay switching interfaces. Q: Does the module provide electrical isolation between the controller side and field side?A: Yes. The relay output structure provides galvanic isolation between the control system interface and connected field circuits. Q: How should field wiring be connected to the MC-TDOY23?A: Field wiring should follow Honeywell cabinet wiring practices, including correct terminal assignment, signal separation, and grounding procedures. Field Installation Guidelines Install the MC-TDOY23 inside an approved Honeywell control cabinet using the specified FTA mounting arrangement. Maintain separation between digital output wiring and high-energy power conductors to reduce electrical interference. Furthermore, connect cable shields according to the site grounding standard and avoid creating unintended ground loops. Verify each relay output channel before commissioning by checking terminal identification, field device polarity requirements, and external load compatibility. Use proper cable routing practices for relay circuits connected to inductive loads. Install external suppression components where required by the connected field equipment design.
$200.00 $100.00
لقد شاهدت 96 من أصل 2450 منتجًا
