Description

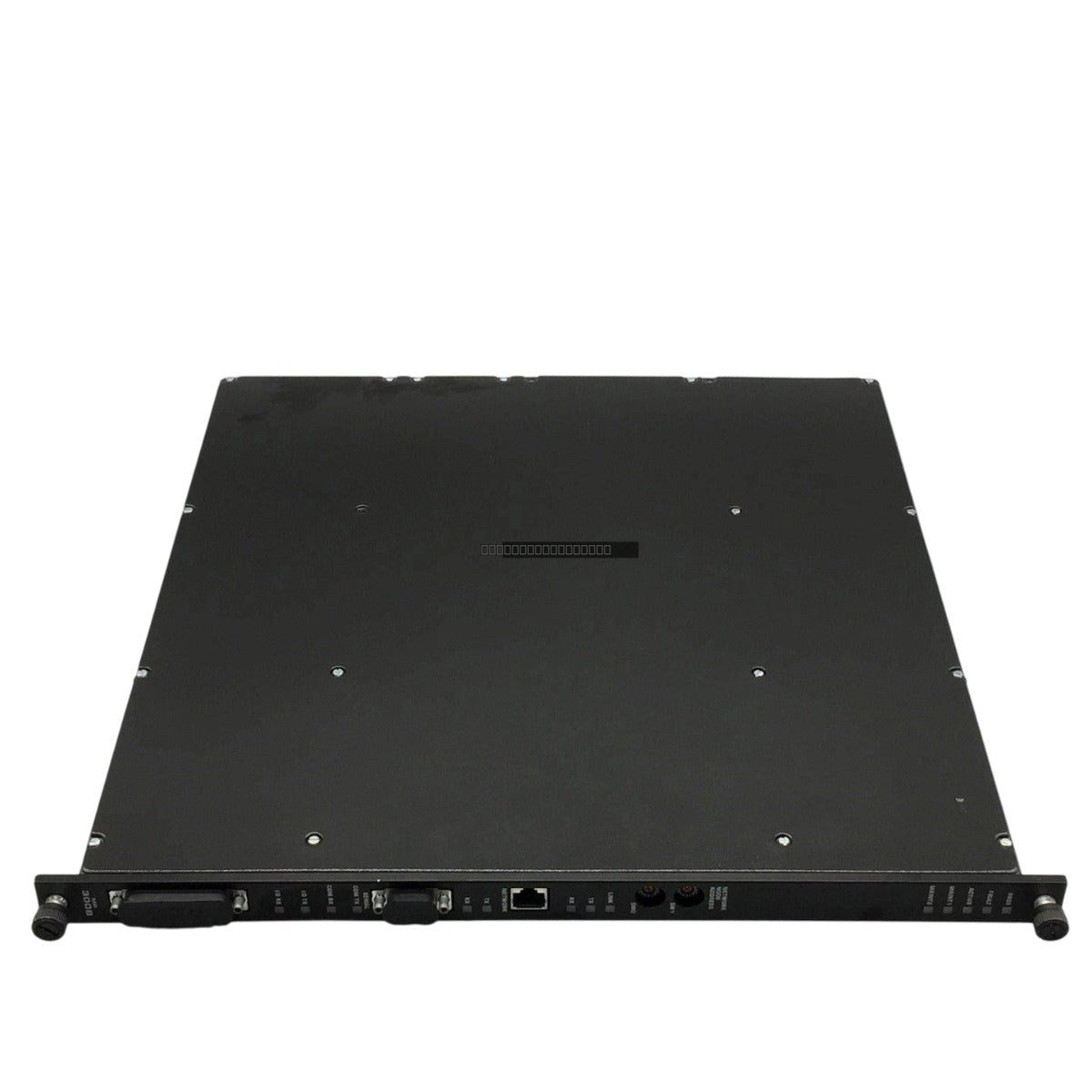

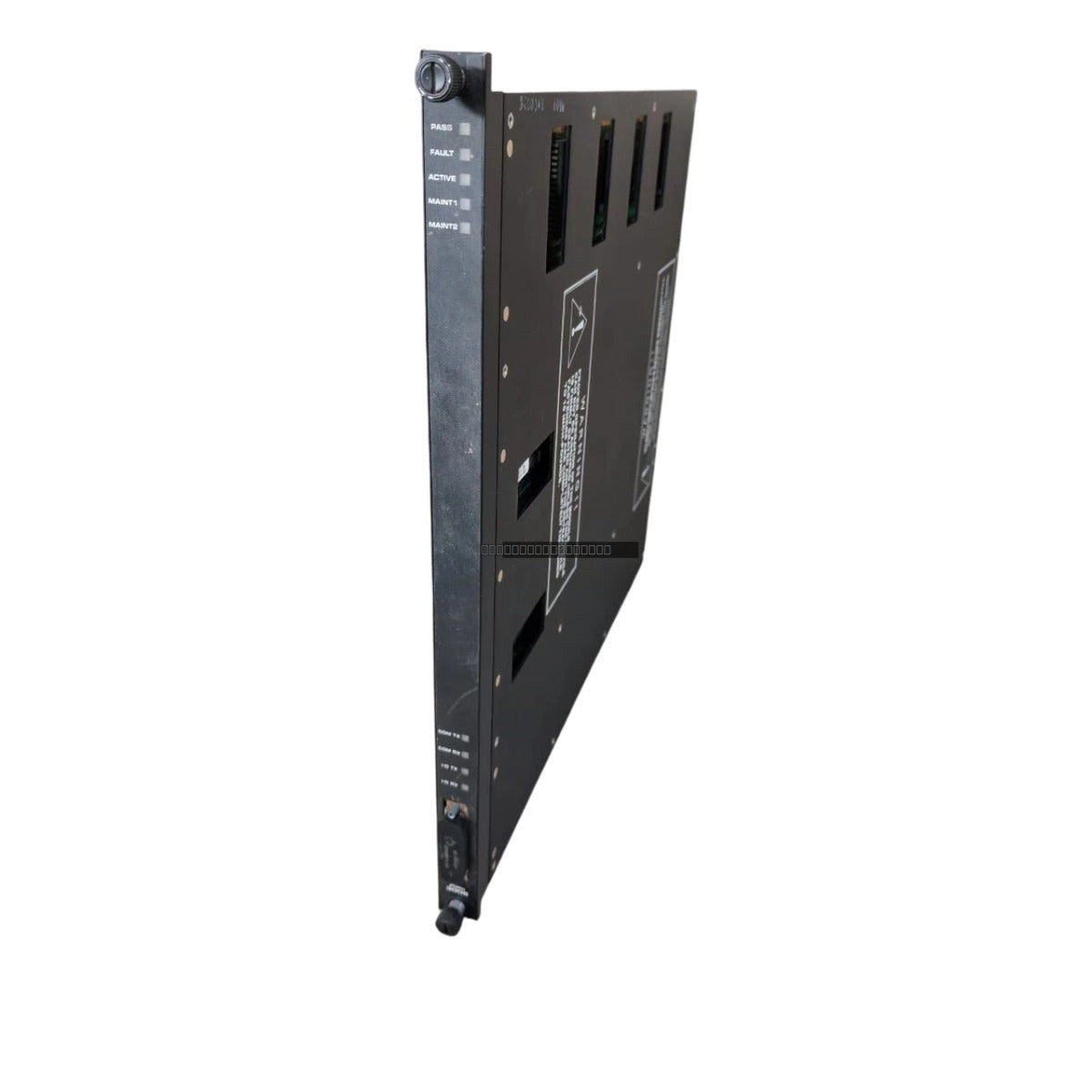

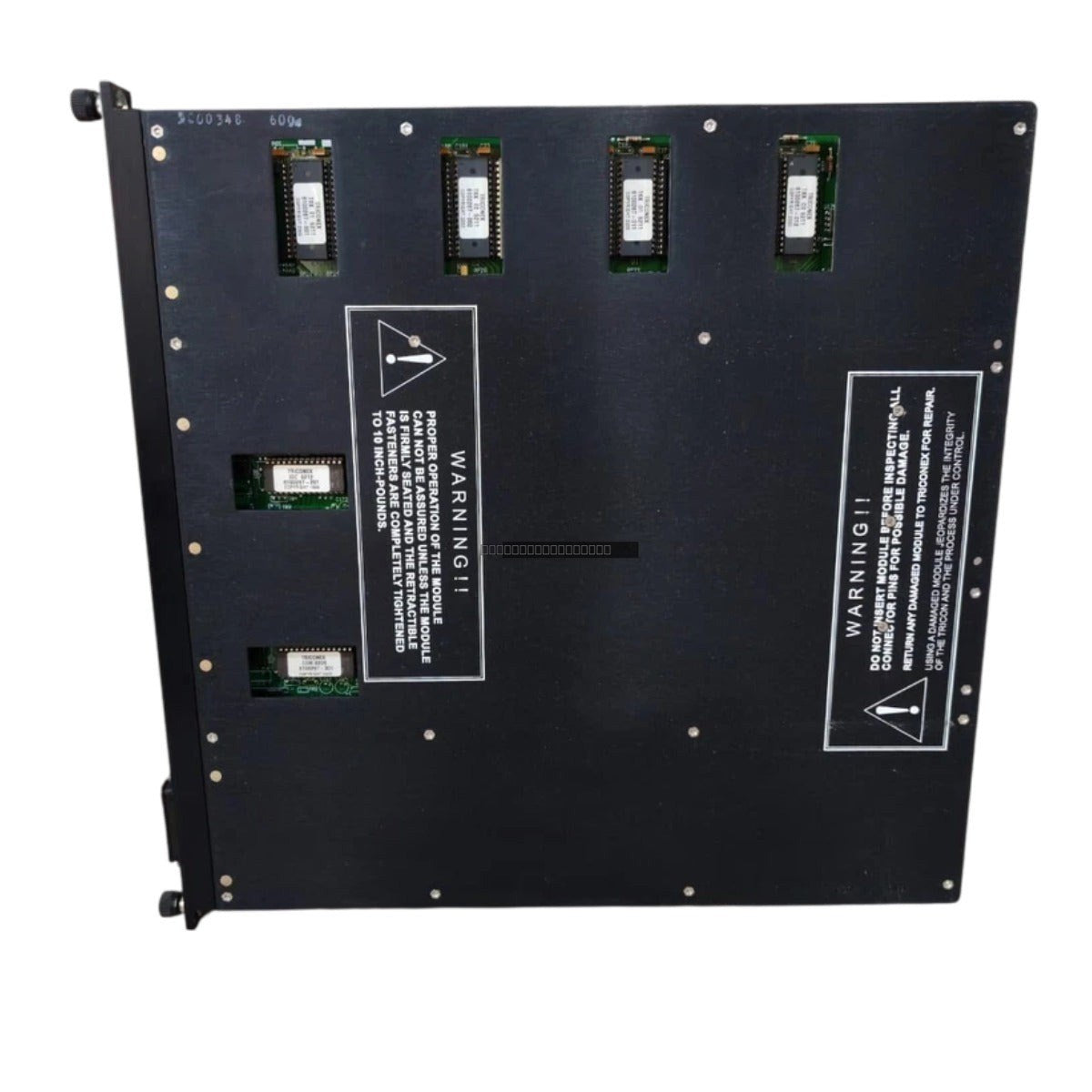

The Triconex EMPII 3006 is a robust main processor module designed for high-availability, safety-critical industrial control systems. Engineered for demanding environments such as petrochemical refining, power generation, and chemical manufacturing, this module provides the computational power required for complex logic execution and real-time diagnostic monitoring. By managing data flow between I/O subsystems and the central control architecture, the EMPII 3006 ensures consistent process integrity and minimizes the risk of unplanned operational interruptions.
Features
- Deterministic scan cycles for high-speed control logic execution.
- Continuous background diagnostic monitoring of internal memory, system clock synchronization, and data bus integrity.
- Integrated communication capabilities to support peer-to-peer networking and critical I/O bus management.
- Ruggedized hardware construction with EMI shielding to ensure reliable performance in electrically noisy industrial environments.
- Designed for high-availability applications requiring fault-tolerant control.
Technical Specifications
| Brand |
Invensys Triconex |
| Model |
EMPII 3006 |
| Product Type |
Main Processor Module |
| Clock Speed |
50 MHz |
| Memory |
2 MB SRAM, 8 MB Flash |
| Operating Temperature |
0 to 60 deg C |
| Power Consumption |
15 W nominal |
Installation Guidelines
- Ensure the system power is completely disconnected before attempting to install or remove the processor module.
- Verify that the module is correctly seated in the designated chassis slot to ensure proper backplane connectivity.
- Handle the module using standard ESD (Electrostatic Discharge) protection practices to prevent damage to sensitive internal components.
- Maintain adequate ventilation within the cabinet to keep the ambient temperature within the specified 0 to 60 deg C operating range.
- Route communication cables away from high-voltage power lines or heavy electromagnetic interference (EMI) sources to maintain signal integrity.
FAQ
What is the primary function of the EMPII 3006?
The EMPII 3006 serves as a main processor module for Triconex safety systems, responsible for executing control logic and managing diagnostic data in safety-critical industrial applications.
Is this module suitable for high-temperature environments?
The module is rated for an operating temperature range of 0 to 60 deg C. Always ensure proper cabinet cooling is in place for installations near the upper limit of this range.
Does this module require special handling?
Yes, like all industrial processor modules, it contains sensitive electronic components. Always use an anti-static wrist strap and follow proper grounding procedures during installation or maintenance.
