أنظمة حماية الآلات تحمي التوربينات والضواغط والمضخات. فهي تكتشف الأعطال مبكرًا وتمنع الأضرار الباهظة. نوفر منتجات بنتلي نيفادا وغيرها من الأنظمة الموثوقة، مع خدمة توصيل سريعة لجميع أنحاء العالم.
أنظمة حماية الآلات
-
Bently Nevada Bently Nevada 125710-01 3500 Series 4-Channel Relay I/O Module
Bently Nevada 125710-01 3500 Series 4-Channel Relay I/O Module The Bently Nevada 125710-01, also cataloged as the 125710-01 4-Channel Relay I/O Module, operates as a dedicated hardware component for relay signal execution within the Bently Nevada 3500 Series Machinery Protection System. The module receives alarm logic signals from monitoring modules and controls external relay contact circuits. Hardware Specifications Parameter Specification Model 125710-01 Brand Bently Nevada Origin USA Module Type 4-Channel Relay Input/Output Module System Compatibility Bently Nevada 3500 Series Machinery Protection System Function Relay output interface for alarm and shutdown signal execution Channel Count 4 independent relay channels Relay Type Electromechanical SPDT (Form C) relay contacts Contact Rating 2 A at 30 VDC or 250 VAC resistive load Operating Voltage +24 VDC via 3500 rack backplane Weight Approx. 0.45 kg Dimensions 241 mm x 24.4 mm x 99.1 mm Operating Temp -30 deg C to +65 deg C Storage Temp -40 deg C to +85 deg C Humidity Up to 95% RH, non-condensing Power Consumption Approx. 2.8 W Rack Position Any slot to the right of the Main Interface Module Rotor Protection Relay Logic Interface The Bently Nevada 125710-01 module processes relay commands generated by 3500 monitoring modules and transfers these commands to external control circuits. In addition, the module supports programmable AND/OR voting logic to define relay activation conditions. The module operates with the 3500 system architecture where vibration, position, speed, and other machinery parameters are evaluated before relay outputs change state. Therefore, the relay contacts normally connect to PLC inputs, shutdown logic circuits, annunciators, or interlock systems rather than directly switching high-power loads. For machinery monitoring applications, the 3500 platform validates sensor signals through functions such as eddy-current probe scaling and gap voltage measurement. The relay interface then executes the configured protection response after the monitoring logic confirms an alarm condition. Frequently Asked Questions Q: Can the 125710-01 relay contacts directly control high-power motors or actuators?A: No. The onboard relay contacts are pilot contacts designed for signaling circuits, PLC inputs, interlocks, or external relay interfaces. External switching devices should control higher current loads. Q: Does the 125710-01 support hot replacement in a powered 3500 rack?A: The module supports replacement in a powered rack when the correct system maintenance procedures and bypass conditions are applied. The connected protection logic must be evaluated before removal. Q: How does the module receive relay activation commands?A: The module receives relay control commands from the 3500 system backplane after monitoring modules process configured alarm conditions and logic states. Field Installation Guidelines Install the Bently Nevada 125710-01 module only in compatible 3500 rack positions located to the right of the Main Interface Module. Use proper cabinet grounding practices and maintain separation between relay wiring and high-voltage power conductors. Connect shielded signal cables according to the system grounding design to reduce electrical interference. Verify relay contact ratings before connecting external circuits. Use external interposing relays or contactors when the controlled device exceeds the module contact capability. Confirm the 3500 rack configuration, module addressing, and relay logic settings before placing the machinery protection system into operation.
$200.00 $100.00
-
Bently Nevada 330104-00-05-05-01-00 | 3300 XL 8 mm Proximity Probe | Bently Nevada
Bently Nevada 330104-00-05-05-01-00 3300 XL 8 mm Proximity Probe The Bently Nevada 330104-00-05-05-01-00, also cataloged as the 330104 3300 XL 8 mm Proximity Probe, operates as a dedicated eddy-current sensing component for shaft displacement measurement within Bently Nevada TSI monitoring systems. Hardware Specifications Parameter Specification Model 330104-00-05-05-01-00 Brand Bently Nevada Product Type 3300 XL 8 mm Proximity Probe Origin USA Weight 0.15 kg Dimensions Estimated shipping size: 1.8 x 1.6 x 121 cm Power Consumption Supplied by compatible proximity transducer system, not specified in provided data Probe Type Eddy-current displacement probe Thread Type M10 x 1 thread Armor Option Armored probe design Unthreaded Length 0 mm Overall Case Length 50 mm Total Length 0.5 meter (1.6 feet) Connector Type Miniature coaxial ClickLoc connector with connector protector Cable Type Standard cable Tariff Code 8537101190 Eddy-Current Measurement and Rotor Dynamics The Bently Nevada 3300 XL 8 mm Proximity Probe uses eddy-current measurement technology to convert shaft surface movement into electrical displacement signals. Therefore, the probe provides dynamic and static shaft position information for machinery monitoring applications. The probe design supports Bently Nevada proximity measurement systems by maintaining consistent probe scaling characteristics. Additionally, the system configuration allows engineers to validate gap voltage conditions, including the commonly applied -10 VDC target range for correct probe positioning. The 330104-00-05-05-01-00 model includes a 0.5 meter standard cable assembly and miniature coaxial ClickLoc connector. Furthermore, the connector protector improves mechanical protection at the probe connection point during field installation. Frequently Asked Questions Q: What measurement technology does the 330104-00-05-05-01-00 probe use?A: The probe uses eddy-current sensing technology to measure shaft displacement without physical contact between the probe tip and rotating shaft surface. Q: What is the thread specification of this proximity probe?A: The probe uses an M10 x 1 thread configuration with a 50 mm overall case length and 0 mm unthreaded length option. Q: Does this model include agency approval certification?A: No. The 330104-00-05-05-01-00 configuration does not include an agency approval option. Field Installation Guidelines Install the probe with correct mechanical alignment to maintain accurate shaft displacement measurement. Ensure the M10 x 1 threaded section engages properly with the mounting bracket or probe holder. Route the standard cable away from high-current conductors and strong electromagnetic interference sources. Use proper cable support to prevent excessive mechanical stress on the miniature coaxial ClickLoc connector. Connect the probe to the compatible Bently Nevada monitoring interface and verify the gap voltage before commissioning. The installation team should confirm probe clearance, signal polarity, and shielding continuity according to the applicable machinery monitoring system requirements.
$200.00 $100.00
-
Bently Nevada 3300/16-12-01-02-03-02-00 | Vibration Monitor Modules Bently Nevada
Bently Nevada 3300/16-12-01-02-03-02-00 XY/Gap Dual Vibration Monitor The Bently Nevada 3300/16-12-01-02-03-02-00, also cataloged as the 3300/16 XY/Gap Dual Vibration Monitor, operates as a dedicated hardware component for radial vibration and shaft position measurement within the Bently Nevada 3300 Series Machinery Monitoring System. The module processes eddy-current proximity probe signals, scales vibration inputs, and provides alarm, gap, and buffered output functions. Hardware Specifications Parameter Specification Model 3300/16-12-01-02-03-02-00 Brand Bently Nevada Origin USA Product Type XY/Gap Dual Vibration Monitor System Platform Bently Nevada 3300 Series Machinery Monitoring System Measurement Inputs Two independent radial vibration channels and average shaft position (DC Gap) Transducer Input 3300 8 mm, 3300 XL 8 mm, or 7200 5 mm and 8 mm Proximitor Sensors Full Scale Range 0 to 150 um peak-to-peak Input Impedance 10 kOhm Signal Accuracy +/- 0.33% typical, +/- 1% maximum at +25 deg C Frequency Response 4 Hz to 4,000 Hz standard; 1 Hz to 600 Hz low frequency mode Alarm Outputs Hermetically sealed relay outputs Alarm Adjustment Digital Alert and Danger setpoints from 0 to 100% full scale Gap Alarm Delay Fixed 6 seconds Recorder Outputs +4 to +20 mA, 0 to -10 VDC, or +1 to +5 VDC Buffered Outputs Front panel coaxial and rear terminal outputs, short-circuit protected Rack Position One slot in standard Bently Nevada 3300 rack Operating Temp 0 deg C to +65 deg C Power Consumption Not specified in available documentation Eddy-Current Probe Scaling and Rotor Dynamics Processing The 3300/16 monitor receives eddy-current proximity probe signals and converts dynamic shaft movement into calibrated vibration measurements. Therefore, the module maintains compatibility with Bently Nevada proximity transducer systems using standard sensitivity scaling of 200 mV/mil or 7.87 V/mm. The monitor evaluates XY shaft vibration behavior and average shaft position changes. Additionally, the circuit design supports rotor dynamics analysis by separating radial vibration signals from DC gap measurements. The module allows engineers to identify shaft motion conditions related to unbalance, misalignment, mechanical looseness, and rotor displacement. The gap measurement channel validates probe operating conditions through DC gap voltage monitoring. In Bently Nevada systems, -10 VDC probe gap targets are commonly used as reference values for correct eddy-current probe positioning and signal linearization. Frequently Asked Questions Q: What type of proximity probes can the 3300/16-12-01-02-03-02-00 accept?A: The module accepts Bently Nevada 3300 8 mm, 3300 XL 8 mm, and 7200 series 5 mm and 8 mm proximity probe systems with compatible signal sensitivity. Q: Does the 3300/16 provide direct vibration recorder outputs?A: Yes. The monitor provides programmable recorder outputs including +4 to +20 mA, 0 to -10 VDC, and +1 to +5 VDC signals proportional to the selected full-scale range. Q: How does the module handle shaft position measurement?A: The module processes DC gap voltage from eddy-current probes and provides average shaft position monitoring with a fixed 6 second gap alarm delay. Field Installation Guidelines Install the module in a compatible Bently Nevada 3300 rack slot and verify rack backplane connections before operation. Connect proximity probe wiring using shielded signal cables suitable for low-level eddy-current measurement circuits. Ground cable shields according to plant instrumentation grounding practices to reduce electrical interference. Verify probe polarity, extension cable compatibility, and Proximitor sensor configuration before commissioning. Adjust probe gap voltage during installation and confirm the operating point near the specified Bently Nevada gap voltage target. Separate vibration signal wiring from high-voltage power cables and variable frequency drive output cables. Confirm relay wiring, alarm setpoints, and recorder output scaling before placing the monitoring channel into service.
$200.00 $100.00
-
Bently Nevada Vibration Monitor Modules | 3300/16-12-01-02-00-00-00 Bently Nevada
Bently Nevada 3300/16-12-01-02-00-00-00 XY/GAP Dual Vibration Monitor The Bently Nevada 3300/16-12-01-02-00-00-00, also cataloged as the 3300/16 XY/GAP Dual Vibration Monitor, operates as a dedicated hardware component for radial vibration and shaft gap measurement within the 3300 Series Monitoring System. Hardware Specifications Parameter Specification Model 3300/16-12-01-02-00-00-00 Brand Bently Nevada Origin USA Product Type XY/GAP Dual Vibration Monitor System Platform 3300 Series Asset Condition Monitoring System Input Type Proximity probe/Proximitor transducer voltage input Number of Channels Two independent radial vibration channels with shaft gap monitoring Input Impedance 10 kOhm Transducer Sensitivity 100 mV/mil (4 V/mm) or 200 mV/mil (8 V/mm), programmable Frequency Response 4 to 4,000 Hz (240 to 240,000 cpm) or 1 to 600 Hz (60 to 36,000 cpm), programmable Measurement Range 0 to 5 mils peak-to-peak or equivalent configured full-scale range Accuracy +/-0.33% of full scale typical, +/-1% maximum at 25 deg C Alarm Adjustment Digital Alert and Danger setpoint adjustment from 0 to 100% full scale Output Signal +4 to +20 mA DC recorder output configuration Display Type Non-multiplexing vertical bar graph LCD LED Indicators OK, Alert, Danger, and Bypass status indicators Operating Temp 0 deg C to +65 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity Up to 95%, non-condensing Eddy-Current Probe Scaling and Rotor Dynamics Monitoring The Bently Nevada 3300/16 processes dynamic signals from eddy-current proximity probe systems and converts displacement voltage signals into vibration amplitude and shaft position values. The module supports programmable transducer scaling for 100 mV/mil and 200 mV/mil sensitivity configurations. Furthermore, the monitor validates mechanical clearance conditions through shaft gap measurement. The gap channel evaluates the average probe voltage position and supports rotor dynamics analysis by tracking radial movement, vibration amplitude changes, and shaft position variations. The module design maintains signal conditioning performance by separating vibration measurement channels and gap monitoring functions. Therefore, the system can detect mechanical changes without requiring external signal conversion equipment. Frequently Asked Questions Q: What type of transducers can the Bently Nevada 3300/16-12-01-02-00-00-00 accept?A: The module accepts voltage signals from Bently Nevada proximity probe and Proximitor transducer systems, including compatible 3300 XL 8 mm probe configurations. Q: Does the 3300/16 provide shaft gap measurement in addition to vibration monitoring?A: Yes. The module provides XY radial vibration monitoring and an additional gap measurement function for shaft position evaluation. Q: Can alarm values be adjusted during operation?A: The module provides digitally adjustable Alert and Danger alarm setpoints. Field adjustment procedures must follow the installed monitoring system configuration requirements. Field Installation Guidelines Install the module only in a compatible Bently Nevada 3300 Series rack configuration. Verify proximity probe wiring polarity and shield termination before applying power. Maintain separation between transducer signal cables and high-current power conductors to reduce electrical interference. Connect cable shields according to the plant grounding standard and avoid multiple-point shield grounding paths. Confirm probe gap voltage and transducer scaling parameters before placing the monitor into service. Verify channel OK status indicators after installation to confirm proper field wiring and sensor operation. Perform alarm setpoint verification after mechanical commissioning and rotor operating condition checks.
$200.00 $100.00
-
Bently Nevada Bently Nevada 3300/03-01-03 System Monitor Module
Bently Nevada 3300/03-01-03 System Monitor Module The Bently Nevada 3300/03-01-03, also cataloged as the 3300/03 System Monitor Module, operates as a dedicated hardware component for Keyphasor signal management, rack alarm coordination, and system supervision within the Bently Nevada 3300 Machinery Protection System. Hardware Specifications Parameter Specification Model 3300/03-01-03 Brand Bently Nevada Origin USA Weight Approximately 0.66 kg to 0.7 kg Dimensions 5.7 cm x 20.3 cm x 33.0 cm Operating Temp 0 deg C to +65 deg C Power Consumption 2 W base consumption, up to 4.6 W with active interface operations Module Type System Monitor Module System Platform Bently Nevada 3300 Machinery Protection System Keyphasor Inputs Supports up to 4 proximity probe Keyphasor signals Input Impedance 10 kOhm Serial Data Interface SDI communication up to 19.2k baud Dynamic Data Interface DDI communication up to 38.4k baud Communication Interface RS232 up to 30 m, RS422 up to 1200 m Supply Voltage Monitoring +VRH, +VRL, +7.5 VDC, +5 VDC, -7.5 VDC, and -VT monitoring Relative Humidity Up to 95%, non-condensing Rack Position Dedicated second slot of 3300 rack Keyphasor Signal Conditioning and Rotor Dynamics Management The 3300/03-01-03 processes Keyphasor signals by providing excitation power, termination, signal conditioning, and distribution functions for proximity transducer inputs. Therefore, the module supports phase reference measurement required for rotor dynamics analysis, shaft position evaluation, and synchronous vibration tracking. The module maintains Keyphasor signal integrity through controlled input impedance and conditioning circuits. Additionally, it supports dynamic data transfer through the DDI interface, allowing waveform-level vibration information to be transmitted to external monitoring systems. The module also applies Bently Nevada eddy-current probe scaling methods when processing proximity transducer signals. Furthermore, technicians can verify probe gap voltage conditions against standard -10 VDC target values during commissioning and troubleshooting procedures. Frequently Asked Questions Q: Does the 3300/03-01-03 support direct vibration measurement channels?A: No. The module supervises the 3300 rack operation, manages Keyphasor signals, and coordinates system functions. Dedicated monitor modules perform vibration measurement processing. Q: What communication functions are available on the 3300/03-01-03?A: The module provides SDI and DDI communication interfaces. SDI supports static data transfer, while DDI supports dynamic waveform data transmission. Q: Can the module operate with multiple Keyphasor inputs?A: Yes. The module supports up to 4 Keyphasor proximity probe inputs for phase reference and speed-related measurements. Field Installation Guidelines Install the 3300/03-01-03 module in the designated second slot of a compatible Bently Nevada 3300 rack. Confirm rack power availability before inserting or removing the module. Verify rear terminal connections for Keyphasor wiring, communication interfaces, and power distribution. Use shielded cables for proximity probe signal wiring and connect cable shields according to site grounding practices. Separate low-level Keyphasor signal cables from high-voltage power conductors to reduce electromagnetic interference. Confirm probe polarity, signal conditioning settings, and gap voltage values before placing the machinery protection system into service. Verify communication settings for SDI or DDI interfaces before connecting external monitoring equipment.
$200.00 $100.00
-
Bently Nevada Bently Nevada 3300/20-12-01-02-03-02 Dual Thrust Position Monitor
Bently Nevada 3300/20-12-01-02-03-02 Dual Thrust Position Monitor The Bently Nevada 3300/20-12-01-02-03-02, also cataloged as the 3300/20 Dual Thrust Position Monitor, operates as a dedicated hardware component for axial shaft displacement measurement using proximity transducer signals within Bently Nevada 3300 monitoring systems. It processes two thrust position channels and provides alarm, voting, and recorder outputs for machinery protection circuits. Hardware Specifications Parameter Specification Model 3300/20-12-01-02-03-02 Brand Bently Nevada Product Type Dual Thrust Position Monitor Origin USA Weight Approximately 1.0 kg Dimensions 83 mm vertical display bar graph Operating Temp 0 deg C to +65 deg C Storage Temp -40 deg C to +85 deg C Power Consumption 1.5 Watts nominal Power Supply 120 VAC nominal Monitoring Channels 2 independent thrust position channels Full Scale Range +/- 1.0 mm (40-0-40 mils) Input Impedance 10 kOhm Transducer Compatibility 3300 or 7200 Proximitor systems Transducer Supply Voltage Programmable -24 VDC or -18 VDC Input Sensitivity 200 mV/mil (8 V/mm) or 100 mV/mil (4 V/mm) Display Accuracy +/- 1.6% of full scale Signal Conditioning Accuracy +/- 0.33% typical, +/- 1% maximum at +25 deg C Alarm Relay Type Hermetically sealed relays Voting Logic AND / OR dual-channel voting Recorder Outputs +4 to +20 mA, 0 to -10 VDC, +1 to +5 VDC Buffered Outputs Front panel coaxial and terminal connectors Humidity Rating Up to 95%, non-condensing Safety Function Internal safety barriers for field probe circuits Certifications CSA / NRTL / C compliant, Class 1 Division 2 ready Eddy-Current Probe Scaling and Rotor Dynamics Monitoring The 3300/20-12-01-02-03-02 processes eddy-current probe signals by applying configured sensitivity values for accurate axial position measurement. Therefore, the monitor maintains consistent scaling between probe displacement signals and displayed thrust position values. The module supports gap voltage validation functions associated with Bently Nevada proximity measurement technology. Field probe installation typically uses a nominal -10 VDC gap voltage target to maintain proper linear operating range before machine operation. Furthermore, the dual-channel architecture supports rotor dynamics analysis by monitoring axial movement changes caused by thrust loading variations. The AND/OR voting logic allows engineers to configure trip decisions according to machine protection requirements while reducing unwanted relay activation. Frequently Asked Questions Q: How many thrust position inputs does the 3300/20-12-01-02-03-02 monitor support?A: The monitor supports two independent axial thrust position channels. Each channel accepts signals from compatible Bently Nevada 3300 or 7200 Proximitor systems. Q: Does this model provide hazardous area signal isolation?A: Yes. The -02 safety barrier option integrates internal safety barriers that limit energy delivered to field-installed proximity probes. Q: What type of alarm relay configuration does this monitor use?A: The -02 relay option provides hermetically sealed alarm relays designed for operation in environments where contact contamination may affect switching performance. Field Installation Guidelines Install the monitor inside a compatible Bently Nevada 3300 rack environment following the system installation manual. Connect proximity probe signals using shielded cables and maintain proper cable separation from high-voltage power conductors. Verify probe polarity, signal scaling, and gap voltage before placing the machinery into operation. Adjust probe installation position to achieve the specified operating gap range and confirm the -10 VDC target gap voltage. Ground cable shields according to plant electrical grounding practices to reduce electromagnetic interference. Verify alarm relay logic settings, including AND/OR voting configuration, before enabling machinery protection functions. Confirm recorder output wiring for the selected current or voltage signal format before connecting external monitoring equipment.
$200.00 $100.00
-
Bently Nevada 3300/50-01-02-03-02 | Bently Nevada | Tachometer Monitor
Bently Nevada 3300/50-01-02-03-02 Tachometer Monitor The Bently Nevada 3300/50-01-02-03-02, also cataloged as the 3300/50 Tachometer Monitor, operates as a dedicated hardware component for shaft speed measurement, acceleration monitoring, and zero speed detection within the Bently Nevada 3300 Monitoring System. Hardware Specifications Parameter Specification Model 3300/50-01-02-03-02 Brand Bently Nevada Origin USA Product Type Tachometer Monitor Module System Platform 3300 Machinery Protection System Input Type Proximity probe and magnetic pickup signals Input Channels Up to 2 transducer inputs with voting logic Input Impedance 10 kOhm nominal Speed Measurement Range 1 to 99,999 rpm Rotor Acceleration Range -9,999 to 9,999 rpm/min Zero Speed Detection Typically below 100 rpm Accuracy Within +/-1 rpm for speed display; within +/-20 rpm/min for acceleration display at 25 deg C Buffered Output Front panel coaxial output per transducer channel Buffered Output Impedance 100 Ohm Recorder Output 4-20 mA DC proportional output Display Type 7-segment LCD display Alarm Functions Alert and Danger adjustable setpoints Relay Operation Normally energized/de-energized, latching or non-latching modes Power Consumption 2.5 Watts nominal Operating Temp 0 deg C to +65 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity Up to 95%, non-condensing TSI Signal Processing and Rotor Dynamics Features The Bently Nevada 3300/50-01-02-03-02 processes rotational speed signals from eddy-current probes or magnetic pickups and converts pulse inputs into shaft speed and acceleration values. The module applies tachometer signal conditioning to maintain measurement accuracy during changing rotor operating conditions. Furthermore, the module supports eddy-current probe scaling and gap voltage validation principles used in Bently Nevada machinery monitoring systems. The transducer interface evaluates input signal amplitude and operating point conditions to maintain correct measurement conversion. The module architecture supports rotor dynamics monitoring by tracking speed variation, acceleration behavior, and zero speed conditions. Additionally, the buffered outputs provide isolated access for external diagnostic equipment while maintaining front panel signal availability. Frequently Asked Questions Q: Does the 3300/50-01-02-03-02 support dual transducer inputs?A: Yes. The module accepts up to two transducer inputs and uses internal voting logic to reduce false trip conditions caused by individual signal disturbances. Q: What output signal does the recorder interface provide?A: The module provides a proportional 4-20 mA DC recorder output for connection to external PLC, DCS, or data acquisition systems. Q: Can the module monitor zero speed conditions?A: Yes. The tachometer function supports zero speed monitoring applications and typically operates below 100 rpm for low-speed detection. Field Installation Guidelines Install the 3300/50-01-02-03-02 module inside the designated 3300 rack slot according to the system configuration requirements. Use shielded signal wiring for proximity probe and magnetic pickup connections. Connect cable shields according to the plant grounding standard to reduce electromagnetic interference. Maintain proper separation between tachometer signal cables and high-current power wiring. Avoid routing sensor cables near motor feeders, variable frequency drive outputs, or switching power sources. Verify transducer polarity, signal amplitude, and mechanical target condition before commissioning. For eddy-current probe installations, confirm the probe gap voltage and scaling parameters match the configured monitoring range. Check relay logic configuration, alarm setpoints, and 4-20 mA output scaling before placing the machinery protection channel into service.
$200.00 $100.00
-
Bently Nevada Bently Nevada 177896-05 3701/40 Processor Module
Bently Nevada 177896-05 3701/40 Processor Module The Bently Nevada 177896-05, also cataloged as the 177896-05 Processor Module, operates as a dedicated hardware component for signal processing, protection logic execution, and Ethernet data communication within the ADAPT 3701/40 Machinery Dynamics Monitor platform. Hardware Specifications Parameter Specification Model 177896-05 Brand Bently Nevada Product Type Processor Module System Platform ADAPT 3701/40 Machinery Dynamics Monitor Origin USA Dimensions Compact modular form factor; exact dimensions not specified Power Consumption Powered through single or dual-redundant +24 VDC external supply via terminal base Processor Function Central processing unit for data acquisition, DSP, alarm evaluation, and protection logic A/D Conversion 24-bit resolution Dynamic Range 110 dB Signal Bandwidth Up to 40 kHz Sampling Mode Synchronized parallel sampling across all input channels Spectral Analysis Configurable synchronous and asynchronous spectrums up to 3200 lines Ethernet Interface 2 x 10Base-T/100Base-TX auto-sensing RJ45 ports Communication Protocols Modbus TCP, Ethernet Global Data (EGD) Discrete Inputs 6 dry contact inputs per terminal base Configuration Protection Hardware configuration lock switch for Run Mode protection Software Configuration Bently Nevada Monitor Configuration (BNMC) software Compliance CE, North America General Safety, RoHS Eddy-Current Measurement and Rotor Dynamics Processing The 177896-05 Processor Module processes vibration and position signals from Bently Nevada input modules, including eddy-current proximity probes, accelerometers, velomitors, seismoprobes, dynamic pressure sensors, and Keyphasor speed inputs. Furthermore, the processor executes digital signal processing algorithms for rotor dynamics evaluation, including synchronous and asynchronous spectral analysis. The module supports eddy-current probe scaling functions by processing calibrated displacement signals and maintaining measurement accuracy through sensor input conditioning. In addition, the system evaluates gap voltage conditions, including the typical -10 VDC target range used for proximity probe operation verification. Therefore, the processor provides direct monitoring of shaft displacement, vibration behavior, and machine dynamic response. Frequently Asked Questions Q: Does the 177896-05 support redundant processor operation?A: Yes. When installed in a Duplex terminal base, two identical 177896-05 Processor Modules can operate in a redundant configuration. The system uses dual processors to maintain monitoring availability if one processor module becomes unavailable. Q: What communication interfaces are available on the processor module?A: The module provides two auto-sensing Ethernet ports with 10Base-T and 100Base-TX support. It communicates through Modbus TCP and Ethernet Global Data (EGD) protocols. Q: Which sensor signals can the processor module analyze?A: The processor accepts processed signals from compatible ADAPT 3701/40 input boards, including proximity probes, accelerometers, velomitors, seismoprobes, dynamic pressure sensors, and magnetic speed pickup signals. Field Installation Guidelines Install the 177896-05 Processor Module in the designated ADAPT 3701/40 terminal base slot according to the system hardware configuration requirements. Verify that the terminal base provides the required +24 VDC supply connection before module insertion. Maintain proper cable separation between Ethernet communication wiring and high-current power conductors to reduce electrical interference. Use shielded sensor wiring where required and connect cable shields according to plant grounding standards. Before commissioning, confirm that the proximity probe input scaling, gap voltage status, channel configuration, and alarm parameters match the installed field sensors. Keep the hardware configuration lock in the required operating position after completing commissioning changes. Use BNMC software to verify module communication status, input channel operation, alarm logic settings, and network communication parameters before placing the monitoring system into service.
$200.00 $100.00
-
Bently Nevada 3300/16-02-01-01-00-00-02 Bently Nevada XY/Gap Dual Vibration Monitor
Bently Nevada 3300/16-02-01-01-00-00-02 XY/Gap Dual Vibration Monitor The Bently Nevada 3300/16-02-01-01-00-00-02, also cataloged as the 3300/16 XY/Gap Dual Vibration Monitor, operates as a dedicated hardware component for radial vibration and shaft gap measurement within the Bently Nevada 3300 Machinery Monitoring System. Hardware Specifications Parameter Specification Model 3300/16-02-01-01-00-00-02 Brand Bently Nevada Product Type XY/Gap Dual Vibration Monitor System Platform Bently Nevada 3300 Machinery Monitoring System Origin USA Weight Approx. 1.0 kg Dimensions 1 rack slot module format Operating Temp 0 deg C to +65 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity Up to 95%, non-condensing Power Consumption System rack supplied power; specific consumption depends on rack configuration Signal Input One or two proximity probe systems Input Impedance 10 kOhm Full Scale Range 0 to 5 mils peak-to-peak Transducer Input 3300 8 mm, 3300 XL 8 mm, or 7200 5 mm and 8 mm Proximitor Sensors Transducer Sensitivity 200 mV/mil or 8 V/mm Frequency Response 4 to 4,000 Hz or 1 to 600 Hz low-speed mode Recorder Output +4 to +20 mA, +1 to +5 VDC, 0 to -10 VDC Output Load Current output: 0 to 600 Ohm; voltage output: minimum 10 kOhm Accuracy Within +/-0.33% of full scale typical; +/-1% maximum Trip Multiply Function 3X alarm limit multiplication during startup Alarm Relay Epoxy-sealed relay configuration Safety Barrier No internal safety barriers Agency Approval Standard configuration without agency approval Display Type Non-multiplexing vertical LCD bargraph Rack Position One rack slot, excluding power supply and system monitor reserved slots Eddy-Current Probe Scaling and Rotor Dynamics Monitoring The 3300/16 monitor processes eddy-current proximity probe signals for radial shaft vibration and average shaft position measurement. It applies probe scaling parameters based on compatible Bently Nevada transducer systems, including 3300 8 mm and 3300 XL 8 mm probes. The monitor evaluates dynamic vibration signals and gap voltage feedback from rotating equipment. In addition, the system architecture supports rotor dynamics analysis by providing buffered raw vibration outputs for external diagnostic instruments. The proximity input circuit validates probe operating conditions through gap voltage behavior. Standard Bently Nevada monitoring practices use negative gap voltage targets, typically near -10 VDC, to confirm correct probe installation and shaft position measurement range. The monitor also reduces measurement interference through signal conditioning functions designed for vibration channel separation and cross-talk suppression between monitoring inputs. Frequently Asked Questions Q: What type of transducer systems can the 3300/16-02-01-01-00-00-02 accept?A: The monitor accepts Bently Nevada 3300 8 mm, 3300 XL 8 mm, and 7200 series 5 mm or 8 mm proximity probe systems with 200 mV/mil sensitivity. Q: How does the 3X Trip Multiply function operate?A: The 3X Trip Multiply function increases programmed alarm thresholds by three times during machine startup conditions to prevent unnecessary trips during acceleration. Q: Does this module provide internal safety barriers?A: No. The 3300/16-02-01-01-00-00-02 configuration does not include internal safety barriers and requires external protection when hazardous area installation requires isolation. Field Installation Guidelines Install the 3300/16 module in an available Bently Nevada 3300 rack position according to the rack configuration requirements. The power supply and system monitor positions must remain reserved. Connect proximity probe wiring using shielded cables and maintain proper cable routing separation from high-current power conductors. Ground cable shields according to the monitoring system installation manual to reduce electrical noise. Verify the probe gap voltage before commissioning. Confirm that the proximity probe operates within the specified measurement range and that the vibration channel polarity matches the installed transducer configuration. Use the front-panel buffered outputs for diagnostic connections only. Avoid excessive cable loading on buffered signal outputs because additional loading can affect signal quality. Confirm alarm relay wiring, bypass status, and Trip Multiply operation before placing the machine protection system into service.
$200.00 $100.00
-
Bently Nevada 165844-14 3300 XL 8mm Proximity Probe | Bently Nevada
Bently Nevada 165844-14 3300 XL 8mm Proximity Probe The Bently Nevada 165844-14, also cataloged as the 165844-14 Proximity Probe, operates as a dedicated hardware component for shaft displacement measurement within the 3300 XL 8 mm Proximity Transducer System. Hardware Specifications Parameter Specification Model 165844-14 Brand Bently Nevada (Baker Hughes) Product Type Eddy Current Proximity Sensors Series 3300 XL 8 mm Proximity Transducer System Operating Principle Eddy current sensing technology Scale Factor / Sensitivity 7.87 V/mm (200 mV/mil) Frequency Response 0 to 10 kHz Integrated Cable Length 1.4 m Tip Material Polyphenylene Sulfide (PPS) Output Interface Analog voltage proportional to probe gap System Compatibility 3300 XL Proximitor sensors with matching extension cables Origin USA Weight Approximately 0.3 kg to 0.8 kg depending on mounting assembly Operating Temp -35 deg C to +85 deg C Power Consumption Passive probe element; powered through connected Proximitor sensor Eddy Current Probe Scaling and Rotor Dynamics Monitoring The 165844-14 uses eddy current probe scaling to convert shaft displacement changes into proportional electrical signals. Moreover, the probe maintains a nominal sensitivity of 200 mV/mil for compatibility with the 3300 XL monitoring architecture. The sensor detects dynamic shaft movement without mechanical contact. Therefore, it supports rotor dynamics analysis by providing continuous displacement information for vibration monitoring, axial position measurement, and mechanical clearance evaluation. In addition, the probe design incorporates signal conditioning characteristics that support cross-talk suppression when installed with adjacent proximity measurement channels. The PPS probe tip material maintains electrical stability under exposure to industrial lubricants and operating environments. Frequently Asked Questions Q: Does the 165844-14 require direct electrical power at the probe tip?A: No. The proximity probe receives excitation through the connected 3300 XL Proximitor sensor. The probe itself functions as a passive eddy current sensing element. Q: What type of measurement signal does the 165844-14 provide?A: The probe provides a voltage output proportional to the physical gap between the probe tip and the rotating shaft target surface through the connected signal conditioning module. Q: Can the 165844-14 measure shaft vibration without physical contact?A: Yes. The probe measures shaft displacement through an electromagnetic eddy current field and maintains a non-contact sensing distance during operation. Field Installation Guidelines Install the 165844-14 with the probe tip aligned toward the conductive shaft target surface according to the 3300 XL system installation requirements. Maintain proper cable routing practices to reduce electromagnetic interference. Furthermore, separate probe cables from high-current power conductors and use appropriate grounding methods at the monitoring system side. Verify the probe gap voltage during commissioning to confirm correct mechanical positioning. For Bently Nevada proximity systems, technicians commonly validate the operating gap near the -10 VDC target value when configuring the Proximitor measurement loop. Inspect the integrated cable and connector interface before installation. Avoid sharp bending, excessive mechanical stress, or contact with moving machine components.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330145-14 3300 XL 8 mm Eddy Current Proximity Probe
Bently Nevada 330145-14 3300 XL 8 mm Eddy Current Proximity Probe The Bently Nevada 330145-14, also cataloged as the 330145 3300 XL 8 mm Eddy Current Proximity Probe, operates as a dedicated hardware component for shaft displacement and vibration measurement within the 3300 XL Proximity Transducer System. Hardware Specifications Parameter Specification Model Bently Nevada 330145-14 Brand Bently Nevada Product Type Eddy Current Proximity Probe Series 3300 XL 8 mm Proximity Transducer System Origin USA Weight 0.1kg Dimensions 8 mm probe tip diameter; 1.4 m total probe length Operating Temp -51 deg C to +177 deg C Power Consumption Passive probe element; powered through connected Proximitor Sensor Measurement Technology Non-contact eddy current displacement sensing Linear Measurement Range 2.0 mm (80 mils) System Sensitivity 7.87 V/mm (200 mV/mil) with 3300 XL Proximitor Sensor Target Material AISI 4140 steel Output Impedance 50 ohm System Operating Voltage -17.5 VDC to -26 VDC Probe Tip Material Polyphenylene sulfide (PPS) Probe Case Material AISI 303 or 304 stainless steel Cable Insulation Fluoroethylene propylene (FEP) Connector Type Miniature coaxial ClickLoc locking connector Pressure Rating Sealed up to 70 psi (4.8 bar) Compliance API 670 machinery protection requirements Eddy-Current Measurement and Rotor Dynamics Characteristics The 330145-14 uses eddy-current probe scaling to convert shaft displacement into proportional electrical output signals. Moreover, the probe works with the 3300 XL Proximitor Sensor to maintain a defined measurement relationship of 7.87 V/mm for vibration and position monitoring. The probe assembly supports gap voltage validation procedures with typical -10 VDC target settings when technicians establish the operating clearance between the probe tip and the rotating shaft. Therefore, the system provides consistent reference conditions for rotor dynamics analysis, including radial vibration, axial position, and rotational behavior evaluation. The probe construction also applies signal design practices that reduce measurement errors caused by installation effects and electrical interference. In addition, the coaxial ClickLoc connection maintains mechanical locking and signal continuity in industrial machinery monitoring installations. Frequently Asked Questions Q: Does the 330145-14 probe directly output a vibration signal?A: No. The probe generates an eddy-current displacement signal that requires a compatible 3300 XL Proximitor Sensor to provide the conditioned output signal. Q: What gap voltage should technicians verify during installation?A: Technicians typically verify the probe operating gap near the -10 VDC target value when setting the mechanical clearance between the probe tip and shaft surface. Q: Can the probe operate without a target shaft material specification?A: No. The measurement calibration depends on the electrical characteristics of the target material. The standard target material is AISI 4140 steel. Field Installation Guidelines Install the 330145-14 probe with the sensing tip facing the monitored shaft surface according to the machinery manufacturer's mechanical drawings. Maintain proper probe clearance and verify the gap voltage before commissioning the monitoring channel. Furthermore, route the extension cable away from high-current power conductors to minimize electromagnetic interference. Connect the ClickLoc coaxial connector securely and confirm that the cable shielding and grounding follow the applicable machinery protection system installation requirements. Avoid sharp cable bends, mechanical stress on the probe body, and contamination of the probe tip surface during installation.
$200.00 $100.00
-
Bently Nevada Bently Nevada 137504-08 3300 XL 8 mm Proximity Probe Assembly
Bently Nevada 137504-08 3300 XL 8 mm Proximity Probe Assembly The Bently Nevada 137504-08, also cataloged as the 137504-08 3300 XL 8 mm Proximity Probe Assembly, operates as a dedicated hardware component for non-contact shaft displacement measurement within Bently Nevada machinery protection systems. Hardware Specifications Parameter Specification Model 137504-08 Brand Bently Nevada Origin USA Product Type Proximity Sensors Series 3300 XL 8 mm Configuration Integrated proximity probe and extension cable assembly Measurement Principle Eddy-current non-contact displacement measurement Probe Tip Diameter 8 mm Probe Overall Length Approximately 152 mm Cable Length 8 ft (approximately 2.4 m) Measurement Linear Range 2 mm to 5 mm typical Housing Material AISI 304 stainless steel Tip Material Polyphenylene Sulfide (PPS) Cable Insulation FEP fluoropolymer Probe Operating Temp -52 deg C to +177 deg C Cable Operating Temp -52 deg C to +100 deg C Mounting Thread Options 1/4-28 UNF or M8 x 1 Humidity Rating Up to 100% condensing with proper connector sealing Probe-to-Cable Tensile Strength 330 N approximately Lead-to-Cable Tensile Strength 270 N approximately Standards Compliance API 670 4th Edition Weight Approximately 0.1 kg Dimensions Probe length approximately 152 mm; cable length 8 ft Power Consumption Passive sensing element; powered through compatible Proximitor sensor system Eddy-Current Probe Scaling and Rotor Dynamics Monitoring The 137504-08 uses the 3300 XL 8 mm eddy-current sensing technology to convert shaft displacement into electrical measurement signals. Therefore, the probe assembly works with compatible Proximitor sensors to provide calibrated vibration and position feedback. Moreover, the system architecture supports gap voltage validation with standard -10 VDC target settings during installation and calibration. The measured gap voltage confirms the probe operating position and maintains correct signal linearity. The probe assembly supports rotor dynamics analysis by measuring shaft motion without mechanical contact. In addition, the 3300 XL construction applies signal stability methods to reduce measurement interference caused by installation conditions and electromagnetic environments. Frequently Asked Questions Q: Does the 137504-08 require direct electrical power at the probe tip?A: No. The proximity probe is a passive sensing component and receives excitation through the compatible Bently Nevada Proximitor sensor. Q: What installation factor affects measurement accuracy most significantly?A: Correct probe gap adjustment and cable routing directly affect displacement signal accuracy. Installers should verify gap voltage and maintain proper shielding practices. Q: Can the 137504-08 connect directly to a vibration monitor input?A: No. The probe requires a compatible Proximitor sensor to convert the eddy-current signal into a standardized monitoring output. Field Installation Guidelines Install the probe using the specified mounting thread and maintain mechanical alignment with the monitored shaft surface. Verify the probe gap voltage during commissioning and confirm operation near the recommended -10 VDC target range. Route the extension cable away from high-current power conductors and electromagnetic interference sources. Maintain proper cable support to prevent mechanical stress at the probe-to-cable connection point. Connect cable shielding according to the machinery protection system grounding requirements. Inspect the connector sealing arrangement when operating in high humidity or condensing environments.
$200.00 $100.00
-
Bently Nevada Bently Nevada 100767-01 3500 Series Control Module
Bently Nevada 100767-01 3500 Series Control Module Configured for dynamic pressure and vibration signal processing in the Bently Nevada 3500 Machinery Protection System, the Bently Nevada 100767-01 (100767-01 Control Module) provides direct physical and electrical execution for machinery condition data acquisition and monitoring functions. Hardware Specifications Parameter Specification Model 100767-01 Brand Bently Nevada Product Type Control Module Series 3500 Machinery Protection System Origin USA Weight Approx. 0.8 kg Dimensions 88.9 mm W x 266.7 mm H x 165.1 mm D Operating Temp -40 deg C to +70 deg C Application Dynamic pressure and vibration monitoring Input Signal Type Compatible vibration and dynamic pressure sensor signals Signal Processing Signal conditioning, filtering, and scaling Communication Interface 3500 Series internal system communication Mounting Type 3500 rack installation Storage Temperature -40 deg C to +85 deg C Humidity Range 5% to 95% non-condensing Eddy-Current Measurement and Rotor Dynamics Processing The Bently Nevada 100767-01 operates within the 3500 platform architecture for machinery monitoring signal handling. The module processes measurement data from compatible field sensors and supports vibration-related monitoring functions. Bently Nevada monitoring systems typically apply eddy-current probe scaling methods for shaft displacement measurement. Signal conditioning evaluates probe response characteristics, while gap voltage validation can use -10 VDC target references for confirming probe operating conditions. The module architecture supports rotor dynamics analysis by maintaining measurement consistency for rotating equipment monitoring. Signal processing methods include filtering and scaling functions to reduce measurement interference and support vibration data interpretation. Frequently Asked Questions Q: Is the 100767-01 designed for installation in a standalone configuration?A: No. The module is designed as a rack-mounted component within the Bently Nevada 3500 Machinery Protection System architecture. Q: What type of field signals can be connected to this module?A: The module processes compatible vibration and dynamic pressure measurement signals from approved Bently Nevada sensor interfaces. Q: Does the module require specific installation considerations for signal quality?A: Yes. Field wiring should maintain proper shielding, grounding, and separation from high-voltage conductors to reduce electrical interference. Field Installation Guidelines Install the module into an approved Bently Nevada 3500 rack slot according to system configuration requirements. Verify rack power availability and module seating before commissioning. Connect field sensor wiring with correct shielding and grounding practices. Separate low-level measurement signal cables from power and switching circuits. Confirm sensor wiring polarity and termination before applying system power. Perform system diagnostics through the 3500 monitoring platform after installation.
$200.00 $100.00
-

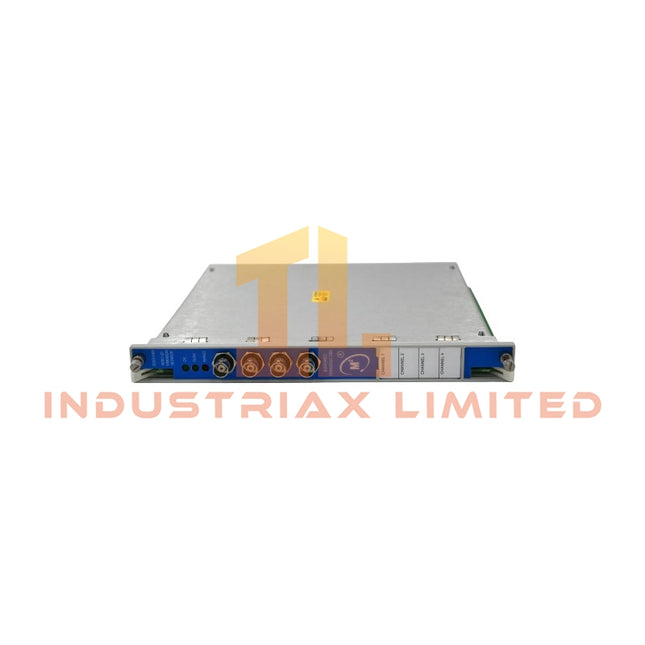

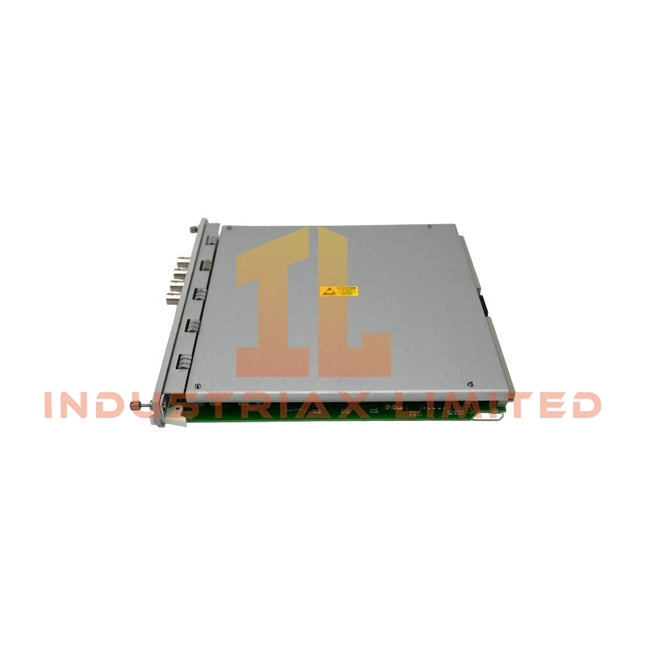

Bently Nevada 140734-03 3500/44M Aeroderivative GT Vibration Monitor Module | Bently Nevada
Bently Nevada 140734-03 3500/44M Aeroderivative GT Vibration Monitor Module Configured for velocity vibration measurement in the Bently Nevada 3500 Machinery Protection System, the Bently Nevada 140734-03 (140734-03 3500/44M Aeroderivative GT Vibration Monitor Module) provides direct signal processing execution for four-channel turbine vibration monitoring. Hardware Specifications Parameter Specification Model 140734-03 Brand Bently Nevada Origin USA Series 3500 Module Type 3500/44M Aeroderivative GT Vibration Monitor Module Function Four-channel vibration monitoring and protection processing Input Signal Velocity transducer input Number of Channels 4 channels Measurement Types Velocity vibration, integrated displacement, tracking vibration, band-pass vibration Configuration Method 3500 Rack Configuration Software Communication Interface 3500 system rack backplane communication Power Consumption 7.7 W typical Dimensions 241.3 mm x 24.4 mm x 241.8 mm Weight 0.91 kg Operating Temp -40 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Humidity 95% non-condensing Mounting Location 3500 rack front slot Compatible System Bently Nevada 3500 Machinery Protection System Eddy-Current and Rotor Dynamics Signal Processing The 140734-03 module processes vibration input signals from velocity transducers and applies configurable filtering functions for rotating machinery analysis. The module supports vibration measurement conversion, including velocity-to-displacement calculations, tracking measurements, and band-pass signal processing. For machinery protection applications, the module performs signal conditioning and measurement evaluation inside the 3500 rack architecture. Rotor dynamics analysis functions use processed vibration data to evaluate operating condition changes related to speed-dependent mechanical behavior. The module operates with defined sensor input characteristics and supports channel monitoring functions required for turbine vibration supervision. Signal processing parameters are configured through the 3500 system software environment. Frequently Asked Questions Q: How many vibration measurement channels are available on the 140734-03 module?A: The module provides four independent vibration monitoring channels for velocity transducer input signals. Q: What type of input devices are compatible with the 140734-03?A: The module is designed for velocity transducer signals used in aeroderivative gas turbine vibration monitoring applications. Q: Does the 140734-03 require installation inside a Bently Nevada 3500 rack?A: Yes. The module is designed for installation in a Bently Nevada 3500 Machinery Protection System rack slot and communicates through the rack backplane. Field Installation Guidelines Install the 140734-03 module into an available Bently Nevada 3500 rack front slot following the system installation procedure. Verify rack power status before inserting or removing the monitoring module. Connect velocity transducer wiring according to the configured channel assignment and approved field wiring practices. Maintain proper cable routing separation between vibration signal wiring and high-current power conductors. Apply appropriate shield grounding methods to minimize electrical noise interference on sensor circuits. Configure measurement parameters, alarm thresholds, and filtering settings using compatible 3500 configuration software. Verify channel status, sensor input condition, and communication operation before machine commissioning.
$200.00 $100.00
-

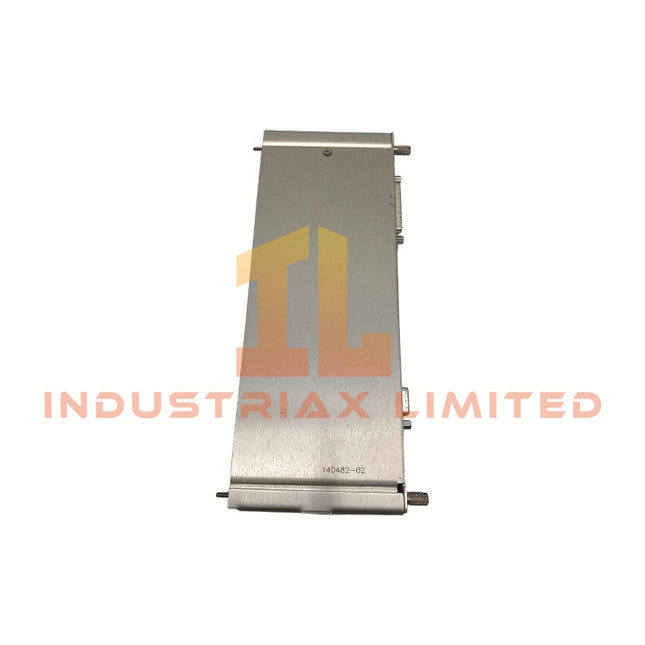

Bently Nevada 140482-02 3500/64M Dynamic Pressure I/O Module | Bently Nevada
Bently Nevada 140482-02 3500/64M Dynamic Pressure I/O Module The Bently Nevada 140482-02, also cataloged as the 140482-02 3500/64M Dynamic Pressure I/O Module, operates as a dedicated hardware component for dynamic pressure signal acquisition and conditioning within the Bently Nevada 3500 Machinery Protection System. Hardware Specifications Parameter Specification Model 140482-02 Brand Bently Nevada Product Type 3500/64M Dynamic Pressure I/O Module Series 3500 Machinery Protection System Origin USA Weight Approx. 0.20 kg Dimensions Approx. 241.3 mm x 24.4 mm x 99.1 mm Operating Temp -30 deg C to +65 deg C Power Consumption Approx. 2 to 5 W Input Type Dynamic pressure transducer input Number of Channels 4 channels Sensor Compatibility Dynamic pressure transducers Power Supply 24 VDC nominal Mounting Type 3500 rack single-slot module Output Type Conditioned analog outputs and monitoring signals Communication Interface 3500 rack internal communication bus Signal Processing Dynamic pressure signal conditioning and configurable filtering Eddy-Current Signal Scaling and Machinery Monitoring Characteristics The 140482-02 module processes dynamic pressure measurements through the 3500 platform signal conditioning architecture. It supports channel configuration parameters for pressure waveform evaluation, filtering, and monitoring functions associated with rotating equipment analysis. The Bently Nevada 3500 system architecture applies TSI monitoring principles for machinery condition evaluation. Signal processing methods maintain measurement consistency for applications involving rotor dynamics analysis, vibration-related pressure fluctuations, and transient operating conditions. The module operates within the rack communication structure to transfer conditioned measurement values and alarm status information. Channel parameters can be configured according to connected transducer characteristics and machine protection requirements. Frequently Asked Questions Q: What type of input signals does the 140482-02 module accept?A: The module accepts dynamic pressure transducer signals and performs signal conditioning within the 3500 Machinery Protection System. Q: How many measurement channels are available on the 140482-02?A: The module provides four dynamic pressure input channels for independent monitoring configurations. Q: Can the module operate as a standalone measurement device?A: No. The 140482-02 is designed for installation inside a compatible Bently Nevada 3500 rack and communicates through the internal rack bus. Field Installation Guidelines Install the module into an available compatible slot of the Bently Nevada 3500 rack. Verify rack power status and module compatibility before insertion. Connect dynamic pressure transducer wiring according to the approved system wiring documentation. Use proper cable shielding and grounding practices to reduce electrical interference on measurement signals. Keep signal wiring separated from high-voltage power cables and strong electromagnetic interference sources. Configure channel parameters, filtering settings, and alarm limits through the 3500 configuration software. Verify input signal behavior after installation before placing the monitoring channel into operational service.
$200.00 $100.00
-
Bently Nevada 144464-01 3500/05 Mini-Rack Backplane | Bently Nevada
Bently Nevada 144464-01 3500/05 Mini-Rack Backplane Configured for module interconnection and power distribution in the Bently Nevada 3500 Machinery Protection System, the Bently Nevada 144464-01 (144464-01 3500/05 Mini-Rack Backplane) provides direct physical and electrical execution for rack-level hardware integration. Hardware Specifications Parameter Specification Model 144464-01 Brand Bently Nevada Product Type 3500/05 Mini-Rack Backplane System Series 3500 Machinery Protection System Function Rack module interconnection and internal power distribution Module Capacity Supports up to 7 monitoring modules Mounting Type 3500 rack mounting assembly Communication Interface Internal 3500 rack bus communication Power Supply 24 VDC rack power distribution path Power Consumption Passive backplane assembly, power consumed by installed modules Dimensions Approx. 24.3 cm x 4.6 cm x 15.5 cm Weight Approx. 1.0 kg to 2.8 kg depending on configuration Operating Temp -40 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Humidity 5% to 95% RH, non-condensing Origin USA Eddy-Current Signal Interface and Rack Communication Characteristics The 144464-01 backplane provides the physical connection structure required for Bently Nevada 3500 monitoring modules. It distributes rack power and maintains internal communication paths between monitoring, communication, and I/O modules. For machinery protection applications, the backplane supports the module architecture used for eddy-current probe signal processing, including probe scaling functions, gap voltage validation, rotor dynamics monitoring, and vibration measurement signal transmission. The rack design maintains defined electrical routing between installed modules to reduce signal interference and improve cross-talk suppression within the monitoring assembly. Frequently Asked Questions Q: Does the 144464-01 provide measurement functions directly?A: No. The 144464-01 is a passive rack backplane component. Measurement processing is performed by installed 3500 monitoring modules. Q: What type of modules can be installed on the 144464-01 backplane?A: The backplane supports compatible Bently Nevada 3500 series monitoring modules, communication modules, and I/O modules according to rack configuration requirements. Q: Does the backplane require separate field signal wiring?A: No. Field signal connections are made through the installed monitoring modules. The backplane provides internal module interconnection and power distribution paths. Field Installation Guidelines Install the backplane inside the specified Bently Nevada 3500 rack enclosure. Verify mechanical alignment before inserting monitoring modules into rack connectors. Ensure rack grounding and shielding practices comply with the machinery monitoring system installation requirements. Keep field signal cables separated from high-voltage power wiring to reduce electrical interference. Confirm module seating, rack addressing, and system configuration after installation.
$200.00 $100.00
-

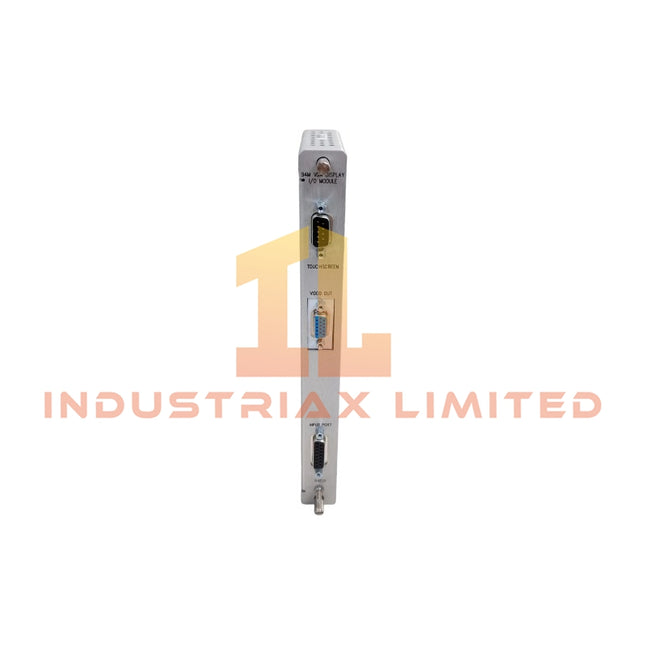

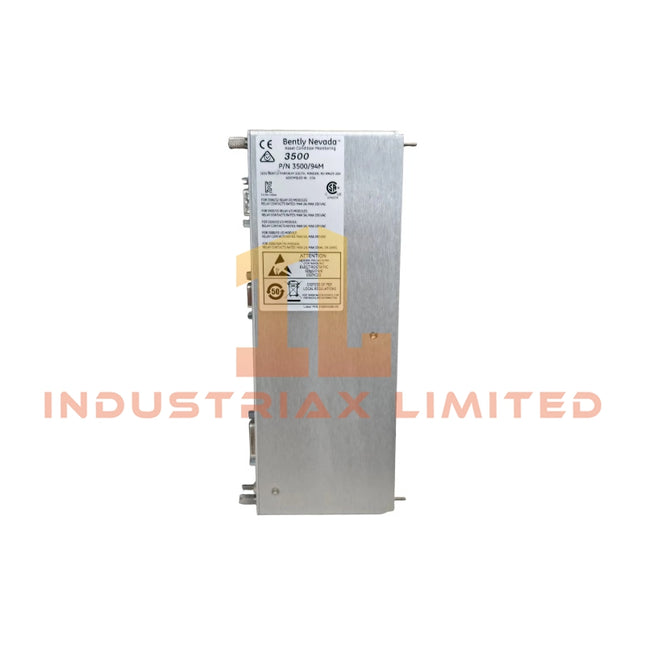

Bently Nevada Bently Nevada 190214-01 3500/94M VGA I/O Module
Bently Nevada 190214-01 3500/94M VGA I/O Module The Bently Nevada 190214-01, also cataloged as the 3500/94M VGA I/O Module, operates as a dedicated hardware component for displaying machinery protection system data within the Bently Nevada 3500 monitoring platform. Hardware Specifications Parameter Specification Model 190214-01 Brand Bently Nevada Product Type VGA I/O Module Series 3500 System Compatibility Bently Nevada 3500 Machinery Protection System Origin United States (USA) Weight 0.38 kg Dimensions 2.4 x 11 x 24.1 cm (shipping size) Display Interface VGA display interface with touch screen support Maximum Custom Screens Up to 9 custom screens Display Distance Up to 6 m using standard cables Extended Distance Support Up to 10 km using supported KVM Extender systems Rotor Monitoring Interface and Display Data Processing The 190214-01 VGA I/O Module provides the display interface function for Bently Nevada 3500 machinery protection systems. It transfers configured monitoring information from the rack system to external VGA display equipment. The module supports custom screen configuration through the 3500 Rack Configuration Software. Operators can organize system information into multiple pages and create machine train display groups based on configured screen layouts. The 3500/94M system configuration consists of the VGA module, I/O module, and a 10 inch or 15 inch VGA touch screen display. The module maintains communication between the 3500 rack monitoring hardware and the external visualization interface. Frequently Asked Questions Q: What display devices are compatible with the 190214-01 module?A: The 190214-01 is designed for use with VGA display equipment within the 3500/94M configuration, including supported 10 inch and 15 inch VGA touch screen displays. Q: Can the VGA display be installed away from the 3500 rack?A: Yes. The module supports VGA display installation up to 6 m from the 3500 rack using standard cables. Longer distances require compatible KVM Extender equipment. Q: Is the KVM Extender installation suitable for hazardous areas?A: Only approved receiver configurations may be used in specific hazardous area installations. The transmitter and unsupported extender equipment must be installed in safe areas or suitable approved enclosures. Field Installation Guidelines Install the 190214-01 module according to the Bently Nevada 3500 rack hardware configuration requirements. Verify VGA cable routing before installation to prevent excessive cable length and signal degradation. Keep display communication cables separated from high-voltage power wiring and high-current motor circuits. Use proper grounding practices for connected display equipment and rack assemblies. Confirm KVM Extender environmental approvals before installation in classified areas. Ensure all external display devices are mounted in locations that maintain cable protection and service accessibility.
$200.00 $100.00
-
Bently Nevada Bently Nevada 3500/93 135799-02 Display Interface Module
Bently Nevada 3500/93 135799-02 Display Interface Module Configured for system display data processing in the Bently Nevada 3500 Monitoring System, the Bently Nevada 3500/93 135799-02 (3500/93 Display Interface Module) provides direct physical and electrical execution for event and measurement data presentation. Hardware Specifications Parameter Specification Model 3500/93 135799-02 Brand Bently Nevada Product Type Display Interface Module Series 3500 Machinery Protection System Origin USA Weight 0.82 kg Dimensions 2.5 x 25 x 24 cm (estimated shipping size) Operating Temp -30 deg C to +65 deg C (-22 deg F to +150 deg F) Storage Temp -40 deg C to +85 deg C (-40 deg F to +185 deg F) Humidity 95%, noncondensing Compatible Options A05 through A08 display options Interface Function System event list, alarm event list, channel and module data display Rotor Monitoring Data Display Interface The 3500/93 Display Interface Module provides the hardware interface for presenting monitoring information collected by the 3500 system rack. It processes display data associated with system events, alarm events, channel measurements, and module status information. The module supports visualization of data from monitored channels, monitor modules, relay modules, Keyphasor modules, and tachometer modules. The interface structure allows operators to access vibration monitoring information generated by the Bently Nevada TSI architecture. The module operates with Bently Nevada signal processing functions, including eddy-current probe scaling verification, gap voltage monitoring reference handling, rotor dynamics data presentation, and vibration channel status display. These functions support interpretation of machinery condition parameters generated by connected monitoring modules. Frequently Asked Questions Q: What data sources can the 3500/93 135799-02 display?A: The module displays system event lists, alarm event lists, channel data, monitor module information, relay module status, Keyphasor module data, and tachometer module data. Q: Is the 3500/93 135799-02 a vibration input acquisition module?A: No. The module functions as a display interface component. Vibration signal acquisition and processing are performed by dedicated monitoring modules installed in the 3500 rack. Q: What installation options are supported by this module?A: The 135799-02 version is specified for use with A05 through A08 display options within the Bently Nevada 3500 system configuration. Field Installation Guidelines Verify that the 3500 rack configuration supports the 3500/93 Display Interface Module before installation. Install the module according to the designated rack slot assignment and system configuration documentation. Maintain proper grounding practices for the rack enclosure and connected monitoring equipment. Separate signal wiring from high-voltage power cables to reduce electrical interference. Confirm connector seating and mechanical locking features before system startup. Check display communication status after installation through the 3500 system interface.
$200.00 $100.00
-
Bently Nevada Bently Nevada 3500/46M 176449-06 Hydro Monitor
Bently Nevada 3500/46M 176449-06 Hydro Monitor Configured for hydro turbine shaft position and vibration signal monitoring in the Bently Nevada 3500 Machinery Protection System, the Bently Nevada 3500/46M 176449-06 (176449-06 Hydro Monitor) provides direct physical/electrical execution for hydro machinery monitoring channels. Hardware Specifications Parameter Specification Model 3500/46M 176449-06 Brand Bently Nevada Product Type Hydro Monitor Origin USA Weight 0.8 kg Dimensions 2.6 cm x 25.8 cm x 24 cm Operating Temp -40 deg C to +85 deg C Humidity 0-95% RH, non-condensing Power Consumption 7.7 watts, typical Input Signal 4-20 mA, 0-10 VDC pressure transmitters Contact Rating 5 A @ 30 VDC / 250 VAC Rotor Speed Range 25 to 1,500 cpm Multimode Positive Input Impedance 50 kOhm Direct Filter Range 0.104 Hz to 500 Hz Direct Filter -3 dB Point 1.2 Hz Gap Filter -3 dB Point 0.05 Hz Rotor Dynamics and Probe Signal Processing The 3500/46M Hydro Monitor processes input signals associated with hydro machinery position and vibration measurements. The module supports Bently Nevada TSI monitoring principles by applying signal conditioning methods for rotating equipment analysis. The module can interface with displacement and process measurement signals while maintaining measurement stability through configured filtering functions. Eddy-current probe scaling and gap voltage validation methods support accurate shaft position evaluation when compatible transducer systems are installed. The monitor design considers rotor dynamics parameters, including rotational speed range and low-frequency measurement behavior. Signal processing paths include filtering functions to reduce unwanted vibration components and improve channel measurement consistency. Frequently Asked Questions Q: What input signal types does the 3500/46M 176449-06 accept?A: The module accepts 4-20 mA and 0-10 VDC transmitter inputs for hydro monitoring measurement applications. Q: What filtering functions are available in this Hydro Monitor?A: The module provides direct filtering from 0.104 Hz to 500 Hz and includes a gap filter with a -3 dB point at 0.05 Hz. Q: What operating conditions are specified for this module?A: The module operates from -40 deg C to +85 deg C and supports 0-95% RH non-condensing humidity conditions. Field Installation Guidelines Install the 3500/46M module in the designated Bently Nevada 3500 rack slot according to system configuration requirements. Verify field wiring polarity before connecting pressure transmitters or voltage signal sources. Use shielded cables for low-level measurement signals and connect cable shields according to the site grounding practice to reduce electrical interference. Keep measurement signal wiring separated from high-voltage power cables and switching circuits. Confirm configured channel parameters, filter settings, and input scaling before placing the monitoring channel into service.
$200.00 $100.00
-
Bently Nevada Bently Nevada 3500/62 133811-03 Process Variable Monitor
Bently Nevada 3500/62 133811-03 Process Variable Monitor The Bently Nevada 3500/62 133811-03, also cataloged as the 133811-03 Process Variable Monitor, operates as a dedicated hardware component for process signal measurement within the Bently Nevada 3500 Monitoring System. It accepts voltage and current input signals and processes analog process variables for machinery protection applications. Hardware Specifications Parameter Specification Model 3500/62 133811-03 Brand Bently Nevada Product Type Process Variable Monitor Origin USA Weight 1.26 kg Dimensions 5.5 x 29 x 23 cm Operating Temp -30 deg C to +65 deg C Storage Temp -40 deg C to +85 deg C Humidity 95%, noncondensing Input Type +/-10 VDC I/O, -10 VDC to +10 VDC; 4-20 mA Barrier I/O Voltage Compliance 13.66 V Isolation 500 Volts Power Consumption 7.0 Watts typical Accuracy Within +/-0.33% of full scale typical, +/-1% maximum Monitoring Platform Bently Nevada 3500 Series Eddy-Current Signal Processing and Gap Voltage Validation The 3500/62 133811-03 Process Variable Monitor processes analog signals through defined input ranges for integration with the 3500 rack architecture. The module supports voltage and current input measurement, including +/-10 VDC signals and 4-20 mA barrier inputs. For applications involving eddy-current measurement systems, signal scaling and gap voltage validation methods are applied to maintain correct transducer measurement conditions. The module supports monitoring configurations where rotor displacement and machine process variables require consistent electrical signal conversion. Moreover, the module architecture provides 500 Volt isolation between signal circuits, reducing interference from external electrical sources. This isolation supports stable data acquisition in machinery monitoring environments where signal integrity is required. Frequently Asked Questions Q: What input signal types does the 3500/62 133811-03 support?A: The module supports +/-10 VDC analog inputs and 4-20 mA DC barrier inputs for process variable monitoring applications. Q: What is the typical power consumption of this Process Variable Monitor?A: The module consumes approximately 7.0 Watts under typical operating conditions. Q: Does the module provide electrical isolation?A: Yes. The 3500/62 133811-03 provides 500 Volt isolation for signal circuit separation. Field Installation Guidelines Install the module in a compatible Bently Nevada 3500 rack configuration. Verify rack power availability before module insertion or removal. Connect field wiring according to the specified voltage and current input requirements. Use appropriate shielded signal cables for analog measurement circuits. Ground cable shields according to site electrical grounding practices to reduce electromagnetic interference. Separate low-level analog signal wiring from high-voltage power cables during installation. Confirm input polarity and signal range configuration before commissioning.
$200.00 $100.00
-
Bently Nevada Bently Nevada 176449-07 3500/77M Reciprocating Cylinder Pressure Monitor
Bently Nevada 176449-07 3500/77M Reciprocating Cylinder Pressure Monitor The Bently Nevada 176449-07, also cataloged as the 176449-07 3500/77M Reciprocating Cylinder Pressure Monitor, operates as a dedicated hardware component for cylinder pressure measurement within Bently Nevada 3500 monitoring systems. It processes pressure transducer inputs to calculate compressor cylinder parameters, including peak pressure, minimum pressure, and compression ratio values. Hardware Specifications Parameter Specification Model 176449-07 Brand Bently Nevada Product Type 3500/77M Reciprocating Cylinder Pressure Monitor System Platform Bently Nevada 3500 Series Monitoring System Application Reciprocating compressor cylinder pressure monitoring Input Type Piezoelectric pressure transducer input Number of Channels 4 pressure measurement channels Measurement Functions Suction pressure, discharge pressure, peak pressure, minimum pressure, compression ratio Mechanical Calculations Peak rod compression, peak rod tension, rod reversal detection Output Signal 4-20 mA Communication Interface Modbus / Ethernet Power Supply 24 VDC Power Consumption 25 W Operating Temp -20 deg C to +70 deg C Humidity Up to 95% RH, non-condensing Dimensions Approx. 241.3 mm x 24.4 mm x 99.1 mm Weight Approx. 0.20 kg Origin USA Eddy-Current and Pressure Signal Processing Features The 3500/77M monitor receives dynamic cylinder pressure signals from approved Bently Nevada pressure transducers and performs signal conditioning before measurement calculation. Moreover, the module applies TSI-oriented monitoring methods by validating sensor signal behavior and maintaining measurement accuracy for rotating machinery analysis. The module supports compressor mechanical evaluation through pressure waveform processing. Therefore, it can calculate rod load related parameters, including peak compression, peak tension, and rod reversal conditions. The signal processing architecture is designed for separation of pressure measurement channels and suppression of measurement interference during machine operation. Frequently Asked Questions Q: How many pressure measurement channels are available on the 176449-07?A: The module provides four independent pressure measurement channels for reciprocating compressor cylinder monitoring. Q: What type of pressure sensors can connect to this monitor?A: The module accepts approved piezoelectric pressure transducers designed for Bently Nevada reciprocating compressor monitoring applications. Q: Does the module support communication with external control systems?A: The module supports Modbus and Ethernet communication interfaces for integration with compatible monitoring and control networks. Field Installation Guidelines Install the 176449-07 module in a compatible Bently Nevada 3500 rack configuration. Verify rack power availability and confirm the 24 VDC supply connection before commissioning. Use shielded cables for pressure transducer wiring and connect cable shields according to site grounding practices. Separate sensor signal wiring from high-voltage power cables to reduce electrical interference. Configure pressure measurement parameters and alarm thresholds according to the compressor operating requirements. Verify input signals and calculated pressure values after installation.
$200.00 $100.00
-
Bently Nevada Bently Nevada 3701/60A Wind Turbine Monitor
Bently Nevada 3701/60A Wind Turbine Monitor Configured for wind turbine vibration and condition monitoring signal acquisition, the Bently Nevada 3701/60A (3701/60A Wind Turbine Monitor) provides direct physical and electrical execution for analog input processing, relay control, and industrial communication interfaces. Hardware Specifications Parameter Specification Model 3701/60A Brand Bently Nevada Product Type Wind Turbine Monitor Origin USA Weight 0.86 kg Dimensions 48.1 x 27.3 x 26.5 cm (shipping size) Operating Temp -40 deg C to +70 deg C Humidity 0-100% RH Vibration Resistance 5g (10-500 Hz) Input Power 24 VDC (+/-10%) or 100-240 VAC Power Consumption <20 W typical Analog Inputs 4-20 mA, +/-10 V, IEPE (2-wire) Relay Outputs 4 x SPDT, 5 A at 250 VAC Communication Ethernet, Modbus TCP/RTU Tariff Code 8537101190 Eddy-Current Monitoring and Rotor Dynamic Signal Processing The Bently Nevada 3701/60A applies mechanical monitoring functions for wind turbine equipment by processing vibration-related analog signals from connected field sensors. The monitor supports IEPE sensor inputs and voltage/current signal measurement for condition monitoring applications. The device architecture supports signal validation functions associated with rotating machinery monitoring, including sensor scaling and measurement verification. Eddy-current monitoring systems typically evaluate displacement behavior, shaft movement, and rotor dynamic conditions through calibrated input signals. The monitor design also considers signal integrity requirements for rotating equipment environments, where proper sensor installation and cable routing help reduce electrical interference and cross-talk effects between measurement channels. Frequently Asked Questions Q: What input signal types can the 3701/60A process?A: The monitor accepts 4-20 mA, +/-10 V, and IEPE (2-wire) analog input signals for connected monitoring sensors. Q: What communication interfaces are available on the 3701/60A?A: The device provides Ethernet communication and supports Modbus TCP/RTU protocols for system integration. Q: What power supply options are supported by the monitor?A: The 3701/60A supports 24 VDC (+/-10%) and 100-240 VAC input power configurations. Field Installation Guidelines Install the monitor in a protected industrial enclosure suitable for the specified operating temperature range. Connect signal cables using proper shielding and grounding practices to reduce electrical noise interference. Separate analog sensor wiring from high-voltage power cables to minimize induced signal distortion. Verify sensor polarity, input configuration, and communication wiring before applying operating power. Confirm relay output wiring matches the connected control circuit voltage and current requirements.
$200.00 $100.00
-
Bently Nevada Bently Nevada 124240-01 3500/42M I/O Module
Bently Nevada 124240-01 3500/42M I/O Module Configured for proximity and seismic signal acquisition in the 3500 machinery protection system, the Bently Nevada 124240-01 (124240-01 3500/42M I/O Module) provides direct sensor interface execution for four-channel vibration monitoring applications. Hardware Specifications Parameter Specification Model 124240-01 Brand Bently Nevada Product Type 3500/42M I/O Module System Compatibility 3500/42M Proximity/Seismic Monitor System Origin USA Weight Approx. 0.20 kg (0.44 lbs) Dimensions 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) Operating Temp -40 deg C to +85 deg C (version dependent) Power Consumption Maximum 10 W Channel Quantity 4 input channels Input Signal Type Proximity sensors and seismic sensors Output Signal 4-20 mA loop output Mounting Configuration 3500 rack internal I/O module installation Eddy-Current Probe Scaling and Rotor Dynamics Processing The 124240-01 module interfaces with proximity and seismic sensors through the 3500/42M monitoring architecture. It processes vibration-related signals generated by rotating equipment measurement circuits. The module supports eddy-current probe scaling functions for displacement measurement applications. Signal conditioning maintains sensor measurement conversion between probe output characteristics and machinery vibration parameters. Moreover, Bently Nevada TSI hardware design includes gap voltage validation functions based on probe operating conditions. Eddy-current systems commonly reference -10 VDC gap voltage targets for confirming proper probe positioning and measurement range. The module architecture supports rotor dynamics monitoring requirements by maintaining vibration channel acquisition for shaft displacement and machine protection calculations. Channel processing design also considers cross-talk suppression requirements between adjacent monitoring inputs. Frequently Asked Questions Q: What type of sensors can be connected to the 124240-01 module?A: The module supports proximity sensors and seismic sensors connected through the 3500/42M monitoring system input interface. Q: Does the 124240-01 provide direct 4-20 mA output signals?A: Yes. The module provides 4-20 mA loop output signals for integration with external monitoring or control systems. Q: Can the module operate outside standard temperature conditions?A: The operating temperature range is specified as -40 deg C to +85 deg C depending on the module version and installation configuration. Field Installation Guidelines Install the 124240-01 module in the designated slot of a compatible Bently Nevada 3500 rack assembly. Connect proximity probe and seismic sensor wiring according to the approved 3500 system wiring documentation. Use shielded instrumentation cables for vibration signal circuits and maintain proper cable separation from high-voltage power conductors. Verify sensor polarity, signal grounding, and cable shield termination before system commissioning. Confirm probe gap conditions and input signal quality during startup procedures. Avoid mechanical stress on terminal connections and ensure the module remains properly seated in the rack backplane interface.
$200.00 $100.00
-
Bently Nevada Bently Nevada 135183-01 3500 Temperature Monitor Module
Bently Nevada 135183-01 3500 Temperature Monitor Module The Bently Nevada 135183-01, also cataloged as the 135183-01 3500 Temperature Monitor Module, operates as a dedicated hardware component for RTD temperature signal acquisition and monitoring within the Bently Nevada 3500 Machinery Protection System. Hardware Specifications Parameter Specification Model 135183-01 Brand Bently Nevada Product Type Temperature Monitor Module System Platform 3500 Machinery Protection System Origin USA Weight Approx. 0.24 kg Dimensions 241.3 mm x 24.4 mm x 99.1 mm Operating Temp -40 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Power Consumption Less than 4.0 W Input Channels 16 independent RTD input channels Sensor Compatibility Pt100, Pt1000, Ni120 RTD sensors Input Wiring 2-wire, 3-wire, and 4-wire RTD configurations Excitation Current 1 mA nominal Input Impedance Greater than 1 MOhm Temperature Range -200 deg C to +600 deg C depending on RTD type Measurement Accuracy Typical +/-0.5 deg C with 3-wire or 4-wire RTD Alarm Configuration Dual programmable Alert and Danger alarms per channel Alarm Function Latching alarm operation with reset requirement Configuration Tool 3500 Rack Configuration Software Eddy-Current Signal Processing and Temperature Monitoring Integration The 135183-01 module processes RTD temperature inputs through the 3500 system backplane and provides channel-based monitoring logic for machinery temperature protection. The module supports independent alarm configuration for each measurement channel and transfers temperature status data to the rack controller. For Bently Nevada monitoring architectures, temperature measurement is coordinated with machinery protection functions including rotor dynamics analysis and condition monitoring. The module operates alongside vibration and position monitoring hardware where temperature changes can affect bearing clearance, lubrication conditions, and mechanical operating parameters. The 3500 platform maintains signal integrity through controlled input processing and channel isolation techniques. System configuration allows engineers to define alarm thresholds, measurement ranges, and monitoring logic according to the installed RTD sensor characteristics. Frequently Asked Questions Q: What type of temperature sensors can be connected to the Bently Nevada 135183-01?A: The module accepts RTD temperature sensors including Pt100, Pt1000, and Ni120 types with 2-wire, 3-wire, or 4-wire connection methods. Q: Does the 135183-01 provide independent alarm settings for each input channel?A: Yes. Each of the 16 RTD input channels supports separate programmable Alert and Danger alarm thresholds through 3500 configuration software. Q: Is the 135183-01 configured through the 3500 rack software environment?A: Yes. Module parameters, alarm limits, and monitoring settings are configured through the standard 3500 Rack Configuration Software. Field Installation Guidelines Install the 135183-01 module in an available slot of the Bently Nevada 3500 rack following the approved rack configuration procedure. RTD field wiring should use suitable shielded instrumentation cables where required by the installation environment. Cable routing should avoid high-current power lines and electromagnetic interference sources. For 3-wire and 4-wire RTD connections, maintain correct terminal identification to prevent lead resistance compensation errors. Verify sensor polarity, cable continuity, and grounding conditions before system commissioning. After installation, confirm module communication status through the 3500 configuration software and verify temperature input values against the connected RTD sensor characteristics.
$200.00 $100.00
