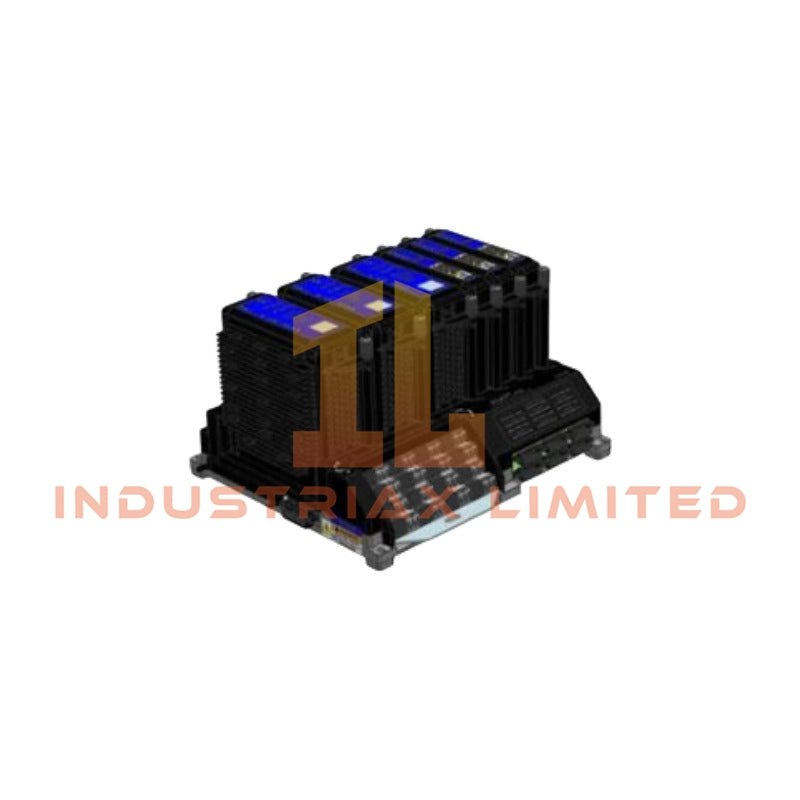

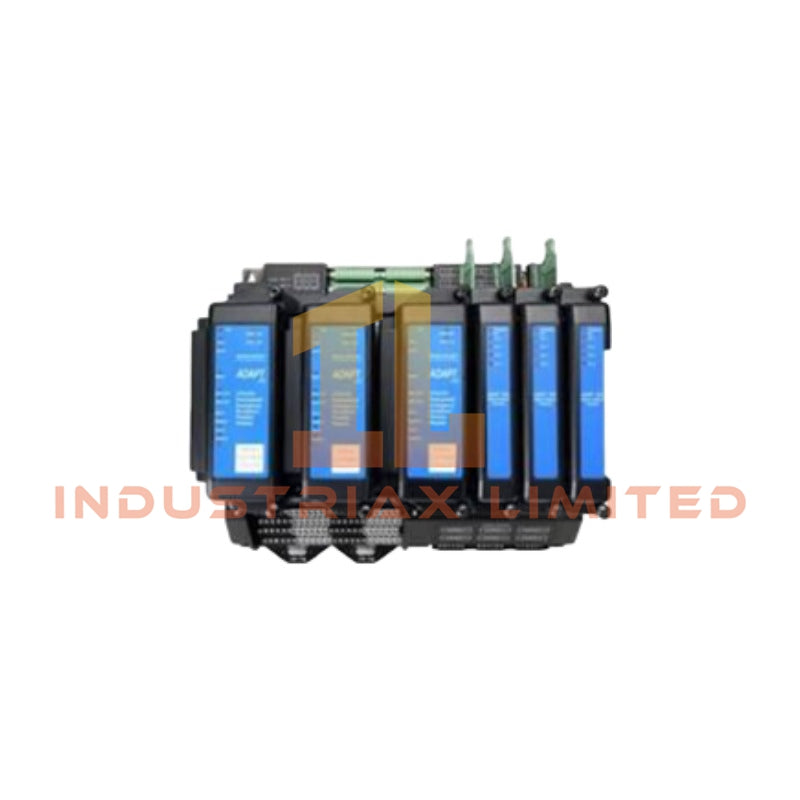

Bently Nevada 177896-05 3701/40 Processor Module

The Bently Nevada 177896-05, also cataloged as the 177896-05 Processor Module, operates as a dedicated hardware component for signal processing, protection logic execution, and Ethernet data communication within the ADAPT 3701/40 Machinery Dynamics Monitor platform.

Hardware Specifications

Parameter	Specification
Model	177896-05
Brand	Bently Nevada
Product Type	Processor Module
System Platform	ADAPT 3701/40 Machinery Dynamics Monitor
Origin	USA
Dimensions	Compact modular form factor; exact dimensions not specified
Power Consumption	Powered through single or dual-redundant +24 VDC external supply via terminal base
Processor Function	Central processing unit for data acquisition, DSP, alarm evaluation, and protection logic
A/D Conversion	24-bit resolution
Dynamic Range	110 dB
Signal Bandwidth	Up to 40 kHz
Sampling Mode	Synchronized parallel sampling across all input channels
Spectral Analysis	Configurable synchronous and asynchronous spectrums up to 3200 lines
Ethernet Interface	2 x 10Base-T/100Base-TX auto-sensing RJ45 ports
Communication Protocols	Modbus TCP, Ethernet Global Data (EGD)
Discrete Inputs	6 dry contact inputs per terminal base
Configuration Protection	Hardware configuration lock switch for Run Mode protection
Software Configuration	Bently Nevada Monitor Configuration (BNMC) software
Compliance	CE, North America General Safety, RoHS

Eddy-Current Measurement and Rotor Dynamics Processing

The 177896-05 Processor Module processes vibration and position signals from Bently Nevada input modules, including eddy-current proximity probes, accelerometers, velomitors, seismoprobes, dynamic pressure sensors, and Keyphasor speed inputs. Furthermore, the processor executes digital signal processing algorithms for rotor dynamics evaluation, including synchronous and asynchronous spectral analysis.

The module supports eddy-current probe scaling functions by processing calibrated displacement signals and maintaining measurement accuracy through sensor input conditioning. In addition, the system evaluates gap voltage conditions, including the typical -10 VDC target range used for proximity probe operation verification. Therefore, the processor provides direct monitoring of shaft displacement, vibration behavior, and machine dynamic response.

Frequently Asked Questions

Q: Does the 177896-05 support redundant processor operation?
A: Yes. When installed in a Duplex terminal base, two identical 177896-05 Processor Modules can operate in a redundant configuration. The system uses dual processors to maintain monitoring availability if one processor module becomes unavailable.

Q: What communication interfaces are available on the processor module?
A: The module provides two auto-sensing Ethernet ports with 10Base-T and 100Base-TX support. It communicates through Modbus TCP and Ethernet Global Data (EGD) protocols.

Q: Which sensor signals can the processor module analyze?
A: The processor accepts processed signals from compatible ADAPT 3701/40 input boards, including proximity probes, accelerometers, velomitors, seismoprobes, dynamic pressure sensors, and magnetic speed pickup signals.

Field Installation Guidelines

Install the 177896-05 Processor Module in the designated ADAPT 3701/40 terminal base slot according to the system hardware configuration requirements. Verify that the terminal base provides the required +24 VDC supply connection before module insertion.

Maintain proper cable separation between Ethernet communication wiring and high-current power conductors to reduce electrical interference. Use shielded sensor wiring where required and connect cable shields according to plant grounding standards.

Before commissioning, confirm that the proximity probe input scaling, gap voltage status, channel configuration, and alarm parameters match the installed field sensors. Keep the hardware configuration lock in the required operating position after completing commissioning changes.

Use BNMC software to verify module communication status, input channel operation, alarm logic settings, and network communication parameters before placing the monitoring system into service.
