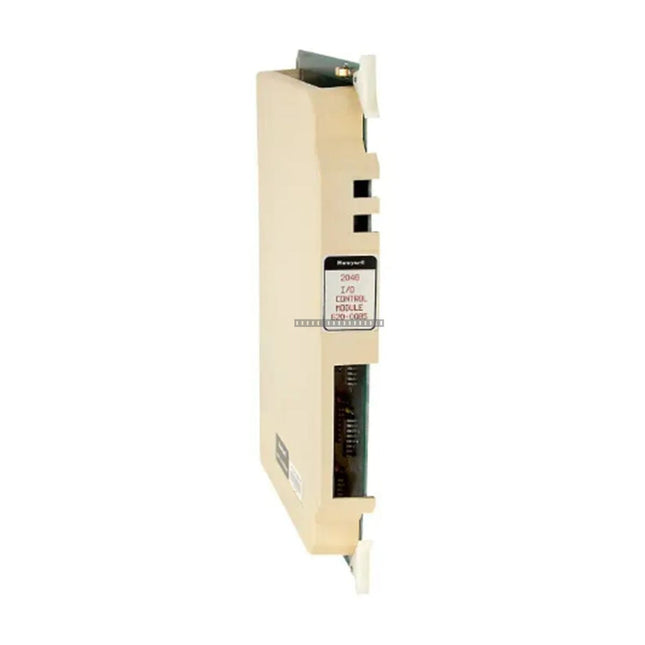

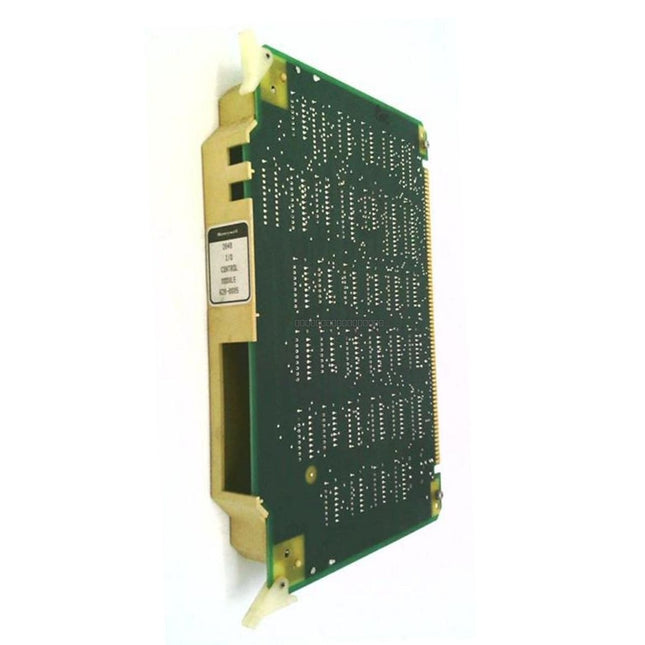

DescriptionThe Honeywell 620-0085 (6200085) I/O Control Module is a distributed input/output interface unit engineered for industrial automation and process control systems that require deterministic signal acquisition and actuation. This module is designed for deployment in demanding environments, including oil refineries, power plants, offshore production platforms, and chemical processing facilities, where reliable I/O communication is essential for maintaining plant stability. The module serves as a critical interface between field devices and higher-level control processors, ensuring real-time signal transmission and execution consistency while minimizing communication latency and data loss in electrically noisy environments.Features
Deterministic Architecture: Built on the IPC 620 platform, optimized for high-density I/O integration within PLC and distributed control systems.
Signal Integrity: Features internal signal conditioning, filtering, and debounce logic to stabilize field data and ensure accurate state detection.
Domain Isolation: Designed to isolate input and output domains, reducing cross-channel interference.
Modular Scalability: Supports rack-mounted expansion, allowing for system scaling without requiring modifications to core control logic.
Robust Design: Engineered for continuous operation in mission-critical applications with low power consumption.
ApplicationsThe 620-0085 is suitable for various industrial control applications, including:
Discrete and analog signal processing in PLC-based control loops.
Data acquisition in high-vibration or electrically unstable industrial environments.
Distributed I/O management for process automation systems.
Mission-critical monitoring where signal throughput consistency is required.
Technical Specifications
Model
620-0085
Brand
Honeywell
System Series
IPC 620
Operating Temperature
-20 deg C to 60 deg C
Power Supply
24 VDC nominal
Power Consumption
< 5 W typical
Installation Type
Rack-mounted modular PLC system
Installation Guidelines
Power Safety: Always disconnect power from the rack before inserting or removing the module to prevent electrical damage or system faults.
ESD Handling: Use standard electrostatic discharge (ESD) precautions, such as wearing a grounded wrist strap, when handling the module to protect internal circuitry.
Mounting: Ensure the module is fully seated in the rack backplane to guarantee a secure connection for the deterministic control bus.
Environment: Maintain adequate ventilation within the control cabinet to ensure the module operates within its specified temperature range (-20 deg C to 60 deg C).
Wiring: Route signal cables away from high-voltage power lines and high-EMI sources to maintain signal integrity.
FAQWhat is the primary function of the Honeywell 620-0085?The 620-0085 acts as an I/O control module within the IPC 620 series, facilitating deterministic signal acquisition and communication between field devices and the main control processor.Can this module be used in high-vibration environments?Yes, the module includes internal filtering and debounce logic specifically designed to ensure accurate state detection and prevent false triggering in high-vibration or electrically noisy industrial settings.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

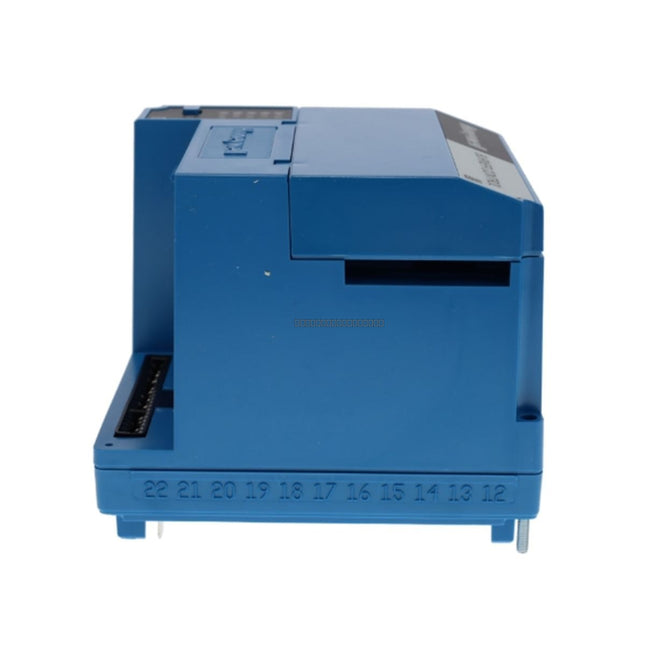

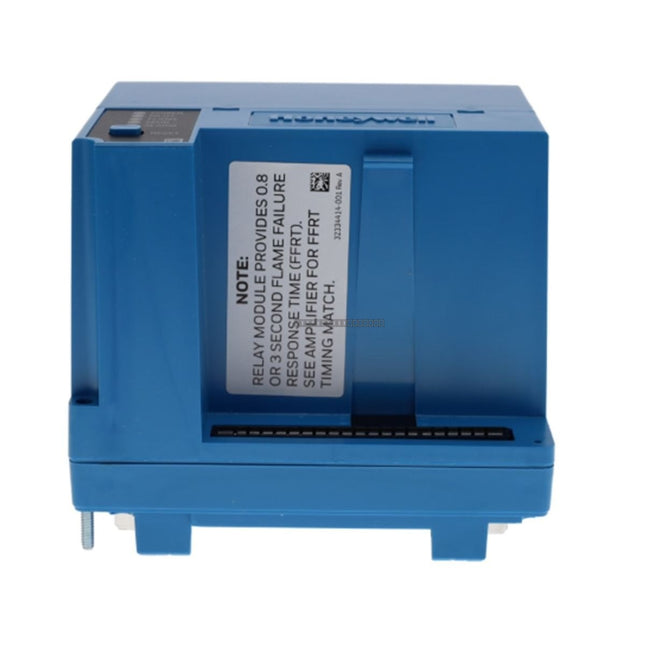

DescriptionThe Honeywell RM7895B1013 is a microprocessor-based burner control relay module designed for automatic burner sequencing, flame supervision, and safety shutdown in industrial combustion systems. As part of the 7800 Series, this module provides reliable management for intermittent pilot ignition applications, continuously monitoring burner conditions throughout startup and run cycles. It features dynamic airflow checking to ensure proper combustion air movement prior to fuel admission, enhancing overall system safety. The module is widely used in boilers, process heaters, thermal oxidizers, and industrial furnaces.Features
Microprocessor-based architecture for precise burner sequencing and safety enforcement.
Intermittent pilot operation for consistent flame monitoring.
Dynamic Airflow Check for verification of combustion air before ignition.
Field-selectable pilot flame establishing period (4 to 10 seconds).
Integrated diagnostics and lockout functionality for efficient troubleshooting.
Compatible with standard Honeywell 7800 Series subbases and accessories.
Integrated dust cover for protection in industrial environments.
Applications
Industrial Boilers
Process Heaters
Thermal Oxidizers
Refinery Furnaces
Power Generation Facilities
Industrial Heating Systems
Technical Specifications
Model
RM7895B1013
Series
7800 Series
Input Voltage
120 VAC
Frequency
50/60 Hz
Pilot Type
Intermittent Pilot
Pilot Flame Establishing Period
4 s to 10 s (Selectable)
Operating Temperature
-40 to 66 deg C
Storage Temperature
-40 to 85 deg C
Power Consumption
10 W (approx.)
Installation Guidelines
Ensure power is disconnected from the subbase before inserting or removing the relay module.
Mount the module securely onto a compatible Honeywell 7800 Series subbase.
Verify that all wiring connections are tight and conform to local electrical codes.
Ensure the module is installed in an environment protected from excessive moisture and extreme vibration.
Follow all manufacturer safety protocols regarding flame sensor wiring and interlock configuration.
Use appropriate ESD handling procedures during installation to prevent damage to internal electronics.
FAQWhat is the primary function of the RM7895B1013?This module serves as the primary safety and sequencing controller for industrial burners, managing ignition, flame monitoring, and safety interlocks.Is the pilot flame establishing period adjustable?Yes, the pilot flame establishing period is field-selectable between 4 and 10 seconds to meet specific application requirements.What type of pilot ignition does this module support?The RM7895B1013 is specifically designed for intermittent pilot applications.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Description
The Honeywell 8U-TDODB1 is a Digital Output Redundant IOTA (Input/Output Termination Assembly) designed for high-availability control architectures within the Experion PKS ecosystem. This assembly serves as the critical interface between field devices and the control system, providing robust termination and signal routing for 24 VDC digital output channels. Engineered for fault-tolerant environments, the 8U-TDODB1 facilitates redundant output paths, ensuring operational continuity and minimizing downtime during module maintenance or communication path failures.
Features
Supports redundant digital output configurations for enhanced system reliability.
Provides organized field wiring termination for high-density cabinet integration.
Optimized for 24 VDC industrial digital output applications.
Uncoated construction suitable for controlled industrial environments.
Direct integration with Honeywell chassis and redundant carrier infrastructures.
Facilitates rapid module replacement to reduce mean time to repair (MTTR).
Applications
The 8U-TDODB1 is utilized in mission-critical process automation systems, including:
Refinery and petrochemical processing units.
Chemical production facilities.
Power generation and distribution plants.
Critical infrastructure monitoring and control.
Technical Specifications
Model
8U-TDODB1
Brand
Honeywell
Series
Experion PKS
Module Type
Redundant Digital Output IOTA
Operating Voltage
24 VDC
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Coating
Uncoated
Installation Guidelines
Ensure the control cabinet environment is managed for humidity and contamination, as this is an uncoated assembly.
Always power down the associated chassis or carrier before installing or removing the IOTA to prevent electrical arcing or signal disruption.
Verify that all field wiring is properly secured to the terminal blocks to maintain signal integrity.
Ensure proper grounding of the cabinet and carrier infrastructure to minimize EMI/RFI interference.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.
FAQ
Is the 8U-TDODB1 compatible with all Experion PKS digital output modules?
The 8U-TDODB1 is designed for specific redundant digital output architectures. Please consult your system hardware manual or the specific module compatibility matrix to ensure the IOTA matches your digital output module part number.
Does this IOTA require special environmental protection?
This is an uncoated version, meaning it is intended for use in climate-controlled environments. If your application involves high levels of corrosive gases or extreme humidity, consider an alternative coated version if available for your specific system requirements.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

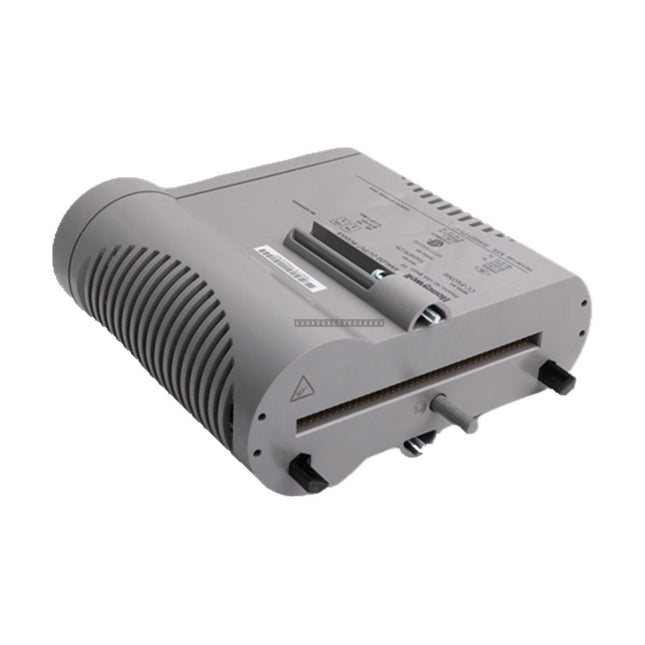

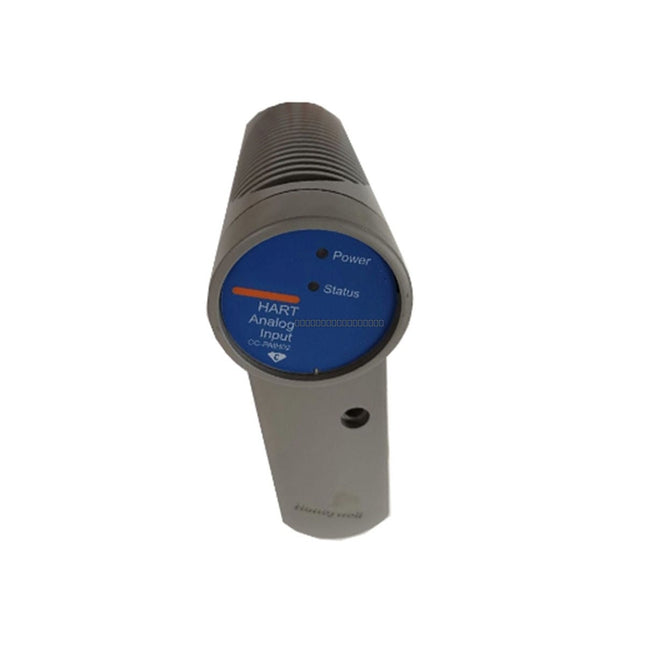

DescriptionThe Honeywell CC-PAIH02 (51405038-375) is a 16-channel High-Level Analog Input (HLAI) module designed for the Experion PKS Series C control system. This module serves as an advanced replacement for the CC-PAIH01, offering enhanced performance, faster scan rates, and improved diagnostic capabilities. It supports both 4-20 mA current loops and various voltage inputs, providing bi-directional HART digital communication for remote configuration and monitoring of smart field devices.Features
16-channel high-level analog input with HART communication support
Supports 4-20 mA (2-wire or self-powered) and voltage inputs (0-5 V, 1-5 V, 0.4-2 V)
Extensive self-diagnostics including Open Wire Detection and Bad PV Detection
Provides non-incendive field power, eliminating the need for external fusing
Supports optional redundancy for high-availability applications
Fast loop scan rate of 50 ms
Applications
Oil and Gas: Monitoring high-pressure and temperature variables in refineries and extraction sites.
Petrochemical and Chemical: Managing critical process parameters and complex analytical data for quality control.
Power Generation: Integrating smart sensors into centralized control platforms for precise energy management.
Building Automation: Managing industrial-scale HVAC, lighting, and security systems.
Technical Specifications
Model
CC-PAIH02 (51405038-375)
Channels
16
Input Range
4-20 mA, 0-5 V, 1-5 V, 0.4-2 V
A/D Resolution
16 bits
Input Scan Rate
50 ms
Common Mode Rejection
70 dB (dc to 60 Hz)
Input Impedance
> 10 M Ohm (powered)
Accuracy
±0.075% of full-scale at 23.5 degC
Installation Guidelines
Ensure the system is powered down before inserting or removing the module from the I/O rack.
Field wiring is landed on the IOTA’s detachable terminals, supporting up to 12 AWG (2.5 mm) stranded wire.
For 2-wire transmitters, the module provides 24V DC loop power via the IOTA.
Self-powered transmitters connect directly to input terminals without utilizing internal loop power.
Utilize the jumper bar to bridge multiple 'IN' terminals to a single power source; pins can be removed to isolate power for specific channels.
Maintain proper grounding and shielding practices to minimize EMI in industrial environments.
FAQsWhat is the CC-PAIH02?It is a 16-channel, High-Level Analog Input (HLAI) module with HART communication, designed for the Experion Series-C I/O system.What input types does CC-PAIH02 support?It supports 4-20mA, 1-5V, 0-5V, and 0.4-2V inputs.Does it support HART?Yes, it provides full HART protocol support for field device configuration and monitoring.What is the difference from CC-PAIH01?The CC-PAIH02 is the upgraded replacement, offering improved accuracy and faster sampling rates over the legacy CC-PAIH01 model.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

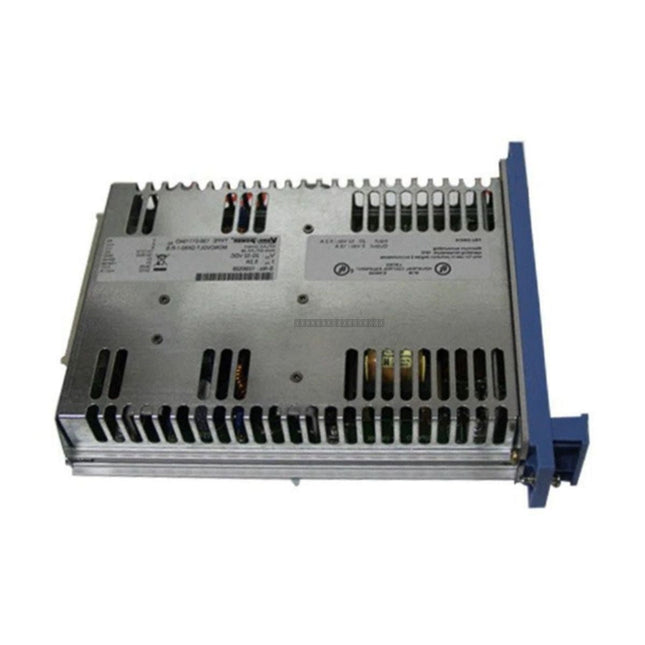

DescriptionThe Honeywell 10310/1/1 Earth Leakage Detector is a specialized industrial protection module engineered to monitor and detect earth leakage conditions within DC control and power distribution systems. By identifying insulation failures or unintended ground current paths, this module enhances electrical safety and protects critical infrastructure from damage. It is designed for high-reliability environments, including power plants, refinery automation, and heavy industrial control cabinets, where it provides rapid detection and signaling to facilitate alarm responses or system shutdowns.Features
Dedicated monitoring for DC power distribution systems.
Fast response time for fault condition detection and signaling.
High electrical isolation performance for operation in high-EMI environments.
Compact form factor suitable for high-density control panel integration.
Integrated reset functionality for system recovery following a fault event.
Applications
Industrial DC power distribution monitoring.
Safety-critical control cabinet protection.
Ground fault detection in automation and refinery systems.
Electrical insulation monitoring for power plant control architectures.
Technical Specifications
Model
10310/1/1
Brand
Honeywell
Product Type
Earth Leakage Detector (ELD)
Supply Voltage
24 VDC (Max 30 VDC)
Supply Current
60 mA (Max)
Reset Input Voltage
18 to 70 VDC
Reset Input Current
1.1 mA at 24 VDC
Max Output Voltage
115 VDC
Max Output Current
2 A
Operating Temperature
-55 to 65 deg C
Installation Guidelines
Ensure the system is powered down before installing or removing the module from the control panel.
Mount the module securely in a well-ventilated area to maintain operating temperatures within the specified range.
Use appropriate shielded cabling for input and output connections to maintain noise immunity in high-EMI environments.
Verify that all grounding connections are robust and follow standard industrial safety practices for DC distribution systems.
Handle with care to prevent electrostatic discharge (ESD) damage during installation.
FAQWhat is the primary function of the Honeywell 10310/1/1?The 10310/1/1 is designed to monitor DC systems for earth leakage, providing a protective trip signal when ground faults or insulation failures are detected to prevent equipment damage.Can this module be used in high-temperature environments?Yes, the module is rated for an operating temperature range of -55 to 65 deg C, making it suitable for demanding industrial conditions.What is the reset input requirement?The reset function accepts a voltage range of 18 to 70 VDC, with a typical reset current of 1.1 mA at 24 VDC.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

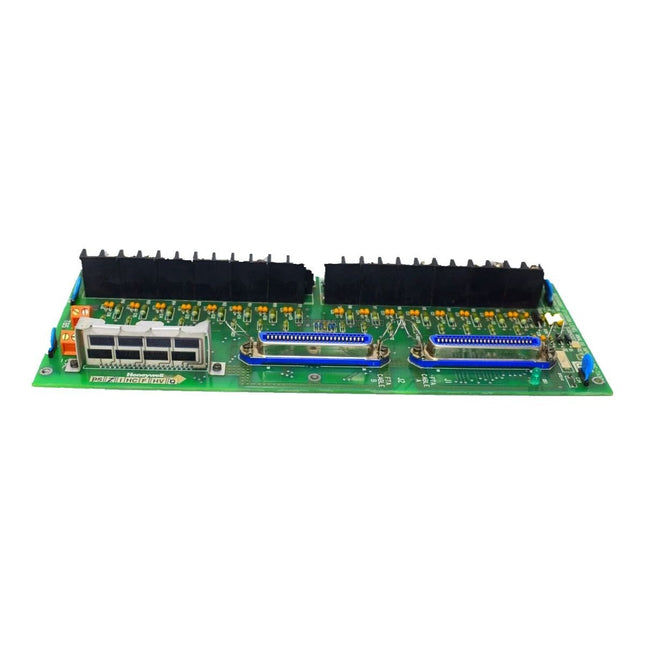

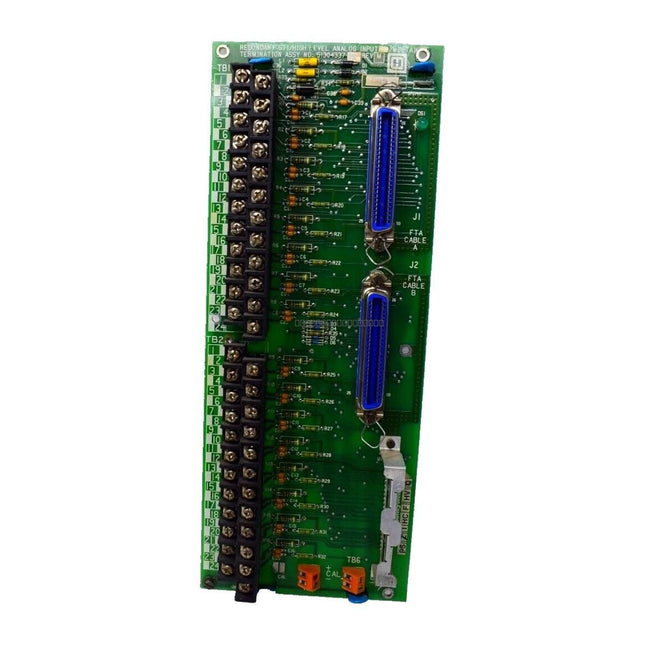

DescriptionThe Honeywell MC-TAIH52 (51304337-250) is a high-level analog input module designed for integration within Honeywell Distributed Control Systems (DCS). This module provides reliable signal processing for industrial automation environments, facilitating the conversion of analog field signals into digital data for system monitoring and control.Features
16 differential input channels for high-density signal acquisition.
16-bit A/D converter resolution (14 bits utilized).
High input impedance of > 10 MΩ when powered.
Robust common mode rejection ratio of 70 dB (dc to 60 Hz).
Integrated normal mode filtering with a single-pole RC response.
Technical Specifications
Parameter
Specification
Model
MC-TAIH52 / 51304337-250
Input Channels
16 Differential
A/D Resolution
16 bits (14 bits used)
Common Mode Rejection
70 dB (dc to 60 Hz)
Input Impedance
> 10 MΩ (powered)
Max Normal Mode Input
± 30 Volts
Normal Mode Rejection
32 dB at 60 Hz
Filter Response
Single-pole RC, -3 dB @ 1 Hz
Installation Guidelines
Ensure the system power is completely disconnected before installing or removing the module from the rack.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
Verify that the module is firmly seated in the assigned slot to ensure proper backplane connection.
Route signal cables away from high-voltage lines and high-EMI sources to maintain signal integrity.
Ensure proper grounding of the cabinet and shielding of analog signal cables to minimize noise interference.
FAQWhat is the primary function of the MC-TAIH52?The MC-TAIH52 is an analog input module used in Honeywell DCS environments to acquire and digitize high-level analog signals from field instrumentation.Is this module compatible with standard Honeywell DCS racks?Yes, the MC-TAIH52 is designed for specific Honeywell DCS series hardware. Please verify your system cabinet and backplane compatibility before installation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

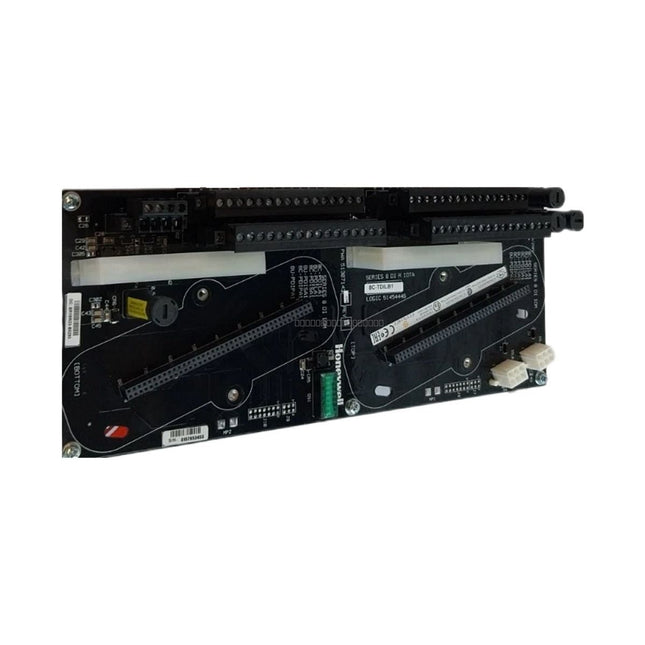

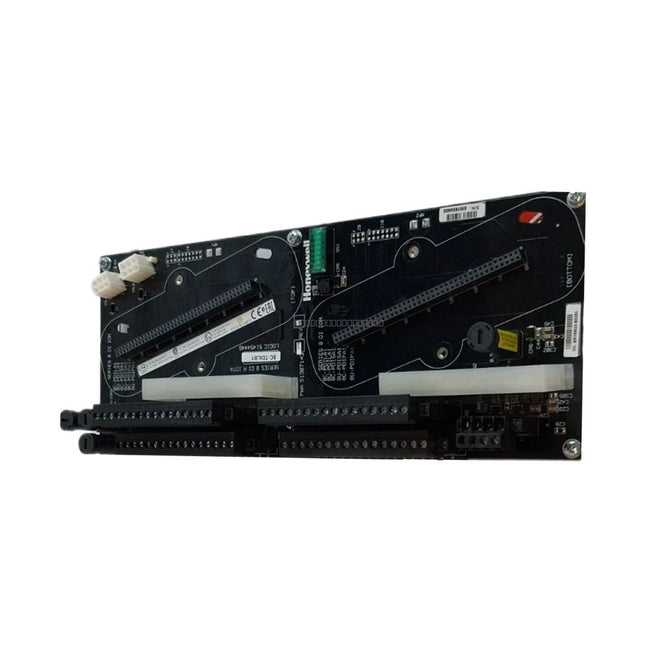

DescriptionThe Honeywell 8C-TDILB1 (51307143-175) is a 32-channel Digital Input Module designed for the Experion LX distributed control system. This module provides high-density digital input monitoring with integrated features for data integrity and system reliability. It supports redundant configurations, making it suitable for critical process automation applications where continuous operation is required.Features
32-channel digital input capacity.
Supports optional redundancy for high-availability requirements.
Extensive self-diagnostics to ensure data integrity and fault detection.
Internal or external field power selection with on-board excitation power, reducing the need for external marshalling power.
Configurable direct or reverse input indication.
Galvanic isolation via optical coupling within the IOM.
Technical Specifications
Parameter
Specification
Product Model
8C-TDILB1 (51307143-175)
Input Channels
32
Voltage Rating
24 VDC
DI Power Voltage Range
18 to 30 VDC
Module Current Rating
95 mA
ON Sense Voltage/Current
13 VDC (min) / 3 mA (min)
OFF Sense Voltage/Current
5 VDC (max) / 1.2 mA (max)
Input Impedance
4.2 KΩ
Galvanic Isolation
1000 VAC RMS or ±1500 VDC for System
Input Filter Delay
5 ms ± 20%
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module from the I/O rack.
The module should be handled using standard ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
Verify that the field power supply is within the 18-30 VDC range before connecting field wiring.
Ensure proper seating in the IOTA (I/O Termination Assembly) to maintain reliable electrical contact.
Route signal cables away from high-voltage or high-EMI sources to minimize signal interference.
FAQDoes this module support redundant operation?Yes, the 8C-TDILB1 is designed to support optional redundancy, allowing for high-availability configurations within the Experion LX system.Does the module require external power for field devices?The module features on-board excitation power, which can eliminate the need for external marshalling power, depending on the specific field device requirements and power budget.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Description
The Honeywell MC-GAIH83 is a high-level analog input and Smart Transmitter Interface (STI) module engineered for precision signal acquisition within industrial process control systems. This module is designed to condition and digitize analog signals, ensuring reliable data transmission to the control system even in electrically demanding environments. It is a critical component for maintaining process stability in sectors such as power generation, chemical processing, and refinery automation.
Features
High-level analog input processing with integrated signal conditioning.
STI (Smart Transmitter Interface) compatibility for seamless field transmitter integration.
Crimp terminal interface for robust, vibration-resistant field wiring connections.
Advanced internal filtering to maintain measurement accuracy in high EMI environments.
Designed for continuous duty operation in mission-critical monitoring applications.
Applications
The MC-GAIH83 is widely utilized in heavy industrial facilities for:
Refinery and petrochemical process automation.
Power generation plant instrumentation and control.
Continuous monitoring of industrial field transmitters.
High-accuracy data acquisition in distributed control systems.
Technical Specifications
Model
MC-GAIH83
Brand
Honeywell
Input Type
High level analog input
Interface
STI compatible field transmitter interface
Connection Type
Crimp terminal
Operating Temperature
0 to 60 deg C
Power Consumption
Typically under 5 W
Installation Guidelines
Ensure the system power is completely disconnected before inserting or removing the module from the backplane.
Use shielded cabling for all analog input signals to minimize electromagnetic interference (EMI).
Verify that all crimp terminal connections are secure to prevent signal degradation caused by high-vibration environments.
Maintain proper ventilation within the cabinet to ensure the module operates within the specified 0 to 60 deg C temperature range.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.
FAQ
What is the primary function of the MC-GAIH83?The MC-GAIH83 acts as a high-level analog input module that digitizes signals from field instruments, such as smart transmitters, for use in Honeywell control systems.
Does this module require specific wiring tools?Yes, as it utilizes a crimp terminal interface, you should use appropriate crimping tools to ensure a reliable and secure electrical connection for your field wiring.
Can this module be used in high-vibration areas?Yes, the crimp terminal design is specifically intended to provide stable mechanical and electrical connections in environments subject to industrial vibration.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Honeywell TK-PRR021 (51309288-375) is a high-availability Redundancy Module (RM) designed for the Honeywell Experion PKS Series-A control system. This module facilitates the redundant configuration of C200 and C200E control processors, ensuring continuous process operation by managing synchronization and automatic switchover between primary and standby controllers. The "TK" designation indicates that this unit is conformal coated, providing enhanced protection against corrosive industrial environments.Features
Supports redundant architecture for C200/C200E control processors
Occupies two slots in a Series-A chassis
Conformal coated for harsh environment durability
Supports bumpless transfer for zero-downtime failover
Class I, Division 2, Groups A, B, C, D hazardous location certification
T4A temperature code rating
Applications
Chemical and petrochemical batch processing and reactor safety
Oil and gas upstream telemetry and terminal monitoring
Power and utility turbine control and plant-wide monitoring
Water and wastewater pump and flowmeter data acquisition
Pulp and paper automated boiler and roller control systems
Technical Specifications
Model
TK-PRR021
Part Number
51309288-375
Operating Temperature
0 degC to +60 degC
Storage Temperature
-40 degC to +85 degC
Relative Humidity
5% to 95% RH (non-condensing)
Failover Time
<100 ms
Data Transfer Rate
Up to 1 Gbps
Isolation
1500V AC
Power Requirements
1.2 VDC (7 mA), 3.3 VDC (0.750 A), 5 VDC (1.000 A), 24 VDC (0.090 A)
Relay Contact Rating
100 mA at 30 VDC
Installation Guidelines
Power Down: Always switch off the chassis power supply before inserting or removing modules to prevent electrical transients.
Alignment: Ensure the module is held straight, aligning the circuit board guides with the targeted Series-A chassis slot pair.
Seating: Slide the module smoothly until it engages the backplane connector. Firmly press the top and bottom of the bezel to ensure full contact.
Securing: Snap the upper and lower retaining tabs inward to lock the module into the chassis frame.
Handling: Use standard ESD protection practices when handling electronic modules to prevent damage to sensitive components.
FAQWhat is the difference between TK and TC models?The "TK" prefix indicates that the module is conformal coated, designed specifically for use in harsh or corrosive industrial environments, whereas "TC" models may lack this specific protective coating.What is the primary function of the TK-PRR021?It coordinates the dual operation of primary and backup controllers, ensuring that the standby unit can seamlessly take over control functions without process disruption in the event of a primary controller failure.What type of wiring connection does it use?The module utilizes a 36-pin TC-TBCH field wiring connector for integration with the Series-A chassis infrastructure.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Honeywell MC-TAIH03 is a high-level analog input Field Termination Assembly (FTA) engineered to facilitate the interface between field instrumentation and Honeywell distributed control systems. This module serves as a centralized termination point for up to 16 analog input channels, streamlining the connection process between field sensors and control system I/O hardware. By providing a structured interface, the MC-TAIH03 reduces field wiring complexity, minimizes potential installation errors, and enhances overall system maintainability in demanding industrial environments.Features
Supports 16 high-level analog input channels.
Consolidates field wiring to improve diagnostic efficiency and system reliability.
Designed for integration with Honeywell distributed control system architectures.
Provides a robust interface for signal routing under typical industrial electrical noise conditions.
Passive design requiring no internal active power consumption.
CE marked for compliance with industrial safety and electromagnetic compatibility standards.
ApplicationsThe MC-TAIH03 is widely utilized in large-scale process industries, including refinery automation, power generation plants, chemical processing units, and heavy industrial monitoring systems where stable, high-integrity analog signal acquisition is required for process control.Technical Specifications
Model
MC-TAIH03
Brand
Honeywell
Product Type
Analog Input Field Termination Assembly
Input Channels
16
Signal Type
High-level analog
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Humidity Range
5 to 95 percent non-condensing
Mounting
Cabinet or rack mounted
Termination
Screw terminal
Installation Guidelines
Ensure the control system is powered down before installing or removing the FTA module.
Mount the assembly securely within the designated control cabinet or rack space, ensuring adequate clearance for cable routing.
Use shielded cabling for field instrumentation to maintain signal integrity and minimize EMI/RFI interference.
Verify all screw terminal connections are tightened to the specified torque to prevent intermittent signal loss.
Maintain proper grounding practices for the cabinet and signal shields to ensure compliance with system-level electrical isolation requirements.
Ensure the installation environment remains within the specified temperature and humidity ranges to prevent component degradation.
FAQWhat is the primary function of the MC-TAIH03?The MC-TAIH03 acts as a field termination assembly that aggregates 16 analog input signals from field devices and routes them to the control system I/O modules, simplifying wiring and maintenance.Does this module require external power?No, the MC-TAIH03 is a passive field termination assembly and does not consume internal power.Is this module compatible with all Honeywell systems?The MC-TAIH03 is designed for specific Honeywell distributed control system architectures. Please verify your system's hardware compatibility documentation before installation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Honeywell MC-GAIH92 is a high-level analog input module engineered for integration within Experion and compatible distributed control system (DCS) architectures. This module is designed to provide reliable, multi-channel signal acquisition for critical process control loops. By utilizing a robust crimp terminal connection interface, the MC-GAIH92 ensures secure, vibration-resistant field wiring, making it suitable for demanding industrial environments such as oil refining, chemical processing, and power generation facilities.Features
High-level analog signal acquisition for precise process monitoring.
Crimp terminal interface for secure, low-resistance field wiring connections.
Designed for high noise immunity in industrial control environments.
Compatible with standard Honeywell DCS backplane communication protocols.
Supports continuous operation with stable signal transmission performance.
ApplicationsThis module is primarily utilized in process automation systems where stable and accurate analog input data is required for control and monitoring. Typical applications include pressure, flow, and level transmitter interfacing, as well as general analog process variable monitoring within large-scale industrial control architectures.Technical Specifications
Model
MC-GAIH92
Associated Part Numbers
51304748-350, 51304748-375
Brand
Honeywell
Product Type
High Level Analog Input Module
Operating Temperature
0 to 60 deg C
Field Connection
Crimp terminal
System Compatibility
Experion DCS and I/O backplane
Installation Guidelines
Ensure the control system is powered down before inserting or removing the module from the I/O backplane.
Use appropriate crimping tools to ensure secure termination of field wiring to the module terminals.
Maintain proper shielding and grounding practices for analog signal cables to minimize electromagnetic interference (EMI).
Route signal cables away from high-voltage power lines and high-EMI sources.
Verify that the module is fully seated in the backplane slot to ensure reliable communication and power distribution.
FAQWhat is the difference between part numbers 51304748-350 and 51304748-375?These part numbers generally refer to minor revision levels, production variants, or certification differences within the same functional design of the MC-GAIH92 module. They are typically interchangeable within the specified Honeywell control system architectures.Is this module compatible with all Honeywell systems?The MC-GAIH92 is designed for Experion and compatible DCS architectures. Please verify your specific controller series and I/O backplane compatibility before installation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Honeywell 900C53-0124-00 is a high-performance I/O scanner module engineered for seamless integration within distributed control systems. This module serves as a critical interface between field I/O subsystems and the central controller, facilitating high-speed, deterministic data exchange. By managing the cyclic scanning of process variables, the 900C53-0124-00 ensures synchronized communication, minimizes latency, and maintains signal integrity across the automation network, even in environments subject to significant electrical noise.Features
Deterministic cyclic scanning for real-time process synchronization.
Optimized for low-latency data acquisition from distributed field I/O modules.
Robust design for continuous operation in industrial process control environments.
Direct backplane integration for efficient communication with the central controller.
Maintains high signal integrity to support stable system availability.
ApplicationsThis I/O scanner module is widely deployed in mission-critical industrial automation sectors, including:
Power generation facilities
Oil and gas refineries
Chemical and petrochemical processing plants
Large-scale manufacturing and assembly lines
Technical Specifications
Model
900C53-0124-00
Brand
Honeywell
Product Type
I/O Scanner Module
System Function
Distributed I/O communication and scanning control
Operating Temperature
0 to 60 deg C
Power Source
System backplane
Installation Guidelines
Ensure the control cabinet power is disconnected before installing or removing the module from the backplane.
Verify that the module is correctly seated in the designated slot to ensure proper backplane connection.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
Route communication cables away from high-voltage power lines to minimize EMI interference.
Ensure adequate ventilation within the cabinet to maintain the operating temperature within the 0 to 60 deg C range.
FAQWhat is the primary function of the 900C53-0124-00?The module acts as a communication bridge that manages the cyclic scanning of field I/O data, ensuring that process variables are synchronized and transmitted to the central controller with minimal latency.Is this module suitable for high-noise industrial environments?Yes, the module is designed for industrial automation applications and is built to maintain signal integrity and system stability even in the presence of industrial electrical noise.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Honeywell 51153818-203 is a specialized jumper kit featuring gray jumper elements, designed for signal bridging and configuration tasks within Honeywell control system assemblies. This accessory is essential for establishing reliable electrical continuity between terminal points in distributed control systems and I/O termination environments. By facilitating efficient signal routing, the kit supports streamlined commissioning, system testing, and maintenance procedures in demanding industrial applications.Features
Provides passive electrical bridging for I/O and control module terminals.
Engineered for consistent contact resistance and mechanical stability.
Supports standardized signal mapping and configuration practices.
Designed for use in high-vibration industrial control cabinet environments.
Simplifies circuit linking during troubleshooting and system setup.
ApplicationsThis jumper kit is widely utilized in process industries, including power generation, oil and gas, and chemical processing. It is primarily applied in control cabinets for I/O module configuration, signal routing, and temporary circuit linking during installation or maintenance cycles.Technical Specifications
Model
51153818-203
Brand
Honeywell
Product Type
Jumper Kit
Color
Gray
Function
Electrical terminal bridging
Operating Temperature
0 to 60 deg C
Power Consumption
Passive (None)
Installation Guidelines
Ensure the control system is powered down before installing or removing jumper elements to prevent accidental signal disruption or short circuits.
Verify that the jumper is fully seated within the terminal block to ensure consistent electrical contact.
Handle with care to avoid bending the contact pins or damaging the housing.
Use only in compatible Honeywell terminal assemblies as specified by the system hardware manual.
Maintain a clean, dry environment within the control cabinet to prevent oxidation of the contact surfaces.
FAQWhat is the primary purpose of the 51153818-203 jumper kit?The kit is used to create electrical bridges between terminal points on Honeywell I/O modules, allowing for specific signal routing or configuration changes required during commissioning and maintenance.Are these jumpers active components?No, these are passive electrical components designed solely for mechanical and electrical interconnection between terminals; they do not contain active circuitry or communication protocols.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Honeywell 900H02-0102 is a 16-channel digital output module designed for high-performance control within industrial automation systems. This module provides reliable, high-speed switching for field devices, supporting critical process control applications. Engineered for efficiency and durability, it serves as a robust interface between the control system and external actuators or relays, ensuring consistent operation in demanding industrial environments.Features
16 independent digital output channels for versatile field device control.
Standard 24 VDC output voltage for broad compatibility with industrial actuators.
Compact, space-saving design suitable for high-density control cabinets.
Optimized for low power consumption, contributing to efficient system thermal management.
Engineered for high reliability and fault-tolerant performance in continuous-duty applications.
ApplicationsThis module is widely utilized in sectors requiring precise digital control, including:
Oil and Gas processing facilities.
Power generation and distribution control systems.
Automated manufacturing and assembly lines.
General process automation and instrumentation systems.
Technical Specifications
Model
900H02-0102
Brand
Honeywell
Channels
16 Digital Outputs
Output Voltage
24 VDC
Power Consumption
3 W
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the control system is powered down before installing or removing the module to prevent electrical damage.
Mount the module in a clean, dry environment, ensuring adequate airflow for heat dissipation.
Use shielded cabling for field connections to minimize EMI interference in high-noise environments.
Verify that the 24 VDC power supply is correctly wired to the module terminals, observing proper polarity.
Handle the module using ESD-safe practices to protect internal circuitry.
FAQWhat is the primary function of the 900H02-0102?The 900H02-0102 is a digital output module used to interface a control system with field devices, providing 16 channels of 24 VDC switching for actuators, relays, or indicators.What is the operating temperature range for this module?The module is designed to operate reliably within an ambient temperature range of 0 to 60 deg C.Does this module require complex configuration?No, the 900H02-0102 is designed for straightforward integration into Honeywell control systems, simplifying the setup process for industrial applications.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Honeywell 8U-PAIHA1 is a high-performance analog input module belonging to the Series C I/O family. It is engineered for the precise acquisition of 4-20 mA signals from field transmitters, featuring integrated HART communication capabilities. This module supports both 2-wire loop-powered and self-powered devices, making it a versatile component for process automation in industries such as oil and gas, power generation, and chemical processing. The 8U-PAIHA1 provides 16 single-ended input channels with 16-bit resolution, ensuring high-fidelity measurement and seamless digital communication with smart HART-enabled field instruments.Features
16 single-ended analog input channels with integrated HART communication support.
High-resolution 16-bit A/D conversion for precise signal monitoring.
Robust galvanic isolation up to 1000 VAC/VDC using Icoupler technology to protect control systems.
Hot-swappable design allows for module replacement without powering down the system, minimizing operational downtime.
Integrated 250 ohm resistors for standard 4-20 mA current loop processing.
Advanced noise rejection with a 6.5 Hz cutoff frequency RC filter.
ApplicationsThe 8U-PAIHA1 is designed for use in demanding industrial process control environments. Typical applications include monitoring pressure, flow, temperature, and level transmitters in distributed control systems (DCS). Its HART compatibility allows for remote configuration and diagnostics of smart field devices, reducing the need for manual field checks.Technical Specifications
Model
8U-PAIHA1
Series
Series C
Input Channels
16 (Single-ended)
Input Range
4-20 mA
A/D Resolution
16-bit
Input Scan Rate
50 ms
Accuracy
+/- 0.075% FS (at 23.5 degC)
Power Consumption
2.6 W
Module Current
110 mA
Isolation
1000 VAC / 1000 VDC (Icoupler)
Operating Temperature
0 to 60 degC
Storage Temperature
-40 to 85 degC
Installation Guidelines
Ensure the system is properly grounded before installing the module into the Series C I/O carrier.
The module supports hot-swapping; however, ensure the surrounding environment is free from conductive dust or moisture during maintenance.
Use shielded twisted-pair cabling for analog inputs to maintain signal integrity and maximize noise rejection.
Route signal cables away from high-voltage power lines and heavy-duty motor starters to prevent EMI interference.
Verify that the input loop power supply is within the specified voltage range before connecting field devices.
FAQDoes this module support HART communication?Yes, the 8U-PAIHA1 features integrated HART communication, allowing the module to pass digital data from smart field transmitters to the control system while simultaneously reading the analog 4-20 mA signal.Is this module hot-swappable?Yes, the 8U-PAIHA1 is designed for hot-swap capability, allowing for removal and replacement while the system is powered, provided the installation environment allows for safe maintenance procedures.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Honeywell CC-PCNT01 is a high-performance Control Processor Module designed for the Experion PKS C300 controller platform. This module serves as the central processing unit for distributed control systems (DCS), managing complex control strategies, I/O communication, and real-time process execution. It is engineered to provide robust, deterministic control in demanding industrial environments, supporting seamless integration with the Honeywell C300 controller architecture.Features
Centralized control processing for Experion PKS C300 systems.
Supports advanced regulatory and logic control functions.
Optimized for high-availability industrial automation applications.
Compact modular design for efficient rack mounting.
Integrated diagnostic capabilities for system health monitoring.
ApplicationsThe CC-PCNT01 is utilized in large-scale process automation across various industries, including oil and gas, chemical processing, power generation, and water treatment. It is specifically designed for use in C300 controller cabinets where reliable, high-speed process control is required.Technical Specifications
Product Model
CC-PCNT01
Spare Part Number
51405046-175
Power Supply
5 VDC
Supply Rating
0.311A @ 24 VDC
Power Consumption
10-15 W
Operating Temperature
0 degC to 60 degC (32 degF to 140 degF)
Storage Temperature
-40 degC to 85 degC (-40 degF to 185 degF)
Relative Humidity
5% to 95% RH, non-condensing
Installation Guidelines
Ensure the controller rack is powered down before inserting or removing the CC-PCNT01 module to prevent electrical damage.
Verify that the module is correctly seated in the designated slot of the C300 I/O carrier.
Maintain adequate ventilation within the cabinet to ensure the module operates within the specified 0-60 degC temperature range.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.
Ensure all grounding connections for the controller rack are secure to minimize EMI interference.
FAQIs the CC-PCNT01 compatible with all C300 controller racks?The CC-PCNT01 is designed for the standard Experion PKS C300 controller architecture. Please verify your specific system revision and hardware compatibility before installation.What should I do if the module indicates a fault?Check the diagnostic LEDs on the front panel and consult the Experion PKS system documentation for specific error code interpretations. Ensure the power supply is stable at the rated 24 VDC.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Honeywell 900C30-0360-00 ControlEdge HC900 CPU Module
The Honeywell 900C30-0360-00 serves as the primary 900C30 CPU Module utilized to execute process control logic, function block execution, and deterministic data communication across Honeywell ControlEdge HC900 platforms. It processes control strategies, exchanges data with local and remote I/O racks, and manages Ethernet communication while operating through the controller backplane.
Suffix Breakdown & Model Matrix
The supplied documentation identifies 900C30-0360-00 as a single catalog number. Honeywell does not define an official suffix breakdown for this model in the provided technical documentation. Therefore, no suffix interpretation is presented.
Hardware Specifications
Parameter
Specification
Model
900C30-0360-00
Brand
Honeywell
Product Series
ControlEdge HC900
Product Type
CPU Module
Processor Architecture
32-bit RISC-based PowerPC (e300)
Memory
64 MB RAM
Function Block Capacity
Up to 400 function blocks
Communication Interface
Ethernet, RJ45
Configuration Interface
Ethernet
Peer-to-Peer Communication
Supported
I/O Expansion
Supports local and remote I/O racks
I/O Capacity
Scalable analog and digital I/O according to system architecture
Power Supply
Rack backplane, typically 5 VDC
Configuration Software
Honeywell Hybrid Control Designer
4-20 mA HART Integration and Process Control Connectivity
The 900C30-0360-00 exchanges process data with HC900 I/O modules that support standard 4-20 mA instrumentation and HART communication. Consequently, the CPU executes control strategies while the associated I/O modules acquire field measurements and manage analog or digital outputs.
Furthermore, Ethernet interfaces provide controller configuration, online diagnostics, peer-to-peer communication, and engineering access through Hybrid Control Designer. The controller also coordinates local and remote I/O racks over the HC900 architecture, allowing the control system to expand without changing the CPU hardware.
Frequently Asked Questions
Q: Does the 900C30-0360-00 support online firmware updates while the controller remains in operation?A: The supplied documentation does not specify online firmware update capability. Firmware maintenance should follow Honeywell HC900 service procedures.
Q: Can the CPU communicate with remote I/O racks?A: Yes. The controller supports both local and remote I/O expansion within the Honeywell ControlEdge HC900 architecture.
Q: Is the CPU module hot-swappable?A: The supplied documentation does not specify hot-swap support. Remove or install the module only according to the controller maintenance procedure and system shutdown requirements defined by Honeywell.
Field Installation Guidelines
Verify that the controller rack is correctly powered before installing the CPU module.
Fully engage the module with the backplane connector, and secure the retaining hardware before energizing the rack.
Connect Ethernet cables separately from high-voltage power conductors to reduce electrical interference.
Maintain proper cabinet grounding and terminate cable shields according to the plant grounding standard.
Confirm controller communication after installation by verifying Ethernet connectivity and I/O status using Hybrid Control Designer.
Back up the controller configuration before replacing the CPU module or performing firmware maintenance.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Honeywell 900U02-0100 Universal I/O Module
Configured for configurable analog and digital signal processing in the Honeywell ControlEdge HC900 platform, the Honeywell 900U02-0100 (900U02 Universal I/O Module) provides direct physical and electrical execution. The module supports software-selectable AI, AO, DI, and DO functions on each channel, accepts 4-20 mA process signals with HART communication support, and incorporates line monitoring, short-circuit protection for digital outputs, and configurable redundancy for process control applications.
Hardware Specifications
Parameter
Specification
Model
900U02-0100
Brand
Honeywell
Product Type
Universal I/O Module
Origin
USA
Place of Shipment
Xiamen, China
Weight
0.2 kg
Dimensions
13.4 x 3.3 x 5.4 cm
Field Supply Voltage
24 VDC
Non-redundant Configuration
16 channels
Redundant Configuration
14 channels
Input Channels
Maximum 16 per module
Input Range
4-20 mA
A/D Converter Resolution
16 bit
Update Rate
10 ms
Channel Load
500 mA per channel
Maximum Module Load
4.2 A
ESCP Protection
620 mA resettable
Input Impedance
250 Ohm nominal
Crosstalk
58 dB, DC to 60 Hz, channel-to-channel
Output Current Range
2.4 mA to 21 mA, directly configurable
Maximum Resistive Load
7504 Ohm
Digital Output Protection
Short-circuit protection
HART Support
Supported
Channel Configuration
AI, AO, DI, or DO by software
Line Monitoring
Available for all configurations
4-20 mA HART Loop and Channel Configuration
The module supports standard 4-20 mA process loops together with HART communication, allowing analog measurement and digital device communication over the same wiring pair. Each channel can be configured independently through software as an analog input, analog output, digital input, or digital output without hardware replacement.
The 16-bit A/D converter provides digital conversion for analog input signals, while the nominal 250 Ohm input impedance matches standard current-loop installations. In addition, the module maintains 58 dB channel-to-channel crosstalk performance from DC to 60 Hz, reducing interference between adjacent channels during mixed signal operation.
Digital output channels include integrated short-circuit protection, and line monitoring remains available regardless of the selected I/O configuration. Therefore, the same hardware platform can support different field signal combinations while maintaining a common wiring architecture.
Frequently Asked Questions
Q: Does the 900U02-0100 require different hardware for AI, AO, DI, and DO functions?A: No. Each channel is software configurable as an analog input, analog output, digital input, or digital output according to the control strategy.
Q: Does the module support HART field instruments?A: Yes. The module supports HART communication on compatible 4-20 mA loops.
Q: Can all 16 channels remain available in a redundant installation?A: No. The module supports 16 channels in a non-redundant configuration and 14 channels when configured for redundancy.
Field Installation Guidelines
Verify that the field supply provides 24 VDC before connecting field wiring.
Separate analog signal cables from high-voltage or motor power cables to reduce electrical noise.
Connect cable shields according to the plant grounding specification to minimize electromagnetic interference.
Confirm channel configuration before energizing field devices because each channel can operate as AI, AO, DI, or DO.
Ensure that field current and resistive loads remain within the specified module ratings.
Inspect terminal wiring after installation and verify loop continuity before placing the module into service.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Honeywell 900TEK-0101 Terminal Block
Configured for field wiring termination in Honeywell ControlEdge HC900 modular control systems, the Honeywell 900TEK-0101 (900TEK-0101 Terminal Block) provides direct physical connection between I/O module terminals and external field circuits.
Hardware Specifications
Parameter
Specification
Model
900TEK-0101
Brand
Honeywell
Origin
United States
Operating Temp
Industrial control cabinet environment; specific rating not provided
Power Consumption
Passive terminal component; no external power consumption
Device Type
Low Voltage Terminal Block / I/O Connection Accessory
Electrical Rating
16 A / 300 V
Compatible Wire Range
AWG #14 to #26 solid or stranded; AWG #12 stranded
Terminal Tightening Torque
7 lb-in (approx. 0.79 N m)
Mounting Type
DIN rail or modular rack compatible
Application
Field signal termination, I/O wiring connection, power distribution interfaces
Process Control Wiring Interface and Signal Termination
The 900TEK-0101 operates as a passive connection interface within Honeywell modular control assemblies. It provides mechanical retention for field conductors while maintaining the electrical path between external devices and controller I/O terminals.
In addition, the terminal block design supports organized cabinet wiring practices for process control installations. The component does not process signals, execute logic, or provide communication functions. Instead, it maintains direct conductor termination for connected I/O circuits.
For Honeywell process control architectures, terminal accessories support structured wiring arrangements where signal integrity depends on correct conductor routing, termination torque, and separation between signal and power circuits. Channel-to-channel isolation is implemented by the connected I/O modules rather than the passive terminal block itself.
Frequently Asked Questions (FAQ)
Q: Does the Honeywell 900TEK-0101 provide signal conversion or isolation functions?A: No. The 900TEK-0101 is a passive terminal block. Signal conversion, conditioning, and electrical isolation depend on the connected Honeywell I/O module.
Q: Can the 900TEK-0101 be used for field wiring termination in ControlEdge HC900 systems?A: Yes. The component provides terminal access for connecting external field conductors to compatible Honeywell modular I/O assemblies.
Q: What installation factors affect terminal connection performance?A: Proper conductor selection, correct tightening torque, cabinet grounding practice, and separation from high-voltage wiring affect long-term connection performance.
Field Installation Guidelines
Install the 900TEK-0101 inside an approved industrial control cabinet with appropriate environmental protection.
Use conductors within the specified wire range and secure each connection using the recommended terminal tightening torque. Avoid excessive mechanical stress on field wires because vibration can affect conductor retention.
Route low-level signal wiring separately from high-voltage power cables to reduce electrical interference. Maintain proper grounding practices for cable shields when shielded instrumentation wiring is used.
Before system commissioning, verify terminal assignments against the Honeywell control system wiring documentation. Confirm conductor identification, polarity, and field device connections before applying system power.
Configured for field wiring termination in Honeywell ControlEdge HC900 modular control systems, the Honeywell 900TEK-0101 (900TEK-0101 Terminal Block) provides direct physical connection between I/O module terminals and external field circuits.
Hardware Specifications
Parameter
Specification
Model
900TEK-0101
Brand
Honeywell
Origin
United States
Operating Temp
Industrial control cabinet environment; specific rating not provided
Power Consumption
Passive terminal component; no external power consumption
Device Type
Low Voltage Terminal Block / I/O Connection Accessory
Electrical Rating
16 A / 300 V
Compatible Wire Range
AWG #14 to #26 solid or stranded; AWG #12 stranded
Terminal Tightening Torque
7 lb-in (approx. 0.79 N m)
Mounting Type
DIN rail or modular rack compatible
Application
Field signal termination, I/O wiring connection, power distribution interfaces
Process Control Wiring Interface and Signal Termination
The 900TEK-0101 operates as a passive connection interface within Honeywell modular control assemblies. It provides mechanical retention for field conductors while maintaining the electrical path between external devices and controller I/O terminals.
In addition, the terminal block design supports organized cabinet wiring practices for process control installations. The component does not process signals, execute logic, or provide communication functions. Instead, it maintains direct conductor termination for connected I/O circuits.
For Honeywell process control architectures, terminal accessories support structured wiring arrangements where signal integrity depends on correct conductor routing, termination torque, and separation between signal and power circuits. Channel-to-channel isolation is implemented by the connected I/O modules rather than the passive terminal block itself.
Frequently Asked Questions (FAQ)
Q: Does the Honeywell 900TEK-0101 provide signal conversion or isolation functions?A: No. The 900TEK-0101 is a passive terminal block. Signal conversion, conditioning, and electrical isolation depend on the connected Honeywell I/O module.
Q: Can the 900TEK-0101 be used for field wiring termination in ControlEdge HC900 systems?A: Yes. The component provides terminal access for connecting external field conductors to compatible Honeywell modular I/O assemblies.
Q: What installation factors affect terminal connection performance?A: Proper conductor selection, correct tightening torque, cabinet grounding practice, and separation from high-voltage wiring affect long-term connection performance.
Field Installation Guidelines
Install the 900TEK-0101 inside an approved industrial control cabinet with appropriate environmental protection.
Use conductors within the specified wire range and secure each connection using the recommended terminal tightening torque. Avoid excessive mechanical stress on field wires because vibration can affect conductor retention.
Route low-level signal wiring separately from high-voltage power cables to reduce electrical interference. Maintain proper grounding practices for cable shields when shielded instrumentation wiring is used.
Before system commissioning, verify terminal assignments against the Honeywell control system wiring documentation. Confirm conductor identification, polarity, and field device connections before applying system power.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Honeywell 900R12-0001 12-Slot I/O Rack
Configured for module mounting and backplane signal distribution in the Honeywell ControlEdge HC900 system, the Honeywell 900R12-0001 (900R12-0001 12-Slot I/O Rack) provides direct physical support and electrical interconnection for controller, power, and I/O modules.
Hardware Specifications
Parameter
Specification
Model
Honeywell 900R12-0001
Brand
Honeywell
Origin
USA
Weight
Approx. 8.0 lbs (3.6 kg)
Dimensions
Approx. 16.0 in x 5.0 in x 5.0 in (40.6 cm x 12.7 cm x 12.7 cm)
Power Consumption
Passive rack assembly; power consumption depends on installed modules
Product Family
ControlEdge HC900
Hardware Type
12-Slot I/O Rack
Slot Capacity
12 module positions
Mounting Type
Panel mount / DIN rail mount depending on system configuration
Supported Modules
Controller modules, scanner modules, power supplies, and I/O modules
Application Function
Module mounting, backplane communication, and power distribution
ControlEdge HC900 Backplane Integration
The Honeywell 900R12-0001 provides the mechanical frame and electrical backplane interface for ControlEdge HC900 controller assemblies. It distributes internal communication paths between installed modules and maintains module alignment within the chassis.
The rack supports modular I/O density scaling by allowing different combinations of analog and digital I/O cards. In addition, the backplane architecture enables controller modules to exchange configuration and process data with installed field interface modules.
For Honeywell process control platforms, module-level integration commonly includes channel-to-channel isolation requirements and field signal conditioning interfaces. The 900R12-0001 itself functions as the mounting and interconnection structure rather than a signal conversion device.
Frequently Asked Questions
Q: Does the Honeywell 900R12-0001 provide signal conversion or field input processing?A: No. The 900R12-0001 is an I/O rack assembly. Installed I/O modules perform signal acquisition, conversion, and channel processing functions.
Q: Can the rack operate without installed controller or I/O modules?A: The rack provides mechanical mounting and backplane connections, but it requires compatible ControlEdge HC900 modules to perform control operations.
Q: Does the rack support module replacement during operation?A: Hot-swap capability depends on the installed HC900 module type and system configuration. Follow the module-specific replacement procedure defined by Honeywell.
Field Installation Guidelines
Install the Honeywell 900R12-0001 on a stable industrial mounting surface with adequate mechanical support. Verify that the rack orientation allows proper module insertion and removal.
Use recommended grounding practices for the control cabinet. Connect protective earth and shield grounding according to the cabinet design and site electrical standards.
Route field wiring separately from high-voltage power conductors to reduce electrical interference. Maintain proper cable separation between communication wiring, analog signals, and power circuits.
Before installing modules, inspect the rack connectors and backplane contacts for contamination or physical damage. Confirm that all installed modules are correctly seated and secured before applying system power.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Honeywell 900R08-0101 8-Channel Relay Output Module
Configured for discrete relay switching in Honeywell ControlEdge HC900 and Experion Process Knowledge System platforms, the Honeywell 900R08-0101 (900R08-0101 8-Channel Relay Output Module) provides direct electrical execution between controller logic and field output devices.
Hardware Specifications
Parameter
Specification
Model
900R08-0101
Brand
Honeywell
Product Type
8-Channel Relay Output Module
System Platform
Honeywell ControlEdge HC900 / Experion PKS
Module Function
Discrete relay output control
Output Channels
8 isolated relay output channels
Relay Type
Form A (SPST - Single Pole Single Throw)
Operating Voltage
24 VDC to 240 VAC, 50/60 Hz; up to 125 VDC
Maximum Channel Current
2.0 A resistive load per channel
Maximum Module Current
8.0 A continuous total load
Isolation
Channel-to-channel and channel-to-logic isolation
Isolation Rating
250 VAC basic insulation
Status Indication
LED indicators for module status, power, and channel state
Mounting Method
DIN rail mounted pluggable module
Operating Temp
0 deg C to 60 deg C
Storage Temp
-40 deg C to 85 deg C
Humidity Range
10% to 90% non-condensing
Origin
USA
Process Control Output Interface and Isolation Characteristics
The Honeywell 900R08-0101 uses relay-based switching channels to convert controller-generated logic commands into physical field outputs. Each relay channel operates independently, and the module separates field circuits from internal controller electronics through electrical isolation.
Furthermore, the module supports discrete control applications where field devices require higher voltage or current switching than the controller output circuitry can directly provide. The channel isolation design reduces electrical interference transfer between field wiring and controller-side electronics.
As part of the Honeywell process control hardware family, the module architecture follows DCS I/O requirements for structured signal handling. In addition, the isolated output design supports connection with actuator coils, solenoid valves, motor starters, and annunciation devices.
Channel Isolation and DCS Signal Management
The 900R08-0101 integrates channel-to-channel isolation technology commonly applied in Honeywell distributed control system I/O modules. This design prevents a fault condition on one output circuit from directly affecting adjacent relay channels.
Moreover, the relay output interface maintains clear separation between logic processing and external electrical loads. The module provides discrete switching functions without requiring direct exposure of controller electronics to field-side voltage levels.
The output module operates as a discrete hardware endpoint within the controller I/O structure, while the system software manages command execution, diagnostics, and channel state monitoring.
Frequently Asked Questions
Q: Does the Honeywell 900R08-0101 support analog output signals?A: No. The 900R08-0101 is a discrete relay output module designed for switching ON/OFF field devices. It does not provide analog current or voltage output functions.
Q: What type of field devices can connect to this relay output module?A: The module connects to discrete electrical loads such as solenoid valves, actuators, motor starters, and indicator devices within the specified relay contact ratings.
Q: Does the module provide channel isolation?A: Yes. The module provides channel-to-channel and channel-to-logic isolation to separate field circuits from controller electronics.
Field Installation Guidelines
Install the module on the designated Honeywell controller I/O terminal assembly and verify correct mechanical engagement before operation.
Separate relay output wiring from low-level analog signal wiring to reduce electromagnetic interference.
Connect field grounding and shielding according to the system installation manual and site electrical standards.
Verify relay contact ratings before connecting external loads to prevent contact overstress.
Check LED status indicators after installation to confirm module power and channel operation.
Follow approved procedures when removing or replacing the module to prevent unintended output switching.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Honeywell 900G01-0001 ControlEdge HC900 16-Channel Digital Contact Input Module
Configured for discrete contact state acquisition in the Honeywell ControlEdge HC900 system, the Honeywell 900G01-0001 (900G01-0001 Digital Contact Input Module) provides direct electrical interface execution between field contact devices and controller logic processing.
Hardware Specifications
Parameter
Specification
Model
900G01-0001
Brand
Honeywell
Operating Temp
0 deg C to 60 deg C
Power Consumption
Low power loading from HC900 rack 5 VDC / 24 VDC supply
Product Series
ControlEdge HC900
Module Type
Digital Contact Input (DI) Module
Channel Count
16 independent digital input channels
Input Type
Dry contact / discrete contact closure
Logic High Input Range
10 VDC to 30 VDC
Logic Low Input Range
0 VDC to 3 VDC
Input Impedance
Typically 10 kOhm
Maximum Input Current
10 mA per channel
Maximum Switching Frequency
5 Hz per channel
Isolation Type
Channel-to-chassis and channel group isolation
Mounting Method
HC900 I/O rack and DIN rail compatible
Diagnostics
Front panel LED status indication
Process Control Signal Isolation and Channel Interface
The Honeywell 900G01-0001 processes discrete field contact signals through isolated input channels and transfers logic states to the ControlEdge HC900 controller through the rack backplane. Therefore, the module reduces wiring interference effects and maintains defined signal boundaries between field devices and controller electronics.
The module supports direct connection of dry contacts, including pushbuttons, auxiliary relay contacts, and limit switches. In addition, the input design applies hardware filtering and debounce processing to reduce false transitions caused by mechanical contact vibration.
For Honeywell process control architectures, channel-to-channel isolation supports separated field signal handling. Although this module does not process analog instrument loops, the ControlEdge HC900 platform maintains compatibility with process I/O modules supporting 4-20 mA HART loop protocol and FOUNDATION Fieldbus / Profibus PA communication interfaces.
Frequently Asked Questions
Q: Does the Honeywell 900G01-0001 support hot-swap replacement?A: The ControlEdge HC900 platform supports modular I/O maintenance functions. Installation and removal procedures must follow the controller rack power and maintenance requirements defined by Honeywell documentation.
Q: What field devices can connect to the 900G01-0001 input channels?A: The module accepts discrete contact signals from devices such as pushbuttons, relay auxiliary contacts, and limit switches within the specified input voltage range.
Q: How does the module prevent incorrect input transitions?A: The module applies input filtering and debounce processing to reduce unwanted state changes caused by electrical noise or mechanical contact bounce.
Field Installation Guidelines
Install the module inside the designated Honeywell ControlEdge HC900 I/O rack according to the system hardware configuration requirements.
Separate digital input wiring from high-voltage power cables and switching circuits to reduce electromagnetic interference.
Connect field signal shielding according to the plant grounding practice and avoid creating unintended ground loops.
Verify contact wiring polarity, terminal assignments, and field voltage levels before controller commissioning.
Confirm LED diagnostic indicators after installation to validate input channel status.
Maintain proper cabinet ventilation and follow the environmental limits specified for the HC900 controller system.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Honeywell 900C52-0021 ControlEdge HC900 CPU Controller Module
Configured for process logic execution and control data communication in the Honeywell ControlEdge HC900 system, the Honeywell 900C52-0021 (900C52-0021 CPU Controller Module) provides direct processing and network interface functions for controller operations.
Hardware Specifications
Parameter
Specification
Model
900C52-0021
Brand
Honeywell
Origin
USA
Product Series
ControlEdge HC900
Module Type
CPU / Controller Module
Operating Temp
0 deg C to 60 deg C
Storage Temp
-40 deg C to 70 deg C
Relative Humidity
10% to 90% non-condensing
Power Consumption
Backplane power consumption not specified
Processor Function
Executes control logic, function blocks, sequencing, and data processing
Communication Interface
Ethernet TCP/IP and serial communication interfaces depending on system configuration
Mounting Method
HC900 chassis mounting with DIN rail or rack installation options
Configuration Software
Honeywell Hybrid Control Designer compatible
Process Control Communication and Signal Management
The 900C52-0021 CPU module manages controller execution cycles, I/O data processing, and communication tasks within the ControlEdge HC900 architecture. It processes configured function blocks and maintains data exchange between field I/O modules and supervisory systems.
The module supports industrial communication structures used in process automation systems. In addition, Honeywell controller architectures can integrate field devices through protocols such as 4-20 mA HART loops, FOUNDATION Fieldbus, and Profibus PA when compatible interface modules are installed.
The controller platform applies channel-to-channel isolation through compatible I/O modules to separate field signals and reduce interference during measurement and control operations. Furthermore, cold junction compensation (CJC) functions are handled by applicable thermocouple input modules rather than the CPU module itself.
Frequently Asked Questions (FAQ)
Q: Does the Honeywell 900C52-0021 support redundant controller configurations?A: The 900C52-0021 supports system architectures that include redundant controller arrangements when the installed HC900 configuration and firmware version provide redundancy functions.
Q: What functions does the 900C52-0021 execute inside the HC900 system?A: The module executes programmed control strategies, function blocks, sequential logic, and communication management tasks between controller components.
Q: Can the 900C52-0021 directly perform field signal isolation?A: No. The CPU module performs processing and communication functions. Field signal isolation is provided by compatible HC900 I/O modules.
Field Installation Guidelines
Install the 900C52-0021 module into the designated HC900 chassis slot according to the controller hardware configuration.
Before installation, verify that the chassis power supply is disconnected and confirm that the backplane connector is free from contamination or mechanical damage.
Use proper grounding practices for the controller cabinet. Connect shielded signal cables according to the system grounding design and separate communication wiring from high-voltage power conductors.
After installation, verify firmware compatibility, controller configuration files, and communication settings before placing the system into operation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Honeywell 900CP1-0200 Experion HC900 Control Processor Module
Configured for control logic execution and process data management in the Honeywell Experion HC900 system, the Honeywell 900CP1-0200 (900CP1-0200 Control Processor Module) provides direct processing functions for controller operations, communication handling, and I/O coordination.
Hardware Specifications
Parameter
Specification
Model
900CP1-0200
Brand
Honeywell
Product Series
Experion HC900 Modular Controller
Device Type
CPU / Control Processor Module
Origin
USA
Operating Temp
0 to 60 deg C typical industrial operating range
Power Consumption
Supplied through HC900 rack power system; value depends on rack configuration
Processor Function
Executes control algorithms, sequence logic, data processing, and controller communications
Memory
User-configurable memory for control strategies, configuration data, and controller functions
Communication Interface
Ethernet communication and serial interfaces depending on hardware configuration
Mounting Method
HC900 rack/chassis slot installation
Redundancy Support
Supports redundant controller configurations when applied with compatible HC900 system hardware
Process Control Communication and Signal Integration
The Honeywell 900CP1-0200 manages controller-level execution inside the Experion HC900 architecture. It processes configured function blocks, executes PID control operations, and exchanges process information with connected I/O modules and supervisory systems.
The controller supports industrial communication functions for integration with field devices and host systems. Therefore, engineering teams can configure communication paths for controller data exchange, diagnostics, and system monitoring.
For process instrumentation integration, Honeywell HC900 platforms support interfaces commonly used with process devices, including 4-20 mA HART loop protocol, FOUNDATION Fieldbus, and Profibus PA connectivity through compatible system components. The overall system configuration determines available protocol functions and channel-level isolation requirements.
Frequently Asked Questions
Q: Can the 900CP1-0200 operate as a standalone processor without an HC900 rack?A: No. The module requires installation in a compatible Honeywell HC900 rack system, where the backplane provides power distribution and module communication.
Q: Does the 900CP1-0200 support redundant controller operation?A: Yes. The module supports redundant controller configurations when used with compatible HC900 redundancy hardware and firmware settings.
Q: How should the module be protected during field installation?A: Install the module in the specified HC900 chassis, maintain proper grounding, separate communication wiring from high-voltage cables, and follow Honeywell installation requirements.
Field Installation Guidelines
Install the 900CP1-0200 in the designated HC900 rack slot and confirm correct mechanical engagement with the backplane connector.
Verify rack power availability before inserting or removing the processor module.
Use proper cabinet grounding methods to reduce electrical interference on communication circuits.
Route Ethernet and serial communication cables separately from high-current power wiring.
Confirm firmware compatibility between the processor module and the installed HC900 system configuration before commissioning.
Follow Honeywell technical documentation for module replacement, diagnostics, and controller configuration procedures.
