Description

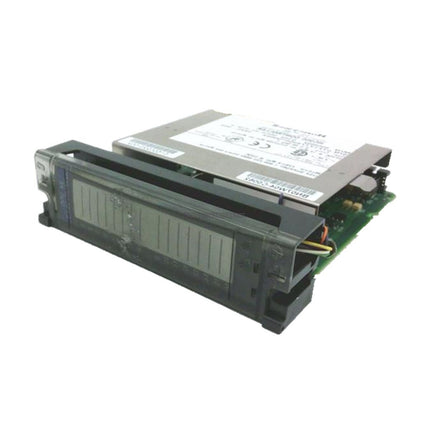

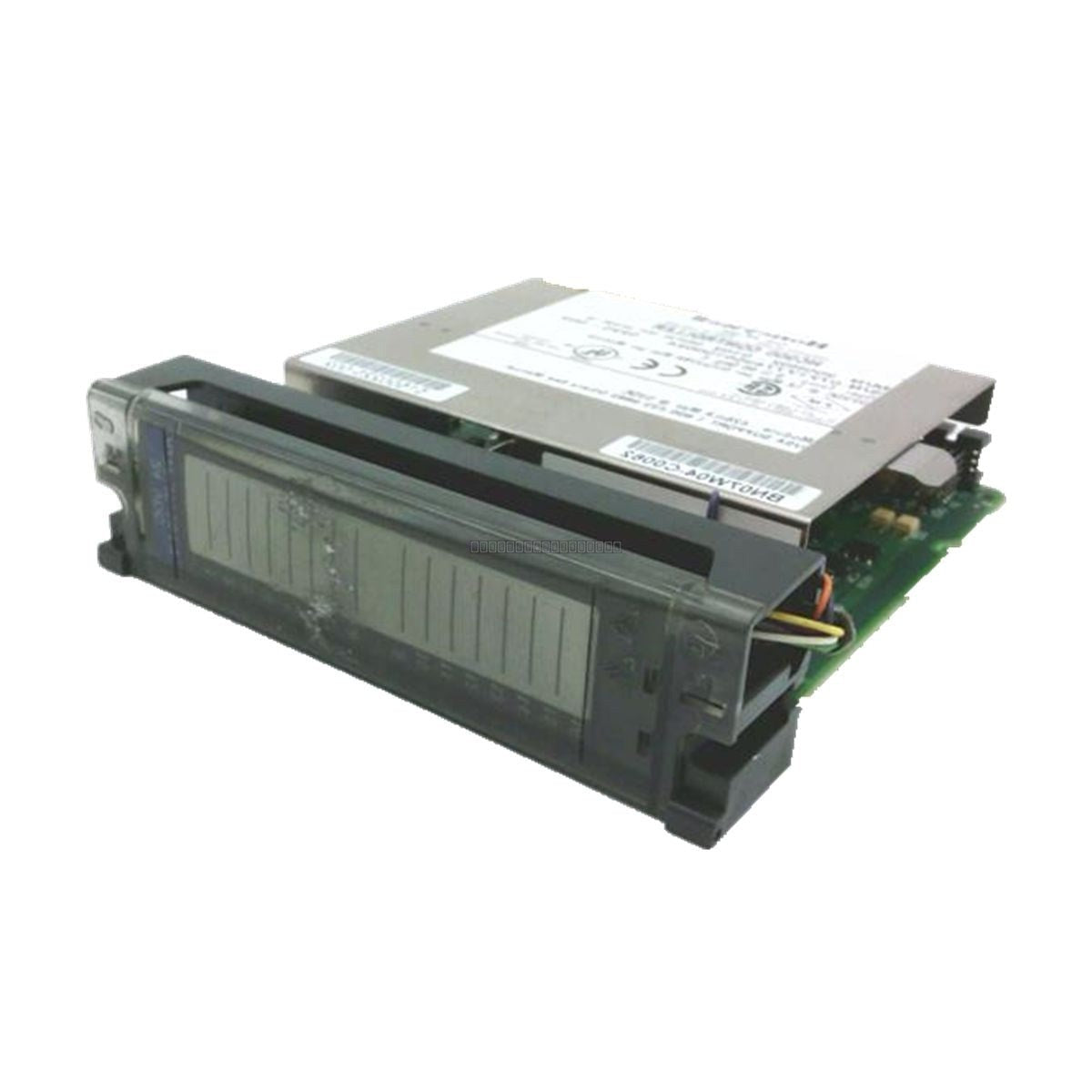

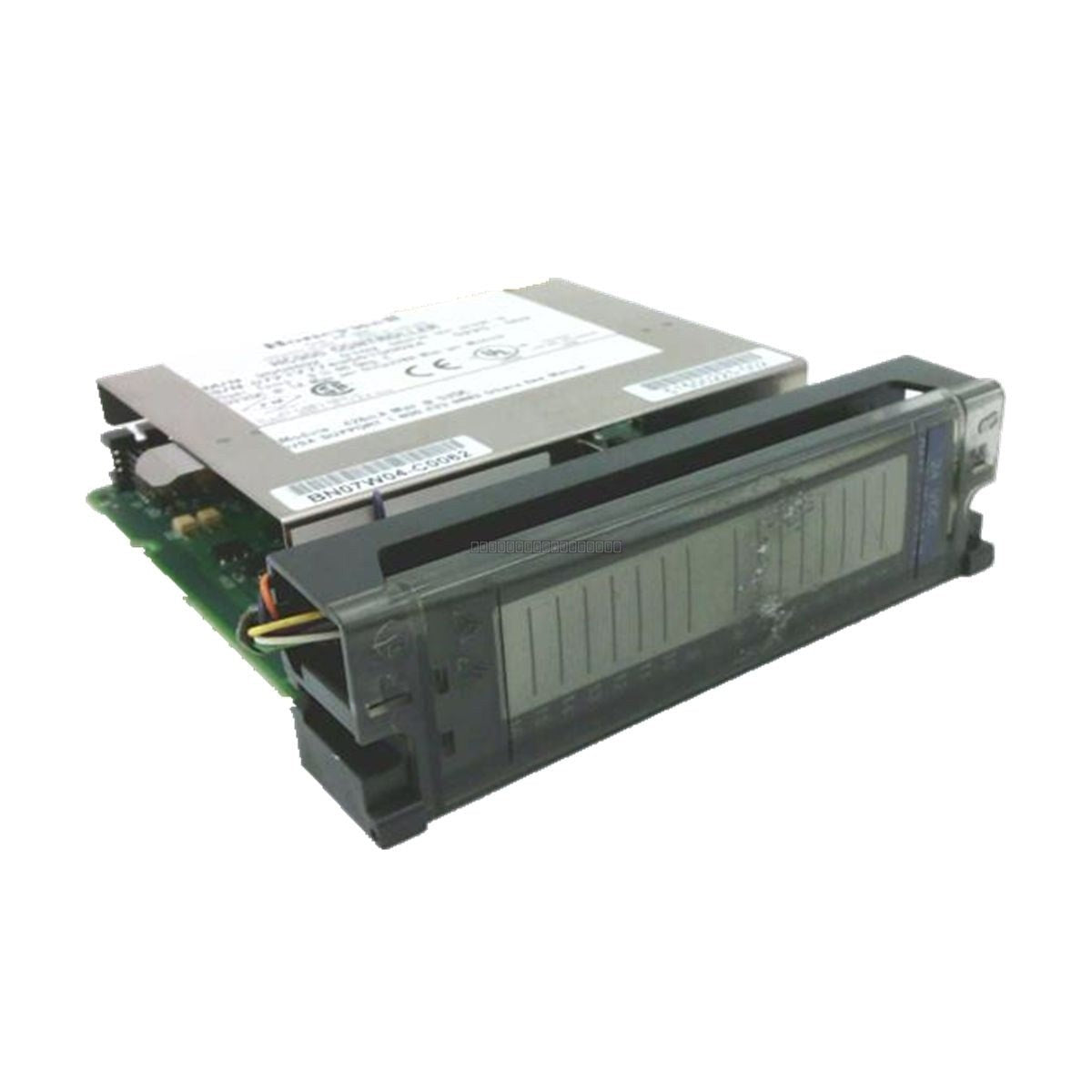

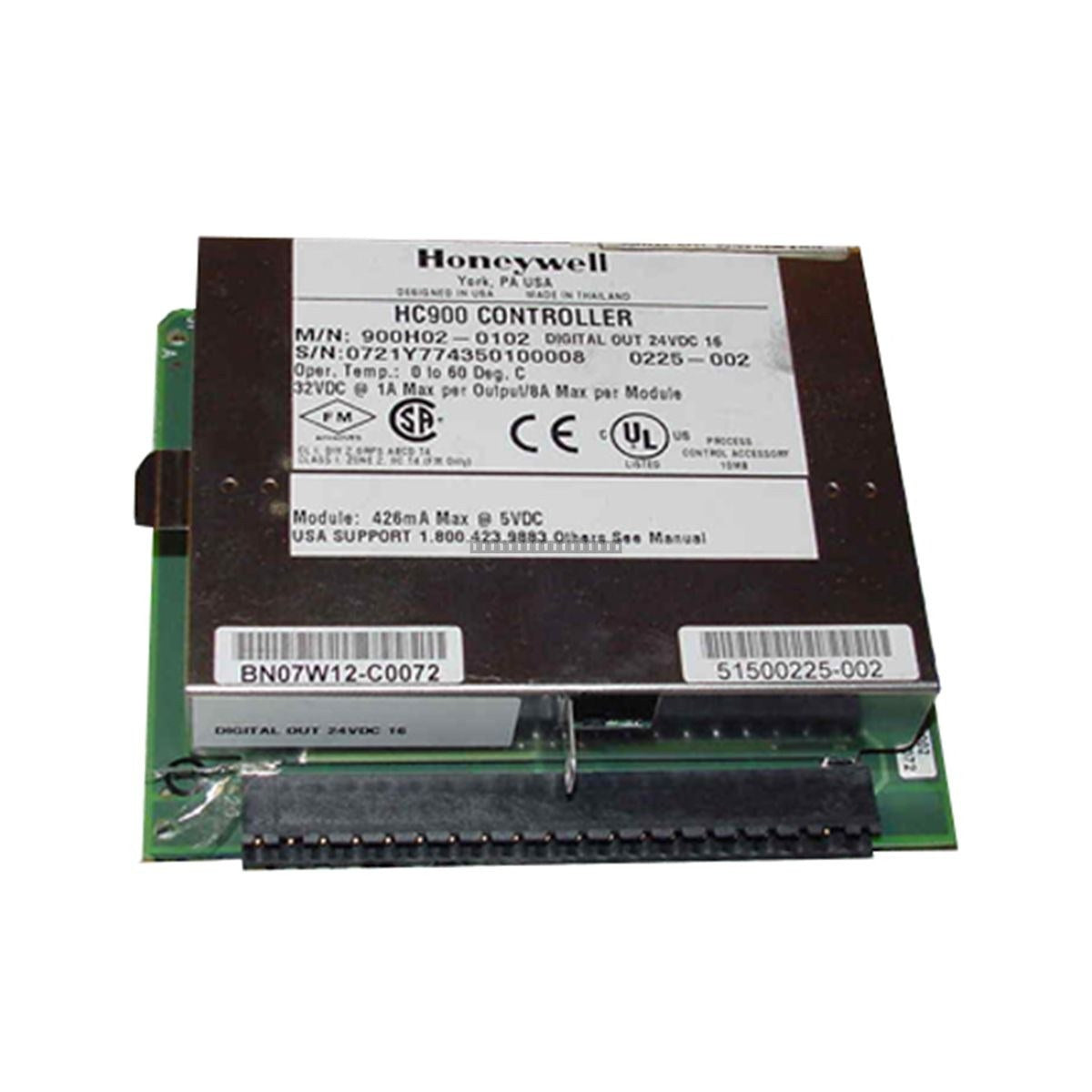

The Honeywell 900H02-0102 is a 16-channel digital output module designed for high-performance control within industrial automation systems. This module provides reliable, high-speed switching for field devices, supporting critical process control applications. Engineered for efficiency and durability, it serves as a robust interface between the control system and external actuators or relays, ensuring consistent operation in demanding industrial environments.
Features
- 16 independent digital output channels for versatile field device control.
- Standard 24 VDC output voltage for broad compatibility with industrial actuators.
- Compact, space-saving design suitable for high-density control cabinets.
- Optimized for low power consumption, contributing to efficient system thermal management.
- Engineered for high reliability and fault-tolerant performance in continuous-duty applications.
Applications
This module is widely utilized in sectors requiring precise digital control, including:
- Oil and Gas processing facilities.
- Power generation and distribution control systems.
- Automated manufacturing and assembly lines.
- General process automation and instrumentation systems.
Technical Specifications
| Model |
900H02-0102 |
| Brand |
Honeywell |
| Channels |
16 Digital Outputs |
| Output Voltage |
24 VDC |
| Power Consumption |
3 W |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the control system is powered down before installing or removing the module to prevent electrical damage.
- Mount the module in a clean, dry environment, ensuring adequate airflow for heat dissipation.
- Use shielded cabling for field connections to minimize EMI interference in high-noise environments.
- Verify that the 24 VDC power supply is correctly wired to the module terminals, observing proper polarity.
- Handle the module using ESD-safe practices to protect internal circuitry.
FAQ
What is the primary function of the 900H02-0102?
The 900H02-0102 is a digital output module used to interface a control system with field devices, providing 16 channels of 24 VDC switching for actuators, relays, or indicators.
What is the operating temperature range for this module?
The module is designed to operate reliably within an ambient temperature range of 0 to 60 deg C.
Does this module require complex configuration?
No, the 900H02-0102 is designed for straightforward integration into Honeywell control systems, simplifying the setup process for industrial applications.
