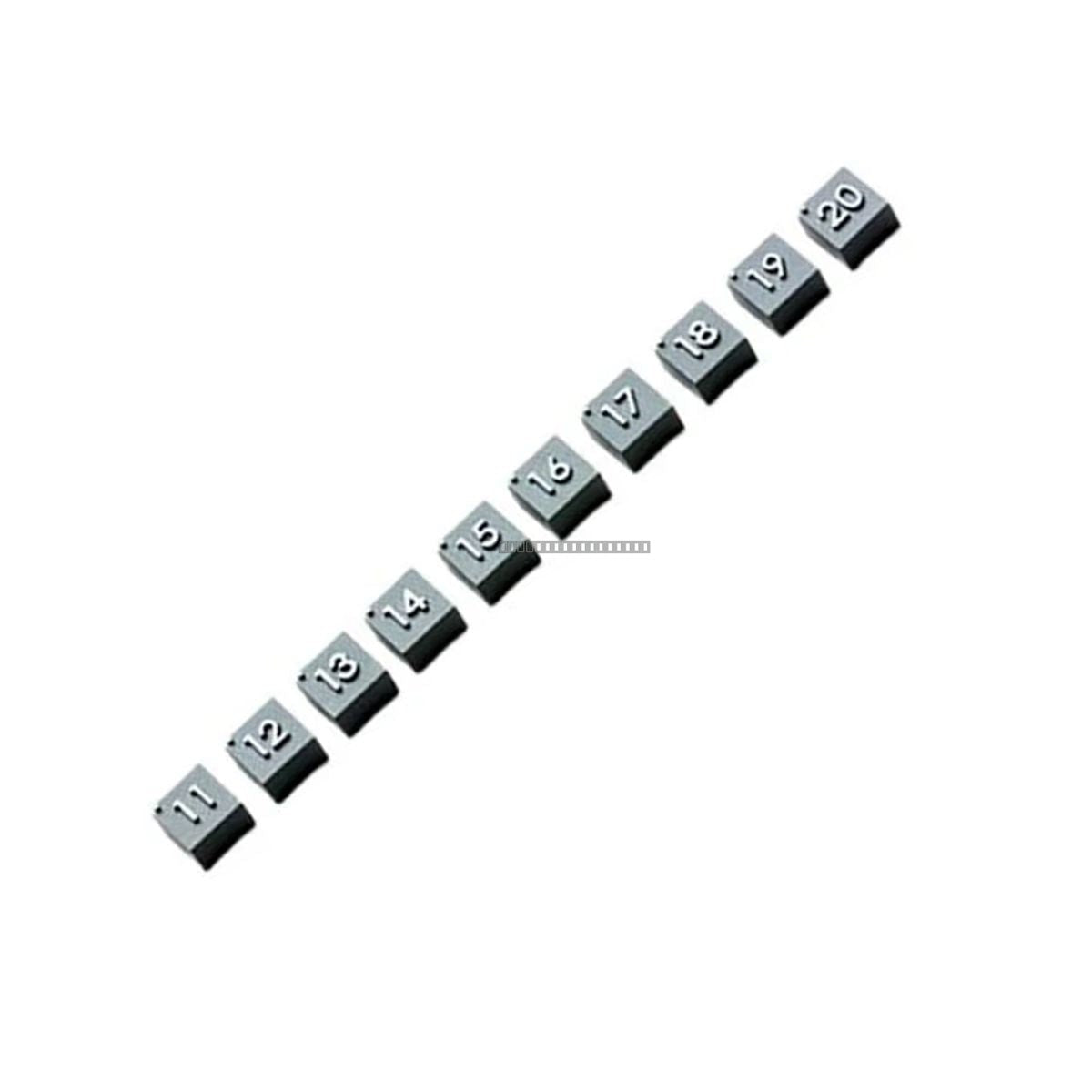

The Honeywell 51153818-203 is a specialized jumper kit featuring gray jumper elements, designed for signal bridging and configuration tasks within Honeywell control system assemblies. This accessory is essential for establishing reliable electrical continuity between terminal points in distributed control systems and I/O termination environments. By facilitating efficient signal routing, the kit supports streamlined commissioning, system testing, and maintenance procedures in demanding industrial applications.
Features
- Provides passive electrical bridging for I/O and control module terminals.
- Engineered for consistent contact resistance and mechanical stability.
- Supports standardized signal mapping and configuration practices.
- Designed for use in high-vibration industrial control cabinet environments.
- Simplifies circuit linking during troubleshooting and system setup.
Applications
This jumper kit is widely utilized in process industries, including power generation, oil and gas, and chemical processing. It is primarily applied in control cabinets for I/O module configuration, signal routing, and temporary circuit linking during installation or maintenance cycles.
Technical Specifications
| Model |
51153818-203 |
| Brand |
Honeywell |
| Product Type |
Jumper Kit |
| Color |
Gray |
| Function |
Electrical terminal bridging |
| Operating Temperature |
0 to 60 deg C |
| Power Consumption |
Passive (None) |
Installation Guidelines
- Ensure the control system is powered down before installing or removing jumper elements to prevent accidental signal disruption or short circuits.
- Verify that the jumper is fully seated within the terminal block to ensure consistent electrical contact.
- Handle with care to avoid bending the contact pins or damaging the housing.
- Use only in compatible Honeywell terminal assemblies as specified by the system hardware manual.
- Maintain a clean, dry environment within the control cabinet to prevent oxidation of the contact surfaces.
FAQ
What is the primary purpose of the 51153818-203 jumper kit?
The kit is used to create electrical bridges between terminal points on Honeywell I/O modules, allowing for specific signal routing or configuration changes required during commissioning and maintenance.
Are these jumpers active components?
No, these are passive electrical components designed solely for mechanical and electrical interconnection between terminals; they do not contain active circuitry or communication protocols.
