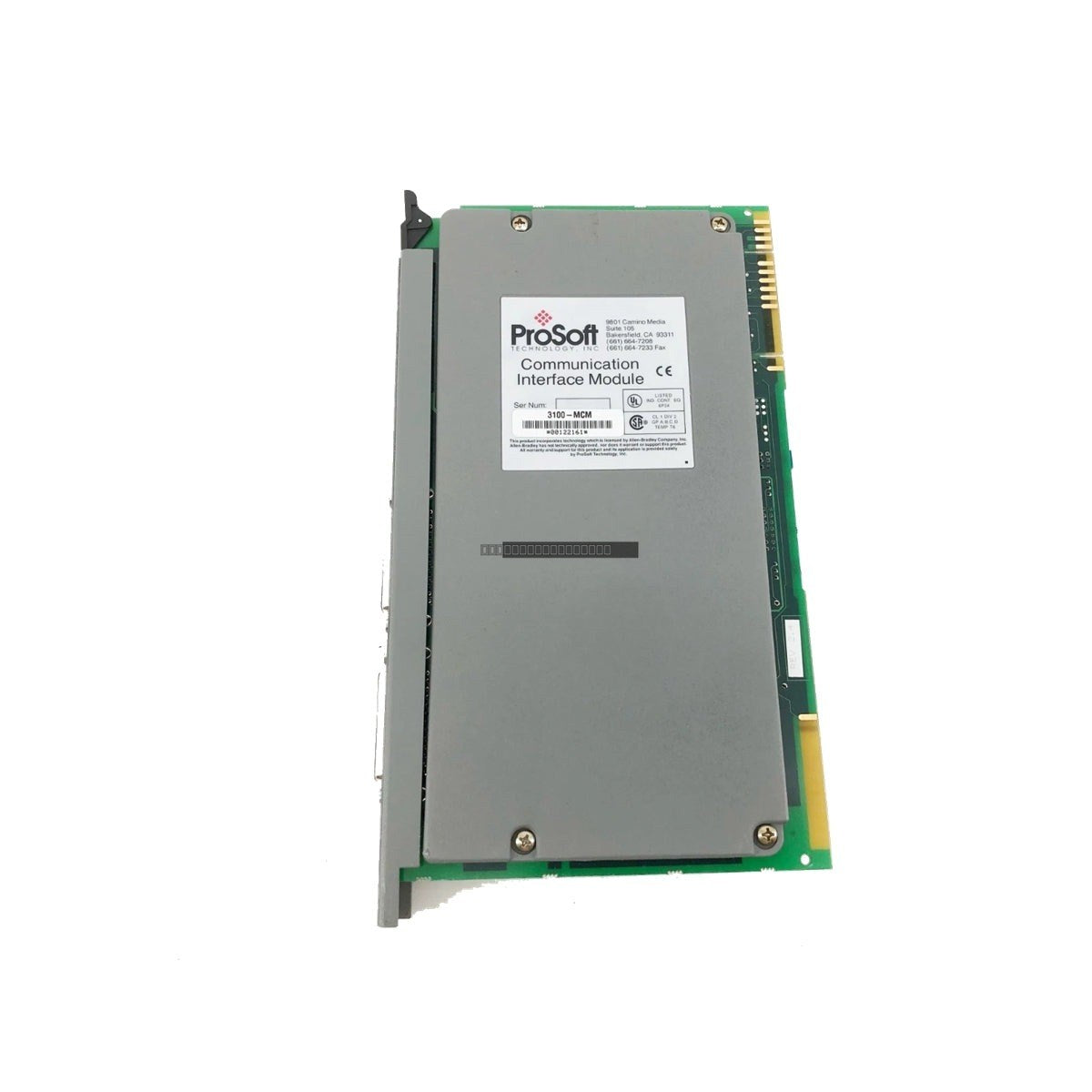

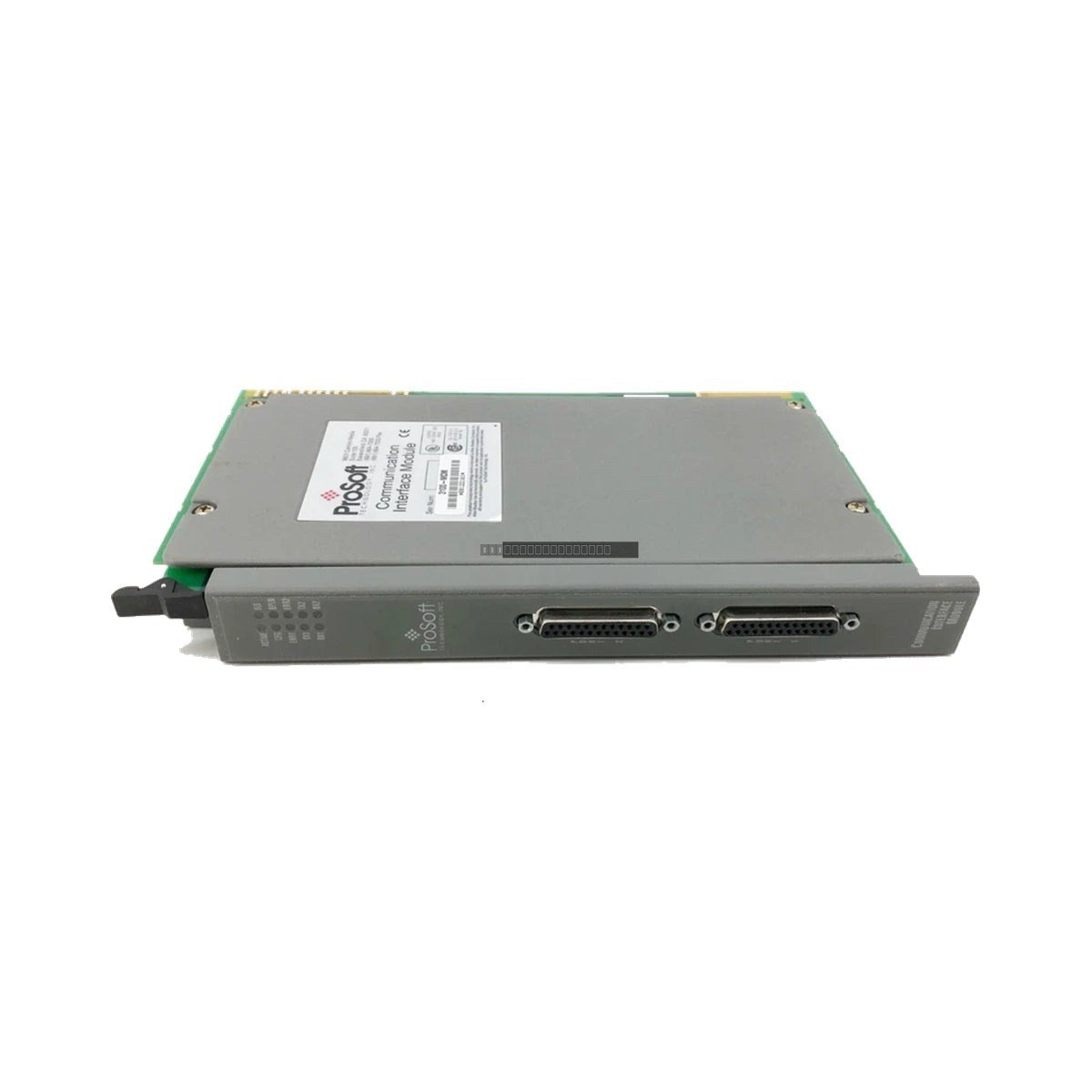

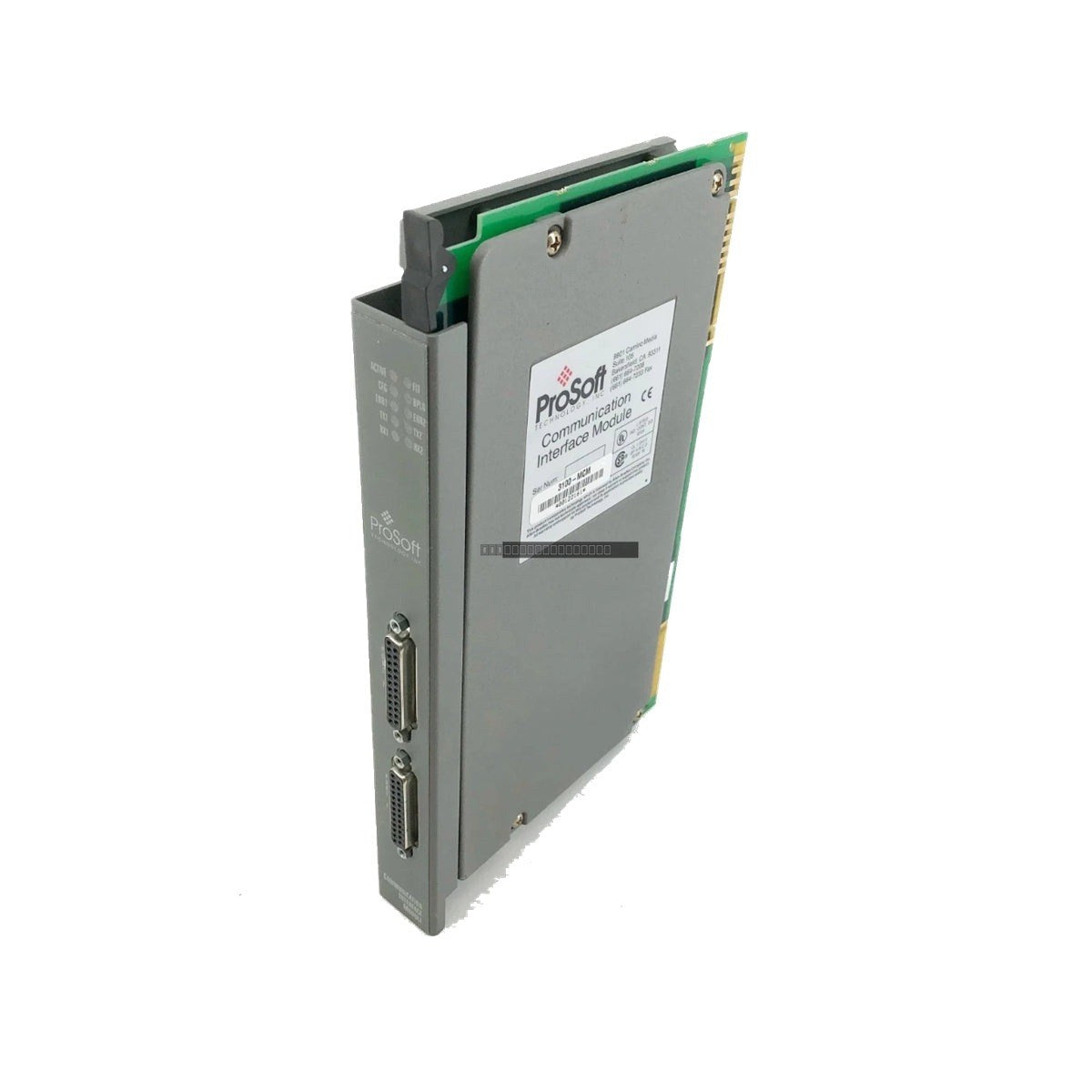

The ProSoft 3100-MCM is a specialized communication interface module designed to integrate Modbus devices into the Allen-Bradley PLC-5 architecture. This single-slot module serves as a bridge, allowing the PLC to exchange data with various field instruments, including motor drives, power monitors, and process sensors. It is widely utilized in industrial environments to modernize legacy systems and provide a reliable link between the control logic and external serial peripherals.
Features
-
Versatile Serial Ports: Equipped with two independent serial ports that support RS-232, RS-422, or RS-485 physical layers. Each port is independently configurable for Modbus Master or Slave operation.
-
Robust Protocol Support: Supports both Modbus RTU and ASCII protocols, handling a wide range of function codes (1, 2, 3, 4, 5, 6, 15, and 16) for comprehensive command control.
-
Data Reliability: Integrated hardware-level parity checking and CRC/LRC error detection maintain high data integrity over extended cable runs.
-
PLC-5 Integration: Designed for direct installation into the PLC-5 backplane, drawing power directly from the chassis to minimize external wiring requirements.
Applications
This module is engineered for demanding industrial settings, such as oil and gas processing, power generation, and heavy manufacturing. It is ideal for scenarios requiring the PLC to function as a Master unit to poll field devices or as a Slave unit to report data to a higher-level SCADA or DCS system.
Technical Specifications
| Model |
3100-MCM |
| Brand |
ProSoft Technology |
| Backplane Current Draw |
0.5 A at 5 VDC |
| Communication Ports |
2 Serial Ports (RS-232/422/485) |
| Baud Rate Range |
300 to 19,200 bps |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Relative Humidity |
5% to 95% (Non-condensing) |
| Compatibility |
Allen-Bradley PLC-5 series (11, 20, 25, 30, 40, 60) |
Installation Guidelines
- Ensure the PLC-5 chassis is powered down before inserting or removing the 3100-MCM module to prevent electrical damage to the backplane.
- Verify that the module is fully seated in the slot and the chassis locking mechanism is engaged.
- Use shielded twisted-pair cabling for RS-422/485 connections to minimize EMI interference in noisy industrial environments.
- Properly terminate serial lines at the end of the communication bus to prevent signal reflections.
- Maintain adequate airflow around the PLC-5 chassis to ensure the module operates within its specified temperature range of 0 to 60 deg C.
FAQ
Can the 3100-MCM ports be configured for different protocols?
Yes, each of the two ports is independently configurable, allowing one port to act as a Modbus Master while the other functions as a Slave.
Does this module require external power?
No, the 3100-MCM draws its operating power directly from the PLC-5 backplane.
