تتحكم محركات الدفع والعاكسات في سرعة وعزم دوران المحركات الصناعية. فهي تُحسّن الكفاءة، وتُخفّض تكاليف الطاقة، وتُحافظ على استقرار الإنتاج. نُزوّد ABB وSiemens وAllen-Bradley وغيرها من العلامات التجارية الموثوقة بمنتجات متوفرة عالميًا.
محركات المحركات والعاكسات
-
General Electric GE Multilin 369-HI-0-0-0-0 Motor Protection System
GE Multilin 369-HI-0-0-0-0 Motor Protection System The GE Multilin 369-HI-0-0-0-0, also cataloged as the 369 Motor Protection Relay System, operates as a dedicated hardware component for three-phase motor protection, monitoring, and control within GE Multilin motor management platforms. Hardware Specifications Parameter Specification Model 369-HI-0-0-0-0 Brand GE Multilin Weight 10 lbs Dimensions 29.6 cm x 10.7 cm x 20.5 cm Operating Temp -40 deg C to +60 deg C Power Consumption Nominal 10 W, maximum 20 W Control Power Supply 90-300 VDC or 70-265 VAC, 47-63 Hz Phase Current Inputs 1 A or 5 A secondary selectable Ground CT Input 1 A, 5 A, or 50:0.025 HGF ground CT RTD Inputs 12 programmable RTD inputs Digital Inputs 8 configurable dry-contact inputs Relay Outputs 4 Form-C SPDT control output relays Relay Contact Rating 12 A continuous, 30 A make for 0.2 sec at 250 VAC / 30 VDC Communication Interface RS485 Modbus RTU, front RS232 configuration port Display Interface 40-character backlit LCD with LED status indicators Mounting Type Panel mount, drawout or standard cutoff cutout Enclosure Rating IP54 / NEMA 12 front panel when mounted GE Multilin Motor Protection Firmware and Network Compatibility The 369 motor protection system uses microprocessor-based processing for thermal capacity calculation, overload curve execution, phase overcurrent protection, ground fault detection, stall protection, mechanical jam detection, undercurrent monitoring, and current unbalance analysis. The relay records sequence of events, trip records, motor start statistics, and diagnostic measurements through the embedded firmware functions. The HI control power configuration supports the 90-300 VDC and 70-265 VAC supply range. The relay provides RS485 Modbus RTU communication for integration with industrial monitoring systems. Firmware configuration and parameter management are performed through the front RS232 interface using EnerVista 369 Setup Software. Frequently Asked Questions Q: Does the 369-HI-0-0-0-0 include optional RTD input hardware?A: The 369-HI-0-0-0-0 base configuration does not include optional RTD inputs. RTD capability depends on the selected model configuration. Q: What current transformer inputs are supported by the relay?A: The relay supports phase current inputs with 1 A or 5 A secondary selection and supports ground current measurement through compatible ground CT configurations. Q: What communication protocol is available on the standard unit?A: The standard unit provides an RS485 serial interface supporting Modbus RTU communication. Field Installation Guidelines Install the relay in a suitable panel enclosure with correct mechanical clearance for the rear terminals, wiring access, and service operation. Connect current transformer circuits using properly rated conductors and maintain correct CT polarity for phase and ground measurement accuracy. Separate low-level communication wiring from high-current motor power conductors to reduce electromagnetic interference. Terminate RS485 communication wiring according to the network topology requirements and apply appropriate cable shielding and grounding practices. Verify control power polarity for DC supply applications and confirm the AC supply frequency range before energizing the device. Check all trip, alarm, and auxiliary relay wiring against the application control diagram before commissioning.
$200.00 $100.00
-
General Electric GE Multilin 369B1841G0130 Motor Management Relay Module
GE Multilin 369B1841G0130 Motor Management Relay Module Configured for three-phase motor protection and monitoring in the GE Multilin 369 Series Motor Management System, the GE Multilin 369B1841G0130 (369B1841G0130 Motor Management Relay Module) provides direct physical/electrical execution of current sensing, thermal protection, fault processing, and control relay functions. Hardware Specifications Parameter Specification Model 369B1841G0130 Brand GE Multilin Origin General Electric Product Series Multilin 369 Series Motor Management Relay Product Type Motor Management Relay Module Application Medium and large three-phase AC induction motor protection and control Current Inputs 1 A or 5 A phase CT secondary inputs Control Power High range: 60-265 VAC / 50-300 VDC; Low range: 20-48 VAC / 20-60 VDC Frequency Range 50 / 60 Hz nominal Communication Interface RS485 serial communication with Modbus RTU protocol Ethernet Communication Optional Modbus TCP/IP through expansion module Output Relays Up to 4 output relays: Trip, Alarm, Auxiliary 1, Auxiliary 2 Mounting Type Panel mount / drawout case options Operating Temp -40 deg C to +60 deg C Storage Temp -40 deg C to +80 deg C Power Consumption Not specified in available technical data Profinet / EtherNet-IP Deterministic Network and Firmware Compatibility Features The GE Multilin 369B1841G0130 operates as part of the Multilin 369 motor protection platform with processor-based protection logic, configurable settings storage, and communication-driven data exchange. The relay processes phase current measurements, thermal model calculations, trip conditions, and event records through embedded firmware functions. The unit supports RS485 Modbus RTU communication for connection to supervisory systems. Optional communication expansion enables additional network integration paths. Firmware compatibility is managed through GE Multilin configuration tools, allowing field updates of relay settings and supported firmware functions. The motor protection algorithm includes dynamic thermal modeling based on motor heating and cooling characteristics. Protection elements include short circuit, ground fault, phase loss, phase reversal, mechanical jam, undercurrent, and motor restart supervision functions. Frequently Asked Questions Q: What type of current input signals are accepted by the 369B1841G0130?A: The relay accepts phase current inputs from 1 A or 5 A current transformer secondary circuits for motor current measurement and protection calculations. Q: Does the module support direct DCS or SCADA communication?A: Yes. The unit provides RS485 serial communication using Modbus RTU protocol for integration with industrial control and monitoring systems. Q: Can relay settings and firmware functions be modified in the field?A: The 369 Series supports field configuration of protection parameters and field upgradeable settings and firmware functions through compatible GE Multilin configuration software. Field Installation Guidelines Install the relay in a suitable panel-mounted or drawout configuration according to the equipment enclosure requirements and wiring documentation. Connect current transformer secondary wiring with correct polarity and maintain separation between CT circuits, control wiring, and communication cables. Shielded communication cable should be terminated according to RS485 network grounding practices to reduce electrical interference. Verify control power range selection before energization. Confirm that trip, alarm, and auxiliary relay outputs are wired according to the motor starter or protection circuit design. For applications involving variable frequency drives or two-speed motors, validate motor parameters, protection settings, and current measurement scaling before commissioning.
$200.00 $100.00
-
General Electric GE Multilin M60 Motor Protection Relay
GE Multilin M60 Motor Protection Relay The GE Multilin M60, also cataloged as the M60 Motor Protection Relay, operates as a dedicated hardware component for three-phase motor protection, control logic execution, and electrical measurement within GE Multilin Universal Relay (UR) platforms. Hardware Specifications Parameter Specification Model GE Multilin M60 Brand GE Multilin Origin GE Multilin Universal Relay (UR) Platform Operating Temp -40 deg C to +60 deg C Target Application Medium-to-large three-phase induction and synchronous motors Current Inputs 1 A or 5 A secondary CT inputs Voltage Inputs 0-240 V AC nominal VT inputs Control Power Supply HI: 110-250 VDC / 110-240 VAC; LO: 24-48 VDC RTD Inputs Up to 12 configurable RTD inputs Digital I/O Modular UR I/O expansion with Form-A, Form-C, Fast Form-C, and Latch outputs Communication Protocols IEC 61850, Modbus RTU, Modbus TCP/IP, DNP 3.0, IEC 60870-5-104 Network Interfaces 10/100Base-T RJ45, 100Base-FX fiber, RS232, RS422, RS485, G.703, C37.94 Mounting 19-inch rack mount or panel mount Deterministic Network and Firmware Compatibility The GE Multilin M60 integrates industrial communication functions through the Universal Relay (UR) architecture. The relay supports Profinet / EtherNet-IP style deterministic network concepts through high-speed Ethernet communication design, although the listed protocols include IEC 61850, Modbus, DNP 3.0, and IEC 60870-5-104. The modular hardware platform supports firmware flash compatibility within the approved UR device configuration environment. Ethernet interfaces support PRP, HSR, and RSTP network redundancy functions. The M60 provides direct exchange of protection and control data between UR devices through Direct I/O communication. IEEE 1588 time synchronization support enables coordinated event records and disturbance analysis. The relay stores motor operating data, including motor starting characteristics for the last 250 starts and configurable waveform capture records. Frequently Asked Questions Q: Does the M60 support hot-swap replacement of internal modules?A: The M60 uses a modular UR hardware architecture. Module replacement procedures must follow GE Multilin maintenance documentation and approved isolation procedures. Hot-swap capability depends on the specific installed module type. Q: What type of current transformer inputs are supported by the M60?A: The M60 supports configurable 1 A or 5 A secondary CT inputs through the installed hardware configuration. Q: How does the M60 process motor thermal conditions?A: The relay uses a thermal model that calculates motor heating conditions using current measurements, current unbalance factors, ambient temperature compensation, and optional RTD inputs. Field Installation Guidelines Install the relay in a suitable panel or 19-inch rack assembly according to the mechanical installation requirements of the selected enclosure. Maintain separation between CT wiring, VT wiring, communication cables, and high-voltage power conductors to reduce electrical interference. Connect cable shields according to the site grounding standard and avoid multiple unintended grounding paths. Verify CT polarity and phase sequence before energizing protection functions. Confirm VT input wiring and frequency settings before applying voltage measurements. Configure communication parameters, network addresses, and protection settings before placing the relay into service. Verify firmware compatibility before performing any software update procedure.
$200.00 $100.00
-
General Electric GE Multilin 239-AN Motor Protection Relay
GE Multilin 239-AN Motor Protection Relay Configured for three-phase AC induction motor protection and analog telemetry execution in GE Multilin 239 Motor Protection Relay platforms, the GE Multilin 239-AN (239-AN Motor Protection Relay) provides direct physical/electrical execution. Hardware Specifications Parameter Specification Model GE Multilin 239-AN Brand GE Multilin Weight 5 lbs Dimensions 1/4 DIN standard panel mount footprint Operating Temp -20 deg C to +60 deg C Power Consumption Max 10 VA AC / 10 W DC Control Power Supply 90-300 VDC / 70-265 VAC or 20-60 VDC / 20-48 VAC depending on model Phase Current Inputs 1 A or 5 A CT secondary, field configurable Analog Output 4-20 mA or 0-1 mA DC programmable output Communication Port RS485 serial interface Communication Protocol Modbus RTU / GE Multilin protocol Relay Outputs Assignable Form-C (SPDT) relays Relay Contact Rating 8 A continuous at 250 VAC / 30 VDC Frequency Range 20 to 70 Hz Display Interface LCD display with status and trip LEDs Mounting Type Panel mount GE Multilin Industrial Control Communication Features The GE Multilin 239-AN integrates motor protection measurement with PLC/DCS interface functions through an isolated RS485 communication channel and programmable analog output. The 4-20 mA or 0-1 mA signal output can transmit thermal capacity used, motor load current, and related operating values for external monitoring systems. The relay supports deterministic serial communication through Modbus RTU protocol and GE Multilin communication protocol. The module includes a 36 VDC isolated active source communication interface with configurable baud rates from 1200 to 12k bps. The firmware-controlled protection platform performs thermal modeling, current measurement, and trip logic processing. Functions include thermal overload protection with memory, short circuit detection, ground fault monitoring, phase loss detection, phase unbalance protection, locked rotor protection, undercurrent detection, and RTD or thermistor temperature input monitoring when equipped. Frequently Asked Questions Q: Does the GE Multilin 239-AN support hot-swap replacement during operation?A: The 239-AN is designed as a panel-mounted motor protection relay. Hot-swap operation is not specified. Replacement should be performed with the motor circuit and relay control power isolated according to site procedures. Q: What communication interface is available for PLC or DCS integration?A: The relay provides an isolated RS485 serial port supporting Modbus RTU and GE Multilin communication protocol. Q: How are motor current signals processed by the relay?A: The relay accepts 1 A or 5 A CT secondary inputs and performs RMS measurement, protection calculations, and thermal model processing. Field Installation Guidelines Install the GE Multilin 239-AN in a standard 1/4 DIN panel cut-out with adequate clearance for wiring access and maintenance. Verify that control power voltage matches the selected relay power supply range before energization. Use twisted shielded wiring for RS485 communication connections where required by the installation environment. Connect cable shields according to site grounding practices to reduce electrical noise coupling into low-level communication and measurement circuits. Route CT input wiring separately from high-voltage power conductors to minimize induced interference. Confirm CT polarity, secondary ratings, and grounding practices before commissioning the motor protection functions. Configure protection parameters, analog output scaling, communication address, and trip logic settings before placing the motor circuit into service. Verify relay input states and output contact operation through functional testing.
$200.00 $100.00
-

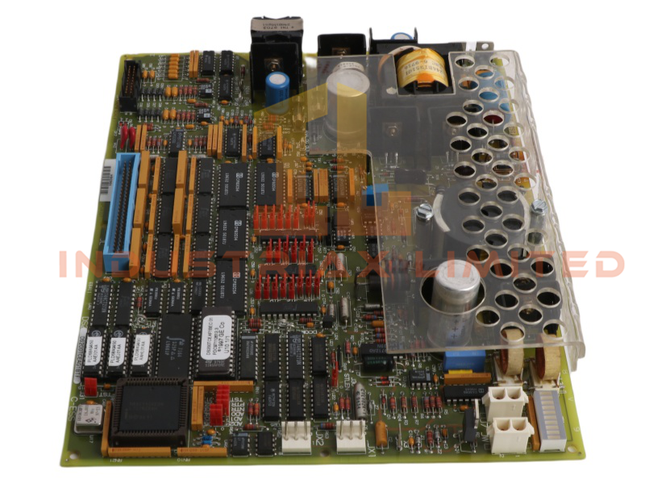

General Electric GE DS200TCEAG1B Mark V TCEA Emergency Overspeed Board
GE DS200TCEAG1B Mark V TCEA Emergency Overspeed Board The GE DS200TCEAG1B, also cataloged as the DS200TCEAG1B TCEA Emergency Overspeed Board, operates as a dedicated hardware component for turbine overspeed signal processing and emergency trip execution within the General Electric Speedtronic Mark V control system. Hardware Specifications Parameter Specification Model DS200TCEAG1B Brand General Electric (GE) Origin United States Weight 2 lbs Operating Temp -30 deg C to +65 deg C Power Consumption Not specified in available documentation Series Speedtronic Mark V Functional Name TCEA Emergency Overspeed Board Assembly Type Normal Assembly Revision Level Group 1, Revision B Input Signals Passive Magnetic Speed Pickup (MPU) frequency signals Output Signals Emergency Trip Relay Drive Outputs and Status Feedback Signals Application Gas Turbine and Steam Turbine Overspeed Protection Profinet / EtherNet-IP Deterministic Control Interface and Firmware Compatibility The GE DS200TCEAG1B is part of the Speedtronic Mark V turbine protection hardware structure and interfaces with the system protective cores through defined board-level communication paths. The module processes high-frequency MPU pulse inputs and provides emergency trip execution signals through the Mark V protection architecture. Hardware jumpers provide configuration control for signal routing, attenuation settings, and threshold adjustment parameters. The board supports the Mark V protective core arrangement involving R, S, T, and P control sections, allowing overspeed protection logic to participate in system voting and protective action execution. Diagnostic LEDs provide local indication of trip conditions, power status, and communication integrity. Frequently Asked Questions Q: What type of speed input signal does the DS200TCEAG1B process?A: The board processes frequency signals generated by passive Magnetic Speed Pickup (MPU) sensors connected to the turbine shaft speed monitoring circuit. Q: Does the DS200TCEAG1B provide direct turbine trip control output?A: The board provides emergency trip relay drive outputs and status feedback signals used by the Mark V turbine protection system for trip execution. Q: Is the DS200TCEAG1B compatible with Mark V TMR protection architecture?A: The board is designed for integration with the Mark V protective core structure and supports the R, S, T, and P core arrangement used for protective voting functions. Field Installation Guidelines Install the DS200TCEAG1B in the designated Mark V control cabinet rack position according to the system hardware configuration documentation. Verify that all MPU signal wiring uses appropriate shielding and that cable shields are terminated according to turbine control cabinet grounding practices. Separate low-level speed sensor wiring from high-energy switching circuits to reduce electrical interference. Confirm jumper settings before energizing the board to ensure correct signal scaling, attenuation, and routing configuration. Inspect board connectors, rack interfaces, and power supply connections before installation. Verify diagnostic LED status after power application and confirm correct emergency trip circuit operation through approved commissioning procedures.
$200.00 $100.00
-
General Electric GE DS200TCQCG1A Mark V SpeedTronic Analog I/O Board
GE DS200TCQCG1A Mark V SpeedTronic Analog I/O Board The GE DS200TCQCG1A, also cataloged as the DS200TCQC Analog I/O Board, operates as a dedicated hardware component for analog signal conditioning and field sensor interface within the GE Mark V SpeedTronic turbine control system. Hardware Specifications Parameter Specification Model DS200TCQCG1A Brand General Electric (GE) Origin United States Weight 0.3 kg Operating Temp -30 deg C to +65 deg C Series Mark V SpeedTronic Board Type Analog Input/Output Signal Processing Board Signal Inputs Thermocouples, RTDs (Pt100), 4-20 mA current loops, voltage inputs Signal Outputs Conditioned analog outputs and internal bus communication signals Processor Interface Ribbon cable connection to <R>, <S>, or <T> core controller modules Configuration Hardware jumpers for signal range, thermocouple grounding, and loop power settings Connectors Multi-pin ribbon cable headers, edge connectors, test points Firmware Flash Compatibility and I/O Density Scaling The DS200TCQCG1A provides analog signal processing functions within the Mark V SpeedTronic control architecture. The board conditions raw field signals from thermocouples, RTDs, vibration monitoring devices, and current loop transmitters before transfer to the controller processing cores. Hardware jumper configuration defines input signal ranges and field interface modes, supporting I/O density scaling within the assigned turbine control rack configuration. Internal bus communication is executed through the Mark V controller backplane interface structure. Frequently Asked Questions Q: What field signal types can be connected to the DS200TCQCG1A?A: The board accepts analog field signals including thermocouples, RTDs (Pt100), 4-20 mA current loops, and voltage-based sensor inputs through configured input channels. Q: Does the DS200TCQCG1A provide direct processor communication?A: The board communicates with Mark V SpeedTronic controller cores through ribbon cable interfaces connected to the designated <R>, <S>, or <T> processing sections. Q: Are signal ranges configured through software or hardware?A: Signal range selection and certain field interface settings are configured through onboard hardware jumpers. Field Installation Guidelines Install the DS200TCQCG1A in the designated Mark V SpeedTronic control cabinet slot according to the system rack configuration. Verify ribbon cable alignment and connector seating before applying power. Use shielded instrumentation wiring for analog field connections. Terminate cable shields according to the cabinet grounding practice to reduce electromagnetic interference. Maintain separation between low-level analog signal wiring and high-current power conductors. Before operation, confirm jumper positions match the connected sensor types, including thermocouple grounding configuration, RTD input arrangement, and current loop requirements. Perform point-to-point signal verification after installation to confirm correct field scaling and controller recognition.
$200.00 $100.00
-
General Electric GE DS200TCEBG1A Emergency Trip / Overspeed Protection Board
GE DS200TCEBG1A Emergency Trip / Overspeed Protection Board The GE DS200TCEBG1A, also cataloged as the DS200TCEBG1A Emergency Trip Board, operates as a dedicated hardware component for emergency shutdown execution and overspeed protection signal processing within the GE Speedtronic Mark V turbine control system. Hardware Specifications Parameter Specification Model DS200TCEBG1A Brand General Electric (GE Industrial Automation) Origin United States Product Type Emergency Trip / Overspeed Protection Board Series / Platform Speedtronic Mark V Control System Functional Name TCEB Emergency Trip Board Module Location Protective Core (P Core / R5 Core) Core Functions Emergency overspeed trip, flame detection interface, trip solenoid interface Interfaces TCTG / TCTB termination boards and primary trip relays Diagnostics LED fault indicators and status displays Weight 1.20 lbs Operating Temp 0 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95% non-condensing Power Consumption Not specified in available documentation Deterministic Protection Core Execution and Firmware Compatibility The DS200TCEBG1A is installed in the protective core of the GE Speedtronic Mark V architecture and performs independent emergency trip functions separate from the primary control processors. The board interfaces with turbine protection circuits, trip relays, and termination assemblies to execute hardware-based shutdown paths. The board revision code G1A identifies the specific hardware revision grouping. Firmware and configuration compatibility must be verified against the installed Mark V control rack configuration before replacement or integration. Frequently Asked Questions Q: What is the primary electrical function of the DS200TCEBG1A board?A: The DS200TCEBG1A processes emergency trip inputs and provides interface control for trip solenoid and protection relay circuits within the Mark V protective module. Q: Is the DS200TCEBG1A installed in the main control processor section?A: No. The board is installed in the protective core section and operates as a dedicated protection interface board separate from the primary control processors. Q: What installation considerations apply when replacing this board?A: Replacement procedures require verification of rack position, termination connections, grounding continuity, and compatibility with the existing Mark V hardware configuration. Field Installation Guidelines Confirm the protective module rack position before removing or installing the board. Disconnect field power sources and verify safe electrical isolation before handling the PCB assembly. Inspect edge connectors, terminal interfaces, and mating backplane contacts for contamination or mechanical damage. Maintain proper cable routing separation between protection signal wiring and high-energy switching conductors. Verify shield termination and grounding practices according to the turbine control cabinet wiring specification. After installation, confirm LED diagnostic indications and validate trip circuit continuity before returning the protection system to service.
$200.00 $100.00
-
General Electric GE DS200SDCCG5A Drive Control Card
GE DS200SDCCG5A Drive Control Card Configured for drive regulation, excitation control, and processor-based I/O execution in GE EX2000 and Mark V Turbine Control System architectures, the GE DS200SDCCG5A (DS200SDCCG5A Drive Control Card) provides direct physical and electrical execution. The board processes control algorithms, manages analog interfaces, and executes diagnostic functions through its multi-processor architecture. Hardware Specifications Parameter Specification Model DS200SDCCG5A Brand GE Weight 1.5 lb Product Type Digital Exciter Drive Control Card Series EX2000 / TC2000 Turbine Control System Processor Architecture Multi-processor design with DCP, MCP, and CMP processors Drive Control Processor Intel 80C186 microcontroller Motor Control Processor Intel 80C196 microcontroller Co-Motor Processor Texas Instruments TMS320C25 DSP Software Memory 4 EPROM devices and 1 EEPROM device Number of Channels 16 Analog Outputs 0-20 mA Frame Rate 100 Hz Instruction Manual GEI-100029C Firmware Flash Compatibility and Control Processor Architecture The DS200SDCCG5A uses dedicated processor resources for separated control tasks within GE drive and excitation platforms. The Drive Control Processor executes regulation loops, interface management, DMA operations, timer functions, and interrupt handling. The Motor Control Processor performs inner-loop current regulation and application-specific algorithms. The DSP processor provides additional calculation capacity for vector control and high-speed mathematical processing. Firmware execution is stored through onboard EPROM and EEPROM memory devices. Replacement or firmware servicing requires compatibility verification between the installed memory configuration, processor revision, and the target GE control platform. Frequently Asked Questions Q: Does the DS200SDCCG5A support hot-swap replacement?A: The DS200SDCCG5A is a plug-in control board designed for GE control racks. Hot-swap operation depends on the specific rack architecture and system procedure. Power isolation and approved maintenance steps are required before board removal. Q: What type of signal interfaces are provided by the DS200SDCCG5A?A: The board provides analog output capability at 0-20 mA and supports 16 channels for control and monitoring functions within compatible GE drive and excitation systems. Q: Which processors are installed on the DS200SDCCG5A?A: The board contains an Intel 80C186 Drive Control Processor, Intel 80C196 Motor Control Processor, and Texas Instruments TMS320C25 Digital Signal Processor. Field Installation Guidelines Install the DS200SDCCG5A in the designated GE control rack slot according to the applicable system manual. Verify connector alignment before insertion and avoid mechanical stress on the circuit board. Use appropriate grounding practices for control cabinet installation. Cable shields should follow the cabinet grounding design and signal wiring should be separated from high-current switching conductors to reduce electrical interference. Before energizing the system, confirm processor board seating, memory device compatibility, terminal connections, and installed firmware configuration. System diagnostics should be reviewed after startup to verify correct communication and control loop operation.
$200.00 $100.00
-
General Electric GE DS200SDCCG1A Drive Control Card
GE DS200SDCCG1A Drive Control Card Configured for motor drive regulation, process feedback execution, and controller communication in GE Mark V and Directo-Matic 2000 systems, the GE DS200SDCCG1A (DS200SDCC Drive Control Card) provides direct electrical execution. The board processes drive feedback, executes motor control algorithms, manages onboard memory resources, and exchanges data through system communication interfaces. It incorporates multiple processors, removable EPROM storage, configurable hardware settings, and expansion capability for optional daughtercards. Hardware Specifications Parameter Specification Model DS200SDCCG1A Brand GE General Electric Origin United States Product Type Drive Control Card Series Mark V Functional Acronym SDCC Functional Description Primary Drive Controller Board Type Sub-system Drive Control Card Microprocessor Configuration Multi-CPU architecture (Intel 80C196 / Intel 80C186 series) Memory 4 socketed EPROMs, SRAM Communication DLAN, ARCNET, Serial Drive Bus (via interface or daughtercards) Connectors Multiple ribbon cable connectors including 2PL, 3PL, 4PL, and 6PL Configuration Hardware jumpers and DIP switches Diagnostic Features Status LEDs for hardware diagnostics and fault indication PCB Coating Normal Coating Instruction Manual GEI-100029 Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 5 % to 95 % non-condensing Weight 1.00 lb Backplane Communication and Firmware Compatibility The DS200SDCCG1A functions as the primary processing board within the drive control architecture and exchanges operational data with connected system modules through its onboard communication interfaces and optional daughtercards. The multi-processor design separates motor control execution, communication management, and signal processing into dedicated processing resources. Four socketed EPROM locations allow installation of application-specific firmware and configuration data. When replacing EPROM devices or upgrading firmware, the installed firmware revision should remain compatible with the associated Mark V or Directo-Matic 2000 hardware configuration. Hardware jumpers and DIP switches should be configured to match the required operating mode before system commissioning. Frequently Asked Questions Q: Can the EPROM devices be replaced without replacing the complete board?A: Yes. The board provides four socketed EPROM locations intended for user-serviceable firmware and configuration memory. Replacement firmware should match the system hardware revision and application requirements. Q: Does the DS200SDCCG1A support communication expansion?A: Yes. Dedicated board-to-board connectors support optional daughtercards used for communication interfaces or signal conditioning functions, depending on the system configuration. Q: Is hot-swapping recommended for this board?A: No. The available documentation does not specify hot-swap capability. Installation and removal should be performed only after the drive or control cabinet has been de-energized in accordance with applicable maintenance procedures. Field Installation Guidelines Verify that the replacement board part number and functional revision match the installed system requirements before installation. Disconnect system power and confirm stored energy has been discharged before removing or installing the board. Observe electrostatic discharge protection when handling EPROM devices and processor components. Record jumper positions and DIP switch settings before board replacement to maintain the original hardware configuration. Ensure ribbon cable connectors are fully seated and installed in their designated connector locations. Route communication and signal cables separately from high-power motor conductors where practical to reduce electrical noise coupling. Verify protective grounding and cabinet shielding continuity before returning the system to service. After installation, confirm diagnostic LED status and verify communication with connected control modules during system startup.
$200.00 $100.00
-
General Electric GE DS200SDCCG4A Mark V Drive Control Board
GE DS200SDCCG4A Mark V Drive Control Board The GE DS200SDCCG4A, also cataloged as the DS200SDCC Servo Drive Control Card, operates as a dedicated hardware component for closed-loop motor and actuator drive execution within Mark V turbine control system frameworks. Suffix Breakdown & Model Matrix Part Number Segment Value Technical Description Base Family DS200 Standard PCB board layout designation for Speedtronic Mark V platforms Functional Acronym SDCC Servo Drive Control Card configuration Group Identifier G4 Group 4 functional hardware variant Revision Code A Revision A manufacturing iteration Hardware Specifications Parameter Specification Model DS200SDCCG4A Brand GE General Electric Origin USA Weight 0.68 kg Operating Temp -25 to +60 deg C Power Consumption 24 VDC (+/-10%), 0.25 A typical Digital I/O 8 Channels Input / 8 Channels Output (24 VDC, 0.5 A per output channel) Analog Interfaces +/-10 V analog command signals Feedback Channels Speed, torque, current, and position closed-loop feedback Loop Response Time Less than 5 ms per channel Isolation Galvanic isolation between control logic and power drive stages Firmware Version V3.2 (Upgradeable via JTAG header) Protective Coating Normal conformal coating Industrial Drive & Backplane Determinism The DS200SDCCG4A executes deterministic real-time control routines over internal backplane bus communication channels to process velocity, torque, and position feedback loops. Dedicated firmware flash compatibility enables synchronized execution with primary Mark V processing cores, enforcing hardware execution intervals below 5 ms across all active analog command and feedback paths. Galvanic isolation circuits physically separate low-voltage digital processing electronics from drive-side switching noise and transient ground potential shifts. Frequently Asked Questions Q: What is the maximum current rating for the digital output channels on the DS200SDCCG4A? A: Each of the 8 digital output channels supports a maximum continuous sourcing current of 0.5 A at 24 VDC. Q: Does the board support live hot-swapping during active turbine operation? A: No, the DS200SDCCG4A must be replaced while the board rack is powered down. De-energize the 24 VDC power supply before inserting or removing the card to prevent damage to the edge connectors and onboard integrated circuits. Q: How is the onboard firmware upgraded if a revision update is required? A: Firmware is flashed directly into onboard memory through the hardware JTAG programming header utilizing factory GE flash tools. Field Installation Guidelines ESD Protection: Always wear a grounded electrostatic discharge (ESD) wrist strap connected to cabinet earth ground prior to opening the card cage or touching the board components. Mounting & Mechanical Fixation: Align the PCB edges strictly with the card cage guide rails. Push the card in firmly until the backplane connectors seat completely, then tighten all retaining thumbscrews to secure earth continuity through the chassis ground frame. Wiring & Cable Shielding: Route analog feedback wires (+/-10 V, tachometer, encoder lines) in separate, grounded conduits away from high-voltage AC power lines. Terminate cable shields at a single chassis ground bus bar to prevent ground loops. Power Supply Integrity: Verify the incoming 24 VDC supply voltage remains strictly within the +/-10% tolerance (21.6 VDC to 26.4 VDC) under full load before restoring power to the card rack.
$200.00 $100.00
-
General Electric GE DS200TCPDG1B Speedtronic Mark V Power Distribution Module
GE DS200TCPDG1B Speedtronic Mark V Power Distribution Module Configured for protected DC branch circuit distribution in Speedtronic Mark V turbine control systems, the GE DS200TCPDG1B (DS200TCPD Power Distribution Module) provides direct physical/electrical execution. The circuit board routes incoming 24 VDC source power across multiple independently fused channels to deliver isolated voltage rails directly to system sensors, discrete logic cards, and electromechanical relay coils. Visual status indication continuously verifies individual fuse integrity and terminal voltage presence. Suffix Breakdown & Model Matrix Part Number Segment Specification Detail DS200 Standard functional series and form factor for GE Speedtronic Mark V cabinet mounting TCPD Terminal Board / Power Distribution Function (TCPD functional acronym) G1 Base group configuration defining physical terminal layout and channel density B First functional revision rating (Normal coating type) Hardware Specifications Parameter Specification Model DS200TCPDG1B Brand GE General Electric Origin United States Weight 0.8 kg Dimensions 24 cm x 18 cm x 4.5 cm Operating Temp -10 deg C to +60 deg C Power Consumption 10A maximum continuous throughput Input Voltage 24 VDC +/-20% Branch Channels 12 individually fused outputs Branch Fuse Ratings 1A, 2A, or 5A field-selectable options Main Input Fuse 10A fast-acting fuse Visual Indicators 12 green fuse status LEDs, 2 red fault status LEDs Onboard Switches 8 toggle control switches Physical Terminal Block 1 x 6-pin input terminal, 24 output terminals, 1 x 10-pin header Power Distribution and Deterministic Bus Performance The module operates within the GE Speedtronic Mark V framework to manage internal DC distribution impedance and voltage stabilization. Backplane bus communication velocity and power bus integrity are maintained by low-resistance heavy copper PCB traces designed to minimize voltage drop across all 12 output channels during high-inrush field events. The onboard circuitry prevents backplane noise propagation by dampening transient voltage spikes before they can affect upstream core processor logic or sensitive Analog Input/Output circuits. Frequently Asked Questions Q: How does the module indicate a blown branch fuse during operation? A: Individual green status LEDs located adjacent to each fuse position extinguish immediately upon open-circuit failure. In addition, red fault LEDs illuminate to signal a distribution fault condition across the board. Q: Is hot-swapping allowed on the DS200TCPDG1B power distribution card? A: No. All 24 VDC primary power sources feeding the 6-pin input terminal block must be de-energized and locked out prior to disconnecting terminal plugs or removing the module from the Mark V rack. Q: Can different output channels use mixed fuse current ratings simultaneously? A: Yes. Each of the 12 output channels accepts field-selectable 1A, 2A, or 5A fast-acting fuses, provided the total combined load does not exceed the main 10A continuous rating of the board. Field Installation Guidelines Mount the PCB securely to the rack DIN frame using all provided standoff locations to maintain chassis ground continuity. Torque wire retaining screws on the 6-pin power input block and the 24 branch output terminals to 0.5 Nm. Ensure field wiring runs for 24 VDC distribution are physically segregated from high-voltage AC cables to eliminate capacitive coupling. Strip branch wire ends to exactly 6 mm before inserting them into screw terminals to prevent exposed copper bridging between adjacent channels.
$200.00 $100.00
-
General Electric General Electric DS3800HMPJ1A1D Mark IV Speedtronic Microprocessor Board
General Electric DS3800HMPJ1A1D Mark IV Speedtronic Microprocessor Board Configured for core signal processing and turbine control execution in Mark IV Speedtronic platforms, the General Electric DS3800HMPJ1A1D (DS3800HMPJ Microprocessor Board) provides direct physical/electrical execution. It functions as a rack-mounted VMEbus-compatible logic engine designed to handle real-time sensor processing, serial communication, and command loop control within industrial automation environments. Hardware Specifications Parameter Specification Model DS3800HMPJ1A1D Brand General Electric Origin USA Weight 0.9 kg Operating Temp -40 deg C to +70 deg C Power Consumption < 10 W Bus Compatibility VMEbus Rev. C.1 Form Factor 6U Eurocard Communication Interfaces RS-232, RS-485, Ethernet (MODBUS protocol support) Storage Temperature -55 deg C to +85 deg C Architecture Triple Modular Redundant (TMR) compatible Backplane Bus Communication Velocity and System Integration The DS3800HMPJ1A1D incorporates hardware logic engineered to interface directly with the Mark IV backplane over a VMEbus Rev. C.1 architecture. Operating within a Triple Modular Redundant (TMR) architecture, the module handles deterministic signal transfer rates between sensor input cards and control output buses. Onboard firmware flash compatibility ensures synchronized instruction execution across parallel voting channels, maintaining cycle times required for turbine speed, fuel flow, and valve position loop governance without introducing deterministic bus latency. Frequently Asked Questions Q: What precautions must be taken regarding backplane power draw during module insertion? A: The DS3800HMPJ1A1D requires full de-energization of the rack backplane prior to installation or removal. Hot-swapping this microprocessor card can cause voltage transients on the VMEbus Rev. C.1 lines, leading to potential data corruption or hardware damage across adjacent processing units. Q: How is signal integrity preserved across the RS-485 and Ethernet communication channels? A: Digital communication paths utilize physical galvanic isolation and differential line drivers built into the board interface. Correct operation requires continuous shield continuity along the cable run, grounded at a single point to prevent ground loops from disturbing serial transmission data. Field Installation Guidelines Electrostatic Discharge (ESD) Protection: Handle the module using an ESD-compliant wrist strap connected to the panel frame ground. Keep the board within its static-shielded packaging until immediately prior to insertion into the rack slot. Mechanical Alignment: Insert the 6U Eurocard into the designated Mark IV rack guide rails. Ensure the VMEbus edge connectors align precisely with the backplane pin assembly before applying firm, even pressure to seat the module. Fasten the faceplate retaining screws to secure mechanical grounding. Wiring and Shield Grounding: Ground all communication cable shields at the rack enclosure entry point. Maintain minimum separation distances between low-voltage serial lines (RS-232/RS-485) and high-voltage AC power cabling within the cabinet conduits to minimize electromagnetic interference.
$200.00 $100.00
-
General Electric GE DS200SIOBH1ABA Mark VI Speedtronic Analog I/O Board
GE DS200SIOBH1ABA Mark VI Speedtronic Analog I/O Board The GE DS200SIOBH1ABA, also cataloged as the DS200SIOB Analog Signal I/O Board, operates as a dedicated hardware component for analog signal interfacing within GE Mark VI Speedtronic turbine control networks. The board executes continuous physical-to-digital signal conversion, conditioning multiple high-density analog input and output channels for direct execution over the proprietary GE backplane. Hardware Specifications Parameter Specification Model DS200SIOBH1ABA Brand GE (General Electric) Origin United States Weight 0.4 kg Operating Temp 0 to +60 deg C Power Consumption 24 VDC via backplane bus Analog Inputs 4-20 mA, 0-10 VDC Analog Outputs 4-20 mA Channel Density High-density multi-channel configuration Backplane Interface GE Mark VI proprietary bus Standards Compliance CE, UL certified GE System Integration & Backplane Dynamics The DS200SIOBH1ABA communicates through the proprietary GE Speedtronic backplane bus, maintaining high backplane bus communication velocity and low operational latencies. Designed for multi-channel scaling, the board integrates ESD protection and overcurrent suppression across all input and output signal paths. Signal isolation and noise filtering circuits ensure analog measurement integrity across dynamic turbine control environments, matching strict firmware flash compatibility across simplex, duplex, and Triple Modular Redundant (TMR) control architectures. Frequently Asked Questions Q: Can the DS200SIOBH1ABA board be installed or replaced while the backplane is fully energized? A: No, hot-swapping this card without powering down the Mark VI rack can damage sensitive onboard CMOS components and corrupt active backplane bus communication. Power must be isolated prior to insertion or removal. Q: What is the power requirement for the DS200SIOBH1ABA, and how is it sourced? A: The board draws power exclusively via 24 VDC rails supplied directly through the proprietary GE Mark VI backplane interface, eliminating the need for external wiring terminals to power the onboard logic. Field Installation Guidelines Ensure the Mark VI card rack is entirely de-energized and verify that electrostatic discharge (ESD) wrist straps are bonded to the local equipment earth ground before touching the board. Inspect the PCB edge connectors for contamination or pin misalignment; slide the card along the guide rails into the assigned VME backplane slot until fully seated. Tighten the retaining screws on the front panel to guarantee structural grounding stability and prevent vibration-induced connector disengagement. Route all 4-20 mA and 0-10 VDC signal cables through shielded twisted pairs, grounding the cable shields at a single chassis terminal point to eliminate ground loops.
$200.00 $100.00
-
General Electric GE DS200LPPAG1AAA Mark V Speedtronic Line Protection Panel Board
GE DS200LPPAG1AAA Mark V Speedtronic Line Protection Panel Board Configured for three-phase electrical line monitoring and drive power stack protection in GE Mark V Speedtronic turbine control platforms, the GE DS200LPPAG1AAA (DS200LPPAG1 Line Protection Panel Board) provides direct physical/electrical execution. It evaluates line-to-line and line-to-neutral voltage conditions via an internal divider network across 12 input channels. Upon detection of phase loss, over-voltage, under-voltage, or frequency excursions, the hardware comparator activates an on-board Form-C relay within 10 ms to trip external contactors. Hardware Specifications Parameter Specification Model DS200LPPAG1AAA Brand General Electric (GE) Origin United States Module Type Line Protection Panel Board System Platform Mark V Speedtronic Control System System Input Range 200-600 VAC, 3-phase Input Channels 12 (line-to-line & line-to-neutral via divider network) Board Supply Voltage 28 VDC +/-10% Power Consumption Nominal 15 W max Pick-up Accuracy +/-2% of set-point Trip Response Time <=10 ms (hardware comparator) Output Relay 125 VDC, Form-C, 5 A resistive Galvanic Isolation 1500 V input-to-logic Operating Temp -40 deg C to +85 deg C Dimensions 330 x 178 x 25 mm Weight 0.6 kg Hardware Comparator and Backplane Communication Velocity The board utilizes fixed hardware comparators bypassing software scan times to execute discrete trip commands within 10 ms of fault detection. Bus communication velocity across the Mark V backplane is maintained via high-speed latches that broadcast line fault flags directly to the master controller. Firmware flash compatibility across the DS200 series allows unified diagnostic feedback across different revision revisions without requiring hardware modification. Frequently Asked Questions Q: Does the DS200LPPAG1AAA support hot-swapping during active operation? A: No. Power to the 28 VDC supply rail and high-voltage line inputs (200-600 VAC) must be de-energized prior to removal or installation to prevent arc flash and logic component damage. Q: How is galvanic isolation maintained between high-voltage inputs and controller logic? A: Isolation up to 1500 V is achieved via internal optocouplers and step-down divider networks, separating the 200-600 VAC line monitoring inputs from the 28 VDC logic power plane. Q: What is the maximum resistive rating for the Form-C output relay contact? A: The output relay is rated for a maximum resistive switching load of 5 A at 125 VDC. Field Installation Guidelines Mount the board onto the chassis standoff guides using anti-static handling protocols. Secure all mounting screws to establish chassis ground continuity. Verify input wiring separation. Route high-voltage 200-600 VAC lines away from low-voltage 28 VDC supply and communication signal cables to minimize inductive coupling. Terminate signal cable shielding at designated single-point ground studs on the panel enclosure. Do not ground shields at both ends. Ensure screw terminal connections for the Form-C relay output and line-divider inputs are torqued according to cabinet panel assembly standards.
$200.00 $100.00
-
General Electric GE DS200TCTLG1ABB Mark V Speedtronic Trip Terminal Board
GE DS200TCTLG1ABB Mark V Speedtronic Trip Terminal Board The GE DS200TCTLG1ABB, also cataloged as the DS200TCTL Trip Terminal Board, operates as a dedicated hardware component for emergency turbine shutdown execution within GE Mark V Speedtronic control systems. It acts as the final hardware-based physical interface between control processors and main trip solenoids. Hardware Specifications Parameter Specification Model DS200TCTLG1ABB Brand GE Origin USA Weight 1.35 kg Operating Temp 0 deg C to 60 deg C Power Consumption Passive board topology (relay loop load driven via 125 VDC nominal) System Series Mark V Speedtronic Board Type Trip Terminal Board (TCTL) Solenoid Drive Voltage 125 VDC nominal Ribbons/Headers Multiple 50-pin ribbon headers (interfacing TCEA / TCQA) Voting Architecture Hardware-based 2-out-of-3 (2oo3) trip voting Backplane Bus Communication Velocity and Firmware Compatibility The DS200TCTLG1ABB operates within the deterministic backplane network structure of the Mark V turbine control architecture. Passive signal routing across its heavy-duty trace array minimizes signal propagation delay, keeping command execution latencies below 10 ms from processor output command to relay drop-out. The board supports backplane communication velocity through direct hardware-driven ribbon paths to TCEA and TCQA core processing units. Firmware compatibility across various Mark V system revisions (including Speedtronic PROM sets) is maintained via passive signal passing, eliminating software layer dependencies and firmware flash version mismatches during replacement procedures. Frequently Asked Questions Q: What is the hardware voting architecture used on the DS200TCTLG1ABB? A: The board features integrated 2-out-of-3 (2oo3) hardware relay voting. All three processing channels (, , ) must validate or agree on a trip condition to de-energize the trip solenoid loop, preventing single-channel faults from causing nuisance turbine trips. Q: Are trip solenoids driven directly from this terminal board? A: Yes. The board incorporates high-integrity trip relays and suppression circuits designed to directly drive and break high-inductance 125 VDC trip solenoid circuits without damaging upstream control electronics. Field Installation Guidelines Ensure complete system de-energization and de-couple 125 VDC trip supply voltage before touching terminal connections or replacing hardware. Maintain clean ribbon cable routing between the board headers and upstream TCEA/TCQA cards. Check pin-1 orientation alignment on all 50-pin ribbon connectors prior to seating. Ensure proper grounding of all cable shielding to prevent induced electrical noise on solenoid trip circuits. Secure terminal wiring to rated torque specifications.
$200.00 $100.00
-
General Electric GE DS200TCQCG1BJF Mark V Speedtronic RST Overflow Board
GE DS200TCQCG1BJF Mark V Speedtronic RST Overflow Board The GE DS200TCQCG1BJF, also cataloged as the DS200TCQC RST Overflow Board, operates as a dedicated hardware component for monitoring counter and timer overflow conditions within GE Mark V Speedtronic turbine control platforms. Hardware Specifications Parameter Specification Model DS200TCQCG1BJF Brand GE Origin USA Weight 0.6 kg Dimensions 21 x 15 x 4 cm Operating Temp -10 deg C to +55 deg C Power Consumption 24 VDC +/-10%, 150 mA Input Channels 16 RST overflow signals Input Voltage Range 0-24 VDC Threshold Voltage 12 VDC +/-5% (programmable) Response Time < 1 ms Fault Latching Hardware latch (software reset required) Status Indicators 16 discrete red LEDs Host Interface 34-pin ribbon connector Power Connector 4-pin terminal block Backplane Communication & Deterministic Execution Designed for the GE Mark V Speedtronic turbine architecture, the board interfaces directly with core processor cards via a 34-pin ribbon bus cable. It executes high-speed signal processing on 16 discrete counter channels with a response latched under 1 ms. The card ensures deterministic firmware flash compatibility across Mark V revision updates, preventing bus contention and maintaining real-time fault detection logic without overburdening host processor backplane communication velocity. Frequently Asked Questions Q: Can the DS200TCQCG1BJF board be replaced while the Mark V system is powered? A: No. The board must be de-energized prior to removal or insertion. Hot-swapping risks damaging the 34-pin ribbon bus interface and causing inadvertent fault latching on adjacent system cards. Q: How are latched overflow signals cleared after a fault condition is resolved? A: The board hardware latches the overflow state upon crossing the 12 VDC threshold. Clearing the fault condition requires a software reset command issued from the host processor across the bus connection. Q: What power inputs are required for board operation? A: The board requires a regulated 24 VDC power supply connected via the 4-pin terminal block, consuming a nominal current of 150 mA. Field Installation Guidelines Ensure the Mark V control panel is fully de-energized and locked out before opening the rack enclosure. Observe anti-static precautions. Wear a grounded wrist strap attached to the panel earth ground when handling the board. Verify mechanical mounting alignment on the card cage standoffs using standard hardware to avoid board flexure. Secure the 34-pin ribbon connector fully, ensuring side locking tabs are latched to prevent pin misalignment or intermittent connectivity. Connect power supply wiring to the 4-pin terminal block, maintaining proper polarity (+24 VDC and GND). Ensure shield grounding wires are terminated directly to the cabinet ground bus bar with short, low-impedance leads.
$200.00 $100.00
-
General Electric General Electric DS200DACAG1ACD Mark VIe Series Digital-to-Analog Converter Board
General Electric DS200DACAG1ACD Mark VIe Series Digital-to-Analog Converter Board Configured for precise digital-to-analog signal conversion in GE Mark VIe control platforms, the General Electric DS200DACAG1ACD (DS200DACA Digital-to-Analog Converter Output Board) provides direct physical/electrical execution. Operating as a 16-channel analog output module, it converts digital controller commands into calibrated current and voltage loops for direct actuation of turbine fuel valves, servo positioners, and variable speed drives. The module features embedded channel-level diagnostics and short-circuit protection to maintain loop stability under variable load profiles. Hardware Specifications Parameter Specification Model DS200DACAG1ACD Brand General Electric (GE) Origin USA Weight 0.5 kg Dimensions 27.9 cm x 12.7 cm x 4 cm Operating Temp -40 to +75 deg C Power Consumption +5 VDC (Logic) / +24 VDC (Field Power) Output Channels 16 software-selectable channels Output Signal Ranges 4-20 mA (0-750 ohm load) / 0-10 VDC (>2 kohm load) Resolution 16-bit DAC Signal Accuracy +/-0.05% FS at 25 deg C; +/-0.10% FS (-40 to +75 deg C) Update Rate 800 samples/sec across channels Common Mode Rejection 95 dB CMRR Insulation Coating 100 um conformal coating Industrial Backplane Communication and I/O Density Scaling The DS200DACAG1ACD integrates with the Speedtronic Mark VIe control backplane via a 64-pin connector interface designed for high backplane bus communication velocity and high I/O density scaling. The onboard logic processes 16-bit DAC values delivered deterministically over the system bus, executing updates at an aggregate rate of 800 samples per second across all 16 output channels. To maintain loop integrity across high-density I/O distributions, each channel incorporates hardware-based EMC filtering and individual output monitoring circuits. Firmware flash compatibility checks are performed during backplane initialization to prevent state execution errors caused by revision mismatches across redundant processor sets. Frequently Asked Questions Q: Can the DS200DACAG1ACD module be installed or removed while the backplane is powered? A: No. Power to the rack must be disconnected prior to inserting or extracting the module. Inserting the board into an energized 64-pin backplane can cause pin arcing and damage the onboard logic power traces or field-side driver ICs. Q: How does the channel output behave in the event of a field wiring short circuit? A: Each output channel incorporates independent short-circuit current limiting and thermal protection circuits. If a short circuit occurs across the field terminals, the driver limits the maximum current output to prevent component damage until the fault condition is cleared. Field Installation Guidelines Mount the board using the integrated card guides within the Mark VIe chassis, ensuring the 64-pin edge connector seats completely into the backplane socket. Secure all retention screws to provide a low-resistance chassis ground path for the onboard EMC filters. Field wiring must be terminated at the dual 16-position terminal blocks using shielded twisted-pair cables. Ground all cable shields at a single chassis grounding point on the rack frame to prevent ground loops that compromise DAC accuracy. Maintain a minimum engagement of 5 threads on NPT conduit fittings when routing field cables into the control enclosure, and isolate low-voltage 0-10 VDC / 4-20 mA signal lines from high-voltage AC power cables by at least 30 cm.
$200.00 $100.00
-
General Electric GE DS200LDCCH1ANA Drive Control CPU Board
GE DS200LDCCH1ANA Drive Control CPU Board Configured for executing motor control algorithms and SCR firing angle calculations in GE Mark IV LCI systems, the GE DS200LDCCH1ANA (DS200LDCC Drive Control CPU Board) provides direct physical/electrical execution. This module coordinates drive control functions and executes real-time fault detection logic without relying on external supervisor units. Hardware Specifications Parameter Specification Model DS200LDCCH1ANA Brand GE Origin USA Weight 1.20 kg Operating Temp 0 to 50 deg C Power Consumption 15 W at 24 VDC Input Voltage 24 VDC nominal (18-32 VDC range) Processor Dedicated drive control CPU Bus Architecture MARK IV / QDII bus protocol Onboard Memory NVRAM with battery backup Battery Type 3.6 V lithium thionyl chloride Diagnostics Power, Run, Fault, Communication LEDs Brand-Specific Technical Features The DS200LDCCH1ANA interfaces directly through the proprietary QDII backplane bus communication structure to manage high-speed motor control data exchanges. Firmware flash compatibility and onboard NVRAM maintain deterministic execution loops for SCR firing angles, eliminating communication delays across the backplane bus interface. Frequently Asked Questions Q: What is the purpose of the onboard 3.6 V lithium battery? A: The onboard battery provides backup power to the NVRAM, ensuring that calibrated drive parameters and diagnostic fault logs remain intact during system power shutdowns. Q: Can the DS200LDCCH1ANA be hot-swapped while the LCI system is operational? A: No. Power to the rack must be completely isolated before removing or inserting the board to prevent backplane bus disturbance and potential damage to onboard semiconductors. Field Installation Guidelines Power down the drive cabinet and verify zero-voltage state on the 24 VDC supply before board handling. Wear a grounded wrist strap connected to the enclosure frame to prevent electrostatic discharge damage. Align the board edges with the Mark IV card guide slots and slide in until the rear edge connectors seat into the QDII bus backplane. Tighten the retaining screws on the front panel to ensure solid chassis grounding and mechanical stability.
$200.00 $100.00
-
General Electric GE DS200SIOBG1AAA Mark V Speedtronic Serial I/O Board
GE DS200SIOBG1AAA Mark V Speedtronic Serial I/O Board The GE DS200SIOBG1AAA, also cataloged as the DS200SIOBH1A Serial I/O Terminal Board, operates as a dedicated hardware component for serial communication interface and discrete/analog signal processing within Mark V Speedtronic turbine control system platforms. Hardware Specifications Parameter Specification Model DS200SIOBG1AAA / SIOBH1A Brand GE Origin USA Weight 1.2 kg Dimensions 250 mm x 180 mm x 30 mm Operating Temp -30 deg C to +65 deg C Power Consumption +5 VDC (logic circuitry), +24 VDC (field I/O loops) Form Factor Standard Eurocard 6U Serial Interface 1 x RS-232 (DB9), 2 x RS-485 (multi-drop) Discrete Inputs 16 channels, +24 VDC sink/source Discrete Outputs 8 channels, +24 VDC, 0.5 A maximum per channel Analog Inputs 4 channels (4-20 mA or 0-10 VDC configurable) Analog Outputs 2 channels (4-20 mA) Galvanic Isolation 1500 VAC to 2500 VAC (field-to-logic execution) Communication Speed 300 bps to 115.2 kbps (auto-baud detection) Diagnostics Status LEDs (Power, Run, Fault, I/O activity) Backplane Bus Communication Velocity Licences & Network Execution The GE DS200SIOBG1AAA uses optimized backplane bus communication velocity protocols to ensure real-time status exchange with the primary Mark V controller cores (R, S, and T). Serial interfaces process high-speed Modbus RTU telemetry alongside direct hardware discrete/analog mapping. Deterministic backplane cycle timing prevents packet dropping across the serial bridges, while internal bus buffers isolate logic-side processing from external field wiring switching transients. Firmware compatibility checks execute automatically upon backplane initialization to ensure system-wide parity across redundant communication branches. Frequently Asked Questions Q: Can the DS200SIOBG1AAA terminal board be replaced while the Mark V turbine controller is online? A: Hot-swapping of the board is strictly prohibited while backplane logic power is applied. Power to the rack slot (+5 VDC logic supply) and auxiliary +24 VDC field supplies must be isolated prior to removing or inserting the module to avoid damage to backplane bus driver ICs. Q: How is galvanic isolation structured across the discrete and analog I/O circuits? A: The board maintains optocoupler and magnetic isolation barriers rated between 1500 VAC and 2500 VAC between field terminal channels and central logic circuitry, preventing high-voltage ground loops or noise spikes from propagating to the primary controller cores. Field Installation Guidelines Verify that all power sources supplying the rack backplane and I/O field terminal blocks (+5 VDC and +24 VDC lines) are de-energized before board insertion. Ensure proper static discharge prevention protocols are followed; wear a grounded wrist strap attached to the system enclosure frame during handling. Align the 6U Eurocard edge connectors strictly with the rack card guides to avoid pin deflection on the backplane interface. Terminate RS-485 shielding at one single point (earth ground bus) to eliminate ground loop currents across long multi-drop cable spans. Secure all panel locking screws to guarantee frame grounding continuity and physical retention under turbine vibration stress.
$200.00 $100.00
-
General Electric GE DS200TBCBG1AAA Mark V Speedtronic Termination Analog Board
GE DS200TBCBG1AAA Mark V Speedtronic Termination Analog Board The GE DS200TBCBG1AAA, also cataloged as the DS200TBCBG1A 4-20 mA RTD Input Termination Module, operates as a dedicated hardware component for analog and temperature signal termination within GE Mark V Speedtronic Turbine Control System platforms. Suffix Breakdown & Model Matrix DS200: Standard GE Speedtronic Mark V base board designator (factory board level assembly). TBCB: Functional board type identifier representing the Analog Terminal Board assembly. G1: Group revision designator specifying the baseline functional architecture and circuit board revision. AAA: Functional revision codes indicating three sequential A-rated manufacturing/engineering modifications. Hardware Specifications Parameter Specification Model DS200TBCBG1AAA Brand GE (General Electric) Origin USA Weight 0.5 kg Dimensions 300 x 150 x 50 mm Operating Temp 0 to 60 deg C Power Consumption +5 VDC, 6.0 A nominal backplane current draw Input Channels (4-20 mA) 14 dedicated channels + 8 jumper-selectable (4-20 mA or 1 mA) channels Sensor Compatibility PT100 and PT1000 RTD sensors Excitation Voltage Isolated 21 VDC loop supply inputs Signal Output Interfaces JHH connector (milliamp to TCCB), JII connector (RTD to TCCB) Industrial Control & Backplane Performance Features The DS200TBCBG1AAA provides signal condition processing and direct backplane bus communication velocity compatibility required by Mark V Speedtronic controllers. The terminal card processes raw field sensor feedback, isolating input channels via passive RC networks and inline diodes to protect the TCCB core processor interface. High I/O density scaling allows 22 analog channels (including RTD temperature loops) to multiplex into dedicated multi-pin ribbon cables (JHH and JII connectors), preventing cross-channel noise propagation and signal degradation across the internal control rack backplane. Frequently Asked Questions Q: What are the primary signal cable connections on the DS200TBCBG1AAA board? A: The board utilizes multi-pin ribbon cable interfaces: the JHH connector routes processed 4-20 mA milliamp input signals directly to the TCCB core card, while the JII connector routes dedicated RTD temperature signals to the same core processor. Q: How are the selectable input channels configured for different sensor loops? A: The board contains onboard hardware jumper blocks. Eight specific input channels can be toggled between standard 4-20 mA current signals and 1 mA sensor excitation modes by altering the corresponding jumper positions prior to applying field power. Q: Is field-reconfiguration required when replacing older revision boards? A: The AAA revision is fully backward compatible with earlier G1 baseline revisions. However, hardware jumpers on the replacement module must be manually mapped to replicate the exact jumper configuration of the original board before powering up the system. Field Installation Guidelines De-energize all power sources connected to the Mark V control panel prior to servicing the DS200TBCBG1AAA module to prevent arc flash and damage to sensitive CMOS components. Observe anti-static precautions by wearing a grounded ESD wrist strap connected to the frame earth terminal during board removal and handling. Loosen the mounting screws along the edge of the board and verify correct wire terminal labels before disconnecting field wiring from the terminal blocks. Set hardware jumpers on the replacement DS200TBCBG1AAA board to match the exact input modes (4-20 mA vs. 1 mA) configured on the unit being replaced. Align the board into the mounting slots, secure it with the retainers, and connect the JHH and JII ribbon cables firmly to ensure full electrical contact. Ensure shield grounding wires are terminated at the designated earth ground terminal block with standard thread engagement.
$200.00 $100.00
-
General Electric GE DS200LDCCH1AJA Drive Control CPU Board
GE DS200LDCCH1AJA Drive Control CPU Board Configured for executing LCI drive control algorithms and motor starting logic in GE Mark IV LCI systems, the GE DS200LDCCH1AJA (DS200LDCCH1A) Drive Control CPU Board provides direct physical execution of SCR firing angle calculations and system coordination. Hardware Specifications Parameter Specification Model DS200LDCCH1AJA Brand GE Origin USA Weight 0.85 kg Dimensions 243.8 x 172.7 x 38.1 mm Operating Temp 0 to 50 deg C Power Consumption 24 VDC bus input Microcontroller 32-bit, 50 MHz clock speed Program Memory 1 MB Flash Data Memory 512 KB SRAM Bus Architecture MARK IV/QDII bus Digital I/O 16 Inputs (24 VDC), 16 Outputs (24 VDC, 0.5 A) Analog I/O 8 Inputs (4-20 mA), 4 Outputs (0-10 V) Communication Interfaces QDII bus, CANbus, RS-485 Deterministic Control & Backplane Bus Execution The board leverages high-speed backplane bus communication velocity to execute real-time SCR firing angle calculations based on motor speed feedback and torque demand limits. Operating across deterministically managed QDII bus and CANbus networks, it achieves synchronized execution across peripheral signal distribution and acquisition cards. The 32-bit microcontroller maintains rigid cyclic control execution without bus arbitration latency, ensuring phase angle alignment and system stability during high-torque turbine starting cycles. Frequently Asked Questions Q: What precautions should be observed regarding on-board capacitor energy storage during maintenance? A: On-board filtering and backup capacitors (220 uF and 100 uF) retain residual electrical energy after main power disengagement. Allow a minimum discharge dwell time before removing the board from the bus frame or handling exposed solder traces. Q: How are parameter retainage settings preserved across control power cycles? A: Static setup parameters and operational logs reside within battery-backed SRAM. Ensure the local battery retention circuit maintains nominal voltage prior to prolonged power interruptions to prevent non-volatile parameter corruption. Field Installation Guidelines Electrostatic Discharge (ESD) Protection: Always wear a grounded wrist strap attached to unpainted cabinet metal before touching card edges or setting jumpers on the CPU board. Bus Edge Alignment: Align the card edges precisely with the MARK IV chassis card guides. Apply uniform pressure to fully seat edge connectors into the backplane, ensuring zero mechanical binding. Cable Strain Relief: Ensure RS-485 and CANbus shield wires are tied directly to local frame ground points. Route low-voltage signal lines away from high-power SCR gate drive wiring to prevent inductive cross-coupling.
$200.00 $100.00
-
General Electric GE DS200LDCCH1AHA Drive Control Card
GE DS200LDCCH1AHA Drive Control Card The GE DS200LDCCH1AHA, also cataloged as the DS200LDCC Drive Control Card, operates as a dedicated hardware component for turbine logic execution and I/O coordination within GE Mark V Speedtronic systems. Hardware Specifications Parameter Specification Model DS200LDCCH1AHA Brand GE Origin USA Weight 0.95 kg Dimensions 160 mm x 233 mm Operating Temp 0 to 60 deg C Power Consumption +5 VDC, +15 VDC, +24 VDC (via rack backplane) Processor 16-bit DSP microprocessor Memory EPROM firmware storage, RAM for logic execution Analog I/O Multiple isolated channels for turbine sensors Digital I/O Optically isolated inputs and relay outputs Communication ARCNET, DLAN, RS-232 diagnostic port Isolation Optical isolation between field and logic signals Form Factor 6U VME board Certifications UL, CSA component level Backplane Bus Communication & Logic Execution The board leverages high-speed backplane bus communication velocity to execute deterministic control loops for gas and steam turbine sequencing. Its internal processing architecture routes real-time data across ARCNET and DLAN interfaces with minimal latency, supporting parallel I/O density scaling throughout the Mark V rack. Onboard EPROM chips manage firmware flash compatibility, preventing revision mismatches during hardware replacement cycles and ensuring consistent timing during critical turbine speed and load transitions. Frequently Asked Questions Q: What power rails must be active on the backplane for proper board initialization? A: The board requires operational +5 VDC, +15 VDC, and +24 VDC rails delivered directly from the Mark V rack backplane bus before logic processing and optical isolation circuits function. Q: Can the board be inserted or removed while the rack backplane is energized? A: No, live insertion or hot-swapping is prohibited. De-energize the rack power supply and await full capacitor discharge prior to inserting or removing the card from the 6U VME chassis. Q: How is diagnostic communication handled during field commissioning? A: An onboard RS-232 port provides local serial diagnostic terminal access, allowing technicians to review hardware status and controller firmware revisions directly without disrupting ARCNET or DLAN bus operations. Field Installation Guidelines Ensure power to the Mark V chassis is fully isolated before handling the board. Observe strict ESD safety protocols by wearing a grounded wrist strap attached to the panel frame. Align the 6U VME board card edges with the chassis guide rails, pressing firmly until the backplane connectors seat completely. Tighten all faceplate retaining screws to maintain chassis grounding integrity and prevent mechanical vibration from unseating the board. Verify all field wiring shields are grounded at a single point to prevent signal noise on analog and digital interface channels.
$200.00 $100.00
-
General Electric GE DS200SDCCG1AEC Mark V Speedtronic Drive Control Board
GE DS200SDCCG1AEC Mark V Speedtronic Drive Control Board Configured for high-speed algorithm processing and real-time turbine coordination in Speedtronic control racks, the GE DS200SDCCG1AEC (DS200SDCC Drive Control Board) provides direct physical/electrical execution. The board integrates three 16-bit digital signal processors (DSPs) to administer motor control timing, firing angle calculation for power electronic bridges, and local sub-system diagnostics. It interacts directly with power interface boards and field sensors through specialized signal distribution hardware over dedicated backplane pathways. Hardware Specifications Parameter Specification Model DS200SDCCG1AEC Brand GE Origin United States Weight 0.96 kg Dimensions 160 mm x 233 mm x 20 mm Operating Temp 0 deg C to 60 deg C Power Consumption +5 VDC at 6.0 A, +15 VDC at 0.5 A, +24 VDC at 0.2 A Processing Architecture 3 x 16-bit DSPs (Master, Communications, I/O) Onboard Memory 128 kB Dual-Port RAM, 256 kB EPROM Firmware Analog Outputs 12-bit isolated, -10 VDC to +10 VDC, 5 mA maximum load Servo Channels 2 channels, jumper-selectable 10 mA to 120 mA coil current LVDT Sensor Interface 6 differential inputs, 3-wire or 4-wire selectable Digital Field I/O 64 opto-isolated inputs, 32 relay outputs Bus Communication Interface DLAN, ARCNET, RS-232 TIMN port, Genius Bus support Electrical Isolation 1500 VDC field-to-logic, 2.5 kV optical isolation Backplane Bus Communication Velocity & Firmware Flash Compatibility The DS200SDCC board relies on high-speed deterministic bus communication interfaces to exchange state variables across the drive rack backplane without CPU blocking. Dual-port RAM (DPRAM) buffers data between the internal DSP cores and external fieldbus protocols, eliminating data bus contention. Firmware execution depends on strict flash/EPROM chip set alignment across all three processors. Mismatched firmware versions among the processing nodes cause state desynchronization, triggering fault codes and safe shutdown sequences during boot initialization. Frequently Asked Questions Q: How are the onboard servo channel output currents configured for different valve actuators? A: Coil currents on the 2 servo control channels are established via physical hardware jumper blocks on the printed circuit board. Jumpers must be configured in deactivated-power states to match the target 10 mA to 120 mA rating before connecting actuator leads. Q: Does the board support live hot-swapping inside a powered VME rack? A: No. Replacing the board while the backplane is energized risks voltage transients, corrupted EPROM states, and potential power supply shorts. Always disconnect main power and lock out the supply before extraction. Q: What step is required when transferring configurable settings to a replacement DS200SDCC board? A: Configuration parameters and site-specific operational data are stored in removable EPROM or EEPROM chips. These memory chips must be transferred carefully from the existing board to the new board using anti-static handling tools prior to installation. Field Installation Guidelines ESD Protection Protocols: Wear a grounded wrist strap connected to an unpainted metal chassis ground point before touching the card. Hold the circuit board strictly by its front faceplate or plastic card edges to prevent static discharge into exposed DSP leads. Chassis & Mechanical Mounting: Ensure the target 6U VME rack slot is free of debris. Align the board edges with the card guides and push firmly until the board seats fully into the backplane connectors. Secure the top and bottom retaining screws to achieve solid chassis grounding. Cable Strain Relief & Routing: Route incoming ARCNET, DLAN, and analog sensor field cables away from high-voltage AC lines and switching power leads. Fasten all ribbon and communication cables with mechanical strain relief ties to minimize physical stress on board header pins. Shield Grounding Practices: Field signal cable shields (LVDT, servo feedback, analog outputs) must be grounded at a single point—typically at the designated ground bar in the enclosure—to prevent ground loops and high-frequency noise interference on measurement circuits.
$200.00 $100.00
-
General Electric GE DS200SDCCG4AGD Drive Control Card
GE DS200SDCCG4AGD Drive Control Card The GE DS200SDCCG4AGD, also cataloged as the DS200SDCC Drive Control Card, operates as a dedicated hardware component for LVDT valve position feedback processing and servo loop execution within GE Mark V Speedtronic turbine control systems. Hardware Specifications Parameter Specification Model DS200SDCCG4AGD Brand GE Origin United States Weight 0.68 kg Operating Temp -25 to +60 deg C Power Consumption Not specified; powered through Mark V control rack interface Product Type Drive Control Card System Platform GE Mark V Speedtronic Servo Channels 8 independent LVDT servo loops Control Algorithm Digital PID with feedforward Servo Outputs +/-10 VDC, 10 mA max per channel Resolution 16-bit, 0.3 mV LVDT Inputs 3-wire or 5-wire per channel LVDT Excitation 2.5 kHz, 2.5 Vrms nominal, adjustable 1-5 Vrms Sensitivity Range 1-25 mV/V/mm Linearity Error <0.1% full scale after calibration Secondary Feedback 4-20 mA per channel Update Rate 1 ms simultaneous update across all channels Discrete Inputs 16 inputs, 24 VDC Processor Architecture 3 CPUs with shared RAM Connectors Dual headers for power supply and I/O interface PCB Coating Normal conformal coating GE Mark V LVDT Servo Control and Industrial Drive Integration The DS200SDCCG4AGD integrates eight independent LVDT servo channels with onboard excitation and demodulation circuits. Each channel processes valve position feedback directly from LVDT devices and executes digital PID control calculations for turbine valve positioning. The GE industrial control architecture uses deterministic control execution, backplane communication, and I/O density scaling for multi-channel servo applications. The three-CPU structure provides separated processing resources for control algorithms, feedback acquisition, and system coordination. The board supports firmware flash compatibility within the Mark V platform and maintains direct interface capability with valve servo circuits through analog outputs, secondary 4-20 mA feedback channels, and discrete status inputs. Frequently Asked Questions Q: How many LVDT servo channels are available on the DS200SDCCG4AGD?A: The board provides 8 independent LVDT servo channels, each with integrated excitation and demodulation functions. Q: What type of feedback signals can the card process?A: The card accepts 3-wire or 5-wire LVDT feedback signals and supports secondary 4-20 mA feedback channels. Q: What control method is used for valve positioning?A: The board executes digital PID control with feedforward processing for servo loop regulation. Field Installation Guidelines Install the DS200SDCCG4AGD in the specified GE Mark V rack location with system power removed before board replacement or inspection. Verify rack connector engagement, I/O header connections, and mechanical mounting before applying control power. Route LVDT signal wiring separately from high-current conductors and switching circuits to minimize electromagnetic interference. Connect cable shields according to the cabinet grounding design. Confirm LVDT wiring configuration, excitation settings, feedback scaling, and servo calibration parameters before returning the turbine control system to operation.
$200.00 $100.00
لقد شاهدت 144 من أصل 397 منتجًا
