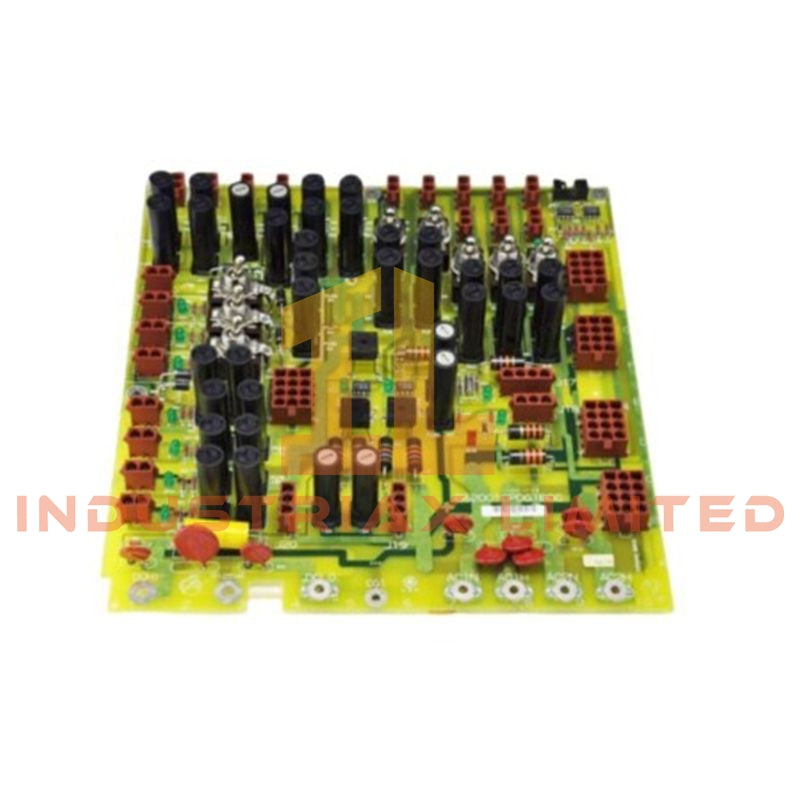

GE DS200TCPDG1B Speedtronic Mark V Power Distribution Module

Configured for protected DC branch circuit distribution in Speedtronic Mark V turbine control systems, the GE DS200TCPDG1B (DS200TCPD Power Distribution Module) provides direct physical/electrical execution. The circuit board routes incoming 24 VDC source power across multiple independently fused channels to deliver isolated voltage rails directly to system sensors, discrete logic cards, and electromechanical relay coils. Visual status indication continuously verifies individual fuse integrity and terminal voltage presence.

Suffix Breakdown & Model Matrix

Part Number Segment	Specification Detail
DS200	Standard functional series and form factor for GE Speedtronic Mark V cabinet mounting
TCPD	Terminal Board / Power Distribution Function (TCPD functional acronym)
G1	Base group configuration defining physical terminal layout and channel density
B	First functional revision rating (Normal coating type)

Hardware Specifications

Parameter	Specification
Model	DS200TCPDG1B
Brand	GE General Electric
Origin	United States
Weight	0.8 kg
Dimensions	24 cm x 18 cm x 4.5 cm
Operating Temp	-10 deg C to +60 deg C
Power Consumption	10A maximum continuous throughput
Input Voltage	24 VDC +/-20%
Branch Channels	12 individually fused outputs
Branch Fuse Ratings	1A, 2A, or 5A field-selectable options
Main Input Fuse	10A fast-acting fuse
Visual Indicators	12 green fuse status LEDs, 2 red fault status LEDs
Onboard Switches	8 toggle control switches
Physical Terminal Block	1 x 6-pin input terminal, 24 output terminals, 1 x 10-pin header

Power Distribution and Deterministic Bus Performance

The module operates within the GE Speedtronic Mark V framework to manage internal DC distribution impedance and voltage stabilization. Backplane bus communication velocity and power bus integrity are maintained by low-resistance heavy copper PCB traces designed to minimize voltage drop across all 12 output channels during high-inrush field events. The onboard circuitry prevents backplane noise propagation by dampening transient voltage spikes before they can affect upstream core processor logic or sensitive Analog Input/Output circuits.

Frequently Asked Questions

Q: How does the module indicate a blown branch fuse during operation?

A: Individual green status LEDs located adjacent to each fuse position extinguish immediately upon open-circuit failure. In addition, red fault LEDs illuminate to signal a distribution fault condition across the board.

Q: Is hot-swapping allowed on the DS200TCPDG1B power distribution card?

A: No. All 24 VDC primary power sources feeding the 6-pin input terminal block must be de-energized and locked out prior to disconnecting terminal plugs or removing the module from the Mark V rack.

Q: Can different output channels use mixed fuse current ratings simultaneously?

A: Yes. Each of the 12 output channels accepts field-selectable 1A, 2A, or 5A fast-acting fuses, provided the total combined load does not exceed the main 10A continuous rating of the board.

Field Installation Guidelines

Mount the PCB securely to the rack DIN frame using all provided standoff locations to maintain chassis ground continuity. Torque wire retaining screws on the 6-pin power input block and the 24 branch output terminals to 0.5 Nm. Ensure field wiring runs for 24 VDC distribution are physically segregated from high-voltage AC cables to eliminate capacitive coupling. Strip branch wire ends to exactly 6 mm before inserting them into screw terminals to prevent exposed copper bridging between adjacent channels.
