تقدم جنرال إلكتريك (GE) مجموعة شاملة من منتجات الأتمتة الصناعية. تشمل محفظتها أنظمة PACSystems RX3i/RX7i، ووحدات الإدخال والإخراج Genius، ووحدات التحكم Mark VIe، وأنظمة التحكم المنطقي القابلة للبرمجة (PLC). تضمن منتجات GE تشغيلًا موثوقًا، وأتمتة قابلة للتطوير، ودعمًا طويل الأمد للتطبيقات الصناعية حول العالم.
جنرال إلكتريك
-
General Electric IS215UCVEH2A GE Mark VI VME Controller Card
GE IS215UCVEH2A Mark VI VME Controller Card The GE IS215UCVEH2A, also cataloged as the IS215UCVEH2A VME Controller Card, operates as a dedicated hardware component for real-time turbine control logic execution within GE Mark VI/Mark VIe Speedtronic control systems. The board provides processor functions, VME bus communication, and control lane processing for turbine sequencing, protection, and regulation tasks. Hardware Specifications Parameter Specification Model IS215UCVEH2A Brand GE (General Electric) Origin United States Weight 2 lbs Dimensions 6U VME single-slot form factor; approximately 160 mm x 233 mm Operating Temp -30 to +65 deg C Power Consumption +5 VDC, 6 A typical, 8 A maximum; +/-12 VDC auxiliary supply Processor Intel Celeron 300 MHz processor Memory 32 MB DRAM; Flash and battery-backed NVRAM storage Operating System QNX real-time operating system Bus Interface VME64 compliant, A32/D32 transfer modes Ethernet Interface 10BaseT/100BaseTX RJ-45 Ethernet port Serial Interfaces COM1 serial communication interface Control Function VME controller and turbine control processor module Programming Method Boolean control logic execution VME Bus and TMR Control Architecture The IS215UCVEH2A controller card operates within the GE Mark VI turbine control architecture using VME backplane communication. The processor executes control algorithms, sequencing routines, and diagnostic tasks while exchanging data with connected I/O modules. The controller supports Triple Modular Redundancy (TMR) operation, where three independent control lanes process and compare voting data. The voting mechanism allows fault detection and continued control execution when a single processing lane experiences a fault condition. Frequently Asked Questions Q: What type of processor is installed on the IS215UCVEH2A?A: The module uses an Intel Celeron 300 MHz processor and operates with a QNX real-time operating system for deterministic control execution. Q: What backplane interface does the IS215UCVEH2A support?A: The controller uses a VME64 compliant interface with A32/D32 transfer modes for communication with Mark VI system modules. Q: What power input is required for this controller card?A: The module requires a +5 VDC supply with approximately 6 A typical current consumption and 8 A maximum current demand, with auxiliary +/-12 VDC inputs. Field Installation Guidelines Install the IS215UCVEH2A controller card into the designated 6U VME rack slot according to the Mark VI cabinet configuration documentation. Verify backplane connector alignment before insertion and ensure rack power is removed during installation or removal. Use shielded communication cables for Ethernet and serial connections where required by the cabinet wiring design. Maintain separation between signal wiring and high-voltage or high-current conductors to reduce electromagnetic interference. Confirm grounding continuity between the VME rack, cabinet chassis, and protective earth system. Verify firmware compatibility, I/O module addressing, and controller configuration parameters before system startup.
$200.00 $100.00
-
General Electric GE IS200PSCDG1ADB Power Supply Contactor Driver Board
GE IS200PSCDG1ADB Power Supply Contactor Driver Board Configured for regulated DC power conversion and contactor control execution in GE Mark VI / Mark VIe Speedtronic turbine control systems, the GE IS200PSCDG1ADB (IS200PSCDG1ADB Power Supply Contactor Driver Board) provides direct electrical execution through DC regulation circuits, isolated I/O channels, and contactor driver outputs. Hardware Specifications Parameter Specification Model IS200PSCDG1ADB Brand GE Origin United States Weight 0.6 kg Dimensions 16.2 x 8.6 x 4.8 cm Operating Temp -30 to +65 deg C Power Consumption 12 W maximum Product Type Power Supply Contactor Driver Boards System Platform GE Mark VI / Mark VIe Speedtronic turbine control systems Functional Abbreviation PSCD Input Voltage 14-32 V DC dual redundant or 88-132 V AC / 176-264 V AC depending on configuration Output Voltages +5 V DC, +/-15 V DC, +/-24 V DC regulated outputs Contactor Driver Output Up to 0.75 A DC, 100 V DC output for MDA contactor coils Analog Inputs 8 differential channels Analog Outputs 4 channels, 4-20 mA Digital Inputs 16 optically isolated channels Digital Outputs 8 relay outputs Processor 32-bit RISC microcontroller Memory 4 MB Flash, 2 MB battery-backed RAM Analog Sampling 1 kHz per input, 16-bit resolution Isolation 2500 V optical isolation per I/O channel Protection MOV surge protection and conformal coating Backwards Compatibility First two revisions Assembly Type Normal Assembly GE Mark VI Deterministic Power and I/O Control The IS200PSCDG1ADB integrates power regulation, contactor driver execution, and signal interface functions within GE Mark VI / Mark VIe control architectures. The board supports deterministic backplane communication for status feedback, voltage monitoring, and fault reporting. The PSCD board uses redundant power input capability and floating DC bus operation for power distribution management. The floating bus arrangement allows detection of system ground faults while maintaining DC supply separation from earth reference. The module provides I/O density scaling through combined analog and digital interfaces, including differential analog channels, isolated digital inputs, relay outputs, and 4-20 mA analog outputs. Firmware flash compatibility with GE controller environments enables configuration management and diagnostic communication through the turbine control platform. Frequently Asked Questions Q: What power outputs are provided by the IS200PSCDG1ADB?A: The board provides regulated +5 V DC, +/-15 V DC, and +/-24 V DC outputs for connected control hardware. Q: Does the PSCD board support redundant power inputs?A: Yes. The board supports dual redundant DC input configurations and floating DC bus operation. Q: What isolation protection is provided for I/O channels?A: The board provides 2500 V optical isolation per I/O channel. Field Installation Guidelines Install the IS200PSCDG1ADB in the specified GE Mark VI / Mark VIe control cabinet location with correct mounting orientation and connector alignment. Verify all incoming power sources are isolated before performing installation or replacement work. Maintain separation between DC power wiring, contactor circuits, and low-level analog signal wiring. Use proper grounding practices for cabinet assemblies and connect shields according to GE turbine control installation requirements. Confirm redundant input polarity, output wiring, and I/O terminal assignments before energizing the board. After startup, check diagnostic feedback, power status indicators, and backplane communication status through the controller interface.
$200.00 $100.00
-
General Electric IS200GDDDG1ABA GE EX2100 Gate Driver Board
GE IS200GDDDG1ABA Gate Driver Dynamic Discharge Board The GE IS200GDDDG1ABA, also cataloged as the IS200GDDDG1ABA Gate Driver Dynamic Discharge Board, operates as a dedicated hardware component for IGBT gate control and DC link energy discharge execution within the GE Mark VI / EX2100 excitation control system. Hardware Specifications Parameter Specification Model IS200GDDDG1ABA Brand GE Origin United States Weight 2.3 kg Dimensions 17.8 cm high x 33.02 cm wide x 90 mm depth Operating Temp -30 to +65 deg C Power Consumption +5 V at 1.2 A, +/-12 V at 200 mA from VME backplane Product Type Gate Driver Dynamic Discharge Boards System Platform GE Mark VI / EX2100 Static Exciter Gate Drive Channels 6 differential gate drive channels Gate Drive Output 15 V differential, 2 A peak, 20 us pulse width Gate Drive Isolation Transformer-isolated gate drive circuits Dynamic Discharge Device 600 V IGBT with 2 kA pulse capability Dynamic Discharge Response 10 us turn-on time Isolation Rating 1500 Vrms gate-to-logic, 500 V channel-to-channel Connectors 96-pin DIN VME connector, two 20-position pluggable headers Protection Functions Gate supply UVLO, desaturation detection, MOV surge suppression Diagnostics LED indicators for Bridge OK, IMOK, and DD AUX Power Available Coating IPC-CC-830 conformal coating GE Mark VI Excitation IGBT Gate Control and Firmware Compatibility The IS200GDDDG1ABA provides IGBT switching control within the GE Mark VI and EX2100 excitation architecture. The board receives gate commands through the VME backplane interface and generates isolated drive signals for six IGBT devices in the exciter bridge. The dynamic discharge circuit manages DC link energy dissipation during fault or shutdown sequences by controlling the discharge IGBT and resistor path. The board supports Mark VI TMR architecture compatibility, allowing synchronized control processing across redundant controller channels. Firmware flash compatibility with the Mark VI control environment allows diagnostic communication and hardware status monitoring. Protection circuits including undervoltage lockout, desaturation detection, and surge suppression monitor gate drive conditions during switching operation. Frequently Asked Questions Q: How many IGBT gate drive channels are provided by the IS200GDDDG1ABA?A: The board provides six isolated differential gate drive channels for IGBT bridge control. Q: What is the purpose of the dynamic discharge function?A: The dynamic discharge circuit transfers stored DC link energy into resistor banks during trip or shutdown events to control overvoltage conditions. Q: What interface connects the board to the Mark VI controller system?A: The board uses a 96-pin DIN VME connector and additional pluggable headers for system interfacing. Field Installation Guidelines Install the IS200GDDDG1ABA in the designated GE Mark VI or EX2100 VME rack position with correct connector alignment. Verify that all excitation power sources and DC link circuits are de-energized before installation or replacement. Maintain separation between gate drive wiring, high-voltage DC conductors, and low-level control wiring. Ensure cabinet grounding and shielding connections follow the excitation system installation requirements to minimize electromagnetic interference. Check VME connector seating, auxiliary power connections, and diagnostic LED status after installation. Verify gate drive signal integrity and system communication before returning the excitation system to service.
$200.00 $100.00
-
General Electric IS200TBAIH1C GE Analog Input Terminal Board
GE IS200TBAIH1C Analog Input Terminal Board The GE IS200TBAIH1C, also cataloged as the IS200TBAIH1C Analog Input Terminal Board, operates as a dedicated hardware component for differential analog signal acquisition and conditioning within the GE Mark VI / Mark VIe turbine control system. The board converts field sensor signals into controller-readable inputs through isolated analog channels. Hardware Specifications Parameter Specification Model IS200TBAIH1C Brand GE Origin United States Weight 0.5 kg Operating Temp -25 to +70 deg C Product Type Analog Input Terminal Boards System Platform GE Mark VI / Mark VIe Speedtronic turbine control systems Input Channels 16 differential analog inputs Signal Types 0-5 V, 0-10 V, +/-5 V, +/-10 V, 0-20 mA, 4-20 mA Resolution 16-bit (65,536 counts) Sampling Rate <= 2 kHz per channel Accuracy +/-0.1% full scale at 25 deg C Frequency Range 0-10 kHz with programmable filtering Isolation 1500-2500 V DC channel-to-channel and channel-to-ground Connectors 3 x DC-37 connectors (JR1, JS1, JT1) for TMR redundancy Diagnostics LED indicators for signal loss, overvoltage, and board health Hot-Swap Support Supported with auto-configuration download Coating Conformal coating for vibration resistance GE Mark VI Deterministic Analog I/O Processing The IS200TBAIH1C provides analog signal termination and conditioning for GE Mark VI and Mark VIe control architectures. The board supports deterministic controller communication through the turbine control I/O network and provides isolated measurement paths for temperature, pressure, vibration, flow, and acceleration sensors. The terminal board supports I/O density scaling through 16 differential input channels with multiple voltage and current signal ranges. The signal conditioning circuitry applies filtering and isolation to reduce electromagnetic interference effects and ground loop coupling. The board interfaces with GE turbine controllers through redundant TMR signal paths. Firmware flash compatibility with the Mark VI/Mark VIe control environment allows automatic configuration transfer during hot-swap replacement procedures. Frequently Asked Questions Q: What analog input signals can the IS200TBAIH1C accept?A: The board supports voltage and current analog signals including 0-5 V, 0-10 V, +/-5 V, +/-10 V, 0-20 mA, and 4-20 mA inputs. Q: Does the IS200TBAIH1C support hot-swap replacement?A: Yes. The board supports hot-swap operation with automatic configuration download from the control system. Q: What isolation method is provided for analog channels?A: The board provides DC isolation between channels and between channels and ground to separate field signal circuits from the control backplane. Field Installation Guidelines Install the IS200TBAIH1C in the designated GE Mark VI or Mark VIe cabinet location with correct connector alignment and terminal board mounting. Confirm that field wiring is de-energized before connecting analog signal circuits. Use shielded instrumentation cables for low-level analog inputs and terminate cable shields according to the cabinet grounding design. Keep analog wiring separated from high-voltage switching circuits and power conductors to reduce electrical noise coupling. Verify DC-37 connector seating, channel assignments, and signal polarity before system startup. After installation, check LED diagnostic indicators and controller communication status to confirm correct module operation.
$200.00 $100.00
-
General Electric GE IS400TCASH1A Turbine Control Card
GE IS400TCASH1A Turbine Control Card The GE IS400TCASH1A, also cataloged as the IS400TCASH1A Turbine Control Card, operates as a dedicated hardware component for analog signal termination and real-time turbine parameter processing within the GE Mark VIe Distributed Turbine Control System. The module handles TMR analog channels, signal conditioning, and isolated I/O interfacing. Hardware Specifications Parameter Specification Model IS400TCASH1A Brand GE Origin United States Weight 0.5 kg Dimensions 178 x 144 x 25 mm Operating Temp -20 to +70 deg C Power Consumption 25 W max Product Type Turbine Control Cards System Platform GE Mark VIe Distributed Turbine Control System Analog Inputs 32 TMR analog channels with triplicated R/S/T paths Signal Types 4-20 mA, 0-5/10 V, RTD Pt100, J/K/T thermocouples Digital I/O 32 isolated channels Processor 32-bit industrial processor, 1.2 GHz Memory 1 GB DDR3 Termination Interface 2 x 24-point barrier blocks, 14-22 AWG screw clamp Filtering On-board RC filtering with surge and ESD protection Isolation 2500 V DC channel-to-backplane Communication Ethernet, PROFIBUS DP Operating Voltage 24 V DC +/-5% Storage Temp -40 to +85 deg C Certifications UL, CE, ATEX, RoHS, Class I Div 2 GE Mark VIe Deterministic Network and I/O Processing The IS400TCASH1A integrates with GE Mark VIe control architectures through deterministic communication interfaces and high-density I/O processing paths. The module supports Ethernet and PROFIBUS DP communication for controller data exchange and system-level diagnostics. The TMR analog termination structure provides triplicated signal paths for temperature, pressure, vibration, RTD, and thermocouple inputs. I/O density scaling allows multiple field signals to be conditioned through a single terminal assembly while maintaining channel isolation and diagnostic visibility. The board includes signal filtering circuits for EMI suppression, surge protection, and ground loop reduction. Firmware flash compatibility with the Mark VIe control environment enables controller-side configuration and module status management. Frequently Asked Questions Q: What analog signal types can the IS400TCASH1A process?A: The module supports 4-20 mA, voltage inputs including 0-5 V and 0-10 V, RTD Pt100, and J/K/T thermocouple signals. Q: What isolation level is provided between field channels and the backplane?A: The module provides 2500 V DC channel-to-backplane isolation. Q: Does the IS400TCASH1A support redundant signal processing?A: Yes. The module uses 32 TMR analog channels with triplicated R/S/T signal paths for redundant processing. Field Installation Guidelines Install the IS400TCASH1A in the designated GE Mark VIe cabinet slot with correct backplane alignment and connector engagement. Verify that all field wiring is isolated from power sources before termination activities. Use shielded instrumentation cables for low-level analog signals and connect cable shields according to the cabinet grounding scheme. Separate analog signal wiring from high-current conductors and switching circuits to reduce electromagnetic interference. Confirm terminal block wiring, channel assignments, and communication connections before applying 24 V DC operating power. Check module LED diagnostic indicators after startup to verify normal hardware status and communication operation.
$200.00 $100.00
-
General Electric GE IS200ERSCG2A Exciter Regulator Static Control Module
GE IS200ERSCG2A Exciter Regulator Static Control Module Configured for PWM excitation output control and field discharge management in GE EX2100 / EX2100e excitation control systems, the GE IS200ERSCG2A (IS200ERSCG2A Exciter Regulator Static Control Module) provides direct electrical execution through IGBT switching circuits, gate drive outputs, and ERIB backplane communication interfaces. Hardware Specifications Parameter Specification Model IS200ERSCG2A Brand GE Origin United States Weight 150 g Dimensions 100 x 80 x 20 mm Operating Temp -20 to +60 deg C Product Type Exciter Regulator Static Control Modules System Platform GE EX2100 / EX2100e Excitation Control System Input Voltage 125 V DC station battery bus Gate Drive Output +/-20 V configurable via jumpers Gate Drive Current Peak > 3.0 A Response Time < 5 ms logic to gate pulse Isolation Rating 2500 V RMS input-to-output Switching Devices Six integrated IGBTs for PWM control and field discharge Communication Interface ERIB backplane bus to DSPX; Modbus TCP/IP or serial communication Mounting Location Exciter Power Backplane Rack (EPBP) Diagnostics LED indicators for power, static switch active, fan, line filter, and fault status GE EX2100 PWM Excitation Control and Firmware Compatibility The IS200ERSCG2A performs PWM DC output regulation through integrated IGBT switching elements within the EX2100 excitation architecture. The module receives control commands through the ERIB backplane interface and executes gate pulse generation for excitation power conversion and field discharge circuits. The module supports firmware-controlled communication compatibility with GE excitation control processors through the DSPX interface. Backplane bus communication provides synchronized data exchange between the static control module and the excitation controller for gate command execution, status feedback, and fault diagnostics. The six IGBT switching channels provide I/O density scaling for excitation switching functions, while configurable gate drive parameters allow adaptation to different excitation power configurations. The module also supports simplex and redundant system arrangements depending on the EX2100 system architecture. Frequently Asked Questions Q: What switching function is performed by the IS200ERSCG2A?A: The module controls PWM DC output generation and field discharge operation using six integrated IGBT switching devices. Q: How does the module communicate with the excitation controller?A: The IS200ERSCG2A communicates through the ERIB backplane bus interface connected to the DSPX control processor, with additional Modbus TCP/IP or serial communication support. Q: What is the gate drive electrical output range?A: The gate drive output is configurable through jumpers and supports +/-20 V output levels. Field Installation Guidelines Install the IS200ERSCG2A in the designated Exciter Power Backplane Rack (EPBP) position with correct mechanical alignment and connector engagement. Verify that the 125 V DC supply source is isolated before performing wiring or module replacement procedures. Maintain separation between high-current excitation conductors and low-level communication or feedback wiring. Connect cabinet grounding and shielding according to GE excitation system installation practices to reduce electromagnetic interference coupling. Before energizing the excitation system, confirm module seating, connector locking, LED diagnostic status, and communication path continuity. Verify that gate drive wiring and IGBT control connections correspond to the configured excitation system design.
$200.00 $100.00
-

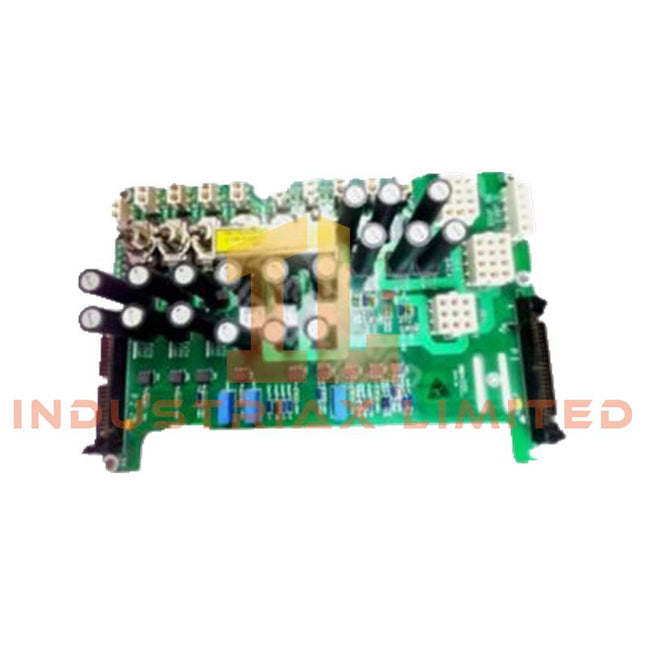

General Electric IS200JPDFG1A GE DC Power Distribution Module
GE IS200JPDFG1A DC Power Distribution Module The GE IS200JPDFG1A, also cataloged as the IS200JPDFG1A DC Power Distribution Module, operates as a dedicated hardware component for 125 V DC power distribution and monitoring within the GE Mark VI Speedtronic turbine control system. The module accepts redundant DC inputs and provides fused branch outputs with electrical isolation, circuit protection, and diagnostic feedback functions. Hardware Specifications Parameter Specification Model IS200JPDFG1A Brand GE Origin United States Weight 1.2 kg Dimensions 240 x 250 x 55 mm Operating Temp -20 to +60 deg C Power Consumption Not specified; powered from 125 V DC redundant input bus Product Type DC Power Distribution Module System Platform Mark VI Speedtronic turbine control system Power Input Redundant 125 V DC, 30 A max per input, floating DC bus Circuit Protection Integrated 125 V DC 30 A input circuit breaker with filtering Outputs 3 fused non-switched outputs and 6 fused switched outputs Monitoring Functions Bus magnitude, ground faults, excessive AC voltage, fused branch circuit presence Fuses 18 individually rated fuses Isolation 1500 V DC channel-to-channel and channel-to-ground Connectors 14 plug connectors Humidity Range 5% to 95% non-condensing Certifications UL 508, CSA C22.2 No.14, CE compliant GE Mark VI DC Power Distribution and Protection Functions The IS200JPDFG1A implements DC distribution management for Mark VI Speedtronic control architectures. The module accepts dual 125 V DC inputs and routes power through fused output branches for connected control hardware. Individual fuse monitoring and branch presence detection allow the controller system to identify distribution path conditions. The module includes six toggle switches for switched output control, with three switches carrying caution labels for designated circuits. The integrated protection structure provides overcurrent interruption, short-circuit protection, and reverse polarity protection within the DC distribution path. Frequently Asked Questions Q: What input configuration does the IS200JPDFG1A support?A: The module supports redundant 125 V DC inputs with a floating DC bus arrangement and a maximum current rating of 30 A per input. Q: How many output circuits are available on this module?A: The module provides three fused non-switched outputs and six fused switched outputs through individually protected branch circuits. Q: What isolation capability is provided between channels and ground?A: The module provides 1500 V DC isolation between channels and between channels and ground. Field Installation Guidelines Install the IS200JPDFG1A in the designated Mark VI Speedtronic control cabinet location with correct mechanical mounting and connector alignment. Verify that all DC input sources are isolated before wiring activities. Use properly rated DC wiring for the 125 V DC power connections and maintain separation between power conductors and low-level signal cables. Connect cabinet grounding according to the control system grounding scheme. Confirm connector seating, fuse installation status, and branch circuit labeling before energizing the module. For installations involving redundant DC supplies, verify polarity, input source condition, and distribution path continuity before system startup. Maintain appropriate cable routing practices to minimize electromagnetic interference coupling into control wiring.
$200.00 $100.00
-
General Electric GE IS200TDBTH2A Discrete I/O Terminal Board
GE IS200TDBTH2A Discrete I/O Terminal Board The GE IS200TDBTH2A, also cataloged as the IS200TDBTH2A Discrete I/O Terminal Board, operates as a dedicated hardware component for discrete field signal execution within GE Mark VI turbine control system platforms. The board interfaces dry-contact inputs and relay outputs for sequencing, protection, and shutdown logic circuits. Hardware Specifications Parameter Specification Model IS200TDBTH2A Brand GE Origin United States Weight 0.7 kg Dimensions 33 cm x 18 cm x 4.5 cm Operating Temp -30 deg C to +65 deg C Power Consumption Supplied by PDIO pack with +5 VDC logic power Module Type Discrete I/O Terminal Board System Platform GE Mark VI turbine control system Discrete Inputs 24 channels, isolated, dry-contact compatible Relay Outputs 12 Form-C SPDT relays Wetting Voltage Range 12-145 VDC, nominal 24 VDC, 48 VDC, or 125 VDC Relay Contact Rating 5 A resistive at 250 VAC / 5 A at 30 VDC Input Filtering 12 V RMS AC rejection, 4-20 ms debounce Field Power External 24/48/125 VDC Isolation Rating 1500 Vrms channel-to-backplane Compliance IEC 61010-1, EN 61326-1, UL 61010-1 MTBF Approx. 3,500,000 hours (Telcordia SR-332, 40 deg C ambient) Deterministic Network and I/O Scaling Architecture The IS200TDBTH2A operates within the GE Mark VI control I/O architecture and provides discrete signal termination between field devices and PDIO interface packs. The board supports I/O density scaling through 24 isolated input channels and 12 relay output channels for turbine control sequencing and protection functions. The terminal board supports simplex, dual modular redundant (DMR), and triple modular redundant (TMR) configurations. Hardware isolation between field circuits and controller backplane sections provides electrical separation for discrete signal processing. The board integrates surge suppression components and input filtering circuits to reduce transient effects from inductive loads. Compatibility with Mark VI PDIO packs allows deterministic discrete signal transfer between field wiring and controller processing modules. Frequently Asked Questions Q: What field devices can be connected to the IS200TDBTH2A terminal board?A: The board supports dry-contact field devices including limit switches, alarms, trip contacts, and other discrete control signals. Q: Does the IS200TDBTH2A support TMR system configurations?A: The board supports simplex, DMR, and TMR architectures when installed with compatible GE Mark VI control system components. Q: What type of output switching is provided by the relay channels?A: The board provides 12 Form-C SPDT relay outputs for switching external loads such as solenoids, annunciators, and motor starter interfaces. Field Installation Guidelines Install the IS200TDBTH2A according to GE Mark VI cabinet wiring procedures and PDIO pack connection requirements. Verify terminal block wiring, ribbon cable connections, and grounding paths before applying system power. Use separated routing for discrete field wiring and high-energy switching conductors to minimize electromagnetic interference. Connect cable shields according to the cabinet grounding design where shielded wiring is applied. Confirm field wetting voltage selection, input contact polarity, and relay output wiring before commissioning. Check diagnostic indicators and controller I/O status feedback to verify correct channel operation after installation.
$200.00 $100.00
-
General Electric GE IS200TDBTH6A Discrete I/O Terminal Board
GE IS200TDBTH6A Discrete I/O Terminal Board The GE IS200TDBTH6A, also cataloged as the IS200TDBTH6A Discrete I/O Terminal Board, operates as a dedicated hardware component for discrete field signal interfacing within GE Mark VIe turbine control system platforms. The board processes isolated contact inputs and relay outputs for sequencing, interlock, and protection circuits. Hardware Specifications Parameter Specification Model IS200TDBTH6A Brand GE Origin United States Weight 0.72 kg Dimensions 17.8 cm x 33.0 cm x 4.5 cm Operating Temp -30 deg C to +65 deg C Power Consumption Supplied by PDIO pack with +5 VDC logic power Module Type Discrete I/O Terminal Board System Platform GE Mark VIe turbine control system Discrete Inputs 24 channels, group-isolated, dry-contact compatible Discrete Outputs 12 channels, Form-C SPDT relay outputs Wetting Voltage Range 12-145 VDC, nominal 24/48/125 VDC Relay Contact Rating 5 A resistive at 250 VAC / 5 A at 30 VDC Input Filtering 12 V RMS AC rejection, 4-20 ms debounce Field Power External 24/48/125 VDC Isolation Rating 1500 Vrms channel-to-backplane Compliance IEC 61010-1, EN 61326-1, UL 61010-1 MTBF Approx. 3,500,000 hours (Telcordia SR-332, 40 deg C ambient) Deterministic I/O and TMR Architecture The IS200TDBTH6A is designed for discrete signal processing within GE Mark VIe industrial control architectures. The terminal board provides 24 isolated discrete inputs and 12 Form-C relay outputs for field device connection, including switches, alarms, and interlock circuits. The board supports I/O density scaling through integration with PDIO packs and Mark VIe controller configurations. It can operate in simplex, dual modular redundant (DMR), and triple modular redundant (TMR) architectures where synchronized discrete signal processing is required. The hardware design includes surge suppression networks and input filtering circuits to manage inductive transients and electrical noise. Ribbon cable connection to PDIO packs provides the physical communication path between field terminals and controller processing modules. Frequently Asked Questions Q: What type of field signals can the IS200TDBTH6A process?A: The terminal board supports dry-contact discrete inputs and Form-C relay outputs with field wetting voltages ranging from 12 VDC to 145 VDC. Q: Can the IS200TDBTH6A be used in redundant Mark VIe configurations?A: The board supports simplex, DMR, and TMR system architectures when installed with compatible PDIO pack configurations. Q: What protection functions are integrated into the terminal board?A: The board includes input filtering, MOV protection, and RC suppression networks for transient and inductive load control. Field Installation Guidelines Install the IS200TDBTH6A according to the GE Mark VIe cabinet wiring layout and PDIO terminal board installation procedures. Confirm ribbon cable connection alignment and secure all terminal connections before system startup. Use field wiring practices suitable for discrete control circuits. Separate relay output wiring from low-level signal wiring where possible to reduce electrical interference. Connect cable shields according to the cabinet grounding design. Verify input polarity, wetting voltage source, and relay contact configuration before commissioning. Check controller diagnostics and discrete I/O status feedback after installation to confirm correct signal operation.
$200.00 $100.00
-

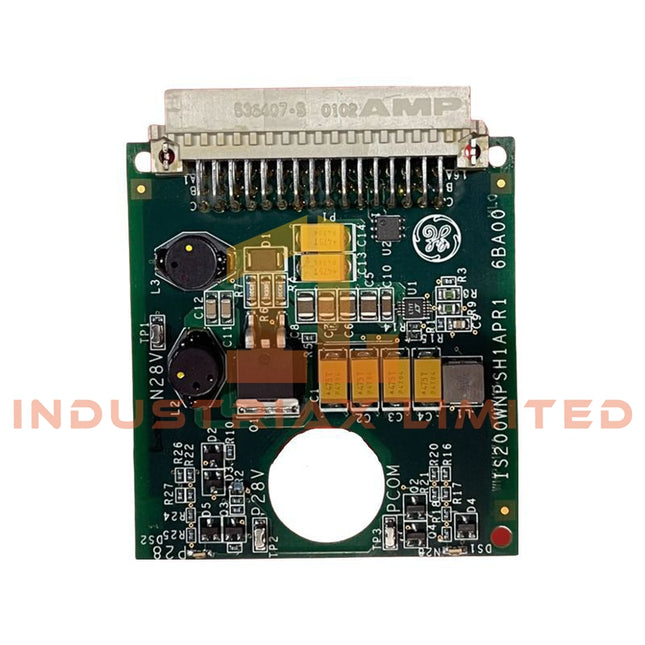

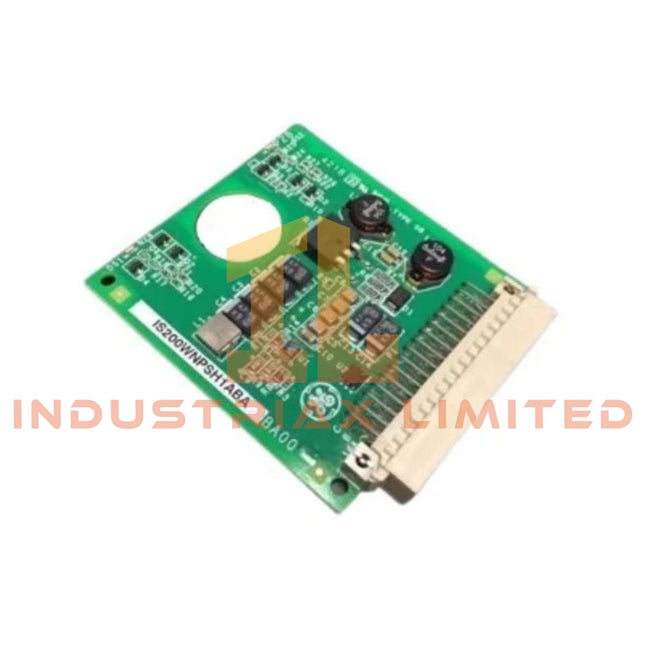

General Electric GE IS200WNPSH1A Power Supply Module
GE IS200WNPSH1A Power Supply Module Configured for regulated DC power distribution in GE Mark VI/Mark VIe turbine control systems, the GE IS200WNPSH1A (IS200WNPSH1A Power Supply Module) provides direct electrical execution for supplying isolated 24 VDC and +/-28 VDC power rails to controller, I/O, and signal conditioning circuits. Hardware Specifications Parameter Specification Model IS200WNPSH1A Brand GE Origin United States Weight 0.45 kg Dimensions 120 x 150 x 45 mm Operating Temp -30 deg C to +65 deg C Power Consumption Output power up to 240 W Module Type Power Supply Module System Platform GE Mark VI / Mark VIe turbine control system Input Voltage 24 VDC nominal, 18-32 VDC range via backplane Output Voltage +/-28 VDC at 400 mA per rail or regulated 24 VDC up to 10 A Voltage Regulation +/-1% Isolation 2500 V AC input-output, 1500 V AC output-ground Protection Functions Over-voltage, over-current, short-circuit, reverse polarity, thermal shutdown Cooling Method Convection cooling through PCB thermal vias Form Factor VME daughterboard or DIN rail mounting configuration MTBF >500,000 hours (Telcordia SR-332) Industrial Control Power Architecture The IS200WNPSH1A operates as a GE industrial control power module supporting deterministic power delivery within Mark VI/Mark VIe architectures. The module provides regulated DC outputs for analog I/O circuits, controller assemblies, network devices, and field interface components. The module supports PLC/DCS-style power distribution requirements with controlled output regulation and protection circuits. Its design enables I/O density scaling by providing stable DC rails for multiple connected control modules while maintaining electrical isolation between input and output sections. Firmware flash compatibility and controller hardware configuration must be verified when integrating the power module into existing Mark VI/Mark VIe assemblies. The module communicates operational status through onboard indicators and fault monitoring interfaces. Frequently Asked Questions Q: What DC outputs are provided by the IS200WNPSH1A power supply module?A: The module provides +/-28 VDC outputs for analog and precision circuits or regulated 24 VDC output depending on the installed system configuration. Q: Does the IS200WNPSH1A support redundant power input operation?A: The module supports dual independent input architecture with automatic switching functions for maintaining DC supply continuity during input disturbances. Q: What protection functions are included in the power supply design?A: The module includes over-voltage, over-current, short-circuit, reverse polarity, and thermal shutdown protection circuits. Field Installation Guidelines Install the IS200WNPSH1A module according to the GE Mark VI/Mark VIe cabinet hardware layout and power distribution requirements. Verify connector seating, backplane alignment, and DC polarity before energizing the assembly. Use properly rated DC wiring and maintain separation between power conductors and low-level analog signal cables. Ground cable shields according to the cabinet grounding design to reduce electromagnetic interference. Before operation, confirm input voltage range, output rail assignment, and connected load requirements. Check LED status indicators and system diagnostics after installation to verify correct power distribution.
$200.00 $100.00
-
General Electric IS200STAOH2AAA GE Mark VIe Analog I/O Module
GE IS200STAOH2AAA Analog I/O Module The GE IS200STAOH2AAA, also cataloged as the IS200STAOH2AAA Analog I/O Module, operates as a dedicated hardware component for analog signal acquisition and output execution within the Mark VIe turbine control system. The module processes voltage and current signals through isolated channels with 16-bit resolution, supporting 4-20 mA and voltage I/O interfaces. Hardware Specifications Parameter Specification Model IS200STAOH2AAA Brand GE Origin United States Weight 0.56 kg Dimensions 220 x 140 x 50 mm Operating Temp -40 deg C to +85 deg C Power Consumption Supplied from 24 V DC +/-10% or 28 V DC nominal backplane source Module Type Analog I/O Module System Platform Mark VIe turbine control system Channels 8 isolated analog inputs or 4-8 analog outputs depending on configuration Signal Types Voltage: 0-10 V, +/-10 V; Current: 4-20 mA Resolution 16-bit configurable to 12-bit Accuracy +/-0.05% of full scale Humidity Range 5-95% non-condensing Protection Rating IP65 enclosure Signal Rejection CMRR 120 dB at 60 Hz Deterministic Network and I/O Architecture The IS200STAOH2AAA operates within the GE Mark VIe I/O architecture and provides analog signal handling between field devices and controller processing units. The module supports isolated analog channels for voltage and current measurement, with onboard signal conditioning for noise attenuation and EMI/RFI reduction. The module architecture supports I/O density scaling through integration with IS200 series interface modules and compatible IS230SNAOH2A I/O pack assemblies. Backplane communication provides deterministic data transfer between the I/O hardware and the turbine control processor. Frequently Asked Questions Q: What analog signals are supported by the IS200STAOH2AAA module?A: The module supports voltage inputs and outputs including 0-10 V and +/-10 V ranges, as well as 4-20 mA current loop signals depending on the configured channel function. Q: Does the module support replacement during system operation?A: The supplied documentation specifies hot-swap capability, allowing module replacement without a complete system shutdown when installed within a compatible Mark VIe configuration. Q: What isolation functions are provided for analog channels?A: The module uses isolated analog channel design with signal conditioning circuits for EMI/RFI reduction and channel signal integrity management. Field Installation Guidelines Install the IS200STAOH2AAA module according to the Mark VIe cabinet and I/O rack installation procedures. Verify backplane alignment and connector engagement before applying power. Use shielded instrumentation cables for analog field wiring. Connect cable shields according to the system grounding scheme to reduce electromagnetic interference. Separate analog signal cables from high-voltage power conductors and switching circuits to minimize induced noise. Confirm field device signal polarity, loop wiring configuration, and channel assignment before commissioning. Check module status indicators and controller diagnostics after installation to verify correct communication and I/O operation.
$200.00 $100.00
-

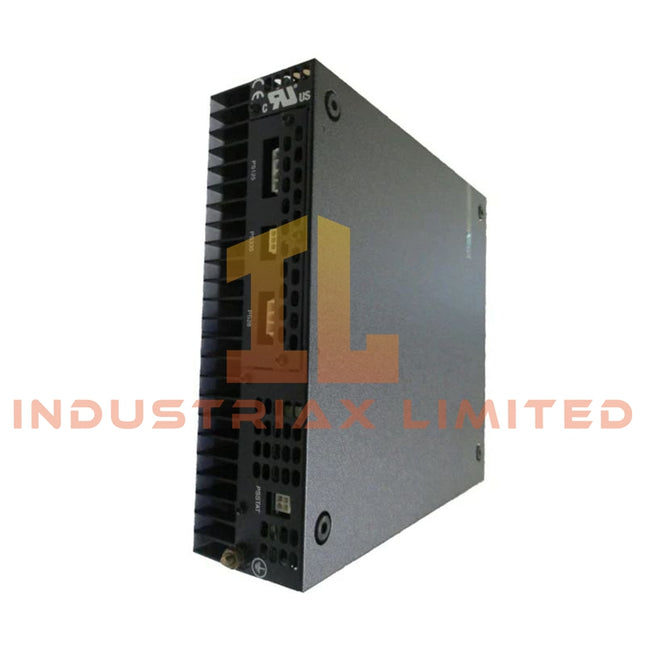

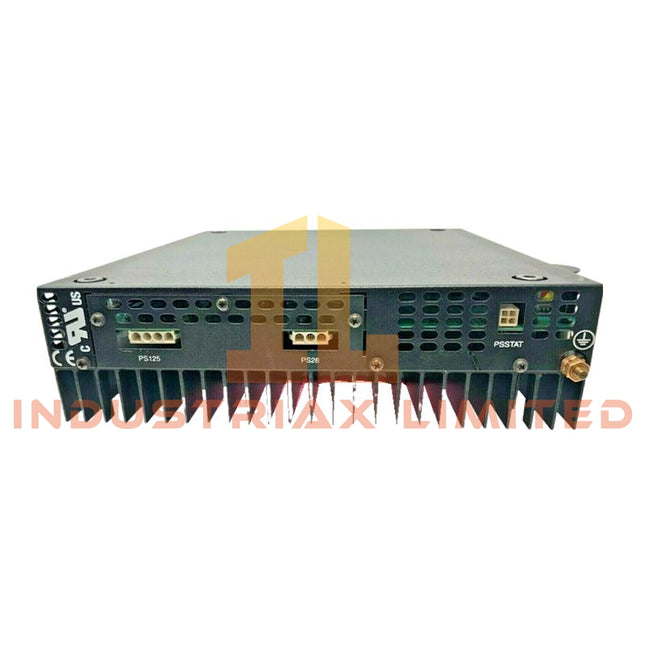

General Electric GE IS2020LVPSG1A Low-Voltage Power Supply Module
GE IS2020LVPSG1A Low-Voltage Power Supply Module Configured for regulated DC power distribution in the GE Mark VI/Mark VIe turbine control system, the GE IS2020LVPSG1A (IS2020LVPSG1A Low-Voltage Power Supply Module) provides direct electrical conversion and output regulation for processor, I/O, and auxiliary control modules. The module supplies multiple DC rails through rack backplane integration. Hardware Specifications Parameter Specification Model IS2020LVPSG1A Brand GE Origin United States Weight 0.5 kg Dimensions 233 x 160 x 18 mm Operating Temp -30 to +65 deg C Power Consumption Not specified; conversion efficiency >=92% Product Type Low-Voltage Power Supply Modules Series GE Mark VI / Mark VIe Turbine Control System Input Voltage 85-264 VAC (50/60 Hz) or 120-370 VDC Nominal DC Input 28 VDC for rack integration Output Rails 5 VDC at 20 A, +15 VDC at 5 A, -15 VDC at 5 A, 24 VDC at 10 A total Voltage Regulation Accuracy +/-0.3% Protection Functions Surge, overload, short-circuit, overvoltage, overtemperature shutdown Surge Protection 6 kV Overtemperature Shutdown 105 deg C Storage Temperature -40 to +85 deg C Certifications CE, UL, RoHS Industrial Control Power Conversion and Backplane Integration The IS2020LVPSG1A applies GE industrial control power architecture for Mark VI/Mark VIe systems. The module provides multi-rail DC output distribution through rack integration and supports I/O density scaling by supplying multiple connected control modules. The power supply architecture supports redundant feed configurations for load sharing and failover operation. Backplane bus power distribution maintains regulated voltage delivery between the power module and connected controller hardware. Frequently Asked Questions Q: What DC output voltages are provided by the IS2020LVPSG1A?A: The module provides 5 VDC, +15 VDC, -15 VDC, and 24 VDC output rails for Mark VI/Mark VIe control hardware. Q: What protection functions are integrated into the power supply module?A: The module includes surge protection, overload protection, short-circuit protection, overvoltage protection, and thermal shutdown functions. Q: Can the module operate in a redundant power configuration?A: The supplied data indicates support for dual-feed redundant configurations for failover and load sharing applications. Field Installation Guidelines Install the IS2020LVPSG1A in the designated GE Mark VI/Mark VIe rack position and verify mechanical alignment before engaging the backplane connector. Confirm input voltage range compatibility before energizing the module. Route AC/DC power wiring separately from low-level analog signal cables to reduce electrical interference. Check output rail measurements during commissioning and verify rack-connected modules receive correct supply voltages. Inspect connectors, grounding paths, and cooling airflow conditions during scheduled maintenance.
$200.00 $100.00
-
General Electric GE IS210MACCH2A Multi-Application Converter Controller Module
GE IS210MACCH2A Multi-Application Converter Controller Module Configured for closed-loop control execution and field signal conversion in the GE Mark VI/Mark VIe turbine control system, the GE IS210MACCH2A (IS210MACCH2A Multi-Application Converter Controller Module) provides direct processor, I/O, and communication interface functions. The module integrates CPU processing, analog/digital signal handling, and network communication through Speedtronic control architectures. Hardware Specifications Parameter Specification Model IS210MACCH2A Brand GE Origin United States Weight 0.59 kg Dimensions 283 x 182 x 52 mm Operating Temp -40 to +70 deg C Power Consumption Not specified in supplied data Product Type Multi-Application Converter Controller Module Series GE Mark VI / Mark VIe Speedtronic Control System Processor 32-bit High-Speed RISC CPU Memory 16 MB Flash / 8 MB SRAM Supply Voltage 24 VDC (18-30 VDC) or 5 VDC via backplane Analog I/O 16 analog inputs (4-20 mA / 0-10 V), 8 analog outputs Digital I/O 32 digital inputs, 16 relay digital outputs Communication Ports 2 x Ethernet 10/100 Base-T, 2 x RS-485, VME64 backplane Communication Protocols Modbus TCP/RTU, Profibus DP, GE Ethernet Global Data (EGD) Isolation Voltage 1500 V AC channel-to-channel and channel-to-ground Storage Temperature -40 to +85 deg C Certifications CE, UL 508, ATEX Category 3, RoHS Industrial Control Communication and I/O Processing The IS210MACCH2A operates as a GE industrial control processor module with integrated I/O density scaling for turbine control applications. The module combines analog acquisition, relay output control, and serial/Ethernet communication within the Mark VI/Mark VIe platform. The module supports deterministic network communication through Ethernet interfaces and GE control protocols. Firmware flash compatibility allows controller software loading and configuration management through supported Speedtronic engineering tools. Frequently Asked Questions Q: What type of communication interfaces are available on the IS210MACCH2A?A: The module provides dual Ethernet 10/100 Base-T ports, dual RS-485 interfaces, and VME64 backplane communication. Q: What I/O signals can the module process?A: The module supports 16 analog inputs, 8 analog outputs, 32 digital inputs, and 16 relay digital outputs for controller interfacing. Q: Does the module support replacement during system operation?A: The supplied data identifies hot-swappable capability. Actual replacement procedures depend on the installed Mark VI/Mark VIe rack configuration and system maintenance procedures. Field Installation Guidelines Install the IS210MACCH2A in the designated GE Mark VI/Mark VIe rack position and secure the module according to rack mechanical requirements. Verify backplane engagement before applying power. Use shielded cables for analog signal connections and terminate cable shields according to site grounding practices. Separate low-level analog wiring from high-current actuator and power cables to reduce electrical interference. Before commissioning, verify Ethernet and serial communication addressing, confirm I/O channel configuration, and check diagnostic status indicators through the applicable GE engineering software.
$200.00 $100.00
-

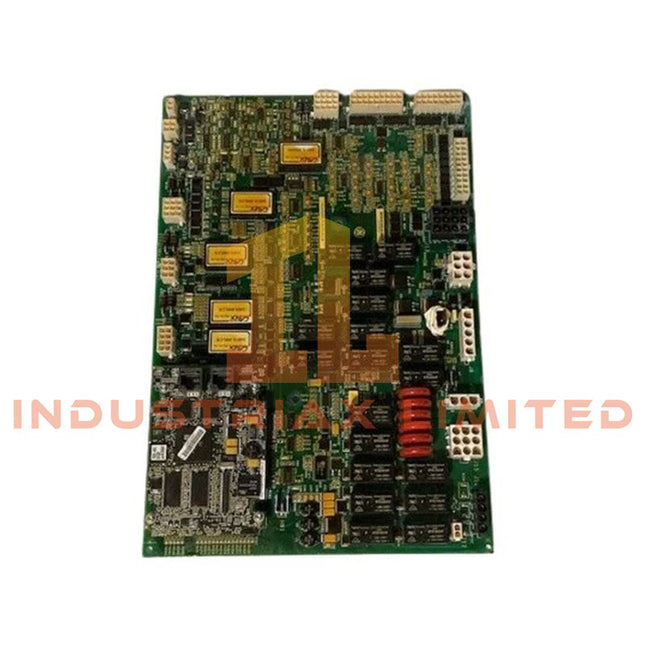

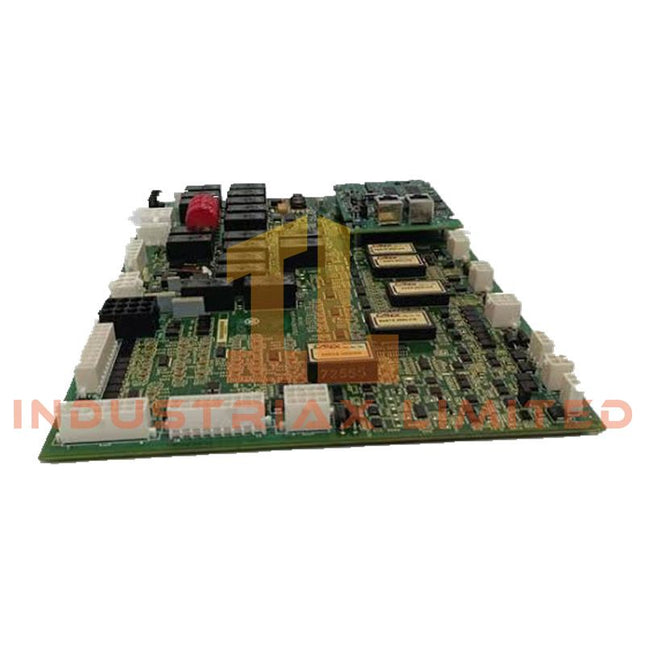

General Electric GE IS200AEPAH1A Analog Expansion Pack
GE IS200AEPAH1A Analog Expansion Pack The GE IS200AEPAH1A, also cataloged as the IS200AEPAH1A Analog Expansion Pack, operates as a dedicated hardware component for analog and discrete signal expansion within GE Mark VI/Mark VIe turbine control system platforms. It provides additional field I/O channels for sensor acquisition and actuator interface functions. Hardware Specifications Parameter Specification Model IS200AEPAH1A Brand GE Origin United States Weight 0.5 kg Operating Temp 0 deg C to +60 deg C Power Consumption < 8 W Product Type Analog Expansion Packs Series GE Mark VI / Mark VIe Control System Functional Type AEPA Analog Expansion Pack Analog Inputs 8 channels Analog Input Signal Type Configurable 4-20 mA or 0-10 VDC Analog Outputs 1 channel Discrete Inputs 20 channels Discrete Outputs 1 channel Relay Outputs 8 channels Total Channels 13 channels Resolution 16-bit Input Accuracy +/-0.05% FS Output Accuracy +/-0.1% FS Isolation 1500 VAC channel-to-channel, 2500 VAC channel-to-ground Update Rate Inputs: 5 ms, Outputs: 10 ms Diagnostics Open/short detection, drift monitoring, LED indicators Power Supply 24 VDC from backplane Surge Protection IEEE C37.90.1 GE Mark VI Analog I/O Expansion Characteristics The IS200AEPAH1A applies GE industrial control architecture for analog signal acquisition and auxiliary I/O expansion. The board supports I/O density scaling within Mark VI/Mark VIe control configurations by combining analog, discrete, and relay interface channels on a single auxiliary assembly. The module incorporates GE control platform characteristics including backplane bus communication behavior, deterministic controller interaction, and firmware flash compatibility with the installed Mark VI/Mark VIe processor configuration. The isolated analog signal paths provide separation between field inputs, outputs, and control electronics. The board supports multiple signal formats including current and voltage inputs for turbine sensor monitoring and actuator feedback processing. Frequently Asked Questions Q: What analog input capability is provided by the IS200AEPAH1A?A: The board provides 8 analog input channels configurable for 4-20 mA or 0-10 VDC signals. Q: What additional discrete and relay interfaces are available on the board?A: The available specifications indicate 20 discrete inputs, 1 discrete output, and 8 relay outputs. Q: What is the operating temperature range of the IS200AEPAH1A?A: The provided board rating specifies operation from 0 deg C to +60 deg C. Field Installation Guidelines Install the IS200AEPAH1A into the designated GE Mark VI/Mark VIe rack location and verify correct board alignment before applying power. Secure the assembly according to the system mechanical installation requirements. Use shielded wiring for analog field connections where required by the cabinet grounding design. Separate low-level signal cables from power conductors and relay switching wiring to reduce electrical interference. Verify terminal connections, LED status indicators, and diagnostic feedback after installation. Use ToolboxST diagnostic functions and loopback testing to confirm channel operation before placing the control system into service.
$200.00 $100.00
-
General Electric GE IS200TCSAS1ACB Turbine Control Servo Amplifier Board
GE IS200TCSAS1ACB Turbine Control Servo Amplifier Board The GE IS200TCSAS1ACB, also cataloged as the IS200TCSAS1ACB Turbine Control Servo Amplifier Board, operates as a dedicated hardware component for servo actuator drive signal execution within GE Mark VIe turbine control system platforms. It converts controller analog commands into amplified servo outputs for mechanical positioning systems. Hardware Specifications Parameter Specification Model IS200TCSAS1ACB Brand GE Origin United States Weight 0.6 kg Dimensions 150 mm x 180 mm x 95 mm Operating Temp -40 deg C to +70 deg C Product Type Turbine Control Servo Amplifier Boards Series GE Mark VIe Turbine Control System Functional Type TCSA Turbine Control Servo Amplifier Board Servo Outputs 4 independent channels Output Voltage +/-15 VDC Output Current Up to 2 A per channel Control Input +/-10 V analog command Resolution 12-bit DAC Accuracy +/-0.1% of full scale Isolation Channel-to-channel and channel-to-ground isolation Power Supply 24 VDC from backplane Storage Temperature -40 deg C to +85 deg C Humidity Range 5%-95% non-condensing Status Indicators Power, Fault, and Channel Activity LEDs GE Mark VIe Servo Drive Characteristics The IS200TCSAS1ACB applies GE Mark VIe industrial control architecture for analog servo command processing and actuator drive execution. The board receives controller-generated positioning commands and provides four independent servo output channels for turbine valve and mechanical actuator control. The module incorporates GE control platform features including deterministic control network operation, I/O density scaling for multi-channel actuator applications, and firmware flash compatibility with the installed Mark VIe controller configuration. The servo amplifier design includes isolated output paths between channels and ground reference points. The 12-bit DAC conversion provides analog command resolution for closed-loop positioning applications requiring controlled actuator movement. Frequently Asked Questions Q: How many servo output channels are available on the IS200TCSAS1ACB?A: The board provides four independent servo output channels. Q: What type of command signal is accepted by the servo amplifier board?A: The module accepts +/-10 V analog command signals from the turbine control system. Q: What isolation configuration is provided for the servo outputs?A: The available specifications indicate channel-to-channel and channel-to-ground isolation. Field Installation Guidelines Install the IS200TCSAS1ACB into the designated GE Mark VIe rack position with correct mechanical alignment. Connect actuator wiring through the specified terminal block interface and verify all field connections before system startup. Use shielded wiring for analog control and servo output circuits where required by the cabinet grounding design. Separate actuator wiring from high-current switching cables to minimize electromagnetic interference. Configure servo parameters and calibration settings through ToolboxST software. Verify Power, Fault, and Channel Activity LED indicators and perform actuator response testing after installation.
$200.00 $100.00
-
General Electric GE IS200WCSAS1ADB Servo Amplifier Board
GE IS200WCSAS1ADB Servo Amplifier Board The GE IS200WCSAS1ADB, also cataloged as the IS200WCSAS1ADB Servo Amplifier Board, operates as a dedicated hardware component for servo actuator signal amplification within GE Mark VIe wind turbine control system platforms. It converts analog command signals into controlled servo motor drive outputs for pitch and yaw mechanisms. Hardware Specifications Parameter Specification Model IS200WCSAS1ADB Brand GE Origin United States Weight 0.6 kg Dimensions 150 mm x 180 mm x 95 mm Operating Temp -40 deg C to +70 deg C Power Consumption Not specified in available technical data Product Type Servo Amplifier Boards Series GE Mark VIe Wind Turbine Control System Functional Type WCSA Wind Control Servo Amplifier Board Servo Outputs 4 independent channels Output Voltage +/-15 VDC Output Current Up to 2 A per channel Control Input +/-10 V analog command Resolution 12-bit DAC Accuracy +/-0.1% of full scale Isolation Channel-to-channel and channel-to-ground isolation Power Supply 24 VDC from backplane Storage Temperature -40 deg C to +85 deg C Humidity Range 5%-95% non-condensing Status Indicators Power, Fault, and Channel Activity LEDs GE Mark VIe Servo Control Characteristics The IS200WCSAS1ADB applies GE Mark VIe industrial control architecture for closed-loop servo actuator control. The board receives analog command signals and provides amplified drive outputs for servo motor positioning applications including blade pitch and yaw control. The module incorporates GE control platform features including deterministic network behavior through the Mark VIe control architecture, I/O density scaling for multi-channel actuator control, and firmware flash compatibility with the configured controller revision. The servo output section provides four independent channels with isolated output paths. The analog command interface and DAC conversion function allow the controller to execute proportional actuator positioning based on configured control algorithms. Frequently Asked Questions Q: How many servo output channels are available on the IS200WCSAS1ADB?A: The board provides four independent servo output channels. Q: What type of input command signal does the module accept?A: The module accepts +/-10 V analog command signals for servo control execution. Q: Is channel isolation provided between servo outputs?A: Yes. The available specifications indicate channel-to-channel and channel-to-ground isolation. Field Installation Guidelines Install the IS200WCSAS1ADB into the designated GE Mark VIe rack position and verify correct mechanical seating before applying power. Connect servo actuator wiring through the specified terminal block connections. Use shielded cables for analog command and servo output wiring where required by the system grounding design. Route actuator cables separately from high-current switching circuits to reduce electrical interference. Configure servo parameters and calibration settings through ToolboxST software. Verify LED status indicators and perform actuator response checks after installation.
$200.00 $100.00
-
General Electric GE IS200AEADH1ADA Input/Output Grid Fork Board
GE IS200AEADH1ADA Input/Output Grid Fork Board The GE IS200AEADH1ADA, also cataloged as the IS200AEADH1ADA Input/Output Grid Fork Board, operates as a dedicated hardware component for analog signal acquisition and communication execution within GE Mark VIe wind turbine control system platforms. It processes multi-range voltage and current inputs through isolated I/O channels. Suffix Breakdown & Model Matrix Model Segment Description IS200 GE Mark VIe control hardware family AEAD Application-specific Electronic Assembly - Diagnostic / I/O Grid Fork Board H1 Hardware configuration identifier ADA Assembly and functional option identifier A Revision identifier Hardware Specifications Parameter Specification Model IS200AEADH1ADA Brand GE Origin United States Weight 0.5 kg Dimensions 120 mm x 162 mm x 95 mm Operating Temp -40 deg C to +70 deg C Power Consumption Not specified in available technical data Product Type Input/Output Grid Fork Boards Series GE Mark VIe Wind Turbine Control System Functional Type AEAD Application-specific Electronic Assembly Input Channels 16 differential or 32 single-ended Input Voltage Ranges +/-10 V, +/-5 V, +/-2.5 V, +/-1.25 V, 0-10 V, 0-5 V, 0-2.5 V, 0-1.25 V Input Current Ranges 0-20 mA, 4-20 mA Resolution 16-bit Accuracy +/-0.05% of full scale Conversion Speed Up to 1 ms per channel Isolation Channel-to-channel and channel-to-backplane isolation Communication Ports 2 x RS-232/RS-485, 1 x Ethernet 10/100Base-TX Communication Protocols Modbus RTU/ASCII, Modbus TCP/IP, GE Diagnostic Protocol Power Supply 24 VDC from backplane Storage Temperature -40 deg C to +85 deg C Humidity Range 5%-95% non-condensing Status Indicators Power, Fault, Serial Activity, Ethernet Link/Activity LEDs GE Mark VIe Industrial Control Characteristics The IS200AEADH1ADA applies GE Mark VIe industrial control architecture for analog acquisition, signal conversion, and controller communication. The board supports I/O density scaling through up to 32 single-ended analog input channels or 16 differential input channels within a compact control assembly. The module incorporates GE control platform features including deterministic network communication through Ethernet diagnostic interfaces, serial Modbus communication support, and firmware flash compatibility with the installed Mark VIe controller configuration. The isolated analog input design provides channel separation for field signal processing. Multiple voltage and current ranges allow connection to different sensor output types while maintaining 16-bit conversion resolution. Frequently Asked Questions Q: What analog signal types can the IS200AEADH1ADA process?A: The board supports voltage ranges from +/-10 V to 0-1.25 V and current inputs including 0-20 mA and 4-20 mA. Q: Which communication interfaces are available on the IS200AEADH1ADA?A: The board provides two RS-232/RS-485 serial ports and one Ethernet 10/100Base-TX interface. Q: Is the module isolated between input channels and the backplane?A: Yes. The available specifications indicate channel-to-channel and channel-to-backplane isolation. Field Installation Guidelines Install the IS200AEADH1ADA into the designated GE Mark VIe rack position and verify mechanical alignment before applying system power. Connect communication interfaces through the specified DB9 and RJ45 connectors. Use shielded cables for analog and communication wiring where required by the cabinet design. Separate low-level analog signal cables from high-current power wiring to reduce electromagnetic interference. Configure the module through ToolboxST software using Ethernet or serial communication links. Verify LED status indicators and perform communication diagnostics after installation.
$200.00 $100.00
-
General Electric IS215REBFH1A GE Mark VIe Relay Output Board
GE IS215REBFH1A Relay Output Board The GE IS215REBFH1A, also cataloged as the IS215REBFH1A Relay Output Board, operates as a dedicated hardware component for isolated relay switching execution within GE Mark VIe turbine control system platforms. It provides 16 Form C relay channels for external device control through deterministic electrical contact operation. Hardware Specifications Parameter Specification Model IS215REBFH1A Brand GE Origin United States Weight 0.8 kg Operating Temp -40 deg C to +70 deg C Power Consumption Approx. 15 W Product Type Relay Output Boards Series GE Mark VIe Control System Functional Type REBF Relay Output Board Relay Outputs 16 isolated Form C contacts Contact Rating 2 A @ 24 VDC resistive, 0.5 A @ 125 VAC Relay Type Plug-in electromechanical relays with LED indicators Response Time < 10 ms switching Power Input 24 VDC via Mark VIe distribution Mounting Type Panel mount on terminal board with plastic retainers Hot-Swap Capability Supported according to provided technical data GE Mark VIe Relay Control Characteristics The IS215REBFH1A applies GE industrial control architecture for relay-based output execution and discrete device switching. The module provides isolated Form C relay contacts for actuator commands, alarm circuits, and interlock logic within Mark VIe control configurations. The board follows GE PLC/DCS hardware characteristics including I/O density scaling for multi-channel control requirements, deterministic network communication behavior through the Mark VIe control platform, and firmware flash compatibility with the associated controller revision. The isolated relay channels provide electrical separation between output circuits, allowing individual contact operation for external field devices. LED indicators provide local relay status observation during commissioning and maintenance activities. Frequently Asked Questions Q: How many relay output channels are available on the IS215REBFH1A?A: The board provides 16 isolated Form C relay output channels. Q: What is the maximum switching capability of each relay contact?A: Each relay contact supports up to 2 A at 24 VDC resistive load and 0.5 A at 125 VAC. Q: Can the IS215REBFH1A be replaced while the system is operating?A: The provided data indicates hot-swap capability. Installation procedures should follow the Mark VIe system maintenance requirements. Field Installation Guidelines Install the IS215REBFH1A on the designated Mark VIe terminal board with correct mechanical alignment and retention. Verify all relay terminals and field wiring connections before applying system power. Use appropriate cable routing practices to separate relay wiring from sensitive analog or communication signal cables. Connect cable shields according to the cabinet grounding design where shielded wiring is used. Before commissioning, verify relay contact operation through system diagnostics and confirm that connected external devices respond according to the configured control logic.
$200.00 $100.00
-
General Electric GE IS210HSLAH1A High-Speed Serial Link Interface Module
GE IS210HSLAH1A High-Speed Serial Link Interface Module Configured for high-speed serial communication execution in GE Mark VI Speedtronic turbine control system networks, the GE IS210HSLAH1A (IS210HSLAH1A High-Speed Serial Link Interface Module) provides direct physical and electrical data transfer between turbine control subsystems through RS-485 and RS-422 communication interfaces. Suffix Breakdown & Model Matrix Model Segment Description IS210 GE Mark VI Speedtronic control system hardware family HSLA High-Speed Serial Link Interface functional acronym H1 Hardware group identifier A Functional revision Hardware Specifications Parameter Specification Model IS210HSLAH1A Brand GE Origin United States Weight 0.6 kg Dimensions 2.9 cm x 27.9 cm x 17.8 cm Product Type High-Speed Serial Link Interface Module Series GE Mark VI Speedtronic Turbine Control System Functional Acronym HSLA Functional Revision A Assembly Type IS210 Special Assembly Communication Protocol High-speed serial data transfer Interface Compatibility RS-485, RS-422 Data Rate Up to 1 Mbps Rated Voltage 24 VDC Communication Function Serial data exchange between turbine control subsystems GE Mark VI Serial Communication Characteristics The IS210HSLAH1A applies GE industrial control communication architecture for deterministic serial data exchange within Mark VI Speedtronic systems. The module supports RS-485 and RS-422 electrical interfaces with communication speeds up to 1 Mbps for subsystem-level data transfer. The module design follows GE Mark VI hardware integration requirements, including firmware flash compatibility with the installed control processor revision and backplane bus communication behavior for coordinated I/O and controller data exchange. The HSLA assembly supports I/O density scaling by providing a dedicated serial communication interface without additional daughterboard components. The special assembly configuration includes no daughterboard, no SCOM grounding terminal, and no metal backplane. Frequently Asked Questions Q: Which serial interfaces are supported by the IS210HSLAH1A?A: The module supports RS-485 and RS-422 electrical communication interfaces for high-speed serial data transfer. Q: Is the IS210HSLAH1A configured as a hot-swappable module?A: Hot-swap capability is not specified. Rack power should be removed before module insertion or removal. Q: What is the maximum communication data rate of the module?A: The module supports serial communication data rates up to 1 Mbps. Field Installation Guidelines Install the IS210HSLAH1A into the designated GE Mark VI rack position with system power removed. Verify module seating, connector engagement, and grounding connections before restoring power. Use shielded communication cables for RS-485 and RS-422 signal wiring. Route serial communication cables separately from high-voltage and high-current conductors to reduce electromagnetic interference. Confirm that the installed controller firmware and Mark VI configuration database support the module revision. Perform communication diagnostics through the Mark VI HMI after installation to verify serial link integrity.
$200.00 $100.00
-
General Electric IS210AEAAH1B GE Mark VI Analog I/O Module
GE IS210AEAAH1B Integrated Analog I/O Module The GE IS210AEAAH1B, also cataloged as the IS210AEAAH1B Integrated Analog I/O Module, operates as a dedicated hardware component for analog signal acquisition and output execution within GE Mark VI/Mark VIe turbine control system platforms. It provides isolated analog input and output channels for 4-20 mA and 0-10 VDC field signal processing with 16-bit resolution. Hardware Specifications Parameter Specification Model IS210AEAAH1B Brand GE Origin United States Weight 0.6 kg Dimensions 120 mm x 180 mm x 220 mm Operating Temp -40 deg C to +85 deg C Power Consumption < 8 W from backplane Product Type Integrated Analog I/O Module Series Mark VI / Mark VIe Turbine & Compressor Control Systems Functional Acronym AEAA Functional Description Conformal Coated PCB PCB Coating Conformal Coating Functional Revision Revision 1, B Analog Inputs 8 isolated channels, configurable 4-20 mA DC or 0-10 VDC Analog Outputs 4 isolated channels, configurable 4-20 mA DC or 0-10 VDC Resolution 16-bit input and output resolution Input Accuracy +/-0.05% FS at 25 deg C Output Accuracy +/-0.1% FS at 25 deg C Channel Isolation 1500 VAC channel-to-channel, 2500 VAC channel-to-ground Input Update Rate 5 ms Output Update Rate 10 ms Sampling Method 100 Hz per channel Sigma-Delta ADC Operating Voltage 24 VDC nominal Diagnostics Open/short detection, drift monitoring, overcurrent protection, LED indicators Protection Standard IEEE C37.90.1 surge protection GE Mark VI Analog Signal Processing Characteristics The IS210AEAAH1B uses the GE Mark VI/Mark VIe I/O architecture for analog field signal conversion and control execution. The module supports isolated current and voltage measurement paths with channel-level separation for turbine control applications. The module incorporates industrial control features including deterministic backplane bus communication behavior, I/O density scaling for compact control rack configurations, and firmware flash compatibility requirements aligned with the installed Mark VI controller revision. The conformal coated PCB construction provides environmental protection for the electronic assembly in turbine control cabinet installations where airborne contaminants and humidity exposure require additional circuit protection. Frequently Asked Questions Q: Does the IS210AEAAH1B support hot-swapping during rack operation?A: No. The module requires the Mark VI rack power to be removed before insertion or removal. Q: What analog field signals can be connected to the IS210AEAAH1B?A: The module supports configurable 4-20 mA DC and 0-10 VDC analog input and output signals. Q: What backplane power load is required by the module?A: The module consumes less than 8 W from the backplane supply during operation. Field Installation Guidelines Install the IS210AEAAH1B into the designated GE Mark VI/Mark VIe I/O slot with rack power removed. Verify connector seating and mechanical retention before restoring power. Use shielded instrumentation cables for analog signal wiring. Connect cable shields according to the cabinet grounding design and avoid routing analog cables parallel to high-current power conductors to reduce electrical interference. Confirm that the controller firmware revision supports the installed module revision before commissioning. Perform channel verification using loopback testing or calibrated field signal sources after installation.
$200.00 $100.00
-

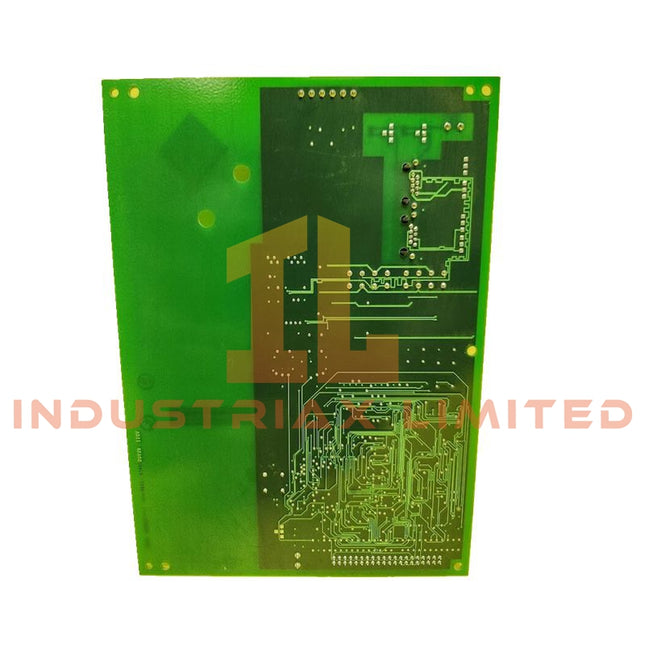

General Electric GE IS200AEPAH1BPR5 Analog Expansion Power Amplifier Board
GE IS200AEPAH1BPR5 Analog Expansion Power Amplifier Board Configured for amplified actuator signal execution in GE Mark VIe Speedtronic control systems, the GE IS200AEPAH1BPR5 (IS200AEPAH1BPR5 Analog Expansion Power Amplifier Board) provides direct physical/electrical execution for high-current analog output control of proportional valves and field actuators. Hardware Specifications Parameter Specification Model IS200AEPAH1BPR5 Brand GE Origin United States Weight 0.8 kg Dimensions 263 mm x 58 mm x 28 mm Operating Temp 0 deg C to +60 deg C Power Consumption Not specified Module Type Analog Expansion Power Amplifier (AEPA) Board System Compatibility GE Mark VIe Speedtronic Control System Output Channels High-power analog outputs Output Signal Types +/-50 mA, 4-20 mA, +/-10 VDC Load Capacity Direct drive of proportional valves and actuators Isolation Rating 1500 Vrms channel-to-backplane isolation Power Supply Backplane powered via Mark VIe rack Communication Interface VMEbus / PDH network Protection Components MOV surge suppressors, onboard relays Relay Quantity 12 relays Plug Connectors 19 connectors for I/O and power distribution Redundancy Support Simplex and Triple Modular Redundancy (TMR) Firmware Flash Compatibility and I/O Density Scaling The IS200AEPAH1BPR5 provides analog signal amplification by converting controller-level commands into higher-current outputs for proportional valves, servo actuators, and other field devices. The module operates as an output interface within the GE Mark VIe architecture, supporting isolated analog drive circuits for turbine control loops. The board supports I/O density scaling by integrating amplified output channels, relay interfaces, and protection components within a single rack-mounted assembly. The 1500 Vrms channel-to-backplane isolation design separates field output circuits from controller backplane electronics and reduces electrical coupling between signal domains. The module supports simplex and TMR configurations within compatible Mark VIe systems. Firmware flash compatibility and hardware revision matching should be confirmed before installation into an existing control rack. Frequently Asked Questions (FAQ) Q: What output formats are supported by the IS200AEPAH1BPR5?A: The module supports high-current analog outputs including +/-50 mA, 4-20 mA, and +/-10 VDC formats for actuator control applications. Q: How is the IS200AEPAH1BPR5 powered?A: The module receives power through the GE Mark VIe rack backplane interface. Q: What protection functions are integrated into the module?A: The board includes MOV surge suppressors and onboard relays for field circuit protection and interface control. Field Installation Guidelines Install the IS200AEPAH1BPR5 in the designated GE Mark VIe rack position and verify proper mechanical alignment before connecting the backplane interface. Confirm analog output wiring, actuator polarity, and field device connections before energizing the module. Use shielded cables for analog signal circuits and apply cabinet grounding practices according to GE installation procedures. Route actuator wiring separately from high-current switching conductors to reduce electromagnetic interference. Verify communication interface configuration, rack identification, and module diagnostics before enabling control outputs. For redundant system installations, confirm module configuration, synchronization status, and hardware compatibility through the Mark VIe controller interface before returning actuator loops to operational service.
$200.00 $100.00
-
General Electric GE IS200AEPAH1BFC Analog Expansion Power Amplifier Board
GE IS200AEPAH1BFC Analog Expansion Power Amplifier Board The GE IS200AEPAH1BFC, also cataloged as the IS200AEPAH1BFC Analog Expansion Power Amplifier Board, operates as a dedicated hardware component for amplified analog actuator signal execution within GE Mark VIe Speedtronic control system platforms. Hardware Specifications Parameter Specification Model IS200AEPAH1BFC Brand GE Origin United States Weight 0.8 kg Dimensions 263 mm x 58 mm x 28 mm Operating Temp 0 deg C to +60 deg C Power Consumption Not specified Module Type Analog Expansion Power Amplifier (AEPA) Board System Compatibility GE Mark VIe Speedtronic Control System Equivalent Reference IS215WEPAH2BA Output Channels High-power analog outputs Output Signal Types +/-50 mA, 4-20 mA, +/-10 VDC Load Capacity Direct drive of proportional valves and actuators Isolation Rating 1500 Vrms channel-to-backplane isolation Power Supply Backplane powered via Mark VIe rack Communication Interface VMEbus / PDH network Protection Components MOV surge suppressors, onboard relays Relay Quantity 12 relays Plug Connectors 19 connectors for I/O and power distribution Redundancy Support Simplex and Triple Modular Redundancy (TMR) Firmware Flash Compatibility and I/O Density Scaling The IS200AEPAH1BFC provides analog power amplification by converting low-level controller signals into higher-current outputs for proportional valves, actuators, and other field devices. The module operates within the GE Mark VIe architecture and supports isolated analog drive circuits for turbine actuator control loops. The board design supports I/O density scaling by combining multiple amplified output functions with integrated protection components in a rack-mounted control module. The isolated output structure reduces ground loop effects and electrical noise coupling between field circuits and the controller backplane. The module supports simplex and TMR configurations within compatible Mark VIe control architectures. Hardware revision, system configuration, and firmware flash compatibility should be verified before replacement or integration. Frequently Asked Questions (FAQ) Q: What output signals are supported by the IS200AEPAH1BFC?A: The module provides high-current analog outputs including +/-50 mA, 4-20 mA, and +/-10 VDC signal formats for actuator and proportional valve control. Q: How is electrical isolation implemented on this AEPA board?A: The board provides 1500 Vrms channel-to-backplane isolation to separate field output circuits from the Mark VIe rack interface. Q: Is the IS200AEPAH1BFC compatible with redundant control systems?A: The module supports simplex and Triple Modular Redundancy (TMR) configurations when installed in compatible GE Mark VIe system architectures. Field Installation Guidelines Install the IS200AEPAH1BFC in the specified GE Mark VIe rack location and confirm correct mechanical alignment before engaging the backplane connector. Verify actuator wiring, analog output polarity, and field device connections before applying power. Use shielded cables for analog output circuits and terminate shields according to GE cabinet grounding practices. Separate actuator signal wiring from high-current switching cables to reduce electromagnetic interference. Confirm rack configuration, communication interface settings, and module identification before system startup. For redundant installations, verify module synchronization, diagnostic status, and hardware compatibility through the Mark VIe control interface before returning actuator loops to service.
$200.00 $100.00
-

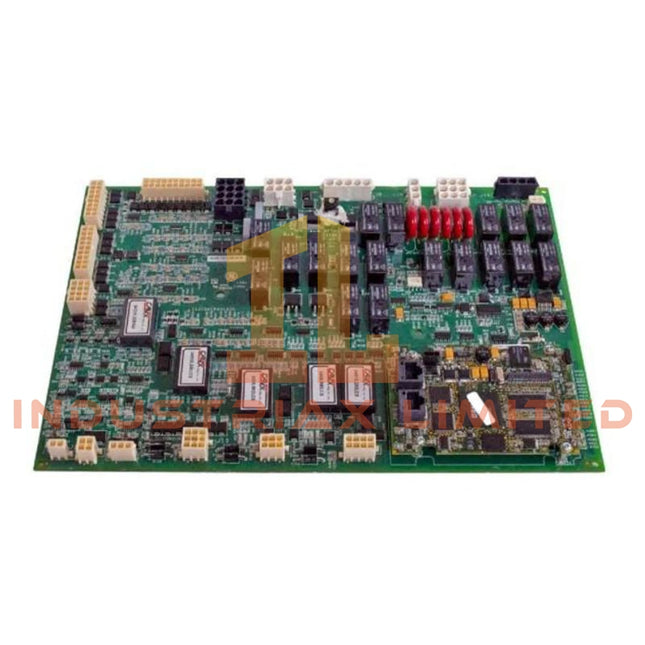

General Electric GE IS215WEPAH1BD Wind Energy Pitch Axis Control Module
GE IS215WEPAH1BD Wind Energy Pitch Axis Control Module The GE IS215WEPAH1BD serves as the primary IS215WEPAH1BD Wind Energy Pitch Axis Control Module utilized to execute blade pitch motor control and encoder signal processing across GE Mark VIe wind turbine control platforms. Hardware Specifications Parameter Specification Model IS215WEPAH1BD Brand GE Origin United States Weight 0.57 kg Dimensions 263 mm x 58 mm x 28 mm Operating Temp -40 deg C to +70 deg C Power Consumption Maximum 240 W output power Module Type Wind Energy Pitch Axis (WEPA) Control Module System Compatibility GE Mark VIe Wind Turbine Control Hardware Input Voltage Range 85-264 VAC Output Voltage Range 5-24 VDC Output Current Range 0-10 A Maximum Power Output 240 W Communication Ports COM1, COM2, micro-miniature 9-pin D connector Ethernet Interface 10BaseT/AUI connector Control Function Blade pitch angle adjustment and pitch motor interface Redundancy Support Simplex and Triple Modular Redundancy (TMR) Humidity Tolerance 5%-95% non-condensing Shock Resistance Up to 10G non-operating Profinet / EtherNet-IP Deterministic Networks and Firmware Flash Compatibility The IS215WEPAH1BD provides local pitch axis control by processing command signals, encoder feedback, and motor drive outputs within the GE Mark VIe wind turbine control architecture. The module manages pitch actuator commands through dedicated electrical interfaces and supports coordinated operation in simplex or TMR configurations. The controller hardware supports communication integration through COM interfaces and Ethernet connectivity. Firmware flash compatibility should be verified during module replacement or system modification to maintain correct pitch control application execution and Mark VIe configuration matching. The module design supports I/O density scaling for distributed wind turbine control systems by combining local signal processing, actuator interface functions, and communication handling within a compact control assembly. Frequently Asked Questions (FAQ) Q: What function does the IS215WEPAH1BD perform in the turbine control system?A: The module controls blade pitch position by interfacing with pitch motors and encoder feedback signals within the GE Mark VIe wind turbine control system. Q: What redundancy modes are supported by the IS215WEPAH1BD?A: The module supports simplex and Triple Modular Redundancy (TMR) configurations depending on the system architecture. Q: What communication interfaces are available on the IS215WEPAH1BD?A: The module provides COM1, COM2, a micro-miniature 9-pin D connector interface, and a 10BaseT/AUI Ethernet interface. Field Installation Guidelines Install the IS215WEPAH1BD in the designated GE Mark VIe wind turbine control cabinet location and verify mechanical mounting alignment before connecting power and field interfaces. Confirm AC input wiring, DC output connections, and pitch motor interface wiring before energizing the module. Use appropriate shielding and grounding methods for encoder and communication cables to reduce electrical noise effects. Route communication cables separately from high-current actuator wiring where possible. Verify connector engagement, communication settings, and firmware compatibility before placing the pitch control loop into operational service. For redundant installations, confirm module configuration, synchronization status, and diagnostic information through the Mark VIe control interface after installation.
$200.00 $100.00
-

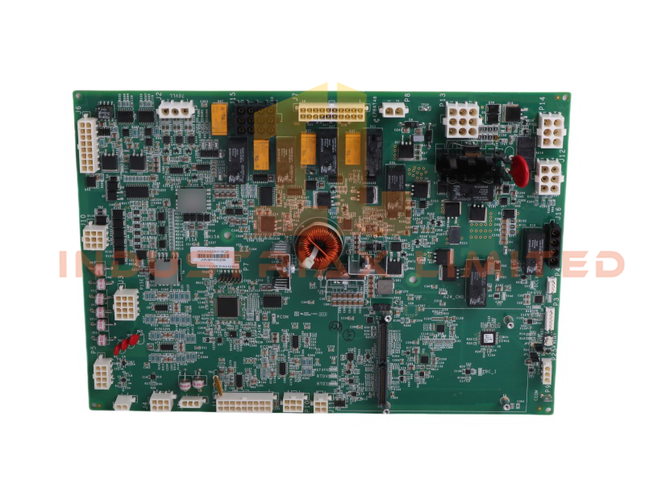

General Electric GE IS200AEPAH1BRJ Analog Expansion Power Amplifier Board
GE IS200AEPAH1BRJ Analog Expansion Power Amplifier Board The GE IS200AEPAH1BRJ, also cataloged as the IS200AEPAH1BRJ Analog Expansion Power Amplifier Board, operates as a dedicated hardware component for amplified analog actuator signal execution within GE Mark VIe Speedtronic control system platforms. Hardware Specifications Parameter Specification Model IS200AEPAH1BRJ Brand GE Origin United States Weight 0.8 kg Dimensions 263 mm x 58 mm x 28 mm Operating Temp 0 deg C to +60 deg C Power Consumption Not specified Board Type Analog Expansion Power Amplifier (AEPA) Board System Compatibility GE Mark VIe Speedtronic Control System Output Channels Single or dual-channel high-power analog output Output Signal Types +/-50 mA or 4-20 mA amplified output, +/-10 VDC or 0-10 VDC Load Capability Direct drive of proportional valves and actuators Isolation Rating 1500 Vrms channel-to-backplane isolation Power Supply Backplane powered via Mark VIe rack Communication Interface VMEbus or PDH network Connectors Front-panel industrial field wiring connectors Protection Components 6 Metal Oxide Varistors (MOVs) Relay Quantity 12 onboard relays Plug Connectors 19 connectors for power distribution and I/O Redundancy Support Simplex and Triple Modular Redundancy (TMR) configurations Firmware Flash Compatibility and I/O Density Scaling The IS200AEPAH1BRJ integrates analog power amplification circuits for converting controller-level analog commands into higher-current outputs suitable for proportional valves and actuator control loops. The module supports I/O density scaling within the Mark VIe architecture by providing amplified analog channels in a rack-based control configuration. The board uses isolated output circuitry with channel-to-backplane isolation to reduce ground loop effects and electrical interference during field device operation. Surge protection components including MOV devices provide voltage transient protection for connected field circuits. The module supports simplex and TMR system configurations. Firmware and hardware revision compatibility should be verified when integrating the board into existing Mark VIe control racks. Frequently Asked Questions (FAQ) Q: What type of field devices can the IS200AEPAH1BRJ drive?A: The board provides amplified analog outputs designed for proportional valves, servo valves, and other actuator devices requiring higher current drive capability. Q: How is electrical isolation implemented on the IS200AEPAH1BRJ?A: The module provides 1500 Vrms channel-to-backplane isolation to separate field output circuits from the control backplane. Q: Can the IS200AEPAH1BRJ be replaced during system operation?A: Hot-swap capability is supported in compatible redundant Mark VIe system configurations. Replacement procedures must follow GE rack installation requirements. Field Installation Guidelines Install the IS200AEPAH1BRJ in the designated GE Mark VIe rack position and verify the backplane connection before applying power. Confirm field wiring polarity and signal type before connecting proportional valves or actuator circuits. Use shielded cables for analog output wiring and connect shields according to cabinet grounding practices. Route analog actuator cables separately from high-current switching conductors to minimize electromagnetic interference. Verify connector seating, rack configuration, and channel assignments before system startup. For redundant configurations, confirm module addressing, hardware revision compatibility, and system diagnostics after installation. Check output channel status through the Mark VIe control interface before returning actuator loops to normal operation.
$200.00 $100.00
