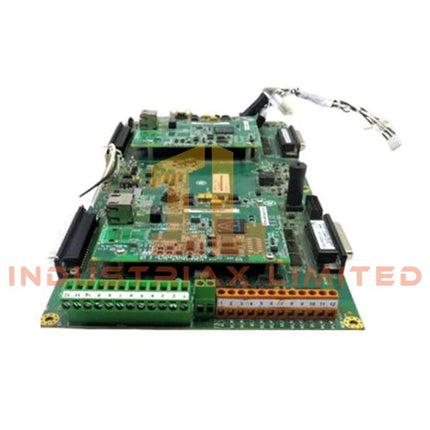

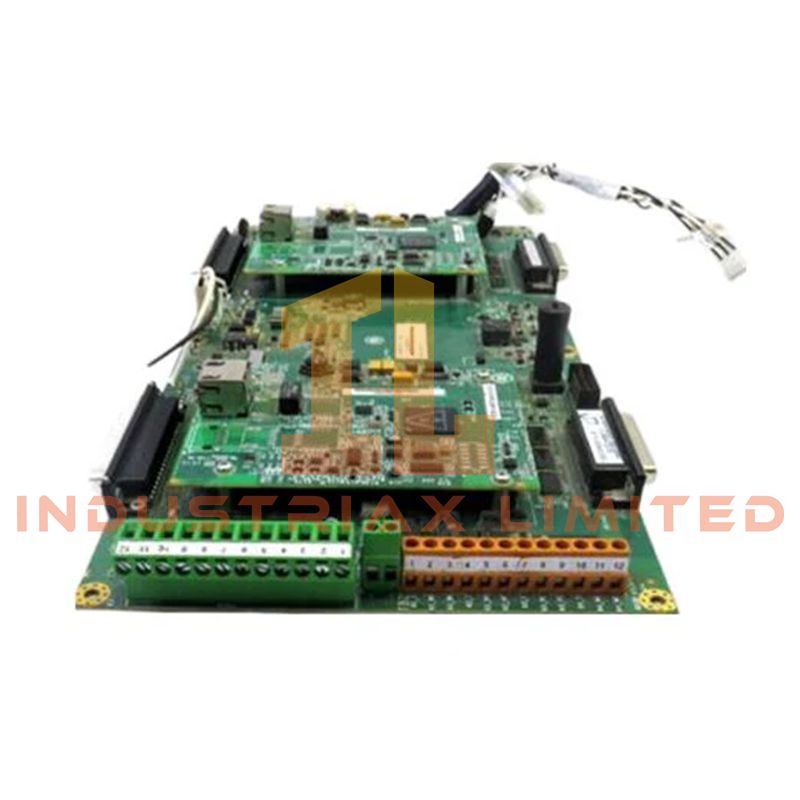

GE IS210HSLAH1A High-Speed Serial Link Interface Module

Configured for high-speed serial communication execution in GE Mark VI Speedtronic turbine control system networks, the GE IS210HSLAH1A (IS210HSLAH1A High-Speed Serial Link Interface Module) provides direct physical and electrical data transfer between turbine control subsystems through RS-485 and RS-422 communication interfaces.

Suffix Breakdown & Model Matrix

Model Segment	Description
IS210	GE Mark VI Speedtronic control system hardware family
HSLA	High-Speed Serial Link Interface functional acronym
H1	Hardware group identifier
A	Functional revision

Hardware Specifications

Parameter	Specification
Model	IS210HSLAH1A
Brand	GE
Origin	United States
Weight	0.6 kg
Dimensions	2.9 cm x 27.9 cm x 17.8 cm
Product Type	High-Speed Serial Link Interface Module
Series	GE Mark VI Speedtronic Turbine Control System
Functional Acronym	HSLA
Functional Revision	A
Assembly Type	IS210 Special Assembly
Communication Protocol	High-speed serial data transfer
Interface Compatibility	RS-485, RS-422
Data Rate	Up to 1 Mbps
Rated Voltage	24 VDC
Communication Function	Serial data exchange between turbine control subsystems

GE Mark VI Serial Communication Characteristics

The IS210HSLAH1A applies GE industrial control communication architecture for deterministic serial data exchange within Mark VI Speedtronic systems. The module supports RS-485 and RS-422 electrical interfaces with communication speeds up to 1 Mbps for subsystem-level data transfer.

The module design follows GE Mark VI hardware integration requirements, including firmware flash compatibility with the installed control processor revision and backplane bus communication behavior for coordinated I/O and controller data exchange.

The HSLA assembly supports I/O density scaling by providing a dedicated serial communication interface without additional daughterboard components. The special assembly configuration includes no daughterboard, no SCOM grounding terminal, and no metal backplane.

Frequently Asked Questions

Q: Which serial interfaces are supported by the IS210HSLAH1A?
A: The module supports RS-485 and RS-422 electrical communication interfaces for high-speed serial data transfer.

Q: Is the IS210HSLAH1A configured as a hot-swappable module?
A: Hot-swap capability is not specified. Rack power should be removed before module insertion or removal.

Q: What is the maximum communication data rate of the module?
A: The module supports serial communication data rates up to 1 Mbps.

Field Installation Guidelines

Install the IS210HSLAH1A into the designated GE Mark VI rack position with system power removed. Verify module seating, connector engagement, and grounding connections before restoring power.

Use shielded communication cables for RS-485 and RS-422 signal wiring. Route serial communication cables separately from high-voltage and high-current conductors to reduce electromagnetic interference.

Confirm that the installed controller firmware and Mark VI configuration database support the module revision. Perform communication diagnostics through the Mark VI HMI after installation to verify serial link integrity.
