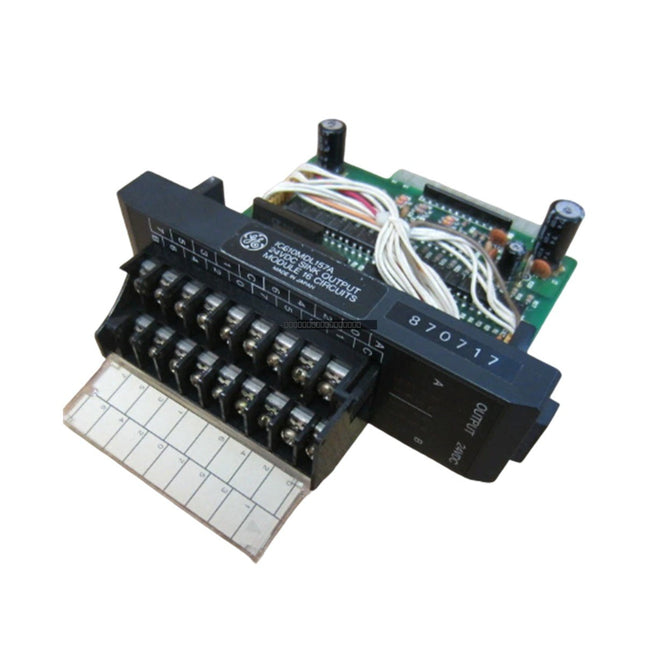

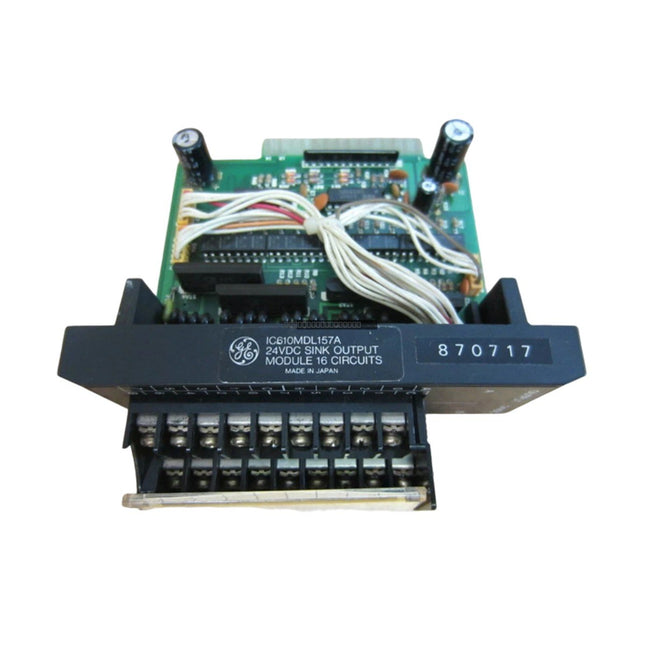

DescriptionThe GE Fanuc IC610MDL157 is a 16-channel sink output module engineered for the Series One controller architecture. This module provides reliable discrete control for industrial automation applications, operating on a 24 VDC nominal voltage platform. It is designed to manage field-side actuators, relays, and indicators with high efficiency, featuring a low-loss semiconductor design that minimizes internal thermal accumulation. The module supports rapid response times and includes robust transient protection, making it suitable for demanding environments such as power generation and mining.Features
16 independent solid-state sink output circuits.
Supports a wide operating voltage range of 5 to 24 VDC.
High inrush current tolerance: 3 Amps for 20 ms or 1 Amp for 100 ms.
Minimal on-state voltage drop (1V typical) to reduce heat dissipation.
Low leakage current profile of 0.11 mA at 40 VDC to prevent false activation.
Front-facing, removable terminal block for simplified maintenance and field wiring management.
ApplicationsThis module is typically deployed in Series One PLC systems for the control of discrete industrial loads. Common applications include the operation of solenoid valves, contactors, pilot lights, and other 24 VDC field devices in manufacturing, oil and gas, and utility automation systems.Technical Specifications
Model
IC610MDL157
Brand
GE Fanuc
Product Line
Series One
Number of Outputs
16
Output Configuration
Sink
Nominal Voltage
24 VDC
Max Current per Circuit
0.5 Amps
Response Time
0.1 milliseconds
Operating Temperature
0 to 60 deg C
Terminal Interface
Removable terminal block
Installation Guidelines
Ensure the Series One controller power is disconnected before installing or removing the module from the rack.
Use appropriate ESD protection when handling the module to prevent damage to internal logic components.
Ensure field wiring is properly secured in the removable terminal block; verify that no loose strands are present to prevent short circuits.
Maintain adequate ventilation within the control cabinet to ensure the ambient temperature remains within the 0 to 60 deg C range.
Route signal cables away from high-voltage AC lines and high-EMI sources to maintain signal integrity.
FAQIs this module compatible with other Series One components?Yes, the IC610MDL157 is designed specifically for integration with the GE Fanuc Series One controller architecture.Does this module require external power for the outputs?Yes, the module requires a 24 VDC supply to power the sinking output circuits for field devices.Can I replace the module without rewiring?Yes, the module features a removable terminal block assembly, allowing you to swap the module without disconnecting individual field wires.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Schneider Electric ASB351001 (AS-B351-001) is a high-density discrete output module designed for the Modicon automation family. This module provides 32 isolated solid-state sourcing output channels, engineered to switch 24 VDC electrical loads based on commands from the system processor. It is widely utilized in demanding industrial environments, including petroleum refining, power generation, and mining, to manage signaling relays, indicator lamps, and pneumatic valves. The module features integrated short-circuit protection and optoelectronic isolation to protect the backplane logic from field-side voltage spikes and electrical noise.Features
32-channel discrete output configuration
Sourcing output type for 24 VDC loads
Integrated optoelectronic isolation (1500 VAC channel-to-bus)
Built-in short-circuit protection for enhanced reliability
Low power consumption from the backplane (1.5 W)
Designed for high-density wiring applications
ApplicationsThis module is suitable for various industrial automation tasks requiring reliable discrete signal control, such as:
Automating pneumatic valve manifolds
Driving status indicator panels and alarm annunciators
Interfacing with industrial relays and contactors
Process control loops in heavy industry and manufacturing
Technical Specifications
Model
ASB351001 (AS-B351-001)
Brand
Schneider Electric
Series
Modicon
Output Channels
32
Output Type
Sourcing
Nominal Voltage
24 VDC
Max Current per Channel
0.5 A
Max Total Module Current
16.0 A
Isolation
1500 VAC (Channel-to-Bus)
Backplane Power Consumption
1.5 W
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Relative Humidity
5 to 95 percent (non-condensing)
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module from the rack.
Verify that the module is correctly seated in the chassis slot to ensure proper backplane communication.
Use shielded cabling for field connections to minimize EMI/RFI interference in high-noise environments.
Maintain adequate ventilation clearance around the module to prevent thermal accumulation.
Adhere to standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
Ensure that the external 24 VDC power supply for the field outputs is correctly wired to the module terminals.
FAQWhat is the primary function of the ASB351001 module?The ASB351001 is a 32-channel discrete output module that switches 24 VDC loads, allowing the Modicon controller to actuate external devices like relays and valves.Does this module require external power?Yes, while the module draws minimal power from the backplane for internal logic, the output channels require an external 24 VDC supply to drive the field loads.Is this module suitable for high-vibration environments?The module is designed for standard industrial infrastructure; however, ensure it is securely mounted in a vibration-rated enclosure to maintain long-term reliability.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Emerson Ovation 2840A17G01 is a specialized output board engineered for signal distribution and control execution within Emerson Ovation distributed control systems. This printed circuit board (PCB) serves as a critical interface for translating controller logic into physical actuation commands, supporting robust process management in industrial facilities such as power generation plants, petrochemical refineries, and large-scale water treatment centers. By providing high-fidelity signal output paths, this component ensures the precise operation of field-side actuators and relays. The reliability of this output board is fundamental to maintaining continuous control loops, thereby preventing process instability and reducing the frequency of unscheduled system downtime caused by logic-to-actuator communication failures.Features
High-density PCB architecture designed to minimize signal propagation delay.
Integrated protective buffering to prevent voltage spikes from propagating back to the main processor.
Engineered for long-term operational stability in high-vibration and elevated-temperature environments.
Seamless integration with standard Ovation controller backplanes for deterministic command execution.
Robust design to mitigate electromagnetic interference in congested control cabinets.
ApplicationsThis output board is designed for use in mission-critical industrial control environments, including:
Power generation plants (thermal, hydro, and nuclear).
Petrochemical and chemical processing facilities.
Large-scale water and wastewater treatment infrastructure.
Industrial automation systems requiring high-reliability signal distribution.
Technical Specifications
Model
2840A17G01
Brand
Emerson Ovation
Operating Temperature
0 to 60 degC
Weight
0.45 kg
Installation Guidelines
Ensure the Ovation controller rack is powered down before inserting or removing the 2840A17G01 module.
Handle the PCB using proper ESD (Electrostatic Discharge) mitigation techniques to prevent component damage.
Verify that the module is fully seated in the backplane connector to ensure reliable communication and power distribution.
Route field wiring away from high-voltage AC lines and sources of significant electromagnetic noise to maintain signal integrity.
Ensure adequate ventilation within the control cabinet to maintain ambient temperatures within the specified 0 to 60 degC range.
FAQWhat system is the 2840A17G01 compatible with?This module is specifically designed for the Emerson Ovation distributed control system (DCS) architecture.What is the primary function of this board?The 2840A17G01 acts as an output interface, translating digital logic commands from the controller into physical signals for field-side actuators, relays, and other control elements.How should this module be stored?It should be stored in a clean, dry, and temperature-controlled environment, ideally within its original anti-static packaging to prevent oxidation or physical damage to the PCB components.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Description
The Honeywell 900C52-0001 CPU Controller Module is a high-performance industrial control processor engineered for distributed automation and process control environments. Designed for reliability in critical applications such as power generation, refinery operations, and heavy manufacturing, this module provides deterministic logic execution and real-time I/O management. It serves as a central hub for system diagnostics and control coordination, ensuring stable plant operations and minimizing unplanned downtime within Honeywell control architectures.
Features
Deterministic scan cycle processing for high-speed, reliable logic execution.
Optimized for continuous duty cycles in demanding industrial environments.
Robust backplane connectivity for seamless integration with modular control racks and I/O subsystems.
Passive thermal management design for long-term stability in enclosed cabinets.
Industrial-grade components selected for high resistance to electrical noise and mechanical vibration.
Applications
This controller is widely utilized in distributed control systems (DCS) and programmable automation controllers (PAC) requiring high availability. Typical applications include:
Process control and automation in chemical and petrochemical plants.
Power generation and utility management systems.
Heavy manufacturing and assembly line control.
Critical infrastructure monitoring where deterministic performance is mandatory.
Technical Specifications
Model
900C52-0001
Brand
Honeywell
Operating Temperature
-20 to 60 deg C
Power Supply
24 VDC nominal
Mounting
Rack or panel mounted industrial chassis
Weight
0.5 kg
Installation Guidelines
Handling: Use proper ESD (Electrostatic Discharge) protection when handling the module to prevent damage to internal circuitry.
Mounting: Ensure the module is securely seated in the rack or chassis to maintain stable backplane communication.
Power: Verify that the supply voltage is 24 VDC nominal before applying power. Always power down the rack before inserting or removing the module.
Environment: Install in a clean, dry environment within the specified temperature range. Ensure adequate ventilation around the chassis to maintain thermal performance.
Wiring: Route signal and power cables away from high-EMI sources, such as large motors or high-voltage lines, to ensure signal integrity.
FAQ
Q: Is this module compatible with existing Honeywell control racks?A: Yes, the 900C52-0001 is designed for integration within standard Honeywell modular control architectures. Please verify your specific rack revision for full compatibility.
Q: What is the primary function of this module?A: This is a CPU controller module responsible for executing control logic, managing I/O communication, and performing system-level diagnostics.

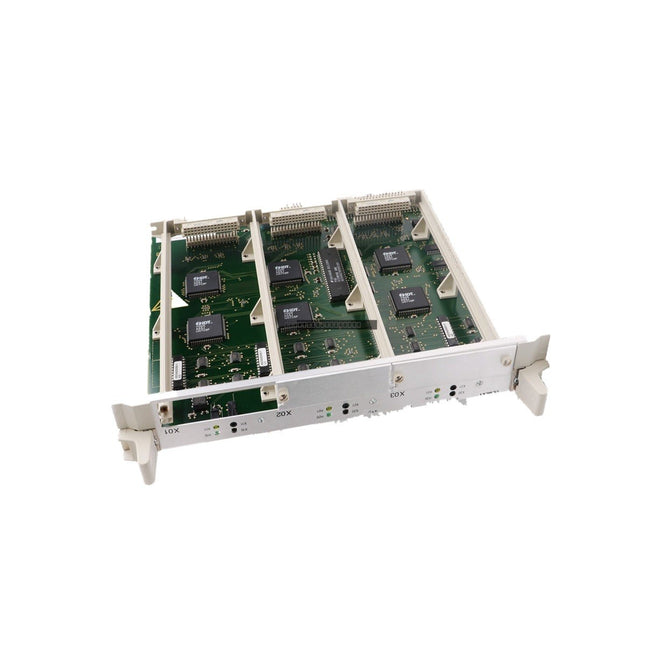

DescriptionThe Siemens 6DD1662-0AB0 is a high-performance CS7 carrier module engineered for the SIMADYN D control system. This specialized communication support module provides the physical and logical infrastructure to house up to 3 submodules, enabling multi-protocol industrial networking. Designed for high-speed control applications in steel rolling mills, large-scale power plants, and complex paper manufacturing lines, this module facilitates real-time data exchange across critical system nodes. By allowing modular expansion of communication interfaces within a single slot, the 6DD1662-0AB0 reduces hardware overhead and simplifies the maintenance of legacy control architectures.Features
