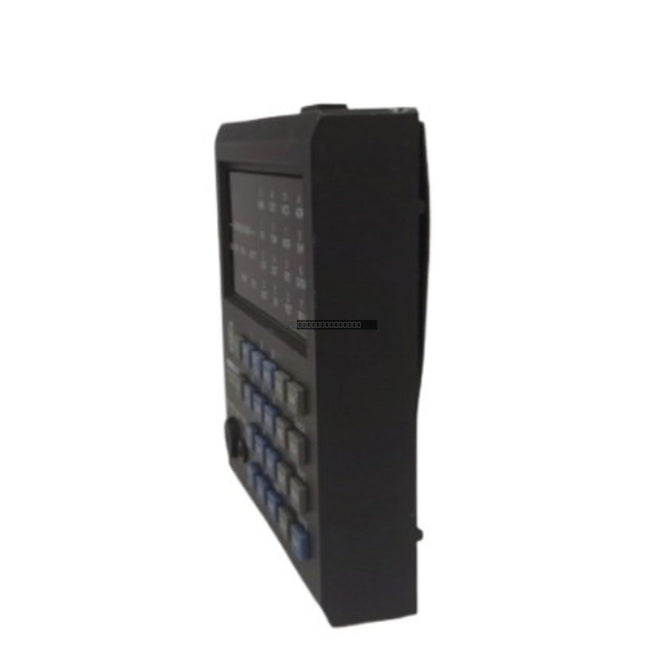

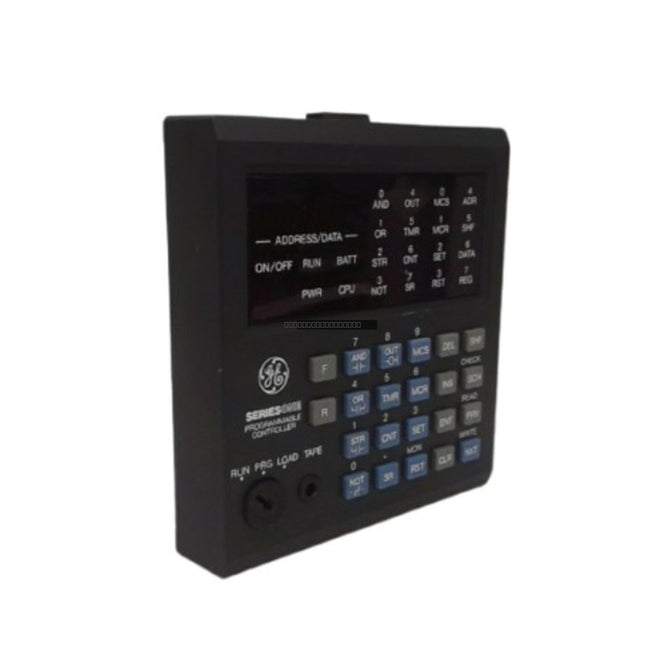

DescriptionThe IC610PRG105 is a specialized, industrial hand-held programming terminal designed by GE Fanuc for the legacy Series One controller platform. Engineered to operate on a 24 VDC nominal power supply, this interface tool facilitates localized logic adaptation, diagnostic lookup, and direct register overrides for modular processors. It is engineered for use in demanding industrial environments, including mining control consoles, power plant sub-stations, and chemical refining facilities. By enabling engineers to perform immediate logic adjustments, force inputs, and review runtime register states directly on the factory floor, this device minimizes the need for external programming computers and reduces system troubleshooting cycles.Features
Ruggedized 22-key tactical input matrix for reliable alphanumeric entry and command execution.
Includes a 1.5-meter tethered communication cable for flexible maneuvering.
Supports both volatile CMOS RAM cartridges and permanent UV-erasable EPROM storage chips.
Non-volatile memory architecture with 700-word storage capacity.
Versatile deployment: suitable for hand-held operation or flush mounting on control panel doors.
Robust mechanical housing designed to prevent thermal drift and internal component oxidation.
ApplicationsThis programmer is primarily used for the maintenance and configuration of GE Fanuc Series One PLC systems. It is essential for field technicians requiring direct access to controller registers and logic states in environments where full-sized programming stations are impractical or unavailable.Technical Specifications
Model
IC610PRG105
Brand
GE Fanuc
Product Line
Series One
Operating Voltage
24 VDC
Memory Capacity
Up to 700 words
Interface
22-key industrial keypad
Cable Length
1.5 Meters
Operating Temperature
0 to 60 deg C
Storage Temperature
-10 to 70 deg C
Humidity
5 to 95% non-condensing
Installation Guidelines
Ensure the controller is powered down before connecting or disconnecting the programmer cable to prevent electrical transients.
When mounting the device on a console or panel door, ensure the cutout is properly sealed to maintain the integrity of the enclosure.
Avoid routing the communication cable near high-voltage power lines or heavy inductive loads to prevent EMI-induced data errors.
Handle the unit with standard ESD precautions when accessing internal memory cartridges or EPROM chips.
Store in a clean, dry environment within the specified temperature range when not in use.
FAQIs this programmer compatible with other GE Fanuc PLC series?No, the IC610PRG105 is specifically designed for the Series One platform and is not compatible with later GE Fanuc or Emerson PLC series.Does this unit require an external power supply?The unit is designed to operate on a 24 VDC supply, typically sourced from the Series One controller rack or an auxiliary power source within the control cabinet.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe 1794-TB32S is a high-density, 32-point spring-clamp terminal base unit designed for the Allen-Bradley Flex I/O 1794 modular platform. This unit serves as the physical and electrical interface for high-density Flex I/O modules, providing a robust termination plane for field wiring. Its spring-clamp (cage clamp) design utilizes constant-force internal springs, offering superior resistance to vibration and thermal cycling compared to traditional screw terminals, which reduces maintenance requirements and prevents loose-wire faults.Features
32-point high-density spring-clamp termination for efficient field wiring.
Vibration-resistant cage clamp design eliminates the need for periodic retightening.
Integrated Flexbus backplane pass-through for seamless data and logic power distribution.
Mechanical rotatable keyswitch to prevent incorrect module insertion and protect sensitive I/O circuitry.
Supports daisy-chaining of field-side power distribution.
Compact, open-style design for DIN-rail mounting in space-constrained control cabinets.
ApplicationsThis terminal base is intended for use in industrial automation systems requiring high-density I/O configurations. It is compatible with various 32-channel Flex I/O modules, including sourcing output modules and high-density input cards, making it suitable for distributed control systems, machine control, and process automation environments.Technical Specifications
Model
1794-TB32S
Terminal Type
Spring-Clamp (Cage Clamp)
Termination Points
32
Max Voltage Rating
31.2 V AC / V DC
Max Current Rating
10 A
Wire Size Capacity
0.34 to 3.3 mm squared (22 to 12 AWG)
Operating Temperature
-20 to 70 deg C
Storage Temperature
-40 to 85 deg C
Relative Humidity
5 to 95 percent (non-condensing)
Mounting
DIN-Rail (Horizontal or Vertical)
Installation Guidelines
Ensure the DIN-rail is securely mounted and grounded according to local electrical standards.
Before inserting an I/O module, set the mechanical keyswitch on the base to the position corresponding to the specific I/O module type.
Always power down the Flex I/O system before installing or removing modules from the terminal base to prevent electrical arcing or damage to the backplane.
Use appropriate wire ferrules for stranded conductors to ensure a secure connection within the spring-clamp terminals.
Maintain adequate clearance around the module for heat dissipation and cable routing.
Route field wiring away from high-voltage AC lines and noise-generating equipment to minimize EMI.
FAQQ: Does the 1794-TB32S require external power?A: The terminal base itself is a passive component that routes power and data from the Flexbus backplane. Field-side power is supplied through the terminal connections as required by the specific I/O module installed.Q: Can I use this with any Flex I/O module?A: The 1794-TB32S is designed for high-density 32-point modules. Always verify compatibility with your specific I/O module catalog number before installation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Bently Nevada 3500/15 114M5330-01 is a Low Voltage DC Power Supply module designed for the 3500 Series Machinery Protection System. This module converts an input voltage of 20 V to 30 V DC into the regulated DC voltages required by other modules within the 3500 rack.Features
Half-height module design occupying two dedicated slots on the left side of the 3500 rack.
Supports redundant configurations: two power supplies can be installed in a single rack, with the lower slot acting as the primary and the upper as the backup.
Hot-swappable capability: modules can be removed or inserted without disrupting rack operation, provided a second supply is active.
Requires a 114M5335-01 Power Input Module (PIM) installed directly behind the supply for physical power interface and fusing.
Wide operating temperature range suitable for industrial environments.
Applications
Critical machinery protection for turbines, compressors, and generators.
Condition monitoring and predictive maintenance in the oil and gas industry.
High-reliability monitoring in petrochemical and chemical processing plants.
Uninterrupted power supply for utility monitoring equipment in power generation.
Technical Specifications
Model
3500/15 114M5330-01
Input Voltage
20 to 30 Vdc
Operating Temperature
-30 degC to +65 degC (-22 degF to +150 degF)
Storage Temperature
-40 degC to +85 degC (-40 degF to +185 degF)
Humidity
95%, non-condensing
Weight
1.25 kg
Installation Guidelines
Ensure the 3500 rack is powered down or that a redundant supply is active before installation or removal.
The module must be installed in the designated power supply slots on the left side of the 3500 rack.
Always pair this module with the corresponding 114M5335-01 Power Input Module (PIM) located in the rear of the rack.
Maintain adequate airflow around the rack to ensure operating temperatures remain within the specified limits.
Handle with standard ESD precautions to prevent damage to sensitive internal components.
FAQWhat is the function of the 114M5330-01?It is a Low Voltage DC Power Supply module that converts input power to the regulated DC voltages required by all other modules installed in the 3500 rack.Can the 3500/15 power supply be hot-swapped?Yes, the module supports hot-swapping. Removing or inserting the power supply does not disrupt rack operation as long as a second redundant power supply is installed.What is the input voltage range for this module?The 114M5330-01 is designed for an input range of 20 to 30 Vdc.
DescriptionThe Bently Nevada 3300/16 XY/GAP Dual Vibration Monitor is a rack-mounted module within the 3300 Series monitoring system. This module is engineered to provide continuous, simultaneous measurement of radial shaft vibration (XY) and probe gap voltage (GAP). By monitoring these parameters, the system offers critical protection for rotating machinery such as turbines, compressors, and pumps, facilitating the early detection of mechanical faults including shaft misalignment, rubs, and bearing degradation.Features
Dual-channel configuration for simultaneous XY vibration and GAP monitoring.
Continuous comparison of input signals against user-defined Alert and Danger setpoints.
Integrated relay outputs for automated alarm and shutdown sequences.
Front-panel LED indicators for quick status verification of OK, Bypass, Alert, and Danger conditions.
Compatible with standard proximity probe (Proximitor) sensor inputs.
Proportional 4-20 mA outputs for integration with external DCS or PLC systems.
ApplicationsThis monitor is widely utilized in industrial environments for the protection of critical rotating equipment, including:
Steam and gas turbines
Centrifugal compressors
Large industrial pumps and motors
Gearboxes and turbo-expanders
Technical Specifications
Model
3300/16-02-01-00-01-00-00
Series
3300
Inputs
2 x Proximity probe channels (XY and GAP)
Outputs
Dynamic signals, 4-20 mA, Relay (Alert/Danger)
Operating Temperature
-30 degC to +65 degC
Power Consumption
6 W (typical)
Installation Guidelines
Ensure the 3300 rack is properly grounded according to site electrical safety standards to prevent noise interference.
Handle the module using ESD-safe practices; avoid touching backplane connectors.
Verify that the rack power is disconnected before inserting or removing the module to prevent electrical arcing or damage to the backplane pins.
Ensure that shielded cables are used for proximity probe signals to minimize EMI/RFI impact.
Confirm that the module is fully seated in the rack slot and that the front-panel locking mechanisms are engaged.
FAQWhat is the primary function of the 3300/16 monitor?The 3300/16 is designed to monitor radial shaft vibration and probe gap voltage, providing essential data for machinery health and triggering alarms if pre-set vibration thresholds are exceeded.Does this module include intrinsic safety barriers?No, this specific model (3300/16-02-01-00-01-00-00) is configured with standard input barriers and does not include intrinsic safety barriers.Can this module be used for both Alert and Danger alarms?Yes, the module is equipped with relay outputs capable of managing both Alert and Danger alarm conditions based on the configured setpoints.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Honeywell 8U-PDISA1 is a high-performance 32-channel digital input module engineered for Sequence of Events (SOE) recording in critical industrial automation environments. This module provides high-speed signal monitoring with 1 ms resolution, enabling precise timestamping of field events for root-cause analysis and operational diagnostics in power generation, oil and gas, and complex process control applications.Features
32 discrete input channels supporting 24 VDC industrial signals.
Sequence of Events (SOE) capability with 1 ms resolution for accurate event logging.
Dual scanning modes: 20 ms normal scan cycle and 5 ms fast scan cycle for high-priority signals.
Integrated optical isolation providing 1000 VAC RMS or ±1000 VDC galvanic separation.
Hot-swappable design allowing for module replacement without interrupting system operation.
Robust electrical protection against ground potential differences and transient surges.
ApplicationsThis module is designed for use in systems requiring detailed event sequence tracking, such as turbine control, emergency shutdown systems (ESD), and complex process monitoring where millisecond-level accuracy is required to analyze process disturbances and equipment trips.Technical Specifications
Model
8U-PDISA1
Input Channels
32 discrete inputs
Input Voltage Range
18 to 30 VDC
Nominal Voltage
24 VDC
SOE Resolution
1 ms
Scan Time
20 ms (normal) / 5 ms (fast)
Isolation
1000 VAC RMS / ±1000 VDC
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Current Consumption
95 mA
Installation Guidelines
Ensure the system power is managed according to site safety protocols before installing or removing the module, although the unit supports hot-swapping.
Verify that field wiring is correctly terminated to the appropriate terminal blocks before seating the module into the I/O rack.
Maintain proper grounding practices to ensure the effectiveness of the module's galvanic isolation.
Ensure adequate ventilation in the cabinet to maintain ambient temperatures within the specified 0 to 60 deg C range.
Handle with care to prevent electrostatic discharge (ESD) damage to the module's internal circuitry.
FAQDoes this module support hot-swapping?Yes, the 8U-PDISA1 is designed to support removal and insertion under power (hot-swap), which helps minimize downtime during maintenance in continuous process environments.What is the primary purpose of the SOE functionality?The Sequence of Events (SOE) functionality allows the system to capture and timestamp field signal transitions with 1 ms resolution, which is essential for post-incident analysis and troubleshooting complex process disturbances.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe 2711-NC22 is an extended-length communication cable designed by Allen-Bradley to facilitate reliable serial connectivity between PanelView operator terminals and MicroLogix controllers. Engineered for demanding industrial environments such as automated manufacturing lines and distributed control systems, this cable ensures stable data transmission over long distances, effectively mitigating signal attenuation and maintaining consistent operator-to-controller communication.Features
Extended 15-meter (49 ft) length for flexible routing in large control cabinets and cable trays.
RS-232 communication standard support for robust serial data exchange.
Equipped with a 9-pin D-shell connector and an 8-pin mini DIN connector for direct hardware interfacing.
Passive design requiring no external power supply.
Compatible with a wide range of PanelView terminals and MicroLogix controllers (excluding PanelView 300 Micro).
ApplicationsThis cable is primarily used in industrial automation setups where the operator interface must be mounted at a significant distance from the PLC controller. It is suitable for control room applications, remote monitoring stations, and distributed plant floor architectures requiring reliable serial communication.Technical Specifications
Model
2711-NC22
Brand
Allen-Bradley
Cable Length
15 meters (49 ft)
Communication Standard
RS-232
Connector A
9-pin D-shell
Connector B
8-pin mini DIN
Operating Temperature
0 to 55 degC
Power Consumption
Passive
Installation Guidelines
Ensure the system is powered down before connecting or disconnecting the cable to prevent potential damage to communication ports.
Route the cable through dedicated cable trays or conduits, keeping it away from high-voltage power lines to minimize electromagnetic interference (EMI).
Verify that the connectors are fully seated and secured to ensure a stable, vibration-resistant connection.
Avoid sharp bends or excessive tension on the cable during installation to maintain the integrity of the internal conductors.
FAQIs this cable compatible with all PanelView models?The 2711-NC22 is compatible with most standard PanelView terminals when connecting to MicroLogix controllers, but it is specifically noted as not compatible with the PanelView 300 Micro model.Does this cable require external power?No, the 2711-NC22 is a passive communication cable and does not require an external power supply to function.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Configured for redundant controller execution in ABB AC 800M automation systems, the ABB PM866AK02 (PM866AK02 Processor Unit) provides direct physical and electrical execution for controller logic processing, memory management, and communication tasks.
Hardware Specifications
Parameter
Specification
Model
PM866AK02
Article Number
3BSE081637R1
Brand
ABB
Product Type
AC 800M Processor Unit
Origin
Sweden
Processor Type
MPC866
Clock Frequency
133 MHz
Memory
64 MB
RAM Available for Application
51.389 MB
Flash Memory for Storage
Yes
Flash PROM for Firmware Storage
4 MB
Redundancy
Yes
High Integrity
No
Performance, 1000 Boolean Operations
0.09 ms
Controller Applications
32 applications per controller
Programs per Application
64
Diagrams per Application
128
Tasks per Controller
32
Number of Different Cycle Times
32
Minimum Cycle Time per Application Programs
Down to 1 ms
Redundancy Switch Over Time
Max 10 ms
Power Supply
24 VDC (19.2-30 VDC)
Power Consumption at +24 VDC Typical/Maximum
210 / 360 mA
Width
119 mm
Height
186 mm
Depth
135 mm
Weight Including Base
K02: 2700 g
Profinet and Backplane Bus Communication Characteristics
The PM866AK02 integrates the processing hardware required for AC 800M controller operation. The CPU board contains the microprocessor, RAM memory, real-time clock, LED indicators, INIT push button, and CompactFlash interface.
Furthermore, the controller supports redundant configurations with a maximum switch over time of 10 ms. The processor executes application programs with cycle times down to 1 ms and manages multiple controller tasks through the AC 800M execution environment.
The module design supports ABB industrial control architectures where backplane bus communication velocity, firmware flash compatibility, and I/O density scaling are managed through the controller platform configuration. The CompactFlash interface provides firmware and application storage functions according to AC 800M system requirements.
Frequently Asked Questions
Q: Does the PM866AK02 support redundant controller configurations?A: Yes. The PM866AK02 supports controller redundancy and provides a maximum redundancy switch over time of 10 ms.
Q: What processor and memory resources are available in the PM866AK02?A: The module uses an MPC866 processor operating at 133 MHz with 64 MB memory and 51.389 MB RAM available for application execution.
Q: What power supply range is required for the PM866AK02?A: The processor unit requires a 24 VDC supply with an operating range of 19.2-30 VDC.
Field Installation Guidelines
Install the PM866AK02 on the designated AC 800M controller base according to ABB hardware installation procedures.
Maintain correct module alignment during insertion to prevent mechanical damage to the connector interface. Verify that the power supply wiring uses suitable industrial control wiring practices and that protective grounding is correctly connected.
Route communication cables separately from high-voltage power cables to reduce electrical interference. Keep cable shielding connected according to the system grounding design and avoid unnecessary cable loops near the controller assembly.
Before commissioning, confirm firmware compatibility, CompactFlash installation status, LED diagnostic indicators, and controller redundancy configuration parameters.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM866AK01 Processor Unit
Configured for CPU execution and control network communication in ABB AC 800M systems, the ABB PM866AK01 (PM866A Processor Unit) provides direct physical processing and data handling functions through the controller hardware platform.
Hardware Specifications
Parameter
Specification
Model
PM866AK01
Article Number
3BSE076939R1
Brand
ABB
Product Type
Processor Unit
System Platform
AC 800M Controller
Origin
Sweden
Processor Type
MPC866
Clock Frequency
133 MHz
Memory
64 MB
RAM Available for Application
51.389 MB
Flash Memory for Storage
Yes
Flash PROM for Firmware Storage
4 MB
Performance, 1000 Boolean Operations
0.09 ms
Application Capacity
32 applications per controller
Programs per Application
64
Diagrams per Application
128
Tasks per Controller
32
Number of Different Cycle Times
32
Minimum Cycle Time per Application Program
Down to 1 ms
CPU Redundancy Support
Supported
Redundancy Switch Over Time
Max 10 ms
Power Supply
24 V DC (19.2-30 V DC)
Power Consumption +24 V Typical/Maximum
210 / 360 mA
Dimensions
119 mm W x 186 mm H x 135 mm D
Weight
1200 g including base
Industrial Control Network and Firmware Interface
The PM866AK01 CPU board integrates the MPC866 processor, RAM memory, real-time clock, LED status indicators, INIT push button, and CompactFlash interface. The controller base plate provides two RJ45 Ethernet ports, identified as CN1 and CN2, for Control Network communication.
In addition, the module includes two RJ45 serial interfaces. COM3 operates as an RS-232C port with modem control signals, while COM4 provides an isolated serial connection for configuration tools.
The PM866AK01 supports CPU redundancy configurations including processor redundancy, CEX-Bus redundancy, communication interface redundancy, and S800 I/O redundancy. Therefore, the controller can maintain operation continuity through coordinated redundancy management functions.
Backplane Bus Communication and Firmware Flash Compatibility
The PM866AK01 operates within the ABB AC 800M controller architecture and exchanges data through the controller backplane and CEX-Bus interfaces. The 133 MHz processor executes application programs with cycle times down to 1 ms, while the flash memory interface stores firmware data and controller configuration information.
Furthermore, the module supports deterministic communication behavior through ABB control network interfaces. The CPU hardware manages I/O communication timing, application execution scheduling, and system diagnostics within the AC 800M platform.
Frequently Asked Questions
Q: Does the PM866AK01 support CPU redundancy configuration?A: Yes. The PM866AK01 supports CPU redundancy together with CEX-Bus, communication interface, and S800 I/O redundancy functions. The maximum redundancy switch over time is specified as 10 ms.
Q: What communication interfaces are available on the PM866AK01 base plate?A: The base plate contains two RJ45 Ethernet ports for Control Network connection and two RJ45 serial ports. COM3 provides RS-232C communication with modem control signals, while COM4 is isolated for configuration tools.
Q: What firmware storage method is used by the PM866AK01?A: The controller provides 4 MB Flash PROM for firmware storage and includes a CompactFlash interface for storage functions.
Field Installation Guidelines
Install the PM866AK01 on the designated ABB AC 800M controller base plate and verify mechanical locking before applying power.
Connect the 24 V DC supply using appropriate industrial wiring practices. Maintain correct polarity and separate power wiring from high-voltage switching circuits.
For Ethernet connections, use shielded industrial communication cables and route them separately from motor power or high-current conductors to reduce electromagnetic interference.
For serial communication wiring, verify the interface type before connection. COM3 and COM4 have different electrical characteristics and must be connected according to the configured communication function.
Ensure the CompactFlash interface and LED indicators remain accessible during commissioning and maintenance activities.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM864A Processor Unit
The ABB 3BSE018162R1, also cataloged as the PM864A Processor Unit, operates as a dedicated hardware component for control execution and communication management within ABB AC 800M controller platforms.
Hardware Specifications
Parameter
Specification
Model
PM864A
Full Order Number
3BSE018162R1
Brand
ABB
Product Type
Processor Unit
System Platform
ABB AC 800M Controller
Origin
Sweden
Weight
2.5 kg
Technical Function
Controller processing and system execution
Part Type
Spare Part
Customs Tariff Number
85389091
Replacement Product ID
3BSE018161R1
Exchange Reference
EXC3BSE018161R1
Backplane Bus Communication and Controller Execution
The ABB PM864A processor unit manages application execution, controller communication, and system coordination inside AC 800M automation architectures. It interfaces with controller hardware through the internal backplane bus and handles programmed control tasks, diagnostics, and communication services.
Furthermore, the module supports firmware flash compatibility within the ABB controller environment. System configuration, application loading, and controller status monitoring depend on compatible engineering tools and approved firmware versions.
Frequently Asked Questions
Q: What is the primary function of the ABB PM864A 3BSE018162R1 module?A: The PM864A functions as a processor unit for ABB AC 800M controllers. It executes control applications, manages internal system communication, and processes controller diagnostics.
Q: Can the PM864A be installed in a redundant controller configuration?A: The provided technical data does not specify redundancy capability for this exact product ID. Redundant operation requires verification of the installed AC 800M configuration and supported hardware combination.
Q: Does the PM864A support firmware replacement or upgrades?A: Firmware compatibility depends on the AC 800M controller platform version and approved ABB engineering software. Firmware changes must follow ABB system compatibility requirements.
Field Installation Guidelines
Install the PM864A only in compatible ABB AC 800M controller assemblies.
Verify the controller rack, backplane connection, and module locking mechanism before energizing the system.
Keep communication wiring separated from high-voltage power cables to reduce electrical interference.
Ensure grounding and shielding practices follow the cabinet design requirements.
Confirm firmware and controller configuration compatibility before commissioning.
Use approved handling procedures to prevent electrostatic discharge damage during installation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM865 Processor Unit
The ABB PM865, also cataloged as the PM865 Processor Unit, operates as a dedicated control processing component for executing application logic, communication tasks, and system diagnostics within the ABB AC 800M controller platform.
Hardware Specifications
Parameter
Specification
Model
PM865
Brand
ABB
Product Type
AC 800M Processor Unit
System Platform
ABB AC 800M / System 800xA
Processor Architecture
PowerPC-based processor architecture
Memory
RAM and non-volatile flash memory for application execution and storage
Redundancy Support
Supports CPU redundancy configurations with hot standby operation
Communication Interface
Ethernet interfaces for controller communication and MMS services
Serial Interface
RS-232 / RS-485 communication support for external devices
Safety Support
Compatible with ABB High Integrity configurations up to SIL 2 / SIL 3 when configured with approved components
Mounting Method
DIN-rail mounted controller baseplate installation
Supply Voltage
24 VDC industrial power supply input
Origin
Sweden
Operating Temp
Industrial operating temperature range; exact value not specified in available technical data
Power Consumption
Depends on system configuration and connected modules; exact value not specified in available technical data
Backplane Bus Communication and I/O Scaling
The ABB PM865 integrates with the AC 800M controller architecture through the controller backplane and communication interfaces. It executes IEC 61131-3 application tasks while managing I/O communication cycles, module diagnostics, and network data exchange.
Furthermore, the processor supports scalable I/O configurations through ABB S800 I/O modules and communication interface units. The controller manages distributed signals through deterministic industrial networks while maintaining synchronized application execution.
Firmware flash compatibility allows the processor unit to support approved AC 800M software revisions. Therefore, system upgrades require verification between controller firmware, engineering tools, and connected hardware modules.
Frequently Asked Questions
Q: Does the ABB PM865 support redundant processor configurations?A: Yes. The PM865 supports CPU redundancy arrangements using compatible AC 800M hardware and engineering configurations. Redundant operation requires matching processor units and approved system settings.
Q: What communication functions are available on the PM865?A: The PM865 provides Ethernet-based controller communication, MMS services, and serial communication capability through supported interfaces for external device integration.
Q: Can the PM865 be used in High Integrity safety applications?A: The PM865 can be configured within ABB High Integrity systems when combined with compatible safety firmware, engineering tools, and approved system components.
Field Installation Guidelines
Install the PM865 on an approved ABB AC 800M controller baseplate with correct mechanical alignment.
Verify 24 VDC power wiring polarity before energizing the processor unit.
Keep communication cables separated from high-voltage and high-current power conductors to reduce electromagnetic interference.
Connect cable shields according to ABB grounding recommendations for industrial control systems.
Confirm firmware compatibility between the PM865 processor, engineering software, and connected I/O modules before commissioning.
Check redundant processor wiring and synchronization status when using hot standby configurations.
Perform controller diagnostics after installation to verify communication status, memory operation, and module recognition.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM867K02 AC 800M Redundant Processor Unit
The ABB PM867K02, also cataloged as the PM867K02 Processor Unit, operates as a redundant control execution module for application processing, communication management, and diagnostic functions within ABB AC 800M controller platforms. The unit provides dual CPU operation capability with high integrity functions, MPC866 processor architecture, and deterministic controller task execution.
Hardware Specifications
Parameter
Specification
Model
PM867K02
Article Number
3BSE081638R1
Brand
ABB
Product Type
AC 800M Redundant Processor Unit
Origin
Sweden
Processor Type
MPC866
Clock Frequency
133 MHz
Redundancy
Yes
High Integrity
Yes
Memory
64 MB
RAM Available for Application
46.559 MB
Flash Memory for Storage
No
Flash PROM for Firmware Storage
18 MB
Weight
K02: 2700 g (5.95 lbs), including base
Dimensions
Width: 119 mm (4.7 in.), Height: 186 mm (7.3 in.), Depth: 135 mm (5.3 in.)
Operating Temp
Not specified
Power Consumption
5.1 W typical, 8.6 W maximum; +24 VDC current 210 mA typical, 360 mA maximum
Power Supply
24 VDC (19.2-30 VDC)
Boolean Operation Performance
0.09 ms per 1000 boolean operations
Redundant Configuration Switch Over Time
Maximum 10 ms
Applications per Controller
32
Programs per Application
64
Diagrams per Application
128
Tasks per Controller
32
Number of Cycle Times
32
Application Program Cycle Time
Down to 1 ms
Built-in Backup Battery
Lithium, 3.6 V
Redundant Power Supply Status Input
Yes
Clock Synchronization
1 ms between AC 800M controllers through CNCP protocol
Event Queue per OPC Client
Up to 3000 events
Communication Modules on CEX Bus
12
CEX Bus Supply Current
Maximum 2.4 A
Modulebus I/O Clusters with Non-Redundant CPU
1 electrical + 7 optical
Modulebus I/O Clusters with Redundant CPU
0 electrical + 7 optical
ABB AC 800M Redundant Controller Communication and I/O Architecture
The PM867K02 integrates with the AC 800M controller platform through CEX bus and Modulebus communication structures. Therefore, the processor manages distributed I/O communication, application execution, and controller synchronization functions.
The redundant configuration supports processor switchover operation with a maximum 10 ms transition time. In addition, CNCP protocol synchronization maintains a 1 ms clock alignment between AC 800M controllers.
The controller architecture supports deterministic backplane bus communication velocity, modular I/O density scaling, and firmware flash compatibility within ABB System 800xA automation environments.
The PM867K02 also supports multiple communication modules through the CEX bus. Consequently, the controller can coordinate different field communication interfaces while maintaining defined task cycle execution.
Frequently Asked Questions
Q: What is the function of redundancy in the PM867K02 configuration?A: The PM867K02 supports redundant processor operation. The controller can perform processor switchover with a maximum transition time of 10 ms.
Q: How much application memory is available in the PM867K02?A: The processor contains 64 MB total memory, with 46.559 MB available for application execution.
Q: How does the PM867K02 communicate with AC 800M I/O systems?A: The module communicates through ABB CEX bus and Modulebus architectures. It supports up to 12 communication modules on the CEX bus and optical I/O cluster connections.
Field Installation Guidelines
Install the PM867K02 on the designated AC 800M controller base assembly according to ABB hardware installation procedures.
Verify that the 24 VDC power supply remains within the specified input range before energizing the controller. Connect redundant power status monitoring signals where required by the system configuration.
Maintain proper cabinet grounding and cable separation between power wiring and communication wiring. Use appropriate shielding practices for industrial communication cables to reduce electromagnetic interference.
Before commissioning, confirm processor redundancy status, firmware compatibility, controller synchronization, and Modulebus communication integrity through the engineering configuration tools.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM856AK01 Processor Unit
The ABB PM856AK01 3BSE018128R1, also cataloged as the PM856AK01 Processor Unit, operates as a dedicated hardware component for real-time control execution and communication management within the ABB AC 800M Controller platform.
Hardware Specifications
Parameter
Specification
Model
PM856AK01 3BSE018128R1
Brand
ABB
Product Type
Processor Unit / CPU Module
System Platform
AC 800M Controller
Origin
Sweden
Operating Temp
+5 deg C to +55 deg C
Power Consumption
Supplied through AC 800M system power distribution, value not specified
Processor
Motorola PowerPC based CPU architecture
Memory
32 MB RAM
Flash Memory
Integrated non-volatile flash memory
Communication Ports
2 x Ethernet ports, serial COM interfaces
Mounting Type
DIN rail mounting with TB850 base plate
Protection Class
IP20
Redundancy Support
Supports CPU redundancy configuration with compatible redundant hardware
Power Supply Voltage
Typical 24 VDC system supply
Certifications
CE, cULus, RoHS compliance
ABB AC 800M Backplane and Communication Architecture
The PM856AK01 integrates into the ABB AC 800M controller architecture through the controller backplane and Ethernet communication interfaces. The processor executes application logic, manages I/O data exchange, and handles diagnostic information from connected system components.
Furthermore, the module supports deterministic industrial communication functions through dual Ethernet ports. These interfaces provide Control Network connectivity, MMS communication, and peer-to-peer data exchange between AC 800M controller nodes.
The firmware resides in internal flash memory, allowing storage of controller operating software and application-related data. The processor module also supports redundancy configurations when installed with the required redundant controller hardware.
Frequently Asked Questions
Q: Does the PM856AK01 support redundant CPU operation?A: The PM856AK01 supports CPU redundancy when installed with the corresponding redundant base hardware and a compatible processor module configuration.
Q: What communication interfaces are available on the PM856AK01?A: The module provides two Ethernet ports for AC 800M Control Network communication and additional serial interfaces for supported communication functions.
Q: Can the PM856AK01 operate without a separate power supply module?A: The PM856AK01 receives system power through the AC 800M controller power distribution arrangement and does not use an independent external power input.
Field Installation Guidelines
Install the PM856AK01 on the specified AC 800M DIN rail mounting arrangement with the correct base plate configuration.
Verify that the controller backplane connections are fully engaged before applying system power.
Route Ethernet communication cables separately from high-voltage and high-current wiring to reduce electrical interference.
Connect cable shields according to the plant grounding standard and maintain proper EMC practices.
Confirm firmware compatibility before replacing an installed processor module.
Use approved configuration tools to verify controller communication status after installation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM851AK01 3BSE066485R1 AC 800M Processor Module
The ABB PM851AK01 3BSE066485R1, also cataloged as the PM851AK01 AC 800M Processor Module, provides processor execution, application management, and control task handling within ABB System 800xA controller platforms.
Hardware Specifications
Parameter
Specification
Model
PM851AK01 3BSE066485R1
Brand
ABB
Product Type
AC 800M Processor Module
Origin
Sweden
Weight
0.9 kg
Dimensions
12.7 x 20.3 x 12.7 cm
Operating Temp
Not specified
Power Consumption
4.32 W typical, 7.2 W maximum
Power Supply
24 VDC (19.2 - 30 VDC)
Processor Type
MPC860
Flash PROM Firmware Storage
2 MB
Applications per Controller
32
Programs per Application
64
Diagrams per Application
128
Tasks per Controller
32
Number of Cycle Times
32
Minimum Application Cycle Time
Down to 1 ms
Current Consumption
+24 VDC: 180 mA typical, 300 mA maximum
Tariff Code
8537101190
Firmware Flash Compatibility and Controller Execution
The PM851AK01 integrates an MPC860 processor with firmware storage through a 2 MB Flash PROM. Therefore, the module executes controller applications, task scheduling, and application program processing within the AC 800M control architecture.
The processor supports up to 32 applications per controller and manages up to 32 controller tasks. Furthermore, application programs can operate with configurable cycle times, including execution periods down to 1 ms for fast control sequences.
The module connects with ABB controller infrastructure through the AC 800M hardware platform. In addition, its firmware architecture supports controller configuration and application management functions within System 800xA environments.
Frequently Asked Questions
Q: What processor architecture does the ABB PM851AK01 use?A: The PM851AK01 uses an MPC860 processor architecture designed for AC 800M controller execution functions.
Q: What power supply range does the PM851AK01 require?A: The module requires a 24 VDC supply with an operating range of 19.2 VDC to 30 VDC.
Q: How many controller tasks can the PM851AK01 manage?A: The processor module supports up to 32 tasks per controller configuration.
Field Installation Guidelines
Install the PM851AK01 according to ABB AC 800M hardware installation procedures. Verify that the controller rack, module positioning, and backplane connections remain free from mechanical stress.
Connect the 24 VDC power supply using correctly rated industrial wiring. Maintain proper cable separation between power circuits and signal communication lines to reduce electrical interference.
Before commissioning, confirm module seating, connector engagement, grounding continuity, and controller firmware compatibility. Avoid handling the module without appropriate electrostatic discharge protection.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM891K01 Processor Unit
The ABB PM891K01, also cataloged as the PM891K01 Processor Unit, provides direct processing execution and controller communication within ABB System 800xA and AC 800M controller platforms. The unit includes the PM891 CPU module, TB850 CEX-Bus Terminator, TB853 RCU Control Link Terminator, and power plug assembly.
Hardware Specifications
Parameter
Specification
Model
PM891K01
Spare Model
3BSE053241R1
Brand
ABB
Product Type
Processor Unit
Series
AC 800M Controller Family
System Platform
ABB System 800xA
Origin
Sweden
Weight
1.64 kg
Dimensions
20 x 18.7 x 10 cm (shipping size)
Included Components
PM891 CPU Module, TB850 CEX-Bus Terminator, TB853 RCU Control Link Terminator, Power Plug
Communication Interface
CEX-Bus and RCU Control Link interfaces
Tariff Code
8537101190
Backplane Bus Communication and Controller Integration
The PM891K01 uses ABB AC 800M controller architecture for processor execution and internal module communication. The CPU module manages application processing, controller diagnostics, and communication services through the controller backplane structure.
Furthermore, the processor unit supports ABB controller configuration through System 800xA engineering environments. The CEX-Bus interface allows connection of compatible communication and expansion modules, while the included TB850 terminator maintains correct bus termination conditions.
The PM891K01 follows ABB industrial control hardware design principles, including firmware flash compatibility management and I/O density scaling within AC 800M-based control systems.
Frequently Asked Questions
Q: What components are included with the ABB PM891K01 processor unit?A: The PM891K01 package includes the PM891 CPU module, TB850 CEX-Bus Terminator, TB853 RCU Control Link Terminator, and power plug.
Q: Can the PM891K01 operate as a standalone I/O module?A: No. The PM891K01 functions as a processor unit within ABB AC 800M controller configurations and requires compatible controller hardware architecture.
Q: What is the function of the TB850 and TB853 components supplied with this unit?A: TB850 provides CEX-Bus termination, while TB853 provides RCU Control Link termination to maintain proper communication line conditions.
Field Installation Guidelines
Install the PM891K01 inside the designated ABB AC 800M controller assembly according to the system hardware configuration.
Ensure the processor module is correctly seated on the controller backplane before applying power. Verify that all termination components, including TB850 and TB853, are installed according to the required bus topology.
Maintain proper cabinet grounding and separate signal wiring from high-voltage power cables to reduce electrical interference. Use approved industrial wiring practices for communication connections and verify connector engagement before system startup.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM810V2 AC70 Processor Module
The ABB PM810V2 3BSE013220R1, also cataloged as the PM810V2 AC70 Processor Module, operates as a dedicated hardware component for processor execution and control data handling within ABB S800 control system platforms. The module performs CPU processing tasks and manages communication between application logic and connected I/O components.
Hardware Specifications
Parameter
Specification
Model
PM810V2 3BSE013220R1
Brand
ABB
Product Type
AC70 Processor Module
Series
S800 Control System
Origin
Sweden
Weight
0.52 kg
Dimensions
17 x 8.5 x 12 cm
Tariff Code
8537109060
Product Status
Discontinued by manufacturer
ABB Backplane Bus Communication and Controller Integration
The PM810V2 processor module operates as a CPU component in ABB S800 automation architectures. It executes control application tasks and exchanges process data through the controller backplane communication structure.
Furthermore, the module supports ABB industrial control configurations that require stable processor coordination, I/O density scaling, and firmware compatibility within supported S800 system environments. The processor hardware manages application execution cycles while maintaining communication with connected system modules.
The PM810V2 is configured for integration with ABB controller platforms where deterministic communication performance and structured module coordination are required.
Frequently Asked Questions
Q: What is the primary function of the ABB PM810V2 module?A: The PM810V2 functions as an AC70 processor module that executes control applications and manages processor-level communication within ABB S800 systems.
Q: Can the PM810V2 be directly replaced by other processor modules?A: Replacement depends on controller configuration, firmware compatibility, and application requirements. System documentation should be reviewed before substitution.
Q: Does the PM810V2 support hot-swapping?A: Hot-swap capability depends on the installed ABB S800 controller architecture and system configuration. Field replacement procedures must follow ABB installation guidelines.
Field Installation Guidelines
Install the PM810V2 module only in compatible ABB S800 controller assemblies.
Verify that the controller power supply is isolated before module installation or removal.
Confirm correct mechanical alignment with the backplane connector before insertion.
Maintain proper cabinet grounding and follow industrial EMC installation practices.
Route communication and power wiring separately where required to reduce electrical interference.
Check firmware compatibility before commissioning the processor module in an existing control system.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM867 3BSE076356R1 AC 800M Processor Unit
The ABB PM867 3BSE076356R1, also cataloged as the PM867 Processor Unit, provides CPU execution, memory management, and communication control within ABB AC 800M controller platforms. The module executes application logic, manages CEX-Bus connected communication units, and exchanges process data through System 800xA control networks.
Hardware Specifications
Parameter
Specification
Model
PM867 3BSE076356R1
Brand
ABB
Product Type
AC 800M Processor Unit
Origin
Sweden
Operating Temp
Refer to ABB AC 800M hardware documentation
Power Consumption
Supplied through TP830/TP85x baseplate, typically 24 VDC system supply
Controller Family
ABB AC 800M
System Platform
ABB System 800xA
Processor Architecture
Motorola PowerPC based processor architecture
Memory
Onboard RAM and non-volatile flash memory
Communication Interfaces
Ethernet interfaces for Control Network and CEX-Bus communication
Expansion Capacity
Supports up to 12 CEX-Bus expansion units
Protection Class
IP20 installation environment
Redundancy Support
Supports CPU redundancy configuration with compatible hardware setup
Industrial Control Communication and Firmware Compatibility
The PM867 uses ABB AC 800M controller architecture to manage deterministic control execution and communication processing. Furthermore, the controller supports CEX-Bus expansion for integration of communication interfaces and field connection modules.
The processor unit provides firmware-controlled hardware operation through onboard flash memory. Therefore, firmware compatibility must match the installed AC 800M system version before configuration or replacement activities.
The module supports industrial network expansion through ABB communication units, including interfaces used for process control integration. Additionally, the controller architecture allows I/O density scaling for systems requiring expanded signal processing capacity.
Frequently Asked Questions
Q: Does the ABB PM867 support redundant controller configurations?A: Yes. The PM867 supports CPU redundancy configurations when installed with compatible redundant hardware components and approved AC 800M system configurations.
Q: How does the PM867 communicate with expansion modules?A: The PM867 communicates with external communication and expansion units through the CEX-Bus interface. The system supports multiple CEX-Bus connected units according to AC 800M configuration limits.
Q: What power supply method does the PM867 use?A: The PM867 receives system power through the compatible AC 800M baseplate assembly. The typical system supply voltage is 24 VDC.
Field Installation Guidelines
Install the PM867 on the specified ABB AC 800M baseplate and secure all mechanical locking components before energizing the controller system.
Maintain proper cabinet ventilation and ensure that the installation environment meets ABB AC 800M hardware requirements. Avoid installing the processor unit near high electromagnetic interference sources.
Connect communication cables according to ABB wiring specifications. Use correct shielding and grounding methods for Ethernet and field communication wiring to reduce electrical noise.
Before replacing an installed PM867 unit, verify firmware compatibility, controller configuration backup status, and redundancy synchronization conditions.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM876 3BDH000607R1 Symphony Plus Controller
Configured for dual-core processing and distributed control execution in ABB Symphony Plus systems, the ABB PM876 3BDH000607R1 (PM876 Symphony Plus Controller) provides direct hardware control and communication functions through Ethernet and fieldbus interfaces.
Hardware Specifications
Parameter
Specification
Model
PM876 3BDH000607R1
Brand
ABB
Product Type
Symphony Plus Controller
Origin
Sweden
Weight
2.86 kg
Dimensions
27.5 x 22 x 13.5 cm
Operating Temp
-40 deg C to +70 deg C
Humidity
5-95% RH, non-condensing
Vibration
10-150 Hz vibration resistance
Processor
Dual-core ARM Cortex processor
Memory
2 GB RAM
I/O Capacity
Supports up to 512 I/O points
Power Supply
24 VDC
Power Consumption
<= 15 W typical
Ethernet Interface
2 x 10/100/1000 Mbps Ethernet ports
Fieldbus Interface
PROFIBUS DP, Modbus TCP/RTU
ABB Industrial Control Communication and I/O Scaling
The PM876 controller integrates Ethernet communication resources and fieldbus interfaces for Symphony Plus automation architectures. In addition, the controller supports I/O capacity expansion up to 512 points, allowing distributed signal processing across connected I/O stations.
The processor architecture uses dual-core ARM technology with 2 GB RAM for application execution, communication handling, and control task management. Furthermore, ABB controller firmware supports industrial network operation through Ethernet-based communication and fieldbus protocols.
The PM876 follows ABB industrial control design principles, including backplane bus communication velocity management, deterministic network handling, and I/O density scaling for modular system configurations.
Frequently Asked Questions
Q: What power supply specification does the ABB PM876 require?A: The PM876 operates with a 24 VDC power supply and has a typical power consumption of <= 15 W.
Q: Which communication protocols are supported by the PM876 controller?A: The controller supports Ethernet communication, PROFIBUS DP, and Modbus TCP/RTU interfaces.
Q: How many I/O points can the PM876 manage?A: The PM876 supports configurations with up to 512 I/O points within the Symphony Plus control system.
Field Installation Guidelines
Install the PM876 in an approved ABB control cabinet with appropriate mechanical support and environmental protection. Verify that the 24 VDC power wiring uses correct polarity and complies with site electrical standards.
Connect Ethernet and fieldbus cables using industrial grounding practices. Keep communication wiring separated from high-current power cables to reduce electrical interference.
Before commissioning, check module seating, network addressing, firmware compatibility, and I/O configuration parameters. Confirm that all field connections match the approved system design documentation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM861AK02 Redundant Processor Unit
The ABB PM861AK02, also cataloged as the PM861A Redundant Processor Unit, operates as a dedicated hardware component for redundant CPU execution and controller synchronization within ABB System 800xA automation platforms. The kit contains dual processor units, baseplates, communication cables, terminators, and memory backup batteries for redundant control configurations.
Hardware Specifications
Parameter
Specification
Model
PM861AK02
Brand
ABB
Product Type
Central Unit / Redundant Processor Unit
Origin
Sweden
Weight
2.9 kg
Dimensions
135 mm depth x 186 mm height x 119 mm width
Processor Configuration
Redundant PM861A CPU configuration
Redundancy Function
Dual processor synchronization
Communication Components
TK850 CEX-bus expansion cable, TK851 RCU-Link cable
Baseplate Type
TP830 Baseplate, width 115 mm
Module Termination
TB807 Modulebus terminator
Memory Backup
Lithium battery backup, 1 battery per CPU
Battery Quantity
2
Battery Weight
9 g each
ABB Industrial Control Bus and Redundant CPU Architecture
The PM861AK02 integrates redundant processor communication through ABB controller infrastructure. Therefore, the unit uses dedicated RCU-Link and CEX-bus connections to maintain synchronization between processor units. The redundant architecture supports continuous controller operation by coordinating CPU states and memory conditions.
Furthermore, the processor kit uses ABB backplane bus communication mechanisms for distributed I/O interaction and controller data exchange. The dual PM861A processor arrangement enables I/O density scaling within compatible ABB System 800xA controller installations while maintaining synchronized execution states.
The included TP830 baseplates provide mechanical mounting and electrical connection interfaces for the processor units. Additionally, the TB807 Modulebus terminators complete the communication bus termination requirements.
Frequently Asked Questions
Q: Does the PM861AK02 include a single processor or a redundant processor pair?A: The PM861AK02 is supplied as a redundant processor unit kit containing two PM861A CPU units with supporting synchronization hardware.
Q: What cables are included with the PM861AK02 kit?A: The kit includes TK850 CEX-bus expansion cables and TK851 RCU-Link cables for redundant processor communication.
Q: Does the PM861AK02 contain internal battery backup components?A: Yes. The kit includes lithium memory backup batteries, with one battery installed for each PM861A processor unit.
Field Installation Guidelines
Install the PM861AK02 on the specified ABB controller mounting arrangement using the supplied TP830 baseplates.
Verify correct connection of TK850 CEX-bus expansion cables and TK851 RCU-Link cables before controller startup.
Install TB807 Modulebus terminators according to the ABB system configuration requirements.
Maintain proper grounding and cable separation between communication wiring and high-voltage power conductors.
Check battery installation status before commissioning to ensure memory backup functionality.
Confirm firmware compatibility between redundant processor units before system operation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM866K02 Processor Unit Kit
Configured for redundant processor execution in ABB System 800xA control platforms, the ABB PM866K02 (PM866K02 Processor Unit Kit) provides direct hardware coordination between redundant CPU modules, CEX-Bus expansion, and RCU-Link communication components.
Hardware Specifications
Parameter
Specification
Model
PM866K02
Spare Model
3BSE050199R1
Brand
ABB
Product Type
Processor Unit Kit
Origin
Sweden
Weight
2.88 kg
Dimensions
27.5 x 21 x 13.5 cm estimated shipping size
Processor Configuration
Redundant processor unit configuration
Included Components
2 pcs PM866K01, TK850 CEX-Bus Expansion Cable, TK851 RCU-Link Cable
Industrial Control Network Integration
The PM866K02 uses ABB controller architecture for redundant processing tasks within System 800xA environments. Therefore, the kit integrates dual PM866K01 processor units with dedicated communication accessories to support synchronized controller operation.
The processor arrangement supports backplane bus communication and controller redundancy functions. Additionally, the included TK850 CEX-Bus expansion cable provides processor-to-expansion connectivity, while the TK851 RCU-Link cable supports redundant controller communication paths.
ABB processor platforms apply deterministic control communication methods for I/O density scaling and firmware flash compatibility management. These functions allow engineering teams to maintain consistent controller configuration across redundant processing assemblies.
Frequently Asked Questions
Q: What components are included in the PM866K02 processor unit kit?A: The PM866K02 kit contains two PM866K01 processor units, one TK850 CEX-Bus expansion cable, and one TK851 RCU-Link cable. A software license is not included.
Q: Does the PM866K02 support redundant processor operation?A: Yes. The PM866K02 is configured as a redundant processor unit kit based on two PM866K01 processor modules.
Q: Is the PM866K02 RoHS 2 compliant?A: The provided technical information states that this part is not compliant with RoHS 2 2011/65/EU requirements.
Field Installation Guidelines
Install the PM866K02 assembly inside the approved ABB controller cabinet or equipment enclosure.
Verify correct mechanical mounting of processor modules before connecting CEX-Bus and RCU-Link cables.
Route communication cables separately from high-voltage power wiring to reduce electromagnetic interference.
Maintain proper cable shielding and grounding practices according to ABB installation requirements.
Confirm processor redundancy configuration through the engineering tool before placing the controller system into operation.
Inspect connectors and cable interfaces for contamination, mechanical damage, or improper seating before commissioning.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM891K02 Redundant Processor Unit
Configured for redundant CPU execution and Control Network communication in ABB AC 800M controller platforms, the ABB PM891K02 (PM891 Redundant Processor Unit) provides direct hardware control processing, memory management, and communication handling through integrated CPU, CEX-Bus, and Modulebus interfaces.
Hardware Specifications
Parameter
Specification
Model
PM891K02
Article Number
3BSE053242R1
Brand
ABB
Product Type
Redundant Processor Unit
Origin
Sweden
Weight
4000 g including base
Dimensions
Width 174 mm, Height 186 mm, Depth 94 mm
Operating Temp
Not specified
Power Consumption
15.8 W typical, 18 W maximum
Redundancy
Yes
High Integrity
No
Processor Type
MPC8270
Clock Frequency
450 MHz
Performance
0.043 ms per 1000 boolean operations
Memory
256 MB
RAM Available for Application
208.985 MB
Flash Memory for Storage
Yes
Firmware Storage
16 MB Flash PROM
Power Supply
24 V DC (19.2-30 V DC)
Power Supply Current
660 mA typical, 750 mA maximum at +24 V
Backup Battery
No internal battery
Ethernet Channels
2
Ethernet Interface
10/100 Mbit/s
Control Network Protocol
MMS and IAC
Serial Interface
COM4 RS-232C, opto isolated
CEX-Bus Communication Modules
Maximum 12
CEX-Bus Supply Current
Maximum 2.4 A
Modulebus Capacity
Maximum 84 S800 I/O modules
Modulebus I/O Clusters
7 optical clusters
Modulebus Scan Rate
0-100 ms depending on I/O configuration
CPU Switch Over Time
Maximum 10 ms in redundant configuration
ABB AC 800M Redundant Control Architecture
The PM891K02 integrates CPU redundancy functions across processor units, CEX-Bus communication paths, communication interfaces, and S800 I/O connections. The unit contains the CPU board, power supply section, and termination components in a single enclosure.
The processor includes a microprocessor, RAM memory, real-time clock, LED indicators, INIT push button, and Secure Digital interface. Furthermore, the design removes the requirement for an internal backup battery while maintaining controller identity through a unique Ethernet address.
The integrated CEX-Bus extends communication capability through external interface units. In addition, the BC810 CEX-Bus Interconnection Unit can divide communication segments to increase system availability. The PM891K02 supports redundant communication interfaces connected through the CEX-Bus structure.
The optical Modulebus interface connects S800 I/O clusters. Each controller supports up to seven optical clusters, with each cluster supporting up to 12 S800 I/O units. Therefore, the controller can manage a maximum of 84 connected I/O modules.
Firmware Flash Compatibility and Industrial Network Communication
The PM891K02 uses firmware storage through Flash PROM and supports Secure Digital service functions for controller maintenance operations. The processor communicates through the AC 800M Control Network using MMS and IAC protocols.
The dual Ethernet ports provide 10/100 Mbit/s network communication for controller-to-controller and system communication functions. Moreover, the controller supports deterministic industrial Ethernet architectures with switched Ethernet backbone configurations.
The processor supports firmware-based hardware identification through a unique Ethernet address. This function allows the controller unit to maintain individual identification within AC 800M automation systems.
Frequently Asked Questions
Q: Does the PM891K02 support CPU redundancy functions?A: Yes. The PM891K02 supports redundant CPU operation including CPU synchronization, CEX-Bus communication interfaces, and S800 I/O communication paths.
Q: Does the PM891K02 contain an internal backup battery?A: No. The PM891K02 does not include an internal battery. Time synchronization and controller operation are managed through the integrated hardware design.
Q: What communication interfaces are available on the PM891K02?A: The unit provides two RJ45 Ethernet ports for Control Network connection and one isolated RJ45 RS-232C COM4 service port for configuration tools.
Field Installation Guidelines
Install the PM891K02 on the designated AC 800M controller mounting arrangement with correct mechanical alignment and termination connection.
Connect the 24 V DC power supply according to ABB installation requirements. Verify supply polarity and confirm that redundant power monitoring signals are correctly wired before controller startup.
Use shielded communication cables for Ethernet and serial connections. Route communication wiring separately from high-current power cables to reduce electrical interference.
When installing redundant processor configurations, verify that all required CEX-Bus, RCU Data Link, and RCU Control Link connections are correctly installed.
The BC810K02 CEX-Bus Interconnection Unit is not included in the PM891K02 kit. A separate BC810K02 installation is required when hot replacement functionality is required.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM858K02 Redundant Processor Unit
The ABB PM858K02, also cataloged as the PM858K02 Redundant Processor Unit, executes controller processing, communication management, and application task handling within the ABB AC 800M Control System network. This processor module uses redundant CPU configuration with MPC866 architecture, 16 MB memory, and Ethernet based control communication.
Hardware Specifications
Parameter
Specification
Model
PM858K02
Brand
ABB
Origin
Sweden
Product Type
Redundant Processor Units
Article Number
3BSE082896R1
Processor Type
MPC866
Redundancy
Yes
High Integrity
No
Clock Frequency
33 MHz
Performance, 1000 Boolean Operations
0.36 ms
Memory
16 MB
RAM Available for Application
7.147 MB
Flash Memory for Storage
Yes
Firmware Storage
4 MB Flash PROM
Weight
2700 g (5.95 lbs) including base
Dimensions
119 mm W x 186 mm H x 135 mm D
Operating Temp
0 to +55 deg C
Storage Temp
-40 to +70 deg C
Power Supply
24 VDC (19.2-30 VDC)
Power Consumption
210 mA typical / 360 mA maximum at +24 VDC
Power Dissipation
5.1 W typical / 8.6 W maximum
Ethernet Channels
2
Ethernet Interface
IEEE 802.3 Ethernet, 10 Mbit/s, RJ-45 female
Control Network Protocol
MMS and IAC
RS-232C Interfaces
2 ports
CEX Bus Communication Modules
12
Modulebus I/O Capacity
Maximum 84 I/O modules with redundant CPU
Modulebus Scan Rate
0-100 ms depending on I/O configuration
Real-Time Clock Stability
100 ppm
Redundant Configuration Switchover Time
Maximum 10 ms
CE Mark
Yes
Protection Class
IP20 according to EN 60529
Industrial Control Network and Firmware Compatibility
The PM858K02 uses ABB AC 800M controller architecture with redundant processor operation. The processor manages application execution, task scheduling, and communication services through the Control Network interface.
Additionally, the module supports Ethernet communication based on IEEE 802.3 standards and uses MMS and IAC protocols for controller data exchange. The firmware storage uses 4 MB Flash PROM, while application memory provides 7.147 MB RAM capacity.
The redundant configuration supports processor synchronization and rapid switchover operation with a maximum transition time of 10 ms. Furthermore, the controller supports up to 32 applications, 64 programs per application, and 128 diagrams per application.
Frequently Asked Questions
Q: What is the redundancy function of the ABB PM858K02?A: The PM858K02 supports redundant processor configuration. During processor redundancy operation, the controller performs synchronization between CPUs and provides a maximum switchover time of 10 ms.
Q: What communication interfaces are available on the PM858K02?A: The processor provides two Ethernet channels with IEEE 802.3 Ethernet communication and two RS-232C interfaces. It also supports CEX bus communication modules and AC 800M Control Network protocols.
Q: What is the power requirement of the PM858K02 processor unit?A: The module requires a 24 VDC power supply within the range of 19.2-30 VDC. The typical current consumption is 210 mA, with a maximum value of 360 mA at +24 VDC.
Field Installation Guidelines
Install the PM858K02 on the designated AC 800M controller base assembly and verify correct mechanical engagement before applying power.
Maintain proper cabinet grounding and connect protective earth according to industrial control panel standards. Separate communication cables from high-voltage power wiring to reduce electromagnetic interference.
Use shielded communication cables where required by the installation environment. Connect cable shields according to the plant grounding design and avoid unnecessary shield loops.
Before commissioning, verify the 24 VDC supply polarity, redundant power input status, Ethernet network configuration, and controller firmware compatibility.
Ensure ventilation space around the controller assembly and confirm that environmental conditions remain within the specified operating limits.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM861A Processor Module
The ABB 3BSE018158R1 PM861A, also cataloged as the PM861A Processor Module, operates as a dedicated hardware component for control execution, communication management, and I/O processing within ABB AC 800M System 800xA platforms.
Hardware Specifications
Parameter
Specification
Model
PM861A
Brand
ABB
Origin
Sweden
Product Type
Processor Module
Spare Model
3BSE018158R1
Processor
MPC8245
RAM Memory
16 MB ECC protected
Flash Memory
8 MB
Execution Performance
Approx. 0.5 ms standard instruction execution
Ethernet Interface
2 x 10/100 Base-TX ports
Serial Interface
2 x RS-232C ports
Power Supply
24 VDC
Communication Bus
CEX Bus for communication module expansion
CPU Redundancy
Supported with redundancy link and matching processor module
Protection Class
IP20
Dimensions
Approx. 115 mm W x 185 mm H x 135 mm D
Weight
Approx. 0.5 kg
Operating Temp
+10 deg C to +55 deg C
Power Consumption
Not specified
ABB AC 800M Backplane and Network Integration
The PM861A operates as an AC 800M controller processor and exchanges data through the controller backplane and communication interfaces. Furthermore, the module supports CEX Bus expansion for additional communication units, including CI series interfaces. The processor manages application execution, I/O data exchange, and system communication functions through configured ABB Control Builder applications.
The module supports industrial control network functions through dual Ethernet ports. Therefore, it can handle MMS communication, engineering tool connections, and System 800xA control network traffic. The RS-232C interfaces provide configurable serial communication channels for supported external devices.
For ABB industrial control architectures, the PM861A uses firmware-controlled execution with flash memory storage. In addition, the ECC protected RAM structure provides memory error detection during processor operation.
Frequently Asked Questions
Q: Does the PM861A support CPU redundancy configuration?A: Yes. The PM861A supports processor redundancy when installed with a matching processor module and a dedicated redundancy communication link.
Q: Which communication expansion method does the PM861A use?A: The PM861A uses the CEX Bus interface for connection of compatible ABB communication modules.
Q: Can the PM861A communicate with serial field devices?A: Yes. The processor includes two RS-232C serial ports that can be configured for supported serial communication functions.
Field Installation Guidelines
Install the PM861A in an ABB AC 800M controller assembly with the correct mounting position and approved hardware configuration. Verify that the module is properly seated on the controller backplane before applying power.
Use shielded communication cables for external network connections where required by the installation environment. Connect cable shields according to the site grounding standard to reduce electrical interference.
Maintain proper separation between communication wiring and high-voltage power cables. Confirm that the 24 VDC supply wiring follows the polarity and grounding requirements defined for the AC 800M controller system.
Before commissioning, verify firmware compatibility, controller configuration, communication module installation, and I/O addressing through the ABB engineering environment.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM865K01 3BSE031151R1 Processor Unit
Configured for real-time control execution in the ABB System 800xA AC 800M controller platform, the ABB PM865K01 3BSE031151R1 (PM865K01 Processor Unit) provides direct physical and electrical processing functions for safety and control applications.
Hardware Specifications
Parameter
Specification
Model
PM865K01 3BSE031151R1
Brand
ABB
Product Type
High Integrity Processor Unit
System Platform
ABB AC 800M / System 800xA
Origin
Sweden
Weight
1 kg
Dimensions
19 x 13.8 x 13.5 cm (shipping size)
Operating Temp
0 deg C to +60 deg C
Storage Temp
-40 deg C to +70 deg C
Relative Humidity
5% to 95% non-condensing
Power Supply
24 VDC
Power Consumption
Not specified
CPU Clock Frequency
96 MHz
RAM Memory
32 MB
Flash PROM
2 MB firmware storage
Ethernet Interfaces
2 x RJ45 Control Network ports
Serial Interfaces
2 x RJ45 serial ports
COM3 Interface
RS-232C with modem control signals
COM4 Interface
Isolated serial communication port
Included Components
PM865 Safety CPU, TP830 baseplate, TB850 CEX-Bus terminator, TB807 ModuleBus terminator, TB852 RCU-Link terminator, memory backup battery
Industrial Control Network Communication and Firmware Compatibility
The PM865K01 uses ABB AC 800M controller architecture with CEX-Bus and ModuleBus communication paths. It supports firmware storage through integrated Flash PROM memory and executes controller applications using onboard RAM resources.
Furthermore, the processor unit provides two Ethernet interfaces for Control Network communication. The hardware design supports deterministic controller communication and I/O expansion through ABB S800 I/O systems. The architecture enables I/O density scaling through connected field modules while maintaining controller-level data exchange.
The PM865K01 also supports firmware flash compatibility within the AC 800M controller family. Therefore, configuration tools and engineering environments can manage application execution, controller parameters, and hardware diagnostics through supported ABB System 800xA interfaces.
Frequently Asked Questions
Q: Does the PM865K01 support controller redundancy configurations?A: The PM865K01 supports AC 800M controller redundancy functions when configured with compatible hardware components and system settings. Redundancy behavior depends on the complete controller architecture.
Q: What communication interfaces are available on the PM865K01?A: The processor unit provides two RJ45 Ethernet ports for Control Network communication and two serial interfaces, including RS-232C and isolated serial communication.
Q: What memory resources are integrated into the PM865K01?A: The PM865K01 includes 32 MB RAM for application execution and 2 MB Flash PROM for firmware storage.
Field Installation Guidelines
Install the PM865K01 processor unit on the specified AC 800M controller baseplate and verify correct mechanical locking before system power application.
Connect Ethernet communication cables according to ABB Control Network installation requirements. Maintain proper cable separation between communication wiring and high-voltage power conductors to reduce electrical interference.
For serial communication connections, verify signal grounding and shielding practices according to the connected equipment requirements. Ensure the ModuleBus, CEX-Bus, and termination components are installed according to the controller configuration.
Before commissioning, confirm firmware compatibility, controller configuration parameters, I/O addressing, and diagnostic status through the engineering workstation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM858K01 Processor Unit
The ABB 3BSE082895R1 (PM858K01), also cataloged as the PM858K01 Processor Unit, operates as a dedicated hardware component for control execution and communication management within ABB AC 800M controller platforms. It provides MPC866-based processing, memory handling, Modulebus management, and Ethernet control network communication.
Hardware Specifications
Parameter
Specification
Model
PM858K01
Article Number
3BSE082895R1
Brand
ABB
Product Type
Processor Unit
System Platform
ABB AC 800M
Origin
Sweden
Processor Type
MPC866
Clock Frequency
33 MHz
Memory
16 MB
RAM Available for Application
7.147 MB
Flash Memory for Storage
Yes
Firmware Storage
4 MB Flash PROM
Weight
1200 g (including base)
Dimensions
119 mm W x 186 mm H x 135 mm D
Operating Temp
0 to +55 deg C
Storage Temp
-40 to +70 deg C
Power Supply
24 VDC (19.2-30 VDC)
Power Consumption
210 mA typical / 360 mA maximum at +24 VDC
Power Dissipation
5.1 W typical / 8.6 W maximum
Redundancy
No
High Integrity
No
Performance
0.36 ms per 1000 boolean operations
Applications per Controller
32
Programs per Application
64
Diagrams per Application
128
Tasks per Controller
32
Cycle Times
32 selectable cycle times
Minimum Application Cycle Time
Down to 1 ms
Ethernet Channels
2
Ethernet Interface
IEEE 802.3 Ethernet, 10 Mbit/s, RJ-45 female
Control Network Protocol
MMS and IAC
Recommended Network Backbone
100 Mbit/s switched Ethernet
RS-232C Interfaces
2
Modulebus Capacity
Maximum 96 I/O modules with single PM866 configuration
CEX Bus Communication Modules
Maximum 12
CEX Bus Supply Current
Maximum 2.4 A
Clock Synchronization
1 ms between AC 800M controllers by CNCP protocol
Event Queue Capacity
Up to 3000 events per OPC client
Protection Class
IP20 according to EN 60529
ABB AC 800M Industrial Control Communication
The PM858K01 uses ABB controller communication architecture to manage application execution, I/O data exchange, and engineering interfaces. The processor supports Ethernet-based control communication through two RJ-45 interfaces and provides MMS and IAC protocols for controller-level data exchange.
Furthermore, the unit supports Modulebus expansion with electrical and optical I/O clusters. The Modulebus scan interval operates from 0 to 100 ms depending on the connected I/O module quantity. This structure allows I/O density scaling within AC 800M automation configurations.
The firmware storage uses integrated Flash PROM technology, while application data remains stored in controller memory. Additionally, the built-in lithium backup battery maintains clock functions during power interruptions.
Backplane Bus Communication and Firmware Flash Compatibility
The ABB PM858K01 manages internal controller communication through the AC 800M hardware architecture. Its CEX bus interface supports communication modules, while Modulebus connections provide access to distributed I/O components.
The controller maintains firmware compatibility through onboard Flash PROM storage. Therefore, engineering tools can manage application execution parameters, controller configurations, and firmware-related functions within the supported AC 800M environment.
The processor provides deterministic execution performance with a 0.36 ms processing time for 1000 boolean operations. Consequently, applications can execute cyclic control tasks with configurable timing intervals down to 1 ms.
Frequently Asked Questions
Q: Does the PM858K01 support redundant controller operation?A: No. The PM858K01 is specified as a non-redundant processor unit. Redundant controller configurations require compatible redundant processor models.
Q: What communication interfaces are integrated into the PM858K01?A: The unit includes two Ethernet channels and two RS-232C interfaces. One RS-232C port supports general communication, while the other supports service tool connection.
Q: How many I/O modules can the PM858K01 handle through Modulebus?A: A single PM858K01 controller configuration supports up to 96 I/O modules through Modulebus, depending on the installed I/O architecture.
Field Installation Guidelines
Install the PM858K01 on the designated AC 800M controller mounting base according to ABB hardware installation procedures.
Ensure that the 24 VDC power supply remains within the specified operating range before energizing the controller. Verify correct polarity and protective grounding connections during wiring.
Route Ethernet and RS-232C communication cables separately from high-voltage power conductors to reduce electromagnetic interference. Use appropriate shield termination methods for communication cables according to site electrical standards.
Before commissioning, confirm firmware compatibility, controller configuration parameters, Modulebus connections, and I/O addressing through the approved ABB engineering tools.
