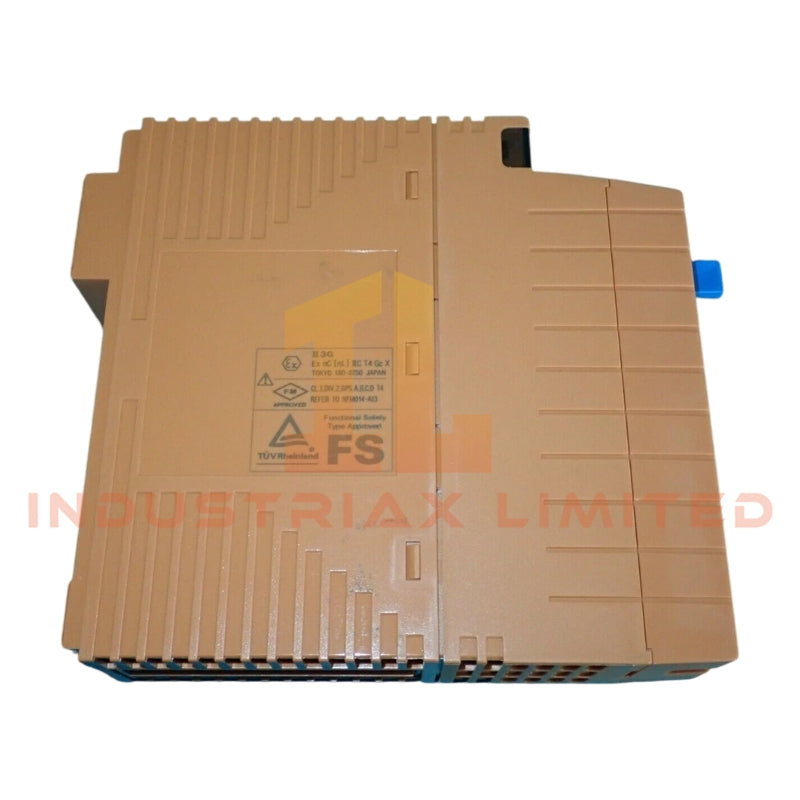

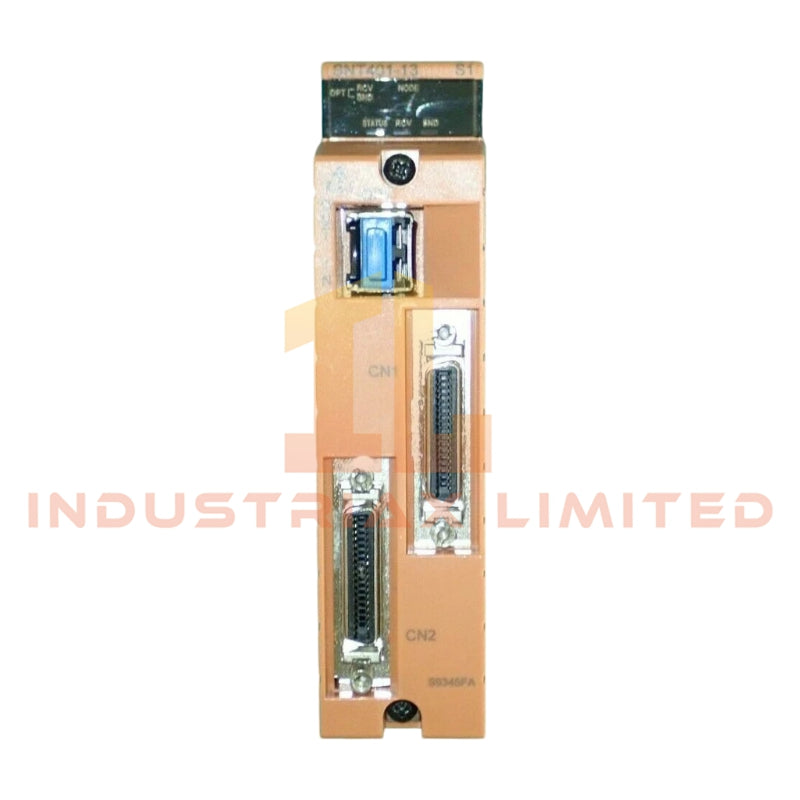

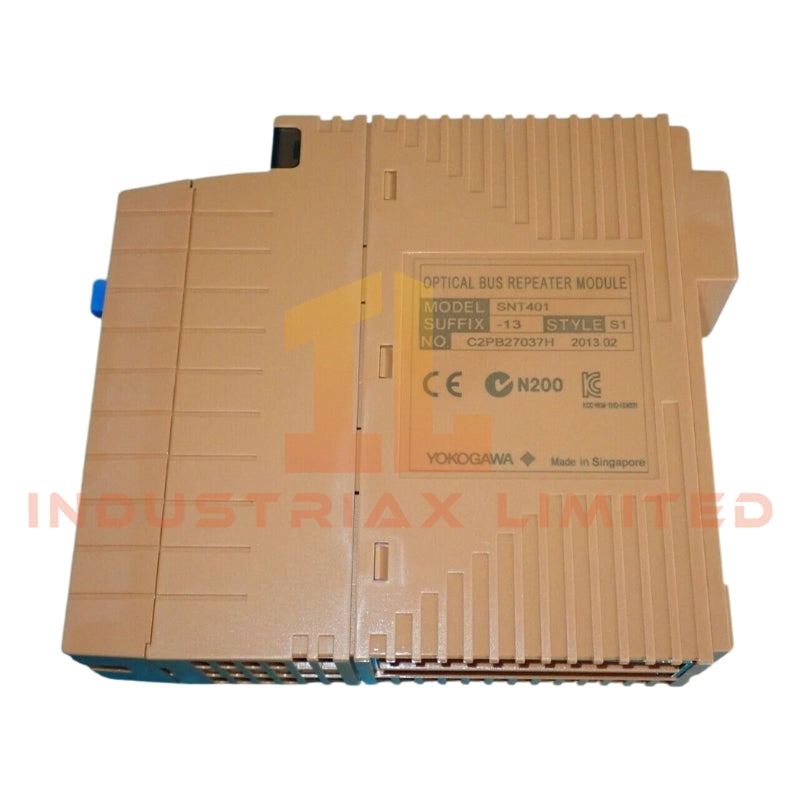

Yokogawa SNT401-13 Optical ESB Bus Repeater Master Module

Configured for electrical-to-optical ESB bus signal conversion in ProSafe-RS and CENTUM VP/CS 3000 system architectures, the Yokogawa SNT401-13 (SNT401-13 Optical ESB Bus Repeater Master Module) provides direct physical/electrical execution for ESB backbone extension across fiber-optic transmission segments.

Suffix Breakdown & Model Matrix

• SNT401-13
  • -1: Standard type, no explosion protection
  • -3: ISA G3 environmental resistance class, extended temperature rating

Hardware Specifications

Parameter	Specification
Model	SNT401-13
Brand	Yokogawa
Origin	Japan
Weight	Approx. 0.30 kg
Dimensions	Not specified
OperatingTemp	-20 degC to 70 degC
PowerConsumption	Max 0.5 A (system nest supplied)
Function	ESB electrical-to-optical signal conversion
Network Type	ESB Bus (Optical extension)
Topology	Star / Chain
Max Cascading	2 stages
Medium	Fiber optic cable
System Compatibility	ProSafe-RS, CENTUM VP, CENTUM CS 3000

Channel-to-Channel Isolation & DCS Signal Integrity Characteristics

The SNT401-13 integrates into Yokogawa distributed control and safety architectures where ESB bus segmentation requires optical isolation between control nests. In DCS signal chain design, channel-to-channel isolation is structurally enforced through optical conversion, reducing conductive noise coupling across backplane-connected ESB segments. Within mixed 4-20 mA HART and fieldbus hybrid environments, the module maintains deterministic bus timing by decoupling electrical ground reference continuity between master and remote ESB domains. This architecture aligns with Yokogawa system-level design practices for long-distance node segmentation using fiber-based deterministic backplane extension.

Frequently Asked Questions

Q: Does the SNT401-13 support hot-swap replacement during system operation?
A: Yes. The module supports online replacement when installed within compatible Yokogawa ESB nests, provided system redundancy and node synchronization conditions are met.

Q: What is the maximum supported cascading depth?
A: The module supports up to 2 optical conversion stages in a cascaded ESB extension architecture.

Q: Is external power required for the optical conversion stage?
A: No. Power is supplied through the system nest backplane, with a maximum consumption of 0.5 A.

Field Installation Guidelines

• Install module only in designated ESB system nests compatible with SEC401/SEC402 couplers.
• Ensure fiber optic cables are installed with minimum bend radius compliance to avoid attenuation increase.
• Maintain separation between optical fiber routing and high-noise power conductors to prevent EMI coupling.
• Verify correct master-to-slave pairing (SNT401-13 to SNT501-13) before system energization.
• Ensure grounding of cabinet structure follows standard industrial control panel grounding practices to maintain signal reference stability.
