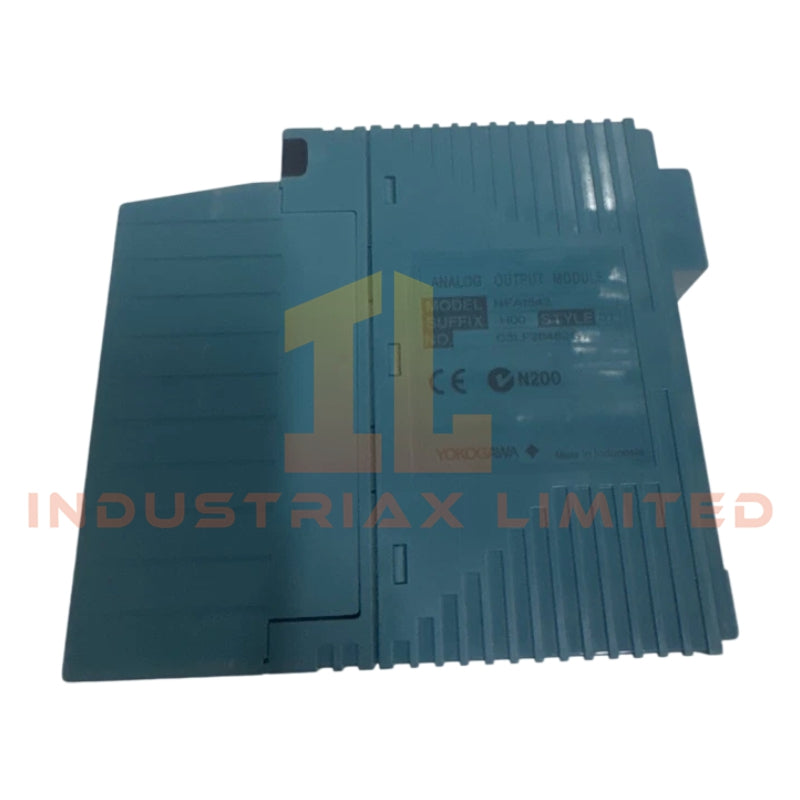

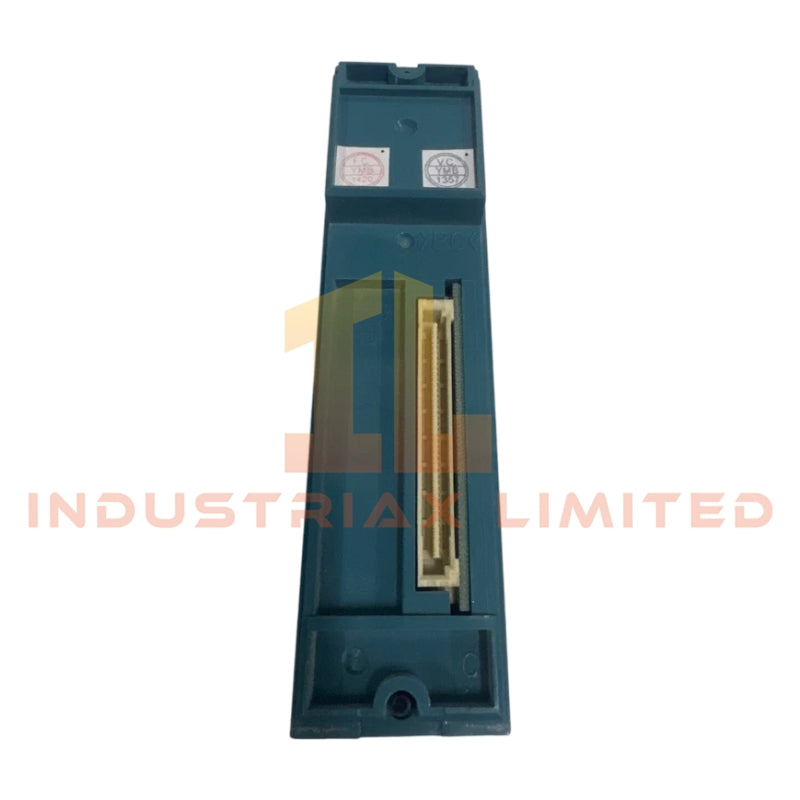

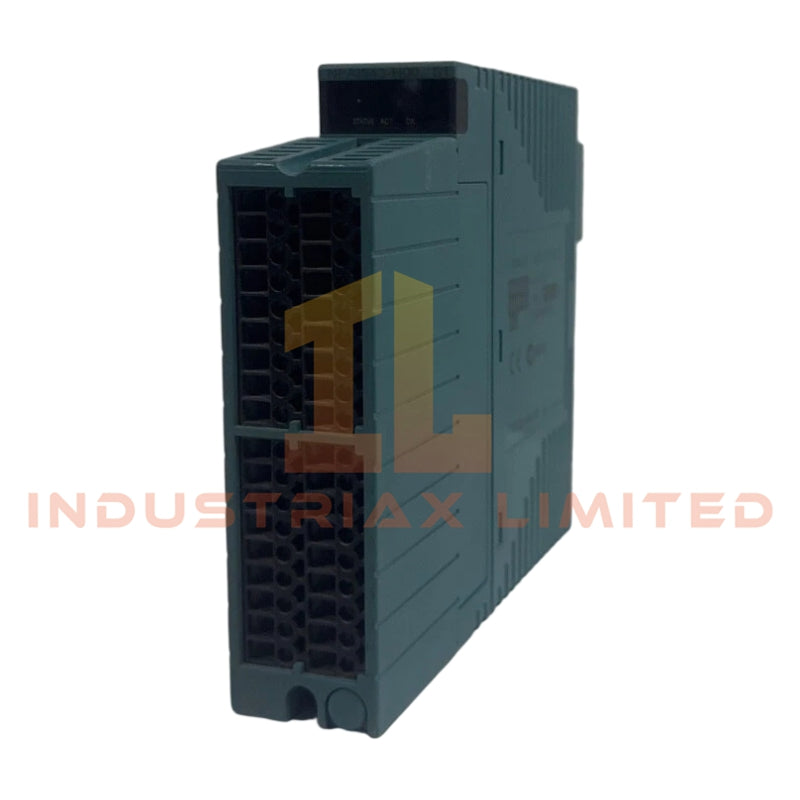

Yokogawa NFAI543-H00 Isolated Current Output Module

The Yokogawa NFAI543-H00, also cataloged as the NFAI543-H00 Analog Input/Output Module, operates as a dedicated hardware component for 4-20 mA analog signal transmission within CENTUM VP and CENTUM CS 3000 DCS platforms.

Hardware Specifications

Parameter	Specification
Model Brand	Yokogawa
Origin	Japan
Weight	0.4 kg
Dimensions	Standard 19-inch rack module (approx. 160 mm x 40 mm x 120 mm)
Operating Temp	0 to 55 degC
Power Consumption	24 VDC, 540 mA
Number of Output Channels	16 isolated
Output Signal	4-20 mA DC
Allowable Load Resistance	0 to 750 Ohm
Circuit-Open Detection	≤ 0.65 mA
Accuracy	±0.3% of full scale
Data Refresh Cycle	10 ms
Output Step Response Time	100 ms
Output Fallback	Configurable per channel
Temperature Drift	Max ±0.01%/degC
Maximum Current	230 mA (5 VDC)
External Connection	Pressure clamp terminal, MIL connector cable
HART Communication	Supported
Withstanding Voltage	1500 V AC between output and system for 1 minute

DCS Signal Integrity Features

The NFAI543-H00 implements channel-to-channel isolation to prevent signal interference across analog loops. The module supports 4-20 mA HART loop communication, enabling simultaneous digital diagnostics alongside analog control signals. Cold junction compensation (CJC) circuits ensure accurate temperature-sensitive measurements when interfacing with transmitters or sensors.

Frequently Asked Questions

Q: VnA: Can the module be hot-swapped without system downtime?
A: Yes, the NFAI543-H00 supports online removal and insertion provided the I/O node permits isolation, ensuring other channels remain operational.

Q: VnA: What is the maximum permissible load for each output channel?
A: Each 4-20 mA output supports a load resistance of 0 to 750 Ohm without affecting accuracy or response time.

Q: VnA: How is fault detection handled?
A: Circuit-open detection triggers at ≤ 0.65 mA, allowing the control system to recognize open loops and execute the configured fallback signal.

Field Installation Guidelines

• Ensure proper grounding of the I/O node rack to prevent noise coupling.
• Connect all 4-20 mA outputs using shielded twisted-pair cables to maintain signal integrity.
• Avoid routing high-power AC lines parallel to analog signal wiring to reduce EMI.
• Verify module seating and MIL connector torque before energizing the system.
• Follow local industrial standards for DIN rail mounting or rack fixation.
