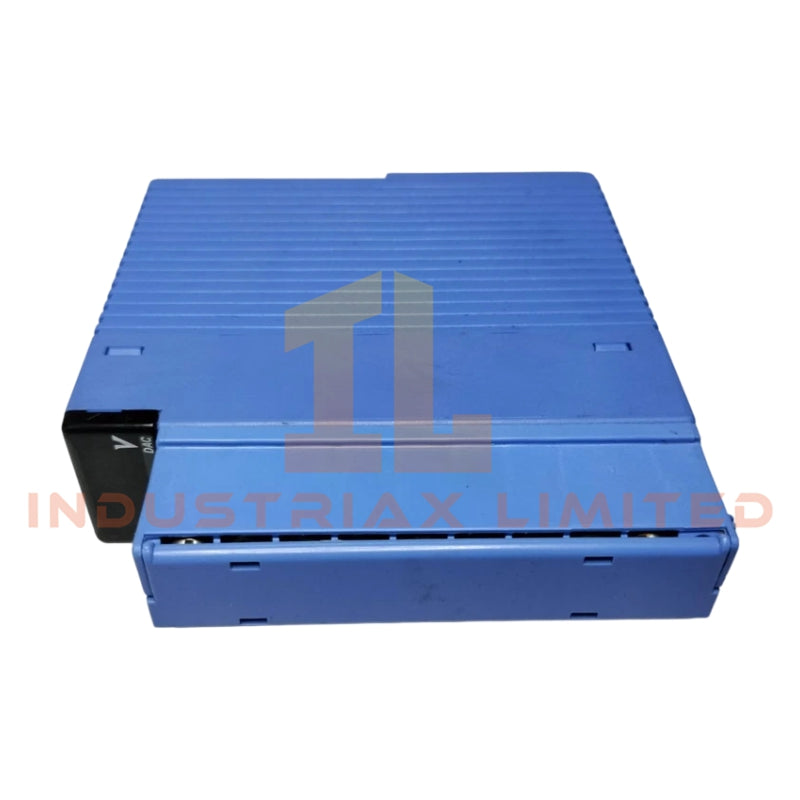

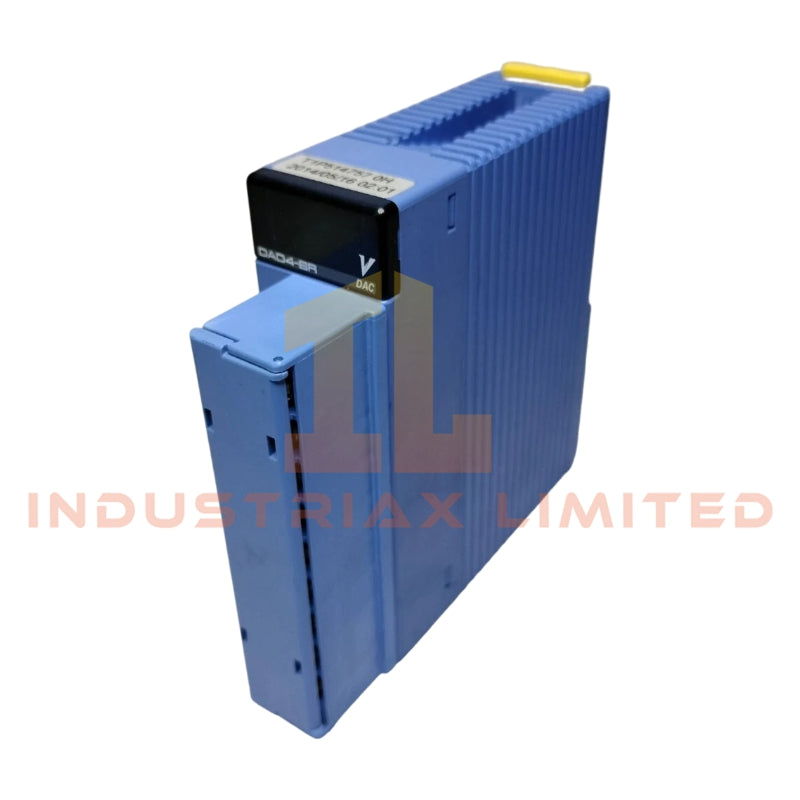

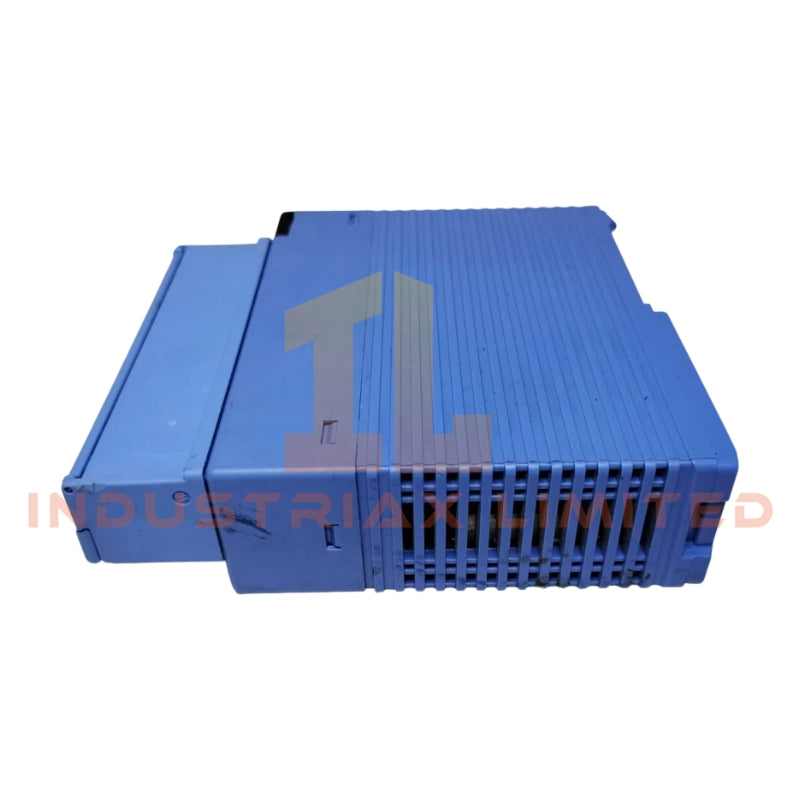

Yokogawa F3DA04-6R Analog Output Module

Configured for digital-to-analog signal conversion in FA-M3 controller output processing, the Yokogawa F3DA04-6R (F3DA04) Analog Output Module provides direct electrical execution of 4-channel isolated analog signal generation for voltage and current loop interfaces within FA-M3 backplane systems.

Suffix Breakdown&Model Matrix

No documented mechanical or functional suffix segmentation beyond full model designation F3DA04-6R is provided in the source specification. The “-6R” identifier is treated as an ordering variant without disclosed functional partitioning.

Hardware Specifications

Parameter	Specification
ModelBrand	Yokogawa F3DA04-6R
Weight	Approx. 190 g
PowerConsumption	5 VDC: 360 mA (internal), 24 VDC: approx. 120 mA (external supply)
Number of Channels	4 isolated analog output channels
Output Types	Voltage: -10 to +10 VDC, 0 to 10 VDC, 1 to 5 VDC; Current: 4 to 20 mA DC
Resolution	16-bit signed data
Conversion Speed	100 us per channel
Isolation	Channel-to-channel isolation via photocoupler
Withstand Voltage	500 VAC for 1 min
Terminal Interface	18-point detachable terminal block (M3 screw)

DCS Output Channel Isolation Architecture

The Yokogawa F3DA04-6R implements channel-to-channel and channel-to-backplane isolation using photocoupler-based separation stages. Within FA-M3 system architecture, analog output generation is decoupled from CPU logic domain, preventing ground potential propagation across field wiring loops. This design aligns with process control loop segmentation requirements for mixed voltage/current output configurations, including 4-20 mA loop-driven actuator interfaces.

Frequently Asked Questions

Q: Can output channels be configured independently for voltage and current modes?
A: Yes. Each channel supports software-defined selection between voltage and current output ranges without hardware jumper configuration.

Q: What is the behavior during CPU stop condition?
A: The module supports output hold or preset fallback behavior depending on system configuration, maintaining last valid or predefined analog values.

Q: Is hot-swap operation supported on the terminal block?
A: Terminal block is mechanically detachable; however, field wiring removal under energized conditions is not specified as supported.

Field Installation Guidelines

Shielded twisted-pair cabling shall be used for all analog output wiring to reduce electromagnetic coupling into 4-20 mA and voltage loops. Shield termination shall be referenced to frame ground (FG) at a single point to prevent ground loop formation. External 24 VDC supply must be applied to designated power terminals prior to analog loop activation. Terminal torque for M3 screws shall follow standard industrial control cabinet practices to ensure stable contact impedance. Channel wiring separation is required when routing mixed current and voltage outputs to minimize cross-coupling.
