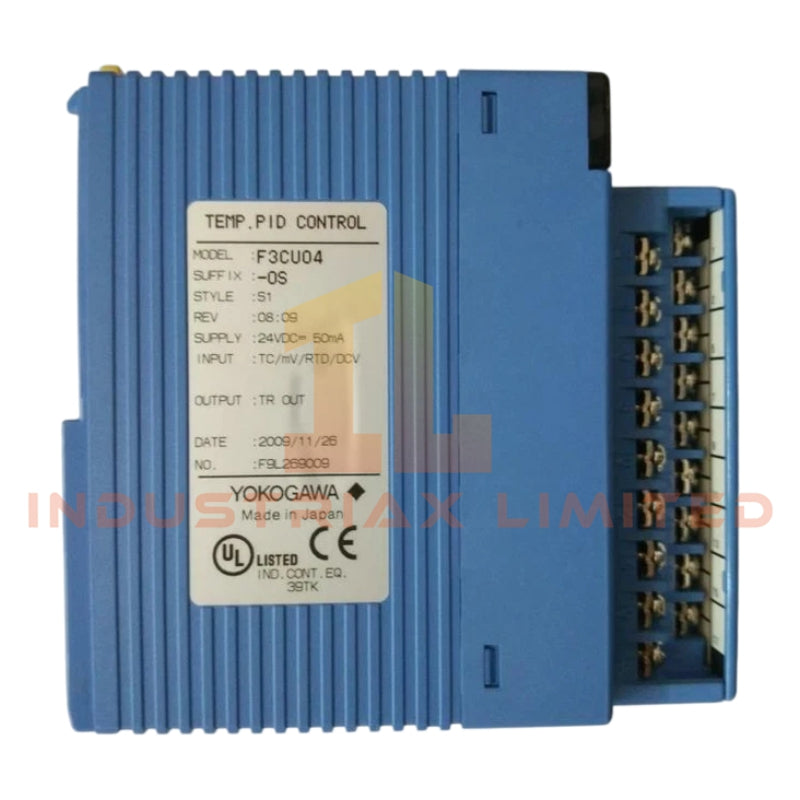

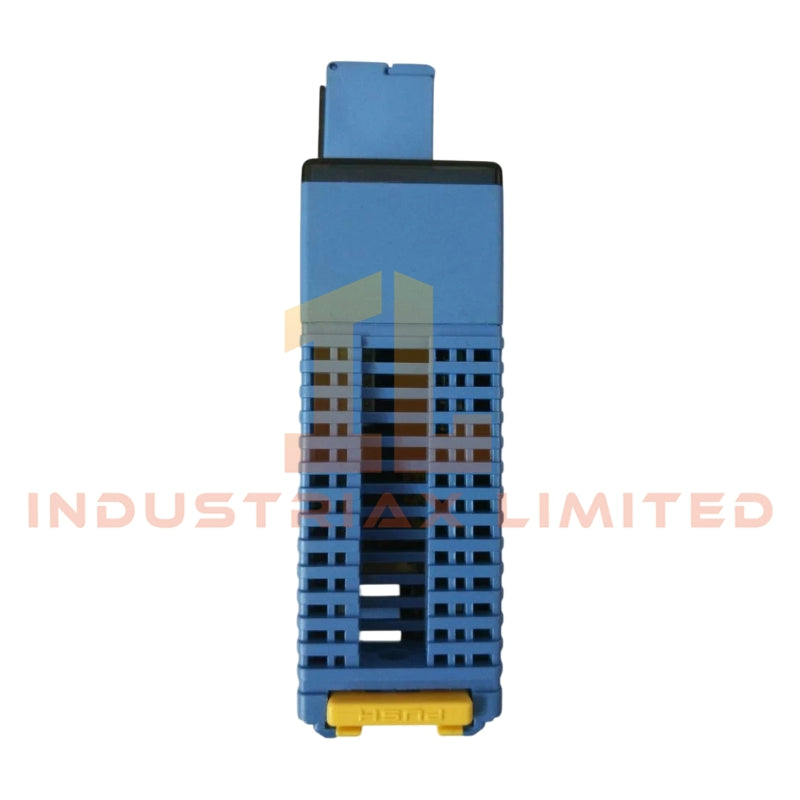

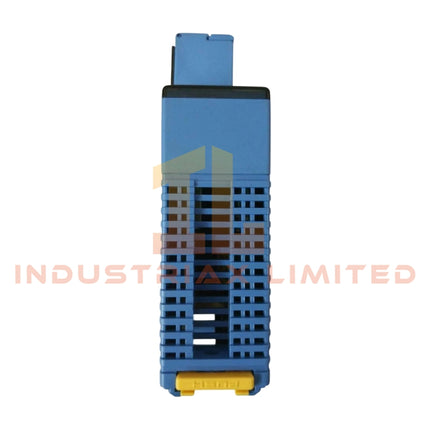

Yokogawa F3CU04-0S Temperature Control And PID Module

The Yokogawa F3CU04-0S, also cataloged as the F3CU04 Temperature Control And PID Module, operates as a dedicated hardware component for multi-loop temperature regulation within FA-M3 controller platforms. It manages up to four independent loops with configurable universal input channels and time-proportional PID output, executing real-time control for heating and cooling circuits.

Hardware Specifications

Parameter	Specification
ModelBrand	Yokogawa F3CU04-0S
Origin	Japan
Weight	160 g
Dimensions	28.9 mm (W) × 100 mm (H) × 104.2 mm (D)
OperatingTemp	0 degC to 55 degC
StorageTemp	-20 degC to 75 degC
PowerConsumption	460 mA at 5 V DC
NumberOfLoops	4
InputType	Universal (Thermocouple: 15 ranges, RTD: 9 ranges, DC mV/V: 6 ranges)
SamplingPeriod	200 ms for 4 loops
ConversionAccuracy	±0.1% of full scale
Resolution	0.1 degC
OutputType	Time-proportional PID output (Open collector)
Isolation	Channel-to-channel isolation via photocouplers and transformers
BurnoutDetection	Selectable: Upscale, Downscale, or None

Process Control Features

The module provides channel-to-channel isolation to prevent interference across loops and supports cold junction compensation (CJc) for thermocouple measurements. Its firmware allows dynamic PID auto-tuning, recalculating control parameters in response to changing setpoints or system conditions. Alarms 1 and 2 can utilize input relays, and all four loops allow independent configuration for heating or cooling sequences. The device maintains stability against ambient temperature changes up to 10 degC per hour.

Frequently Asked Questions

Q: VnA: Can the F3CU04-0S be hot-swapped into an operating FA-M3 rack?
A: No. The module requires the main controller to be powered down before insertion to prevent backplane damage and ensure safe initialization.

Q: VnA: What is the expected warm-up period for stable operation?
A: The module requires a minimum of 30 minutes after power-on before full control accuracy is guaranteed.

Q: VnA: Are firmware upgrades supported via the backplane?
A: Firmware can be updated only when the module is installed in a compatible FA-M3 controller with the controller powered and in maintenance mode.

Field Installation Guidelines

• Mount vertically; horizontal or inverted installation is prohibited.
• Connect all sensors and output wiring to the 40-pin spring terminal block using M3.5 screws.
• Avoid placing near sources of heavy dust, corrosive gases, or rapid temperature fluctuations exceeding 10 degC per hour.
• Ensure proper grounding of shielded sensor lines to reduce EMI effects.
• Maintain separation of signal and power wiring where possible.
• Allow at least 30 minutes for module warm-up after initial power application before initiating loop control.
