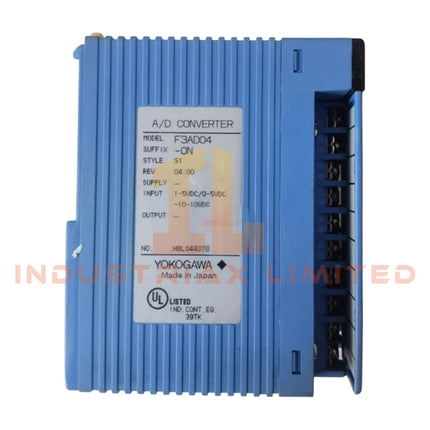

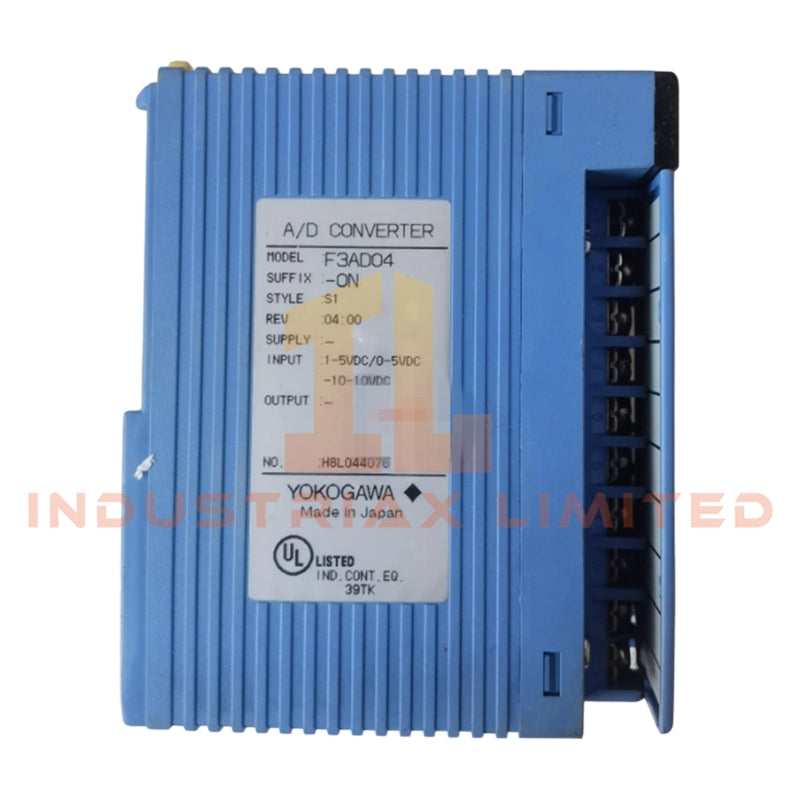

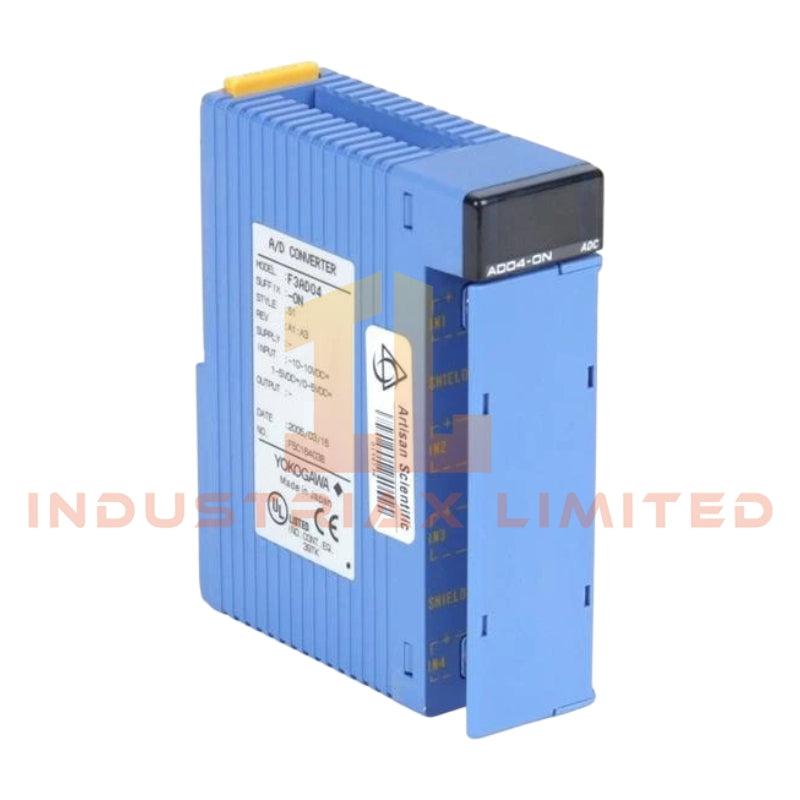

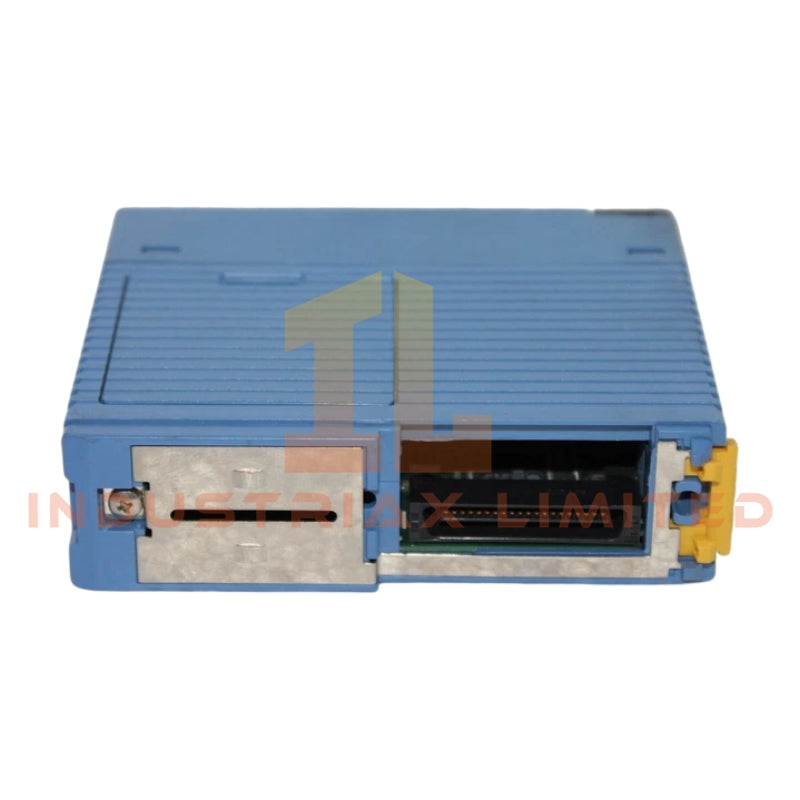

Yokogawa F3AD04-0N FA-M3 Analog Input Module
Configured for analog voltage acquisition in FA-M3 controller architectures, the Yokogawa F3AD04-0N (F3AD04-0N Analog Input Module) provides direct electrical conversion of field voltage signals into 12-bit digital data for backplane processing.
The module implements 4-channel multiplexed A/D conversion with per-channel range selection and optocoupler-based isolation between field input terminals and internal logic circuitry. Signal conditioning functions include scaling and digital filtering for raw-to-engineering unit transformation within the PLC environment.
Hardware Specifications
Parameter
Specification
ModelBrand
Yokogawa F3AD04-0N
Origin
Not specified
Weight
Approx. 170 g
Dimensions
28.9 mm x 100 mm x 83.2 mm
OperatingTemp
0 degC to 55 degC
PowerConsumption
5 VDC, 210 mA
Channels
4 analog voltage inputs
Resolution
12-bit
Input Types
0 to 5 VDC, 1 to 5 VDC, -10 to 10 VDC
Input Resistance
1 MOhm
Conversion Speed
1 ms per channel
Isolation
Photocoupler, 500 VDC withstand (1 min)
Channel Isolation and Signal Conditioning Architecture (Yokogawa Process Interface Behavior)
The Yokogawa FA-M3 analog input structure implements optical isolation between field terminals and internal processing logic to suppress electrical coupling from external instrumentation wiring. Channel grouping shares a common negative reference, while signal conversion is executed through sequential multiplex scanning.
Scaling logic allows mapping of raw 12-bit counts into engineering units within a configurable range of -20000 to 20000. Digital filtering can be enabled per channel to attenuate high-frequency noise prior to CPU-level data acquisition.
Frequently Asked Questions (FAQ)
Q: Can the module perform hot-swap replacement under energized backplane conditions? A: The module is designed for FA-M3 base unit integration; replacement under power requires adherence to system-level backplane insertion rules and input circuit de-energization to avoid transient bus disturbance.
Q: Are all channels independently isolated from each other? A: Input channels share a common negative terminal; isolation is implemented only between input group and internal circuitry via photocoupler, not channel-to-channel isolation.
Q: Does the module support firmware-based configuration updates? A: Configuration is handled via PLC system parameters; no field firmware upgrade mechanism is implemented at module level.
Field Installation Guidelines
Field wiring shall be terminated on the detachable 10-point M3.5 terminal block with controlled torque tightening. Shielded cables are recommended for voltage signal integrity, with shield grounding executed at a single system reference point to avoid loop currents.
Input voltage must remain within specified selectable ranges; exceeding ±18 VDC absolute maximum may result in input stage damage. Backplane insertion must follow FA-M3 rack sequencing rules to avoid logic initialization faults during module recognition.
