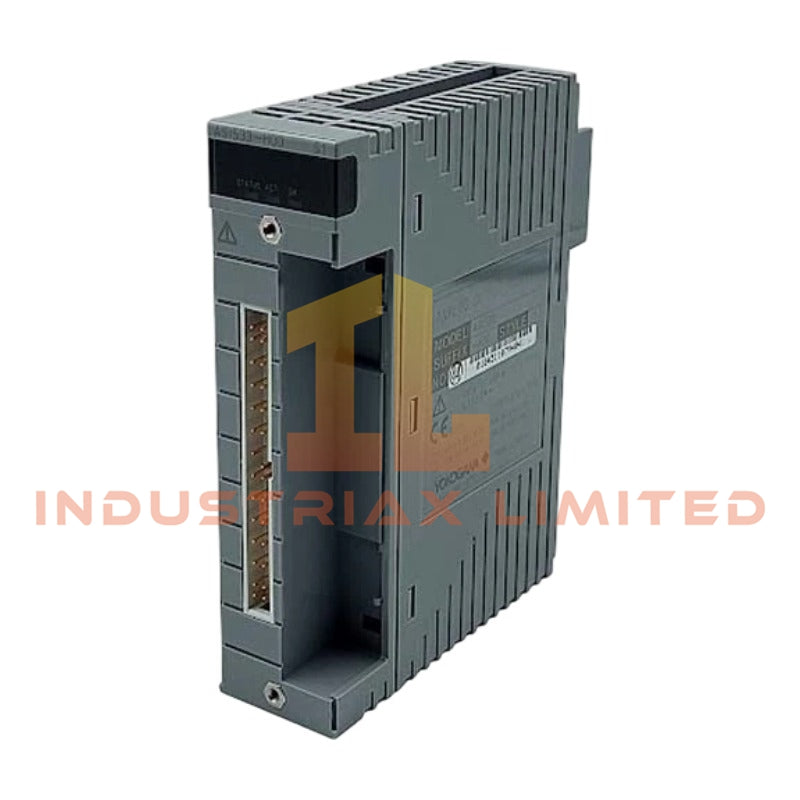

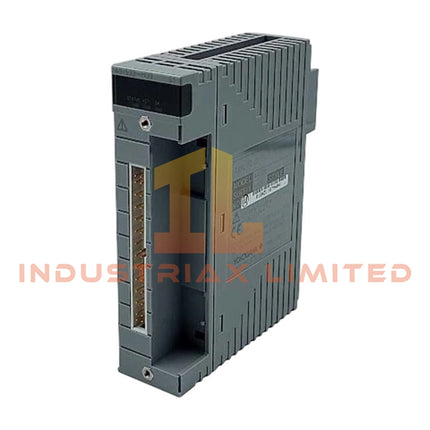

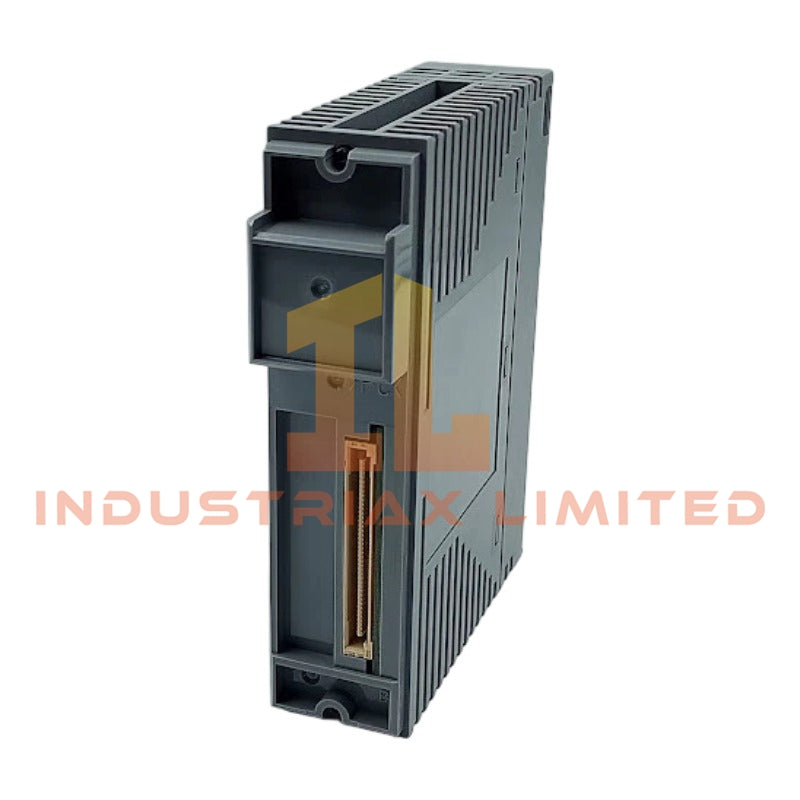

Yokogawa ASI533 Analog Input Module

The Yokogawa ASI533, also cataloged as the ASI533 Analog Input Module, operates as a dedicated hardware component for processing 4-20 mA analog signals within CENTUM DCS platforms. It provides precise digitization and channel isolation for field transmitters, flowmeters, and pressure sensors.

Hardware Specifications

Parameter	Specification
Model/Brand	ASI533 / Yokogawa
Origin	Japan
Number of Channels	16 channels (isolated)
Input Signal Range	4-20 mA DC
Input Impedance	Approx. 250 Ohm
A/D Conversion Resolution	16-bit
Accuracy	±0.1% of full scale at normal operating temperature
Temperature Coefficient	±0.005% of full scale per degC
Data Refresh Cycle	10 ms (all channels)
Isolation Voltage	500 V AC between input channels and internal circuitry; 500 V AC between individual input channels
HART Communication	Supported (HART 7 compliant, pass-through)
Transmitter Power Supply	24 V DC ±10% (short-circuit protected per channel)
Current Consumption	Max. 450 mA (at 5 V DC internal system power)
External Connection	Dedicated pressure-clamp terminal block or KS cable interface
Operating Temperature	0 to 60 degC
Storage Temperature	-20 to 85 degC
Relative Humidity	10% to 90% RH (non-condensing)
Weight	Approx. 0.35 kg
Mounting	Baseplate mounting (slots into standard I/O nest)

DCS Interface Features

• Channel-to-Channel Isolation: Each input channel is galvanically isolated, preventing ground loop interference and ensuring signal integrity across multi-channel measurements.
• Cold Junction Compensation (CJC): Internal compensation reduces temperature-induced drift for precision ADC performance.
• 4-20 mA HART Loop Protocol: Enables bidirectional communication over existing analog signal lines, supporting device diagnostics and configuration without interrupting loop operation.
• FOUNDATION Fieldbus / Profibus PA Connectivity Compatibility: Signals can be seamlessly integrated with standard process automation networks.

Frequently Asked Questions

Q: VnA: Can the ASI533 be replaced without shutting down the DCS node?
A: Yes, the module supports hot-swap replacement, maintaining power and communication to other modules in the node.

Q: VnA: What is the recommended practice for wiring the 4-20 mA inputs to minimize noise?
A: Use twisted pair shielded cables and connect shields to the designated system ground at one end only.

Q: VnA: How does the module handle HART communication while measuring analog current?
A: HART signals are superimposed on the 4-20 mA loop and passed through without affecting ADC accuracy.

Field Installation Guidelines

1. Ensure the module slots fully into the designated I/O nest and locks mechanically to prevent vibration-induced disconnection.
2. Route analog signal cables separately from high-power or switching lines to reduce electromagnetic interference.
3. Connect shielded cable grounds at a single point to prevent ground loops; avoid multiple grounding points.
4. Confirm the 24 V DC transmitter power supply is within ±10% and short-circuit protection is active per channel.
5. Maintain operating ambient temperature within 0 to 60 degC and avoid corrosive atmospheres.
6. When performing hot-swap replacement, observe ESD precautions and verify node communication after insertion.
