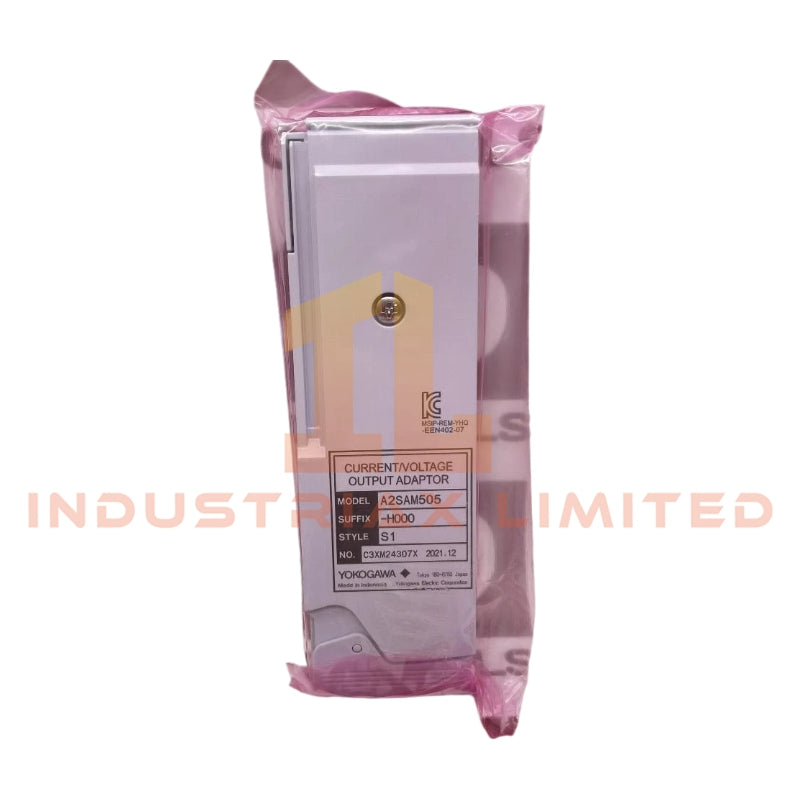

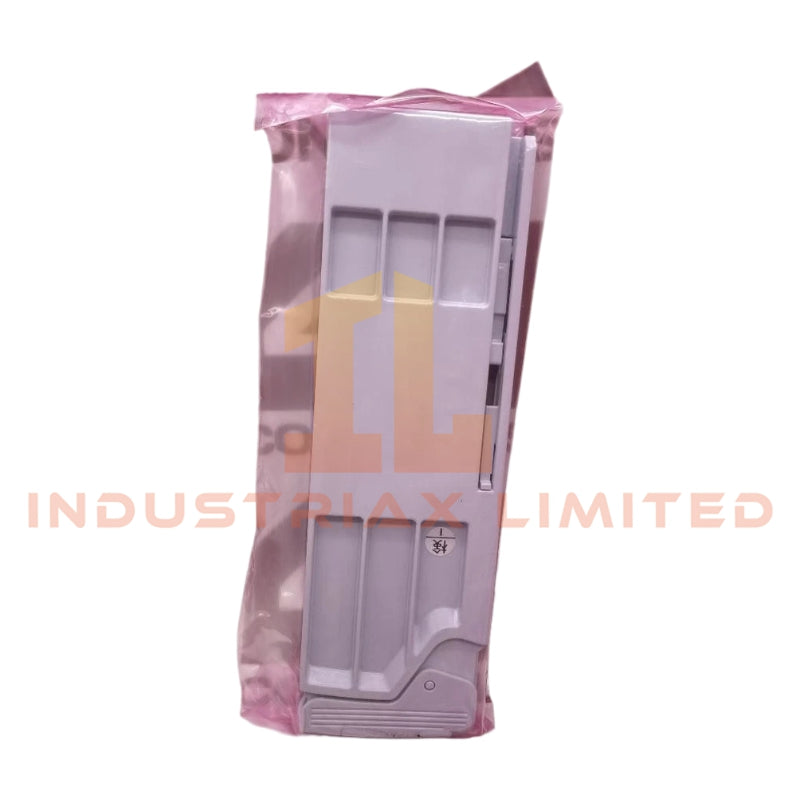

Yokogawa A2SAM505-H000 S1 Current/Voltage Output Adaptor

Configured for analog current and voltage signal generation in the CENTUM VP N-IO network, the Yokogawa A2SAM505-H000 S1 (A2SAM505 Current/Voltage Output Adaptor) provides direct physical and electrical execution of isolated analog output functions. The adaptor interfaces with N-IO modules and converts internal control commands into configurable 0-10 VDC or 4-20 mA output signals while maintaining galvanic isolation between field circuits and the control system.

Suffix Breakdown & Model Matrix

Code Element	Description
A2SAM505	Current/Voltage Output Adaptor
-H	Standard type, no explosion protection
000	Basic specification code
S1	Hardware style revision 1

Hardware Specifications

Parameter	Specification
Model	A2SAM505-H000 S1
Brand	Yokogawa
Product Type	Current/Voltage Output Adaptor
System Compatibility	CENTUM VP N-IO System
Output Signal (Voltage)	0-10 VDC
Output Signal (Current)	4-20 mA
Maximum Voltage Output Range	-0.3 to 10.3 VDC
Maximum Current Output Range	1-23 mA
Load Resistance (Voltage)	>= 10 kOhm
Load Resistance (Current)	0-750 Ohm at 20 mA; 0-600 Ohm at 23 mA
Output Resistance	<= 1 Ohm
Current Limitation	<= 23 mA
Voltage Output Current Limit	<= 15 mA
Open Loop Detection	<= 0.65 mA trigger threshold
Data Update Period	2 ms adaptor; up to 10 ms through N-IO module
Isolation (Output to System)	1500 VAC for 1 minute; 42 VDC continuous
Isolation (Adjacent Adaptors)	500 VAC for 1 minute; 42 VDC continuous
Power Consumption (24 VDC Supply)	38 mA maximum
Power Consumption (5 VDC Internal Supply)	10 mA maximum
Dimensions	Approx. 13.0 x 1.5 x 4.0 cm
Weight	Typical 0.072 kg; <= 0.10 kg
Operating Temp	-40 degC to +70 degC
Mounting Method	A2BN3D Adaptor Base Plate

Channel Isolation and HART Output Integration

The A2SAM505 supports isolated analog output operation with channel-level galvanic separation between field-side wiring and the N-IO control domain. For current output operation, the adaptor supports HART 7 communication superimposed on the 4-20 mA loop, allowing simultaneous analog signal transmission and digital device communication. Open-loop monitoring is available during current output operation and activates when loop current falls to 0.65 mA or below.

Frequently Asked Questions

Q: Does the A2SAM505 require hardware jumpers to change between voltage and current output modes?
A: No. Output mode selection between 0-10 VDC and 4-20 mA is performed through system software configuration.

Q: Can the adaptor be replaced while the N-IO system remains energized?
A: The module is designed for hot-swappable operation when installed on the designated A2BN3D adaptor base plate and used according to Yokogawa maintenance procedures.

Q: What output load limitations apply to current mode operation?
A: The adaptor supports loads up to 750 Ohm at 20 mA output and up to 600 Ohm at 23 mA output while maintaining specified operating limits.

Field Installation Guidelines

• Mount the adaptor only on a compatible A2BN3D adaptor base plate.
• Verify field wiring polarity before energizing output circuits.
• Separate analog output cabling from high-energy power conductors to reduce conducted interference.
• Connect cable shields according to plant grounding standards and DCS cabinet grounding practices.
• Confirm field device loop resistance remains within the specified operating range before commissioning.
• Perform output verification using calibrated measurement equipment after installation or replacement.
• When HART communication is required, ensure loop components and field devices support HART-compatible operation.
