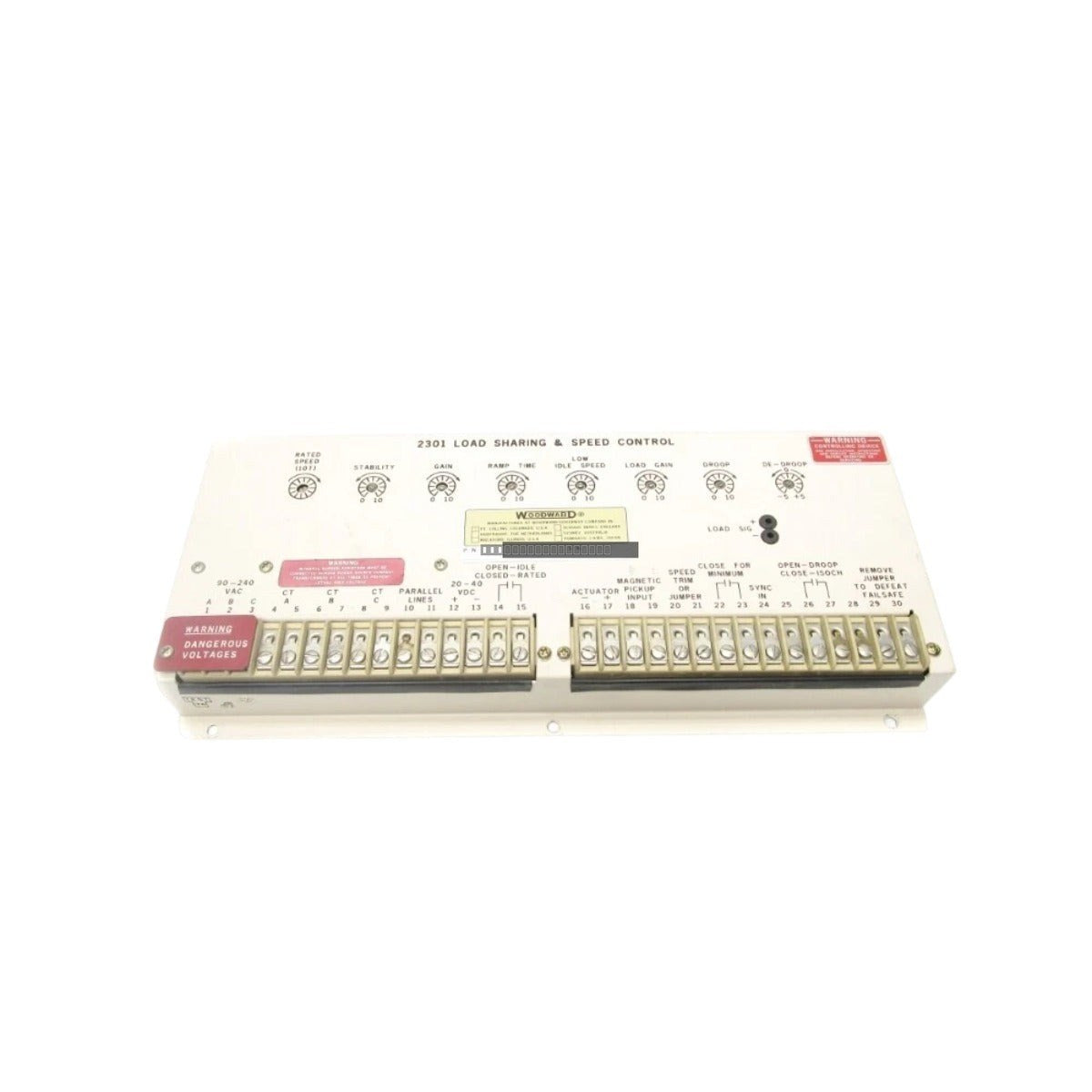

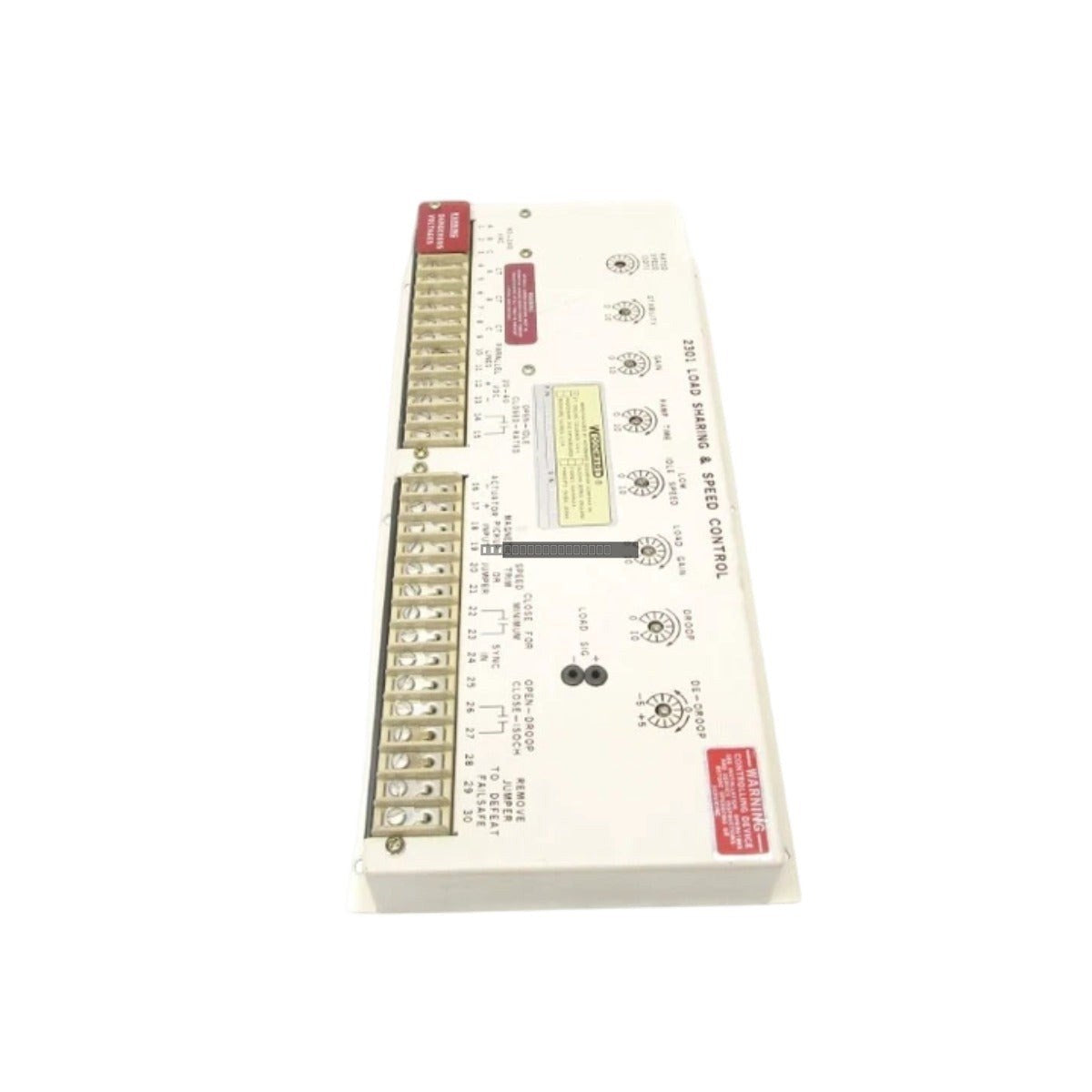

The Woodward 8271-467 is a specialized electronic control unit engineered to provide precise load sharing and speed regulation for industrial power generation systems. Designed for reliability in demanding environments, this module integrates advanced control logic to manage engine speed and ensure stable load distribution across parallel systems.
Features
- Integrated load sharing and speed control functionality.
- Wide operating temperature range suitable for harsh industrial environments.
- Robust power management with a nominal 24 V DC operating voltage.
- High humidity tolerance for deployment in varied climate conditions.
Technical Specifications
| Manufacturer |
Woodward |
| Model |
8271-467 |
| Operating Voltage |
24 V DC |
| Power Supply Range |
18-32 V DC |
| Power Consumption |
10-25 W |
| Operating Temperature |
-40 degC to +70 degC |
| Storage Temperature |
-55 degC to +85 degC |
| Humidity |
0-95% RH (non-condensing) |
Installation Guidelines
- Ensure the control module is mounted in a location free from excessive vibration and direct exposure to moisture.
- Verify that the supply voltage is within the 18-32 V DC range before powering on the unit.
- Use shielded cabling for all I/O connections to minimize electromagnetic interference (EMI).
- Maintain adequate clearance around the module to allow for proper heat dissipation.
- All wiring should be performed by qualified personnel while the system is de-energized.
FAQ
What is the primary function of the 8271-467?
This unit serves as a load sharing and speed control module, ensuring that generators running in parallel maintain synchronized speeds and balanced load distribution.
What is the operating temperature range for this unit?
The module is rated for operation between -40 degC and +70 degC.
Does this module require a specific power supply?
Yes, it is designed for a 24 V DC nominal input, with a functional range of 18-32 V DC.
