Description

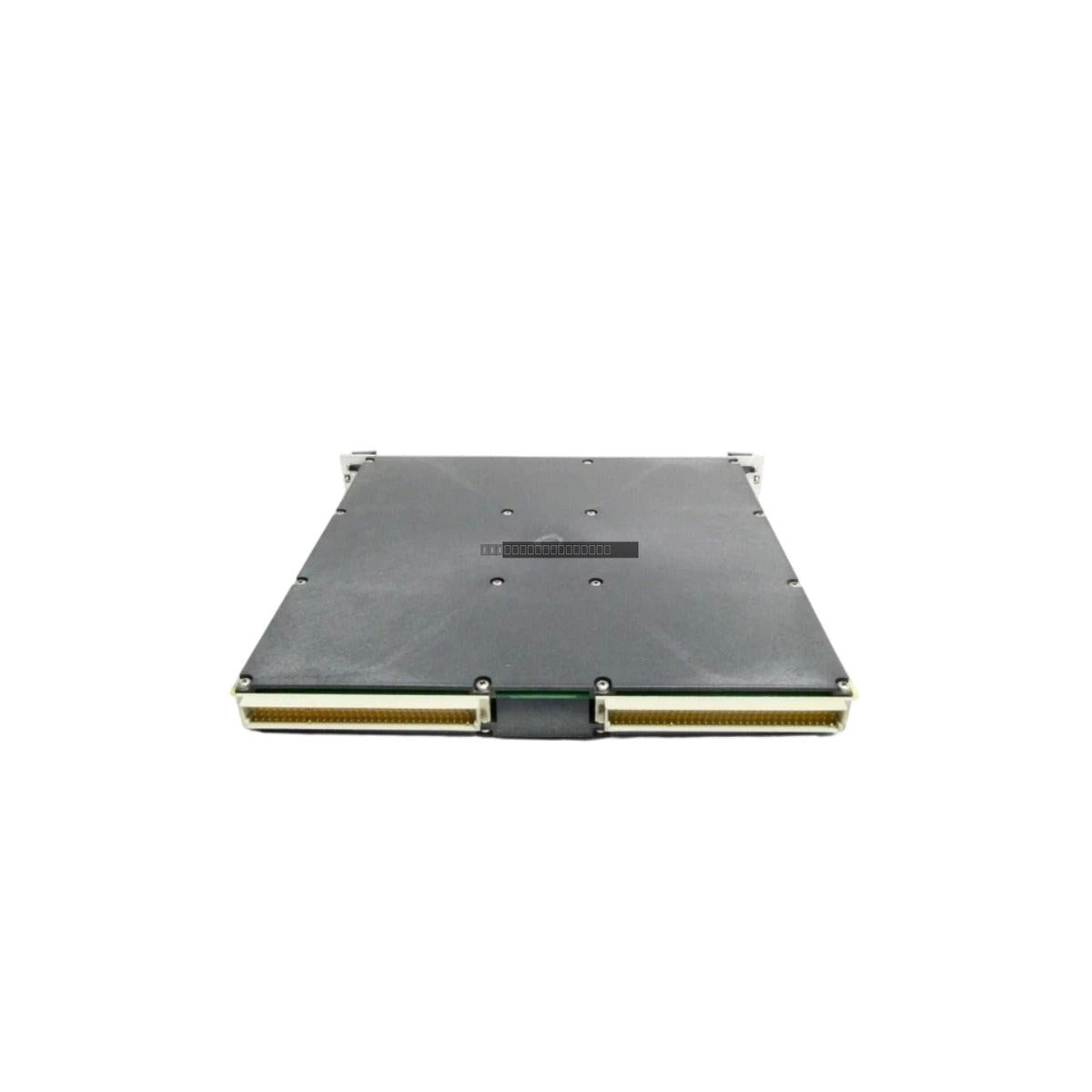

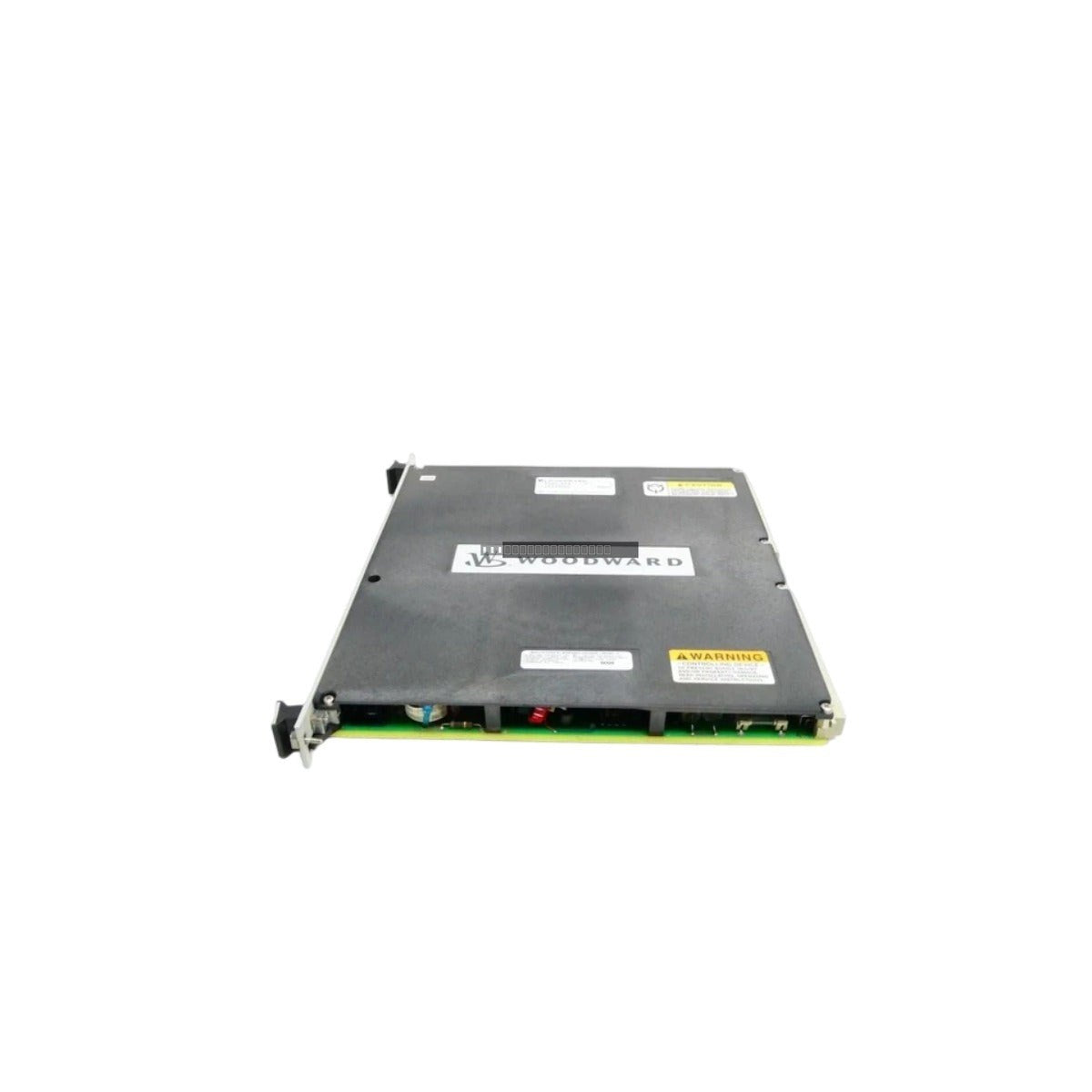

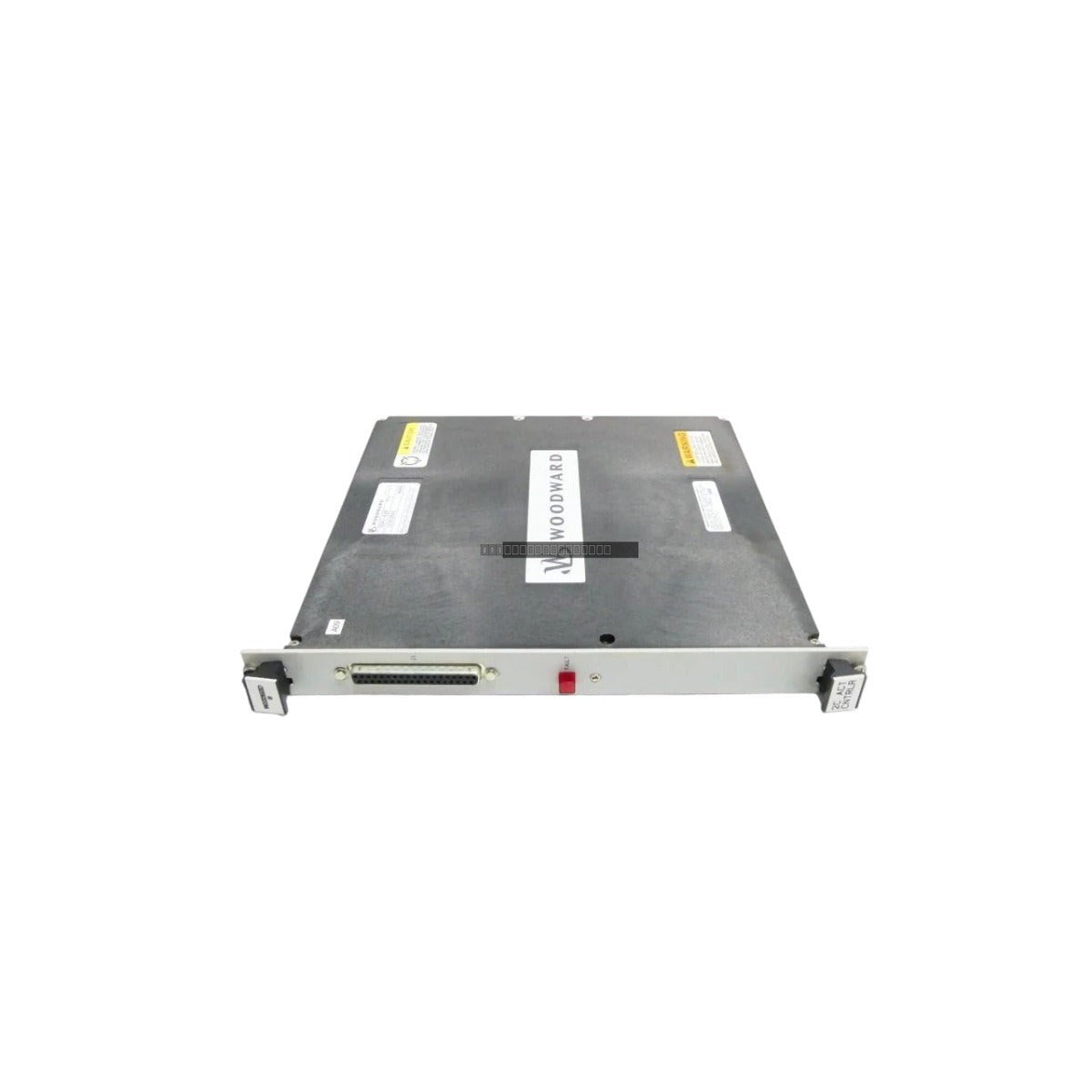

The Woodward 5501-429 is a dual-channel actuator controller designed for the NetCon control system platform. This module is engineered to provide precise, independent control for two proportional or integrating actuators. It is widely utilized in demanding industrial sectors, including power generation and process control, to manage critical pneumatic and hydromechanical systems. The unit features a 'No Calibration' architecture, streamlining installation and maintenance by removing the requirement for manual software tuning when paired with compatible NetCon and MultiNet actuators.
Features
- Dual-channel configuration for independent management of two actuators.
- Advanced fault detection integrated into excitation, feedback, and driver circuitry.
- Supports LVDT and RVDT position feedback devices.
- Built-in hardware-level diagnostics with a dedicated red LED fault indicator.
- Designed for high-reliability operation in mission-critical applications.
Applications
This module is typically integrated into Woodward NetCon control systems to manage valve positioning, fuel metering, and other high-torque actuator requirements in heavy industrial environments such as refineries, mining facilities, and power plants.
Technical Specifications
| Brand |
Woodward |
| Model |
5501-429 |
| Series |
NetCon |
| Module Type |
2-Channel Actuator Controller |
| Driver Version |
25 mA |
| Current Readback Tolerance |
5% of full scale |
| Max Load Resistance |
10/30 mA max |
| Feedback Compatibility |
LVDT, RVDT |
| Power Input |
+5 VDC @ 0.5 A / +24 VDC @ 1 A |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the control system is powered down before inserting or removing the module from the rack.
- Use proper ESD protection when handling the module to prevent damage to sensitive internal components.
- Verify that the feedback device wiring (LVDT/RVDT) is properly shielded and routed away from high-voltage AC lines to prevent signal interference.
- Confirm that the power supply rails (+5V and +24V) are within specified tolerances before energizing the system.
- Ensure adequate ventilation in the cabinet to maintain the operating temperature between 0 and 60 deg C.
FAQ
Does this module require software calibration?
No, the 5501-429 features a 'No Calibration' design, allowing for immediate operation with compatible NetCon and MultiNet actuators without manual software adjustments.
What types of feedback sensors are compatible?
The module supports both Linear Variable Differential Transformers (LVDT) and Rotary Variable Differential Transformers (RVDT) for position feedback.
What does the red LED indicator signify?
The red LED is a hardware-level fault indicator that illuminates if a driver or feedback circuit error is detected, facilitating rapid troubleshooting.
