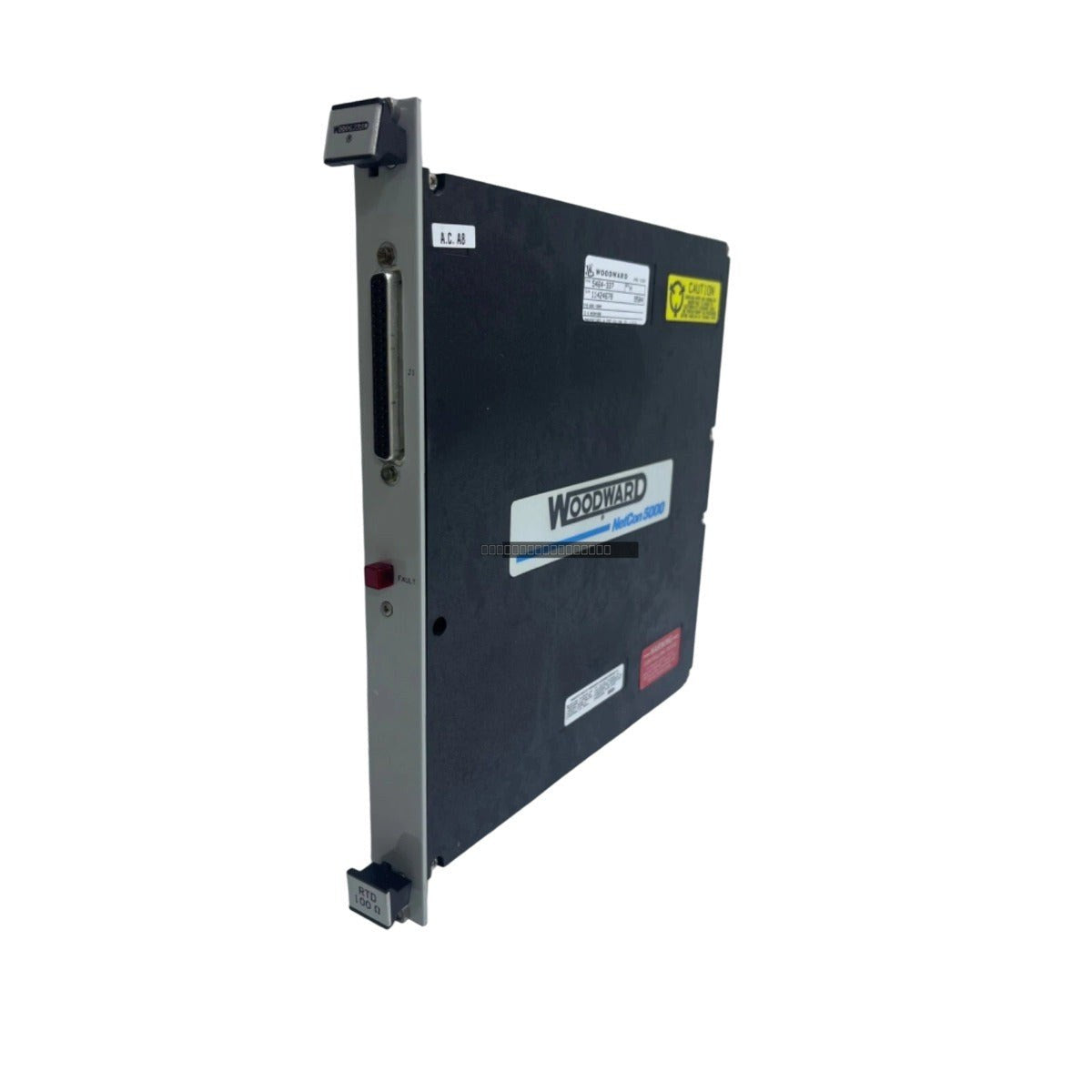

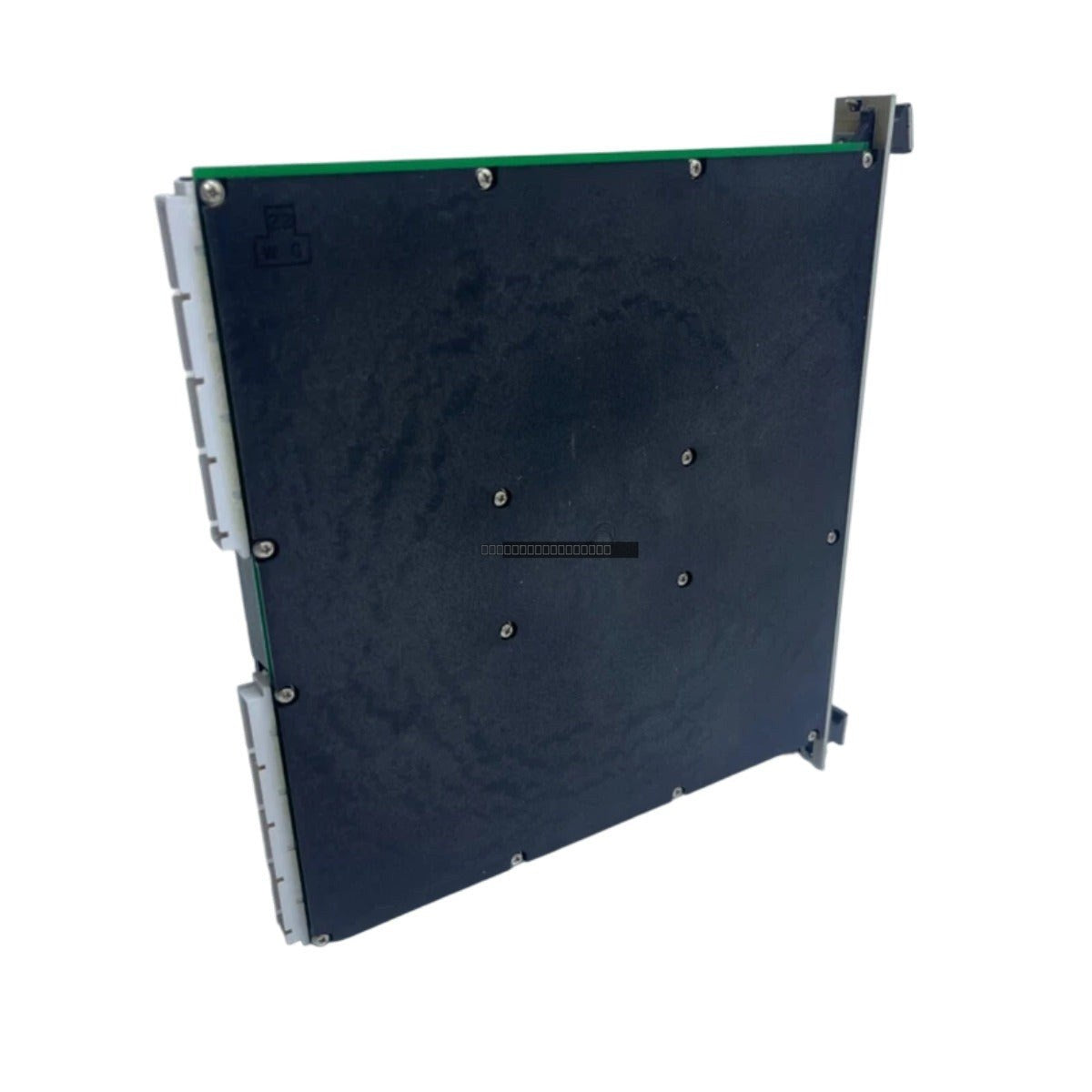

The Woodward 5464-544 is a high-precision, four-channel actuator control module designed to provide reliable output regulation in industrial control applications. This module is engineered to deliver a controlled output current range of 0 to 200 mA, ensuring stable performance for connected actuator hardware.

Features

• Four independent output channels for multi-actuator management.
• Precision control with an accuracy of ±0.1% FSR at 25 degC.
• Integrated 500 V dc channel-to-bus isolation for enhanced signal integrity and protection.
• Low power consumption profile, operating at 60 mA at 24 V dc.
• Robust operational temperature range suitable for standard industrial environments.

Technical Specifications

Model	5464-544
Manufacturer	Woodward
Supply Voltage	24 V dc
Module Consumption	60 mA @ 24 V
Output Current Range	0.0–200.0 mA
Accuracy	±0.1 % FSR @ 25 degC
Isolation	500 V dc channel-to-bus
Operating Temperature	0 to +60 degC
Storage Temperature	-40 to +85 degC
Humidity	5–95 % RH (non-condensing)

Installation Guidelines

• Ensure the control system is powered down before installing or removing the module to prevent electrical damage.
• Mount the module in a clean, dry, and well-ventilated enclosure to maintain operating temperature limits.
• Use shielded cabling for all output connections to minimize electromagnetic interference (EMI) in industrial settings.
• Verify that the 24 V dc power supply is stable and properly grounded to the system common.
• Handle the unit with standard ESD (electrostatic discharge) precautions during installation.

FAQ

What is the primary function of the Woodward 5464-544?
This module acts as a dedicated actuator controller, providing precise current output (0-200 mA) across four channels to drive industrial actuators.

Does this module require external power?
Yes, the module is designed for a 24 V dc supply, consuming approximately 60 mA during normal operation.
