Description

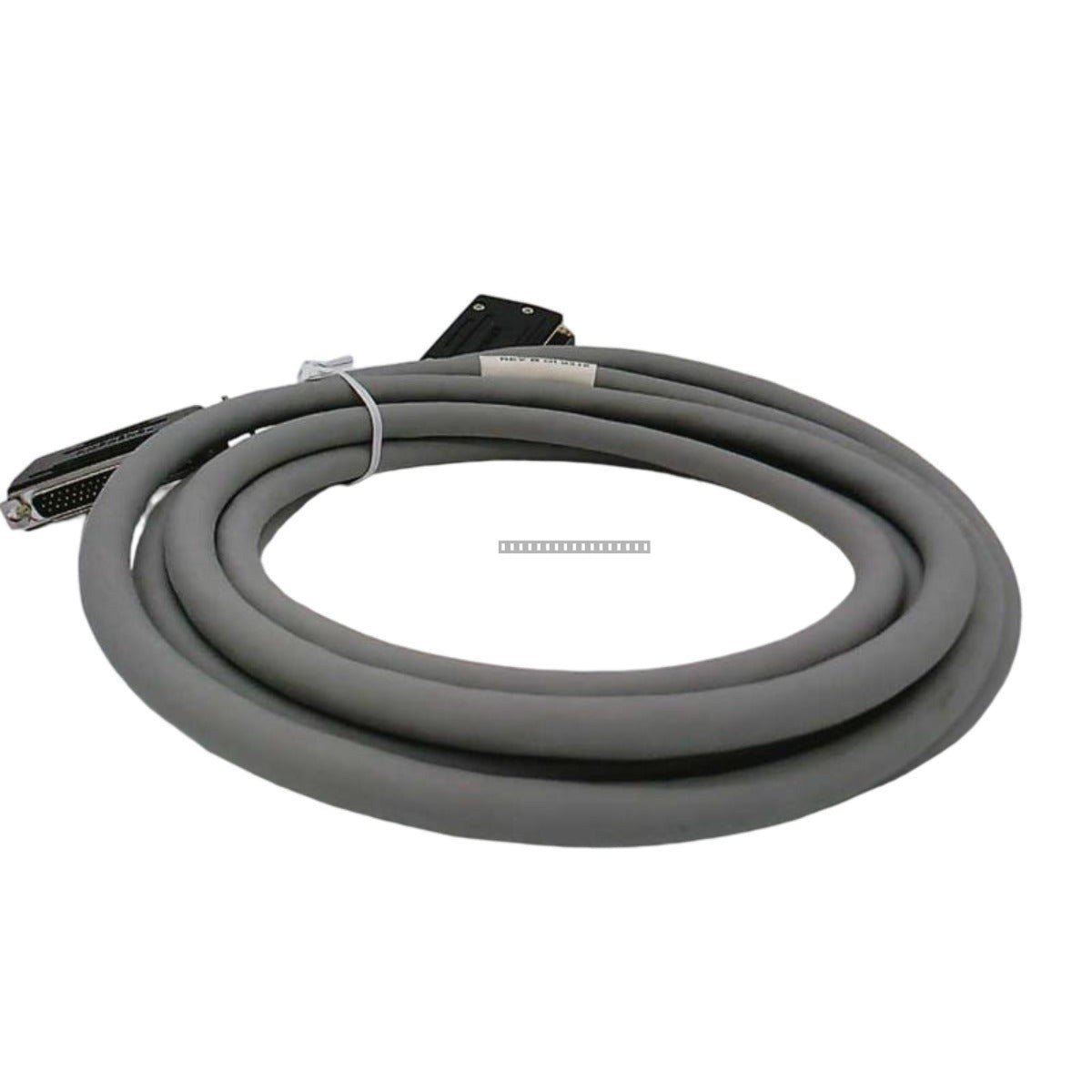

The Woodward 5417-175 is a high-integrity Analog/Discrete interface cable engineered specifically for the Woodward MicroNet control system architecture. This cable serves as a critical data link between I/O modules and field terminal blocks, ensuring reliable signal transmission in demanding industrial environments such as power generation facilities, oil refineries, and large-scale turbomachinery. Its precision-shielded construction is designed to maintain control loop integrity by mitigating signal noise and electromagnetic interference (EMI), thereby reducing the risk of unplanned system downtime.
Features
- Designed for MicroNet I/O to Field Terminal Module (FTM) connectivity.
- Multi-conductor core optimized for low-impedance signal paths.
- Supports both 4-20 mA analog loops and high-speed discrete logic inputs.
- High-density connectors with gold-plated pins to prevent oxidation and ensure stable contact resistance.
- Advanced shielding (individual and overall foil/braid) to minimize cross-talk.
- Industrial-grade, flame-retardant outer jacket resistant to oil, chemicals, and mechanical abrasion.
Applications
The 5417-175 cable is intended for use in mission-critical Woodward MicroNet control systems. It is typically deployed in applications requiring high-density I/O configurations where signal accuracy and noise immunity are paramount, including turbine control, compressor management, and industrial power plant automation.
Technical Specifications
| Model |
5417-175 |
| Brand |
Woodward |
| Component Type |
Analog/Discrete Interface Cable |
| Operating Temperature |
-40 to 85 deg C |
| Connector Type |
High-Density Multi-Pin |
| Shielding |
Individual and Overall Foil/Braid |
| Signal Support |
Analog (Current/Voltage) and Discrete (Logic) |
Installation Guidelines
- Ensure the system is powered down before connecting or disconnecting any interface cables to prevent electrical damage.
- Route cables away from high-voltage power lines and high-EMI sources to maintain signal integrity.
- Ensure connectors are fully seated and secured to prevent intermittent contact due to vibration.
- Handle with care to avoid sharp bends or mechanical stress on the cable jacket, which could compromise the internal shielding.
- Verify correct pin alignment before mating connectors to avoid bent pins or short circuits.
FAQ
What is the primary function of the 5417-175 cable?
The 5417-175 is an interface cable used to connect Woodward MicroNet I/O modules to their respective Field Terminal Modules (FTMs).
Is this cable suitable for high-EMI environments?
Yes, the cable features individual and overall foil/braid shielding specifically designed to mitigate electromagnetic interference and cross-talk in industrial control cabinets.
What is the operating temperature range?
The cable is rated for operation in environments ranging from -40 deg C to 85 deg C.
