Description

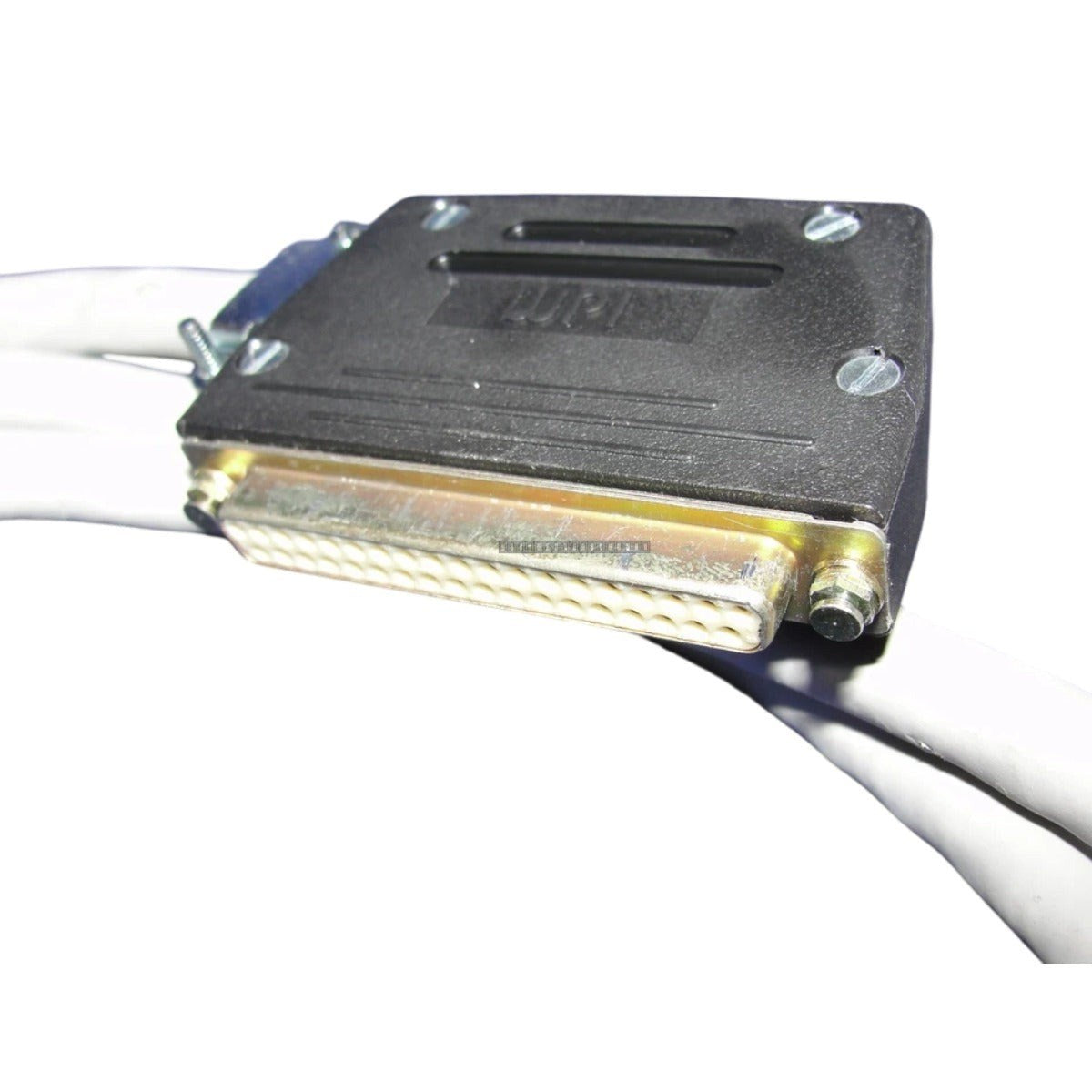

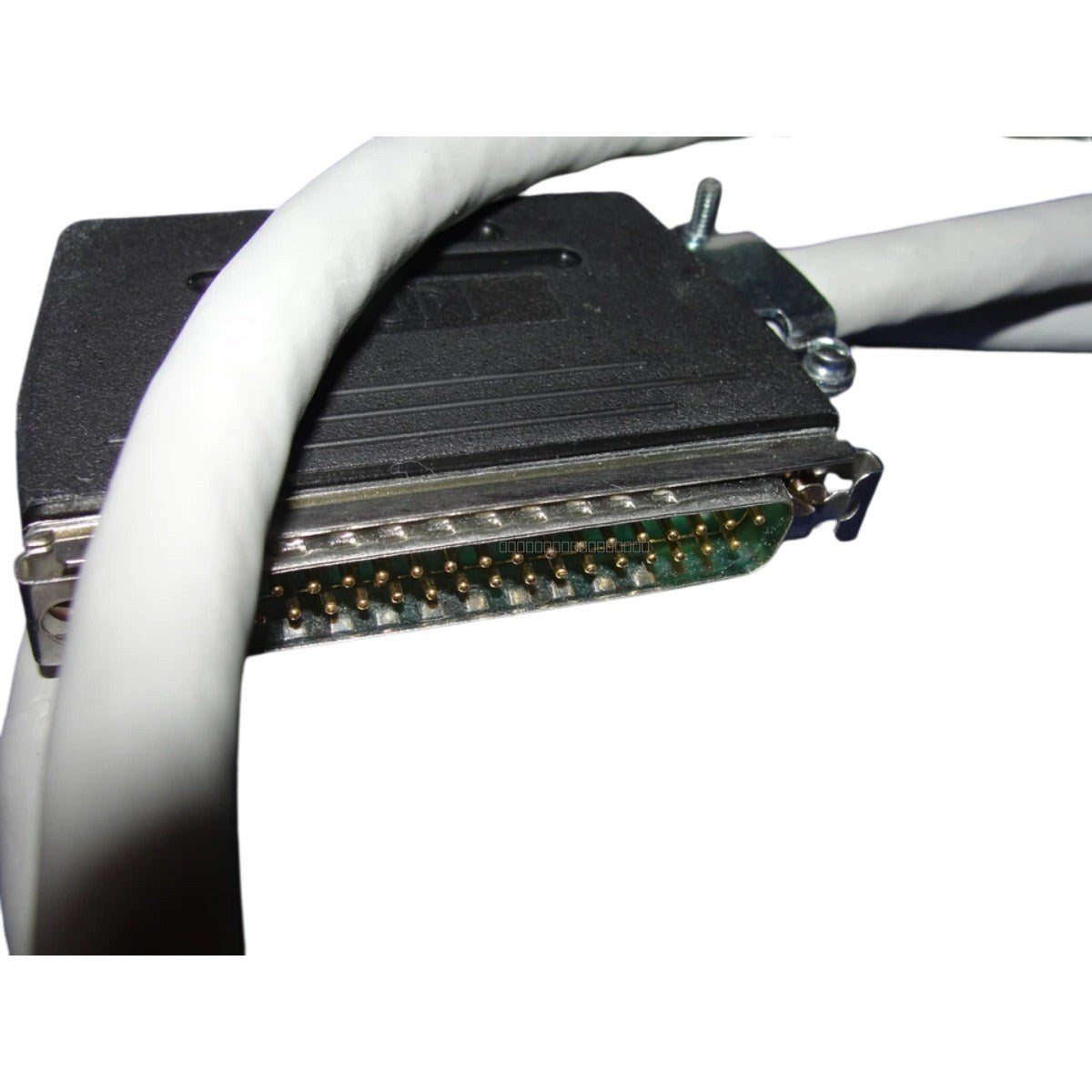

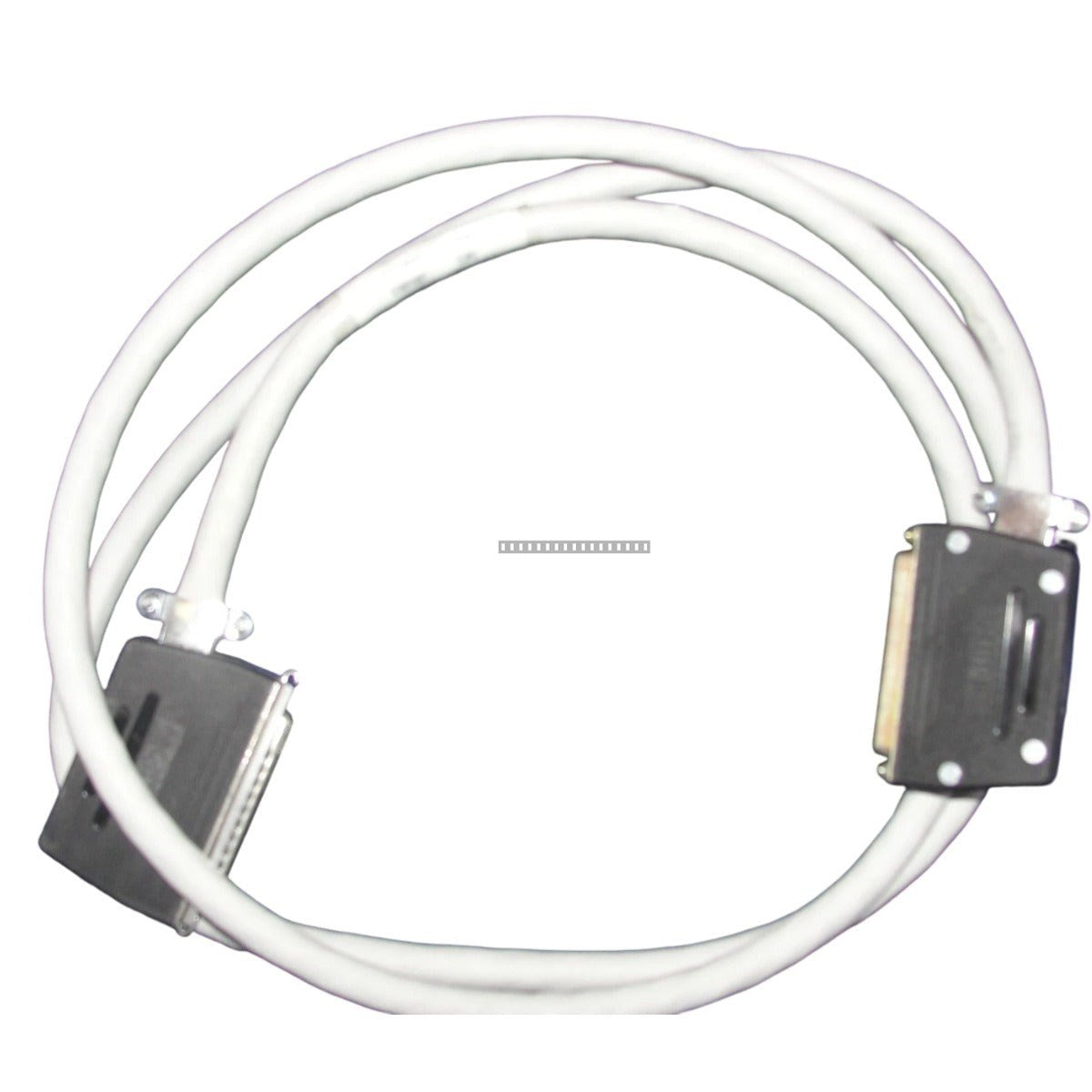

The Woodward 5417-038 is a 6-foot (1.83 m) Netcon Low Density Analog Cable designed for high-fidelity signal transmission within industrial control architectures. This cable assembly serves as a critical link for transmitting sensitive analog data between controller backplanes and field termination assemblies. Engineered for demanding environments such as steam and gas turbine control systems, it ensures precise governor and fuel valve modulation by maintaining signal integrity and minimizing electromagnetic interference.
Features
-
High-Fidelity Transmission: Designed to provide a low-impedance, shielded pathway for analog loops, preventing signal degradation.
-
Robust Shielding: Features an overall braided electromagnetic shield to reject noise in high-EMI industrial environments.
-
Vibration Resistance: Connectors are engineered with secure mechanical locking to maintain electrical continuity under the vibration conditions typical of turbine rooms.
-
Optimized Length: The 6-foot length is ideal for intra-cabinet routing or short-distance patching, reducing the risk of parasitic capacitance.
Applications
The 5417-038 cable is primarily utilized in power generation, oil and gas refineries, and large-scale mining operations. It is essential for connecting Woodward Netcon control systems to field instrumentation, ensuring reliable operation of critical rotating assets.
Technical Specifications
| Model |
5417-038 |
| Brand |
Woodward |
| Cable Type |
Netcon Low Density Analog Cable |
| Length |
6 ft (1.83 m) |
| Operating Temperature |
-40 to 85 degC |
| Shielding |
Braided electromagnetic shielding |
| Connector Interface |
Low-density industrial multi-pin |
Installation Guidelines
-
Handling: Handle with care to avoid damaging the shielding or connector pins. Ensure the cable is not bent beyond its minimum bend radius.
-
Routing: Route away from high-voltage power lines and high-EMI sources to maintain signal integrity.
-
Connection: Ensure connectors are fully seated and the mechanical locking mechanism is engaged to prevent disconnection due to vibration.
-
Power: Always power down the associated control modules before connecting or disconnecting cable assemblies to prevent electrical arcing or damage to I/O ports.
FAQ
What is the primary purpose of the 5417-038 cable?
This cable is designed to interface analog signals between Woodward Netcon controller backplanes and field termination assemblies, ensuring reliable data transmission for turbine control applications.
Can this cable be used in high-vibration areas?
Yes, the 5417-038 is specifically engineered with high-vibration resistant connectors and mechanical locking features to ensure stable operation in turbine-room environments.
