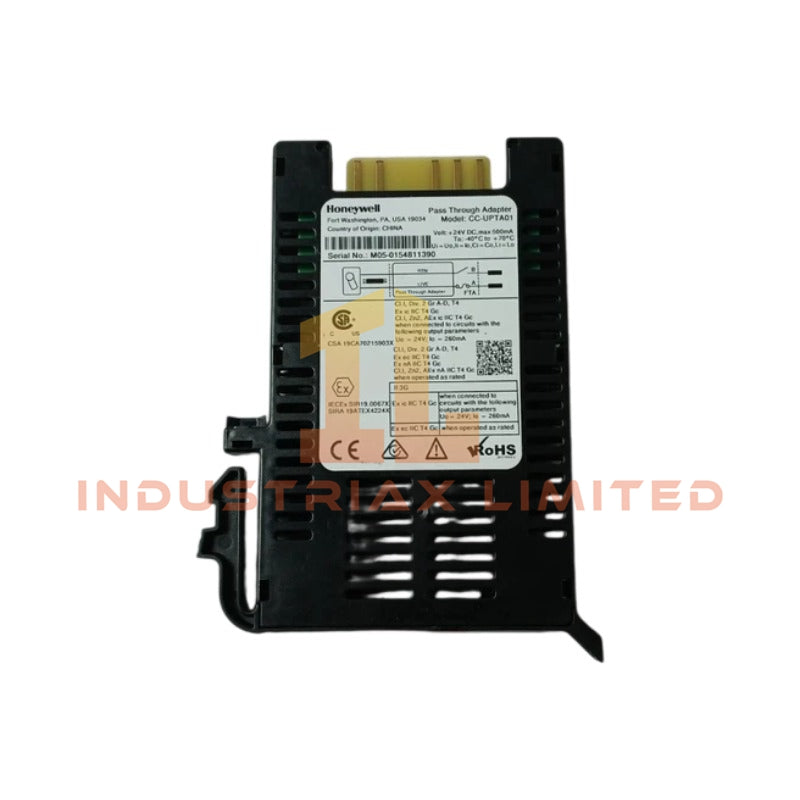

Honeywell CC-UPTA01 Universal Processing Tower Assembly

Configured for field signal termination and interface processing in the Honeywell Experion PKS platform, the Honeywell CC-UPTA01 (CC-UPTA01 Universal Processing Tower Assembly) provides direct electrical execution between Series 8 I/O hardware and connected field wiring. The assembly supports physical signal routing, field termination, and interface continuity for compatible C300 controller I/O modules while maintaining the electrical characteristics defined by the associated I/O channel.

Hardware Specifications

Parameter	Specification
Model	CC-UPTA01
Brand	Honeywell
Origin	USA
Operating Temp	-40 deg C to 70 deg C
Storage Temp	-45 deg C to 85 deg C
Relative Humidity	5 % to 95 % RH, non-condensing
Power Consumption	Not specified
Module Type	Universal Processing Tower Assembly (UPTA) / Field Termination Assembly (FTA)
System Compatibility	Honeywell Experion PKS C300, Series 8 I/O
Channel Capacity	Typically 16 to 32 channels depending on paired I/O module
Mounting Method	DIN rail or standard carrier mounting
Conformal Coating	Yes, indicated by CC prefix

Channel-to-Channel Isolation Considerations

The CC-UPTA01 functions as a field termination interface for compatible Series 8 I/O assemblies. Electrical isolation characteristics are determined by the associated I/O module rather than the termination assembly itself. During installation, channel segregation, cable shielding, and grounding practices should follow the hardware planning documentation to minimize coupling between adjacent field circuits and maintain signal integrity for analog and digital channels.

Frequently Asked Questions

Q: Does the CC-UPTA01 support hot replacement while the controller remains energized?
A: Hot replacement capability depends on the installed Series 8 I/O module and the maintenance procedures defined for the Experion PKS system. The termination assembly itself should not be disconnected under power unless permitted by the applicable hardware documentation.

Q: Can the CC-UPTA01 be used with every Series 8 I/O module?
A: No. Compatibility depends on the specific analog or digital I/O module. The corresponding Honeywell hardware compatibility matrix should be verified before installation.

Q: Does the termination assembly provide signal conditioning or isolation by itself?
A: The CC-UPTA01 primarily provides field termination and interface connectivity. Signal processing and electrical isolation characteristics are implemented by the associated I/O module where applicable.

Field Installation Guidelines

• Verify the installed I/O module matches the specified termination assembly before mounting.
• Install the assembly on the designated DIN rail or carrier according to the system mechanical layout.
• Route field wiring separately from high-energy power cables to reduce electrical interference.
• Terminate cable shields in accordance with the site grounding philosophy and Honeywell installation practices.
• Confirm terminal identification before energizing the system to avoid channel miswiring.
• Inspect terminal screws and connectors for proper mechanical engagement during commissioning and maintenance.
