Description

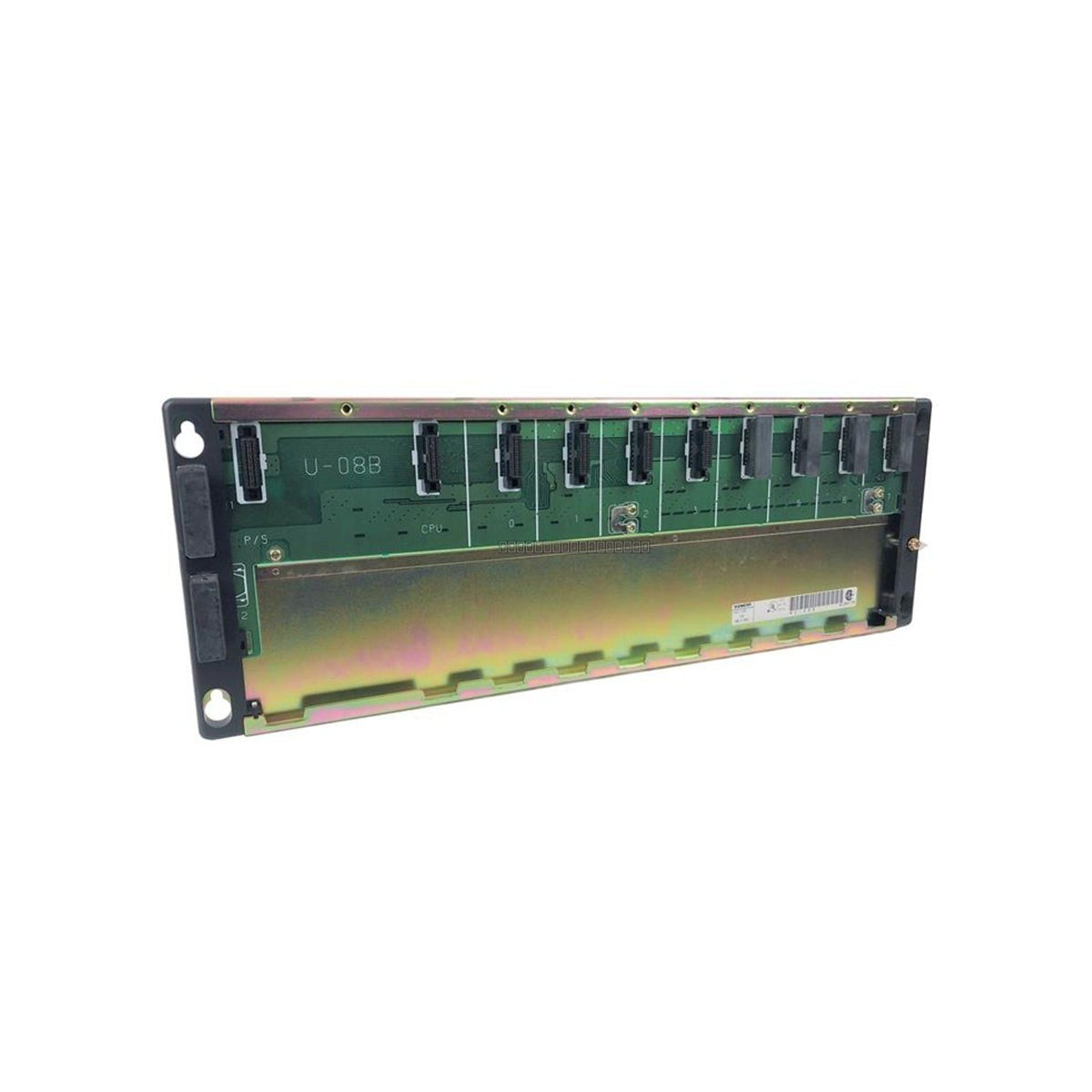

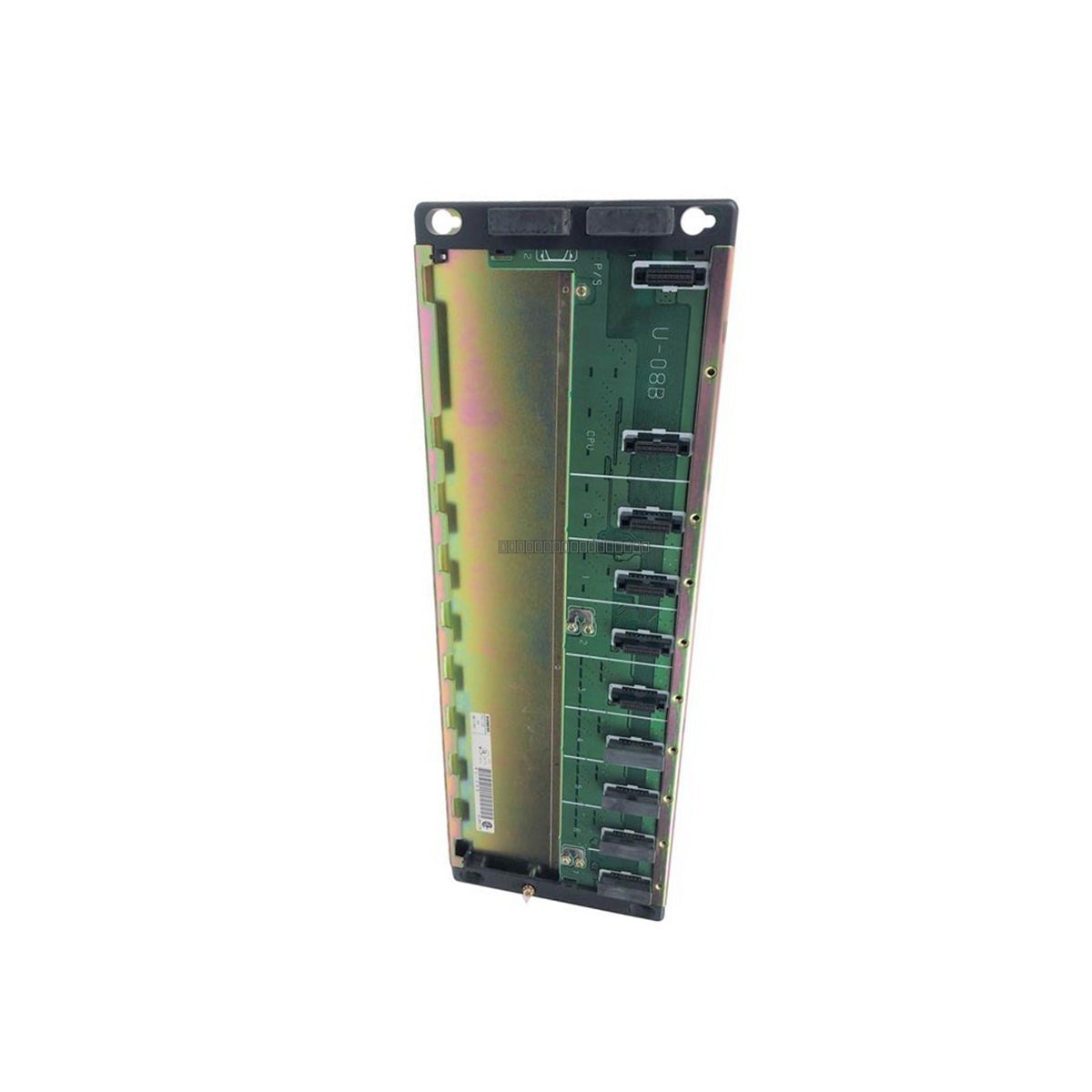

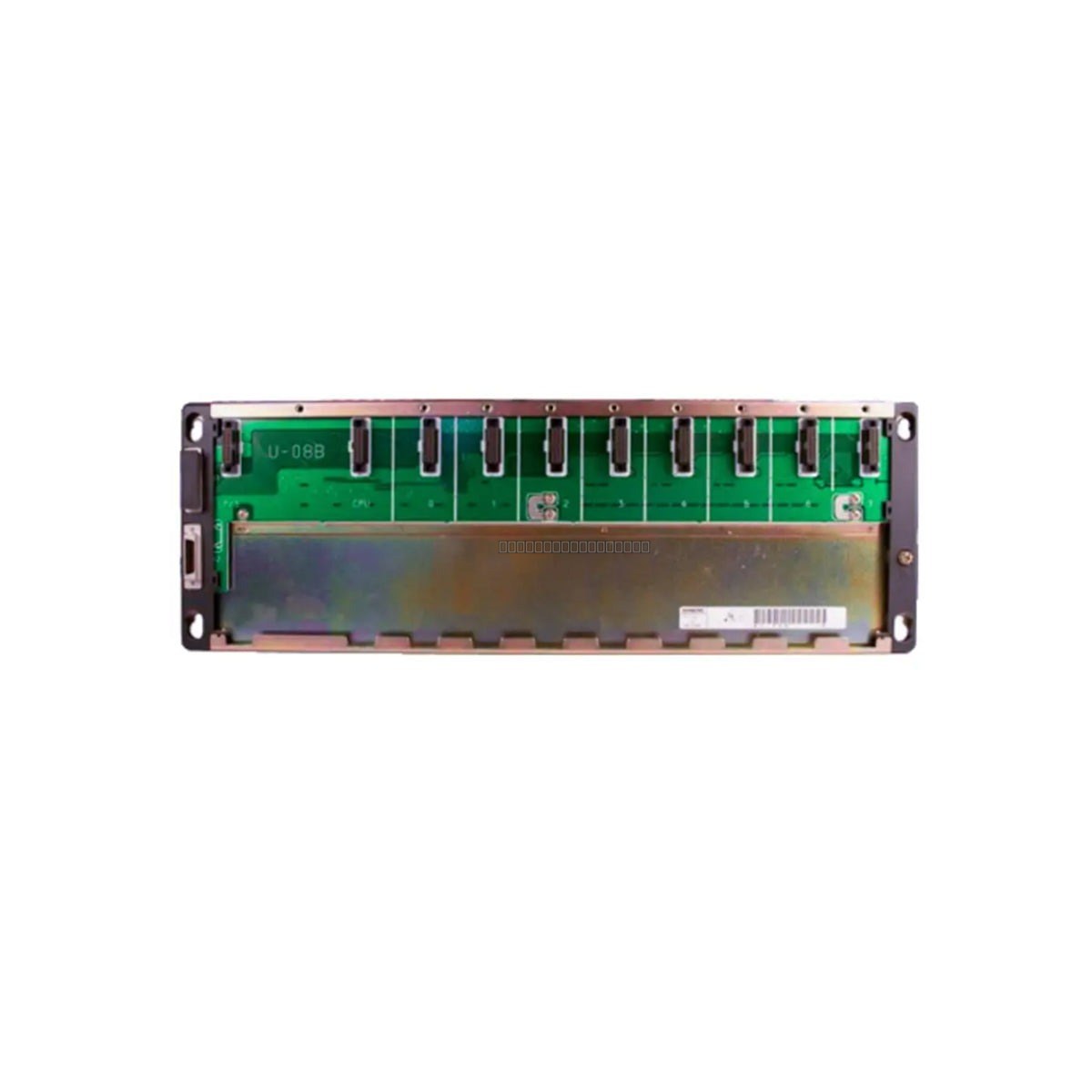

The U-08B is an 8-slot base rack designed for the Siemens SIMATIC 505 and Texas Instruments TI 505 PLC series. This backplane functions as the primary structural and electrical interface for the controller assembly, facilitating communication and power distribution between the CPU, power supplies, and various I/O modules. Engineered for demanding industrial environments, the U-08B provides a stable physical platform that minimizes signal loss and protects against mechanical or electrical degradation in legacy control systems.
Features
- Supports up to 8 standard 505-series modules.
- Robust parallel bus architecture for deterministic data exchange.
- Precision-engineered slots for reliable electrical contact and alignment.
- Low-impedance grounding and electrical isolation to mitigate electromagnetic interference.
- Modular design allows for efficient system expansion and simplified maintenance.
Applications
This base rack is suitable for legacy automation systems in sectors including oil and gas, municipal water treatment, mining, and heavy manufacturing. It serves as a critical spare component for maintaining the integrity of existing TI 505 PLC architectures.
Technical Specifications
| Model |
U-08B |
| Alternate Part Number |
TIU-08B |
| Brand |
Siemens / Texas Instruments |
| Capacity |
8 Slots |
| Mounting Type |
Panel Mount / Rack Mount |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Lifecycle Status |
Discontinued |
Installation Guidelines
- Ensure the rack is securely mounted to a vibration-dampened panel or cabinet backplane.
- Always power down the system before inserting or removing any I/O modules to prevent electrical arcing or damage to the backplane pins.
- Maintain proper grounding of the rack chassis to the cabinet ground bus to minimize EMI.
- Ensure adequate ventilation around the rack to maintain operating temperatures within the 0 to 60 deg C range.
- Handle modules with care to avoid bending the backplane connector pins during insertion.
FAQ
Is the U-08B compatible with all TI 505 series modules?
Yes, the U-08B is designed to accept standard 505-series modules, including digital and analog I/O, communication processors, and power supplies compatible with the TI 505 architecture.
Can this rack be used to replace a damaged backplane in an existing system?
Yes, the U-08B is a direct replacement for existing 8-slot base racks in the TI 505 series, allowing for the restoration of system functionality without requiring a full controller redesign.
