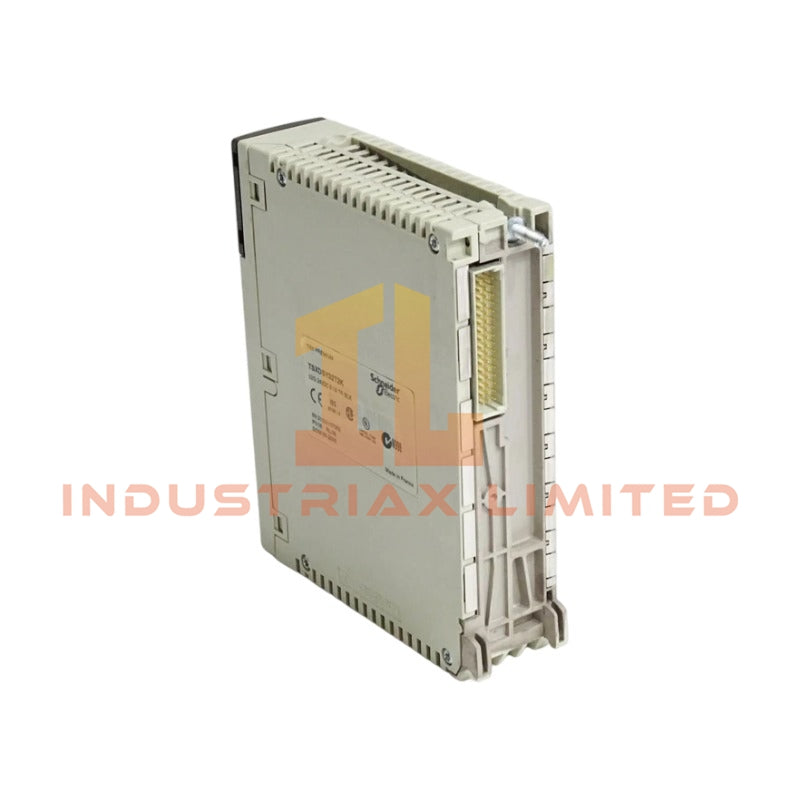

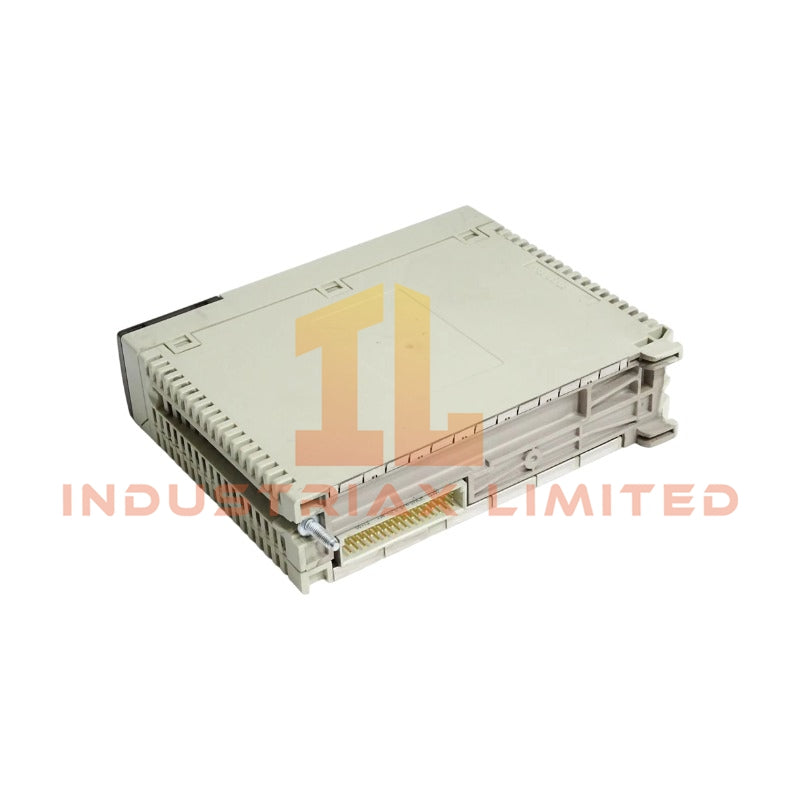

Schneider Electric TSXDSZ32T2 TSX Micro Discrete Output Module

Configured for 24 VDC positive discrete output switching in Modicon TSX Micro automation platforms, the Schneider Electric TSXDSZ32T2 (TSXDSZ32 Discrete Output Module) provides direct electrical execution through 32 transistor output channels. The module is designed for DC load control using positive logic with integrated output protection and backplane communication.

Suffix Breakdown & Model Matrix

The available technical information identifies TSXDSZ32T2 as a fixed catalog number. No official suffix decoding or ordering matrix is specified in the provided documentation.

Hardware Specifications

Parameter	Specification
Model	TSXDSZ32T2
Brand	Schneider Electric
Product Series	Modicon TSX Micro
Product Type	Discrete Output Module
Origin	Not specified
Discrete Outputs	32
Output Connection	Screw terminal block
Output Type	Positive logic transistor outputs
Rated Output Voltage	24 VDC
Output Voltage Limits	19 to 30 VDC
Output Current	0.5 A per channel
Maximum Current Limit	0.625 A
Leakage Current (OFF State)	<= 0.5 mA
Residual Voltage	<= 0.3 V
Minimum Load Impedance	48 Ohm
Response Time	< 0.5 ms ON, < 0.5 ms OFF
Switching Frequency	< 0.6 / LI^2 Hz
Overvoltage Protection	Zener diode
Short-Circuit Protection	Current limiter and thermal circuit breaker
Reverse Polarity Protection	Reverse diode on power supply
Output Paralleling	Up to 2 outputs
Current Consumption	94 mA
Power Consumption	3.2 W per module
Power Dissipation	0.15 W per channel
Isolation Voltage	1500 VAC for 1 s
Weight	0.42 kg
Dimensions	Not specified
Operating Temp	Not specified

Backplane Communication and I/O Density

Within the Modicon TSX Micro PLC architecture, the TSXDSZ32T2 exchanges output data through the system backplane while providing 32 DC output channels in a single module. The output density allows multiple field devices to be controlled from one hardware position without altering the module's electrical characteristics. Compatibility with the platform depends on the PLC rack configuration and supported TSX Micro hardware.

Frequently Asked Questions

Q: Does the module support hot swapping during PLC operation?

A: The supplied technical documentation does not specify hot-swap capability. Module replacement should follow the controller maintenance procedure with power removed unless the PLC platform documentation explicitly permits energized replacement.

Q: What protection mechanisms are integrated into each output stage?

A: The module includes Zener diode overvoltage protection, current limiting, thermal circuit breaker protection, and reverse polarity protection through a reverse diode on the power supply.

Q: Can output channels be connected in parallel?

A: Yes. The documentation specifies that a maximum of two output channels may be connected in parallel.

Field Installation Guidelines

• Verify that the external DC supply remains within the specified 19 to 30 VDC operating range before energizing field wiring.
• Tighten screw terminal connections according to the applicable Schneider Electric installation procedure.
• Route output wiring separately from high-power AC conductors to minimize electrical interference.
• Connect field cable shields according to the system grounding practice to reduce conducted electrical noise.
• Confirm output load current does not exceed the specified channel rating before commissioning.
• Perform insulation and continuity checks before applying field power after installation or maintenance.
