Description

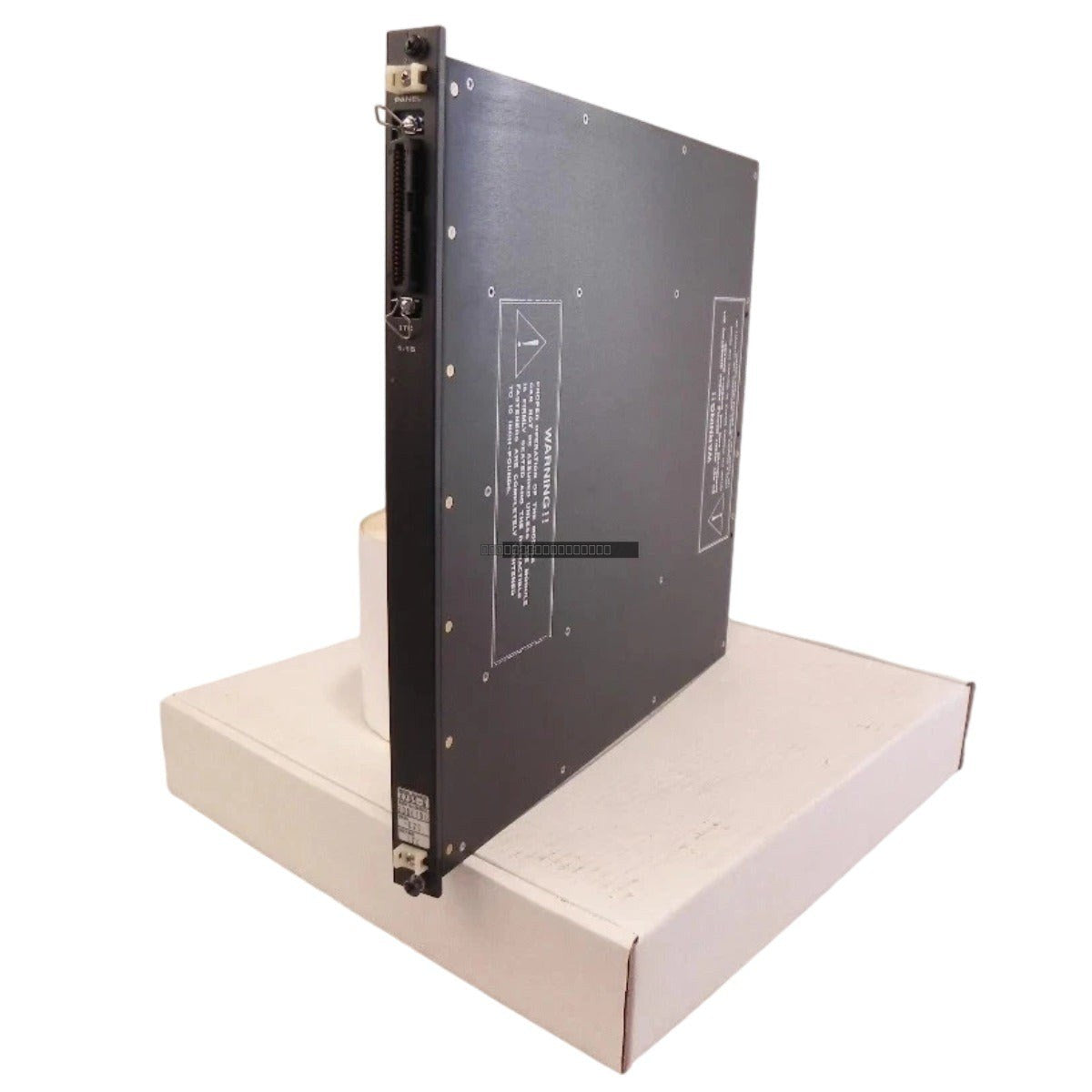

The Triconex 2755-020 is a high-performance digital output module engineered for safety-critical control systems. Utilizing the robust Triple-Modular Redundant (TMR) architecture characteristic of the Triconex platform, this assembly ensures high availability and fault tolerance in environments where system reliability is non-negotiable. It is specifically designed to interface with field devices in demanding sectors such as petrochemical refining, power generation, and large-scale industrial automation, providing secure and accurate switching for safety-instrumented systems.
Features
- TMR Architecture: Built to support fault-tolerant operations, ensuring that the system remains functional even during component-level failures.
- High-Density Switching: Provides 16 independent output channels suitable for complex control loops.
- Electrical Isolation: Features optical isolation on every channel to effectively mitigate the risks of electrical transients, surges, and common-mode interference from the field.
- Real-Time Diagnostics: Includes advanced internal monitoring circuitry that detects open-load and short-circuit conditions, providing immediate feedback to the main processor.
- Hot-Swappable Design: Engineered for integration with standard Triconex backplanes, supporting maintenance without requiring a total system shutdown.
Applications
This digital output assembly is ideal for safety-instrumented systems (SIS) that require high-integrity signal distribution. It is commonly deployed in emergency shutdown (ESD) systems, fire and gas detection arrays, and critical process control applications where unplanned downtime must be minimized.
Technical Specifications
| Model Number |
2755-020 |
| Manufacturer |
Triconex |
| Output Channels |
16 Independent Points |
| Power Consumption |
25 W (Typical) |
| Operating Temperature |
0 to 60 degC |
Installation Guidelines
- Ensure the Triconex backplane is powered down before inserting or removing the 2755-020 module to prevent electrical arcing or damage to the backplane pins.
- Verify that the module is fully seated and the locking mechanisms are engaged to maintain a secure connection to the system bus.
- Use shielded cabling for field connections to minimize EMI/RFI interference in high-noise industrial environments.
- Maintain adequate ventilation within the cabinet; ensure the module is not obstructed by wiring or other components to allow for proper heat dissipation.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive internal logic components.
FAQ
Does the 2755-020 support online replacement?
Yes, the module is designed for use within the Triconex fault-tolerant backplane, which supports hot-swapping or online module replacement during system operation.
What type of diagnostics does this module perform?
The 2755-020 continuously monitors its output circuits for faults such as short circuits or open loads, reporting these statuses to the processor in real-time to ensure the integrity of safety-critical commands.
