Description

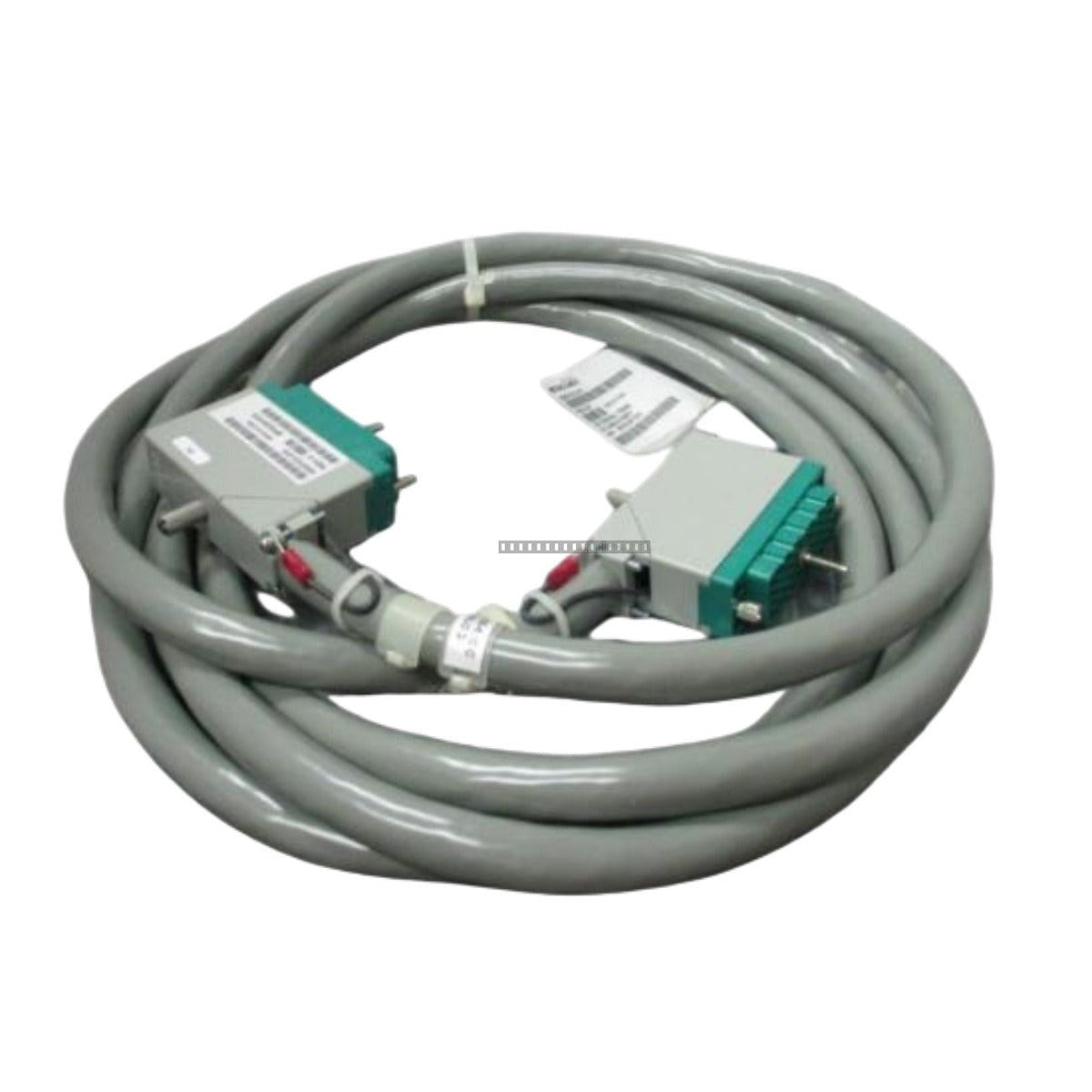

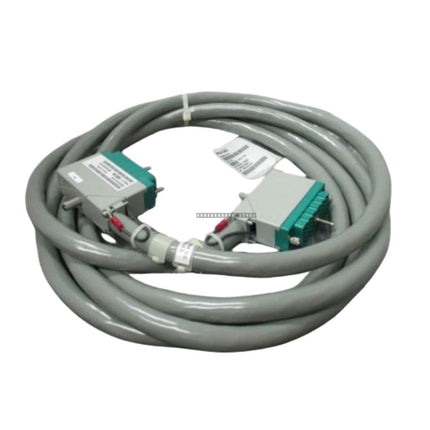

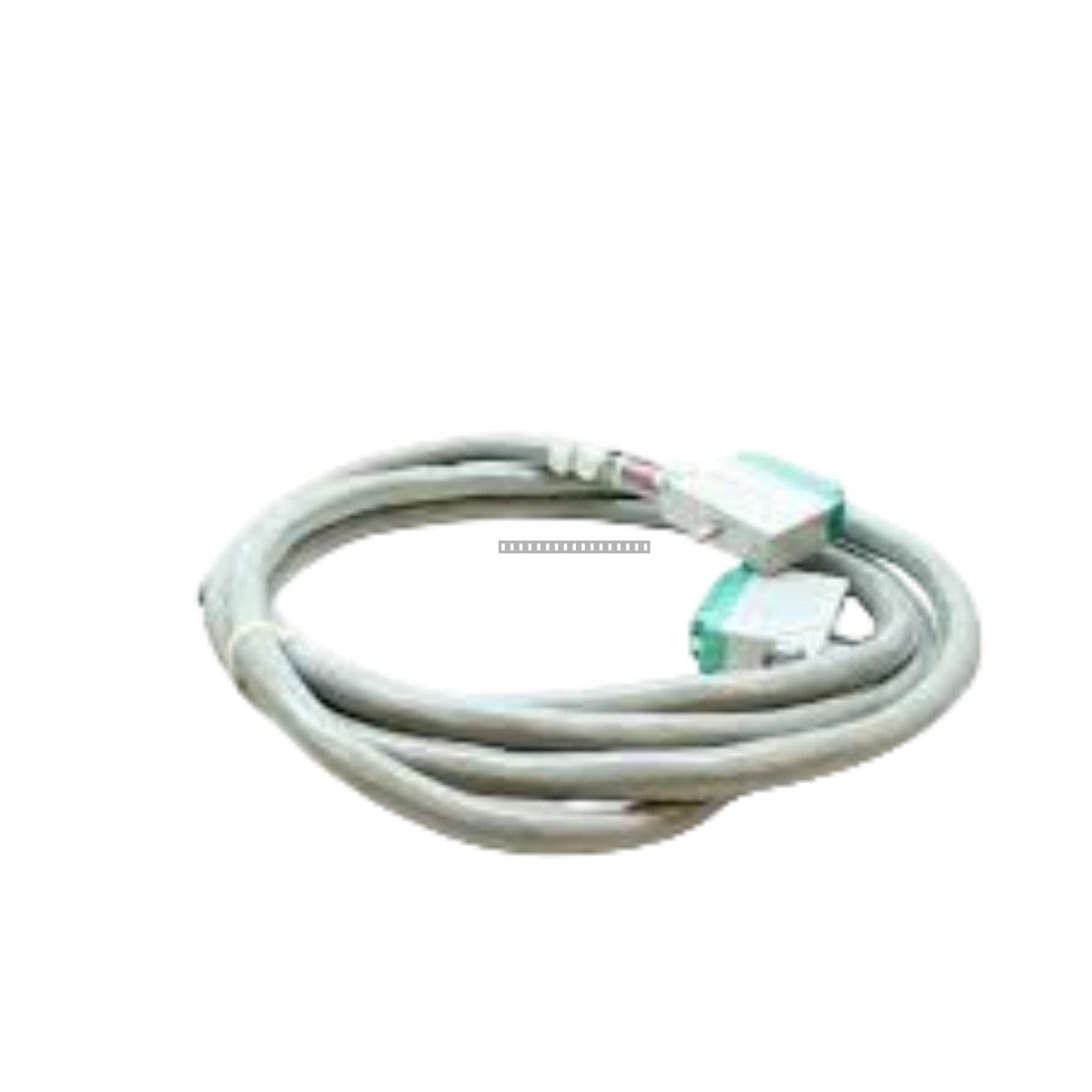

The Triconex 4000103-520 is a 10-foot (3.05 meter) industrial-grade cable assembly engineered for the Invensys Triconex safety instrumented system (SIS). This precision-manufactured interconnect is designed to facilitate high-integrity communication between I/O modules and external termination panels or expansion chassis. Deployed extensively in critical sectors such as oil refining, power generation, and chemical processing, this assembly maintains signal purity and structural durability in high-vibration and electromagnetic interference (EMI) environments. By ensuring secure, low-impedance connections within the Triple Modular Redundancy (TMR) architecture, the 4000103-520 reduces the risk of intermittent signal faults, supporting maximum system uptime and process safety.
Features
-
High-Integrity Design: Optimized for TMR architectures to ensure data bus synchronization across system legs.
-
Ruggedized Construction: Features multi-core high-flex wiring protected by a flame-retardant outer jacket.
-
EMI/RFI Shielding: Internal conductor arrangement minimizes cross-talk and signal attenuation, even when routed near high-voltage power lines.
-
Precision Connectors: Equipped with ruggedized strain relief and keyed housings to prevent misalignment during installation in high-density rack environments.
Applications
This cable assembly is intended for use in Triconex safety systems, specifically for connecting I/O modules to field termination assemblies (FTA) or expansion chassis. It is suitable for critical control applications requiring high reliability, including emergency shutdown systems (ESD), fire and gas monitoring, and burner management systems.
Technical Specifications
| Model |
4000103-520 |
| Brand |
Invensys / Triconex |
| Cable Length |
10 feet (3.05 meters) |
| Cable Type |
System Interconnect Assembly |
| Connector Type |
Multi-pin High-Density |
| Operating Temperature |
-20 to 70 deg C |
Installation Guidelines
-
Power Down: Ensure the associated I/O modules and chassis are powered down before connecting or disconnecting the cable assembly to prevent electrical arcing or damage to pins.
-
Strain Relief: Utilize the integrated strain relief features to secure the cable, preventing tension on the connectors.
-
Routing: Avoid routing the cable in close proximity to high-voltage power lines where possible, although the cable is shielded to mitigate EMI.
-
Keying: Verify that the keyed housings are properly aligned before inserting the connector into the module or panel port. Do not force the connection.
FAQ
Is this cable compatible with all Triconex systems?
The 4000103-520 is designed for specific Triconex I/O and termination applications. Please verify your system's hardware manual or the specific module's installation guide to ensure compatibility with your chassis and termination panel configuration.
What is the length of this cable?
This model is a 10-foot (3.05 meter) assembly. The suffix -520 designates this specific length and configuration.
