Description

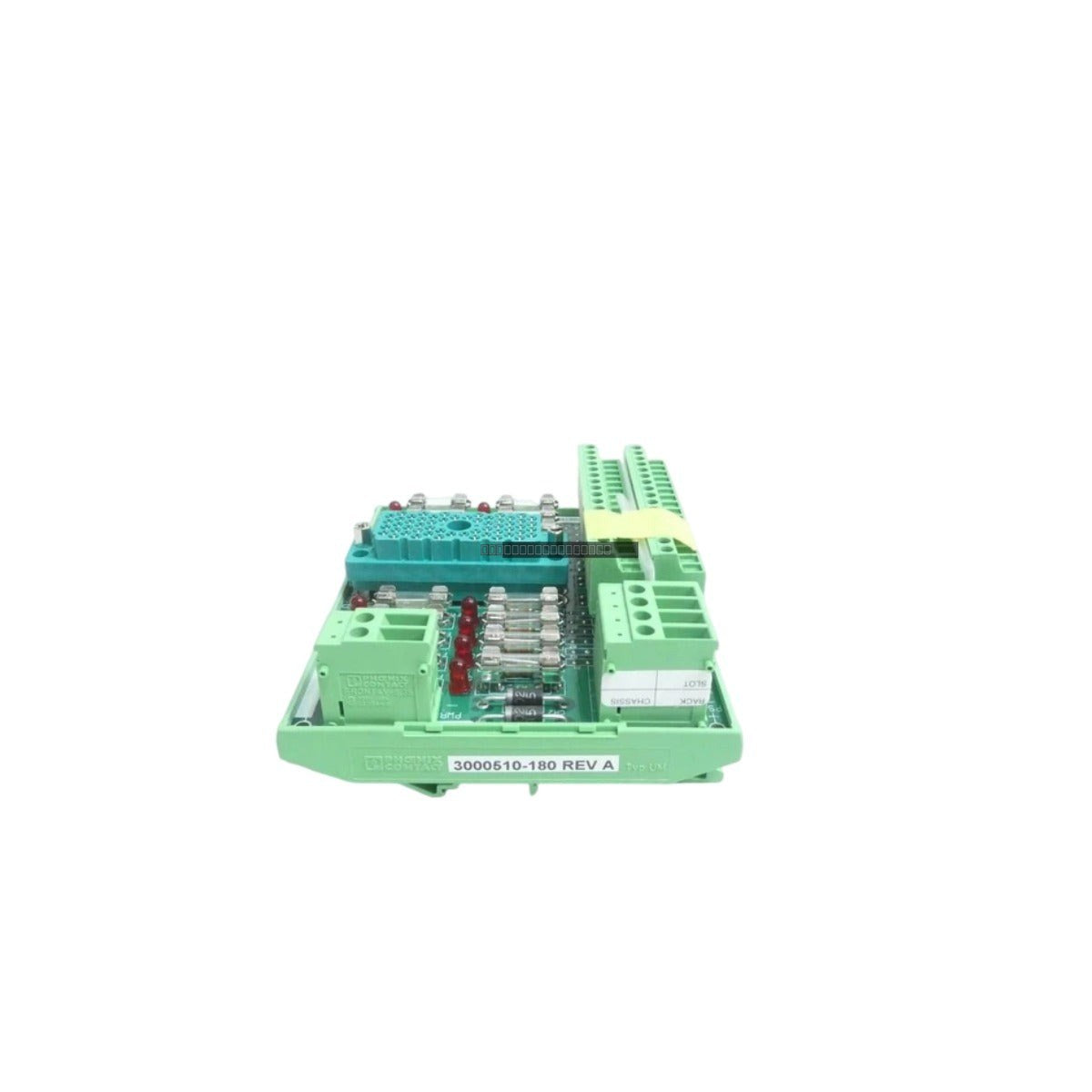

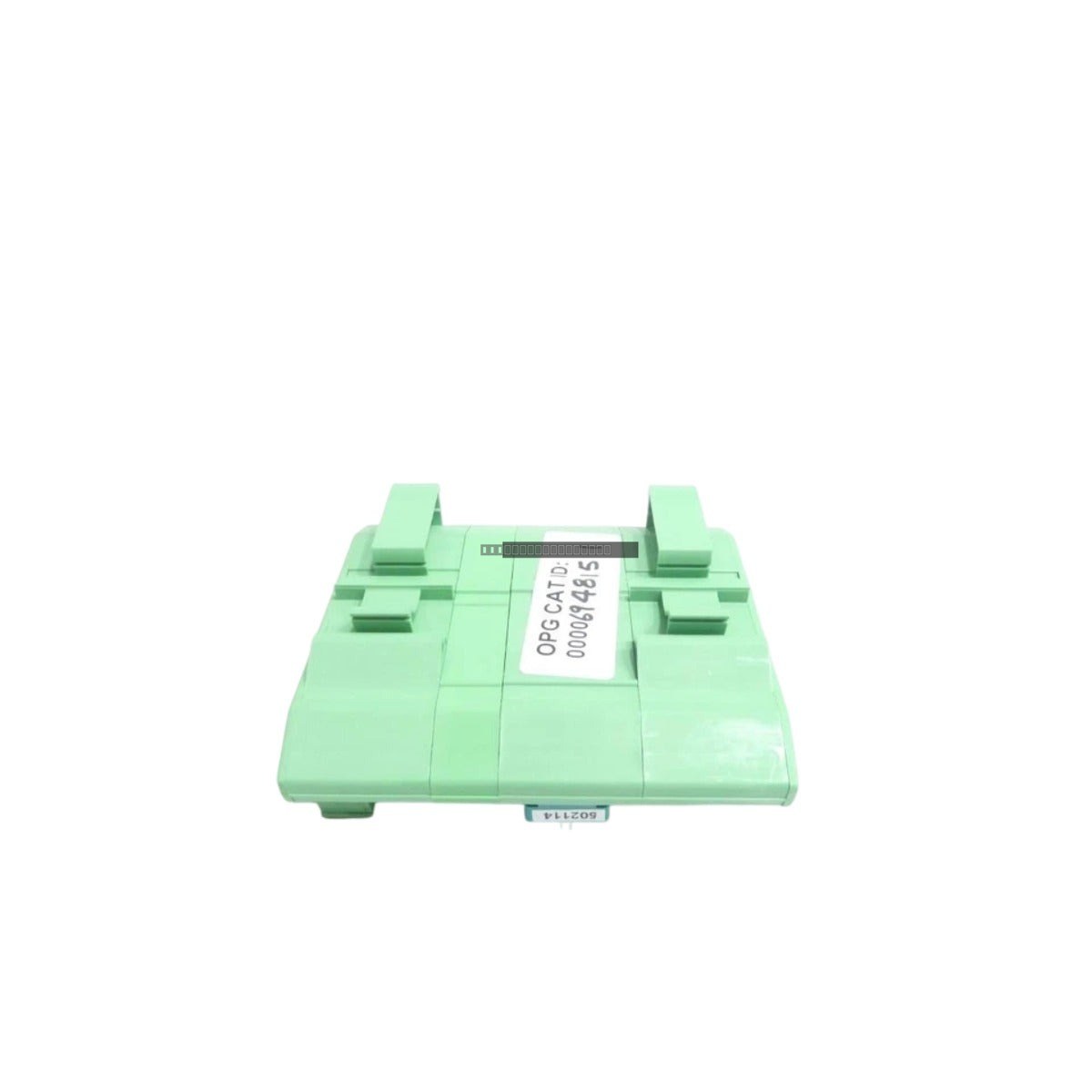

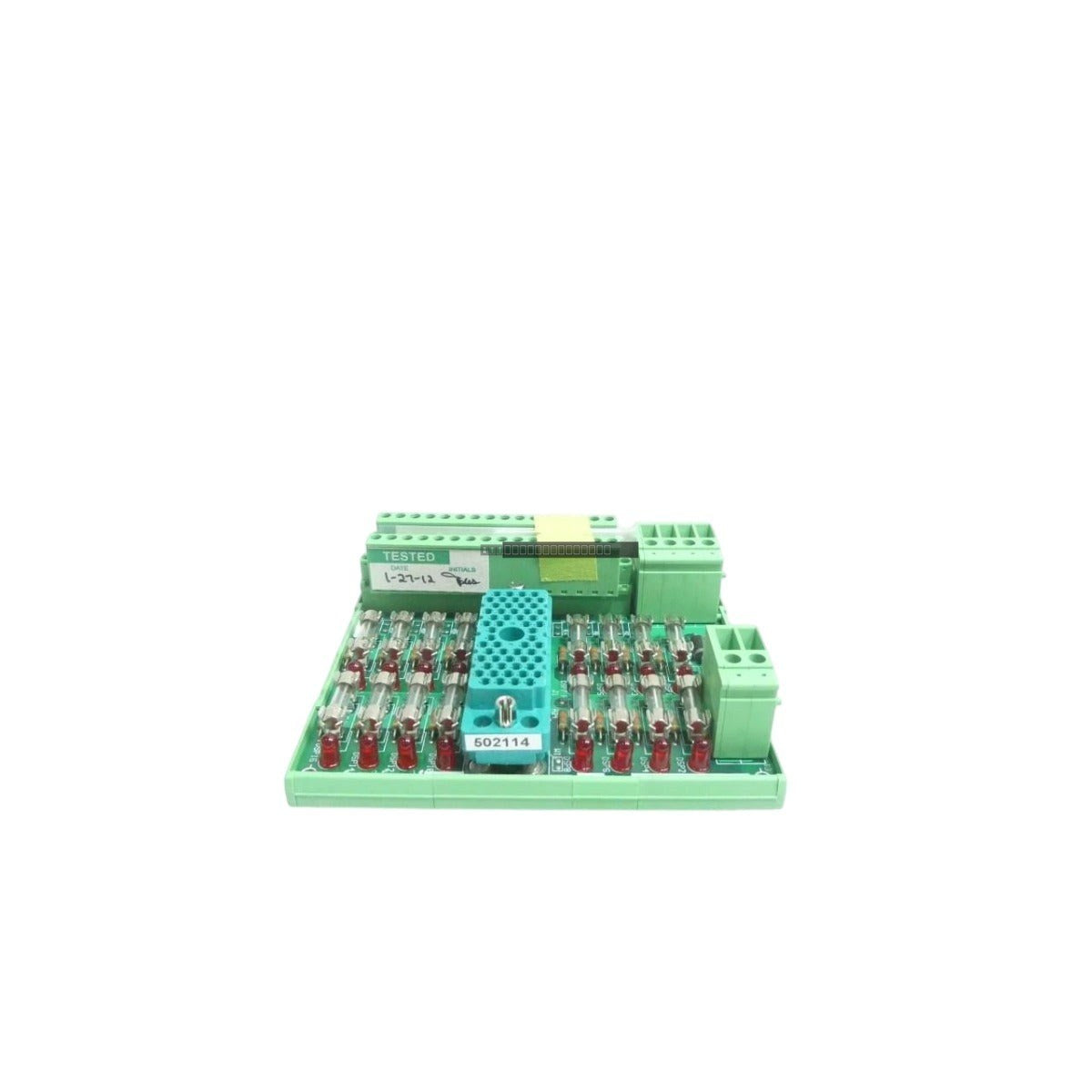

The 3000510-180 is a high-reliability termination board engineered for the Triconex Triple Modular Redundant (TMR) safety system. This component serves as the physical interface between field wiring and the Tricon controllers, facilitating secure signal distribution for critical safety instrumented functions. It is deployed extensively in high-stakes industrial environments such as oil and gas refineries, chemical processing plants, and power generation facilities. By providing a stable and organized connection point for I/O signals, the 3000510-180 simplifies maintenance procedures and enhances system availability, effectively reducing the risk of accidental disconnections and operational downtime in SIL 3 environments.
Features
- Designed specifically for integration with Triconex TMR safety systems.
- Passive circuit architecture ensures zero latency in signal transmission.
- High-density terminal layout optimized for robust electrical contact.
- Integrated grounding paths and surge protection zones to mitigate field-side electrical noise.
- Compact form factor for efficient cabinet mounting and modular system expansion.
Applications
This termination board is utilized in critical safety applications where high availability and fault tolerance are required. Typical deployments include emergency shutdown systems (ESD), fire and gas monitoring, burner management systems (BMS), and high-integrity pressure protection systems (HIPPS) within the petrochemical and energy sectors.
Technical Specifications
| Model |
3000510-180 |
| Brand |
Triconex (Schneider Electric) |
| Product Type |
Termination Board |
| Operating Temperature |
-20 to 70 deg C |
| Signal Support |
Analog and Digital I/O |
Installation Guidelines
- Ensure the control system is powered down before installing or removing the termination board.
- Mount the board in a clean, dry, and vibration-controlled environment within an industrial cabinet.
- Use shielded cabling for field connections to minimize electromagnetic interference (EMI).
- Ensure all grounding paths are securely connected to the cabinet's common ground bus to maintain signal integrity.
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching the board components.
- Verify that all field wiring is properly terminated and torque-checked according to site standards before applying power.
FAQ
What is the primary function of the 3000510-180?
It acts as a passive interface board to connect field instrumentation wiring to the Triconex I/O modules, providing a reliable and organized signal path.
Is this board compatible with all Triconex systems?
The 3000510-180 is designed for specific Triconex TMR configurations. Always verify your system's hardware compatibility list or the specific I/O module requirements before installation.
