Description

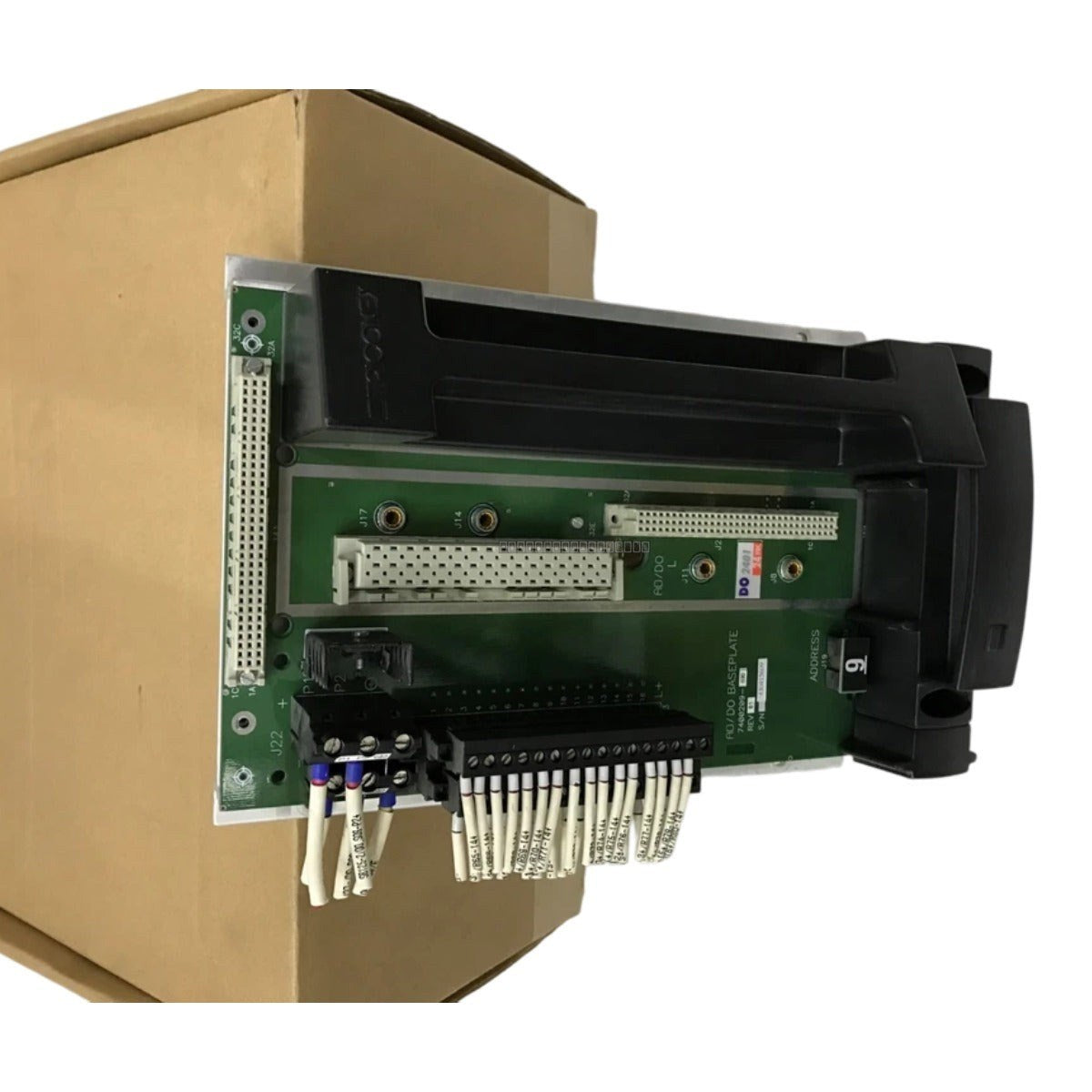

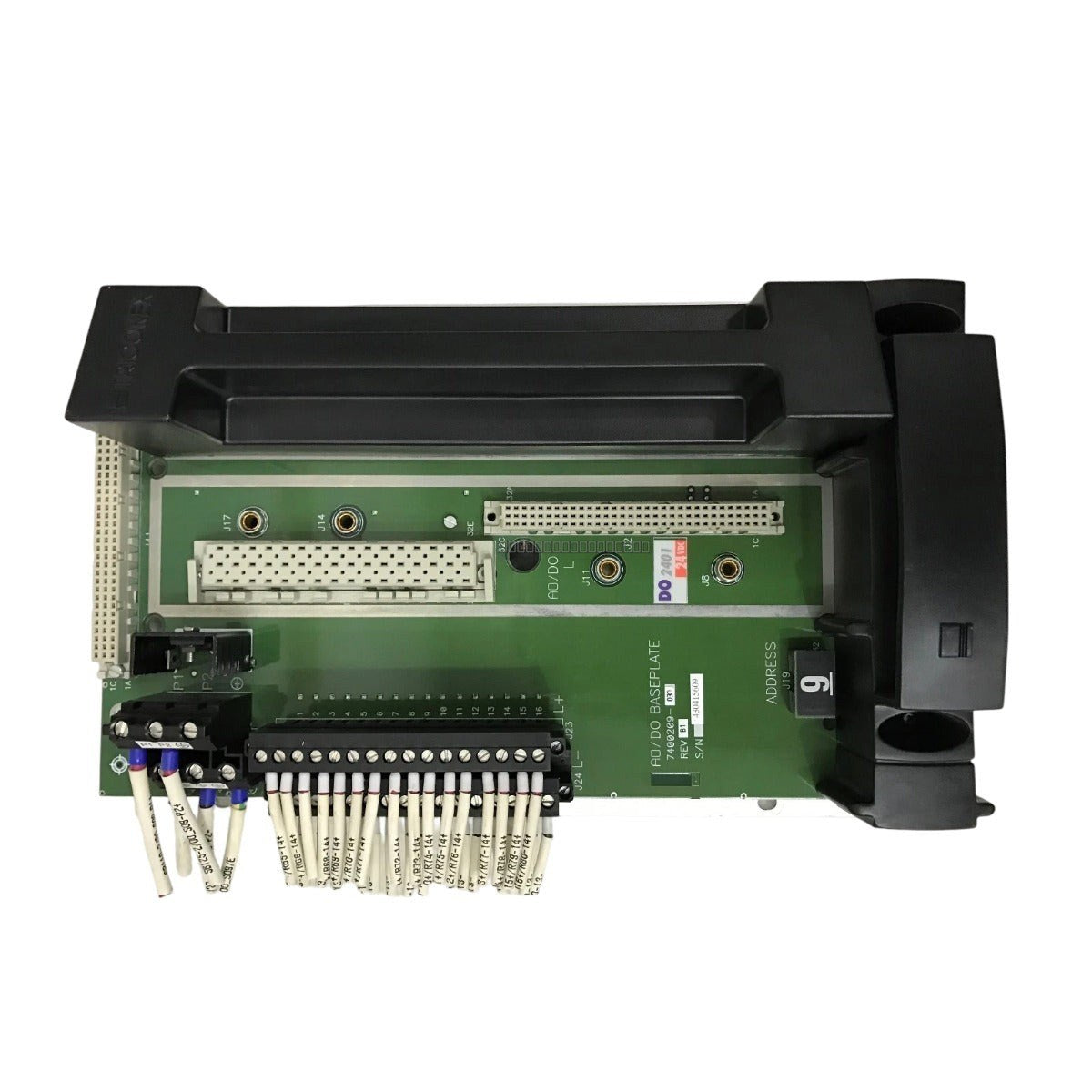

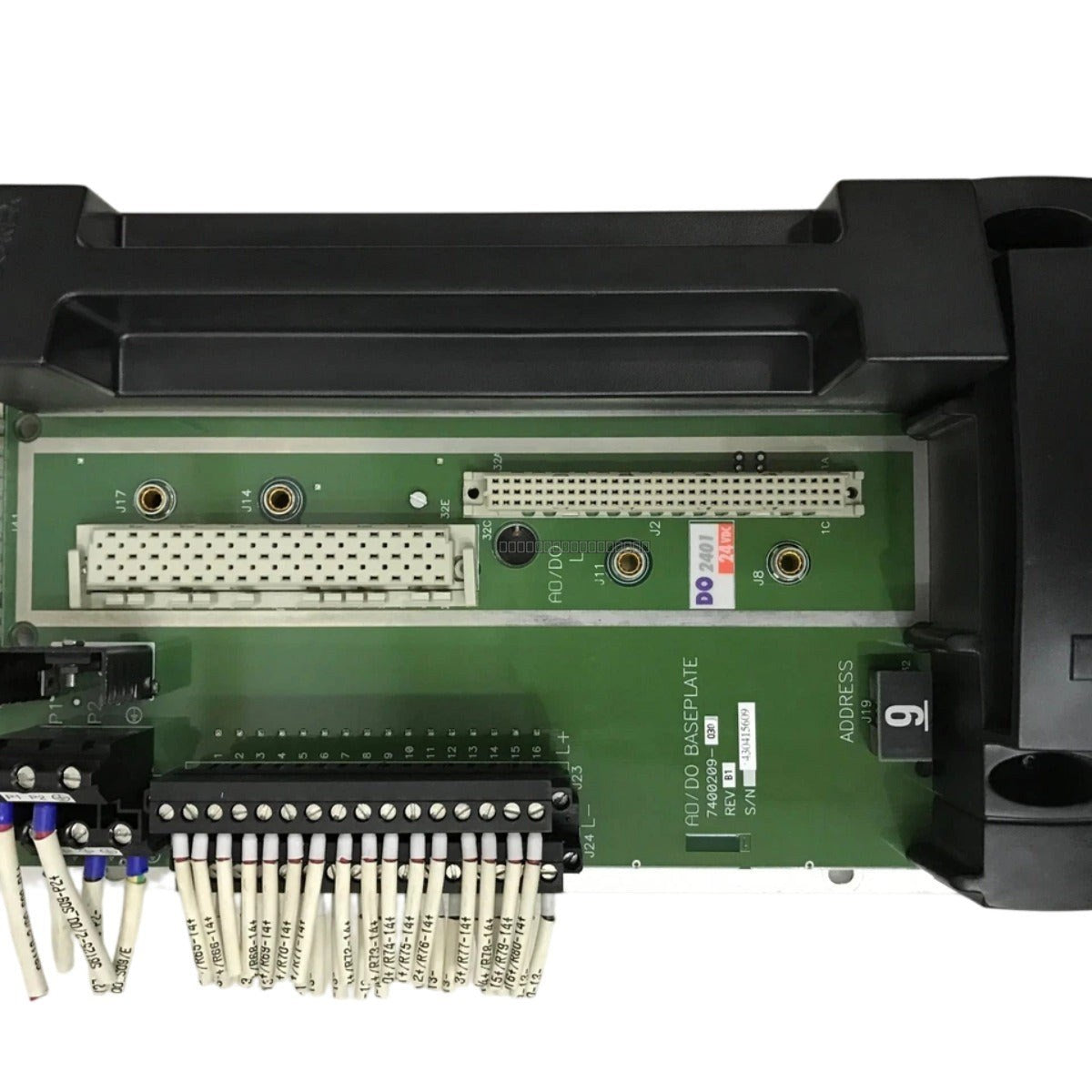

The Triconex 2401L is a high-performance output module designed for integration within Triconex safety-instrumented systems. It is engineered to facilitate precise control signal transmission in demanding industrial environments, such as oil refineries, thermal power plants, and chemical processing facilities. The module converts internal digital logic into accurate analog commands with rapid execution cycles, providing robust fault isolation and signal integrity to prevent erratic process trips and optimize loop safety.
Features
- High-accuracy 12-bit digital-to-analog conversion for precise process regulation.
- Optical isolation barrier rated at 1500 VDC to protect the CPU and system backplane from field-side electrical surges and ground loops.
- Integrated diagnostic routines that continuously monitor response latencies to ensure deterministic control loop performance.
- Field input loop impedance of 250 Ohms for stable signal damping and EMI mitigation.
- Wide operating temperature range suitable for harsh industrial conditions.
Applications
This module is typically deployed in safety-critical applications where high-reliability analog output control is required, including emergency shutdown systems (ESD), burner management systems (BMS), and critical process control loops in hazardous areas.
Technical Specifications
| Model |
2401L |
| Brand |
Triconex |
| Signal Range |
0-10 VDC |
| Resolution |
12-bit |
| Accuracy |
+/-0.1% of full scale |
| Response Time |
Less than 2 ms |
| Isolation Voltage |
1500 VDC |
| Input Impedance |
250 Ohms |
| Current Consumption |
2 A maximum @ 24 VDC |
| Power Consumption |
20 W maximum |
| Operating Temperature |
-40 to 70 deg C |
Installation Guidelines
- Ensure the system power is completely disconnected before inserting or removing the module from the chassis.
- Handle the module using proper ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
- Verify that the module is fully seated in the designated backplane slot and that all retaining screws are tightened to ensure proper grounding and mechanical stability.
- Route field wiring away from high-voltage power cables and sources of electromagnetic interference to maintain signal integrity.
- Ensure adequate ventilation in the cabinet to maintain operating temperatures within the specified -40 to 70 deg C range.
FAQ
Is the 2401L suitable for hazardous area applications?
Yes, the 2401L is designed for use in safety-instrumented systems within hazardous industrial environments, provided it is installed in accordance with the relevant safety standards and local electrical codes.
What is the primary function of the optical isolation?
The 1500 VDC optical isolation protects the system backplane and central processing unit from potential damage caused by electrical surges, transients, or ground loops originating from the field-side wiring.
