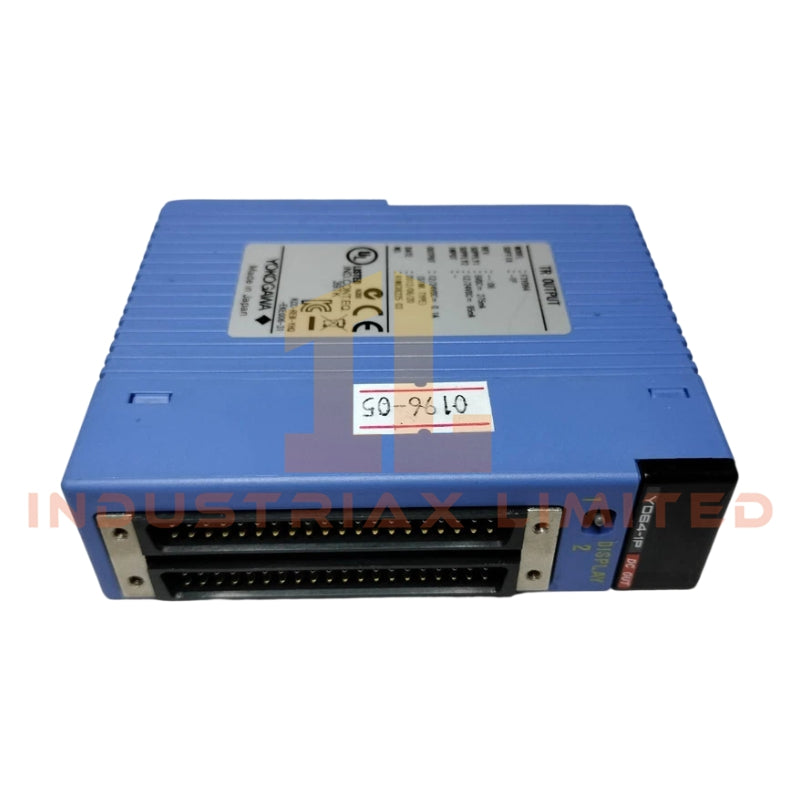

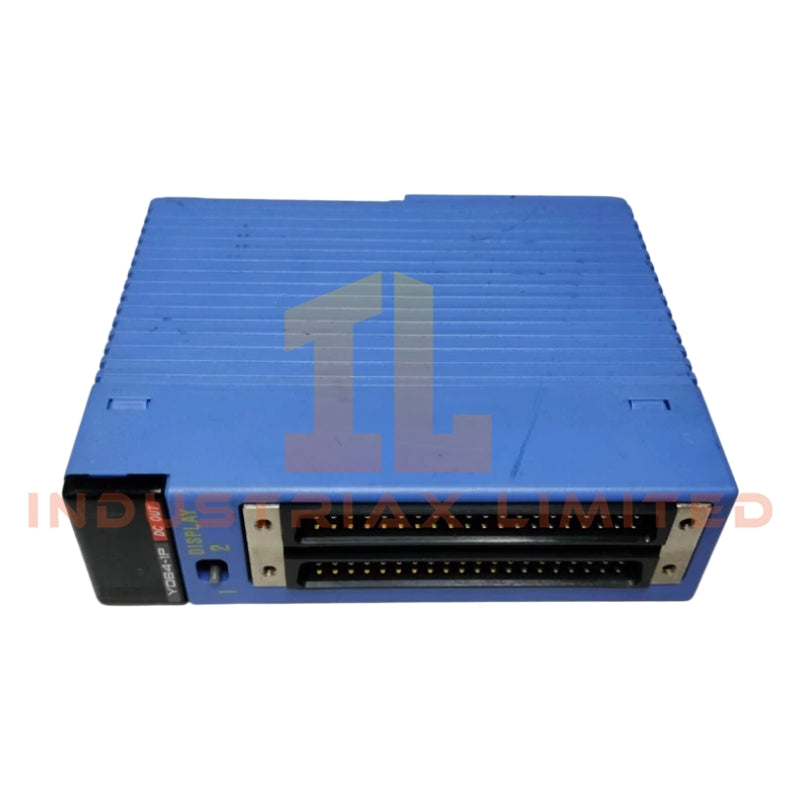

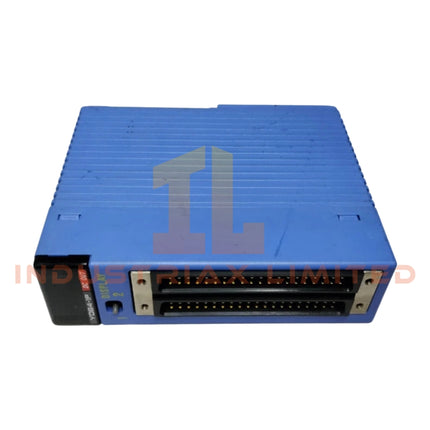

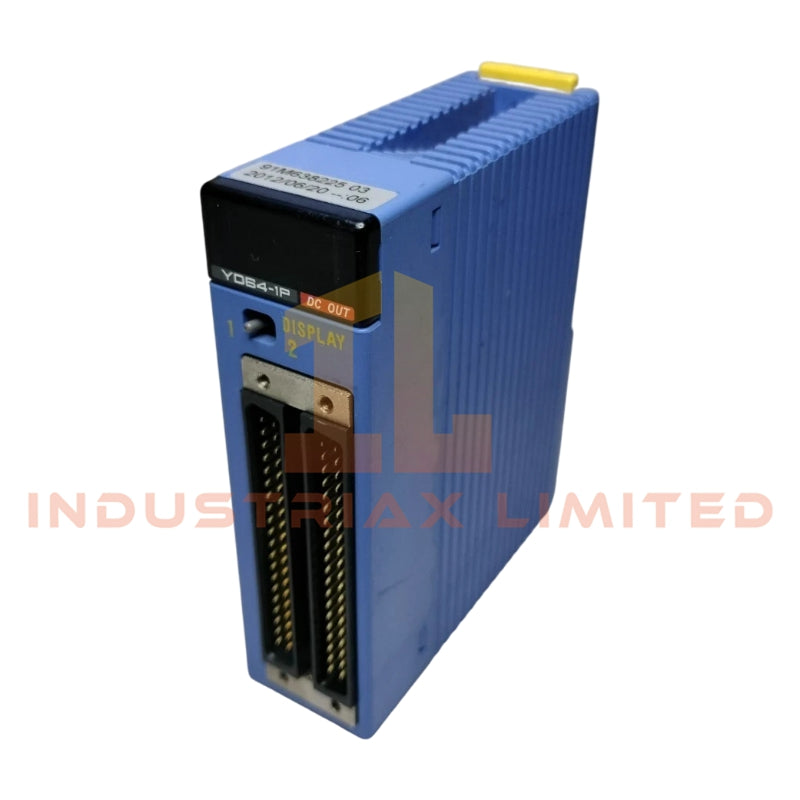

Yokogawa F3YD64-1P Transistor Output Module

The Yokogawa F3YD64-1P, also cataloged as the F3YD64-1P Transistor Output Module, operates as a dedicated hardware component for digital signal switching and load driving within DCS control platforms.

Hardware Specifications

Parameter	Specification
ModelBrand	F3YD64-1P
Origin	Yokogawa
Weight	0.13 Kg
Dimensions	2.89 cm x 8.32 cm x 10 cm
OperatingTemp	Standard industrial temperature range (consult Yokogawa installation guidelines)
PowerConsumption	275 mA @ 5 VDC
Number of Points	64
Output Type	Transistor contact (sink type)
Common Line Type	8 points/common
Isolation Method	Photocoupler isolation
Withstanding Voltage	1500 VAC for 1 min between external terminals and internal circuit
Rated Load Voltage	12 to 24 VDC (Operating range: 10.2 to 26.4 VDC)
Maximum Load Current	0.1 A/point, 0.4 A/common
Response Time	OFF→ON: 1 ms max, ON→OFF: 1 ms max
ON Voltage Drop	0.5 VDC max
Off-Time Leak Current	0.1 mA max
Service Life	Mechanical — Protectors include short-circuit current limit, overheat shutdown, active clamp surge protection
Output Status on Program Stop	HOLD/RESET depending on CPU type
External Power Supply	12 to 24 VDC, 95 mA
External Connection	Two 40-pin connectors

Channel-to-Channel Isolation and DCS Integration

The F3YD64-1P features channel-to-channel photocoupler isolation to prevent cross-talk and maintain signal integrity. The module supports direct interfacing with 4-20 mA HART loops in distributed control systems. Cold junction compensation is not required for transistor-level outputs but recommended in mixed analog/digital environments for system consistency.

Frequently Asked Questions

Q: Can the F3YD64-1P be hot-swapped in an active backplane?
A: No, the module requires the system power to be off before insertion or removal to prevent load shorting and data corruption.

Q: What is the maximum cumulative current for all 8-point commons?
A: Up to 0.4 A per common bus for 64-point configuration, with individual points limited to 0.1 A.

Q: Does firmware need to be updated for module recognition in a DCS system?
A: The module operates as a standard hardware output card; firmware updates are CPU-dependent, not module-dependent.

Field Installation Guidelines

1. Mount the module using the designated 40-pin connector alignment; ensure secure seating to avoid intermittent contacts.
2. Maintain proper shielding and grounding for all output cables to minimize electromagnetic interference.
3. Separate high-current load lines from signal-level wiring to avoid cross-talk or leakage.
4. Confirm external 12–24 VDC power supply stability and polarity before powering the module.
5. Avoid exposure to excessive vibration or temperature beyond the standard industrial range.
6. Verify output commons and point assignments match the DCS configuration to prevent short circuits.
