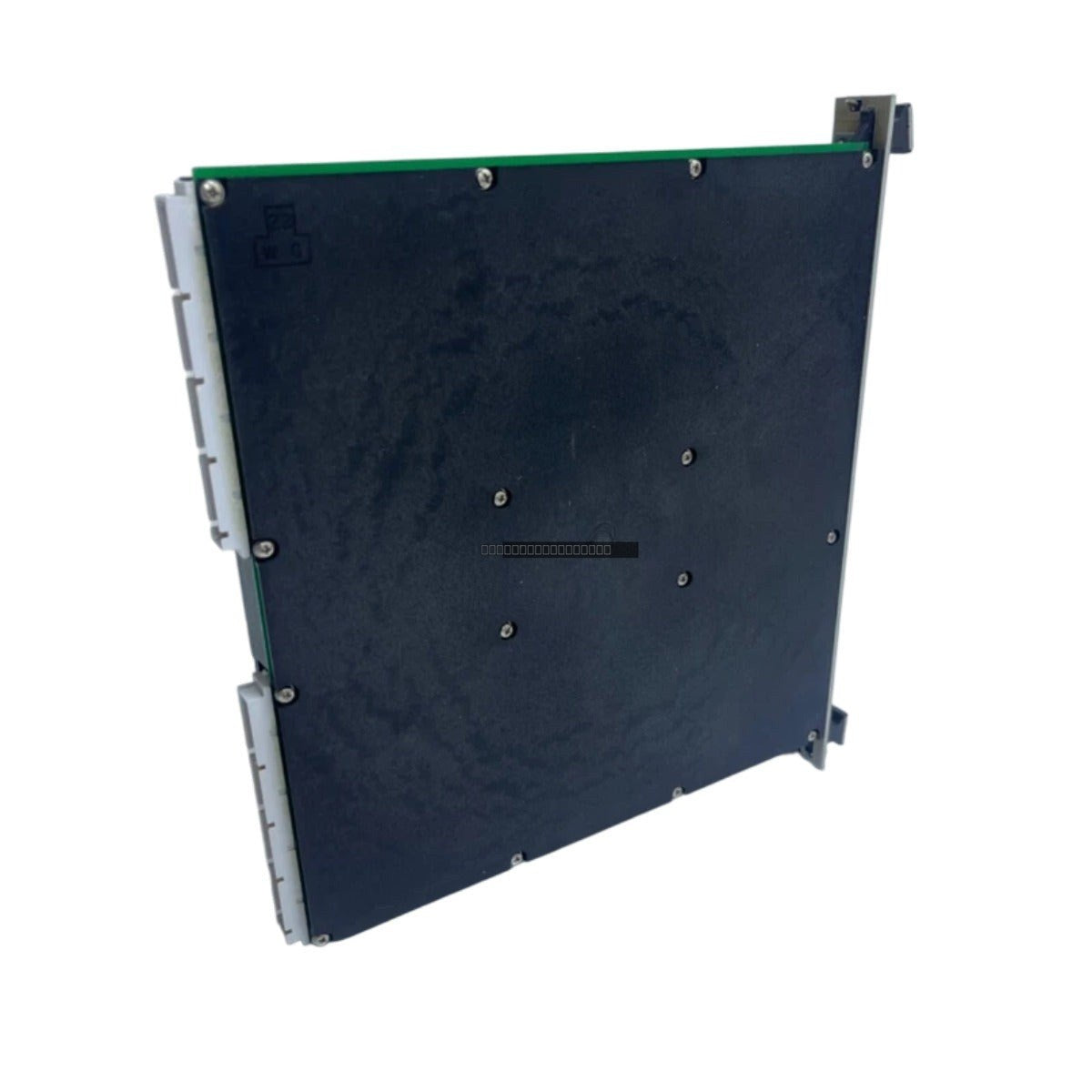

The Woodward 5462-744 is a dedicated I/O module designed for integration within the MicroNet control system architecture. This module serves as a critical interface component, facilitating the processing of digital input signals and the generation of precise analog control signals for industrial automation applications.

Features

• Designed specifically for the Woodward MicroNet platform.
• Equipped with 16 discrete digital inputs rated for 24 V dc operation.
• Provides 2 isolated 4–20 mA analog outputs for actuator or process control.
• Optimized for low power consumption with a typical draw of 6 W.
• Robust construction suitable for standard industrial control cabinet environments.

Technical Specifications

Model Number	5462-744
Manufacturer	Woodward
Supply Voltage	24 V dc
Power Consumption	6 W (typical)
Digital Inputs	16 x 24 V dc
Analog Outputs	2 x 4–20 mA
Operating Temperature	0 degC to +60 degC
Storage Temperature	-40 degC to +85 degC
Relative Humidity	5% to 95% (non-condensing)

Installation Guidelines

• Ensure the MicroNet rack is powered down before inserting or removing the 5462-744 module to prevent electrical damage.
• Verify that the 24 V dc power supply meets the module's voltage requirements and is properly grounded.
• Use shielded cabling for all analog output signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Maintain adequate clearance around the module to allow for proper heat dissipation and airflow.
• Handle the module using standard ESD (electrostatic discharge) precautions to protect sensitive internal circuitry.

FAQ

Is the Woodward 5462-744 compatible with other MicroNet modules?
Yes, this module is designed for use within the Woodward MicroNet system. Please ensure your specific control configuration supports the I/O mapping for this part number.

What is the typical power consumption for this unit?
The module is highly efficient, with a typical power consumption of 6 W during standard operation.
