Description

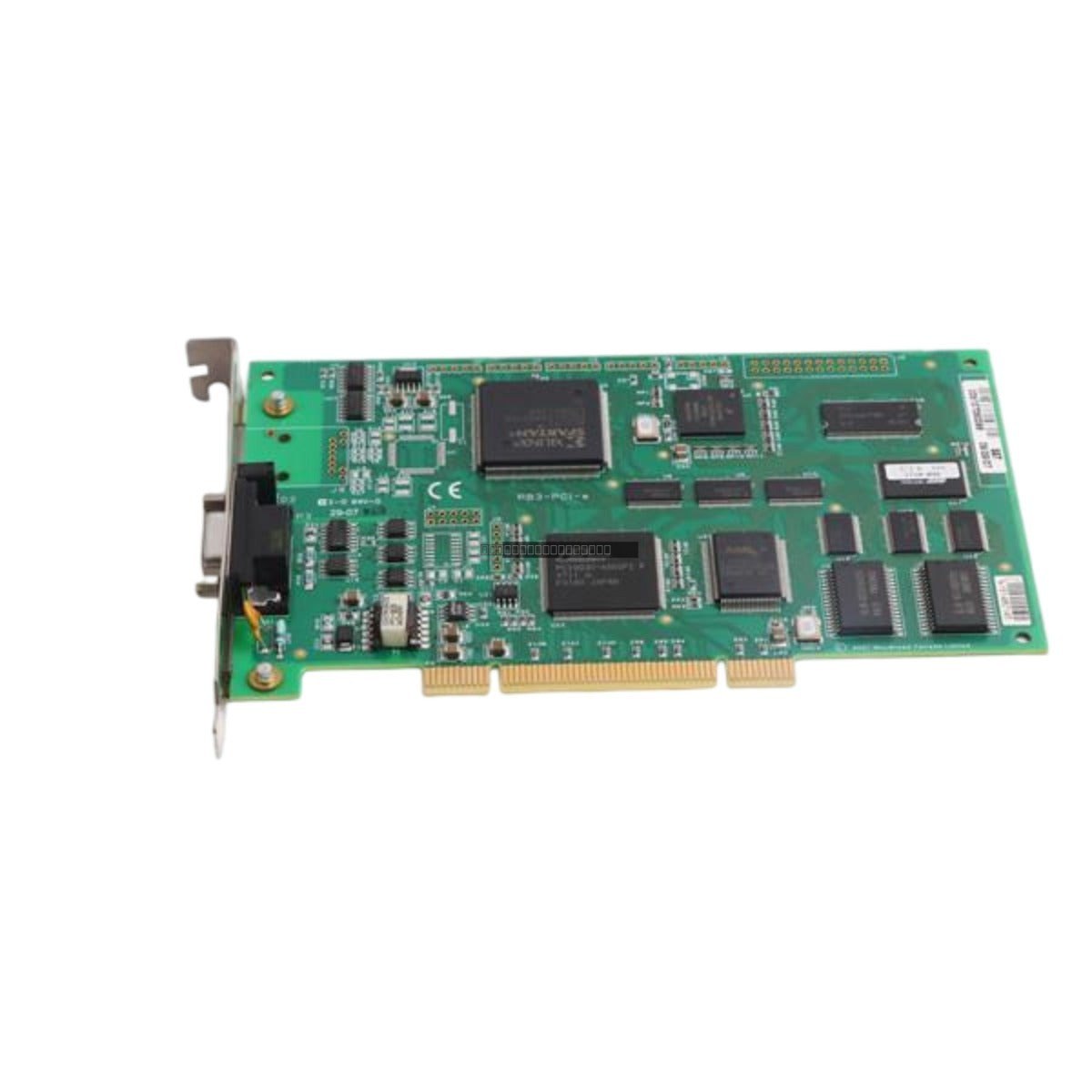

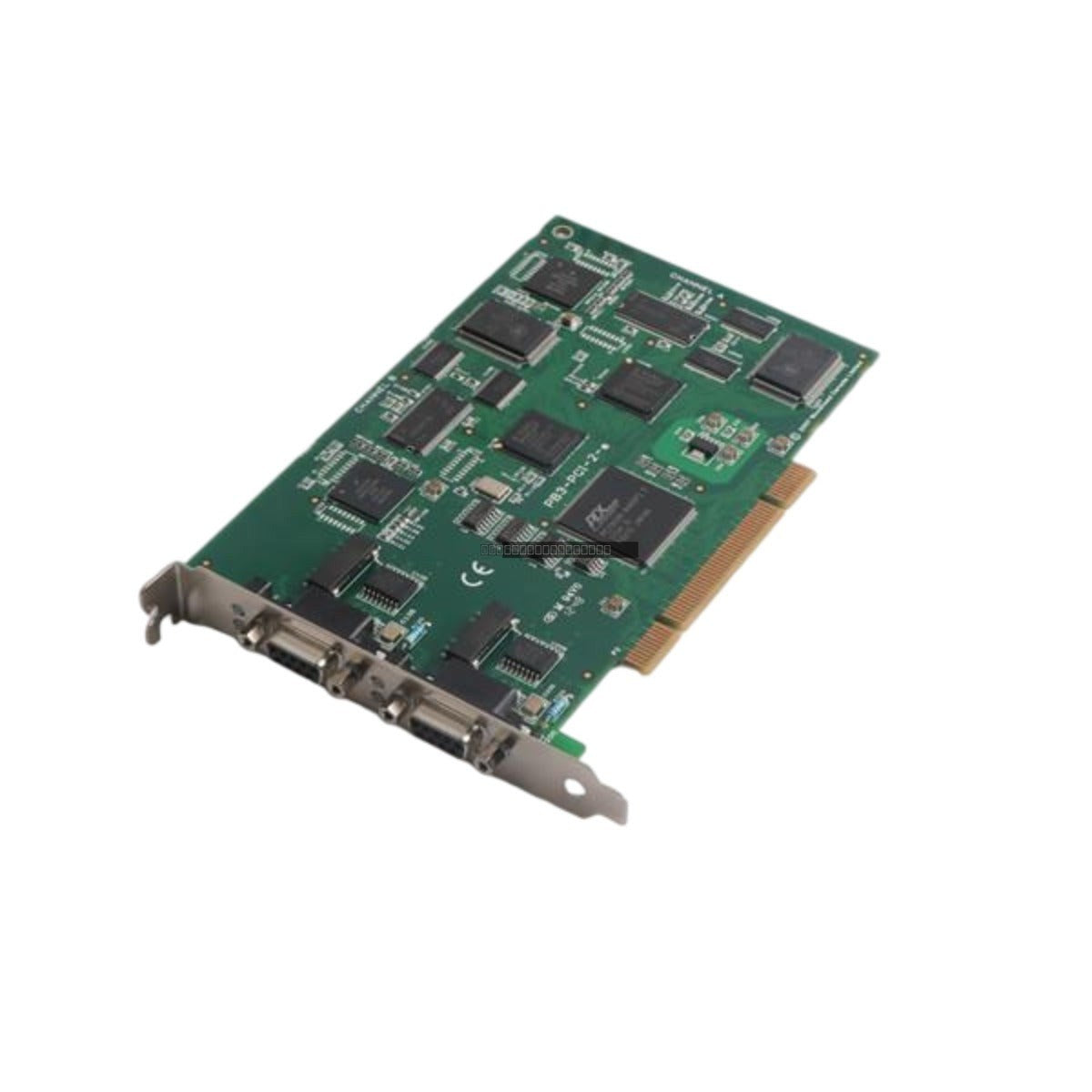

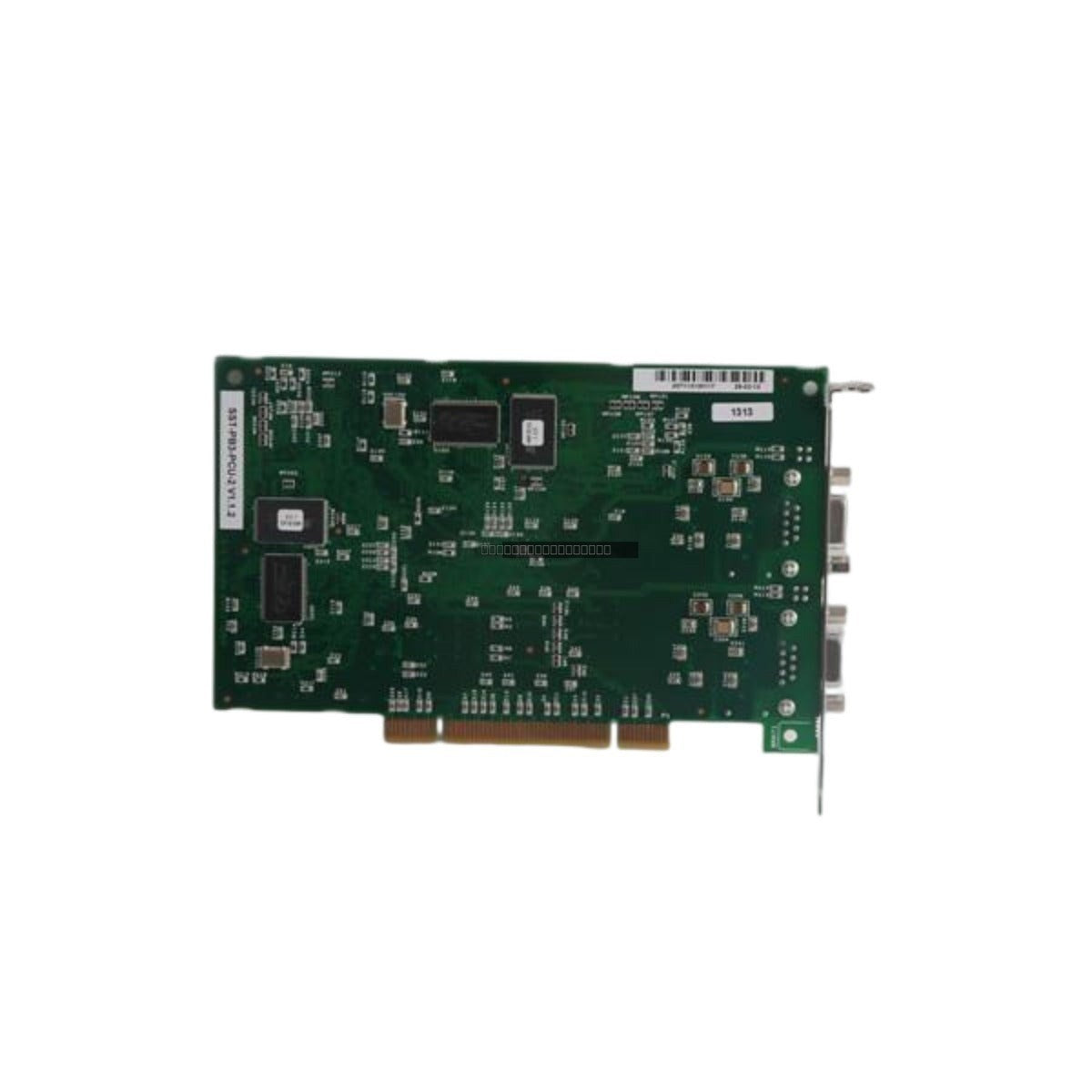

The Woodward SST-PB3-PCU is a robust communication interface card engineered for PCI bus-based industrial computing systems. This module serves as a bridge for high-speed data exchange, allowing industrial PCs to participate in PROFIBUS DP and MPI networks. By offloading protocol management to an internal processor, the card maintains deterministic communication performance, making it a reliable component for demanding control applications in sectors such as energy production, petrochemical processing, and automated manufacturing.
Features
- Integrated on-board processor for dedicated PROFIBUS protocol stack handling, reducing host CPU utilization.
- Supports DP-V0, DP-V1, and MPI communication standards for versatile network integration.
- Galvanic isolation provided to mitigate the impact of electrical interference and transient voltages.
- Universal PCI interface design compatible with both 3.3 V and 5 V bus architectures.
- Optimized for low-latency data throughput in critical industrial automation environments.
Applications
This interface card is typically deployed in industrial control systems requiring reliable connectivity between supervisory PCs and PROFIBUS-enabled field devices. Its primary use cases include data acquisition, supervisory control, and synchronization of distributed I/O across large-scale plant networks.
Technical Specifications
| Model |
SST-PB3-PCU |
| Brand |
Woodward (Molex) |
| Bus Type |
PCI 32-bit (Universal 3.3 V / 5 V) |
| Protocols |
PROFIBUS DP-V0, DP-V1, MPI |
| Operating Temperature |
0 to 60 deg C |
| Weight |
0.12 kg |
Installation Guidelines
- Ensure the host system is powered down and disconnected from the main power source before inserting or removing the card.
- Handle the card by its edges and utilize proper ESD (Electrostatic Discharge) precautions to prevent damage to internal components.
- Verify that the PCI slot is free of debris and properly aligned before seating the card.
- Ensure that the PROFIBUS cabling is correctly shielded and routed away from high-voltage power lines to minimize EMI.
- Secure the mounting bracket to the chassis to provide adequate mechanical support and proper grounding.
FAQ
What protocols does the SST-PB3-PCU support?
The card supports PROFIBUS DP-V0, DP-V1, and MPI communication protocols.
Is this card compatible with older industrial PCs?
Yes, the card features a universal PCI interface that supports both 3.3 V and 5 V signaling, allowing for integration into a wide range of legacy and modern industrial computing hardware.
Does this card require specific drivers?
Yes, integration typically requires the appropriate Woodward/Molex software stack or drivers installed on the host operating system to manage the PROFIBUS communications.
