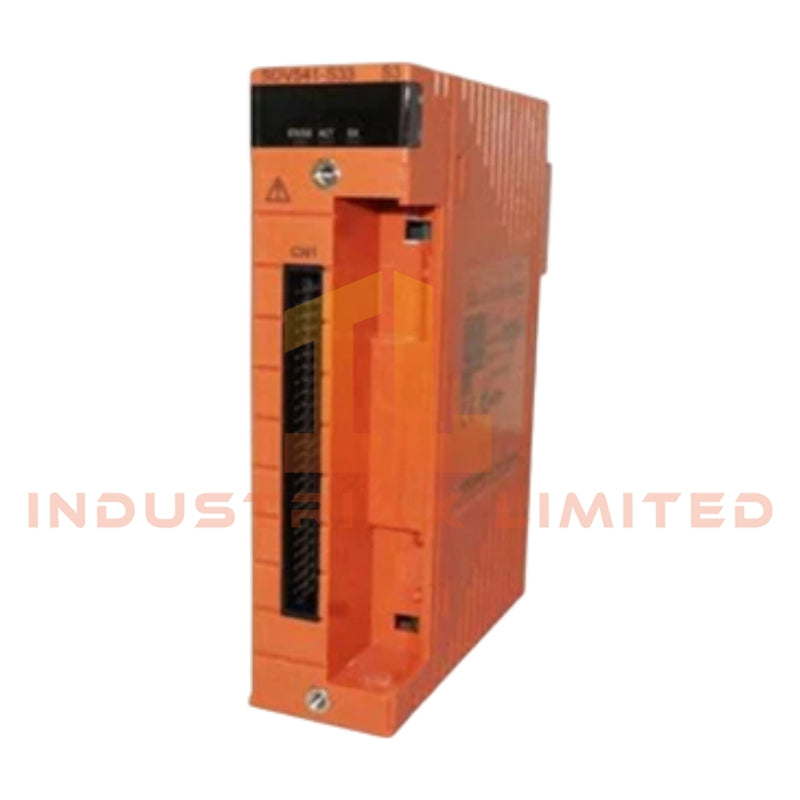

Yokogawa SNT501-53 Optical ESB Bus Repeater Slave Module

The Yokogawa SNT501-53 serves as the primary SNT501 Optical ESB Bus Repeater Slave Module utilized to execute electrical-to-optical ESB bus signal conversion across ProSafe-RS and CENTUM communication platforms. The module operates as a slave-side optical repeater for long-distance ESB network extension through fiber-optic transmission paths.

Suffix Breakdown & Model Matrix

Suffix	Specification
3	ISA Standard G3 compliant coating and operating temperature range of -20 degC to +70 degC (maintenance-purpose specification)

Hardware Specifications

Parameter	Specification
Model	SNT501-53
Brand	Yokogawa
Origin	Japan
Product Type	Optical ESB Bus Repeater Slave Module
Base Model	SNT501
Function	ESB bus optical transport and signal regeneration
Network Topology	Star and Chain
Maximum Connection Stages	2 stages
Transmission Distance	Up to 5 km (2-stage total)
Extended Transmission Distance	Up to 10 km under supported Vnet/IP systems (R1.03 or later)
Downstream Connection	ESB Bus connection to SSB401 interface module
Current Consumption	0.5 A
Operating Temp	-20 degC to +70 degC
Corrosion Protection	ISA Standard G3
Weight	Approx. 0.3 kg

Channel Isolation and Fiber-Optic Communication

The SNT501-53 performs signal conversion between electrical ESB bus communication and optical transmission media. The fiber-optic communication path provides galvanic separation between network segments and eliminates conductive coupling through the transmission medium. Communication integrity is maintained through optical signal regeneration at the repeater interface while supporting extended-distance ESB network architectures.

Frequently Asked Questions

Q: Can the SNT501-53 be installed in redundant optical communication paths?
A: The module is designed for deployment in paired communication architectures and is commonly installed in adjacent slot arrangements supporting dual bus structures within ESB networks.

Q: What network topologies are supported by the module?
A: The module supports both Star and Chain connection topologies as specified for ESB bus network extension.

Q: Does the SNT501-53 provide explosion protection certification?
A: No. The suffix code "5" identifies the module as a version supplied without explosion protection.

Field Installation Guidelines

• Verify compatibility between the slave module and the corresponding optical ESB bus repeater master module before installation.
• Observe minimum bend radius requirements for fiber-optic cabling during routing and cabinet entry.
• Keep optical connectors clean and protected from dust contamination prior to connection.
• Confirm slot assignment according to system architecture, especially in dual-bus or redundant communication configurations.
• Inspect fiber termination quality before commissioning long-distance communication links.
• Maintain cabinet grounding in accordance with site electrical standards even though communication is transmitted through optical media.
• Perform communication diagnostics and link verification after module replacement or network modifications.
